deactivate passenger airbag CITROEN NEMO 2010 Owners Manual

15
FAMILIARISATION
Familiarisation
PASSENGER SAFETY
Passenger’s front airbag
The passenger’s front airbag is deactivated by
means of the MENU button, located to the right
of the steering wheel.
Seat belt not fastened

A. Driver’s seat belt not fastened warning
lamp.

 101
 105 Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.

 91

1. Press the MENU button.

2. Select "Bag" and confi rm by pressing the
MENU button.

3. Select "OFF" and confi rm by pressing the
MENU button.

4. Select "YES" and confi rm by pressing the
MENU button.

22

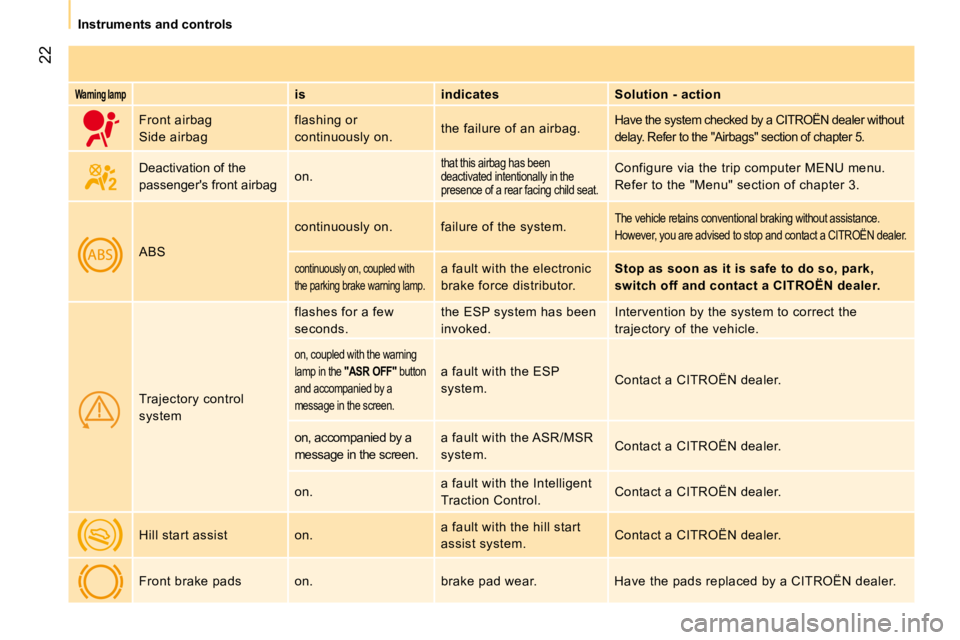

Instruments and controls

Warning lamp
is indicates Solution - action

Front airbag
Side airbag flashing or
continuously on.
the failure of an airbag. Have the system checked by a CITROËN dealer without

delay. Refer to the "Airbags" section of chapter 5.
Deactivation of the
passenger's front airbag on. that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system.

The vehicle retains conventional braking without as
sistance.
However, you are advised to stop and contact a CITR OËN dealer.
continuously on, coupled with
the parking brake warning lamp. a fault with the electronic
brake force distributor.
Stop as soon as it is safe to do so, park,
switch off and contact a CITROËN dealer.
Trajectory control
system flashes for a few
seconds.
the ESP system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.

on, coupled with the warning
lamp in the "ASR OFF" button
and accompanied by a
message in the screen.
a fault with the ESP
system. Contact a CITROËN dealer.
on, accompanied by a
message in the screen. a fault with the ASR/MSR
system.
Contact a CITROËN dealer.
on. a fault with the Intelligent
Traction Control. Contact a CITROËN dealer.
Hill start assist on. a fault with the hill start
assist system. Contact a CITROËN dealer.
Front brake pads on. brake pad wear. Have the pa ds replaced by a CITROËN dealer.

3
TECHNOLOGY ON BOARD
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger's
airbag) ON
Yes
Activate the passenger's
airbag.
No
OFF Yes
Deactivate the passenger's
airbag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

111
5
SAFETY
Child safety
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses
keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
To protect young children from the sun, fit
side blinds on the rear windows.
