CITROEN NEMO 2014 Handbook (in English)

11 9
5
SAFETY



Seat belts


FRONT SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.

Fastening

Pull the strap, then insert the tongue into the
buckle.
Check that the seat belt is fastened correctly
by pulling the strap.
The lap belt must be positioned as low as
possible on the pelvis. The chest belt must
pass over the hollow of the shoulder.

Inertia reel seat belts

These are fitted with a device which locks
automatically in the event of a collision or
emergency braking.
Safety in the event of a front impact has
been improved by the introduction of
pretensioning and force limiting seat belts.
Depending on the seriousness of the
impact, the pretensioning system instantly
tightens the seat belt against the body of the
occupant.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt against the body of the occupant in
the event of an accident.


Driver's seat belt not fastened warning
lamp
When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.

REAR SEAT BELTS (COMBI)

The 3-seat bench is fitted with three-point
inertia reel seat belts with force limiter.
The centre seat has a seat belt guide and
inertia reel, integrated with the seat back.
When a seat belt is not in use, you can
store its buckle in the housing provided
in the bench seat cushion.
If the driver's seat belt is unfastened,
the START mode of Stop & Start will
not be invoked. The engine can only be
restarted using the ignition key.

120
Seat belts


Good practice

The driver must ensure that all passengers
fasten their seat belts correctly.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is reeled in
automatically when not in use.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat, ensure that
the seat belt has reeled in correctly into its
compartment and that the buckle is ready to
accommodate the tongue. The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The equipment fitted to these seat belts is
operational when the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.


The airbag warning lamp comes
on if the pretensioners are
deployed. Contact a CITROËN or
a qualified workshop.
Depending on the nature and seriousness of
any impact, the pretensioning device may be
deployed before and independently of infl ation
of the airbags. It instantly tightens the seat
belts against the body of the occupants.
The deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system. In order to be effective, a seat belt must:


- restrain one person only,

- must not be twisted, check by pulling in
front of you with an even movement,

- be tightened as close to the body as
possible.
The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.
Recommendations for children:


- use a suitable child seat if the passenger
is less than 12 years old or less than one
and a half metres tall,

- never allow a child to travel on your lap,
even with the seat belt fastened.
For further information regarding child
seats, refer to the "Children on board"
section of chapter 5.
In accordance with current safety
regulations, for all work on your vehicle,
refer to a qualified workshop that has the
skills an equipment needed, all of which can
be provided by a CITROËN dealer.
Have the seat belts checked regularly (even
after a minor impact) by a CITROËN dealer
or a qualified workshop: they must not show
any signs of wear, cutting or fraying and they
must not be transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product,
available from CITROËN dealers.

121
5
SAFETY



Airbags


AIRBAGS

The airbags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:


- in the event of a serious impact, the
airbags infl ate instantly and contribute
towards best protecting the occupants of
the vehicle. Immediately after the impact,
the airbags defl ate rapidly, so that they do
not hinder the visibility of the occupants
nor their possible exit from the vehicle.
- in the event of a minor or rear impact
and in certain roll-over conditions, the
airbags will not be deployed; the seat belt
alone contributes towards providing your
protection in these situations.
The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.
Airbags only operate when the
ignition is switched on.
This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
operate.
The deployment of an airbag or airbags is
accompanied by a slight discharge of smoke
and some noise, due to the activation of the
pyrotechnic cartridge incorporated in the
system.
This smoke is not harmful, but sensitive
individuals may experience some irritation.
The noise of the detonation may result in a
slight loss of hearing for a short time.
It is imperative that the passenger
airbag is deactivated if a child seat is
installed facing rearwards. Refer to "Children
on board" in section 5.

122



Airbags



LATERAL AIRBAGS


Deployment
It is deployed unilaterally in the event of a
serious side impact, perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
outside towards the inside of the vehicle.
The lateral airbag inflates between the
front occupant of the vehicle and the
corresponding door trim panel.

In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
Operating fault
If this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified
workshop without delay to have
the system checked. The airbags
may no longer be deployed in the
event of a serious impact.

123
5
SAFETY



Airbags



FRONT AIRBAGS

The front airbags are fitted in the centre of
the steering wheel for the driver and in the
dashboard for the front passenger.

Deployment
They are deployed simultaneously, unless
the passenger's front airbag has been
deactivated, in the event of a serious front
impact.
The front airbag inflates between the front
occupant of the vehicle and the dashboard
to cushion their forward movement.

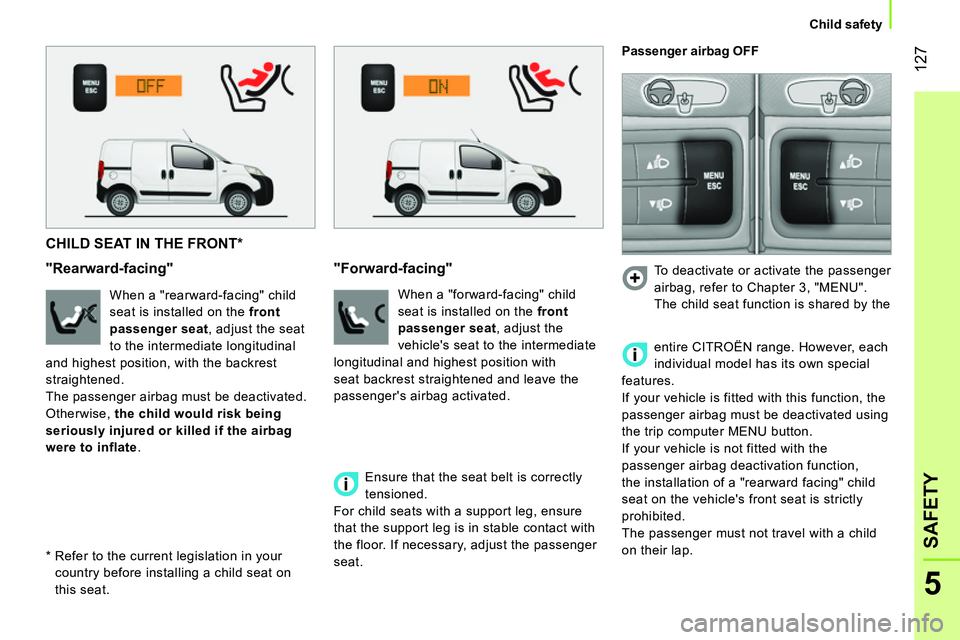

Deactivation of the passenger's airbag
Only the passenger's front airbag can be
deactivated. The airbag is deactivated from
the trip computer.
The airbag warning lamp in the
instrument panel is on while the
airbag is deactivated. To assure the safety of your child, you
must deactivate the passenger airbag
when you install a reaward facing child seat
on the front passenger seat. Otherwise, the
child would risk being killed or seriously
injured if the airbag were to inflate.

Refer to the "MENU" section of
chapter 3, then select OFF
on the
"Passenger airbag" menu.
Operating fault


If the two airbag warning lamps are on
continuously, do not install a rearward
facing child seat.
Have it checked by a CITROËN dealer or a
qualified workshop.
If this warning lamp comes
on in the instrument panel,
accompanied by an audible signal
and a message in the screen,
contact a CITROËN dealer or a qualified
workshop without delay to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact.

124



Airbags



For the airbags to be fully effective,
observe the following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation
of the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag systems must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of slight burns
to the head, chest or arms when an airbag
is deployed cannot be ruled out. In fact,
the bag inflates almost instantly (within a
few milliseconds) then deflates within the
same time, discharging the hot gas through
openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
dashboard.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags
Only put approved covers on the seats,
compatible with the deployment of lateral
airbags. For information on the range of
seat covers suitable for your vehicle, you
can contact a CITROËN dealer. Refer to the
"Accessories" section.
Do not fix or attach anything to the seat
backs. This could cause injury to the chest
or arms when the lateral airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

125
5
SAFETY



Child safety










GENERAL POINTS RELATING TO
CHILD SEATS


Although one of CITROËN main criteria
when designing your vehicle, the safety of
your children also depends on you.

*
The rules for carrying children are specific
to each country. Refer to the legislation in
force in your country.
For maximum safety, please observe the
following recommendations:


- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight
, on seats fitted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in your
vehicle for carrying children are the
rear seats,

- a child weighing less than 9 kg must
travel in the "

rearward
facing" position
both in the front and in the rear.


















CITROËN recommends
that
children should travel on the rear
seats
of your vehicle:


- "rearward-facing"
up to the age of 3,

- "forward-facing"
over the age of 3.

126



Child safety










CHILD SEAT AT THE REAR (COMBI)


"Rearward facing"


When a "rearward facing" child seat is
installed on a rear passenger seat
, move
the vehicle's front seat forwards and
straighten the backrest so that the "rearward
facing" child seat does not touch the
vehicle's front seat.



"Forward facing"


When a "forward facing" child seat is
installed on a rear passenger seat
, move
the vehicle's front seat forwards and
straighten the backrest so that the legs of
the child in the "forward facing" child seat do
not touch the vehicle's front seat.


Ensure that the seat belt is correctly
tightened. For child seats with a
support leg, ensure that the support leg is in
stable contact with the floor.

127
5
SAFETY



Child safety










CHILD SEAT IN THE FRONT *


"Rearward-facing"


When a "rearward-facing" child
seat is installed on the front
passenger seat
, adjust the seat
to the intermediate longitudinal
and highest position, with the backrest
straightened.
The passenger airbag must be deactivated.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to inflate
.


*
Refer to the current legislation in your
country before installing a child seat on
this seat.


"Forward-facing"


When a "forward-facing" child
seat is installed on the front
passenger seat
, adjust the
vehicle's seat to the intermediate
longitudinal and highest position with
seat backrest straightened and leave the
passenger's airbag activated.

Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg, ensure
that the support leg is in stable contact with
the floor. If necessary, adjust the passenger
seat.
To deactivate or activate the passenger
airbag, refer to Chapter 3, "MENU".
The child seat function is shared by the
entire CITROËN range. However, each
individual model has its own special
features.
If your vehicle is fitted with this function, the
passenger airbag must be deactivated using
the trip computer MENU button.
If your vehicle is not fitted with the
passenger airbag deactivation function,
the installation of a "rearward facing" child
seat on the vehicle's front seat is strictly
prohibited.
The passenger must not travel with a child
on their lap.






Passenger airbag OFF

AR
BGНИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. То в а можеда причини СМЪРТ или
СЕРИОЗНО НАРАНЯВАНЕ на детето.
CS NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí
SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DA Brug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DE Verwenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahrtrichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE
VERLETZUNGEN können die Folge sein.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε
μια θέση που προστατεύεται από ΜΕΤΩΠΙΚΟ
αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
EN NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can
occur
ES NO INSTALAR NUNCA EL SISTEMA DE RETENCIÓN PARA NIÑOS DE ESPALDAS AL SENTIDO DE LA CIRCULACIÓN SOBRE UN ASIENTO
PROTEGIDO CON UN COJÍN INFLABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR LA MUERTE DEL BEBE O HERIRLO
GRAVEMENTE.
ET Ärge kasutage kunagi lapse turvatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib põhjustada lapsele
RASKEID VIGASTUSI või SURMA.
FI ÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen laukeaminen voi
aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FR NE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT
HR NIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi moglo
uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
128



Child safety


Label present on both sides of the passenger's sun visor
