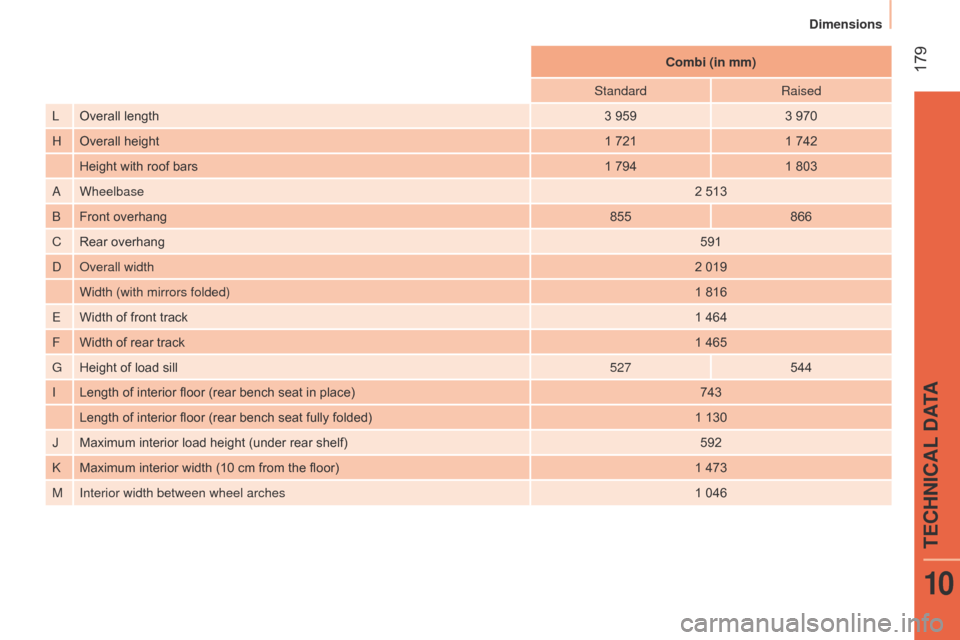

179Combi (in mm)
Standard Raised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7941 803
aWheelbase 2 513
bFront overhang855866
C Rear overhang 591
do
verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA
180DIESEL ENGINES1.4 litre HDi 70 hp1.3 litre HDi 75 hp
Gearboxes ManualManualElectronic
Gears 555
EU standard maximum power (kW)* 5055
Cubic capacity (cc) 13991 248
Bore x stroke (mm) 73.7 x 8269.6 x 82
Max power engine speed (rpm) 4 0003 750
EU standard max torque (
n m) 160 190
Max torque engine speed (rpm) 2 7501 750
Fuel
d
iesel
d
iesel
Catalytic converter Ye sYe s
Particle emissions filter (PEF)
n
oYe s
Stop & Start
n
oYe s
Engine oil capacity with filter replacement (litres) 3.83.0
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines
181PETROL ENGINE1.4 litre 75 hp
Gearbox Manual
Gears 5
EU standard maximum power (kW)* 54
Cubic capacity (cc) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (
n m) 11 8
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Stop & Start
n
o
Engine oil capacity with filter replacement (litres) 3.0
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines
TECHNICAL DATA
10
182
WEIGHTS AND TOWED LOADS
The maximum weights and towed loads
for your vehicle are given are given in the
registration document, as well as in sales
brochures.
These values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section). The kerb weight is equal to the unladen
weight
+ driver (75 kg).
The gross train weight and towed load values
indicated apply up to a maximum altitude
of 1
000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1
000 metres.High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit
the towed weight.
Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is
reduced (comply with the legislation in force in
your country).
For information on the maximum trailer weight
for your vehicle, contact a CITR
o Ë n dealer or
a qualified workshop. The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.
In all countries, it is essential to comply with
the local legislation on towed loads.
Weights
183
IDENTIFICATION MARKINGS
A. Manufacturer's plateB. Serial number on the body
C. Paint code
D. Serial number on the dashboard
E. Tyre pressures
1.
VF
Type serial number.
2.
Gross vehicle weight (GVW).
3.
Gross train weight (GTW).
4.
Maximum weight on front axle.
5.
Maximum weight on rear axle.
Identification markings
TECHNICAL DATA
10
