Changing a fuse

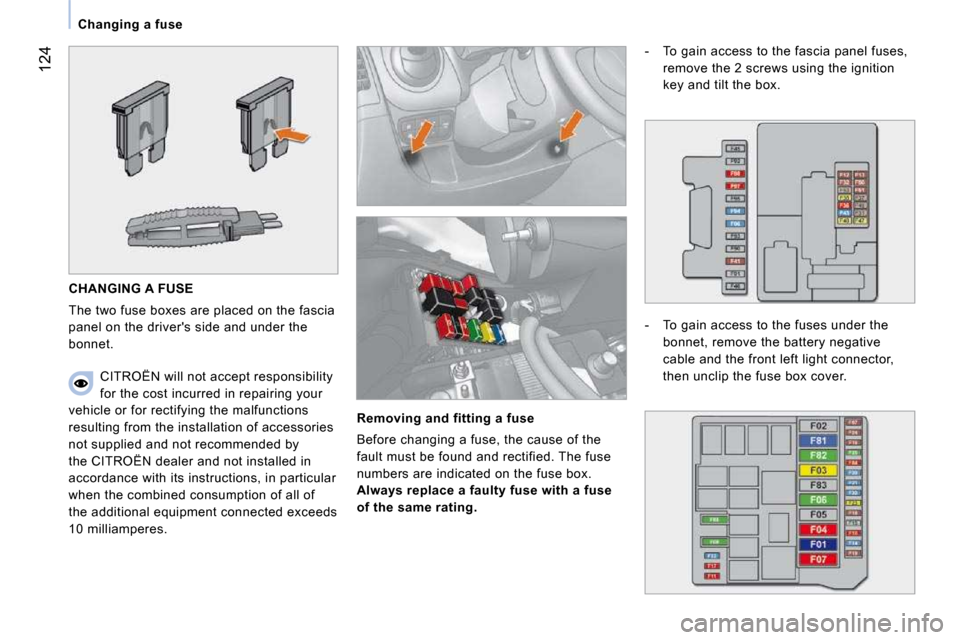

CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver's side and under the
bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

Always replace a faulty fuse with a fuse
of the same rating. - To gain access to the fascia panel fuses,
remove the 2 screws using the ignition
key and tilt the box.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
the CITROËN dealer and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

126
Changing a fuse
FUSES IN THE ENGINE

Identifi cation mark
Amperage
Functions
F01 60 A Control unit
F03 20 A Starter supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed fan assembly control
F07 40 A High speed fan assembly control
F08 30 A Air conditioning unit pump
F10 10 A Horn
F11 10 A Engine management secondary charge supply
F14 15 A Main beam headlamps
F16 7.5 A Engine management control unit - piloted manual ge arbox control unit
F17 15 A Supply for ignition coil, injectors, engine manage ment central unit
F18 7.5 A Engine management control unit (1.4 HDi)
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, electric exterior m irrors de-icing heaters
F21 15 A 1.4 petrol engine management, T09 (HDi) relay coil
F22 20 A Engine management control unit (1.4 HDi), petrol p ump
F23 20 A ABS hydraulic block solenoid valves supply
F24 7.5 A ABS
F30 15 A Fog lamps
F81 60 A Pre-heat unit
F82 30 A Piloted manual gearbox pump - piloted manual gearb ox supply
F84 10 A Piloted manual gearbox control unit and solenoid v alves
F85 30 A Lighter - 12 V accessories socket
F87 7.5 A Reversing lights - water in diesel sensor

124
Changing a fuse
CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver's side and under the
bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

Always replace a faulty fuse with a fuse
of the same rating. - To gain access to the fascia panel fuses,
remove the 2 screws using the ignition
key and tilt the box.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
the CITROËN dealer and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

125
7
TROUBLESHOOTING
Changing a fuse

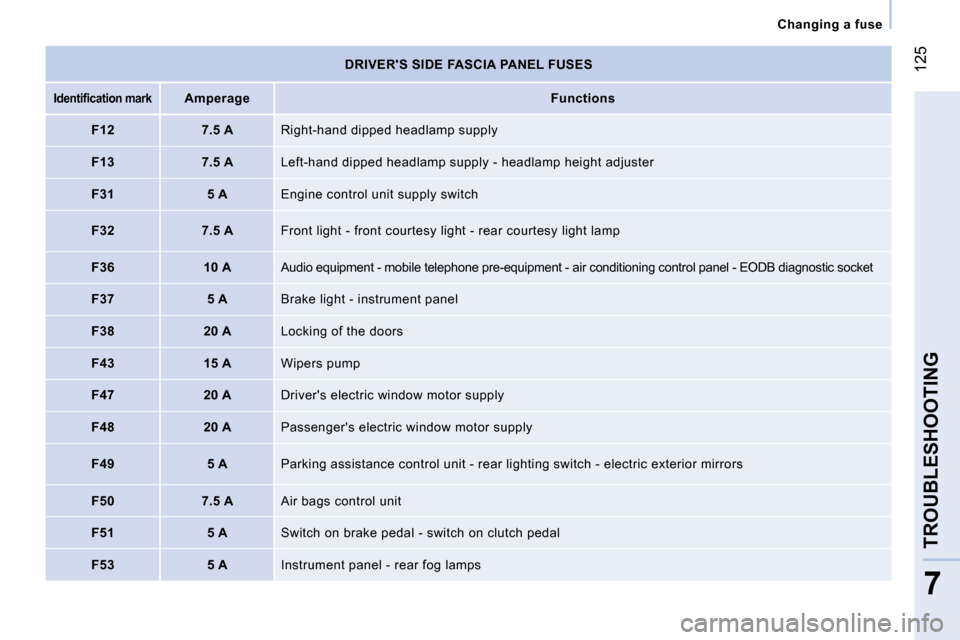

DRIVER'S SIDE FASCIA PANEL FUSES

Identifi cation mark
Amperage
Functions
F12 7.5 A Right-hand dipped headlamp supply
F13 7.5 A Left-hand dipped headlamp supply - headlamp height adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front light - front courtesy light - rear courtesy light lamp
F36 10 A Audio equipment - mobile telephone pre-equipment - air conditioning control panel - EODB diagnostic socket
F37 5 A Brake light - instrument panel
F38 20 A Locking of the doors
F43 15 A Wipers pump
F47 20 A Driver's electric window motor supply
F48 20 A Passenger's electric window motor supply
F49 5 A Parking assistance control unit - rear lighting sw itch - electric exterior mirrors
F50 7.5 A Air bags control unit
F51 5 A Switch on brake pedal - switch on clutch pedal
F53 5 A Instrument panel - rear fog lamps

7
TROUBLESHOOTING
Having your vehicle towed
BEING TOWED
Without lifting (four wheels on the ground)
You must always use a towbar.

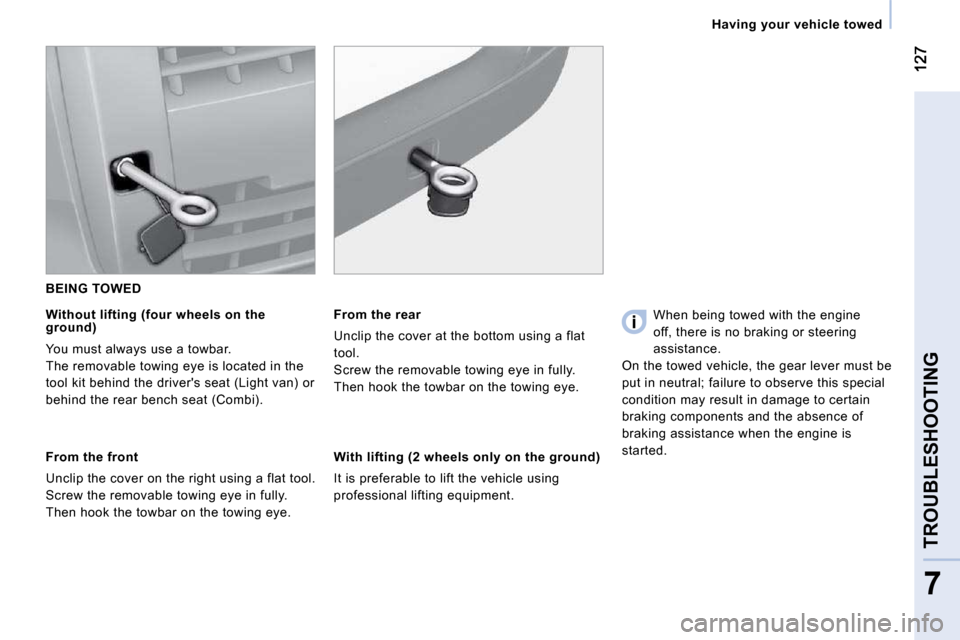

The removable towing eye is located in the
tool kit behind the driver's seat (Light van) or
behind the rear bench seat (Combi).
From the front
Unclip the cover on the right using a flat tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
From the rear
Unclip the cover at the bottom using a flat
tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
With lifting (2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment. When being towed with the engine
off, there is no braking or steering
assistance.
On the towed vehicle, the gear lever must be
put in neutral; failure to observe this special
condition may result in damage to certain
braking components and the absence of
braking assistance when the engine is
started.

128

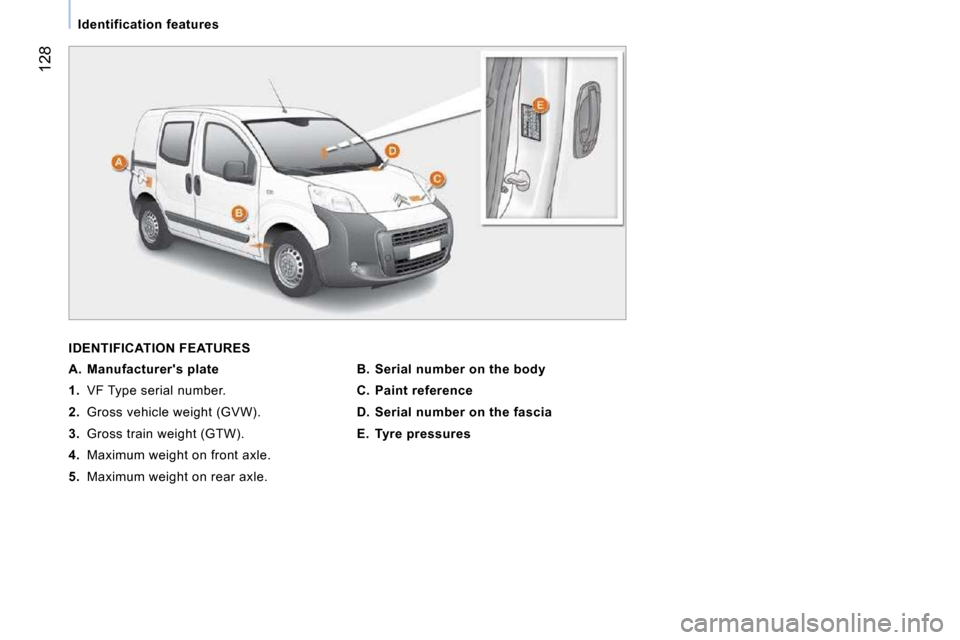

Identification features
IDENTIFICATION FEATURES

A. Manufacturer's plate

1. VF Type serial number.

2. Gross vehicle weight (GVW).

3. Gross train weight (GTW).

4. Maximum weight on front axle.

5. Maximum weight on rear axle.
B. Serial number on the body

C. Paint reference

D. Serial number on the fascia

E. Tyre pressures

129
7
TROUBLESHOOTING
Fuel
FILLING WITH FUEL
Low fuel level
When the minimum fuel tank
level is reached, this warning
light comes on. At this moment,
you have approximately 6 litres
remaining. Fill up without delay to avoid
running out of fuel.
The fuel tank must be filled with the
engine off .
- Open the fuel filler flap.
- Support the cap with one hand.
- With the other hand, insert the key, then turn it a third of a turn.
- Remove the cap. When the fuel filler flap is open, a
safety system prevents sliding of the
side door.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
The capacity of the fuel tank is
approximately 45 litres.
After filling the fuel tank, lock the cap and
close the flap.
FUEL CIRCUIT DEACTIVATED
In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also triggers the automatic unlocking of
the doors and switching on of the courtesy
lights. A message appears on the instrument
panel display according to version.
Turn the key to the STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.
Re-activation
To set off again, restore the fuel supply and
the electrical supply manually:
- with the key in the STOP position, turn
the key to the RUNNING position,
- push the direction indicators control up fully,
- place it in the "Off" position,
- press the direction indicators control down fully,
- return it to the "Off" position,
- push it up fully again,
- return it to the "Off" position,
- press it down fully again,
- return it to the "Off" position,
- turn the key to the STOP position.

131
7
TROUBLESHOOTING
Opening the bonnet

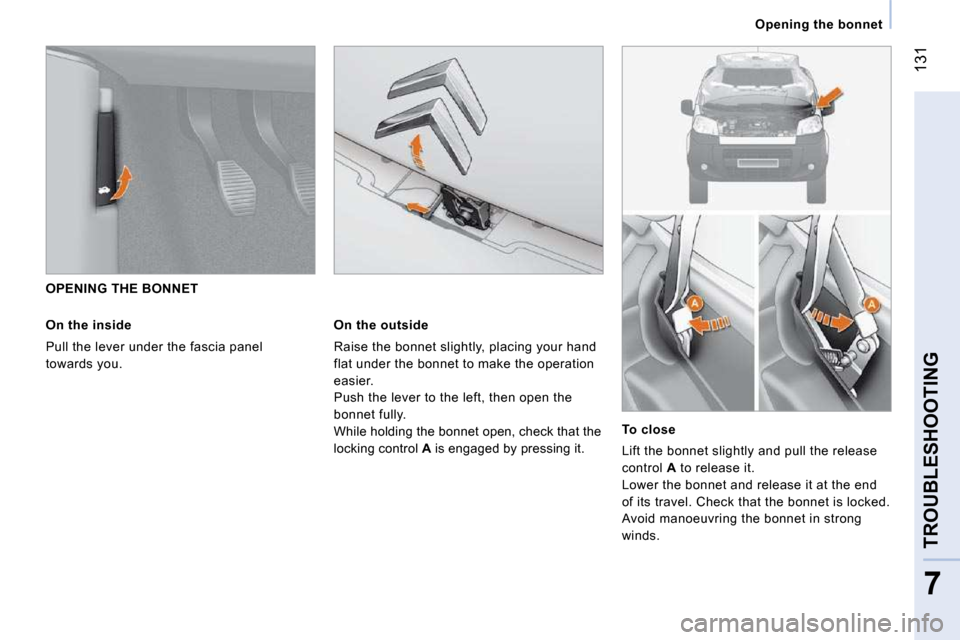

OPENING THE BONNET
On the inside
Pull the lever under the fascia panel
towards you.
On the outside
Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the lever to the left, then open the
bonnet fully.
While holding the bonnet open, check that the
locking control A is engaged by pressing it.
To close
Lift the bonnet slightly and pull the release
control A to release it.
Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
Avoid manoeuvring the bonnet in strong
winds.

132
Under the bonnet
Diesel engine

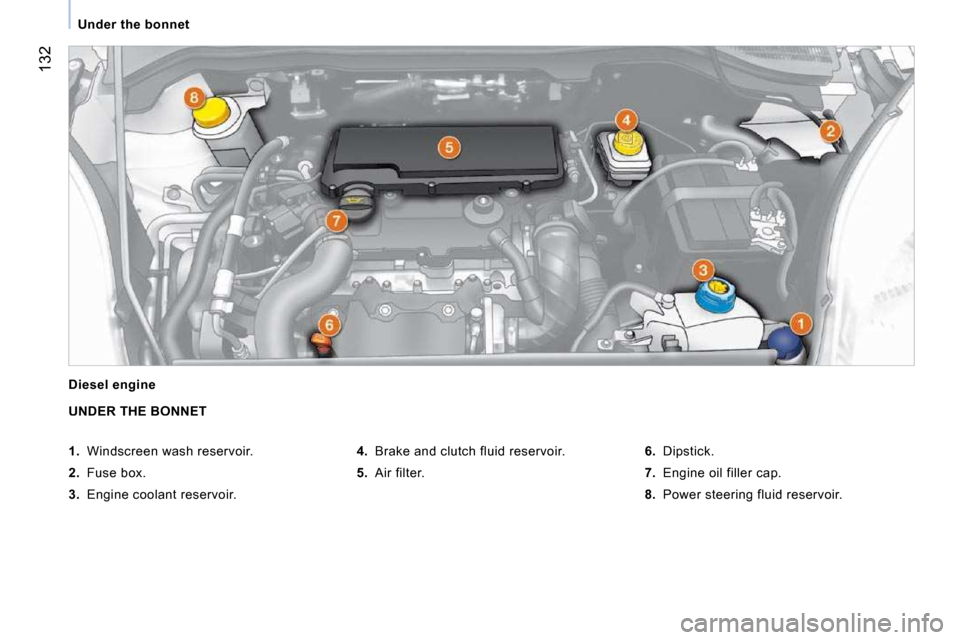

UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.
6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

133
7
TROUBLESHOOTING
Under the bonnet
Petrol engine

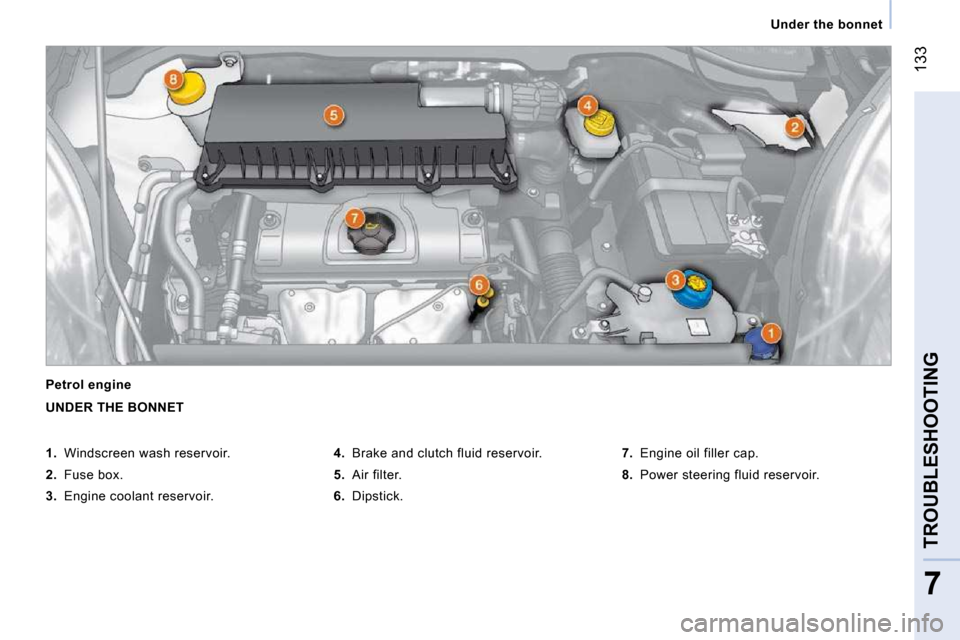

UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.
7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.
