Citroen NEMO DAG 2010.5 1.G Manual PDF

63
2
Engines
TECHNICAL DATA

PETROL ENGINE

1.4 litre 75 hp

Gearbox Manual
Gears 5
EU standard maximum power (kW) 54
Cubic capacity (cc) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Stop & Start No
Engine oil capacity with fi lter replacement (litres) 3.0

64
Weights

WEIGHTS
Consult your registration certifi cate.
In each country, it is imperative that the towed loads permi tted by local legislation are complied with. For information regarding your vehicle's
towing possibilities and its gross train weight, consult a CI TROËN dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Load transfer
If the towing vehicle has not reached the GVW, it is possib le to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Light van
Model codes

Engines 1.4 litre HDi 70 hp 1.3 litre HDi 75 hp 1.4 l itre 75 hp
Gearboxes Manual Manual Electronic Manual
Gross vehicle weight

Kerb weight (without driver)
Payload (with driver)

65
2
Weights
TECHNICAL DATA

Combi (with side-hinged rear doors)
Model codes
Engines 1.4 litre HDi 70 hp 1.3 litre HDi 75 hp 1.4 l itre 75 hp
Gearboxes Manual Manual Electronic Manual
Gross vehicle weight

Kerb weight (without driver)
Payload (with driver)


Combi (with tailgate)
Model codes
Engines 1.4 litre HDi 70 hp 1.3 HDi 75 hp 1.4 litre 7 5 hp
Gearboxes Manual Manual Electronic Manual
Gross vehicle weight

Kerb weight (without driver)
Payload (with driver)

Trip computer
TRIP COMPUTER/CONFIGURATION - PERSONALISATION OF THE VEHICLE
If TRIP B is activated on MENU :
- Trip B,
- Average fuel consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for more than
two seconds to return to the home screen.
Level 1 screen:
- Speed (Speed beep).
- Time (Setting the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger's airbag).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.
6666
Using the TRIP button, located at the end of
the wiper stalk, you can display the following
information in succession: - Range,
- Trip A,
- Average fuel consumption A,
- Current fuel consumption A,
- Average speed A,
- Trip duration A.

3
TECHNOLOGY ON BOARD
Menu

Level 2 and 3 screens:

Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...

1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF

2 Activate Trip B ON Activate
Display a second route "Trip B".
OFF Deactivate
6767
The control panel located to the left of the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems. Eight languages are available: Italian,
English, German, French, Spanish,
Portuguese, Dutch and Turkish.
As a safety precaution, the menus can only be
accessed when the ignition is off (engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

This button enables
you to:
- access the menus and sub-menus,
This button enables you to:
- scroll up through a menu ,
- increase a value.

This button enables you to:
- scroll down through a menu,
- decrease a value.
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
home screen.

Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour

4 Set the date Year/Month/Day Increase
Set the date.
Decrease

5 See radio ON
Display the name of the station.
Display the CD track number.
OFF

6 Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h)
OFF
7 Measurement
unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the fuel consumption
display unit.
l/100 km

8 Language List of
languages
available Select the display language.

9 Volume of
announcements Increase
Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).
Decrease
68
Menu

3
TECHNOLOGY ON BOARD
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

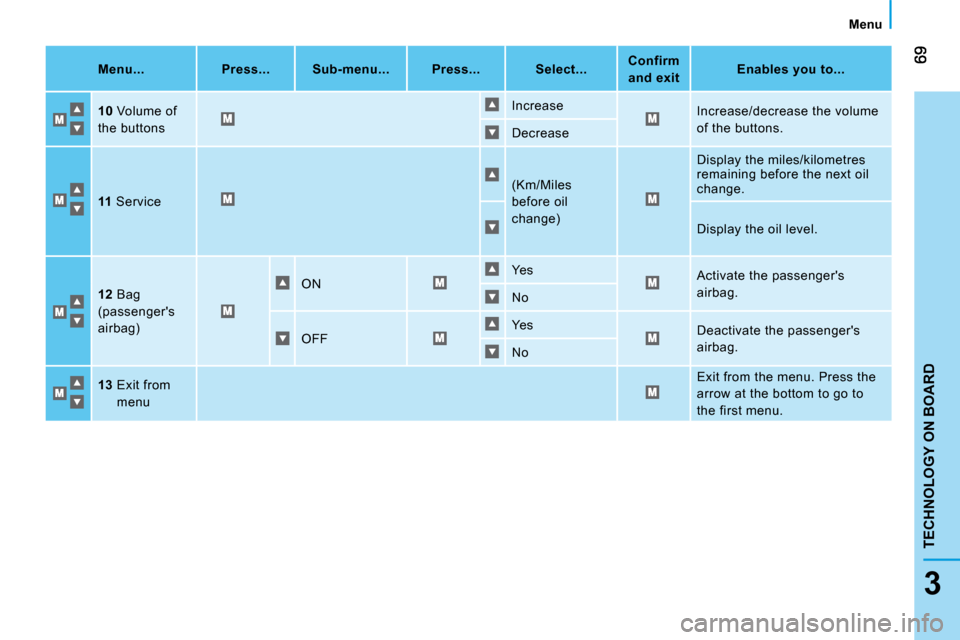

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger's
airbag) ON
Yes
Activate the passenger's
airbag.
No
OFF Yes
Deactivate the passenger's
airbag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

Parking sensors
REAR PARKING SENSORS
The audible system consists of four
proximity sensors, fitted in the rear bumper.
It detects any obstacle which enters the
field: person, vehicle, tree, fence, behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
This system does not take the place of the
vigilance and responsibility of the driver. Stop the assistance
Change to neutral.
Operating fault
If this warning lamp or the service
warning lamp comes on in the
instrument panel, accompanied
by a message in the screen,
contact a CITROËN dealer.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
Engage reverse gear
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated automatically
if a trailer is being towed. You are advised to
obtain a towbar recommended by CITROËN
and have it installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning lamp comes on,
possibly accompanied by a message in the
screen.
7070

71
3
TECHNOLOGY ON BOARD

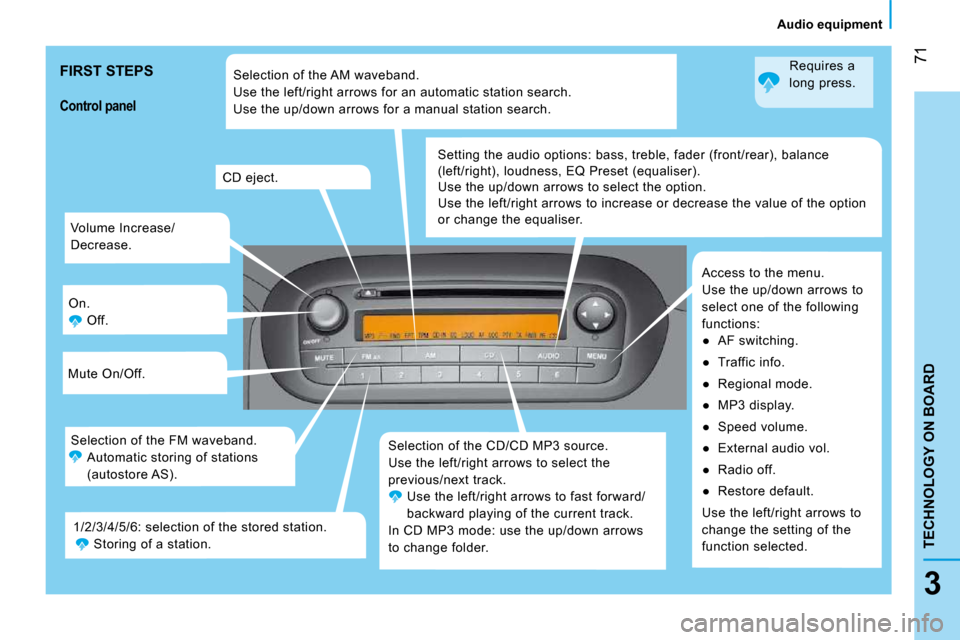

Audio equipment
Volume Increase/
Decrease.
On. Off.
Mute On/Off.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track. Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (fr
ont/rear), balance
(left/right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:

72
Audio equipment
FIRST STEPS

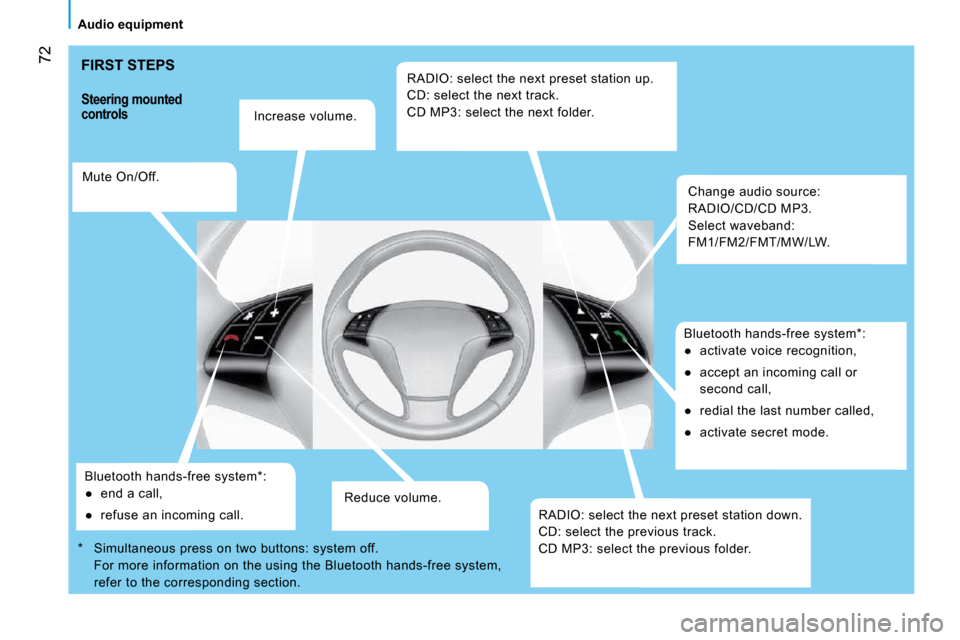

Steering mounted
controls
Increase volume.
Mute On/Off.
Bluetooth hands-free system * :
