Instruments and controls


FUEL GAUGE

The fuel level is tested each time the key is
turned to the "ignition on" position.
The gauge is positioned on:


- F (full):
the capacity of the fuel tank is
approximately 45 litres
.

- E (empty):
the reserve is now being
used, the warning lamp comes on
continuously.
The reserve when the warning first comes
on is approximately 6 litres.

COOLANT TEMPERATURE


The needle is positioned between C
(cold) and H (hot):
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
- wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN or a qualified workshop. EMISSION CONTROL

EOBD (European On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:


- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles detected
by oxygen sensors placed upstream and
downstream of the catalytic converters.
Refer to the "Levels" section of
chapter 7. Refer to the "Levels" section of
chapter 7.
The driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.
What you should do if the needle
enters the red zone, or if the warning
lamp comes on:


- stop immediately, switch off the ignition.
The cooling fan may continue to operate
for a certain time up to approximately
10 minutes.

30



Instruments and controls

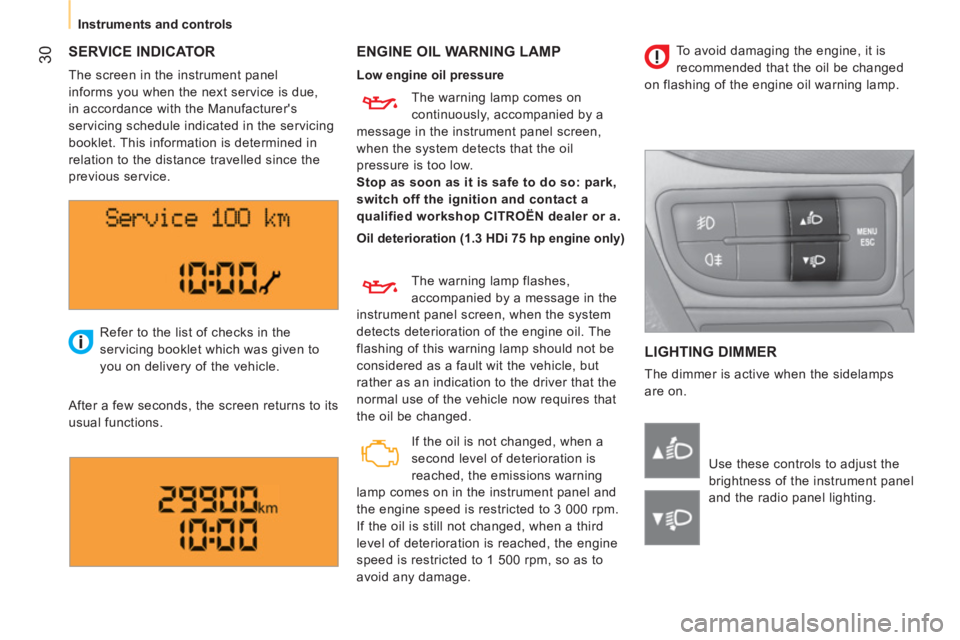

SERVICE INDICATOR

ENGINE OIL WARNING LAMP

LIGHTING DIMMER

The dimmer is active when the sidelamps
are on. Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle.
After a few seconds, the screen returns to its
usual functions.
Use these controls to adjust the
brightness of the instrument panel
and the radio panel lighting.
The screen in the instrument panel
informs you when the next service is due,
in accordance with the Manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
Low engine oil pressure

Oil deterioration (1.3 HDi 75 hp engine only) The warning lamp comes on
continuously, accompanied by a
message in the instrument panel screen,
when the system detects that the oil
pressure is too low.
The warning lamp flashes,
accompanied by a message in the
instrument panel screen, when the system
detects deterioration of the engine oil. The
flashing of this warning lamp should not be
considered as a fault wit the vehicle, but
rather as an indication to the driver that the
normal use of the vehicle now requires that
the oil be changed.
If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning
lamp comes on in the instrument panel and
the engine speed is restricted to 3 000 rpm.
If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1 500 rpm, so as to
avoid any damage. To avoid damaging the engine, it is
recommended that the oil be changed
on flashing of the engine oil warning lamp.


Stop as soon as it is safe to do so: park,
switch off the ignition and contact a
qualified workshop CITROËN dealer or a.

31
1
READY TO GO
Access


Central locking

Folding/unfolding the key
Unlocking of the vehicle

Unlocking the hinged rear doors or
the tailgate
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
If you do not press the button, the
mechanism may be damaged.


Deadlocking

The deadlocking is deactivated:


- by carrying out the door opening
operation,

- by turning the ignition key to the
RUNNING position.


REMOTE CONTROL

Press this button to unlock the
front doors only (Light van) or all
of the doors (Combi).
Unlocking is confirmed by two flashes of the
direction indicators.
Press this button to unlock the
load space (Light van) or the
hinged rear doors or the tailgate
only (Combi). Press this button briefly to lock all
of your vehicle's doors. Locking
is confirmed by a flash of the
direction indicators.
If one of the doors is open or is not closed
correctly, the central locking will not work. In
this case, the failed locking is indicated by
three flashes of the direction indicators. Press this button twice to change
locking to deadlocking.
Deadlocking renders the exterior
and interior door opening handles
inoperative. Do not leave anyone inside the
vehicle when it is deadlocked. Deadlocking
is confirmed by a flash of the direction
indicators.

32


Access




Opening the windows with the remote
control

Closing the windows using the remote
control
When closing the windows using the
remote control you must ensure that
nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel. This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.

33
1
READY TO GO
Access

KEY

This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine. REMOTE CONTROL BATTERY
Reference: CR2032/3 volts.
-
use the screwdriver as a lever to extract
the battery holder housing
2 ,

-
remove the housing and change the
battery
3 observing the polarities,

-
put the battery holder housing 2 back
inside the key and secure it by turning the
screw
1 .


Changing the remote
control battery
There is a risk of damage if the
replacement battery does not conform.
Only use batteries which are
identical or of an equivalent type to those
recommended by a CITROËN dealer. Take
used batteries to an approved collection
point.

- press the button to eject the
key,

- turn the screw 1 from the
closed padlock to the open
padlock using a screwdriver
with a thin tip,

34


Access



ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.

Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

When purchasing a second-hand vehicle:


- ensure that you are given the confidential
card,

- have the keys memorised by a CITROËN
dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.





CONFIDENTIAL CARD

This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.

35
1
READY TO GO
Access

ALARM

This provides:


- exterior perimeter protection by means of
detectors on the doors and bonnet and
on the electrical supply,

- interior protection,

- anti-tilt protection,

- protection against the unauthorised
insertion of a key in the starter.
The equipment includes a siren.


Activation of the alarm

First ensure that all of the accesses are
closed correctly.
The alarm is activated by
pressing this control, the
protection is active after a few
seconds.
While the alarm is monitoring, any intrusion
triggers the siren for approximately
30 seconds, accompanied by illumination of
the direction indicators.
The alarm then returns to monitoring mode.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.


Deactivation using the remote control

Deactivation using the key

Unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.


Deactivation of the volumetric and
anti-tilt protection
Good practice

To quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.
To avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.


Signalling of attempted intrusion

When you return to your vehicle,
flashing of the electronic engine
immobiliser warning lamp or
the appearance of a warning
message in the instrument panel display
indicates an attempted intrusion during your
absence.
To deactivate the volumetric
and anti-tilt protection, press the
button located in the vehicle's
courtesy lamp. To be effective,
this operation must be repeated every time
the ignition is switched off.

36


Access



OPENING FROM THE OUTSIDE


Driver's door

Use the remote control to unlock from the
outside.
Pull the handle towards you.
If the remote control does not work, insert
the metal part of the key in the lock on the
driver's side.


Sliding side door

Pull the handle towards you then towards
the rear.
Slide the door fully to pass the point of
resistance (Light van) or to engage the latch
which holds the door in the open position
(Combi).
When the fuel filler flap is open, a
safety system checks the sliding of the
side door (Combi).

Tailgate (Combi)

After unlocking the vehicle using the remote
control or the key, pull the central handle
and lift the tailgate. If your vehicle is parked on a slope,
guide the side door as it slides. The
door could open or close more quickly due
to the incline of the ground, risking injury.
As a safety precaution and to guarantee
correct operation, do not drive with the
sliding side door open.

37
1
READY TO GO
Access

OPENING FROM THE INSIDE


Driver's door

Pull the interior handle to unlock.

Active locking
: when the vehicle
speed approaches 12 mph (20 km/h), a
characteristic locking noise indicates that
your vehicle has been locked automatically.
This "AUTOCLOSE" function is activated or
deactivated via the "MENU".
This function is deactivated when the vehicle
is delivered.
Opening to 180°
Press the catch while opening the door.



Side-hinged rear doors

The 60/40 type asymmetrical hinged rear
doors have four closing points, including a
central closing point.
Pull the handle towards you.
Start by opening the large hinged door, then
unlock by pulling the lever to release and
open the small hinged door.
The two hinged doors open to 90°.
Driving with the small hinged door open is
permitted to make the transportation of long
loads easier. Observe the customary safety
indications, to attract the attention of other
drivers.

38


Access



Good practice
When opening, take care not to obstruct the
guide space on the floor to allow the door to
slide correctly.
Do not block traffic.



Load space
Sliding side door (Combi)

Pull the handle A
towards the rear, slide the
door fully to engage the latch which holds
the door in the open position (Combi).

Side-hinged rear doors

To open, slide the control B
to the right. If your vehicle is parked on a slope,
guide the side door as it slides. The
door could open or close more quickly due
to the incline of the ground, risking injury.
As a safety precaution and to guarantee
correct operation, do not drive with the
sliding side door open. Press once to unlock the sliding
side doors and the rear doors
(Light van) from the driving
position.


Tailgate (Combi)

In the event of a battery or central
locking fault, the tailgate can be released
mechanically from inside the boot.
Open the sliding side door and fold the rear
seats fully.
From inside the boot, press the lever to
release the tailgate.
