CONTENTS
Contents

174
Dimensions

175
DIMENSIONS

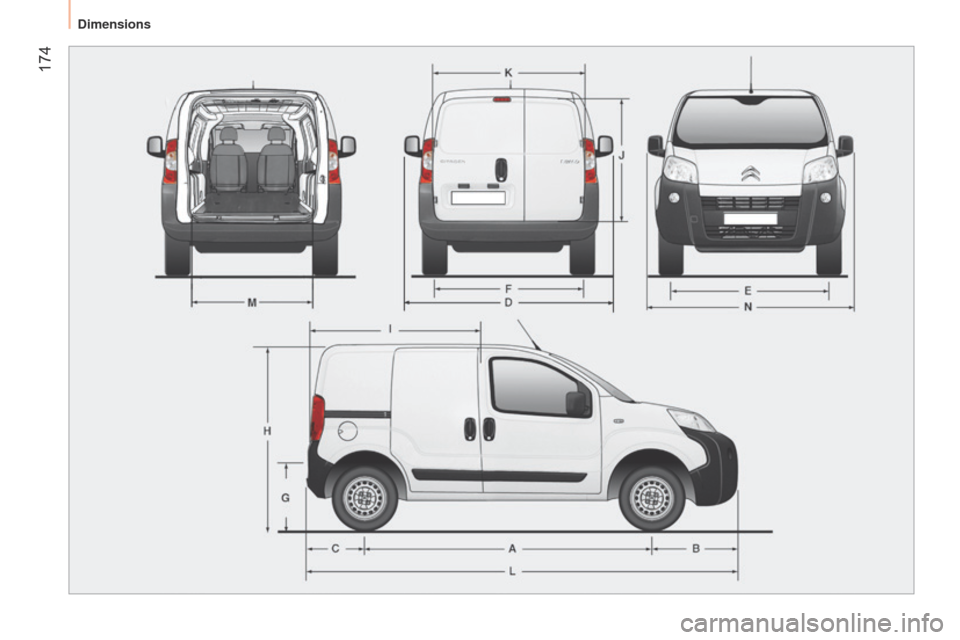

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length 3 8643 881
H Overall height 1 7211 742
Height with roof bars 1 7821 803
aWheelbase 2 513
bFront overhang760777
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 4691 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor 1 523
J Maximum interior load height 1 205
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
V

olume (m
3) 2.5
10
Dimensions
TECHNICAL DATA

176
Dimensions

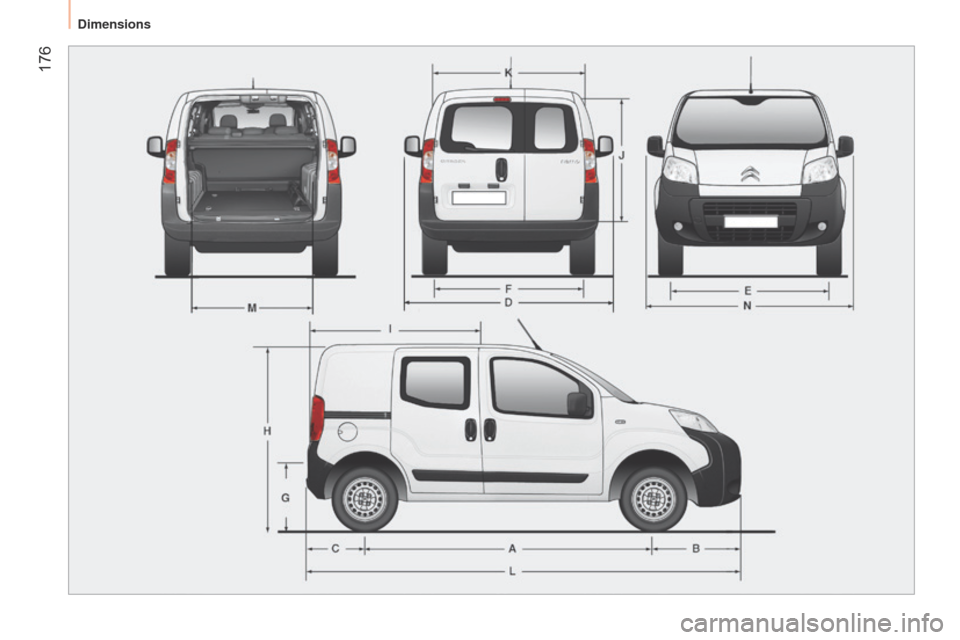

177Combi (in mm)
Standard Raised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
aWheelbase 2 513
bFront overhang855866
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

178
Dimensions

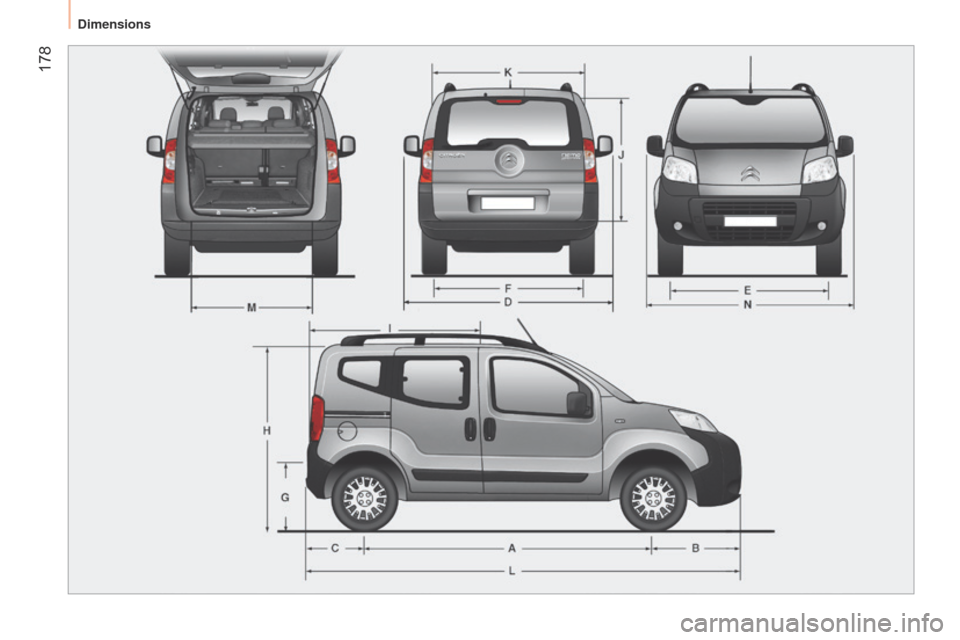

179Combi (in mm)
Standard Raised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7941 803
aWheelbase 2 513
bFront overhang855866
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA
