Reading the detailed sections is essential to make the
most of your vehicle, in complete safety.
Your vehicle is fitted with only some of the equipment
described in this document, depending on the trim
level, version and the specifications for the country in
which it is sold.
The fitting of electrical equipment or accessories
which are not recommended by CITRo Ë n may
result in a failure of your vehicle's electronic system.
Contact a CITR
o Ë n dealer for information on the
recommended equipment and accessories.
CITRoËn has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovati
on,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
We draw your attention to the following...
at the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Key
directs you to additional information,
indicates important information relating to the
use of a system
alerts you to the safety of individuals and the
use of vehicle systems.

2
nemo_en_Chap00a_sommaire_ed02-2014
4. 64-82
EASE OF USE and
COMFORT 6.

111-136
SAFETY
Front seats 64
Folding front passenger
seat
66
Rear bench seat


67
Demisting and
defrosting


71
Air conditioning


73
Front fittings


76
Load space fittings


78
Rear fittings


80
Interior lighting - courtesy

lamps
82
Exterior

4
Interior

6
Instruments and controls

12
T

echnical data - Maintenance

16d

ashboard and centre

console

18
1. 4-21
OVERVIEW
Parking brake 1
11
Hazard warning
lamps

1
11
Horn

1
12
Braking assistance systems

1
12
Trajectory control systems

1
13
Tyre under-inflation detection

1
16
Seat belts

1
18
Airbags

120
Child seats


124
Deactivating the passenger's front


airbag

127
ISOFIX mountings


134
5. 83-1 10
TECHNOLOGY on
BOARD
Trip computer 83
V ehicle configuration 84
Rear parking sensors

88
Audio equipment


89
Steering mounted
controls


90
Bluetooth hands-free system


93
3. 25-63
READY TO GO
Instrument panels 25
W arning lamps 26
Fuel gauge

34
Coolant temperature


34
Indicator


35
Remote control


36
Key


38
Alarm


40
Opening


41
Closing


44
Lighting stalk


46
Wiper stalk


48
Cruise control


49
Fixed speed limiter


50
Mirrors


51
Electric windows


52
Steering wheel
adjustment


53
Manual gearbox


53
Electronic gearbox


54
Gear shift indicator


58
Starting and stopping


59
Hill start assist


60
Stop & Start


61
2. 22-24
ECO-DRIVING
Environment 22
Eco-driving 23
Contents

30
Warning lampisindicates Solution - action
Electronic
anti-theft on.the ignition key introduced
is not recognised.
Starting impossible. Use another key and have the faulty key
checked by a CITROËN dealer.
"Ready to go - Access" section.
Emissions control
system flashing or on
continuously.
a fault with the system. Have it checked as soon as possible by a
CITROËN dealer or a qualified workshop.
Low fuel level on with the gauge
needle in zone E.that the fuel reserve is
being used. Refuel without delay. The assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle filter on, accompanied by
an audible signal and
a message in the
screen.the start of saturation of
the particle filter.
Regenerate the filter as soon as possible.
"Checks" section.
Presence of water in
the
d
iesel filter on, accompanied by
a message in the
screen. water in the
d iesel fuel
filter. Have the filter bled by a CITR
o Ë n dealer or a
qualified workshop.
"Checks" section.
Diesel pre-heating on.that the weather
conditions impose pre-
heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
Instruments and controls

36
Central lockingFolding/unfolding the key
Unlocking of the vehicle
Unlocking the hinged rear doors or
the tailgate
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
Deadlocking
The deadlocking is deactivated:
-

by carrying out the door opening

operation,
-

by turning the ignition key to the

RUNNING position.
REMOTE CONTROL
Press this button to unlock the
front doors only (Light van) or all
of the doors (Combi).
Unlocking is confirmed by two
flashes of the direction indicators.
Press this button to unlock the
load space (Light van) or the
hinged rear doors or the tailgate
only (Combi). Press this button briefly to lock all
of your vehicle's doors. Locking
is confirmed by a flash of the
direction indicators.
If one of the doors is open or is not closed
correctly, the central locking will not work. In
this case, the failed locking is indicated by
three flashes of the direction indicators. Press this button twice to change
locking to deadlocking.
Deadlocking renders the exterior
and interior door opening handles
inoperative. d o not leave anyone inside the
vehicle when it is deadlocked. Deadlocking
is confirmed by a flash of the direction
indicators.
If you do not press the button, the
mechanism may be damaged.
Access

37Opening the windows with the remote
control
Closing the windows using the remote
controlWhen closing the windows using the
remote control you must ensure that
nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel. This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
3
READY TO GO
Access

38
KEY
This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL BATTERY
Reference: CR 2032/3 volts.-
use the screwdriver as a lever to extract

the battery holder housing 2 ,
- remove the housing and change the
battery 3 observing the polarities,
-

put the battery holder housing
2 back
inside the key and secure it by turning the
screw 1.
Changing the remote control battery
There is a risk of damage if the
replacement battery does not conform.
o

nly use batteries which are
identical or of an equivalent type to those
recommended by a CITROËN dealer. Take
used batteries to an approved collection
point.
-

press the button to eject the


key,
-
turn the screw
1 from the
closed padlock to the open
padlock using a screwdriver
with a thin tip,
Switching off the engine leads to a loss
of braking assistance.
Access

39ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.
Good practice
Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
When purchasing a second-hand vehicle:
-

ensure that you are given the confidential

card,
-

have the keys memorised by a CITROËN

dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
k

eep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers. Driving with the doors locked may make
access to the passenger compartment
by the emergency services more difficult in an
emergency.
a

s a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
3
READY TO GO
Access

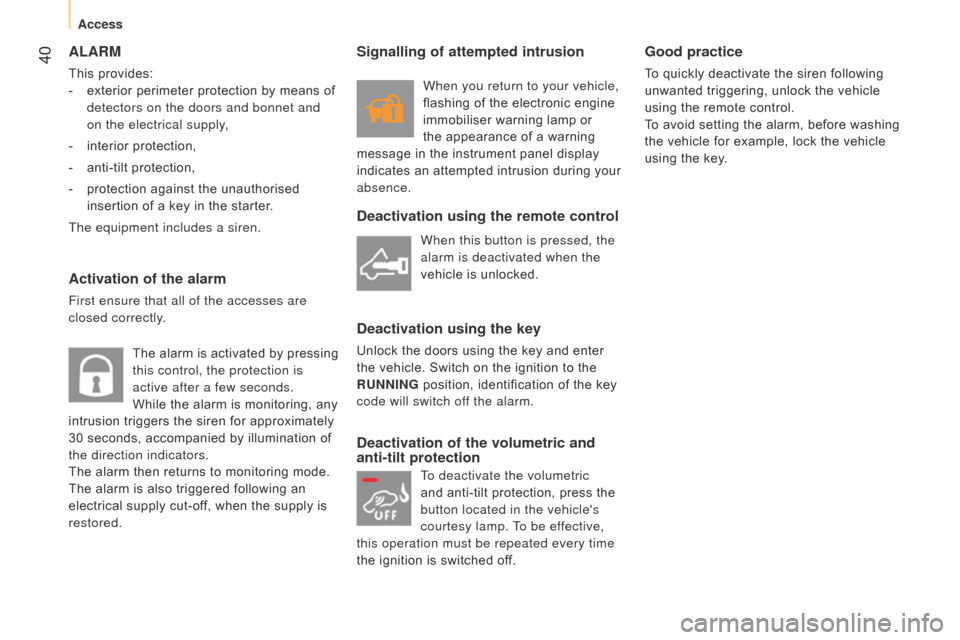

40ALARM
This provides:
-
exterior perimeter protection by means of

detectors on the doors and bonnet and
on the electrical supply,
-

interior protection,
-


anti-tilt protection,
-


protection against the unauthorised

insertion of a key in the starter.
The equipment includes a siren.
Activation of the alarm
First ensure that all of the accesses are
closed correctly.
The alarm is activated by pressing
this control, the protection is
active after a few seconds.
While the alarm is monitoring, any
intrusion triggers the siren for approximately
30 seconds, accompanied by illumination of
the direction indicators.
The alarm then returns to monitoring mode.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
Deactivation using the remote control
Deactivation using the key
Unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.
Deactivation of the volumetric and
anti-tilt protection Good practice
To quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.
To avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.
Signalling of attempted intrusion
When you return to your vehicle,
flashing of the electronic engine
immobiliser warning lamp or
the appearance of a warning
message in the instrument panel display
indicates an attempted intrusion during your
absence.
To deactivate the volumetric
and anti-tilt protection, press the
button located in the vehicle's
courtesy lamp. To be effective,
this operation must be repeated every time
the ignition is switched off.
Access

41

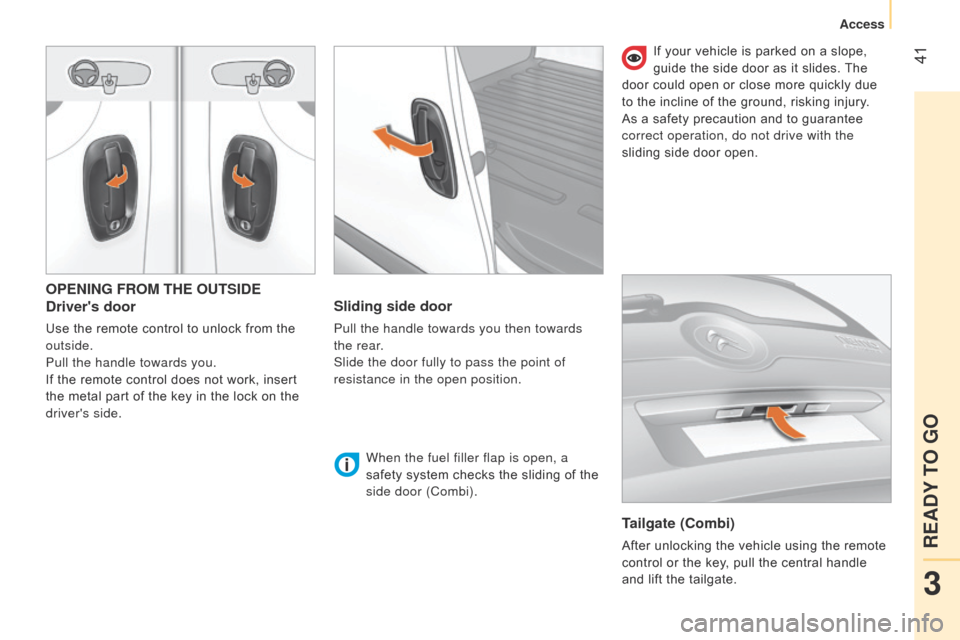

OPENING FROM THE OUTSIDE
Driver's door
Use the remote control to unlock from the
outside.
Pull the handle towards you.
If the remote control does not work, insert
the metal part of the key in the lock on the
driver's side.
Sliding side door
Pull the handle towards you then towards
the rear.
Slide the door fully to pass the point of
resistance in the open position.When the fuel filler flap is open, a
safety system checks the sliding of the
side door (Combi).
Tailgate (Combi)
After unlocking the vehicle using the remote
control or the key, pull the central handle
and lift the tailgate.If your vehicle is parked on a slope,
guide the side door as it slides. The
door could open or close more quickly due
to the incline of the ground, risking injury.
As a safety precaution and to guarantee
correct operation, do not drive with the
sliding side door open.
3
READY TO GO
Access

44

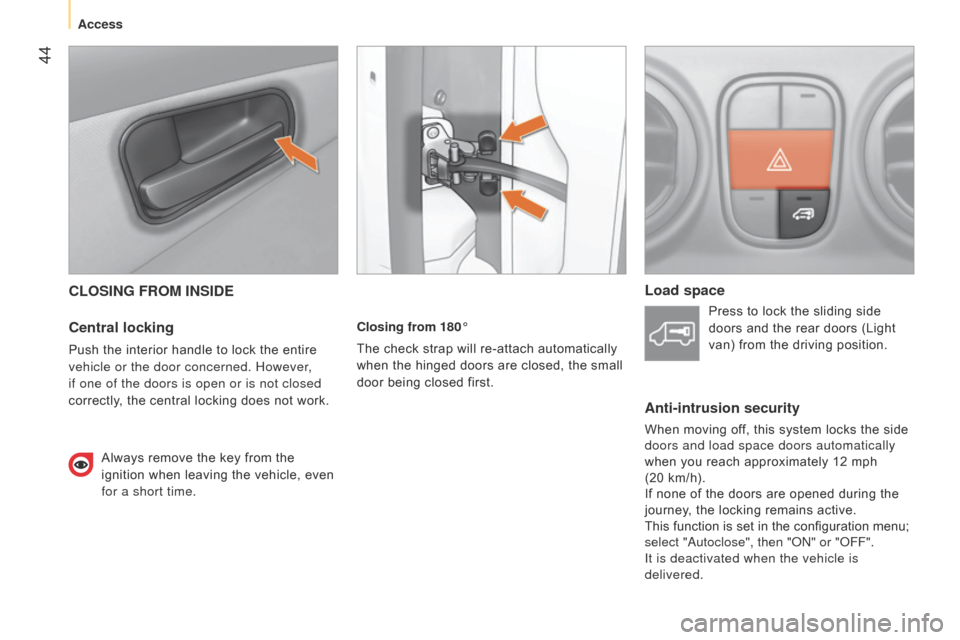

CLOSING FROM INSIDE
Central locking
Push the interior handle to lock the entire
vehicle or the door concerned. However,
if one of the doors is open or is not closed
correctly, the central locking does not work.Always remove the key from the
ignition when leaving the vehicle, even
for a short time. Closing from 180°
The check strap will re-attach automatically
when the hinged doors are closed, the small
door being closed first.
Load space
Press to lock the sliding side
doors and the rear doors (Light
van) from the driving position.
Anti-intrusion security
When moving off, this system locks the side
doors and load space doors automatically
when you reach approximately 12 mph

(20 km/h).
If none of the doors are opened during the
journey, the locking remains active.
This function is set in the configuration menu;
select "
a utoclose", then " on " or " o FF".
It is deactivated when the vehicle is
delivered.
Access
