technical data Citroen NEMO RHD 2015 1.G Owner's Manual

3
nemo_en_Chap00a_sommaire_ed02-2014
10. 174-183TECHNICAL DATA
7. 137-140
ACCESSORIES

Towing a trailer,
caravan, etc... 137
Roof rack and

roof bars

139
Other accessories


139Filling with fuel

142
Opening the bonnet

144
Diesel engine


145
Petrol engine


146
Levels


147
Checks


149
Particle filter


(Diesel)

151
9. 152-173
QUICK HELP
8. 141-151
CHECKS
Battery 152
Changing a wheel 155
T
emporary puncture repair kit

158
Snow chains


160
Changing a bulb


161
Changing a wiper
blade


166
Changing a fuse


167
T

owing the vehicle
172Dimensions

174
Engines
180
W
eights
182
Identification
markings


183
corresponds to a left hand


drive vehicle.
corresponds to a right
hand drive vehicle.

CONTENTS
Contents

16
Emission controls ....................34, 151
Bulbs, lighting, changing

bulbs
.......

.............................
161-165
Opening the bonnet
....................... 144
Under the bonnet


....................
145-146
Identification markings,
serial number, paint,
tyres

............................................ 183Changing a wiper blade
.................
166
Engine technical data


.............180-181
d

imensions


............................ 174-175,
176-177, 178-179
Weights

.......................................... 182
TECHNICAL DATA - MAINTENANCE
Levels .....................................147-14 8
●
dipstick,
●


power steering fluid,
●


brake fluid,
●


coolant,
●


screenw
ash.
Checks.................................... 149-151
●

battery
,
●

air/passenger compartment filter
,
●

oil filter
,
●

particle emissions filter (1.3 HDi 75),
●


parking brake,
●


brake pads.
Engine fuses


...................167, 170-171
Location

138
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this case,
automatic cutting off of the air conditioning
allows the engine power to be saved.If the coolant temperature
warning lamp comes on, stop the
vehicle and switch off the engine
as soon as possible.
ChecksSee the "Levels" section of
chapter 7.
Tyres: check the tyre pressures on the
towing vehicle and the trailer, observing the
recommended pressures.
Brakes: towing increases the braking
distance.
d rive at a moderate speed,
change down early and brake gradually. Side wind: sensitivity to side wind is
increased.
d rive smoothly and at a
moderate speed.
ABS: the system only controls the vehicle,
not the trailer.
Distribution of loads
distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it. The air density decreases with
altitude, so reducing the performance of the
engine. The maximum towed load must be
reduced by 10 % for each 1 000 metres of
altitude.
Refer to the "Technical data -
Identification markings" section. Rear parking sensors: the sensors will be
deactivated automatically when an genuine
CITR
o Ë n towbar is used.
Towbar
We recommend the use of genuine
CITR
o Ë n towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
CITROËN dealer or a qualified workshop.
If this equipment is not fitted by a CITR
o Ë n

dealer

, it is essential that it is fitted using
the electrical pre-equipment located at
the rear of the vehicle and following the
manufacturer's instructions.
The operation of the rear parking sensors is
deactivated automatically when the trailer
cable connector is inserted in the towbar
socket.
When the trailer cable is removed, the rear
parking sensors are re-activated.
Refer to the "Technology on board -
Parking sensors" section.
For information on the maximum
weights and towed loads applicable to
your vehicle, refer to the "Technical data -
Weights" section.
Towing a trailer

157
Fitting a wheel
6. Put the trim back in place, starting by
placing its notch facing the valve, and
press with the palm of your hand.
7.

Stow the tools and the wheel.
8.


Check the tyre pressure and have the

balance checked. Refer to the "Technical data -
Identification markings" section for
the location of the tyres sticker bearing the
recommended tyre pressures.
1.
Put the wheel in place using the centre

guide 2 to assist you.
2.

Screw in the 3 bolts by hand and remove


the centre guide. Position the 4th bolt.
3.

Pre-tighten using the wheelbrace

1 .
4.

Fold the jack

4 and detach it.
5.

T

ighten the wheel bolts using the
wheelbrace. Have the tightening of the bolts and
the pressure of the spare wheel
checked by a CITROËN dealer or a qualified
workshop without delay.
Also, have the original wheel repaired and
refitted by a CITR o Ë n dealer or a qualified
workshop as soon as possible.
9
QUICK HELP
Changing a wheel

175
DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length 3 8643 881
H Overall height 1 7211 742
Height with roof bars 1 7821 803
aWheelbase 2 513
bFront overhang760777
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 4691 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor 1 523
J Maximum interior load height 1 205
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
V

olume (m
3) 2.5
10
Dimensions
TECHNICAL DATA

177Combi (in mm)
Standard Raised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
aWheelbase 2 513
bFront overhang855866
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

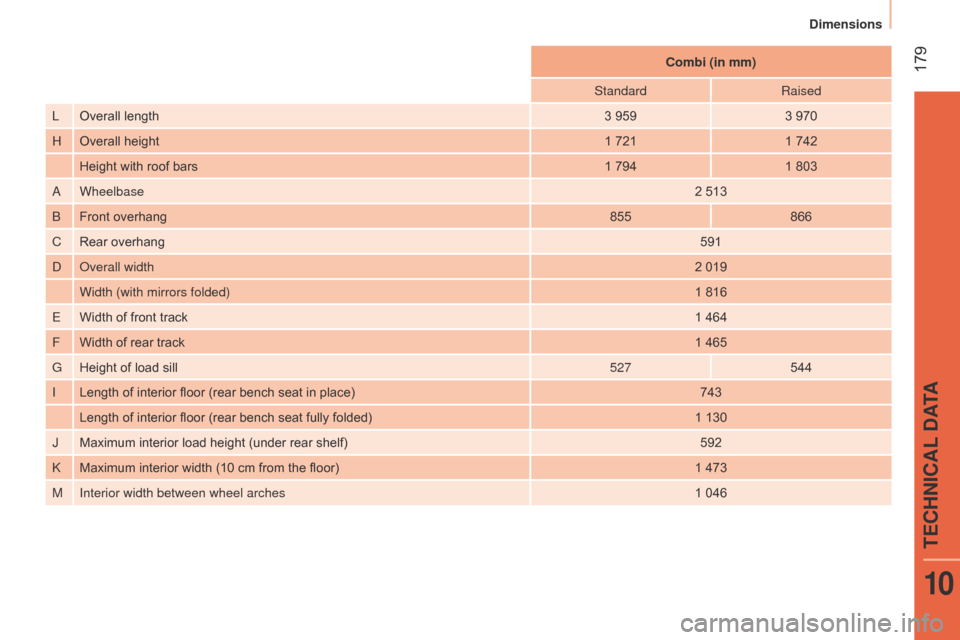

179Combi (in mm)
Standard Raised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7941 803
aWheelbase 2 513
bFront overhang855866
C Rear overhang 591
do

verall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
kMaximum interior width (10 cm from the floor)1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

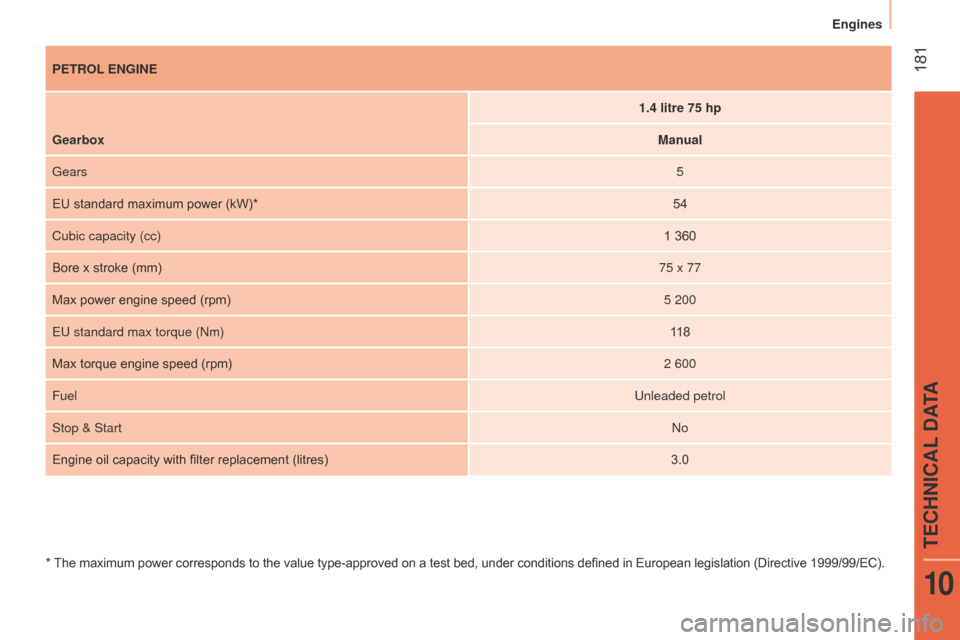

181PETROL ENGINE1.4 litre 75 hp
Gearbox Manual
Gears 5
EU standard maximum power (kW)* 54
Cubic capacity (cc) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (
n m) 11 8
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Stop & Start
n

o
Engine oil capacity with filter replacement (litres) 3.0
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines
TECHNICAL DATA
10

182

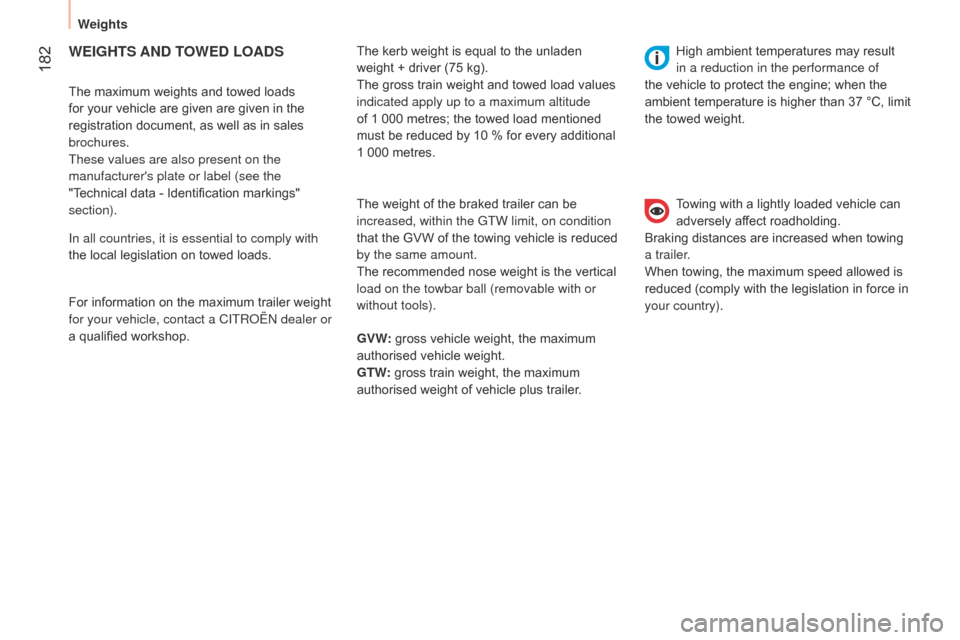

WEIGHTS AND TOWED LOADS
The maximum weights and towed loads
for your vehicle are given are given in the
registration document, as well as in sales
brochures.
These values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section). The kerb weight is equal to the unladen
weight
+ driver (75 kg).
The gross train weight and towed load values
indicated apply up to a maximum altitude
of 1
000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1
000 metres.High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit
the towed weight.
Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is
reduced (comply with the legislation in force in
your country).
For information on the maximum trailer weight
for your vehicle, contact a CITR
o Ë n dealer or
a qualified workshop. The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.
In all countries, it is essential to comply with
the local legislation on towed loads.
Weights

183

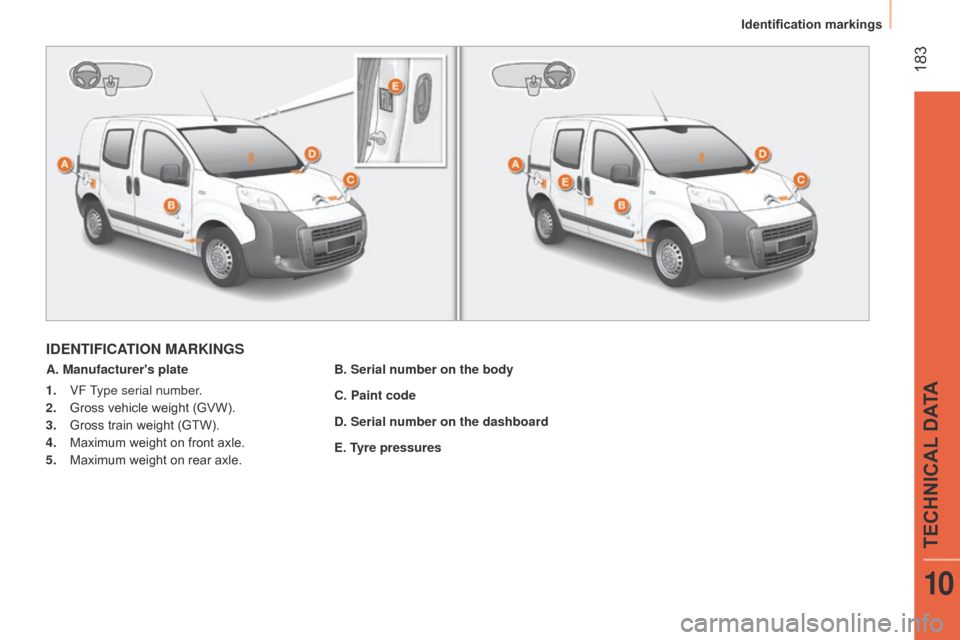

IDENTIFICATION MARKINGS
A. Manufacturer's plateB. Serial number on the body
C. Paint code
D. Serial number on the dashboard
E. Tyre pressures
1.

VF
Type serial number.
2.

Gross vehicle weight (GVW).
3.


Gross train weight (GTW).
4.


Maximum weight on front axle.
5.


Maximum weight on rear axle.
Identification markings
TECHNICAL DATA
10
