17MAIn FunctIOnS OF tHE KEY
type of keyunlocking the cabin Locking the doorsu nlocking the rear doors
Mechanical key Turn anti-clockwise
(driver's side). Turn clockwise (driver's side). -
Remote control -
Signalling
Direction indicators 2 flashes.1 flash.2 flashes.
Indicator lamp in the central
locking control button on the dashboard Off.
On for about 3 seconds,

then flashing. Flashing.
Using the mechanical key in the drivers' door lock barrel does not activ\
ate (set) or deactivate the alarm.
2
Access
rEAdY tO GO

67Setting the time of the internal clock
Set the clock on the control panel before
programming the deferred switching on of
the heating.Press and hold the "set" button.
The time setting screen and
indicator come on.
Within ten seconds, press one of the two
setting buttons until the correct time is
displayed: -

">"
to increase the time,
or
-

"<"
reduce the time.
reading the time
Pr
OG
r
AMMABLE

A
dd
I
t
IO
n
AL
HEAt

I
n
G
If your vehicle is fitted with separate
programmable heating, it gradually brings
the engine up to a good temperature to
facilitate starting.
An integrated clock permits programming of
its start time. The passenger compartment
will be heated more quickly. Time display
digital programming control
The programmable heating control panel
is located to the side of the steering wheel
below the MO
d E switch panel. Heating cycle indicator
Time setting and reading indicator
Display of the programme number
selected
Ventilation indicator
Time setting buttons
Programme selection button
Button for immediate switching on
of the heating
Press and hold the button for more rapid
scrolling of the digits.
Release the "set" button.
When the screen is off, the time is
memorised.
Press the "<" or ">" button.
This time reading indicator comes
on and the time is displayed for
approximately ten seconds.
3
EASE OF uSE and cOMFOrt
Ventilation

88Menu...Press... Sub-menu… Press... Select…c onfirm
and exit Enables you to...
1


Speed
beep ON
Increase
Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed.
Decrease
OFF
2


Headlamp
sensor Increase
Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease
3


Activation
Trip B Activate
Display a second distance
"Trip
B".
Deactivate
4


Setting
the time Hours/

Minutes Increase
Set the clock.
Decrease
Time format 24
Select the clock display mode.
12
5


Setting
the date Year/Month/
Day Activate
Set the date.
Deactivate
6 Autoclose While

moving ON
Activate/Deactivate automatic
door locking above approx
12
mph (20 km/h).
OFF
Vehicle configuration

134
Low fuel level
rEF

u
ELLI
n
G
In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures. With Stop & Start, never refuel with
the system in STOP mode; you must
switch off the ignition with the key. When the fuel tank level E
(Empty) is reached, this warning
lamp comes on.
You then have around 10 to
12 litres in the reserve, depending on the
capacity of the tank, the engine type, the
driving conditions and the profile of the road.
Refuel without delay to avoid running out of
fuel.
The capacity of the fuel tank is
approximately 90 litres.
Fuel tanks of different capacities, 60 and
120 litres, may be fitted. The fuel tank must be filled with the engine
off.
-
Open the fuel filler flap.
-

Support the black cap with one hand.
-

With the other hand, insert the key
, then
turn it anticlockwise.
-
Remove the black cap and hook it onto

the clip located on the inside of the flap.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
-
After filling the fuel tank, lock the black

cap and close the flap.
BlueH d i and AdBlue additive
The blue cap is only present on BlueHDi
Diesel versions.
For more information, refer to the "AdBlue
additive section". To understand the significance of the
precautions mentioned on the labels,
refer to the "Quick help - Label glossary"
section.
Fuel

140
refilling / topping-up the
AdBlue® additive
Precautions to take
Use only AdBlue® additive that meets the
ISO 22241 standard.
The AdBlue
® additive is an urea-based
solution.
This liquid is non-flammable, colourless and
odourless.
To be kept in a cool area.
c

ontainers (5 or 10 litres) and
bottles

(1.89 litres) of AdBlue
®
Please check the use-by date.
Read the instructions on the label.
Ensure that you have a suitable filler pipe,
which may or may not be supplied with the
container. Park the vehicle
-

Before topping-up, ensure that the

vehicle is parked on a flat and level
surface.
Open the filler
-
Open the fuel filler flap.
-

T
urn the blue cap a 6
th of a turn anti-
clockwise.
-

Remove the blue cap downwards.
top-up
-

Obtain a bottle of
AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label
before pouring the contents of the bottle
into your vehicle's AdBlue
® tank.
Important: if your vehicle's AdBlue
®
tank is completely empty - which is
confirmed by the alert messages and the
impossibility of starting the engine, you
must add at least 3.8 litres (so two 1.89 litre
bottles).
-

After emptying the bottle, wipe away any

spillage around the tank filler using a
damp cloth.
If any additive is split or splashed,
wash immediately with cold water or
wipe with a damp cloth.
If the additive has crystallised, clean it off
using a sponge and hot water.
AdBlue® additive

141
refit the filler cap
-
Refit the blue cap to the tank and turn it

a 6
th of a turn clockwise, to its stop.
-

Close the filler flap.
Never dispose of

AdBlue
® additive
bottles in the household waste. Place
them in a special container provided this
purpose or take them to your dealer.
Keep AdBlue
® out of the reach of
children, in its original container.
Never transfer AdBlue
® to another container:
it would loose its purity.
Never dilute the additive with water.
Never pour the additive into the Diesel fuel
tank.
recommendations on storage
Never store containers or bottles of
AdBlue® in your vehicle. Freezing of the AdBlue
® additive
AdBlue® freezes at about -11°C
(12.2°

F) and deteriorates above 25°C
(77°F).
It is recommended that containers and
bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
Additive that has been frozen can be used
once it has thawed out in ambient air. The SCR system includes an AdBlue
®
tank heater that ensures operation of
the vehicle in normal conditions.
In exceptional situations, such as when the
vehicle is kept at temperatures below -15°C
(5°F) for a long period, there may be an
emission fault alert related to freezing of the
AdBlue
® additive.
Park the vehicle in an area at a more
moderate temperature for a few hours until
the additive becomes a liquid again.
The emissions warning lamp does not go off
immediately, but does so after a few miles
of driving.
AdBlue® additive
7
CHECKS

149When using a high pressure washer
on stubborn dirt, do not persist on
the headlamps, the lamps and their edges
to avoid damaging their lacquer finish and
seals.
cHAnGInG A B u LB
t
ypes of bulb
Various types of bulb are used on your
vehicle.
To remove them:
type

A


Entirely glass bulb: pull gently

as it is fitted by pressure.
type B


Bayonet bulb: press on the bulb

then turn it anticlockwise.
type

c c ylindrical bulb: move aside the
contacts. For removing and refitting the screws,
use the screwdriver stowed in the tool
box under the front passenger's seat.
Carry out the operations in reverse order to
refit each bulb.
type

d - E
Halogen bulb: release the

retaining spring from its
housing.
Always replace a failed bulb with


a new bulb of the same type and
specification.
QUICK HELP
8
Failed bulb or lamp

150
1 - Main beam headlamps
type
d , H7 - 55 W
-

Remove the cover by pulling on the

rubber tongue.
-

Disconnect the electrical connector
.
-

Release the retaining spring by pressing

on the central clip.
-

Change the bulb taking care to align the

metal part with the groove on the lamp. 2 -
d ipped beam headlamps
type

d , H7 - 55 W
-
Remove the cover by pulling on the

rubber tongue.
- Disconnect the electrical connector .
- Release the retaining spring by pressing
on the central clip.
-

Change the bulb taking care to align the

metal part with the grooves on the lamp.

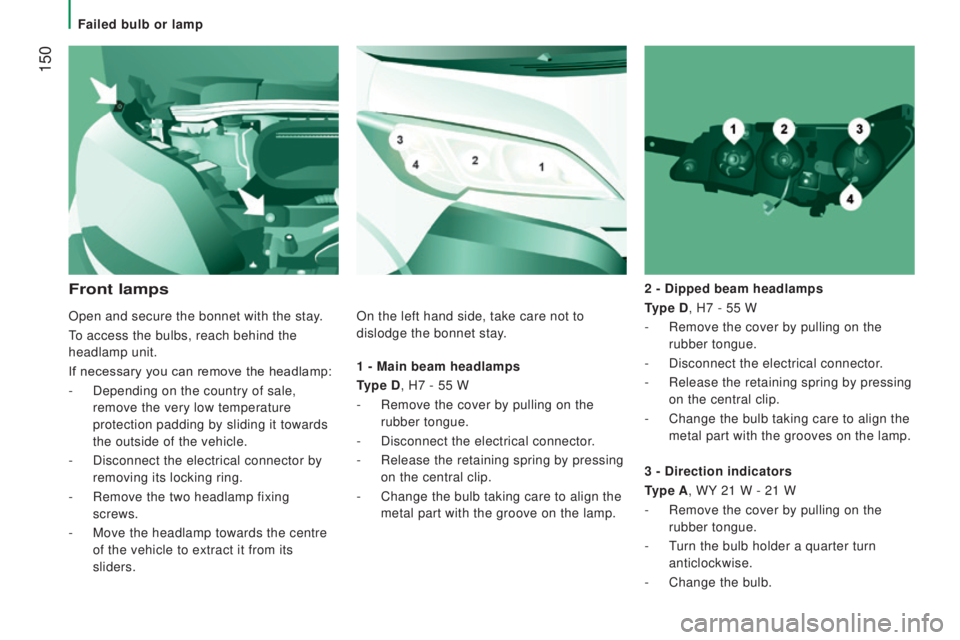

Front lamps
3 - direction indicators
type A

, WY 21 W - 21 W
-

Remove the cover by pulling on the

rubber tongue.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Change the bulb.
Open and secure the bonnet with the stay

.
To access the bulbs, reach behind the
headlamp unit.
If necessary you can remove the headlamp:
-

Depending on the country of sale,


remove the very low temperature
protection padding by sliding it towards
the outside of the vehicle.
-
Disconnect the electrical connector by

removing its locking ring.
-

Remove the two headlamp fixing


screws.
-

Move the headlamp towards the centre


of the vehicle to extract it from its
sliders. On the left hand side, take care not to
dislodge the bonnet stay.
Failed bulb or lamp

151
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use a
lint-free cloth.
When each operation has been completed,
check the operation of the lamps.
5 - Front foglamps
type E

, H11 - 55 W
-

T

urn the steering so that the wheel
on the side in question is turned fully
inwards.
-

Remove the screw located in the wheel


arch.
-

Remove the protective cover

.
LE
d
daytime running lamps
These light-emitting diode (LED) lamps
serve as both daytime running lamps and
sidelamps.
If your vehicle is fitted with LED daytime
running lamps, contact a CITROËN dealer. 4 - Sidelamps / daytime running lamps
type A

, W21/5W - 21W and 5W
-

Remove the cover by pulling on the


rubber tongue.
-

T

urn the bulb holder a quarter of a turn
anti-clockwise.
-

Change the bulb.
-


Remove the fixing clip and disconnect

the electrical connector.
-

T
urn and disengage the bulb holder
-

Change the bulb taking care to align the

metal part with the grooves on the lamp.
QUICK HELP
8
Failed bulb or lamp

157
● For versions with alloy wheels, remove
the three fixing screws I from the
strap
j
.
●


Remove the assembly from inside the

alloy wheel.
Spare wheel
The spare wheel retaining bolt is located
below the bumper on the right.
-

Install the long socket
A, the
wheelbrace
d
and the bar

B on the
retaining bolt.
-

T
urn the assembly anti-clockwise to
lower the wheel.
-

T
urn to the full extent, indicated by an
increase in the force required.
-

Having fully unwound the cable, take out

the spare wheel under the vehicle. ●
For versions with steel wheels, unscrew
the grip G .
●

Remove the carrier
H from the outer part
of the steel wheel.
-

Release the spare wheel and place it

near the wheel to be changed.
-

If possible, place a chock against the

wheel diagonally opposed to the wheel
to be changed.
QUICK HELP
8
Puncture
