189
Spacetourer-VP_en_Chap05_securite_ed01-2016
Child seatsInstalling a booster
cushion

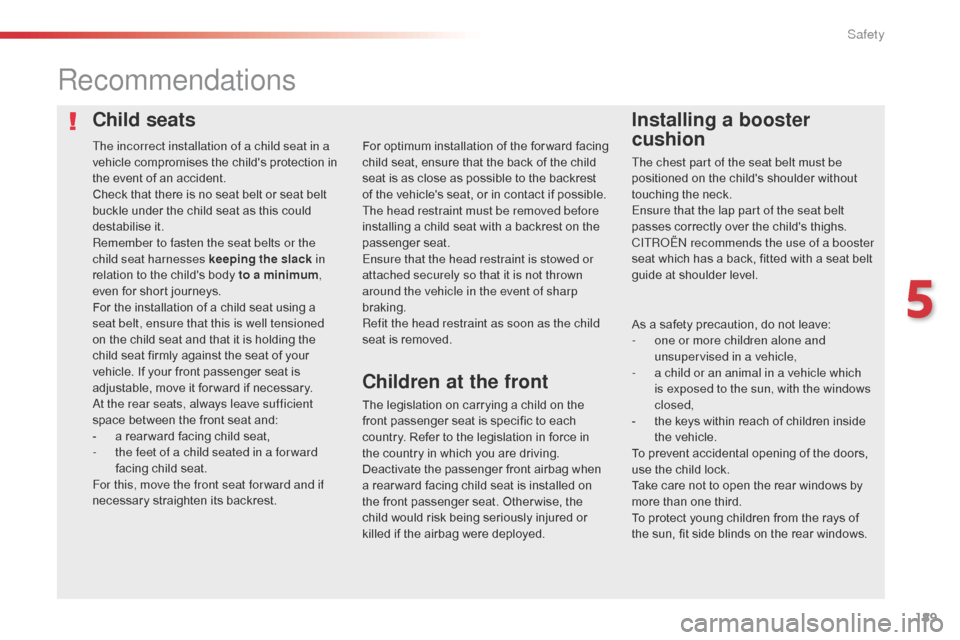

Recommendations
The legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger front airbag when
a rear ward facing child seat is installed on
the front passenger seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed. For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
The head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
Ensure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum
,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it for ward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
5
Safety

190
Spacetourer-VP_en_Chap05_securite_ed01-2016
Manual child lock
Locking
Unlocking
Mechanical system to prevent opening of the
sliding side door using its interior lever.
Electric child lock
Remote control system to prevent opening of the rear doors (sliding side door(s), side-hinged rear
doors or tailgate) using their interior controls.The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside. The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Switching on
F With the ignition on, press this
button. F

W
ith the ignition on, press this
button again.
Switching off
F Turn the control on the edge of the side door upwards.
F

T
urn the control on the edge of
the side door downwards.
Safety

191
Spacetourer-VP_en_Chap05_securite_ed01-2016

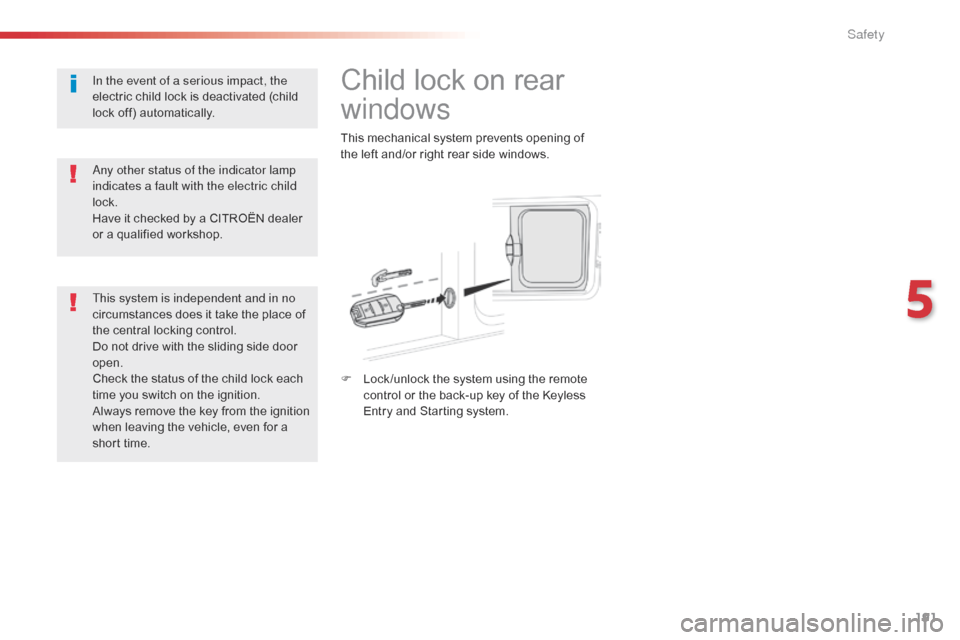

Child lock on rear
windows
This mechanical system prevents opening of
the left and/or right rear side windows.
F
L
ock /unlock the system using the remote
control or the back-up key of the Keyless
Entry and Starting system.
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a CITROËN dealer
or a qualified workshop. In the event of a serious impact, the
electric child lock is deactivated (child
lock off) automatically.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Do not drive with the sliding side door
open.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
5
Safety

192
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10
km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Driving

193
Spacetourer-VP_en_Chap06_conduite_ed01-2016
To assure the durability of your vehicle and
your safety, remember that certain precautions,
described hereafter, should be taken when
driving your vehicle:
Load the vehicle correctly
With a load carried, the vehicle must remain
within the maximum authorised weight, the
Gross Vehicle Weight.
To avoid upsetting the balance of the vehicle,
the load should be centred and the heaviest
part placed on the floor in front of the rear
wheels.
Manoeuve cautiously, at
low speed
The dimensions of your vehicle differ from
those of a light vehicle, in width, in height, as
well as in length, and some obstacles will be
more difficult to notice.
Manoeuvre slowly.
Before turning, check that there are no
obstacles at mid-height along the sides.
Before reversing, check that there are no
obstacles, particularly at high level behind the
vehicle.
Be aware of the external dimensions, if ladders
are fitted.It is inadvisable to place heavy loads on a roof
rack.
Loading the roof rack also requires you not
to exceed the maximum load on the roof rack
anchorages. Observe the maximum authorised
weight, available from CITROËN dealers.
Loads must be securely lashed down.
Cargo that is not properly secured inside the
vehicle can adversely affect the handling of the
vehicle and create the risk of accident.
If your vehicle is fitted with a drop-side back,
the height and width of the load must remain
within the overall dimensions of the vehicle.
Drive the vehicle in a
prudent and efficient way
Take corners gently.
Anticipate the need to brake as the stopping
distance is increased, particularly on wet or icy
roads.
Be aware of the effect of side winds on the
vehicle.
Effective eco-driving saves fuel; accelerate
progressively, anticipate the need to slow down
and adapt your speed to suit the situation.
Indicate changes of direction well in advance
so that you are seen by other road users.
Take care
The tyres must be inflated to at least the
pressures indicated on the label, even over-
inflated by 0.2 to 0.3 bar for long journeys.
After ensuring that no obstacle might prevent
closing, guide the movement of the door at the
right speed until it closes.
6
Driving

194
Spacetourer-VP_en_Chap06_conduite_ed01-2016
When towing
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding
it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Weights
, refer
to the corresponding section.
The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.
If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling. For more information on Adjusting the
headlamp beam height
, refer to the
corresponding section.
Driving

195
Spacetourer-VP_en_Chap06_conduite_ed01-2016

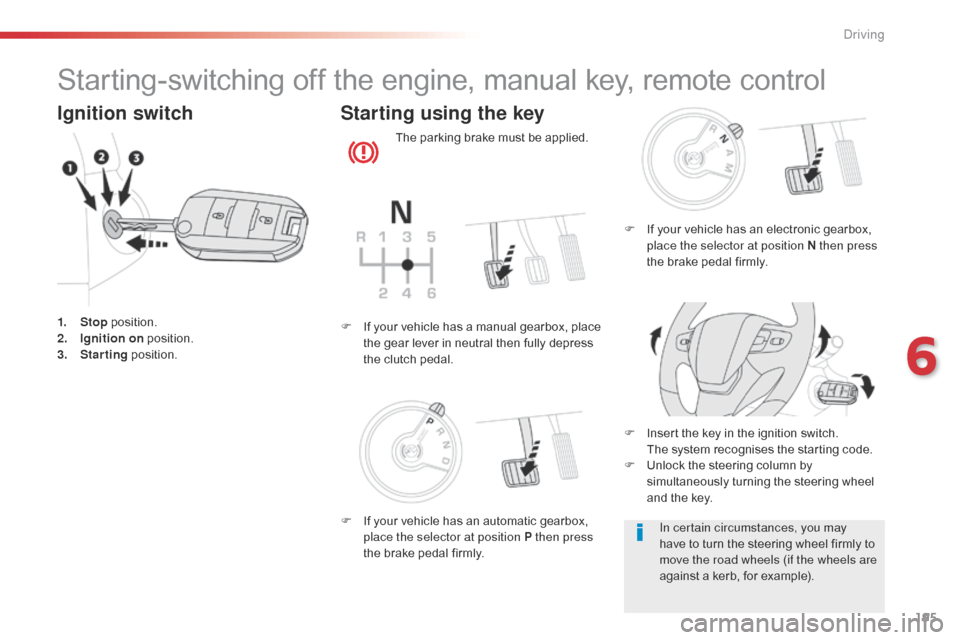

Starting-switching off the engine, manual key, remote control
Ignition switch
1. Stop position.
2. I gnition on position.
3.
S

tarting position.
Starting using the key
The parking brake must be applied.
F
I
nsert the key in the ignition switch.
T

he system recognises the starting code.
F

U
nlock the steering column by
simultaneously turning the steering wheel
and the key.
F

I

f your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
In certain circumstances, you may
have to turn the steering wheel firmly to
move the road wheels (if the wheels are
against a kerb, for example).
F

I
f your vehicle has an electronic gearbox,
place the selector at position N then press
the brake pedal firmly.
F

I

f your vehicle has an automatic gearbox,
place the selector at position P then press
the brake pedal firmly.
6
Driving

196
Spacetourer-VP_en_Chap06_conduite_ed01-2016

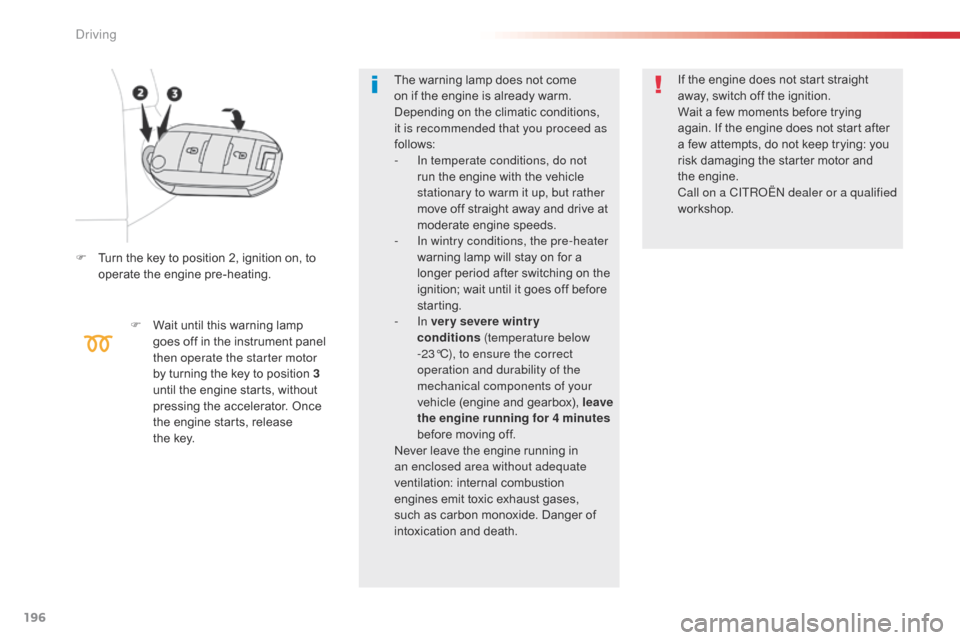

F Turn the key to position 2, ignition on, to operate the engine pre-heating.
F

W
ait until this warning lamp
goes off in the instrument panel
then operate the starter motor
by turning the key to position 3
until the engine starts, without
pressing the accelerator. Once
the engine starts, release
the
key. The warning lamp does not come
on if the engine is already warm.
Depending on the climatic conditions,
it is recommended that you proceed as
follows:
-

I
n temperate conditions, do not
run the engine with the vehicle
stationary to warm it up, but rather
move off straight away and drive at
moderate engine speeds.
-
I
n wintry conditions, the pre-heater
warning lamp will stay on for a
longer period after switching on the
ignition; wait until it goes off before
starting.
-
In ver y severe wintr y
conditions


(temperature below
-23°C), to ensure the correct
operation and durability of the
mechanical components of your
vehicle (engine and gearbox), leave
the engine running for 4 minutes
before moving off.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. If the engine does not start straight
away, switch off the ignition.
Wait a few moments before trying
again. If the engine does not start after
a few attempts, do not keep trying: you
risk damaging the starter motor and
the
eng

ine.
Call on a CITROËN dealer or a qualified
workshop.
Driving

197
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Switching off the engine leads to a loss
of braking assistance.
Key left in the "Ignition on"
position
If the key has been left in the ignition switch
at position 2 (Ignition on)
, the ignition will be
switched off automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position


2

(Ignition on) .
Never switch off the ignition until the vehicle
has been brought to a complete stop.
F Turn the key fully towards you to
position 1 (Stop).
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering wheel until it locks.

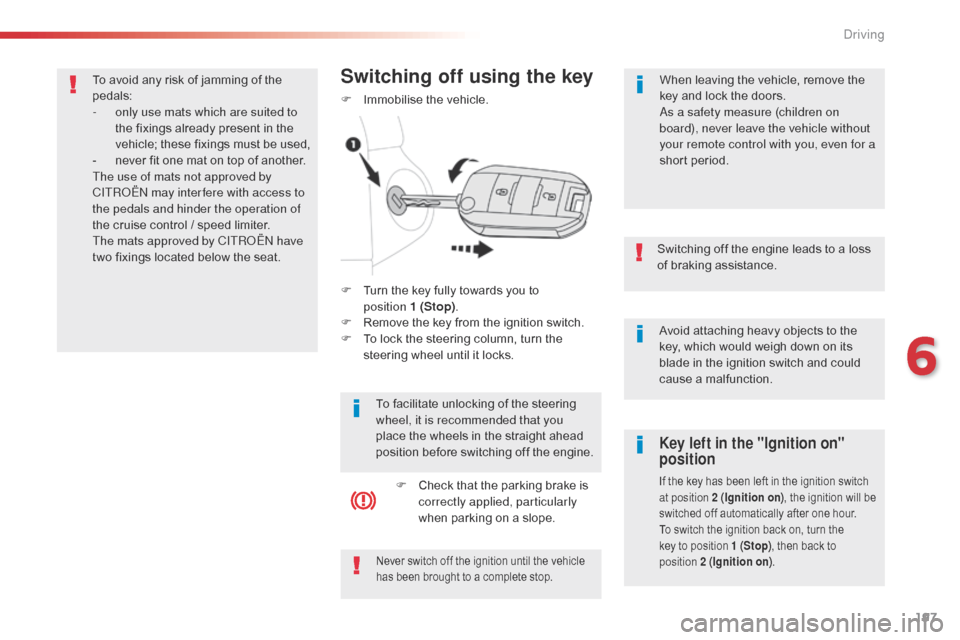

Switching off using the key
F Immobilise the vehicle.
To facilitate unlocking of the steering
wheel, it is recommended that you
place the wheels in the straight ahead
position before switching off the engine.F

C
heck that the parking brake is
correctly applied, particularly
when parking on a slope. When leaving the vehicle, remove the
key and lock the doors.
As a safety measure (children on
board), never leave the vehicle without
your remote control with you, even for a
short period.
To avoid any risk of jamming of the
pedals:
-
o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n

ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
6
Driving

198
Spacetourer-VP_en_Chap06_conduite_ed01-2016
For Diesel vehicles, in sub-
zero temperatures the engine
will not start until the pre-heater
warning lamp has gone off.
If this warning lamp comes on
after pressing the "START/
STOP" button, press down on
the brake or clutch pedal until
the warning lamp goes off,
without pressing the "START/
STOP" button again, until the
engine starts and runs.
Starting
F Then, press the " S TA R T/
STOP " button.

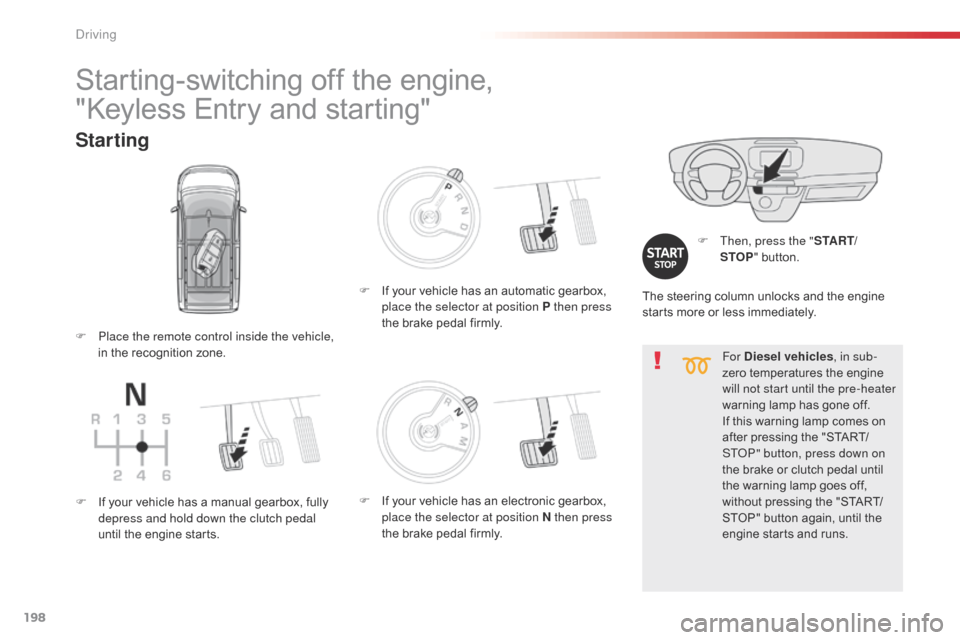

Starting-switching off the engine,
"Keyless Entry and starting"
The steering column unlocks and the engine
starts more or less immediately.
F

P

lace the remote control inside the vehicle,
in the recognition zone.
F

I

f your vehicle has a manual gearbox, fully
depress and hold down the clutch pedal
until the engine starts. F
I
f your vehicle has an automatic gearbox,
place the selector at position P then press
the brake pedal firmly.
F

I

f your vehicle has an electronic gearbox,
place the selector at position N then press
the brake pedal firmly.
Driving
