GENERAL
LUBRICANTS - TOTAL recommended oils
POWER STEERING OILS
ENGINE COOLANT FLUID
TOTAL FLUIDE ATX
TOTAL FLUIDE LDS
Special oil distributed by CITROËN
Part No.: 9979 A3
Power steering
All countries
All countriesCITROËN fluid
Protection: -35C°2Litres
5Litres
20 Litres
210Litres9979 70
9979 71
9979 76
9979 779979 72
9979 73
9979 74
9979 75 PacksCITROËN Part No.
REVKOGEL 2000 GLYSANTIN G33TOTAL FLUIDE DA
Special oil distributed by CITROËN
Part No.: 9730 A1
Very cold countries Power steering all vehicles
(except CITROËN C4and C5)
Power steering
C4and C5
Angl.-t2-page001-39-2005 9/01/06 10:07 Page 36

Downloaded from www.Manualslib.com manuals search engine 249
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines: 9HZ - 9HY
B1BP304D
Tools.
[1] Flywheel setting peg: (-).0194.C
[2]Camshaft setting peg: (-).0194.B
[3]Crankshaft setting peg: (-).0194.A
Checking and setting the timing.
Removing.
Raise and support the vehicle, wheels hanging.
Disconnect the positive and negative terminals of the battery.
Remove:
- The front RH wheel.
- The front RH splash-shield.
- The accessories drive belt
(see corresponding operation).
Uncouple:
- The fuel supply unions (1).
- The air/air heat exchanger inlet and outlet pipes (3).
- The exhaust line
(at the flexible pipe).
Disconnect the connecter at «a».
Remove and move aside the power steering fluid reservoir (6).
Uncouple, plug and move aside the tube (2).
Support the engine with a roller jack equipped with a block.
Remove the engine supports (4)and (5).
XSARA PICASSO
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 249

Downloaded from www.Manualslib.com manuals search engine 252
ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: 9HZ - 9HY
Refitting.
Refit tool [1]at «b».
Remove the screw (10).
Refit:
- The upper timing cover (12).
- The lower timing cover (11).
- The accessories drive pulley (9).
- The screw (10).
Tightening torque
Screw (10)Pre-tighten to : 3 ± 0,3 m.daN.
Angular tighten : 180° ± 5°.
Remove tool [1].
Refit:
- The engine support (8), tighten to 5,5 ± 0,4 m.daN.
- The engine support (4), tighten to 6,1 ± 0,6 m.daN.
- The engine support (5), tighten to 2,5 ± 0,2 m.daN.
- The electrical harness (7).
- The power steering fluid reservoir (6).
XSARA PICASSO
Couple:
- The tube (2).
- The exhaust line, tighten the clip to 2,5 ± 0,3 m.daN.
- The fuel unions (1).
- The air/air heat exchanger inlet and outlet pipes (3).
Connect the connector at «a».
Refit:
- The accessories drive belt
(see corresponding operation).
- The front RH splash-shield (see corresponding operation).
- The front RH wheel, tighten to 9 ± 1 m.daN.
- Reconnect the positive and negative terminals of the battery.
IMPERATIVE: Perform the operations that are necessary following
a reconnection of the battery
(see corresponding operation).
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 252

Downloaded from www.Manualslib.com manuals search engine 253
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines: 9HZ - 9HY
B1BP304D
Tools.
[1]Flywheel setting peg: (-).0194.C
[2]Camshaft setting peg: (-).0194.B
[3] Crankshaft setting peg: (-).0194.A
Checking and setting the timing.
Removing.
Raise and support the vehicle, wheels hanging.
Disconnect the positive and negative terminals of the battery.
Remove:
- The front RH wheel.
- The front RH splash-shield.
- The accessories drive belt
(see corresponding operation).
Uncouple:
- The fuel supply unions (1).
- The air/air heat exchanger inlet and outlet pipes (3).
- The exhaust line
(at the flexible pipe).
Disconnect the connecter at «a».
Remove and move aside the power steering fluid reservoir (6).
Uncouple, plug and move aside the tube (2).
Support the engine with a roller jack equipped with a block.
Remove the engine supports(4)and (5).
XSARA PICASSO
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 253

Downloaded from www.Manualslib.com manuals search engine 258
ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: 9HZ - 9HY
Refitting (continued).
Refit tool [1]at «b».
Remove the screw (10).
Refit:
- The upper timing cover (12).
- The lower timing cover (11).
- The accessories drive pulley (9).
- The screw (10).
Tightening torque
- Screw (10)Pre-tighten to: 3 ± 0,3 m.daN.
Angular tighten: 180° ± 5°.
Remove tool [1].
Refit:
- The engine support (8), tighten to 5,5 ± 0,4 m.daN.
- The engine support (4), tighten to 6,1 ± 0,6 m.daN.
- The engine support (5), tighten to 2,5 ± 0,2 m.daN.
- The electrical harness (7).
- The power steering fluid reservoir (6).
XSARA PICASSO
Disengage the jack from under the engine.
Couple:
- The tube (2).
- The exhaust line, tighten the clip to 2,5 ± 0,3 m.daN.
- The fuel unions (1).
- The air/air heat exchanger inlet and outlet pipes (3).
Connect the connector at «a».
Refit:
- The accessories drive belt
(see corresponding operation).
- The front RH splash-shield (see corresponding operation).
- The front RH wheel, tighten to 9 ± 1 m.daN.
Reconnect the positive and negative terminals of the battery.
IMPERATIVE: Perform the operations that are necessary following
a reconnection of the battery
(see corresponding operation).
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 258

Downloaded from www.Manualslib.com manuals search engine 371
AXLES
SUSPENSION
STEERING

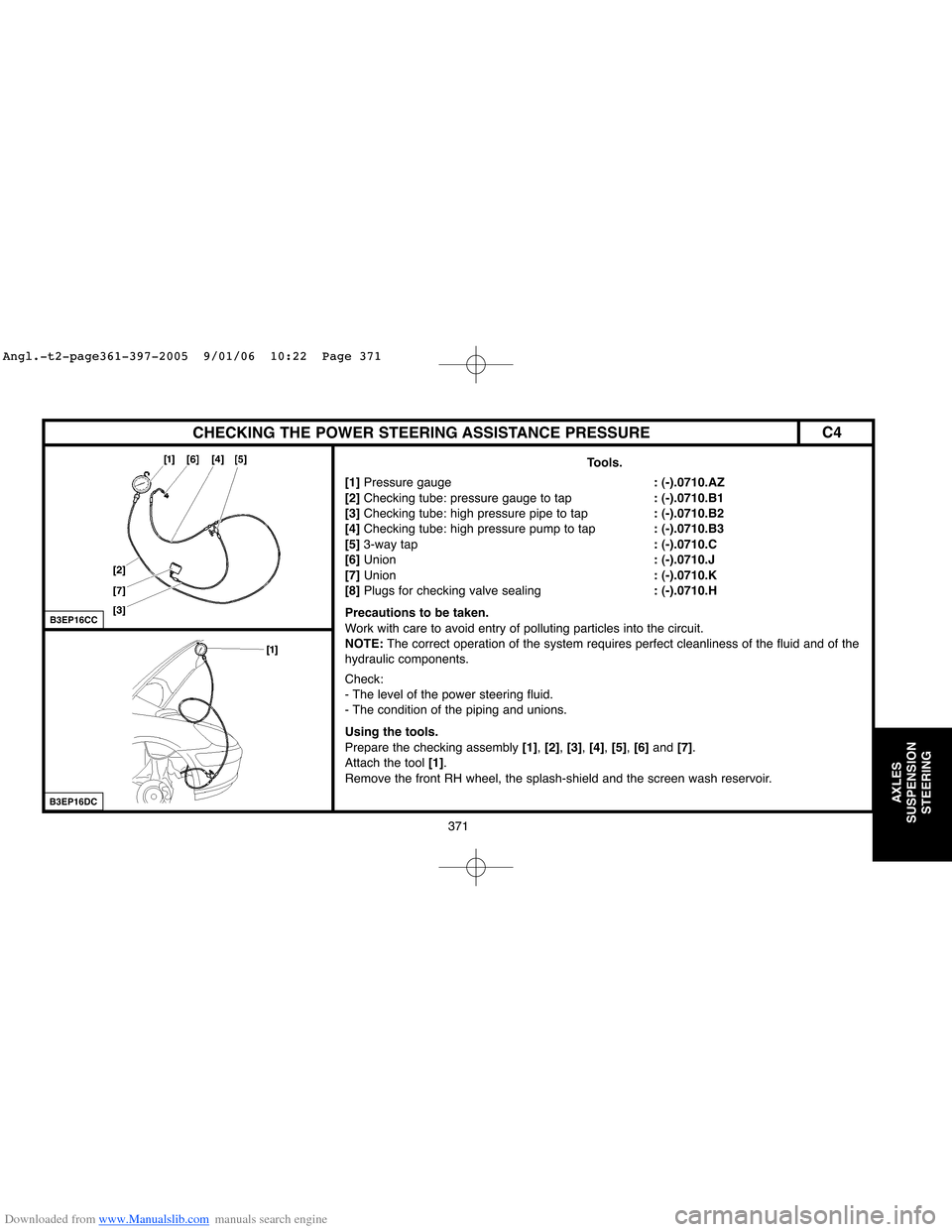

C4CHECKING THE POWER STEERING ASSISTANCE PRESSURE
Tools.
[1]Pressure gauge: (-).0710.AZ
[2]Checking tube: pressure gauge to tap: (-).0710.B1
[3]Checking tube: high pressure pipe to tap: (-).0710.B2
[4]Checking tube: high pressure pump to tap: (-).0710.B3
[5]3-way tap: (-).0710.C
[6]Union: (-).0710.J
[7]Union: (-).0710.K
[8] Plugs for checking valve sealing: (-).0710.H
Precautions to be taken.
Work with care to avoid entry of polluting particles into the circuit.
NOTE:The correct operation of the system requires perfect cleanliness of the fluid and of the
hydraulic components.
Check:
- The level of the power steering fluid.
- The condition of the piping and unions.
Using the tools.
Prepare the checking assembly [1], [2], [3], [4], [5], [6]and [7].
Attach the tool [1].
Remove the front RH wheel, the splash-shield and the screen wash reservoir.
B3EP16CC
B3EP16DC
Angl.-t2-page361-397-2005 9/01/06 10:22 Page 371

Downloaded from www.Manualslib.com manuals search engine 372
AXLES
SUSPENSION
STEERING
CHECKING THE POWER STEERING ASSISTANCE PRESSURE
Preliminary operation.
Move aside the high pressure pipe (1).
Do up:
- The union [6]on the power steering electropump.
- The union [7]on the high pressure pipe (1).
- Tighten all the unions.
Fill the power steering reservoir 10 mmabove the max. level.
IMPERATIVE: Use new power steering fluid for both filling and topping-up the circuit.
Open the tap [5].
Start the engine and allow it to run for 5 seconds.
Stop the engine.
Move the steering several timesin each direction.
Check the steering fluid level and make sure that there are no leaks.
Checking the electropump pressure.
Start the engine.
Close the tap [5]for 5 seconds.
Open the tap [5].
Stop the engine.
At accelerated idle
(1200 to 1500rpm), the pressure should be 105 ± 5 bars.
If the electropump pressure is correct, check the valve sealing.
B3EP16EC
C4
Angl.-t2-page361-397-2005 9/01/06 10:22 Page 372

Downloaded from www.Manualslib.com manuals search engine 373
AXLES
SUSPENSION
STEERING
CHECKING THE POWER STEERING ASSISTANCE PRESSURE
Checking the valve sealing.
Remove the under-engine shield.
Move aside the heat shield from the steering mechanism.
Slacken the unions (2)on the power steering ram.
Uncouple the two supply pipes (3)from the distributor valve and move them aside.
Fit on the distributor valve the two plugs [8], tighten to 0,8 m.daN.
Move the steering slowly from lock to lock, to drain the ram.
Top up the level of the power steering fluid.
Open the tap [5].
Stop the engine.
Maintain the engine speed at accelerated idle.
Hold the wheels on full lock, first on one side then on the other.
The pressure should adjust to 105 ± 5 bars.
The pressure is correct: replace the steering mechanism.
The pressure is lower than the values above: replace the distributor valve.
Couple the two supply pipes (3)on the distributor valve; tighten to 0,8 m.daN.
Retighten the unions (2)on the power steering ram; tighten to 0,8 m.daN.
Remove the union [7]on the high pressure pipe (1)and the union [6]on the power steering
electropump.
Refit:
- the high pressure pipe (1); tighten to 2 ± 0,2 m.daN.
- the screen wash reservoir, the front RH splash-shield and the front RH wheel.
B3EP16FC
B3EP16GC
C4
Angl.-t2-page361-397-2005 9/01/06 10:22 Page 373

Downloaded from www.Manualslib.com manuals search engine AXLES
SUSPENSION
STEERING
CHECKING THE POWER STEERING ASSISTANCE PRESSURE
Fill the power steering reservoir to the max.mark «a»on the cap (4).
Engine stopped, move the steering slowly from lock to lock, in both directions approx. ten times.
Top up the fluid to the max. mark «a»on the cap (4).
Run the engine at idle for 3 minutes, without any action on the steering wheel.
Move the steering from lock to lock, until there is no longer any tight spot.
Top up the level if it again goes down.
Bleed the circuit by moving the steering several timesin each direction.
Top up the level if it again goes down.
IMPERATIVE: Use new power steering fluid for both filling and topping-up the circuit.
B3EP16HC
374
C4
Angl.-t2-page361-397-2005 9/01/06 10:22 Page 374
