Downloaded from www.Manualslib.com manuals search engine 169
ENGINE
B1BP2Z6D
B1BP2ZCD
AUXILIARY EQUIPMENT DRIVE BELT
Engines: 9HZ - 9HY
Tools.
[1]Dynamic tensioner compression lever: (-).0188.Z
[2]Peg for dynamic tensioner roller: (-).0194.F
Removing.
Remove the front RH wheel, the under-engine sounddeadening and the splash-shield.
V
ehicle with air conditioning.
WARNING: Mark the direction of fitting of the accessories drive belt, if it is to be re-used.
Compress the tensioner roller(1)by acting at «a»
(clockwise), using tool [1].
Peg at «b», using tool [2].
Remove the accessories drive belt.
IMPERATIVE: Check that the rollers (1) and (2) can turn freely
(without play and without tight
spots).
Refitting.
WARNING: Belt to be re-used, mark the direction of fitting of the belt.
Refit the accessories drive belt.
Compress the tensioner roller (1)by acting at «a»
(clockwise), using tool [1].
Remove tool [2].
IMPERATIVE: Make sure the belt is correctly positioned in the grooves of the various pulleys.
Complete the refitting in the opposite order to removal.
XSARA PICASSO
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 169

Downloaded from www.Manualslib.com manuals search engine 173
ENGINE
AUXILIARY EQUIPMENT DRIVE BELT
Engine: WJY
Power-assisted steering, without air conditioning (continued)
XSARA
Refitting.
Refit the belt.
Place the tool [1]on belt at "f".
WARNING: Position tool [1] with the knob downwards.
Tighten the nut (2)to obtain a value of:
Reused belt:
- Keep the value taken at removal.
New belt:
- Tension should be 110 SEEMunits.
- Tighten the screw (1)to 9.5 m.daN.
- Check belt tension, using tool [1].
Tension should be 144 ± 3 SEEMunits.
- Remove the tool [1].
- Start the engine and run it for 10 seconds.
- Stop the engine.
- Place the tool [1]on the belt at "f".
- Tension should be 130 ± 4 SEEMunits.
- Remove the tool [1].
B1BP1SJD
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 173

Downloaded from www.Manualslib.com manuals search engine 177
ENGINE
XSARA - XSARA PICASSO AUXILIARY EQUIPMENT DRIVE BELT
Engines: RHY - RHZ
Without air conditioning (continued)
Refitting.
Re-used belt.
Compress the tensioner roller (2)by action at «a»
(in anti-clockwise direction), tool [4].
Refit the belt.
WARNING: Respect the belt-fitting direction.
Remove the tool [4].
New belt.
Refit the belt.
Turn the eccentric roller (3), tool [1]
(clockwise)to free the tool [2]from
its pegging at «b».
Hold the eccentric roller (3), tool [1]and tighten the screw (1)to 4.3 m.daN.
Remove the tool [2].
Rotate the crankshaft 4 timesin the direction of rotation.
Check that it is possible to peg at «b», tool [3].
If not possible to peg, restart the adjustment.
B1BP1YMD
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 177

Downloaded from www.Manualslib.com manuals search engine 179
ENGINE
XSARA - XSARA PICASSO
AUXILIARY EQUIPMENT DRIVE BELT
Engines: RHY - RHZ
With air conditioning (continued)
Refitting.
Re-used belt.
Compress the tensioner roller (7)by action at «c»
(in anti-clockwise direction), tool [4].
Refit the belt.
WARNING: Respect the direction belt was fitted.
Remove the tool [4].
New belt.
Refit the belt.
Turn the eccentric roller (5), tool[1]
(clockwise)to free the tool [2]from its pegging
at «d».
Hold the eccentric roller (5), tool [1]and tighten the screw (6)to 4.3 m.daN.
Remove the tool [2].
Rotate the crankshaft 4 timesin the direction of rotation.
Check that it is possible to peg at «d», tool [3].
If not possible to peg, restart the adjustment.
B1BP1YND
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 179

Downloaded from www.Manualslib.com manuals search engine 180
ENGINE
B1BP2J5D
AUXILIARY EQUIPMENT DRIVE BELT
Engines: RHV - 4HY
Tools.
[1]Dynamic tensioner compression lever: (-).0188.Z.
[2]Dynamic tensioner roller retaining peg Ø 4 mm : (-).0188.Q1
Removing.
Remove the splash-shield, under-engine sound-deadening, front RH wheel.
WARNING: Mark the direction of fitting of the auxiliaries drive belt in the case of
re-use of the belt.
Compress the dynamic tensioner roller (1)by acting at «b»
(anti-clockwise), using tool [1].
Peg using tool [2]at «a».
IMPERATIVE : Check that the roller (1) turns freely
(without play and without tight
spots).
Refitting.
Refit the auxiliaries drive belt.
IMPERATIVE: Make sure that the auxiliaries drive belt is correctly positioned in
the grooves of the various pulleys.
Compress the dynamic tensioner roller (1)by acting at «b», using tool [1].
Remove tool [2] at «a».
Complete the refitting.
JUMPER
Without air conditioning
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 180

Downloaded from www.Manualslib.com manuals search engine 181
ENGINE
CHECKING AND SETTING THE VALVE TIMING
TU
JP
3
J410
A J4S
Engine type
C4
XSARA
XSARA PICASSO
See pages:
KFW KFU NFV NFU 6FZ RFJ RFN RFK
XX XXX
XX X
XX X
185 to 187 188 to 192 185 to 187 197 to 202 193 to 196 217 to 223 103 to 209 210 to 216 217 to 223 224 to 231EW
5
J4 7 ETTUJP4 J4JP+
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 181

Downloaded from www.Manualslib.com manuals search engine 182
ENGINECHECKING AND SETTING THE VALVE TIMING
DV
TD
410
B BTED4
Engine type
C4
XSARA
XSARA PICASSO
See pages:
8HX 8HZ 9HY 9HZ 9HY 9HZ 9HX WJY RHY RHZ RHR
XX X X
XX XXX
XX X
232 to 239 240 to 248 249 to 258 240 to 248 259 to 263 264 to 270271 to 278 DW
6
TD 8ATED4TED4ATED
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 182

Downloaded from www.Manualslib.com manuals search engine 185
ENGINE
Tools.
[1]Flywheel peg: 4507-T.A
[2] Camshaft pulley peg: 4507-T.B Toolkit 4507-T
[3]Square: 4507-T.J
[4] Belt tension measuring instrument: 4122-T
[5] Valve rocker thrust plate: 4533-T.Z
Checking the timing.
Peg the flywheel, using tool [1].
Peg the camshaft pulley, using tool [2].
Setting the timing.
NOTE:Remove the sparking plugs, to ease rotation of the crankshaft.
Rotate the engine by means of the crankshaft screw (1).
Peg the camshaft pinion.
Peg the flywheel
Slacken the nut (2).
Fullt detension the belt by acting on the tensioner roller.
Remove the belt.
IMPERATIVE: Check that the tensioner roller turns freely
(no tight spot).
CHECKING AND SETTING THE VALVE TIMING
Engines: KFW - NFV
B1EP067CB1EP066CB1EP068C
XSARA - XSARA PICASSO
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 185

Downloaded from www.Manualslib.com manuals search engine 186
ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: KFW - NFV
Refitting the timing belt.
NOTE :Check that the pegs [1]and [2]are in place.
WARNING: Respect the direction of fitting of the belt: The arrows "a" indicate the direction of rotation of
the crankshaft.
Position:
-The timing belt, belt "b"well-tensioned in the following order: Crankshaft pinion, camshaft pulley, coolant pump
pulley, tensioner roller.
- Tool [5]
(respect the direction of fitting relative to the valve timing).
- Put the tensioner roller in contact with the belt.
- Tighten the nut (2).
Pre-tensioning the belt.
Place tool [4] on the tensioned part "b"of the belt.
Slacken the screw (2).
Turn the roller (3)in the anti-clockwise direction using the drive square, to obtain a value of: 44 SEEMunits.
Tighten the nut (2) to 2 m.daN.
Remove tools [1], [2] and [4].
Rotate the crankshaft 4 turnsin the normal direction of rotation.
IMPERATIVE: Never turn the crankshaft backwards.
B1EP06AC
B1EP069C
XSARA - XSARA PICASSO
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 186

Downloaded from www.Manualslib.com manuals search engine 187
ENGINE

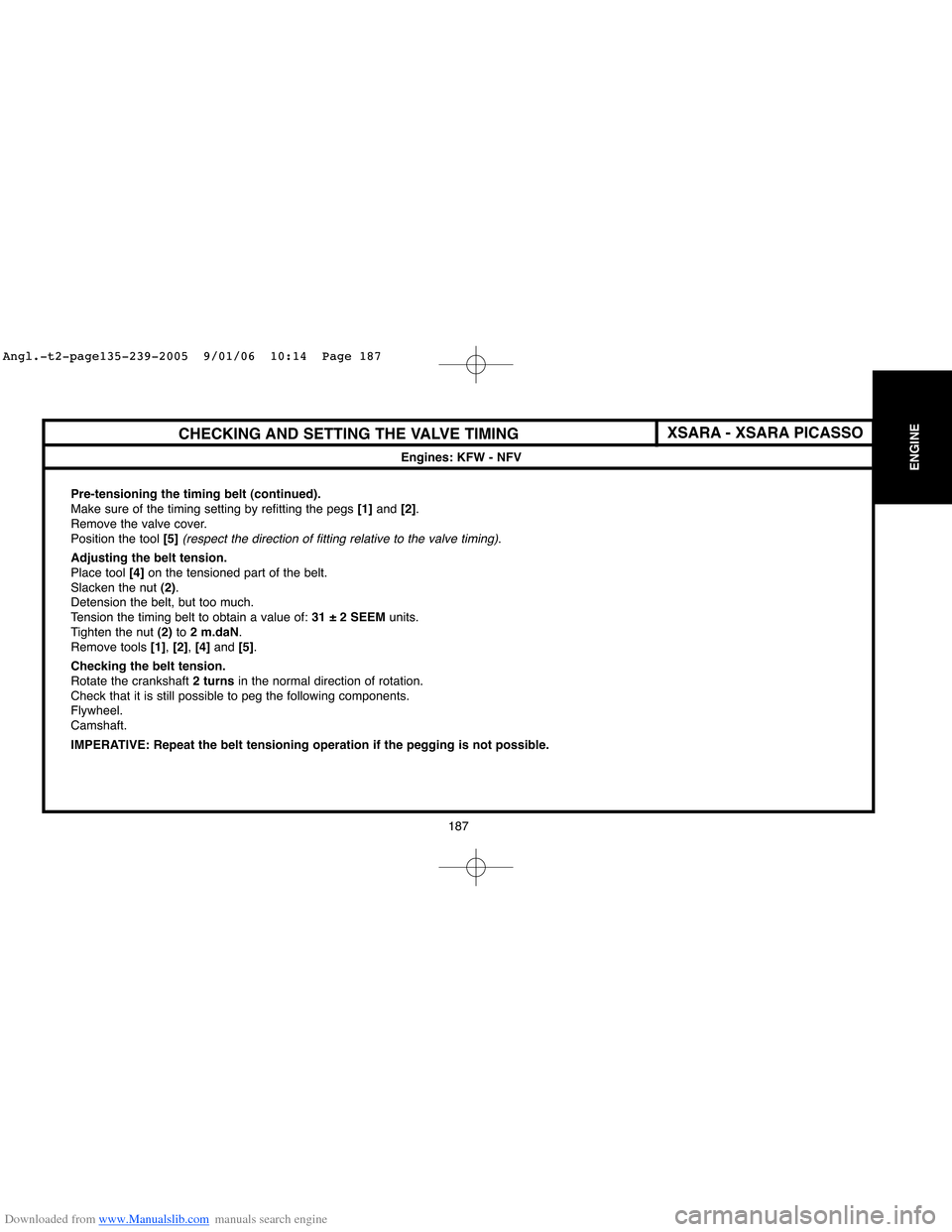

CHECKING AND SETTING THE VALVE TIMING
Engines: KFW - NFV
Pre-tensioning the timing belt (continued).
Make sure of the timing setting by refitting the pegs [1]and [2].
Remove the valve cover.
Position the tool [5]
(respect the direction of fitting relative to the valve timing).
Adjusting the belt tension.
Place tool [4]on the tensioned part of the belt.
Slacken the nut (2).
Detension the belt, but too much.
Tension the timing belt to obtain a value of: 31 ± 2 SEEMunits.
Tighten the nut (2)to 2 m.daN.
Remove tools [1], [2], [4] and [5].
Checking the belt tension.
Rotate the crankshaft 2 turnsin the normal direction of rotation.
Check that it is still possible to peg the following components.
Flywheel.
Camshaft.
IMPERATIVE: Repeat the belt tensioning operation if the pegging is not possible.
XSARA - XSARA PICASSO
