ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: WJY
B1BP2FTC
Setting the timing.
Removing.
Disconnect the battery.
Remove the front RH lower splash-shield, using tool [1].
Remove the accessories drive belt
(see corresponding operation).Uncouple and plug the diesel fuel delivery and return hoses.
Support the engine, using a workshop hoist.
Remove the RH engine support.
Engage 5th gearto permit rotation of the engine.
Remove the upper cover (1).
Remove the intermediate cover (2).
Remove the lower cover (3).
WARNING: Refit the screw (4) equipped with a washer
(5 mm thick).
Rotate the front RH wheel to drive the engine in its normal direction of
rotation.
Bring the camshaft drive and injection pump pinions to their setting
points.
Position the peg [2]
(from underneath the vehicle).
Continue turning the engine until the peg [2]engages in the flywheel.
B1BP30BC
XSARA
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 260

Downloaded from www.Manualslib.com manuals search engine 263
ENGINE

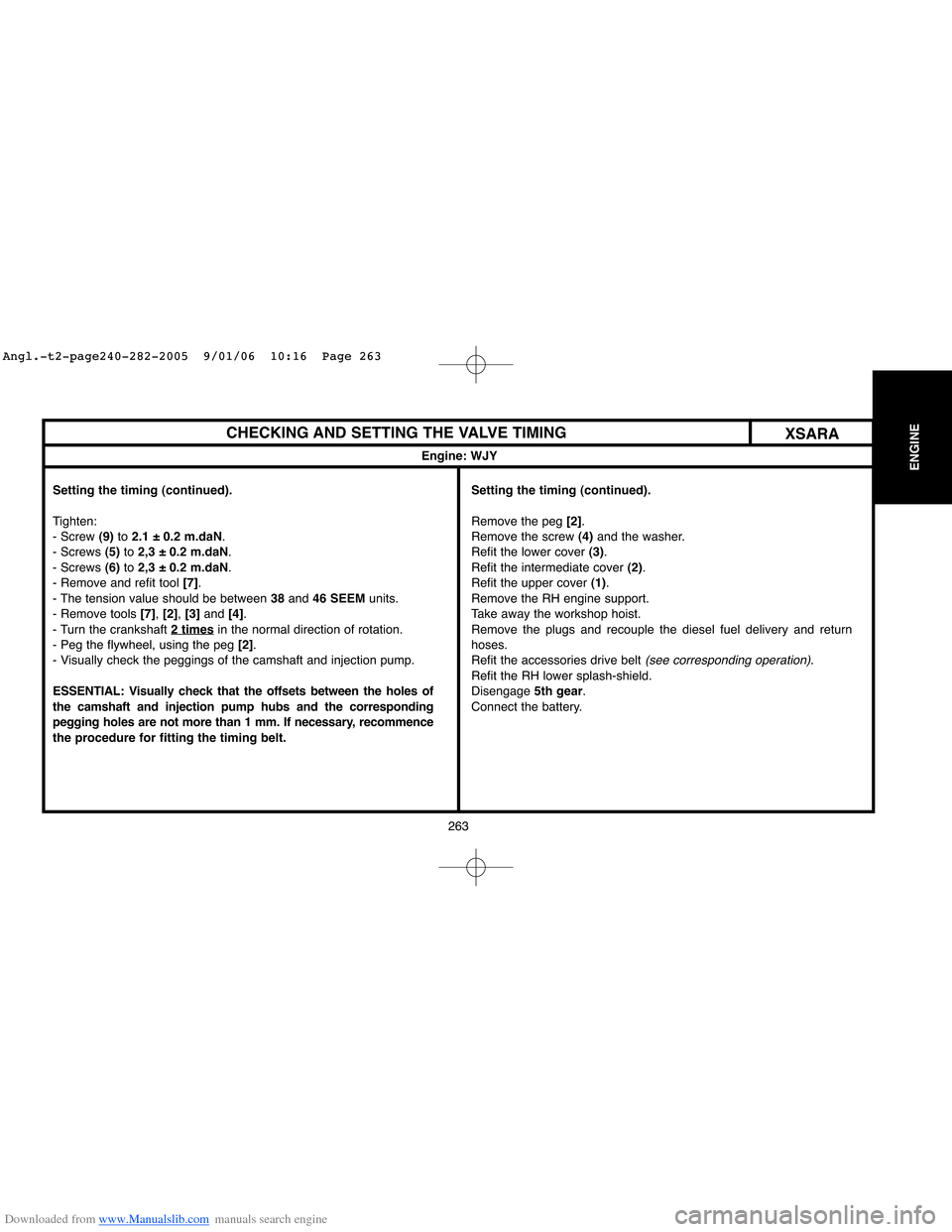

CHECKING AND SETTING THE VALVE TIMING
Engine: WJY
Setting the timing (continued).
Tighten:
- Screw (9)to 2.1 ± 0.2 m.daN.
- Screws (5)to 2,3 ± 0.2 m.daN.
- Screws (6)to 2,3 ± 0.2 m.daN.
- Remove and refit tool [7].
- The tension value should be between 38 and 46 SEEMunits.
- Remove tools [7], [2], [3]and [4].
- Turn the crankshaft 2 times
in the normal direction of rotation.
- Peg the flywheel, using the peg [2].
- Visually check the peggings of the camshaft and injection pump.
ESSENTIAL: Visually check that the offsets between the holes of
the camshaft and injection pump hubs and the corresponding
pegging holes are not more than 1 mm. If necessary, recommence
the procedure for fitting the timing belt.
XSARA
Setting the timing (continued).
Remove the peg [2].
Remove the screw (4)and the washer.
Refit the lower cover (3).
Refit the intermediate cover (2).
Refit the upper cover (1).
Remove the RH engine support.
Take away the workshop hoist.
Remove the plugs and recouple the diesel fuel delivery and return
hoses.
Refit the accessories drive belt
(see corresponding operation).
Refit the RH lower splash-shield.
Disengage 5th gear.
Connect the battery.
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 263

Downloaded from www.Manualslib.com manuals search engine 265
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines: RHY - RHZ
Uncouple, plug and move aside, using tool [7], the fuel delivery pipe(2)and return
pipe (1).
Remove:
- Screws (3), (4)and (6).
- Screw (7).
- The upper timing cover (5).
WARNING: Refit screw (7) equipped with a spacer
(17 mm thick), tighten the
screw (7) to 1,5 ± 0,1 m. daN.
NOTE: The screw (7)is one of the screws securing the coolant pump and is there
for its sealing.
Put the gear lever in 5th gear.
Turn the road wheel to turn the engine in its direction of rotation.
Orient the camshaft pulley in the pegging position, use a mirror if necessary.
Peg the camshaft, using tool [5].
Peg the engine flywheel, using tool [3].
B1EP1A7CB1BP2H3CB1BP2H2CB1BP2R2C
XSARA - XSARA PICASSO
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 265

Downloaded from www.Manualslib.com manuals search engine 270
ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: RHY - RHZ
Remove:
- Tools [3]and [5], Screw (7)and the spacer.
Refit:
- The lower, intermediate and upper covers (5).
- Screw (7), tighten to 1,5 ± 0,1 m.daN.
- Screws (3), (4)and (6).
- The bracket (13).
Screws (11), tighten to 6,1 ± 0,5 m.daN.
The nut (12), tighten to 4,5 ± 0,5 m.daN.
Fit the bearing shell (10).
Take away the workshop hoist.
Clip the fuel delivery and return pipes.
Remove the tool [7].
Couple:
- The fuel delivery pipe (12).
- The fuel return pipe (1).
- Coat the screw (8)with loctite FRENETANCH.
Refit the tool [6]and the screw (8)with the washer (22), tighten to 7 ± 0,2 m.daN
and angular tighten to A= 60°±5°.
Refit the torque reaction rod on the lower engine support.
Remove the tool [6].
Reposition and reclip the cooling hose.
Complete the refitting of components in reverse order to removal.
B1EP1A7CB1BP2R4CB1EP1ADC
XSARA - XSARA PICASSO
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 270

Downloaded from www.Manualslib.com manuals search engine 271
ENGINE
CHECKING THE VALVE TIMING
Engine: RHR
Tools.
[1] Kit of plugs: (-).0188.T
[2] Double flywheel setting peg: (-).0188.X Toolkit 0188-T
[3]Camshaft setting peg: (-).0188.M
IMPERATIVE: Respect the safety and cleanliness requirements specific to High pressure Diesel
injection (HDi) engine versions.
Remove the engine cover and the battery.
Disconnect the negative terminal of the battery.
Raise and support the front of the vehicle.
Remove the under-engine sound-deadening and the front RH splash-shield.
Uncouple, plug and move aside, using tool [1], the fuel supply and fuel return pipes..
Suspend the engine, using a workshop hoist.
Remove the engine support bracket and the engine support.
Move aside the electrical harness (1).
Remove:
- The camshaft position sensor.
- The inlet cylinder head cover (2).
- The upper timing cover screws.
- The upper timing cover (3).
B1EP1GFC
C4
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 271

Downloaded from www.Manualslib.com manuals search engine 274
ENGINE
274
CHECKING AND SETTING THE VALVE TIMING
Engine: RHR
Uncouple, plug and move aside, using tool [7],
the fuel delivery pipe (1)and the fuel return pipe (2).
Suspend the engine, using a workshop hoist.
Remove the bracket (3)and the RH engine
support (4).
Move aside the electrical harness (5).
Remove:
- The upper timing cover screws.
- The upper timing cover (6).
Rotate the engine by means of the auxiliaries drive
pulley.
Orient the camshaft pinion in the pegging position,
use a mirror if necessary.
Peg the camshaft, using tool [3].
Peg the engine flywheel, using tool [2].
Lock the flywheel, using tool [6].
B1BP351C
B1EP1FAC
B1EP1FBC
B1BP31EC
C4
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 274

Downloaded from www.Manualslib.com manuals search engine 288
INJECTION
CHECKS: LOW PRESSURE FUEL SUPPLY CIRCUIT
Tools.
[1] Ø 10 mm low pressure connector: 4215-T
[2] Ø 8 mmlow pressure connector: 4218-T
[3]Pressure gauge for testing boost pressure: 4073-T Kit 4073-T
Connect the tool [1]between the booster pump and the fuel filter
(white mark at "a" on the fuel
supply pipe).
Connect the tool [2]downstream of the diesel injectors, between the high pressure fuel pump and
the fuel filter
(green mark at "b" on the fuel return pipe).
WARNING: Any check of pressure downstream of the fuel filter is PROHIBITED.
Checks on pressure: static.
- Switch on ignition.
For 3 seconds
(normal functioning):
- Fuel supply pressure shown by the pressure gauge [3] = 1.8 ± 0.4 bar.
- Fuel return pressure shown by the pressure gauge [3] = 0.5 ± 0.4 bar.
B1BP1TWD
Engines: RHY - RHZ
XSARA PICASSO
Angl.-t2-page283-305-2005 9/01/06 10:18 Page 288

Downloaded from www.Manualslib.com manuals search engine 289
INJECTION
CHECKS: LOW PRESSURE FUEL SUPPLY CIRCUIT
Checks on pressure: dynamic.
Engine running, at idle (normal functioning):
- Fuel supply pressure shown by the pressure gauge [3] = 2 ± 0.4 bar.
- Fuel return pressure shown by the pressure gauge [3] = 0.7 ± 0.4 bar.
Abnormal functioning
Fuel supply pressure Fuel return pressure Checks
Between 3and 3.5bar0.7 ± 0.2 bar Check the condition of the diesel filter
More than 3.5bar Less than 0.7barCheck the low pressure regulator incorporated
in the filter
(locked shut): replace.
More than 3.5bar More than 0.7barCheck the fuel return circuit
(pipe pinched or trapped…)
Between 0.8and 1.5bar Less than 0.7barCheck the fuel supply circuit:
- Booster pump (low pressure), piping
Impossible to start the engine:Check: diesel injector return flow
(table below).Fuel supply pressure less than 0.8 bar:
- Check the low pressure regulator incorporated in the filter (locked open).- Check the high pressure pump distribution valve (locked shut).Uncouple the diesel injector return pipe.
Check: Observe:
The flow should be drop by drop Diesel injector functioning correctly
Excessive fuel return Diesel injector locked shutEngines: RHY - RHZ (continued)
XSARA PICASSO
Angl.-t2-page283-305-2005 9/01/06 10:18 Page 289

Downloaded from www.Manualslib.com manuals search engine 293
INJECTION
CHECKS: TURBO PRESSURE
Tools.
[1] Pressure gauge for checking the turbo pressure: 4073-T Toolkit 4073-T
[2]Pressure take-off extension: 8607-T.A
[3]Pressure take-off union and hose: 8607-T.B
[4] Sleeve for checking the turbo pressure: 4185-T
[5]Adaptor sleeve: 4219-T
IMPERATIVE: Respect the safety and cleanliness specific to high pressure diesel injection
engines.
Preliminary operation.
Slacken the clip (1).
Uncouple the air duct (2).
Connect the tool [1]on tool [2]and the tool [3]on tool [2].
Positioning on the vehicle.
Insert the tools [4]and [5]between the air duct (2)and the turbo air cooler outlet at «a».
Connect the tool [3]on tool [4].
Position the tool [1]inside the vehicle.
Start the engine.
Accelerate to 4000 rpm.
The value should be: 1 ± 0,2.
Return the vehicle to conformity.
Remove tools [1], [2], [3], [4]and [5].
Recouple the air duct (2)on the turbo air cooler.
Tighten the clip (1).
B1BP356C
B1HP1ZXC
Engine: RHR
C4
Angl.-t2-page283-305-2005 9/01/06 10:18 Page 293

Downloaded from www.Manualslib.com manuals search engine 387
AXLES
SUSPENSION
STEERING
TIGHTENING TORQUES: POWER-ASSISTED STEERING
XSARA
Power-assisted steering assembly
T
ightening torques (m.daN).
High pressure tube (rubber seal pump side)Power-assisted valve and pump union: 2.5
Return pipe.
Power-assisted valve union: 2.5
(16)Upper front fixing (E3) : 2.5
(17)Upper rear fixing (E3) : 2.2
(18)Fixing (E3) : 2.2
Tightening sequence.
Tighten screws (16) and (18).
Lightly tighten screw (17), then fully tighten.
Pressure switch on the pressure circuit.
Switch opens 30to 35 bars.
Switch closes 25 bars.
Tighten to: 2 m.daN.
B3EP045D
