IIIIIIC H I L D R E S T R A I N T S
ISOFIX CHILD SEATS
ISOFIX anchoring points and the ISOFIX fastening system
The lateral rear seats of your vehicle are each equipped withISOFIX anchoring points:
2 rings located approx. 28 cm apart between the seat cushion a nd the backrest.
ISOFIX child seats have 2 latches which are easy to anchor on these rings. This fa sten-
ing system is designed for children weighing up to 22kg.
Incorrect installation of a child seat in a vehicle compromi ses protection of the child in the event of a collision. The IS O-
FIX fastening system enables you to reduce those risks posed by incorrect fitting, offering you a convenient, strong and
reliable fitting for a child seat in your vehicle.
The ISOFIX child seat which is approved for CITROËN vehicles and supplied by the CITROËN network is theIsofix
KIDDY child seat (1). It can be installed “rear- facing” from birth to 13kg and “forward- facing” from 9 to 18kg.
Take care to comply with the fitting instructions given in th e child seat manufacturer’s user guide.
Advice on installing your ISOFIX child seat
Before securing the Isofix KIDDYchild seat on the ISOFIX anchorages in your vehicle, check th at no object is obstruct-
ing access to these anchorages.
Fasten the ISOFIX guides onto the ISOFIX anchorages to impro ve access.
- In the “forward-facing” position, the vehicle front seat s hould be adjusted to a spot that is between the furthest forwa rd
and the intermediate fore/aft position, backrest upright.
- In the “rear-facing” position, the shell of the child seat s hould be in contact with the backrest of the corresponding ve -
hicle front seat.
The ISOFIX KIDDYchild seat can also be used in vehicles not eq uipped wth ISOFIX anchorages. In this case, the child
seat must be secured to the vehicle seat by means of the three- point seat belt in both the “rear-facing” and “forward-
facing” positions.
(1) On the ISOFIX anchoring points, you should secure only IS OFIX child seats which are approved for your vehicle
and supplied by the CITROËN network.
฀7฀6

12
2
IIIIIII N T E R I O R L I G H T I N G

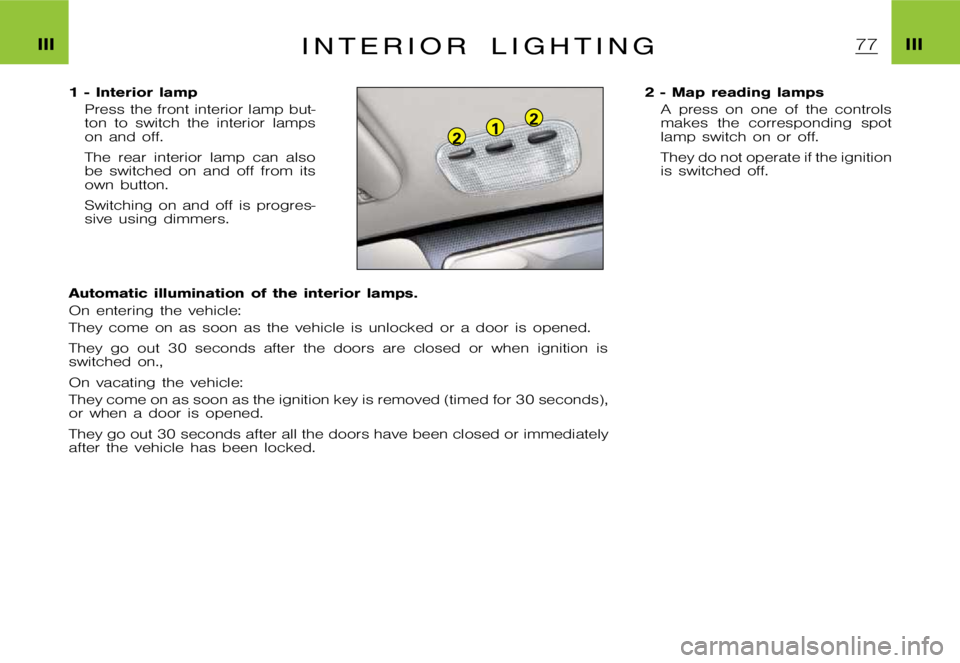

1 - Interior lamp
Press the front interior lamp but-
ton to switch the interior lamps
on and off.
The rear interior lamp can also
be switched on and off from its
own button.
Switching on and off is progres-
sive using dimmers.
Automatic illumination of the interior lamps.
On entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is open ed.
They go out 30 seconds after the doors are closed or when ignit ion is
switched on.,
On vacating the vehicle:
They come on as soon as the ignition key is removed (timed for 3 0 seconds),
or when a door is opened.
They go out 30 seconds after all the doors have been closed or i mmediately
after the vehicle has been locked. 2 - Map reading lamps
A press on one of the controls
makes the corresponding spot
lamp switch on or off.
They do not operate if the ignition
is switched off.
฀7฀7

IIIIIII N T E R I O R L I G H T I N G

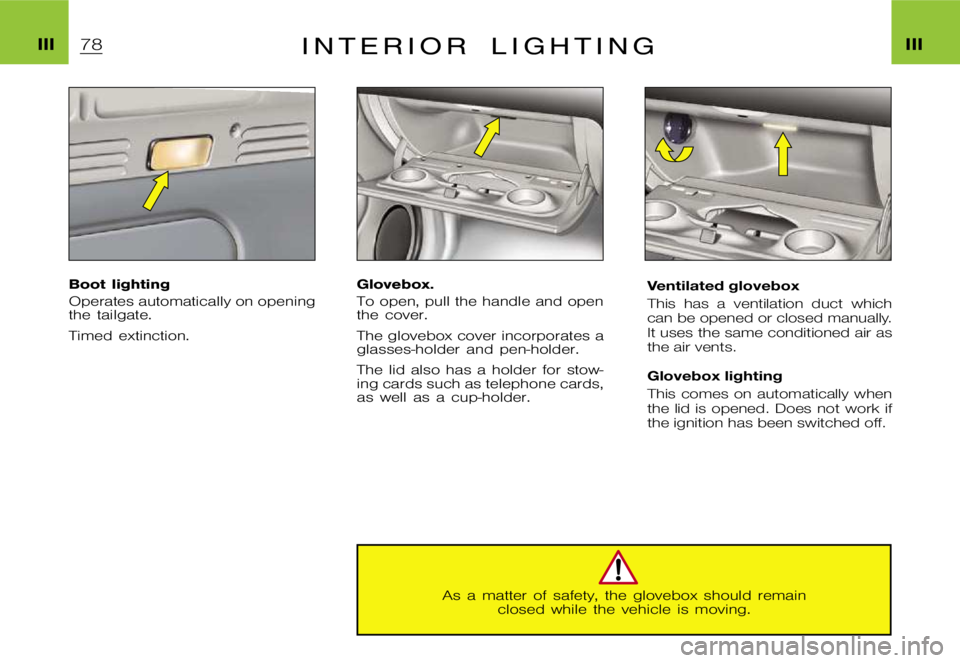

Boot lighting
Operates automatically on opening
the tailgate.
Timed extinction.Glovebox.
To open, pull the handle and open
the cover.
The glovebox cover incorporates a
glasses-holder and pen-holder.
The lid also has a holder for stow-
ing cards such as telephone cards,
as well as a cup-holder.
As a matter of safety, the glovebox should remain closed while the vehicle is moving.฀V฀e฀n฀t฀i฀l฀a฀t฀e฀d฀฀฀g฀l฀o฀v฀e฀b฀o฀x
฀T฀h฀i฀s฀฀ ฀h฀a฀s฀฀ ฀a฀฀ ฀v฀e฀n฀t฀i฀l฀a฀t฀i฀o฀n฀฀ ฀d฀u฀c฀t฀฀ ฀w฀h฀i฀c฀h฀฀
฀c฀a฀n฀฀฀b฀e฀฀฀o฀p฀e฀n฀e฀d฀฀฀o฀r฀฀฀c฀l฀o฀s฀e฀d฀฀฀m฀a฀n฀u฀a฀l฀l฀y฀.฀฀
฀I฀t฀฀฀u฀s฀e฀s฀฀฀t฀h฀e฀฀฀s฀a฀m฀e฀฀฀c฀o฀n฀d฀i฀t฀i฀o฀n฀e฀d฀฀฀a฀i฀r฀฀฀a฀s฀฀฀t฀h฀e฀฀฀a฀i฀r฀฀฀v฀e฀n฀t฀s฀. ฀G฀l฀o฀v฀e฀b฀o฀x฀฀฀l฀i฀g฀h฀t฀i฀n฀g฀฀
฀T฀h฀i฀s฀฀฀c฀o฀m฀e฀s฀฀฀o฀n฀฀฀a฀u฀t฀o฀m฀a฀t฀i฀c฀a฀l฀l฀y฀฀฀w฀h฀e฀n฀฀
฀t฀h฀e฀฀ ฀l฀i฀d฀฀ ฀i฀s฀฀ ฀o฀p฀e฀n฀e฀d฀.฀฀ ฀D฀o฀e฀s฀฀ ฀n฀o฀t฀฀ ฀w฀o฀r฀k฀฀ ฀i฀f฀฀
฀t฀h฀e฀฀฀i฀g฀n฀i฀t฀i฀o฀n฀฀฀h฀a฀s฀฀฀b฀e฀e฀n฀฀฀s฀w฀i฀t฀c฀h฀e฀d฀฀฀o฀f฀f฀.
฀7฀8

IIIIIII n t e r i o r c o m f o r t
Cigar lighter
Push in and wait a few moments. The cigar lighter will releaseautomatically.
Ashtray
To empty the ashtray, press the ashtray tab and pull it toward s you.
To refit
Locate the ashtray in its housing and push in. 12 volt accessory socket
It is located on the rear shelf sup-
port, on the left hand side
฀7฀9

IIIIIII n t e r i o r c o m f o r t

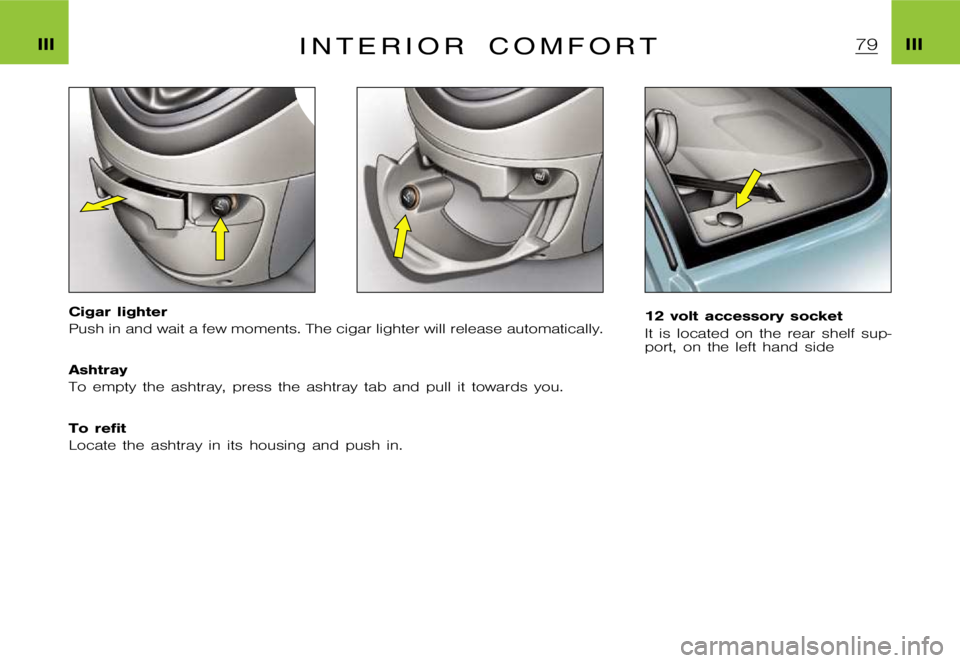

Centre console storage bin
Open from the front to the rear.
Removing the glove compart-
ment
With the glove compartment open,
press the stops at the rear of the

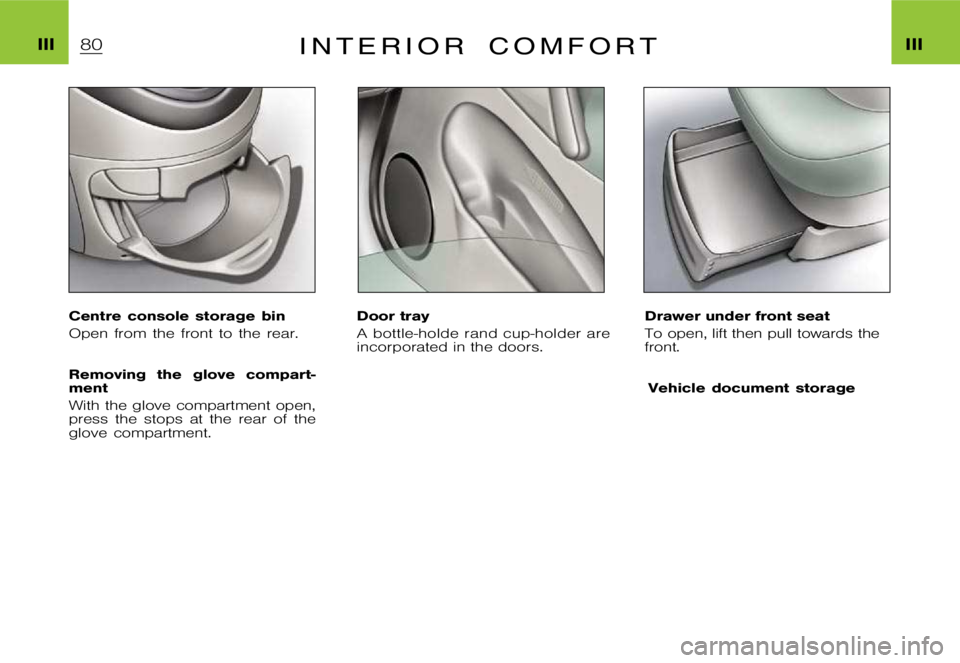

glove compartment.Door tray A bottle-holde rand cup-holder are
incorporated in the doors.
Drawer under front seat
To open, lift then pull towards the
front.

Vehicle document storage
฀8฀0

IIIIIII n t e r i o r c o m f o r t
Badge reader
The athermic windscreen compris-
es a darkened area, at the level of
the interior rear view mirror, to per-
mit the optical registering of access
permits (e.g. motorway toll card).
Ticket holder
Located on the windscreen pillar
(driver’s side).Sun visors
Fold visors down to avoid dazzle
from ahead. They can be disen-
gaged from their central fixing and
pivoted over to the side windows if
required.
Sun visor with illuminated mir-
ror
Illuminates automatically on open-
ing the mirror cover flap (ignition
on).Grab handles /
Coat hooks
฀8฀1

฀8฀2฀I฀I฀I฀I฀I฀I
฀D฀o฀฀฀n฀o฀t฀฀฀p฀l฀a฀c฀e฀฀฀h฀e฀a฀v฀y฀฀฀o฀r฀฀฀h฀a฀r฀d฀฀฀o฀b฀j฀e฀c฀t฀s฀฀฀o฀n฀฀฀t฀h฀e฀฀฀r฀e฀a฀r฀฀฀s฀h฀e฀l฀f฀.
฀T฀h฀e฀y฀฀฀c฀o฀u฀l฀d฀฀฀b฀e฀c฀o฀m฀e฀฀฀d฀a฀n฀g฀e฀r฀o฀u฀s฀฀฀p฀r฀o฀j฀e฀c฀t฀i฀l฀e฀s฀฀฀u฀n฀d฀e฀r฀฀฀฀฀s฀u฀d฀d฀e฀n฀฀฀b฀r฀a฀k฀i฀n฀g฀฀฀o฀r฀฀฀i฀n฀฀฀t฀h฀e฀฀฀e฀v฀e฀n฀t฀฀฀o฀f฀฀฀a฀฀฀c฀o฀l฀l฀i฀s฀i฀o฀n฀.
฀I ฀N ฀T ฀E ฀R ฀I ฀O ฀R ฀฀ ฀C ฀O ฀M ฀F ฀O ฀R ฀T
฀A฀i฀r฀c฀r฀a฀f฀t฀-฀s฀t฀y฀l฀e฀฀฀t฀r฀a฀y
฀T฀o฀฀ ฀d฀e฀p฀l฀o฀y฀฀ ฀i฀t฀,฀฀ ฀p฀u฀l฀l฀฀ ฀u฀p฀w฀a฀r฀d฀s฀฀ ฀a฀n฀d฀฀ ฀f฀o฀l฀d฀.
฀N฀o฀t฀e฀฀ ฀:฀฀ ฀F฀o฀r฀฀ ฀s฀a฀f฀e฀t฀y฀,฀฀ ฀i฀f฀฀ ฀a฀n฀y฀฀ ฀f฀o฀r฀c฀e฀฀ ฀i฀s฀฀
฀e฀x฀e฀r฀t฀e฀d฀฀ ฀t฀h฀e฀฀ ฀t฀r฀a฀y฀฀ ฀i฀s฀฀ ฀d฀e฀s฀i฀g฀n฀e฀d฀฀ ฀t฀o฀฀฀฀ ฀d฀e฀t฀a฀c฀h฀฀฀i฀t฀s฀e฀l฀f฀.
฀T฀o฀฀ ฀r฀e฀p฀o฀s฀i฀t฀i฀o฀n฀฀ ฀i฀t฀,฀฀ ฀w฀i฀t฀h฀฀ ฀t฀h฀e฀฀ ฀t฀r฀a฀y฀฀฀฀
฀v฀e฀r฀t฀i฀c฀a฀l฀,฀฀฀e฀n฀g฀a฀g฀e฀฀฀o฀n฀e฀฀฀s฀i฀d฀e฀฀฀t฀h฀e฀n฀฀฀t฀h฀e฀฀
฀o฀t฀h฀e฀r฀,฀฀฀f฀o฀r฀c฀i฀n฀g฀฀฀s฀l฀i฀g฀h฀t฀l฀y฀.
฀S฀t฀o฀r฀a฀g฀e฀฀฀c฀o฀m฀p฀a฀r฀t฀m฀e฀n฀t฀s
฀C฀o฀n฀c฀e฀a฀l฀e฀d฀฀ ฀u฀n฀d฀e฀r฀฀ ฀a฀฀ ฀fl฀a฀p฀,฀฀ ฀t฀h฀e฀s฀e฀฀
฀a฀r฀e฀฀ ฀t฀o฀฀ ฀b฀e฀฀ ฀f฀o฀u฀n฀d฀฀ ฀i฀n฀฀ ฀t฀h฀e฀฀ ฀f฀a฀l฀s฀e฀฀ ฀fl฀o฀o฀r฀฀
฀b฀e฀h฀i฀n฀d฀฀฀t฀h฀e฀฀฀f฀r฀o฀n฀t฀฀฀s฀e฀a฀t฀s฀. ฀D฀a฀s฀h฀b฀o฀a฀r฀d฀฀฀s฀t฀o฀r฀a฀g฀e
฀N฀o฀t฀e฀฀ ฀:฀฀฀T฀h฀e฀฀ ฀w฀h฀e฀e฀l฀b฀r฀a฀c฀e฀฀ ฀i฀s฀฀ ฀c฀l฀i฀p฀p฀e฀d฀฀
฀o฀n฀฀ ฀t฀h฀e฀฀ ฀i฀n฀s฀i฀d฀e฀฀ ฀o฀f฀฀ ฀t฀h฀e฀฀ ฀fl฀a฀p฀฀ ฀f฀o฀r฀฀ ฀t฀h฀e฀฀
฀s฀t฀o฀r฀a฀g฀e฀฀ ฀c฀o฀m฀p฀a฀r฀t฀m฀e฀n฀t฀฀ ฀i฀n฀฀ ฀t฀h฀e฀฀ ฀f฀a฀l฀s฀e฀฀
฀fl฀o฀o฀r฀฀ ฀b฀e฀h฀i฀n฀d฀฀ ฀t฀h฀e฀฀ ฀f฀r฀o฀n฀t฀฀ ฀r฀i฀g฀h฀t฀฀ ฀h฀a฀n฀d฀฀฀s฀e฀a฀t฀.

B
12
IIIIIIR E A R P A R C E L S H E L F

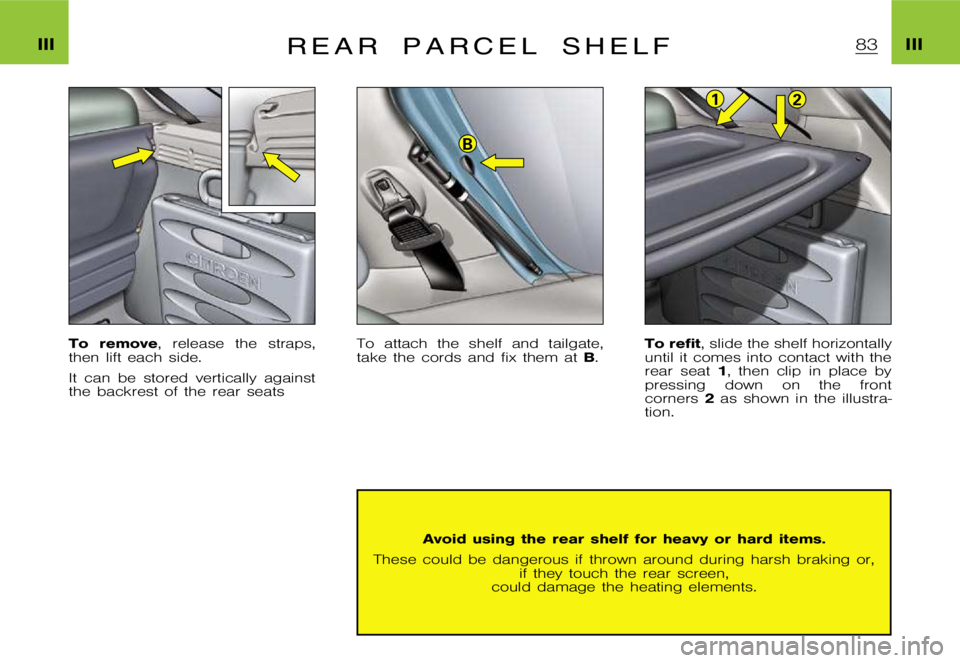

To remove, release the straps,
then lift each side.
It can be stored vertically against
the backrest of the rear seats To attach the shelf and tailgate,
take the cords and fix them at
B. To refit
, slide the shelf horizontally
until it comes into contact with the
rear seat 1, then clip in place by
pressing down on the front
corners 2as shown in the illustra-
tion.
Avoid using the rear shelf for heavy or hard items.
These could be dangerous if thrown around during harsh braki ng or,
if they touch the rear screen,
could damage the heating elements.
฀8฀3

IIIIIIR e a r b l i n d

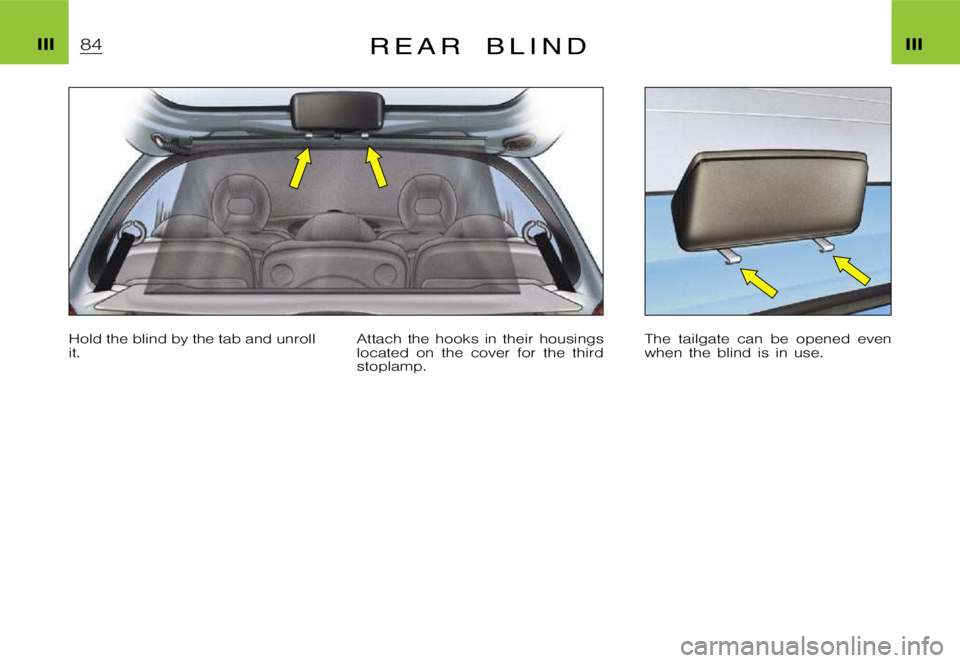

Hold the blind by the tab and unroll
it.Attach the hooks in their housings
located on the cover for the third
stoplamp.The tailgate can be opened even
when the blind is in use.
฀8฀4

IIIIIIB O O T
Luggage securing rings
Use the four securing rings provid-
ed on the boot floor to secure all
loads.
For safety reasons, in case of hard
braking, heavy objects should be
placed as far forward as possible.
Protective net
This helps to secure objects
stowed in the boot.Storage
Two storage bins are provided in
the side walls of the boot: -
On the left hand side , storage
for various items, with a cover
which is opened and closed by
turning the buttons by 1/4 turn.
- On the right hand side , storage
for various items. Folding trolley
To use it, release the strap then un-
fold it by unclipping both sides.
Storage
Before folding it, lift the base of the
trolley.
฀8฀5
