I N B R I E F

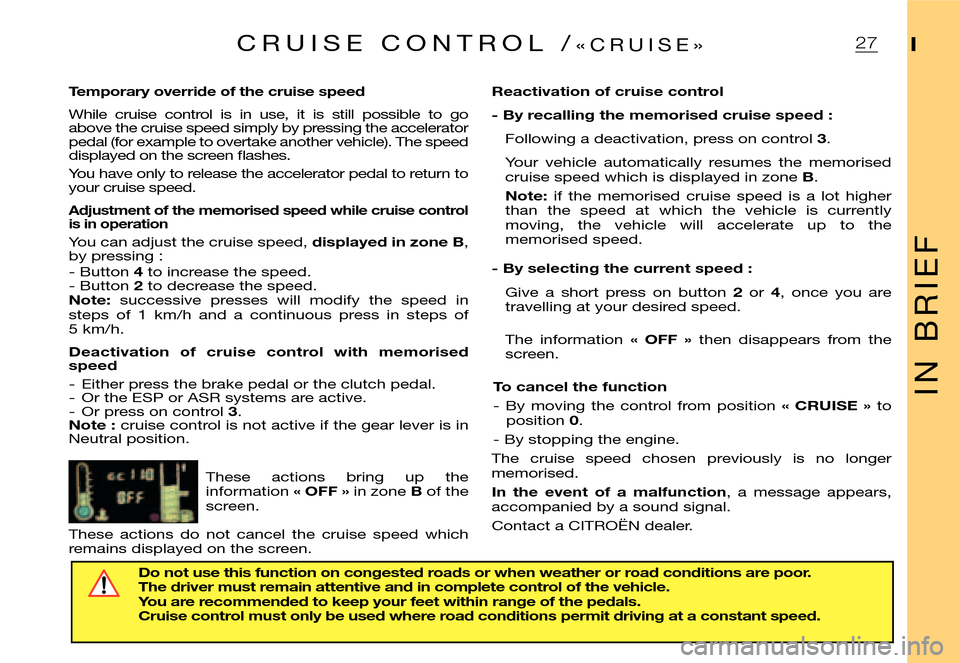

I27C R U I S E C O N T R O L /« C R U I S E »
Temporary override of the cruise speed
While cruise control is in use, it is still possible to go above the cruise speed simply by pressing the accel erator pedal (for example to overtake another vehicle). The speed displayed on the screen fl ashes.
You have only to release the accelerator pedal to r eturn to your cruise speed.
Adjustment of the memorised speed while cruise cont rol is in operation
You can adjust the cruise speed, displayed in zone B, by pressing :- Button 4 to increase the speed.- Button 2 to decrease the speed.Note: successive presses will modify the speed in
steps of 1 km/h and a continuous press in steps of 5 km/h.
Deactivation of cruise control with memorised speed
- Either press the brake pedal or the clutch pedal.- Or the ESP or ASR systems are active.- Or press on control 3.Note : cruise control is not active if the gear lever is in
Neutral position.
These actions bring up the information « OFF » in zone B of the screen.
These actions do not cancel the cruise speed which remains displayed on the screen.
Reactivation of cruise control
- By recalling the memorised cruise speed :
Following a deactivation, press on control 3.
Your vehicle automatically resumes the memorised cruise speed which is displayed in zone B.
Note: if the memorised cruise speed is a lot higher
than the speed at which the vehicle is currently
moving, the vehicle will accelerate up to the memorised speed.
- By selecting the current speed :
Give a short press on button 2 or 4, once you are travelling at your desired speed.
The information « OFF » then disappears from the screen.
To cancel the function
- By moving the control from position « CRUISE » to position 0.
- By stopping the engine.
The cruise speed chosen previously is no longer memorised.
In the event of a malfunction, a message appears, accompanied by a sound signal.
Contact a CITROËN dealer.
Do not use this function on congested roads or when weather or road conditions are poor.The driver must remain attentive and in complete control of the vehicle.You are recommended to keep your feet within range of the pedals.Cruise control must only be used where road conditions permit driving at a constant speed.

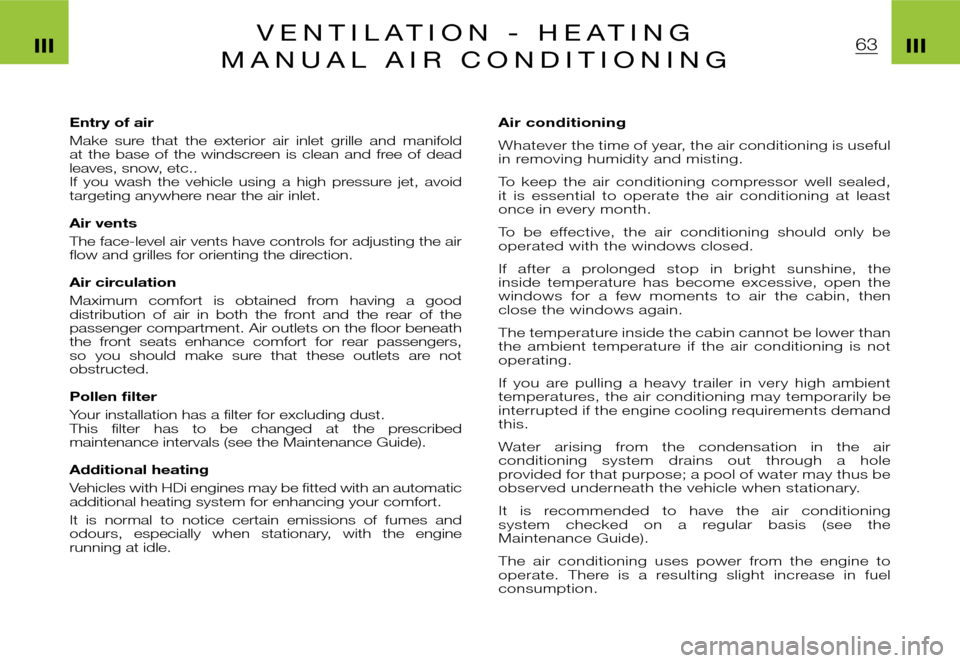

63IIIIIIV E N T I L A T I O N - H E A T I N G
M A N U A L A I R C O N D I T I O N I N G
Entry of air
Make sure that the exterior air inlet grille and manifold at the base of the windscreen is clean and free of dead leaves, snow, etc..If you wash the vehicle using a high pressure jet, avoid targeting anywhere near the air inlet.
Air vents
The face-level air vents have controls for adjusting the air ow and grilles for orienting the direction.
Air circulation
Maximum comfort is obtained from having a good distribution of air in both the front and the rear of the passenger compartment. Air outlets on the oor beneath the front seats enhance comfort for rear passengers, so you should make sure that these outlets are not obstructed.
Pollen lter
Your installation has a lter for excluding dust.This lter has to be changed at the prescribed maintenance intervals (see the Maintenance Guide).
Additional heating
Vehicles with HDi engines may be tted with an automatic additional heating system for enhancing your comfort.
It is normal to notice certain emissions of fumes and odours, especially when stationary, with the engine running at idle.
Air conditioning
Whatever the time of year, the air conditioning is useful in removing humidity and misting.
To keep the air conditioning compressor well sealed , it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only b e operated with the windows closed.
If after a prolonged stop in bright sunshine, the inside temperature has become excessive, open the windows for a few moments to air the cabin, then close the windows again.
The temperature inside the cabin cannot be lower than the ambient temperature if the air conditioning is not operating.
If you are pulling a heavy trailer in very high ambient temperatures, the air conditioning may temporarily be interrupted if the engine cooling requirements demand this.
Water arising from the condensation in the air conditioning system drains out through a hole provided for that purpose; a pool of water may thus be observed underneath the vehicle when stationary.
It is recommended to have the air conditioning system checked on a regular basis (see the Maintenance Guide).
The air conditioning uses power from the engine to operate. There is a resulting slight increase in fu el consumption.

5
Navigation is an electronic help system. It cannot replace the driver's decisions.All guidance instructions must be carefully checked by the user.Main menu
Configure display
Navigation options
Navigation/Guidance
Select a service
Select destination from memory Go back to current guidance
Main menu
Switch on the ignition.
Press the “MENU” button to access the main menu.
Select a function using the direc-tion arrows, then validate your choice (“VAL” button).
Navigation/guidance
Following the selection of “Navigation/guidance” the screen will warn you about the use of navi-gation. Respect the regulations in force and do not use the remote control when your vehicle is moving.
Press the “VAL” button to progress to the next menu.
The “Navigation/guidance” menu offers you several options:
- entering the address of a new destination,
- selecting a service (hotel, railway station, airport, etc.) at a specifi c town,
- selecting a stored address from one of the two directories,
- resuming a guidance that was previously interrupted or ending a guidance in progress.
Two messages may be displayed depending on previous actions: “Resume guidance” or “Stop guidance”.
A press on the “ESC” button allows you, after a validation, to suspend a guidance in progress and return to the main menu.
T H E O N - B O A R D N A V I G AT I O N S Y S T E M

16R A D I O M O D E
RADIO RECEPTION
Your audio system will be subject to certain phenomena that are not encountered by domestic systems. The reception of AM and FM signals is subject to interference which is caused by the nature and propagation of the signals, and is not a fault of your audio system.In AM mode, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the station transmitter, the refl ecting of signals off obsta cles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
SELECTING RADIO MODE
If the system is not already in radio mode, press button (C).
SELECTING A WAVEBAND AND MEMORY BANK
Press button (C), to go through the memory banks FM1, FM2 and FM3, for the FM waveband, and the memory bank MW/LW, for the AM waveband.
AUTOMATIC SEARCH (Automatic search mode activated)
Press either button (I) or (G) briefl y to tune into the following or preceding radio stations respectively, within the chosen wave band.By keeping either button (I) or (G) pressed down, the search mode will proceed through the waveband and will stop at the fi rst station it comes across once the button is released.The automatic search mode can also be operated using buttons (2) and (3) on the control at the steering wheel (P).It is possible to carry out a manual search to fi nd a known station if the automatic search is unable to tune into it (for example, due to very weak reception).
MANUAL SEARCH (Manual search mode activated)
To select the manual search mode, briefl y press the button “MAN” (H).The display indicates “MN” followed by the frequency.By keeping either button (I) or (G) pressed down, the search mode will proceed through the waveband and will stop on the frequency shown on the display when the button is released. The system will remain on the frequency displayed.The system will automatically return to the automatic search mode after several seconds, or by pressing the button “MAN” (H).
TUNING SENSITIVITY
Automatic searches can be carried out according to two levels of sensitivity.- to pick up the strongest radio signals, select the local tuning function “LO”.- to pick up signals which are weaker or further away, select the distance tuning function “DX”.The searches are fi rst carried out for the local sensitivity function “LO”, then the distance sensitivity function “DX”.To immediately initiate a distance sensitivity search “DX”, press either button (I) or (G) twice in a row.

21C D M O D E *
SELECTING CD MODE
After inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.
To manually select CD mode (CD already inserted), press button (D).
The CD Mode can also be selected by pressing button (5) on the control at the steering wheel (P).
EJECTING A CD
Press button (B) to eject the CD, the audio system will automatically switch to radio mode.
If the CD is not removed within 1 0 to 1 5 seconds of being ejected, it will automatically be taken back into the CD player, although it will not be played.
SELECTING A TRACK
Pressing button (I) once will play the next track on the disc.
Pressing button (G) once returns to the beginning of the track currently being played, pressing the button again plays the previous track.
By pressing the buttons several times, it is possible to skip several tracks at a time.
These operations can also be performed using buttons (2) and (3) on the control at the steering wheel (P).
While listening to a CD, the display will show the track number and the length of time the track has been playing for.
For example: If you have been listening to the 3rd track on a CD for 2 minutes and 15 seconds, the display will read “T03 02:15”.
FAST FORWARD AND REVERSE
To change swiftly to another track, press button (H), then press and hold down either button (I) or button (G) to fast forward orfast reverse respectively. Play restarts as normal when the button is released.
The function is deactivated after several seconds if neither button (I) nor button (G) is pressed, or if button (H) is pressed again.
RANDOM PLAY (random order of play of the tracks, as selected by the CD player)
Press button (D) for more than two seconds.
The display indicates “RDM” and the track number.
To deactivate this function, press button (D) again for more than two seconds.
*According to version or option.

26R A D I O M O D E
RADIO RECEPTION
Your audio system will be subject to certain phenomena that are not encountered by domestic systems. The reception of AM and FM signals is subject to interference which is caused by the nature and propagation of the signals, and is not a fault of your audio system.
In AM mode, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.
In FM mode, the reception may be affected by the distance from the station transmitter, the refl ecting of signals off obstacles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
SELECTING RADIO MODE
If the system is not already in radio mode, press button (I).
SELECTING A WAVEBAND AND MEMORY BANK
Press button (D), to go through the memory banks FM1, FM2 and FM3, for the FM waveband, and the memory bank MW/LW, for the AM waveband.
AUTOMATIC SEARCH (Automatic search mode activated)
Press either button (G) or (E) briefl y to tune into the following or preceding radio stations respectively, within the chosen waveband.
By keeping either button (G) or(E) pressed down, the search mode will proceed through the waveband and will stop at the fi rst station it comes across once the button is released.
The automatic search mode can also be operated using buttons (2) and (3) on the control at the steering wheel (P).
It is possible to carry out a manual search to fi nd a known station if the automatic search is unable to tune into it (for example, due to very weak reception).
MANUAL SEARCH (Manual search mode activated)
To select the manual search mode, briefl y press the button “MAN” (F).
The display indicates “MN” followed by the frequency.
By keeping either button (G) or (E) pressed down, the search mode will proceed through the waveband and will stop on the frequency shown on the display when the button is released. The system will remain on the frequency displayed.
The system will automatically return to the automatic search mode after several seconds, or by pressing the button “MAN” (F).
TUNING SENSITIVITY
Automatic searches can be carried out according to two levels of sensitivity.
The searches are fi rst carried out for the local sensitivity function “LO”, then the distance sensitivity function “DX”.

30C A S S E T T E M O D E
SELECTING CASSETTE MODE
Playback starts automatically upon insertion of a cassette.
To manually select the cassette mode (if a cassette is already inserted in the player), press button (I).
These operations can also be performed using button (5) on the control at the steering wheel (P).
EJECTING THE CASSETTE
Press buttons (J) and (K) down fully and at the same time to eject the cassette. The audio system will automatically switch to radio mode.
DIRECTION OF PLAYBACK
At the end of a side, the player will automatically switch direction to play the other side of the cassette.
To reverse the direction of play before the end of the cassette, push buttons (J) and (K) down half-way at the same time.
FAST FORWARD AND REWIND
Press either button (J) or button (K) so that it locks down, in order to rewind or fast forward the cassette respectively.
To halt the fast forward or rewind, press the other button.
These operations can also be performed using buttons (2) and (3) on the control at the steering wheel (P).
