key DACIA DUSTER 2012 1.G User Guide

driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD17439_2
Mise en route / Arrêt du moteur (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_2
Petrol injection
Engine warm or cold
–

T
urn the key to the start position
without depressing the accelera-
tor.
–

R
elease the key as soon as the
engine starts.ÉDiesel injection
T

urn the ignition key to ignition “On” po-
sition M, and hold this position until the
preheating warning light goes out.
Turn the key to starter position D with-
out depressing the accelerator
pedal.
Release the key as soon as the engine
starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Make sure the engine immobiliser is not
activated. Refer to the information on
the “Engine immobiliser” in Section 1.
Starting/stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.

JauneNoirNoir texte
3.11
ENG_UD24508_3
Lève-vitres (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
ELECTRIC WINDOWS (3/3)
Locking and unlocking the
rear window controls
(depending on vehicle)
Press the top of switch
1
1 to lock the
operation of the rear electric windows
or on the bottom of switch

1
1 to unlock.
Safety of rear occupants
The driver can prevent op-
eration of the rear elec-
tric windows by pressing
switch

11.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un-
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be-
comes trapped, reverse the direc-
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
11
Manual window winders
Turn handle 1 2 to lower or raise the
window to the desired height.
12

tailgate ................................................................... (current page)
3.20
ENG_UD20574_2
Coffre à bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3

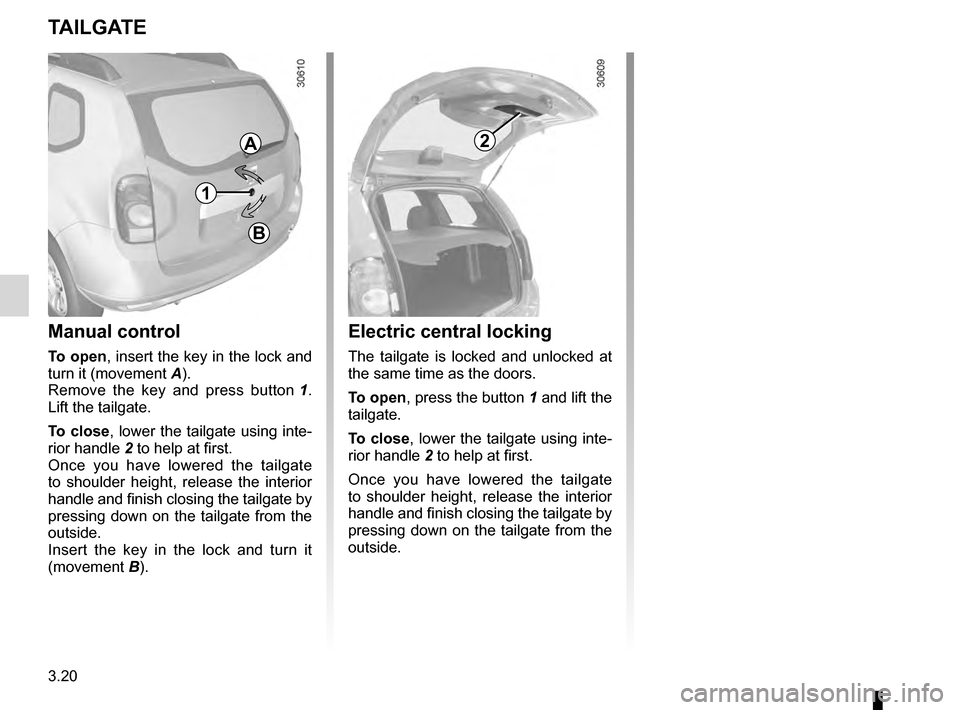

Luggage compartment
TAILGATE
Manual control
To open, insert the key in the lock and
turn it (movement
A).
Remove the key and press button
1 .
Lift the tailgate.
T

o close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement
B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B

keysreplacing the battery ....................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
battery (remote control) ........................ (up to the end of the DU)
5.30
ENG_UD14146_1
Télécommande à radiofréquence : piles (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

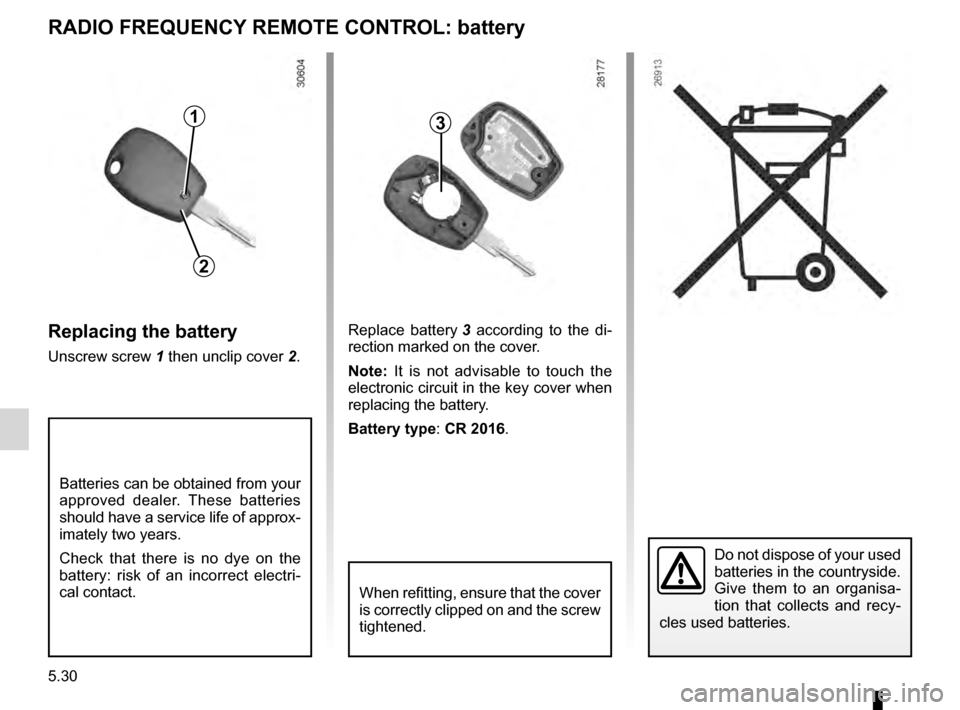

Radio frequency remote control: battery
RADIO FREQUENCY REMOTE CONTROL: battery
Replacing the battery
Unscrew screw 1 then unclip cover 2 .
Batteries can be obtained from your
approved dealer. These batteries
should have a service life of approx-
imately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy-
cles used batteries.
31
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
Replace battery 3 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Battery type : CR 2016.

towing hitch........................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
towing breakdown ...................................... (up to the end of the DU)
5.32
ENG_UD22437_4
Remorquage : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte

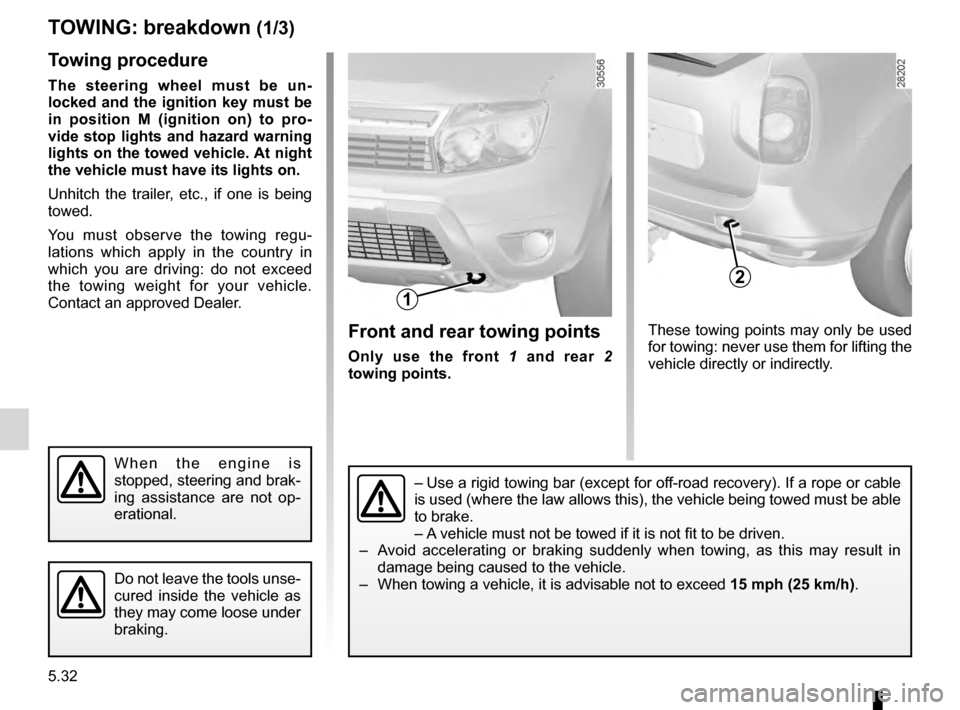

Towing: troubleshooting
TOWING: breakdown (1/3)
Towing procedure
The steering wheel must be un-
locked and the ignition key must be
in position M (ignition on) to pro-
vide stop lights and hazard warning
lights on the towed vehicle. At night
the vehicle must have its lights on.
Unhitch the trailer, etc., if one is being
towed.
You must observe the towing regu-
lations which apply in the country in
which you are driving: do not exceed
the towing weight for your vehicle.
Contact an approved Dealer.
Front and rear towing points
Only use the front 1 and rear 2
towing points.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op-
erational.
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
– Use a rigid towing bar (except for off-road recovery). If a rope or cable
is used (where the law allows this), the vehicle being towed must be able
to brake.
–

A
vehicle must not be towed if it is not fit to be driven.
–

A

void accelerating or braking suddenly when towing, as this may result in
damage being caused to the vehicle.
–

When towing a vehicle, it is advisable not to exceed 15 mph (25

km/h).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
1
2

operating faults ..................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.39
ENG_UD20968_2
Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

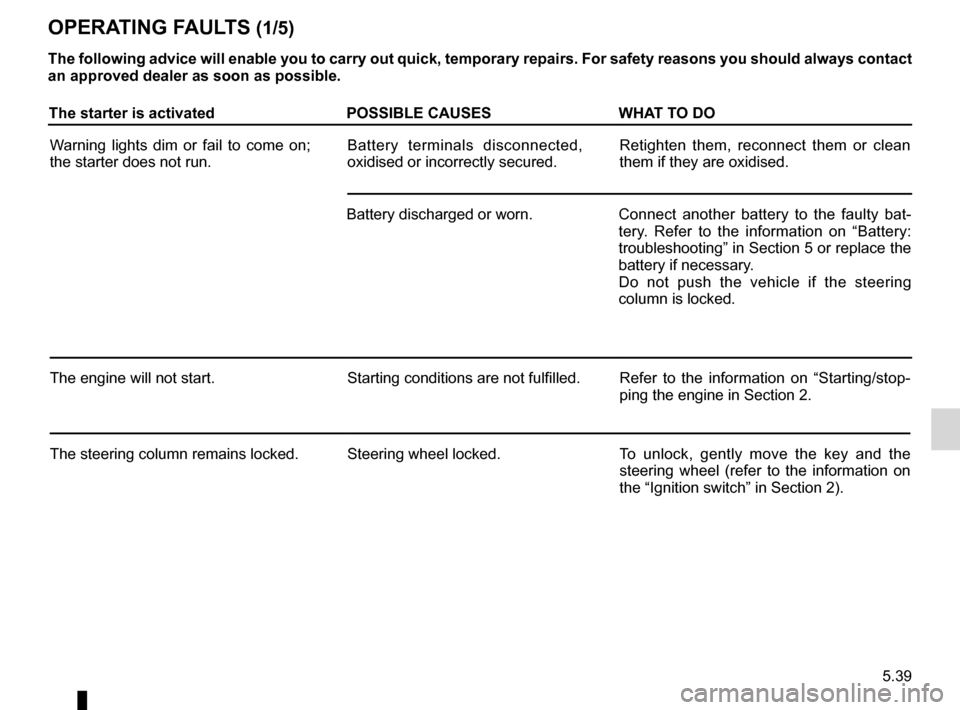

Operating faults
OPERATING FAULTS (1/5)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
The starter is activated POSSIBLE CAUSESWHAT TO DO
Warning lights dim or fail to come on;
the starter does not run. Battery terminals disconnected,
oxidised or incorrectly secured.Retighten them, reconnect them or clean
them if they are oxidised.
Battery discharged or worn. Connect another battery to the faulty bat-
tery. Refer to the information on “Battery:
troubleshooting” in Section 5 or replace the
battery if necessary.
Do not push the vehicle if the steering
column is locked.
The engine will not start. Starting conditions are not fulfilled. Refer to the information on “Starting/stop-
ping the engine in Section 2.
The steering column remains locked. Steering wheel locked. To unlock, gently move the key and the
steering wheel (refer to the information on
the “Ignition switch” in Section 2).

7.2
FRA_UD25066_7
Index (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
F
4 wheel drive (4WD) .............................................. 2.1
1 → 2.14
faults operating faults
......

.......................................... 5.39 → 5.43
filter

........................................................................\
............ 4.10
air filter


......
................................................................... 4.10
diesel filter
.......

............................................................. 4.10
passenger compartment filter
......

................................ 4.10
fitting a radio
........................................................... 5.36

– 5.37
fittings

.................................................................... 3.15 → 3.18
fog lights


........................................................................\
.... 1.55
front passenger air bag deactivation ................................. 1.32
front seat adjustment


......................................................... 1.1
1
front seats adjustment
......

............................................................. 1.11
fuel advice on fuel economy
......

.................................2.6 → 2.8
filling
.......

...................................................................... 1.61
grade
.......

.............................................................. 1.60, 6.5
fuel economy
............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.60
fuel grade........................................................................\
... 1.60
fuel level
........................................................................\
.... 1.45
fuel tank


................................................................. 1.60 → 1.62
fuel tank capacity ............................................................... 1.60
fuses


...................................................................... 5.25 → 5.27
G
gear lever........................................................................\
... 2.10
glove box
........................................................................\
... 3.15
grab handle........................................................................\
3.13
hhandbrake........................................................................\
.. 2.10
hazard warning lights signal ................................... 1.52

– 1.53
headlight beam adjustment
............................................... 1.56 headlight flashers
................................................... 1.52
– 1.53
headrest.................................................................... 1.9 – 1.10
heating and air conditioning system
.......................... 3.2 → 3.8
heating system .......................................................... 3.2 → 3.8
horn


........................................................................\
1.52
– 1.53
hubcap tool
........................................................................\
.. 5.2
iignition switch ...................................................................... 2.2
indicator lights.................................................................... 5.21
indicators
....................................................... 1.52

– 1.53, 5.14
indicators: direction indicators
.......

..................................... 1.52 – 1.53
instrument panel
.................................................... 1.40 → 1.45
interior trim maintenance
......

............................................... 4.16 – 4.17
J
jack

.................................................................... 5.2, 5.9
– 5.10
K
keys

........................................................................\
.... 1.2
– 1.3
replacing the battery
......

.............................................. 5.30
llevels ..................................................................4.4,

  4.7 → 4.9
levels: coolant
......

..................................................................... 4.8
windscreen washer reservoir
......

................................... 4.9
lifting the vehicle changing a wheel
.......

........................5.2 – 5.4,
  5.8 → 5.10
lighting: exterior

.......
..................................1.54 – 1.55,
  5.14 → 5.21
interior
.......

..............................................3.12,
  5.22 → 5.24
lights

......................................................................1.54 → 1.56
additional ......

............................................................... 5.17
