battery................................................... (up to the end of the DU)
capacity of mechanical components...................... (current page)
maintenance: mechanical ....................................................... (current page)
4.12
ENG_UD20697_2
Batterie (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_4

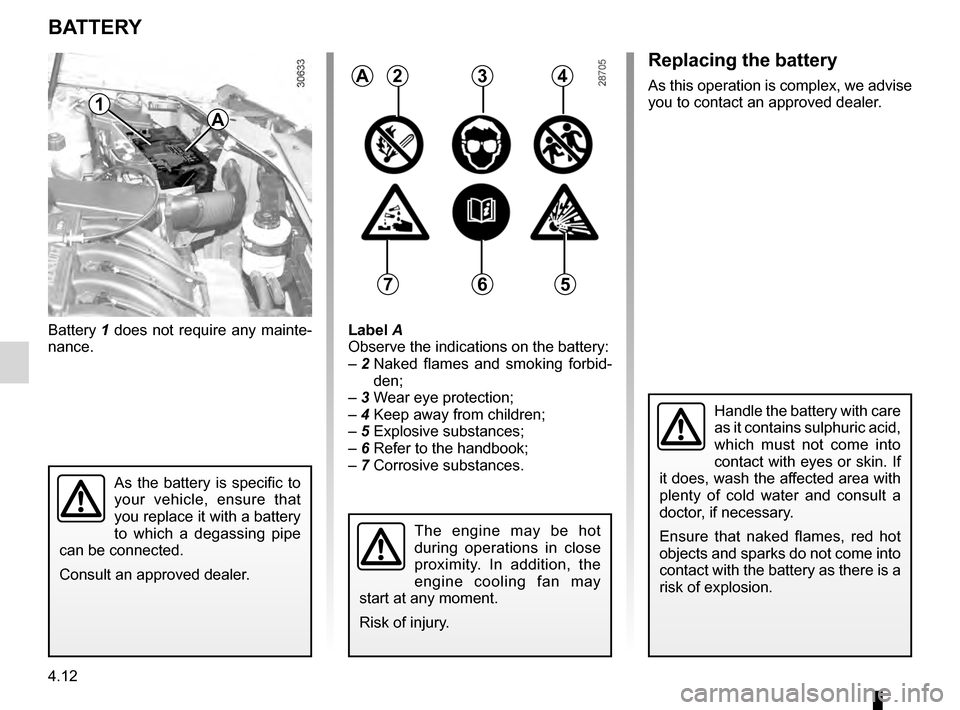

Battery
BATTERy
Battery 1 does not require any mainte-
nance.
As the battery is specific to
your vehicle, ensure that
you replace it with a battery
to which a degassing pipe
can be connected.
Consult an approved dealer.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water and consult a
doctor, if necessary.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
Label A
Observe the indications on the battery:
–
2
N
aked flames and smoking forbid-
den;
–
3 Wear eye protection;
–
4 Keep away from children;
–
5 Explosive substances;
–
6 Refer to the handbook;
–
7 Corrosive substances.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
A234
567
Replacing the battery
As this operation is complex, we advise
you to contact an approved dealer.
1A
Page 161 of 200
JauneNoirNoir texte
5.29
ENG_UD24505_3
Batterie : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
BATTERY: troubleshooting (2/2)
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed. Connect the positive (+) lead
A
to (+)
terminal
1
of the discharged battery,
then to (+) terminal
2 of the battery sup-
plying the current.
Connect the negative (–) lead
B
to (–)
terminal
3
of the battery supplying the
current and then to (–) terminal
4 of the
discharged battery.
Start the engine as normal. As soon as
it is running, disconnect leads
A and B
in the reverse order (4-3-2-1)
Check that there is no con-
tact between leads
A and B
and that the positive lead
A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of injury and/or damage to the
vehicle.
AB
14
23
Page 195 of 200
7.1
FRA_UD25066_7
Index (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_7
AlphAbeticAl index (1/4)
A
ABS
....................................................................... 2.15 → 2.18
accessories
........................................................................\
5.38
accessories - installation
................................................... 5.38
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.10,
1.12 → 1.15
advice on antipollution
........................................... 5.25 → 5.27
air bag.................................................................... 1.16 → 1.20
deactivating the front passenger air bags
.......
............. 1.32
air conditioning
.......................................................... 3.2 → 3.8
air vents
...................................................................... 3.2
– 3.3
anti-corrosion check
.............................................. 6.14 → 6.18
anti-lock braking system:
ABS
...............................2.15 → 2.18
antipollution advice
......
............................................................ 2.6 → 2.8
ashtrays
........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.19 → 2.21
automatic gearbox selector lever...........................
2.19 → 2.21
bbattery........................................................................\
........ 4.12troubleshooting ......
........................................... 5.28 – 5.29
battery (remote control)
..................................................... 5.30
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet........................................................................\
. 4.2
– 4.3
brake fluid
........................................................................\
.... 4.7
bulbs changing
......
.................................................... 5.14 → 5.24
ccapacity of mechanical components........................... 4.4, 4.12
catalytic converter................................................................ 2.4
central door locking
.................................................... 1.5
– 1.6
changing a bulb
..................................................... 5.14 → 5.24
changing a wheel...................................................... 5.9
– 5.10
changing gear
........................................................ 2.19 → 2.21child booster seat
..................................................
1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety...................................................... 1.7,
1.21 → 1.31
child seats.............................................................. 1.21 → 1.31
children
...................................................................... 1.5 → 1.7
cigar lighter ........................................................................\
3.14
clock
........................................................................\
.......... 1.51
closing the doors ................................................................. 1.7
control instruments ............................ 1.40 → 1.49,
1.54 – 1.55
controls
..................................................................1.36 → 1.39
courtesy light ..................................................................... 3.12
ddashboard.............................................................. 1.36 → 1.39
de-icing rear screen
.......
............................................................ 1.59
dipstick................................................................\
................. 4.4
doors........................................................................\
.. 1.5 → 1.7
driver’s position
..................................................... 1.36 → 1.39
driving ...................................................................... 2.2 → 2.21
eelectric door locking .................................................... 1.5
– 1.6
electric windows
...................................................... 3.9 → 3.1
1
emergency brake assist......................................... 2.16 → 2.18
emergency spare wheel
........................ 5.3 – 5.4,
5.11 → 5.13
engine technical specifications
......
............................................ 6.5
engine coolant
..................................................................... 4.8
engine immobiliser
............................................................... 1.8
engine immobiliser (switch)
................................................. 2.2
engine oil ........................................................................\
..... 4.4
engine oil grade .......................................................... 4.5
– 4.6
engine oil level
..................................................................... 4.5
engine specifications ........................................................... 6.5
environment ........................................................................\
. 2.9
Page 196 of 200
7.2
FRA_UD25066_7
Index (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
F
4 wheel drive (4WD) .............................................. 2.1
1 → 2.14
faults operating faults
......
.......................................... 5.39 → 5.43
filter
........................................................................\
............ 4.10
air filter
......
................................................................... 4.10
diesel filter
.......
............................................................. 4.10
passenger compartment filter
......
................................ 4.10
fitting a radio
........................................................... 5.36
– 5.37
fittings
.................................................................... 3.15 → 3.18
fog lights
........................................................................\
.... 1.55
front passenger air bag deactivation ................................. 1.32
front seat adjustment
......................................................... 1.1
1
front seats adjustment
......
............................................................. 1.11
fuel advice on fuel economy
......
.................................2.6 → 2.8
filling
.......
...................................................................... 1.61
grade
.......
.............................................................. 1.60, 6.5
fuel economy
............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.60
fuel grade........................................................................\
... 1.60
fuel level
........................................................................\
.... 1.45
fuel tank
................................................................. 1.60 → 1.62
fuel tank capacity ............................................................... 1.60
fuses
...................................................................... 5.25 → 5.27
G
gear lever........................................................................\
... 2.10
glove box
........................................................................\
... 3.15
grab handle........................................................................\
3.13
hhandbrake........................................................................\
.. 2.10
hazard warning lights signal ................................... 1.52
– 1.53
headlight beam adjustment
............................................... 1.56 headlight flashers
................................................... 1.52
– 1.53
headrest.................................................................... 1.9 – 1.10
heating and air conditioning system
.......................... 3.2 → 3.8
heating system .......................................................... 3.2 → 3.8
horn
........................................................................\
1.52
– 1.53
hubcap tool
........................................................................\
.. 5.2
iignition switch ...................................................................... 2.2
indicator lights.................................................................... 5.21
indicators
....................................................... 1.52
– 1.53, 5.14
indicators: direction indicators
.......
..................................... 1.52 – 1.53
instrument panel
.................................................... 1.40 → 1.45
interior trim maintenance
......
............................................... 4.16 – 4.17
J
jack
.................................................................... 5.2, 5.9
– 5.10
K
keys
........................................................................\
.... 1.2
– 1.3
replacing the battery
......
.............................................. 5.30
llevels ..................................................................4.4,
4.7 → 4.9
levels: coolant
......
..................................................................... 4.8
windscreen washer reservoir
......
................................... 4.9
lifting the vehicle changing a wheel
.......
........................5.2 – 5.4,
5.8 → 5.10
lighting: exterior
.......
..................................1.54 – 1.55,
5.14 → 5.21
interior
.......
..............................................3.12,
5.22 → 5.24
lights
......................................................................1.54 → 1.56
additional ......
............................................................... 5.17
