Radio key DACIA DUSTER 2016 1.G Owners Manual

JauneNoir Noir texte
1.1
ENG_UD39327_8
Sommaire 1 (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking/unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
Opening and closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
Front headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.18
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.22
Child safety: General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
Deactivating/activating the front passenger air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.34
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.37
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.38
Instrument panel: warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.42
Display and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
Trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51
Steering wheel, Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.57
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.58
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.59
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.63
Screen washer/wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.67

JauneNoir Noir texte
1.2
ENG_UD39222_2
Clé / télécommande à radiofréquence : généralités (X52 - H79 Ph2 - Renault) ENG_NU_1079-6_H79Ph2_Dacia_1
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
Radio frequency remote
control B or C
2 Locks all the opening elements.
3 Unlocks all the opening elements.
Driver’s responsibility
Never leave an animal, child or adult who is not self-sufficient alone in
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine, activating
equipment such as the electric windows or locking the doors, for example.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.
Key A
1 Coded key for ignition switch, doors
and fuel filler cap.
BA
3
2
1
1
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).
3
2
4
C
4 Remote engine start-up.
1

JauneNoir Noir texte
1.3
ENG_UD39222_2
Clé / télécommande à radiofréquence : généralités (X52 - H79 Ph2 - Renault) ENG_NU_1079-6_H79Ph2_Dacia_1
The remote control unit
operating range
This varies according to the environ-
ment. It is therefore important when
handling the remote control to ensure
that you do not lock or unlock the ve-
hicle by inadvertently pressing the but-
tons.
Interference
The presence of certain objects (metal
objects, mobile telephones, or an area
with strong electromagnetic radiation,
etc.) close to the key may create inter-
ference and affect the operation of the
system.
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
Replacement and additional keys
or remote controls
If you lose your remote control key
or require another, you can obtain
one from an approved dealer.
If a remote control or key is re-
placed, it will be necessary to take
the vehicle and all of its remote
control keys to an authorised
dealer to reset them.
You may use up to four remote con-
trol keys per vehicle.
Remote control key failure
Make sure that the correct battery
type is being used, and that the
battery is in good condition and in-
serted correctly. These batteries
have a service life of approximately
two years.
Refer to the information on “Radio
frequency remote control: Batteries”
in Section 5.
Advice
Avoid leaving the remote control in
hot, cold or humid areas.

JauneNoir Noir texte
1.4
ENG_UD32107_1
Télécommande à radiofréquence : utilisation (H79 Ph2 - H79 Nissan - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
RADIO FREQUENCY REMOTE CONTROL: use
Locking the doors
Press locking button 1.
The hazard warning lights and side in-
dicator lights flash twice to indicate
that the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors and tailgate
lock then quickly unlock and the hazard
warning lights and side indicator lights
do not flash.
Unlocking the doors
Press unlocking button 2.
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have unlocked.
1
2
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
If the vehicle has been unlocked
but neither the doors or tailgate are
open, it locks again automatically
after two minutes.

JauneNoir Noir texte
1.5
ENG_UD39214_2
Verrouillage et déverrouillage des portes (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
LOCKING AND UNLOCKING THE DOORS (1/3)
Manual locking
From the outside
Unlock the doors using the remote con-
trol (refer to information on the “Radio
frequency remote control: use” in
Section 1) or using the key in one of the
door locks.
Depending on the vehicle, the key locks
and unlocks the driver’s door or all four
doors.
From the inside
(depending on vehicle)
Push in button 1 to lock and lift button 1
to unlock.
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 2 on each door and check from
the inside that the doors are securely
locked.
12
Never leave your vehicle
with the key or remote con-
trol inside.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

JauneNoir Noir texte
2.2
ENG_UD37332_2
Rodage / Contacteur de démarrage (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
Petrol version
For the first 600 miles (1,000 km), do
not exceed 78 mph (130 km/h) in the
highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
Service intervals: refer to the
Maintenance Document for the vehicle.
Diesel version
For the first 1,000 miles (1,500 km),
do not exceed 80 mph (130 km/h) in
the highest gear, or 2,500 rpm. After
completing this mileage you may drive
faster, although you may only expect
top performance after approximately
3,600 miles (6,000 km).
During the running in period, do not ac-
celerate hard while the engine is still
cold and do not let the engine over-rev.
Service intervals: refer to the
Maintenance Document for your vehi-
cle.
RUNNING IN, IGNITION SWITCH
Stop and steering lock
position St
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
Accessories position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
Ignition on position M
The ignition is switched on:
– petrol version: the engine may be
started.
– diesel version: the engine is pre-
heating.
Start position D
If the engine fails to start at the first at-
tempt, turn the key back before activat-
ing the starter again.
Release the key as soon as the engine
starts.
Special note on vehicles with
an automatic gearbox
Refer to the information on the
“Automatic gearbox” in Section 2.

JauneNoir Noir texte
2.4
ENG_UD39254_4
Mise en route / Arrêt du moteur (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
vehicles with an automatic
gearbox
Before starting, move the lever to posi-
tion P.
Refer to the information on the
“Automatic gearbox” in Section 2.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Special note
Depending on the vehicle, accessories
(e.g. radio) stop working either when
the engine is switched off or when the
driver’s door is opened or when the
doors are locked.Driver’s responsibility
Never leave an animal,
child or adult who is not
self-sufficient alone on your
vehicle, even for a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors, for example.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
Never switch off the ignition
before the vehicle has stopped
completely. Switching off the
engine disables the assistance
equipment: brakes, steering, etc.,
and additional seatbelt devices.
The steering is locked when the key
is removed.
RISK OF DEATH OR SERIOUS
INJURY.
STARTING, STOPPING THE ENGINE (2/4)
Do not park the vehicle or
run the engine in locations
where combustible sub-
stances or materials such
as grass or leaves can come into
contact with a hot exhaust system.

JauneNoir Noir texte
5.38
ENG_UD26988_1
Télécommande à radiofréquence : piles (X52 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5

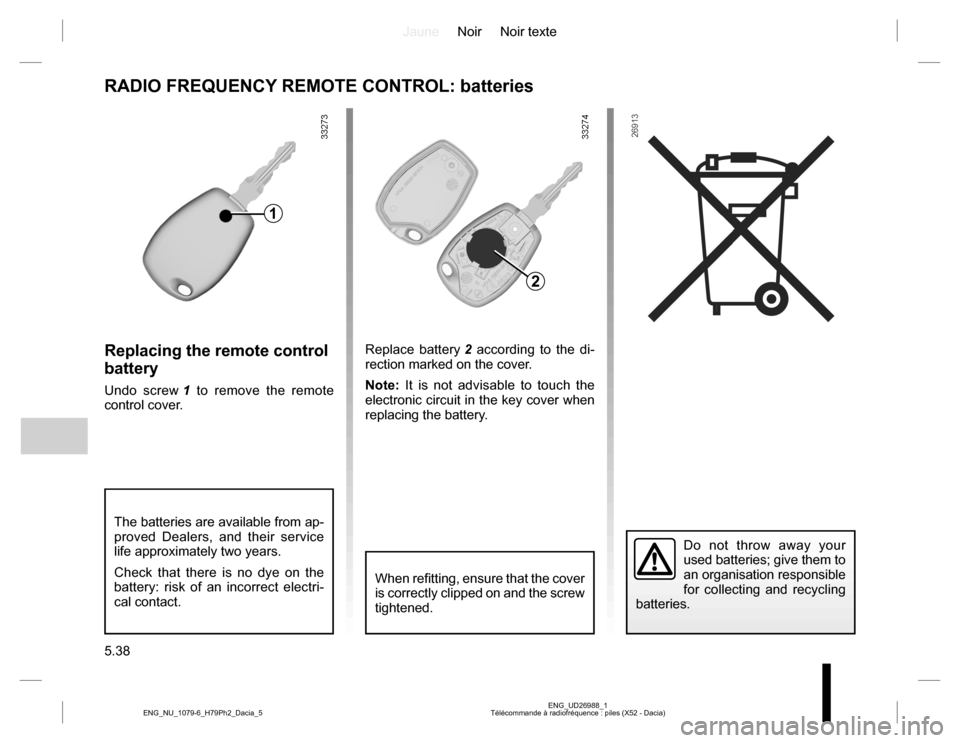

Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover.Replace battery 2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIO FREQUENCY REMOTE CONTROL: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.

JauneNoir Noir texte
7.2
FRA_UD39333_8
Index (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_7
ALPHABETICAL INDEX (2/5)
engine
technical specifications .................................................. 6.6
engine coolant ..................................................................... 4.9
engine immobiliser (switch) ................................................. 2.2
engine oil ............................................................................. 4.4
engine oil grade .........................................................4.5 → 4.7
engine oil level ...........................................................4.5 → 4.7
engine specifications ........................................................... 6.6
engine standby ..........................................................2.7 → 2.9
environment ....................................................................... 2.21
ESC: electronic stability control .............................2.34 → 2.37
F
4 wheel drive (4WD) ..............................................2.30 → 2.33
faults
operating faults ................................................5.45 → 5.49
filter .................................................................................... 4.11
air filter ......................................................................... 4.11
diesel filter ........................................................... 1.72, 4.11
passenger compartment filter ...................................... 4.11
fitting a radio ...................................................................... 5.43
fittings ....................................................................3.16 → 3.19
fog lights ............................................................................ 1.62
front passenger air bag deactivation ................................. 1.34
front seat adjustment .............................................. 1.12 – 1.13
front seats
adjustment ....................................................... 1.11 → 1.13
fuel
advice on fuel economy ...................................2.15 → 2.19
filling ............................................................................. 1.68
grade ..................................................................... 1.67, 6.6
fuel economy .........................................................2.15 → 2.19
fuel filler cap ...................................................................... 1.67
fuel grade........................................................................... 1.67
fuel priming bulb ................................................................ 1.72
fuel tank .................................................................1.67 → 1.72fuel tank capacity ............................................................... 1.67
fuses ......................................................................5.28 → 5.35
G
gear lever........................................................................... 2.29
glove box ........................................................................... 3.18
grab handle........................................................................ 3.13
H
handbrake.......................................................................... 2.29
hands-free telephone integrated control ............................ 3.29
hazard warning lights signal ................................... 1.59 – 1.60
headlight beam adjustment .................................... 1.63 – 1.64
headlight flashers ................................................... 1.59 – 1.60
headrest.................................................................... 1.11, 3.15
heating and air conditioning system ..........................3.2 → 3.7
heating system ..........................................................3.2 → 3.7
Hill Start Assist.......................................................2.34 → 2.37
horn ........................................................................ 1.59 – 1.60
hubcap tool .......................................................................... 5.2
I
ignition switch ...................................................................... 2.2
indicator lights.................................................................... 5.23
indicators ....................................................... 1.59 – 1.60, 5.16
indicators:
direction indicators ............................................ 1.59 – 1.60
instrument panel ...........................................1.42 → 1.50, 1.50
interior trim
maintenance ..................................................... 4.18 – 4.19
J
jack .................................................................. 5.2, 5.10 – 5.11
K
keys ............................................................................ 1.2 – 1.3

JauneNoir Noir texte
7.3
FRA_UD39333_8
Index (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_7
ALPHABETICAL INDEX (3/5)
L
levels ................................................................4.4, 4.8 → 4.10
levels:
coolant ........................................................................... 4.9
windscreen washer reservoir ....................................... 4.10
lifting the vehicle
changing a wheel ............................... 5.2 – 5.4, 5.9 → 5.11
lighting:
exterior .........................................1.61 – 1.62, 5.16 → 5.23
interior .......................................... 3.11 – 3.12, 5.24 → 5.27
lights ......................................................................1.61 → 1.64
additional ..................................................................... 5.17
adjustment ........................................................ 1.63 – 1.64
lights:
adjusting ........................................................... 1.63 – 1.64
brake lights .................................................................. 5.18
daytime running lights .................................................. 5.16
dipped beam headlights ...................................... 1.61, 5.16
direction indicators ................................... 1.59 – 1.60, 5.16
fog lights ............................................................. 1.62, 5.17
hazard warning ................................................. 1.59 – 1.60
main beam headlights ......................................... 1.61, 5.16
reversing lights ............................................................. 5.18
side lights ............................................................ 1.61, 5.16
locking the doors ................................................................. 1.4
LPG ............. 1.70 – 1.71, 2.3, 2.12 → 2.14, 3.26, 5.28 → 5.35
M
maintenance ...................................................................... 2.20
maintenance:
bodywork .......................................................... 4.16 – 4.17
interior trim ........................................................ 4.18 – 4.19
mechanical ..................................4.4, 4.8, 4.14, 6.9 → 6.14
map reading lights .................................................. 3.11 – 3.12
methods of restraint in addition to the front seat belts ..............
1.18 → 1.20, 1.22mirrors ............................................................................... 3.13
multimedia equipment ....................................................... 3.29
N
navigation .......................................................................... 3.29
navigation system .............................................................. 3.29
O
oil change ..................................................................4.5 → 4.7
opening the doors ..................................................... 1.9 – 1.10
operating faults ......................................................5.45 → 5.49
overspeed buzzer ................................................... 1.49 – 1.50
P
paintwork
maintenance ..................................................... 4.16 – 4.17
reference ........................................................................ 6.2
parking distance control.........................................2.49 → 2.52
power-assisted steering............................................ 1.57, 4.10
power-assisted steering pump........................................... 4.10
practical advice .....................1.72, 3.26, 5.2 – 5.4, 5.9 → 5.37,
5.39 → 5.43, 5.45 → 5.49
puncture.................................................. 5.3 – 5.4, 5.10 – 5.11
R
radio................................................................................... 3.29
fitting a radio ................................................................ 5.43
radio frequency remote control/key
use ................................................................................. 1.2
rear bench seat......................................................3.20 → 3.22
rear parcel shelf ................................................................. 3.27
rear screen de-icing/demisting ..................................3.4 → 3.6
rear seats
functions ..........................................................3.20 → 3.22
rear view camera .................................................... 2.51 – 2.52
rear view mirrors ................................................................ 1.37
