Page 5 of 254
JauneNoir Noir texte
1.1
ENG_UD39327_8
Sommaire 1 (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking/unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
Opening and closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
Front headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.18
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.22
Child safety: General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
Deactivating/activating the front passenger air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.34
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.37
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.38
Instrument panel: warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.42
Display and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
Trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51
Steering wheel, Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.57
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.58
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.59
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.63
Screen washer/wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.67
Page 24 of 254
JauneNoir Noir texte
1.20
ENG_UD32115_1
Dispositifs complémentaires aux ceintures avant (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1

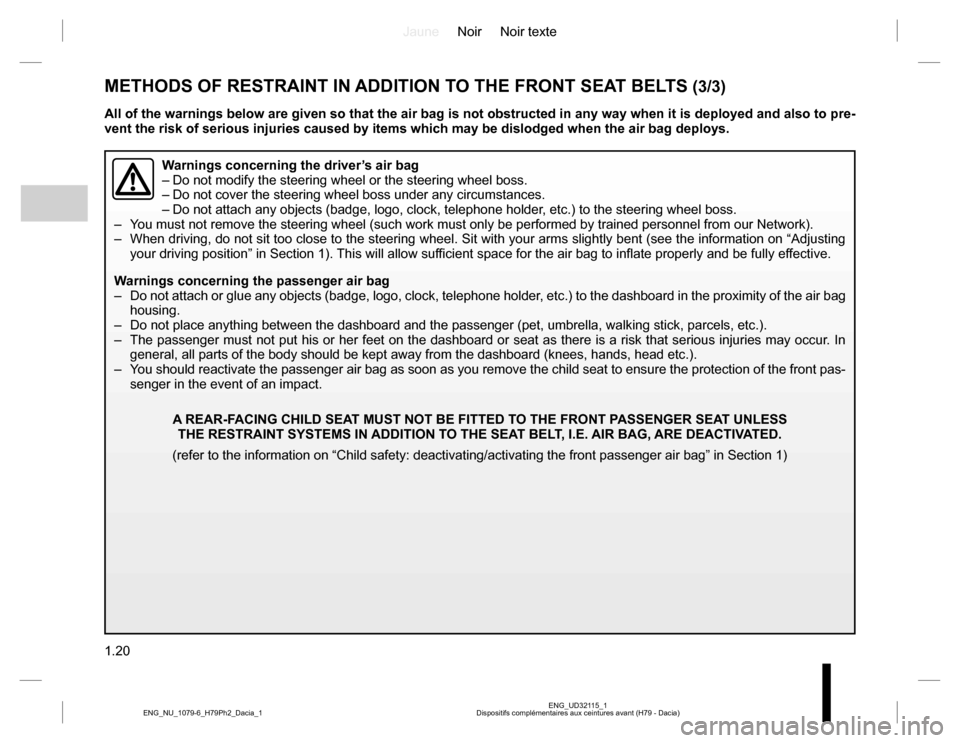

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/3)
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
– You must not remove the steering wheel (such work must only be performed by trained personnel from our Network).
– When driving, do not sit too close to the steering wheel. Sit with your arms slightly bent (see the information on “Adjusting
your driving position” in Section 1). This will allow sufficient space for the air bag to inflate properly and be fully effective.
Warnings concerning the passenger air bag
– Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard in the proximity of the air bag
housing.
– Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, all parts of the body should be kept away from the dashboard (knees, hands, head etc.).
– You should reactivate the passenger air bag as soon as you remove the child seat to ensure the protection of the front pas-
senger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS
THE RESTRAINT SYSTEMS IN ADDITION TO THE SEAT BELT, I.E. AIR BAG, ARE DEACTIVATED.
(refer to the information on “Child safety: deactivating/activating the front passenger air bag” in Section 1)
All of the warnings below are given so that the air bag is not obstructed in any way when it is deployed and also to pre-
vent the risk of serious injuries caused by items which may be dislodged when the air bag deploys.
Page 62 of 254
JauneNoir Noir texte
1.58
ENG_UD39236_2
Tableau de bord: heure (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
CLOCK
Setting the time
Display A
Display the “Clock” display on the ins-
trument panel by pressing the button 1.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting.
The clock must be reset.
For your safety, we recom-
mend that you do not adjust
the clock while driving.
Press and hold button 1 to enter the
hour setting mode.
When only the hours flash, press
button 1 briefly, to scroll through them.
Press and hold button 1 to enter the
minute setting mode.
When only the minutes flash, press
button 1 briefly, to scroll through them.
Confirm by pressing and holding
button 1.
1
A
Page 67 of 254
JauneNoir Noir texte
1.63
ENG_UD39240_3
Réglage de la hauteur des faisceaux (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
Examples of positions for adjusting control A according to the load
Control A
4x2 4x4
Driver alone or with front passenger 0 0
Driver with one front passenger and
three rear passengers11
Driver with one front passenger,
three rear passengers and luggage32
Driver only and luggage 4 3
The control A is used to adjust the
height of the headlight beams accord-
ing to the load.
Turn control A anticlockwise to lower
the beams and clockwise to raise them.
ADJUSTING THE HEADLIGHT BEAM HEIGHT (1/2)
A
Page 176 of 254
JauneNoir Noir texte
4.18
ENG_UD22866_8
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D95 - E95 - K95 - J95 - R95 - ENG_NU_1079-6_H79Ph2_Dacia_4
Glass instrument panel(e.g. instrument panel, clock, exterior
temperature display, radio display, etc.)
Use a soft cloth (or cotton wool).
If this does not clean it properly, use a
soft cloth (or cotton wool) slightly mois-
tened with soapy water and then wipe
clean with a soft damp cloth or cotton
wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco-
hol must not be used under any cir-
cumstances.
Seat belts
These must be kept clean.
Use products selected by our Technical
Department (Approved outlets) or
warm, soapy water and a sponge and
wipe with a dry cloth.
Detergents or dyes must not be used
under any circumstances.
INTERIOR TRIM MAINTENANCE (1/2)
Textiles (seats, door trim, etc)
Vacuum-clean the textiles regularly.
Liquid stain
Use soapy water.
Dab lightly (never rub) with a soft cloth,
rinse and remove the excess.
Solid or pasty stain
Carefully remove the excess solid or
pasty material immediately with a
spatula (working from the edges to the
centre to avoid spreading the stain).
Clean as for a liquid stain.
Special instructions for sweets or
chewing gum
Put an ice cube on the stain to solidify
it, then proceed as for a solid stain. A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the interior of the vehicle regu-
larly.
A stain should always be dealt with
swiftly.
Whatever type of stain is on the trim,
use cold (or warm) soapy water with
natural soap.
Detergents (washing-up liquid, pow-
dered products, alcohol-based prod-
ucts) should not be used.
Use a soft cloth.
Rinse and soak up the excess.
For further recommendations for
maintaining the interior, and/or for
any unsatisfactory results, please
see an authorised dealer.
Page 249 of 254
JauneNoir Noir texte
7.1
FRA_UD39333_8
Index (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_7
ALPHABETICAL INDEX (1/5)
A
ABS .......................................................................2.34 → 2.37
accessories........................................................................ 5.44
accessories socket ............................................................ 3.14
adjusting your driving position ...............................1.14 → 1.17
advice on antipollution ....................................................... 2.20
air bag....................................................................1.18 → 1.22
deactivating the front passenger air bags .................... 1.34
air conditioning ..........................................................3.2 → 3.7
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check ..............................................6.15 → 6.19
anti-corrosion protection .................................................... 4.16
anti-lock braking system: ABS ...............................2.34 → 2.37
antipollution
advice .......................................................................... 2.20
armrest .............................................................................. 3.19
ashtrays ............................................................................. 3.14
automatic gearbox (use) ...............................2.45 → 2.48, 5.42
automatic gearbox selector lever...........................2.45 → 2.48
B
battery..................................................................... 4.14 – 4.15
troubleshooting ................................................. 5.36 – 5.37
battery (remote control) ..................................................... 5.38
bonnet......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.8
bulbs
changing ..........................................................5.16 → 5.27
C
capacity of mechanical components........................... 4.4, 4.14
catalytic converter.............................................................. 2.10
central door locking ...................................................1.5 → 1.7
changing a bulb .....................................................5.16 → 5.27
changing a wheel.................................................... 5.10 – 5.11
changing fuel while driving ....................................2.12 → 2.14changing gear ...............................................2.29, 2.45 → 2.48
child booster seat ..................................................1.23 → 1.25
child restraint/seat .................................................1.23 → 1.33
child safety................ 1.2, 1.9 – 1.10, 1.23 → 1.33, 3.8 → 3.10
child seats..............................................................1.23 → 1.33
children ....................................................1.5 → 1.7, 1.9 – 1.10
children (safety) .......................................................3.8 → 3.10
cigar lighter ........................................................................ 3.14
cleaning:
inside the vehicle .............................................. 4.18 – 4.19
clock .................................................................................. 1.58
closing the doors ...................................................... 1.9 – 1.10
control instruments ............................1.42 → 1.56, 1.61 – 1.62
controls ..................................................................1.38 → 1.41
courtesy light .......................................................... 3.11 – 3.12
cruise control .........................................................2.41 → 2.44
cruise control-speed limiter....................................2.38 → 2.44
D
dashboard..............................................................1.38 → 1.41
dimensions .......................................................................... 6.5
dipstick................................................................................. 4.4
doors........................................................................1.5 → 1.10
driver’s position .....................................................1.38 → 1.41
driving .........2.2 → 2.6, 2.10 – 2.11, 2.15 → 2.19, 2.29 → 2.50
E
ECO driving ..................................... 1.42 → 1.48, 2.15 → 2.19
electric beam height adjustment ............................. 1.63 – 1.64
electric door locking ...................................................1.5 → 1.7
electric windows ......................................................3.8 → 3.10
electronic stability control: ESC .............................2.34 → 2.37
emergency brake assist.........................................2.34 → 2.37
emergency braking ................................................2.34 → 2.37
emergency spare wheel ........................5.3 – 5.4, 5.12 → 5.15
