1.1
ENG_UD35424_5
Sommaire 1 (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.5
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.8
Opening and closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . 1.9
Engine immobiliser system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 1.11
Front headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.13
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 1.23
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . 1.24
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.25 mounting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . 1.28
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 1.30
deactivating/activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.36
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.39
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Instrument panel: warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . 1.44
Display and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 1.51
On-board computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 1.54
Steering wheel, Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . 1.60
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.62
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.64
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 1.66
Screen washer, wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 1.68
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.70

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.39
ENG_UD32122_1
Rétroviseurs (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1

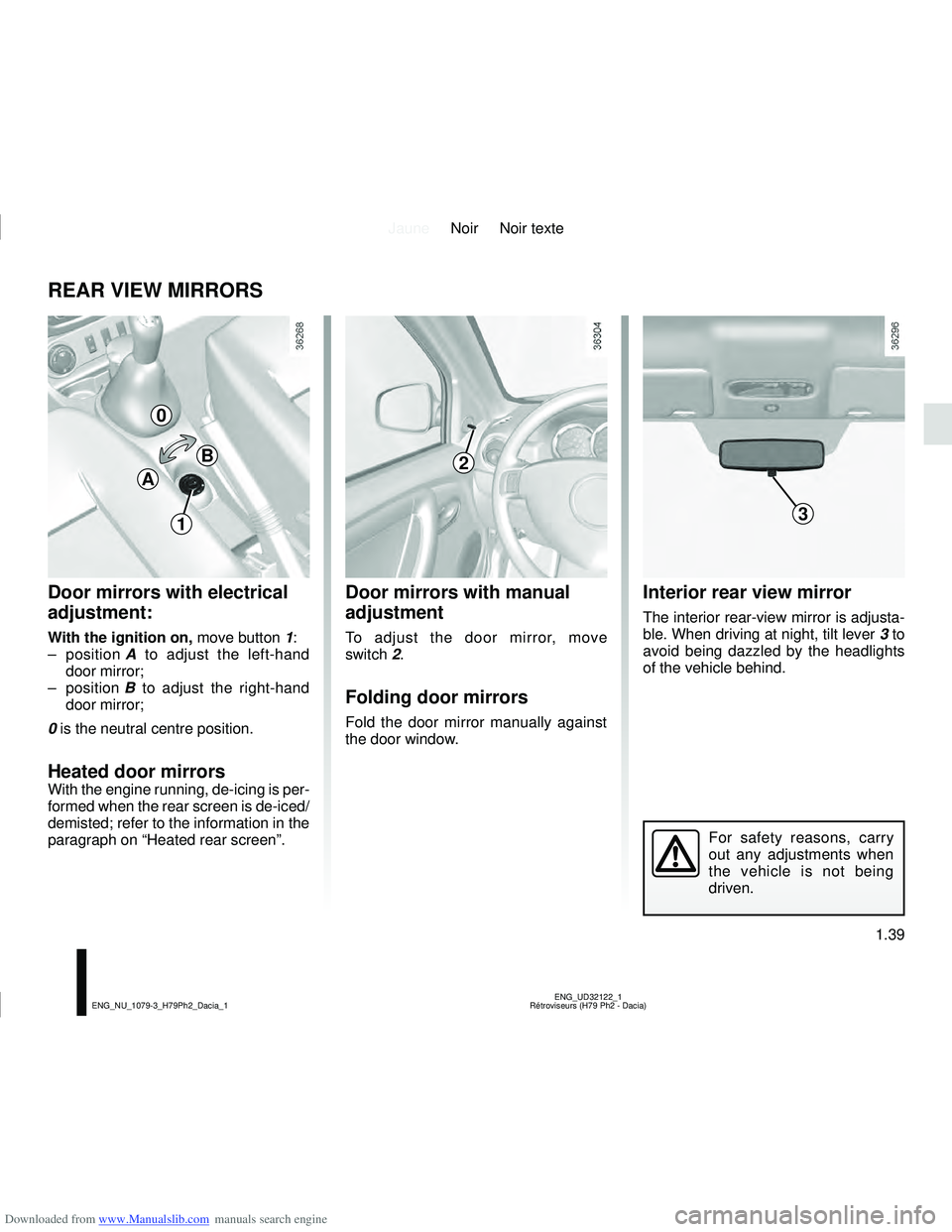

REAR VIEW MIRRORS
Door mirrors with electrical
adjustment:
With the ignition on, move button 1:
– position A to adjust the left-hand
door mirror;
– position B to adjust the right-hand
door mirror;
0 is the neutral centre position.
Heated door mirrors
With the engine running, de-icing is per-
formed when the rear screen is de-iced/
demisted; refer to the information in the
paragraph on “Heated rear screen”.
Interior rear view mirror
The interior rear-view mirror is adjusta-
ble. When driving at night, tilt lever 3 to
avoid being dazzled by the headlights
of the vehicle behind.
Door mirrors with manual
adjustment
To adjust the door mirror, move
switch 2.
Folding door mirrors
Fold the door mirror manually against
the door window.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
0
B
A
13
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.5
ENG_UD32151_1
Chauffage - Ventilation - Air conditionné (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (2/3)
43
Switching passenger
compartment isolation mode/
air recirculation mode on.
Bring lever 6 to position â.
Under these conditions, air is taken
from the passenger compartment and
is recirculated, with no air being taken
from outside the vehicle. Air recirculation is used to:
– to isolate the passenger compart-
ment from the external atmosphere
(e.g. driving in polluted areas, etc.);
– to bring the passenger compartment to the desired temperature as quickly
as possible.
Rapid demisting
Turn controls 1 , 3 and 6 to positions
W:
– air from the outside;
– maximum fan speed;
– demisting.
Using the climate control increases the
speed of demisting.
VHeated rear screen
With the engine running ,
press button 4 (the warning light comes
on).
This function de-ices/demists the rear
screen and the electric de-icing rear-
view mirrors (depending on the vehi-
cle).
Depending on the vehicle, the function
is stopped:
– automatically after it has been run- ning for 12 minutes (the indicator
light goes out);
– by pressing button 4 again (the warn-
ing light goes out).
Prolonged use of air recirculation can lead to condensation forming on the side
windows and windscreen, and discomfort due to the use of non-renewed air\
in
the passenger compartment.
You are therefore advised to return to normal mode (external air) as so\
on as the
air recirculation function is no longer required, by turning control 6 to the right.
1
6

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.32
ENG_UD36282_3
Fusibles (H79 - H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_5
FUSES (4/6)
Number Allocation
A Driver’s side window
winder
B 4-wheel drive (4WD)
transmission
C Rear accessories socket
1 Front electric window
2 Left-hand main beam
headlight
3 Right-hand main beam
headlight
4 Left-hand dipped beam
headlight
5 Right-hand dipped beam
headlight
6 Left-hand side lights
7 Right-hand side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door lockingNumber Allocation
12 ABS-ESC, brake switch
13 Courtesy light, Boot light
14 ESC
15 Reverse gear, windscreen
wiper
16 Cruise control/Speed
limiter, rear-view mirror,
unfastened seat belt
warning, parking distance
control, multimedia, air
conditioning
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel,
passenger compartment
unit
20 Airbag
21 4-wheel drive (4WD)
transmission, LPG
22 Power-assisted steering
23 Empty locationNumber Allocation
24 Passenger compartment
ECU
25 Passenger compartment
ECU
26 Direction indicator lights
27 et 29 Steering column control
28 Empty location
30 Empty location
31 Instrument panel
32 Radio, passenger
compartment air
conditioning control panel
33 Cigar lighter
34 Diagnostics and radio
socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment
ECU, starter
38 Front windscreen wiper
39 Passenger compartment
ventilation

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
7.4
FRA_UD35449_5
Index (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_7
ALPHABETICAL INDEX (4/5)
rear seats
functions ..........................................................3.21 → 3.23
rear view mirrors ................................................................ 1.39
remote control door locking batteries ..............................................................\
......... 5.37
remote control door locking unit ................................1.2 → 1.4
RENAULT ANTI-INTRUDER DEVICE (RAID) ..................... 1.8
replacement parts ................................................................ 6.8
reverse gear selecting ..............................................................\
......... 2.19
reversing sensor ..................................................... 2.38 – 2.39
roof bars ........................................................................\
.... 3.29
roof rack roof bars ...................................................................\
.... 3.29
running in ........................................................................\
..... 2.2
S
seat belts ...............................................................1.1\
5 → 1.24
service sheets..........................................................\
6.9 → 6.14
signals and lights .................................................... 1.64 – 1.65
speakers location ........................................................................\
5.42
special features of diesel versions.....................................\
.. 2.5
special features of LPG versions ......... 2.6 → 2.8, 5.29 → 5.34
special features of petrol vehicles ....................................... 2.4
speed limiter ..........................................................2.28 → 2.30
starting ...............................................................\
.................. 2.3
starting the engine ...................................................... 2.2 – 2.3
steering wheel adjustment .............................................................\
...... 1.60
storage compartment.............................................3.17 → 3.20
storage compartments ...........................................3.17 → 3.20
sun visor ..................................................................\
.......... 3.14
T
tailgate ...................................................................3.24 \
→ 3.26tanks and reservoirs
brake fluid ..................................................................\
.... 4.7
coolant ................................................................\
........... 4.8
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications .......................................6.2, 6.6 → 6.8
telephone ........................................................................\
... 3.30
towing .................................................................\
................. 6.7 breakdown .......................................................5.39 → 5.41
towing equipment ......................................................... 3.27
towing a caravan ................................................................. 6.7
towing hitch............................................................\
5.39 → 5.41
towing rings ............................................................ 3.25 – 3.26
towing weights ................................................................\
..... 6.7
traction control .......................................................2.24 → 2.27
transporting children ..............................................1.25 → 1.35
transporting objects in the luggage compartment ............................. 3.25 – 3.26
trims ..................................................................\
................... 5.9
trip computer and warning system.........................1.54 → 1.59
tyre inflation kit......................................................\
.....5.5 → 5.8
tyre pressure........................................ 2.16 → 2.18, 4.11, 5.13
tyre pressure loss warning.....................................2.16 → 2.18
tyre pressures ..............................................................\
...... 4.11
tyres ........................................ 2.16 → 2.18, 4.11, 5.12 → 5.14
V
variable power-assisted steering ....................................... 1.60
vehicle identification .........................................................\
... 6.2
vehicle identification plates ........................................6.2 → 6.4
ventilation ........................................................................\
.... 3.8 air conditioning ...................................................... 3.2 – 3.3
heating and air conditioning system ....................3.4 → 3.7
W
warning buzzer .................................................................\
. 1.65
