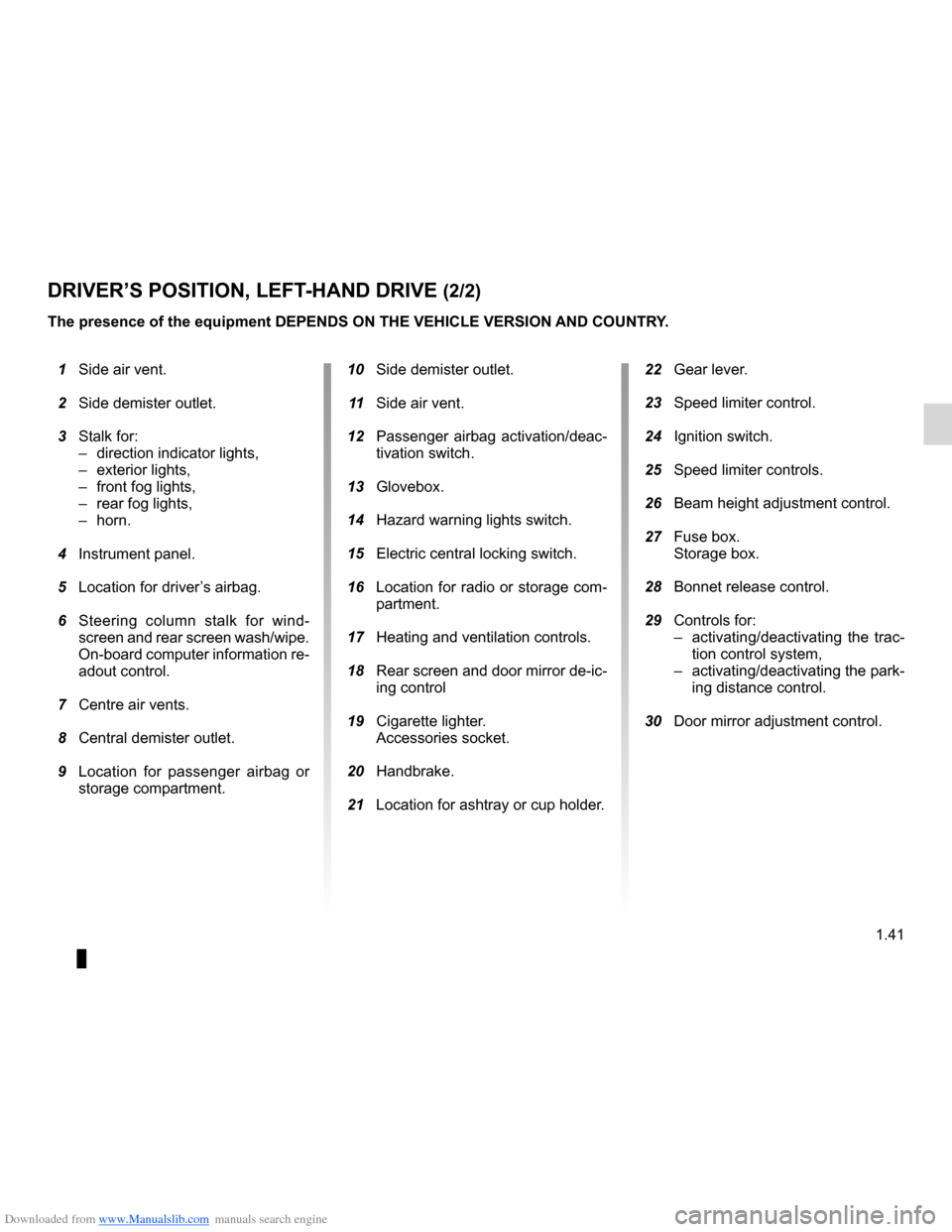

Poste de conduite direction à gauche (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Side demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s airbag.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
On-board computer information re-
adout control.
7 Centre air vents.
8 Central demister outlet.
9 Location for passenger airbag or
storage compartment. 10 Side demister outlet.
11 Side air vent.
12 Passenger airbag activation/deac-
tivation switch.
13 Glovebox.
14 Hazard warning lights switch.
15 Electric central locking switch.
16 Location for radio or storage com-
partment.
17 Heating and ventilation controls.
18 Rear screen and door mirror de-ic-
ing control
19 Cigarette lighter.
Accessories socket.
20 Handbrake.
21 Location for ashtray or cup holder.
22 Gear lever.
23 Speed limiter control.
24 Ignition switch.
25 Speed limiter controls.
26 Beam height adjustment control.
27 Fuse box.
Storage box.
28 Bonnet release control.
29 Controls for:
– activating/deactivating the trac -
tion control system,
– activating/deactivating the park-
ing distance control.
30 Door mirror adjustment control.

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators ............................................................... (current page)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: side lights ........................................ (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD26649_2

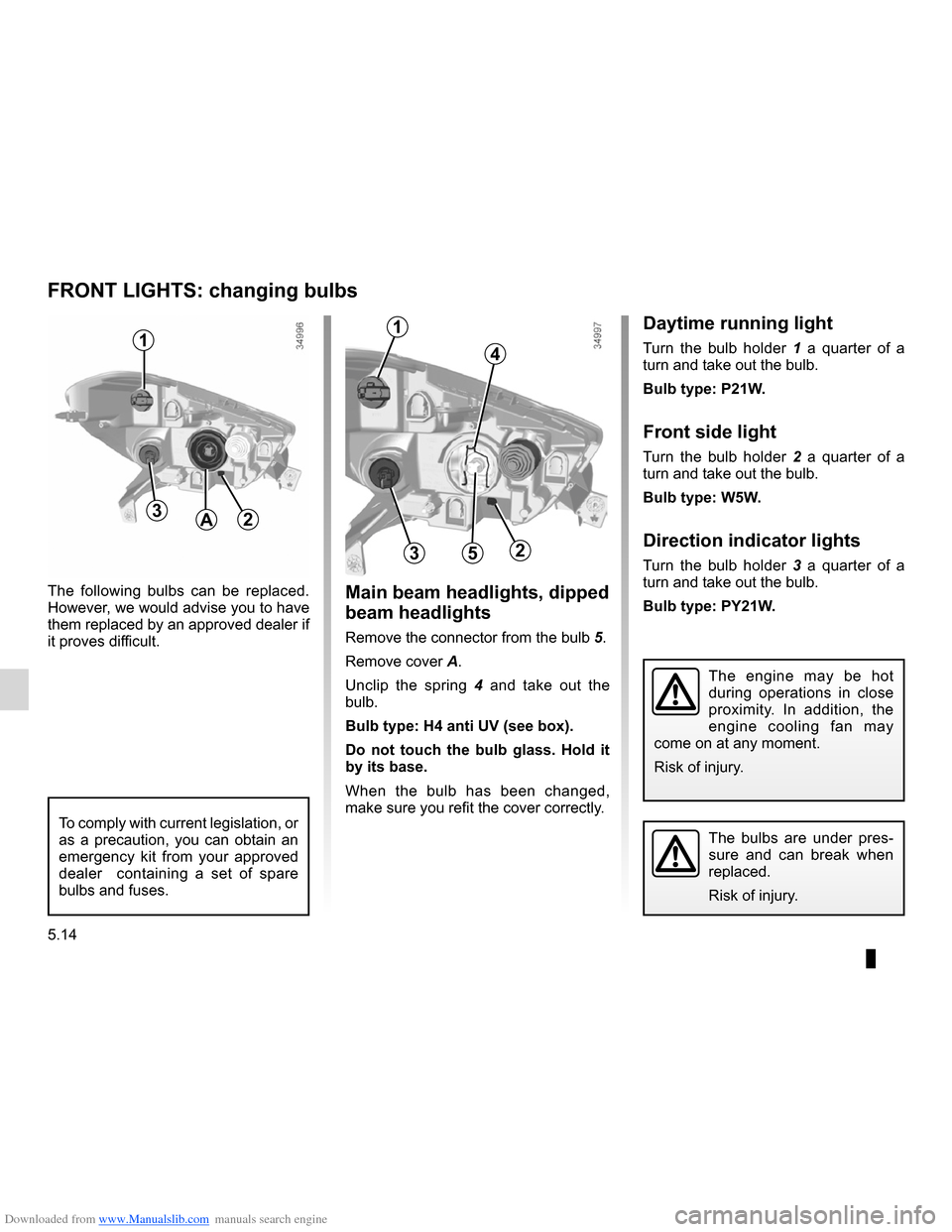

Feux avant : remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Front lights: changing bulbs
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Main beam headlights, dipped
beam headlights
Remove the connector from the bulb 5.
Remove cover A.
Unclip the spring 4 and take out the
bulb.
Bulb type: H4 anti UV (see box).
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
FRoNT lIGHTs: changing bulbs
5
4
23
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
1Daytime running light
Turn the bulb holder 1 a quarter of a
turn and take out the bulb.
Bulb type: P21W.
Front side light
Turn the bulb holder 2 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
Direction indicator lights
Turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
1
32
