engine coolant DACIA LODGY 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.43
ENG_UD24415_1
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
W ARNING LIGHTS (2/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn -
ing light
If this remains lit while driving, ac -
companied by a beep, this means the
engine is overheating. Stop and allow
the engine to run at idle speed for a
minute or two. The temperature should
drop. If not, stop the engine. Let it cool
down before checking the coolant level.
Contact an authorised dealer if neces-
sary.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an
authorised dealer as soon as possi-
ble;
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Refer to the information on “Advice:
antipollution, fuel economy, driving" in
Section 2.
ÒWarning light malfunction
(red or orange)
Urgent stop warning light (red)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
Warning light (orange)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It may comes on
in conjunction with other warning lights
on the instrument panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle.
DHandbrake “on” warning
light and brake circuit inci -
dent warning light
This comes on when the ignition is
switched on. If it comes on during brak-
ing and is accompanied by a beep, it in-
dicates that the fluid level in the circuit
is low - it may be dangerous to continue
driving - please contact an authorised
dealer.
A

Downloaded from www.Manualslib.com manuals search engine 4.1
ENG_UD28066_3
Sommaire 4 (X92 - Renault)
ENG_NU_975-3_X92_Dacia_4

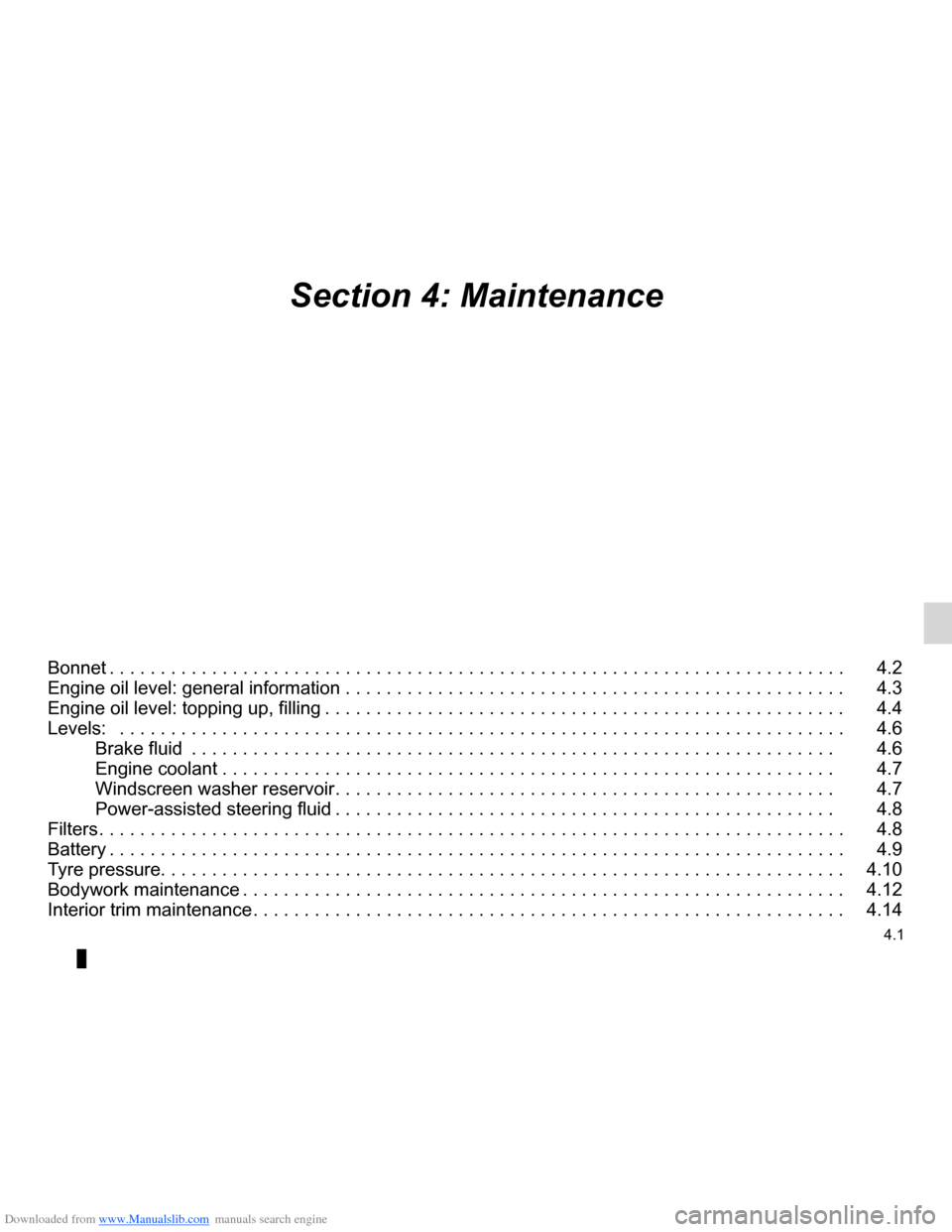

Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Power-assisted steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14

Downloaded from www.Manualslib.com manuals search engine engine coolant ....................................................... (current page)
tanks and reservoirs coolant ............................................................. (current page)
tanks and reservoirs: windscreen washer .......................................... (current page)
windscreen washer ................................................ (current page)
JauneNoirNoir texte
4.7
ENG_UD28037_3
Niveaux / Filtres (X92 - Renault)
ENG_NU_975-3_X92_Dacia_4
Engine coolant
Windscreen washer reservoir
Coolant
With the engine switched off and on
level ground, the level when cold must
be between the MINI and MAXI marks
on reservoir 2.
Top this level up when cold before it
reaches the MINI mark.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Checking intervals
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
– protection against freezing;
– anti-corrosion protection of the cool-
ing system.
Replacement intervals
Refer to the Maintenance Service
Booklet for your vehicle.
Consult an approved dealer at once
if you notice an abnormal or re -
peated drop in any of the fluid levels.
LeVeLS (2/3)
2
Windscreen washer reservoir
Filling: Remove cap 3, fill until you can
see the fluid, then refit the cap.
This reservoir supplies the front and
rear headlight screen washers (if the
vehicle is equipped with them).
Liquid: Special windscreen washer
fluid (antifreeze product for winter).
Jets: Depending on the vehicle, use
a tool such as a needle to adjust the
height of the windscreen washer jets.
3
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of burns.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.33
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
oPERATING FAUl Ts (2/5)
on the road PossIBlE CAUsEs WHAT To Do
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or
damaged. Check the tyre pressures; if this is not the cause, have
their condition checked by an approved dealer.
Coolant boiling in the coolant
reservoir. Mechanical fault: cylinder head
gasket damaged, faulty coolant
pump. Stop the engine.
Contact an approved dealer.
Engine cooling fan not working. Contact an approved dealer.
Smoke under the bonnet. Short circuit or cooling system
leak. Stop, switch off the ignition, move away from the vehi-
cle and contact an approved dealer.
The oil pressure warning light
comes on: on a bend or under braking The engine oil level is too low. Top up the engine oil level (refer to the information on
“Engine oil level: topping up/filling” in Section 4).
at idle speed Low oil pressure. Go to your nearest approved dealer.
The oil pressure warning
light takes a long time to
go out or remains lit during
acceleration. Loss of oil pressure.
Stop the vehicle: contact an approved dealer.

Downloaded from www.Manualslib.com manuals search engine 5.34
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
oPERATING FAUl Ts (3/5)
on the road PossIBlE CAUsEs WHAT To Do
Abnormal white smoke from the ex-
haust Mechanical fault: damaged cylinder
head gasket.
or Stop the engine.
Contact an approved dealer.
This is not necessarily a fault.
Smoke may be caused by
regeneration of the particle filter. Please refer to the information on “Special
features of diesel versions” in Section 2.
The power-assisted steering be -
comes heavy. Belt broken.
Have the belt replaced.
No power-assisted steering oil For maintenance operations on the power-
assisted steering, contact an authorised
dealer.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.35
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
oPERATING FAUl Ts (4/5)
on the road PossIBlE CAUsEs WHAT To Do
Whistling Roof aerial poorly positioned. Position the aerial.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and
check the coolant reservoir: it should con -
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change.
Reset the warning after changing the oil;
refer to the information in the paragraph on
the “On-board computer” in Section 1.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.

Downloaded from www.Manualslib.com manuals search engine 7.1
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ....................................................................... 2.12 → 2.14
accessories........................................................................\
5.31
accessories socket ............................................................ 3.16
additional methods of restraint .......................................... 1.22
adjusting your driving position ........... 1.12 → 1.16, 3.17 – 3.18
advice on antipollution ............................................... 2.6 → 2.8
air bag .................................................................... 1.17 → 1.22
activating the front passenger air bags ........................ 1.38
deactivating the front passenger air bags .................... 1.36
air conditioning .......................................................... 3.4 → 3.7
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.20
anti-corrosion protection .................................................... 4.12
anti-lock braking system: ABS ...............................2.12 → 2.14
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.16
ASR (traction control) ............................................ 2.12 → 2.14
b
battery ........................................................................\
.......... 4.9
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.24
bonnet ........................................................................\
.......... 4.2
brake fluid ........................................................................\
.... 4.6
bulbs changing .......................................................... 5.14 → 5.18
c
capacity of mechanical components ....................................4.3
catalytic converter ................................................................ 2.4
central door locking ............................................. 1.5 – 1.6, 1.8
changing a bulb ..................................................... 5.14 → 5.18
changing a wheel ...................................................... 5.9 – 5.10
changing gear .................................................................... 2.10child booster seat
.................................................. 1.23 → 1.25
child restraint/seat ................................................. 1.23 → 1.38
child safety ........................................ 1.2, 1.4, 1.9, 1.23 → 1.38
child seats .............................................................. 1.23 → 1.35
cigar lighter ........................................................................\
3.16
cleaning: inside the vehicle .............................................. 4.14 – 4.15
clock ........................................................................\
.......... 1.53
closing the doors ........................................................ 1.8 – 1.9
control instruments .......................... 1.42 → 1.47, 1.53 → 1.55
controls ................................................................... 1.40 – 1.41
courtesy light ..................................................................... 3.10
d
dashboard ............................................................... 1.40 – 1.41
de-icing rear screen ................................................................... 1.59
demisting windscreen ..................................................................... 3.6
dimensions ........................................................................\
.. 6.5
dipstick....................................................................... 4.3 → 4.5
display .................................................................... 1.46 – 1.47
doors ........................................................................\
.. 1.5 → 1.9
driver’s position ...................................................... 1.40 – 1.41
driving .................................................. 2.2 → 2.8, 2.11 → 2.18
e
electric door locking .................................................... 1.5 – 1.6
electric windows ......................................................... 3.8 – 3.9
Electronic Stability Program: ESP .........................2.12 → 2.14
emergency brake assist ..................................................... 2.14
emergency braking ................................................ 2.12 → 2.14
emergency spare wheel ........................ 5.3 – 5.4, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.7

Downloaded from www.Manualslib.com manuals search engine 7.4
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (4/4)
RENAULT ANTI-INTRUDER DEVICE (RAID) .....................1.7
replacement parts ................................................................ 6.8
reverse gear selecting ....................................................................... 2.10
reversing sensor ..................................................... 2.17 – 2.18
running in ........................................................................\
..... 2.2
S
seat belts ............................................................... 1.12 → 1.22
service sheets .......................................................... 6.9 → 6.14
side indicator lights changing bulbs ............................................................. 5.18
side protection devices ...................................................... 1.21
signals and lights .................................................... 1.54 – 1.55
speakers location ........................................................................ 5.30
special features of diesel versions .......................................2.5
special features of petrol vehicles ....................................... 2.4
speed limiter ........................................................... 2.15 – 2.16
starting ........................................................................\
2.2 – 2.3
starting the engine ............................................................... 2.3
steering wheel adjustment ................................................................... 1.53
storage compartment ............................................. 3.12 → 3.15
storage compartments .................................. 3.12 → 3.15, 3.29
sun visor ........................................................................\
.... 3.11
t
tailgate .................................................................... 3.28 – 3.29
tanks and reservoirs brake fluid ...................................................................... 4.6
coolant ........................................................................... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.7
technical specifications .......................................... 6.2, 6.4, 6.8
telephone ........................................................................\
... 3.34towing
........................................................................\
. 6.6 – 6.7
breakdown ........................................................ 5.28 – 5.29
towing equipment ......................................................... 3.31
towing a caravan ........................................................ 6.6 – 6.7
towing hitch ...................................................... 5.2, 5.28 – 5.29
towing rings ................................................... 1.26 – 1.27, 3.30
towing weights ............................................................ 6.6 – 6.7
traction control: ASR .............................................. 2.12 → 2.14
transporting children .............................................. 1.23 → 1.38
transporting objects in the luggage compartment ........................................ 3.30
trims ........................................................................\
............. 5.8
trip computer and warning system .........................1.48 → 1.52
tyre inflation kit ........................................................... 5.5 → 5.7
tyre pressure .................................................. 4.10 – 4.11, 5.12
tyre pressures ......................................................... 4.10 – 4.11
tyres ................................................... 4.10 – 4.11, 5.11 → 5.13
V
vehicle identification ............................................................ 6.2
vehicle identification plates ......................................... 6.2 – 6.3
ventilation heating and air conditioning system .................... 3.4 → 3.7
W
warning buzzer .................................................. 1.8 – 1.9, 1.54
warning lights ................................... 1.42 → 1.45, 1.48 → 1.52
washing .................................................................. 4.12 – 4.13
weights ....................................................................... 6.6 – 6.7
wheelbrace ........................................................................\
.. 5.2
windows ...................................................................... 3.8 – 3.9
windscreen washer .......................................... 1.58 – 1.59, 4.7
wiper blades ...................................................................... 5.27
wipers ............................................................ 1.58 – 1.59, 5.27
blades .......................................................................... 5.27
