Page 11 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.7
ENG_UD25616_1
Condamnation automatique des ouvrants en roulage (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

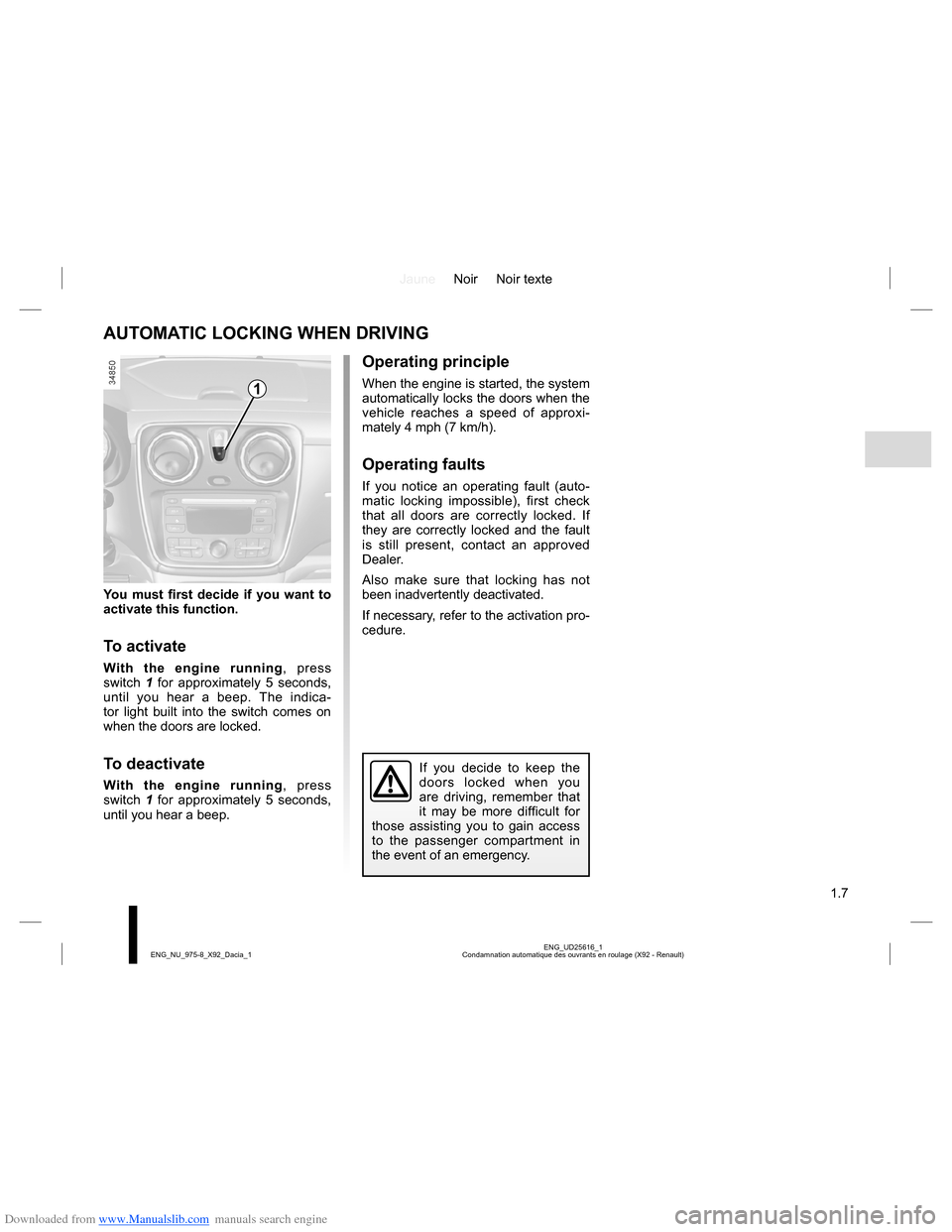

AUTOMATIC LOCKING WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the engine running, press
switch 1 for approximately 5 seconds,
until you hear a beep. The indica-
tor light built into the switch comes on
when the doors are locked.
To deactivate
With the engine running, press
switch 1 for approximately 5 seconds,
until you hear a beep.
Operating principle
When the engine is started, the system
automatically locks the doors when the
vehicle reaches a speed of approxi-
mately 4 mph (7 km/h).
Operating faults
If you notice an operating fault (auto-
matic locking impossible), first check
that all doors are correctly locked. If
they are correctly locked and the fault
is still present, contact an approved
Dealer.
Also make sure that locking has not
been inadvertently deactivated.
If necessary, refer to the activation pro-
cedure.
If you decide to keep the
doors locked when you
are driving, remember that
it may be more difficult for
those assisting you to gain access
to the passenger compartment in
the event of an emergency.
1
Page 17 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.13
ENG_UD38026_3
Ceintures de sécurité (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

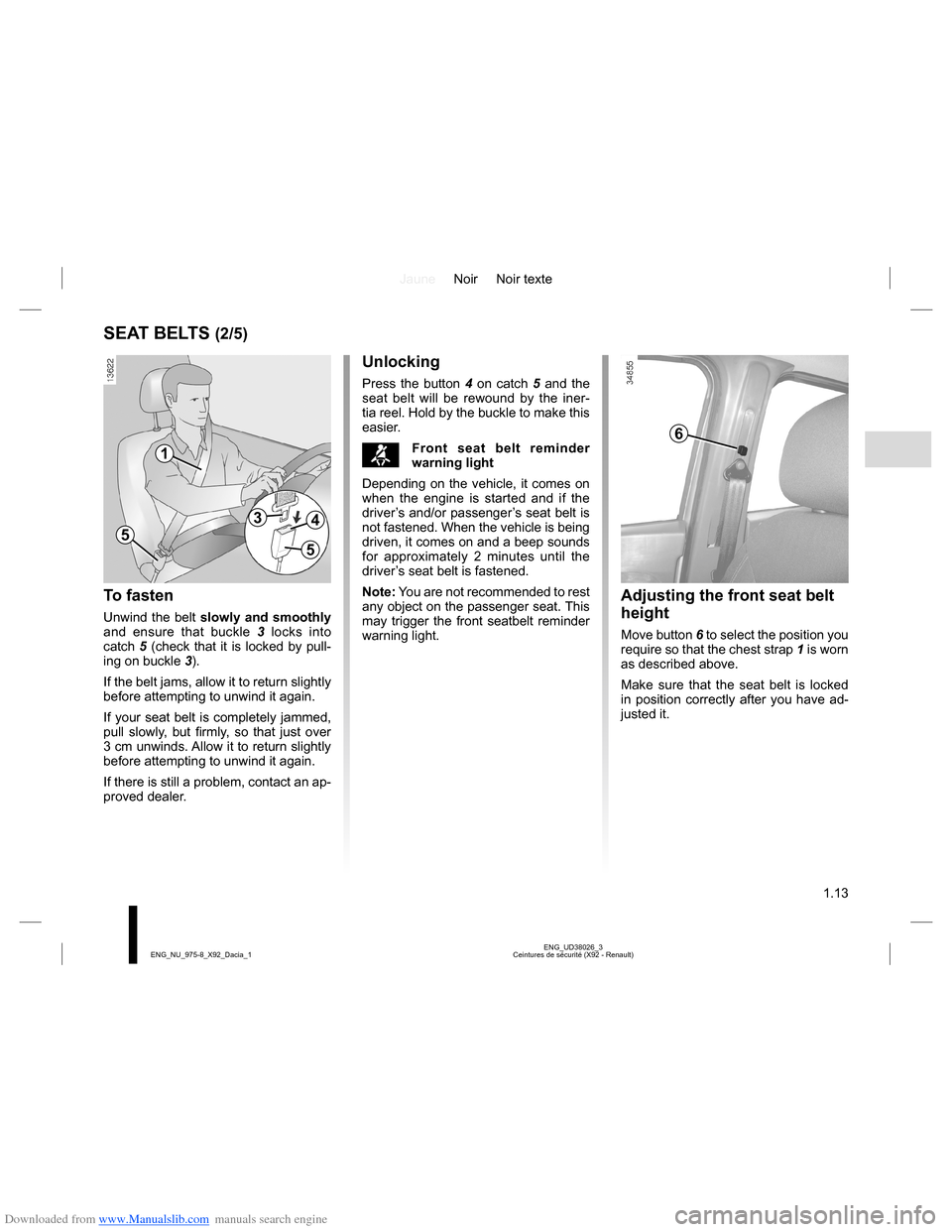

SEAT BELTS (2/5)
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull-
ing on buckle 3).
If the belt jams, allow it to return slightly
before attempting to unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
Adjusting the front seat belt
height
Move button 6 to select the position you
require so that the chest strap 1 is worn
as described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
Unlocking
Press the button 4 on catch 5 and the
seat belt will be rewound by the iner-
tia reel. Hold by the buckle to make this
easier.
™Front seat belt reminder
warning light
Depending on the vehicle, it comes on
when the engine is started and if the
driver’s and/or passenger’s seat belt is
not fastened. When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
Note: You are not recommended to rest
any object on the passenger seat. This
may trigger the front seatbelt reminder
warning light.1
34
5
5
6
Page 26 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.22
ENG_UD24408_1
Dispositifs de retenue complémentaire (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

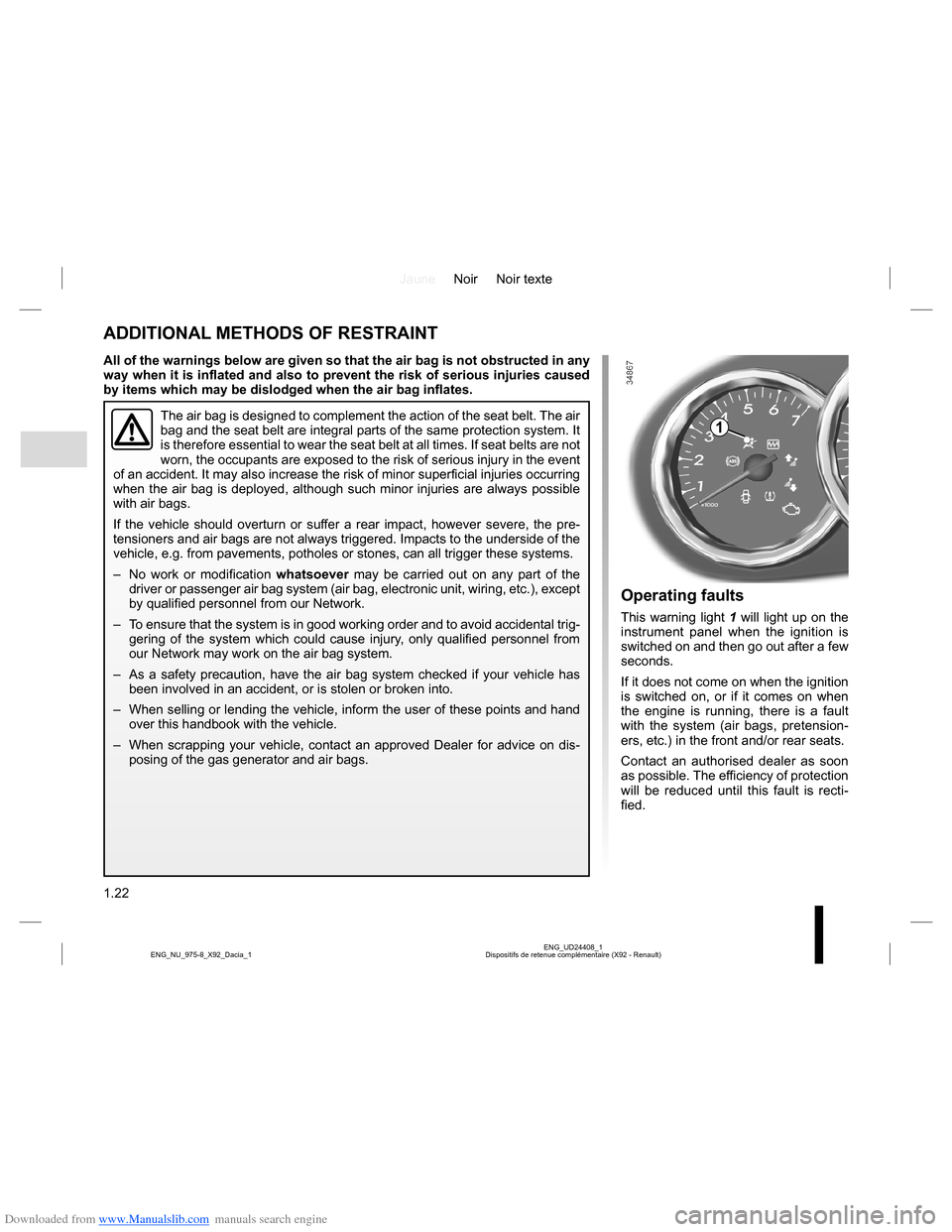

ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the air bag is not obstructed in any
way when it is inflated and also to prevent the risk of serious injuries caused
by items which may be dislodged when the air bag inflates.
The air bag is designed to complement the action of the seat belt. The air
bag and the seat belt are integral parts of the same protection system. It
is therefore essential to wear the seat belt at all times. If seat belts are not
worn, the occupants are exposed to the risk of serious injury in the event
of an accident. It may also increase the risk of minor superficial injuries occurring
when the air bag is deployed, although such minor injuries are always possible
with air bags.
If the vehicle should overturn or suffer a rear impact, however severe, the pre-
tensioners and air bags are not always triggered. Impacts to the underside of the
vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
– No work or modification whatsoever may be carried out on any part of the
driver or passenger air bag system (air bag, electronic unit, wiring, etc.), except
by qualified personnel from our Network.
– To ensure that the system is in good working order and to avoid accidental trig-
gering of the system which could cause injury, only qualified personnel from
our Network may work on the air bag system.
– As a safety precaution, have the air bag system checked if your vehicle has
been involved in an accident, or is stolen or broken into.
– When selling or lending the vehicle, inform the user of these points and hand
over this handbook with the vehicle.
– When scrapping your vehicle, contact an approved Dealer for advice on dis-
posing of the gas generator and air bags.
Operating faults
This warning light 1 will light up on the
instrument panel when the ignition is
switched on and then go out after a few
seconds.
If it does not come on when the ignition
is switched on, or if it comes on when
the engine is running, there is a fault
with the system (air bags, pretension-
ers, etc.) in the front and/or rear seats.
Contact an authorised dealer as soon
as possible. The efficiency of protection
will be reduced until this fault is recti-
fied.
1
Page 35 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.31
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

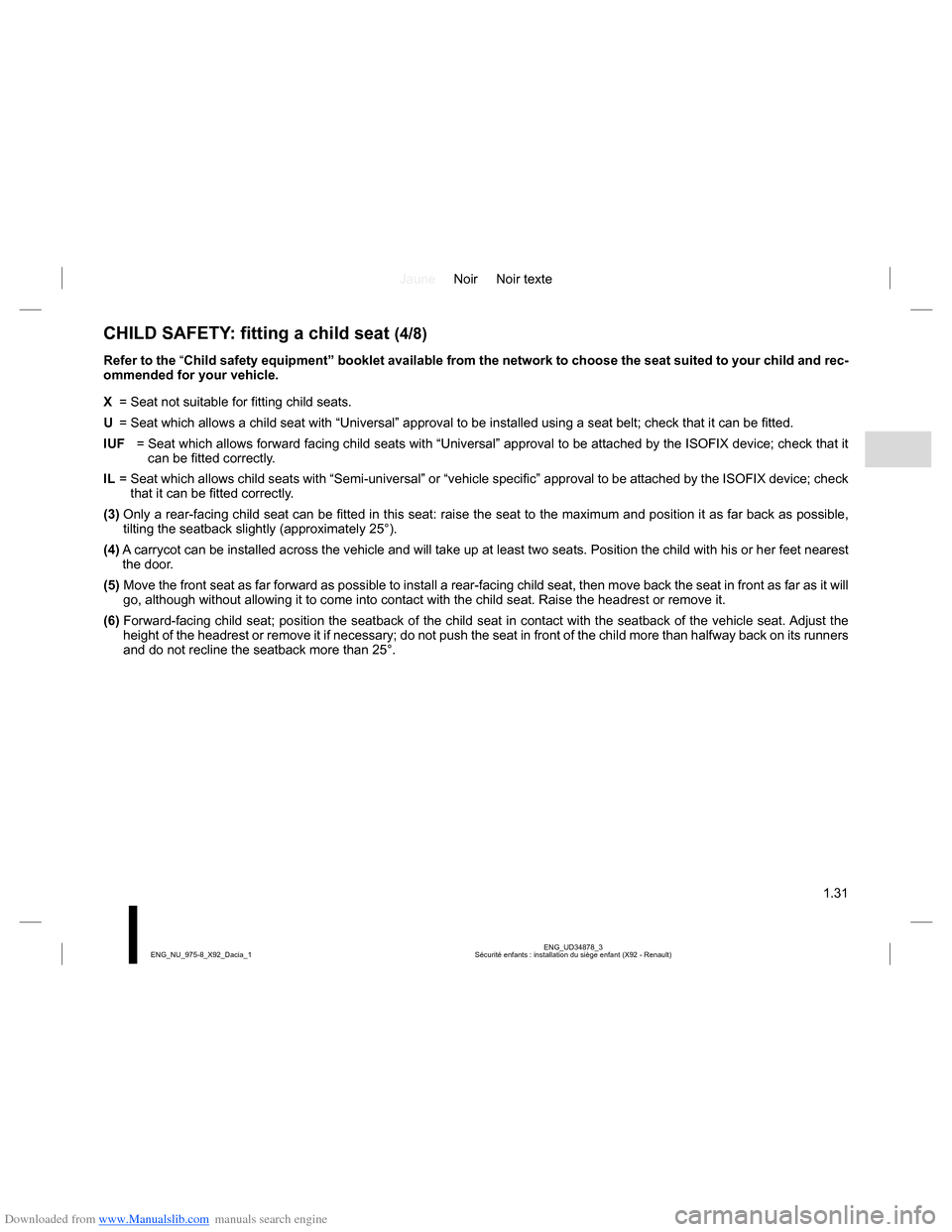

CHILD SAFETY: fitting a child seat (4/8)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF = Seat which allows forward facing child seats with “Universal” approval to be attached by the ISOFIX device; check that it
can be fitted correctly.
IL = Seat which allows child seats with “Semi-universal” or “vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted correctly.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°. Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.
Page 39 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.35
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

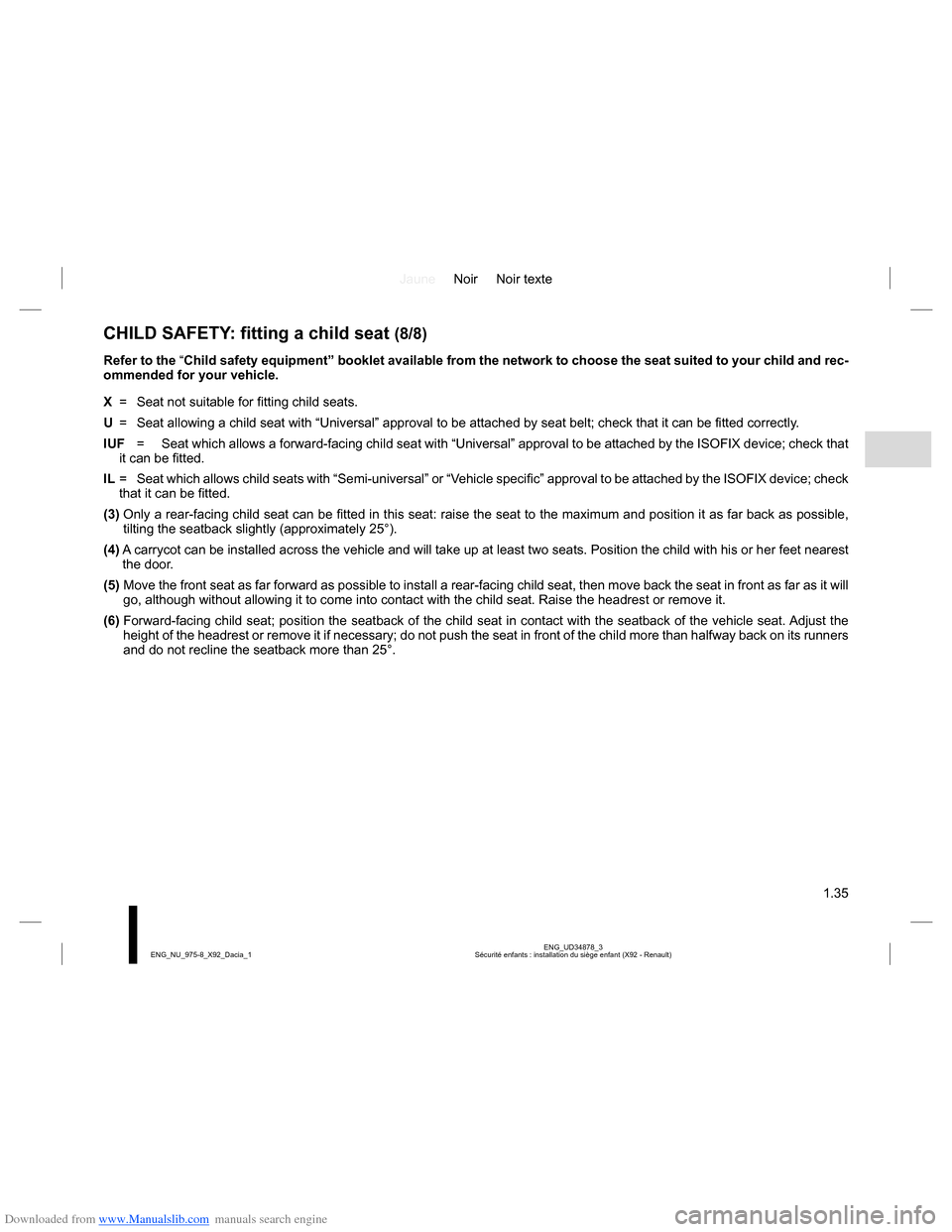

CHILD SAFETY: fitting a child seat (8/8)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted correctly.
IUF = Seat which allows a forward-facing child seat with “Universal” approval to be attached by the ISOFIX device; check that
it can be fitted.
IL = Seat which allows child seats with “Semi-universal” or “Vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°. Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.
Page 40 of 258
Downloaded from www.Manualslib.com manuals search engine 1.36
ENG_UD36364_3
Sécurité enfants : désactivation/activation airbag passager avant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

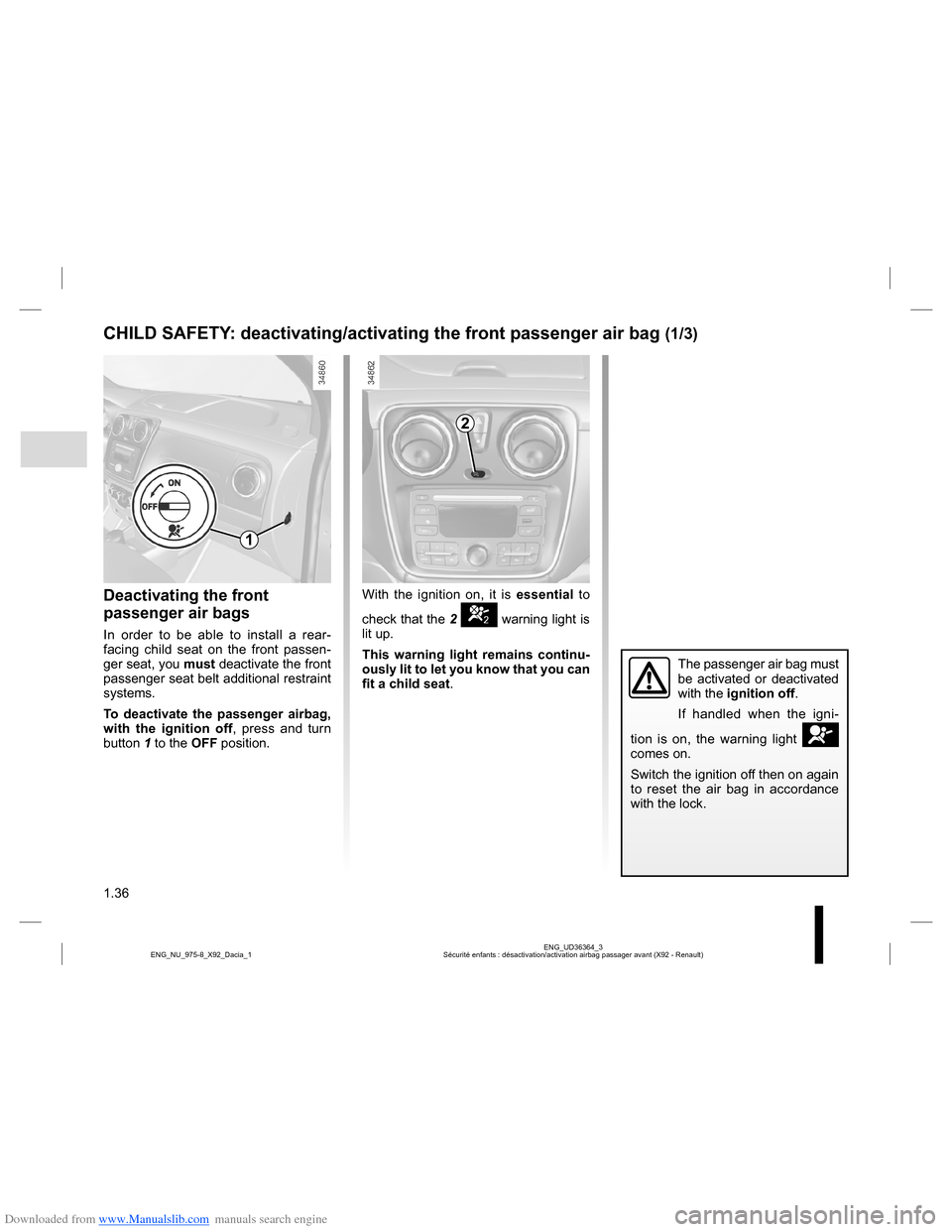

CHILD SAFETY: deactivating/activating the front passenger air bag (1/3)
The passenger air bag must
be activated or deactivated
with the ignition off.
If handled when the igni-
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
With the ignition on, it is essential to
check that the 2
] warning light is
lit up.
This warning light remains continu-
ously lit to let you know that you can
fit a child seat.
Deactivating the front
passenger air bags
In order to be able to install a rear-
facing child seat on the front passen-
ger seat, you must deactivate the front
passenger seat belt additional restraint
systems.
To deactivate the passenger airbag,
with the ignition off, press and turn
button 1 to the OFF position.
2
1
Page 42 of 258
Downloaded from www.Manualslib.com manuals search engine 1.38
ENG_UD36364_3
Sécurité enfants : désactivation/activation airbag passager avant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

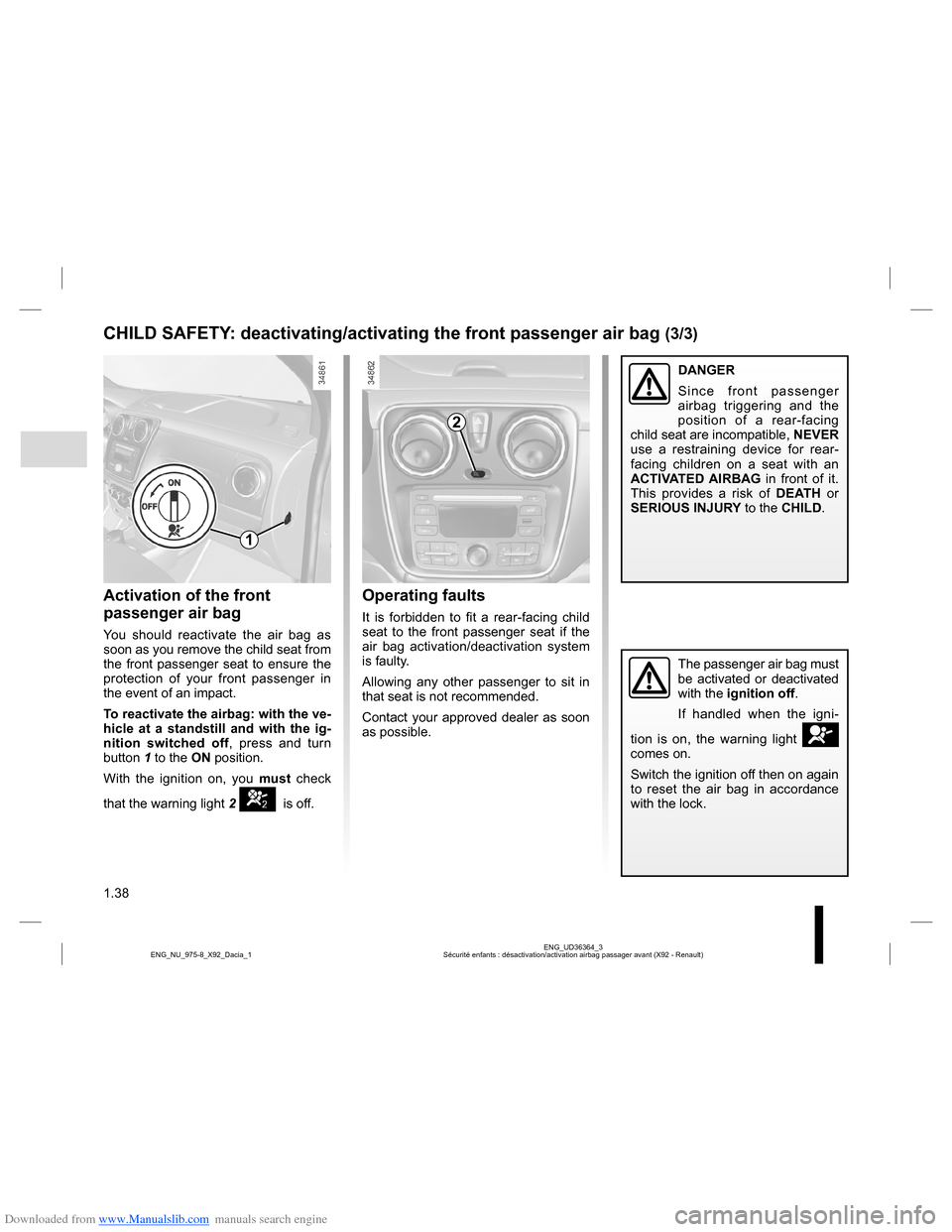

CHILD SAFETY: deactivating/activating the front passenger air bag (3/3)
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
Activation of the front
passenger air bag
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of your front passenger in
the event of an impact.
To reactivate the airbag: with the ve-
hicle at a standstill and with the ig-
nition switched off, press and turn
button 1 to the ON position.
With the ignition on, you must check
that the warning light 2
] is off.
2
The passenger air bag must
be activated or deactivated
with the ignition off.
If handled when the igni-
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
DANGER
Since front passenger
airbag triggering and the
position of a rear-facing
child seat are incompatible, NEVER
use a restraining device for rear-
facing children on a seat with an
ACTIVATED AIRBAG in front of it.
This provides a risk of DEATH or
SERIOUS INJURY to the CHILD.
1
Page 47 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.43
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
WARNING LIGHTS (2/5)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
ÔCoolant temperature war-
ning light
If this remains lit while driving, ac-
companied by a beep, this means the
engine is overheating. Stop and allow
the engine to run at idle speed for a
minute or two. The temperature should
drop. If not, stop the engine. Let it cool
down before checking the coolant level.
Contact an authorised dealer if neces-
sary.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an
authorised dealer as soon as pos-
sible;
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and antipollution advice”
in Section 2.
ÒWarning light malfunction
(red or orange)
Urgent stop warning light (red)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately,
for your own safety, as soon as traffic
conditions allow. Switch off the engine
and do not restart it.
Contact an approved Dealer.
Warning light (orange)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It may comes on
in conjunction with other warning lights
on the instrument panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this re-
commendation, you risk damaging your
vehicle.
DHandbrake “on” warning
light and brake circuit inci-
dent warning light
This comes on when the ignition is
switched on. If it comes on during brak-
ing and is accompanied by a beep, it in-
dicates that the fluid level in the circuit
is low; it may be dangerous to continue
driving - please contact an authorised
dealer.
A
Page 48 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.44
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
WARNING LIGHTS (3/5)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
ÉPreheating warning light (on
diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it does not come on
when the ignition is switched on or if it
flashes, there is a fault in the system.
Contact an approved Dealer as soon as
possible.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit has
discharged. Stop and consult an appro-
ved Dealer as soon as possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it comes on when dri-
ving accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
Tyre pressure loss warning
Please refer to the information
on the “Tyre pressure loss warning” in
Section 2.
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on on the road, accompa-
nied by a beep, stop immediately and
cut the ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section
4). If the level is normal, the light has
come on for another reason: Consult an
authorised dealer straight away.
A
Page 59 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.55
ENG_UD38128_3
Eclairages et signalisations extérieures (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

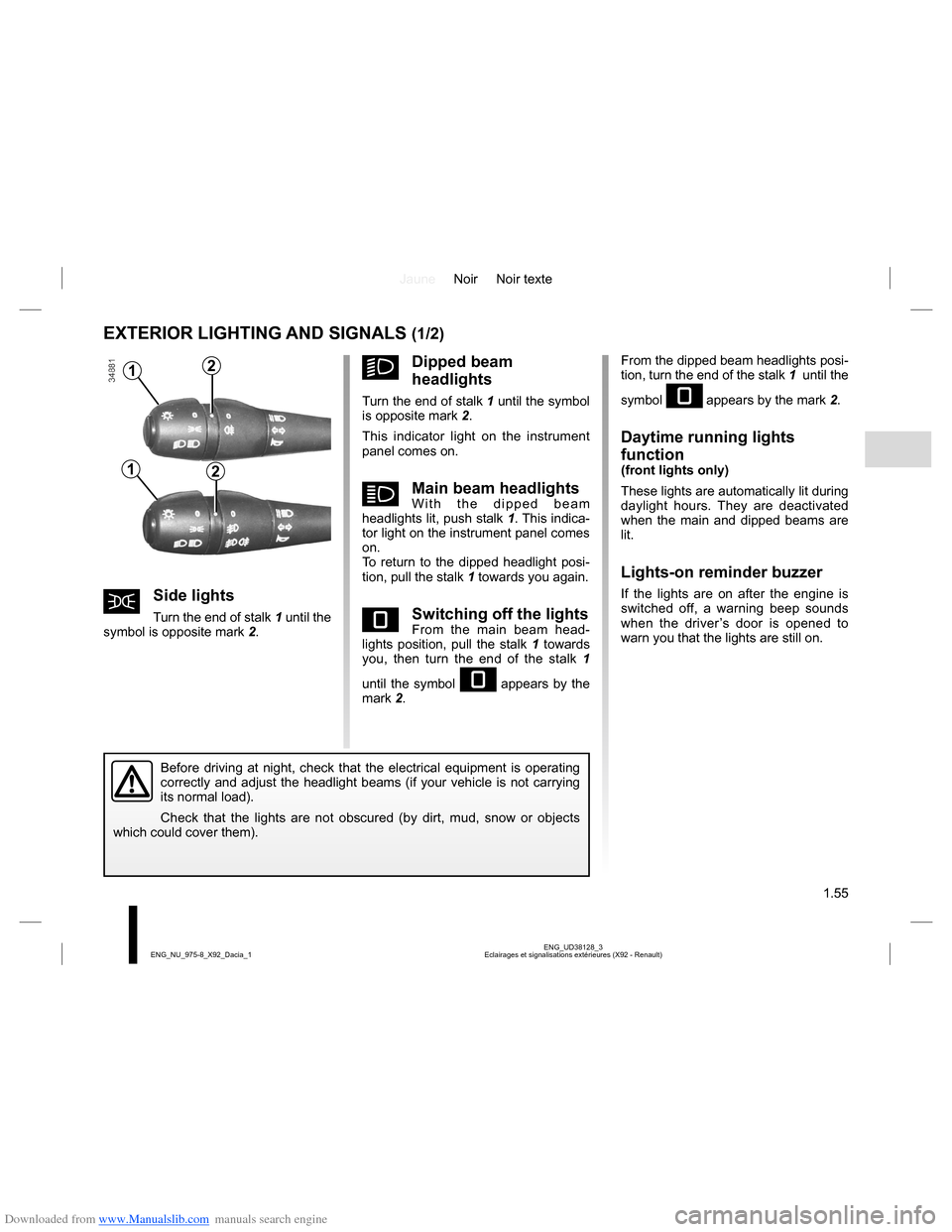

EXTERIOR LIGHTING AND SIGNALS (1/2)
šSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2.
kDipped beam
headlights
Turn the end of stalk 1 until the symbol
is opposite mark 2.
This indicator light on the instrument
panel comes on.
áMain beam headlightsWith the dipped beam
headlights lit, push stalk 1. This indica-
tor light on the instrument panel comes
on.
To return to the dipped headlight posi-
tion, pull the stalk 1 towards you again.
eSwitching off the lightsFrom the main beam head-
lights position, pull the stalk 1 towards
you, then turn the end of the stalk 1
until the symbol
e appears by the
mark 2.From the dipped beam headlights posi-
tion, turn the end of the stalk 1 until the
symbol
e appears by the mark 2.
Daytime running lights
function
(front lights only)
These lights are automatically lit during
daylight hours. They are deactivated
when the main and dipped beams are
lit.
Lights-on reminder buzzer
If the lights are on after the engine is
switched off, a warning beep sounds
when the driver’s door is opened to
warn you that the lights are still on.
Before driving at night, check that the electrical equipment is operating
correctly and adjust the headlight beams (if your vehicle is not carrying
its normal load).
Check that the lights are not obscured (by dirt, mud, snow or objects
which could cover them).
21
12
