Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
REAR AND SIDE LIGHTS: changing bulbs (1/3)
Direction indicator, brake and
side lights
Undo bolt 1 to remove the light. Release the light assembly from out-
side the vehicle by pulling towards the
rear.
Remove the bulb holder
3 by releasing
clips 2.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring,
and fasten clips 2 on the bulb holder 3.4 Side light and brake light
Bulb type 4: P21/5W.
5 Indicator light
Bulb type 5: PY21W.
6
Reversing light (right-hand side
only)
Bulb type 6: P21W.
7 Fog light (left-hand side only)
Bulb type 7: P21W.
3
4
5
61
7
2
2

JauneNoir Noir texte
5.20
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5

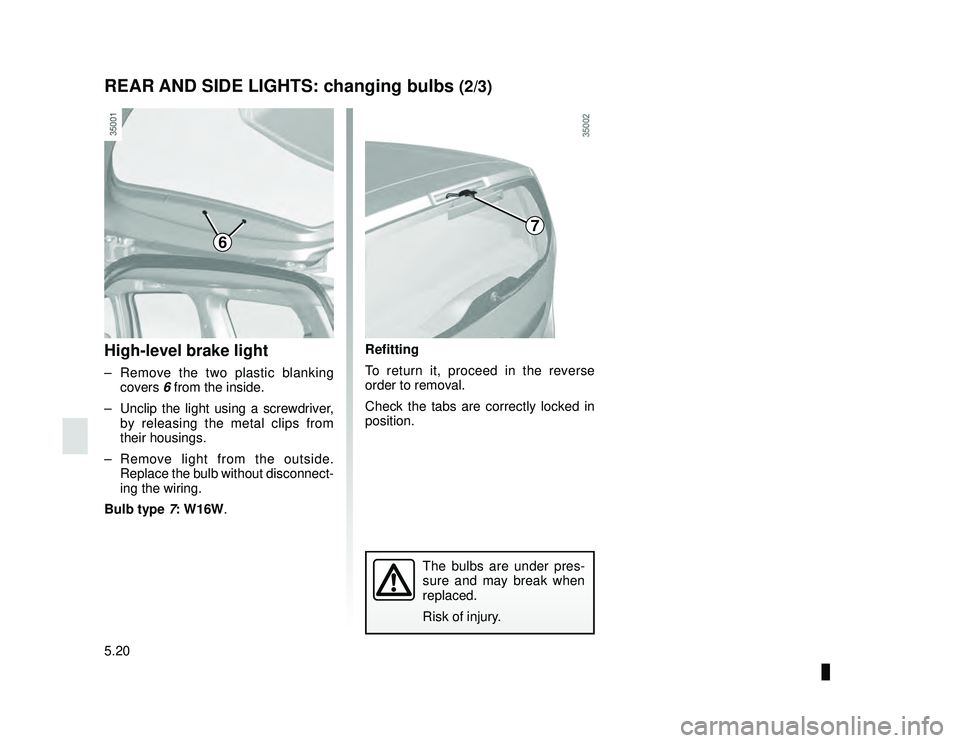

REAR AND SIDE LIGHTS: changing bulbs (2/3)
High-level brake light
– Remove the two plastic blanking
covers 6 from the inside.
– Unclip the light using a screwdriver, by releasing the metal clips from
their housings.
– Remove light from the outside. Replace the bulb without disconnect-
ing the wiring.
Bulb type 7: W16W.
Refitting
To return it, proceed in the reverse
order to removal.
Check the tabs are correctly locked in
position.
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.
7
6

JauneNoir Noir texte
5.21
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5

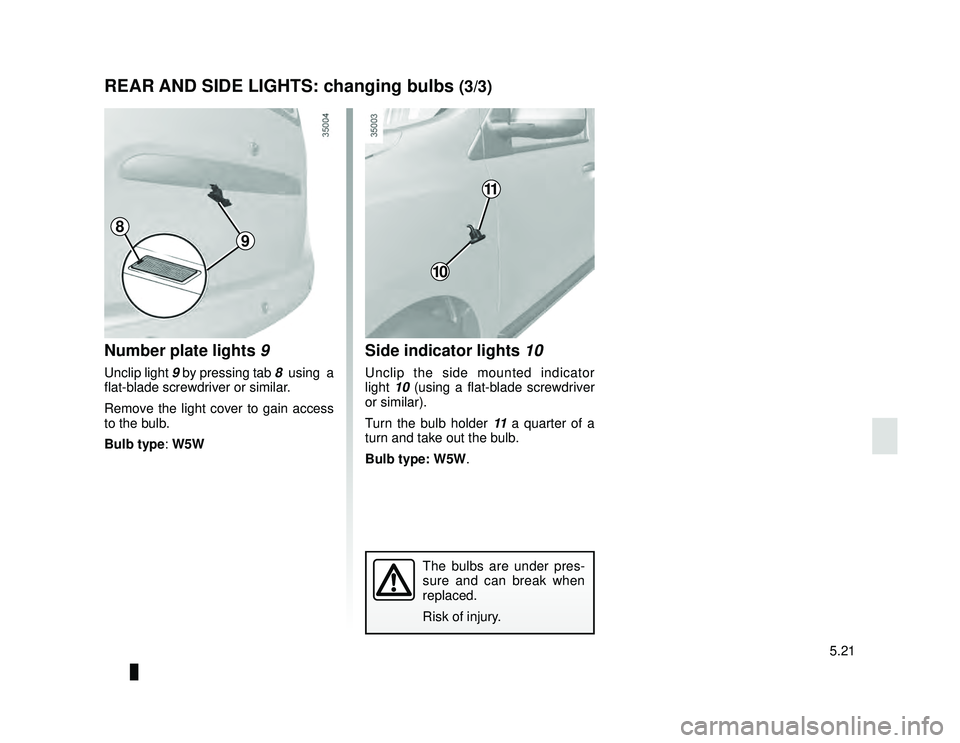

REAR AND SIDE LIGHTS: changing bulbs (3/3)
Number plate lights 9
Unclip light 9 by pressing tab 8 using a
flat-blade screwdriver or similar.
Remove the light cover to gain access
to the bulb.
Bulb type: W5W
98
Side indicator lights 10
Unclip the side mounted indicator
light 10 (using a flat-blade screwdriver
or similar).
Turn the bulb holder 11 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
11
10
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

JauneNoir Noir texte
5.22
ENG_UD24477_1
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
INTERIOR LIGHTING: changing bulbs (1/2)
Courtesy light
Unclip lens 1 using a flat-blade screw-
driver or similar. Remove the bulb.
Bulb type 2: W5W.
Rear courtesy light
Remove the lens 3 using a tool such as
a flat-blade screwdriver.
Release the bulb.
Bulb type: W5W.
123
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.

JauneNoir Noir texte
5.23
ENG_UD24477_1
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
INTERIOR LIGHTING: changing bulbs (2/2)
Luggage compartment light
Unclip the light 4 (using a tool such as a
flat-blade screwdriver). Press tab
5 to release the lens 7 and
access bulb 6.
Bulb type: W5W.
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.
567
4

JauneNoir Noir texte
5.24
ENG_UD33424_3
Fusibles (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
Fuses in passenger compartment A
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
FUSES (1/4)
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Clip 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
1

JauneNoir Noir texte
5.25
ENG_UD33424_3
Fusibles (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
FUSES (2/4)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 2
is located in the box B.
2
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.

JauneNoir Noir texte
5.26
ENG_UD33424_3
Fusibles (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
FUSES (3/4)
Allocation of fuses in the passenger compartment
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
ABC
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
2223
3132
33
34
35
36
37
38
39

JauneNoir Noir texte
5.27
ENG_UD33424_3
Fusibles (X92 - Renault)
ENG_NU_975-6_X92_Dacia_5
FUSES (4/4)
Number Allocation
A Electric rear window
B Electric door mirrors
C Front electric window
1 LPG
2 Left-hand main beam
headlight
3 Right-hand main beam
headlight
4 Left-hand dipped beam
headlight
5 Right-hand dipped beam
headlight
6 Left-hand side lights
7 Right-hand side lights
8 Rear accessories socket
9 Rear fog lights
10 Horn
11 Automatic door lockingNumber Allocation
12 ESC
13 Courtesy light
14 ABS-ESC
15 Reverse gear, windscreen
wiper
16 Cruise control-Speed
limiter, rear windscreen,
unfastened seatbelt
warning, parking distance
control
17 Daytime running lights
18 Brake lights
19 Fuel pump, Injection
20 Airbag
21 Heated seats
22 Power-assisted steering
23 Location reserved for
additional equipment.
24 Direction indicator lightNumber Allocation
25 Passenger compartment
ECU
26 Passenger compartment
ECU
27
and 29 Steering column control
28 Not used
30 Location reserved for
additional equipment.
31 Instrument panel
32 Radio
33 Starter
34 Windscreen wiper
35 Passenger compartment
ventilation
36 Cigar lighter
37 Diagnostic socket
38 Defrosting rearview mirror
39 Front fog lights

JauneNoir Noir texte
5.28
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Re\
nault)
ENG_NU_975-6_X92_Dacia_5
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIO FREQUENCY REMOTE CONTROL: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
