Verrouillage et déverrouillage des portes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
LOCKING AND UNLOCKING THE DOORS (2/2)
Electric central locking
It simultaneously locks or unlocks the
doors and the tailgate.
Lock or unlock the doors by pressing
switch 4.
The front door mechanism cannot be
locked if the door is open.
Never leave your vehi-
cle with the key or remote
control inside.
Door and tailgate status
indicator
With the ignition on , the warning light
integrated in switch 4 informs you of the
locking status of the opening elements:
– indicator light on, the doors and tailgate are locked;
– indicator light off, the doors and tailgate are unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.4
Locking the opening
elements without the radio
frequency remote control
For example, in the event of a dis-
charged battery or the radio frequency
remote control temporarily not working.
With the engine switched off and
an opening element (door or boot)
open, press and hold switch 4 for more
than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
The vehicle can only be locked from
the outside using the radio frequency
remote control.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.8
ENG_UD32515_4
Ouverture et fermeture des portes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1

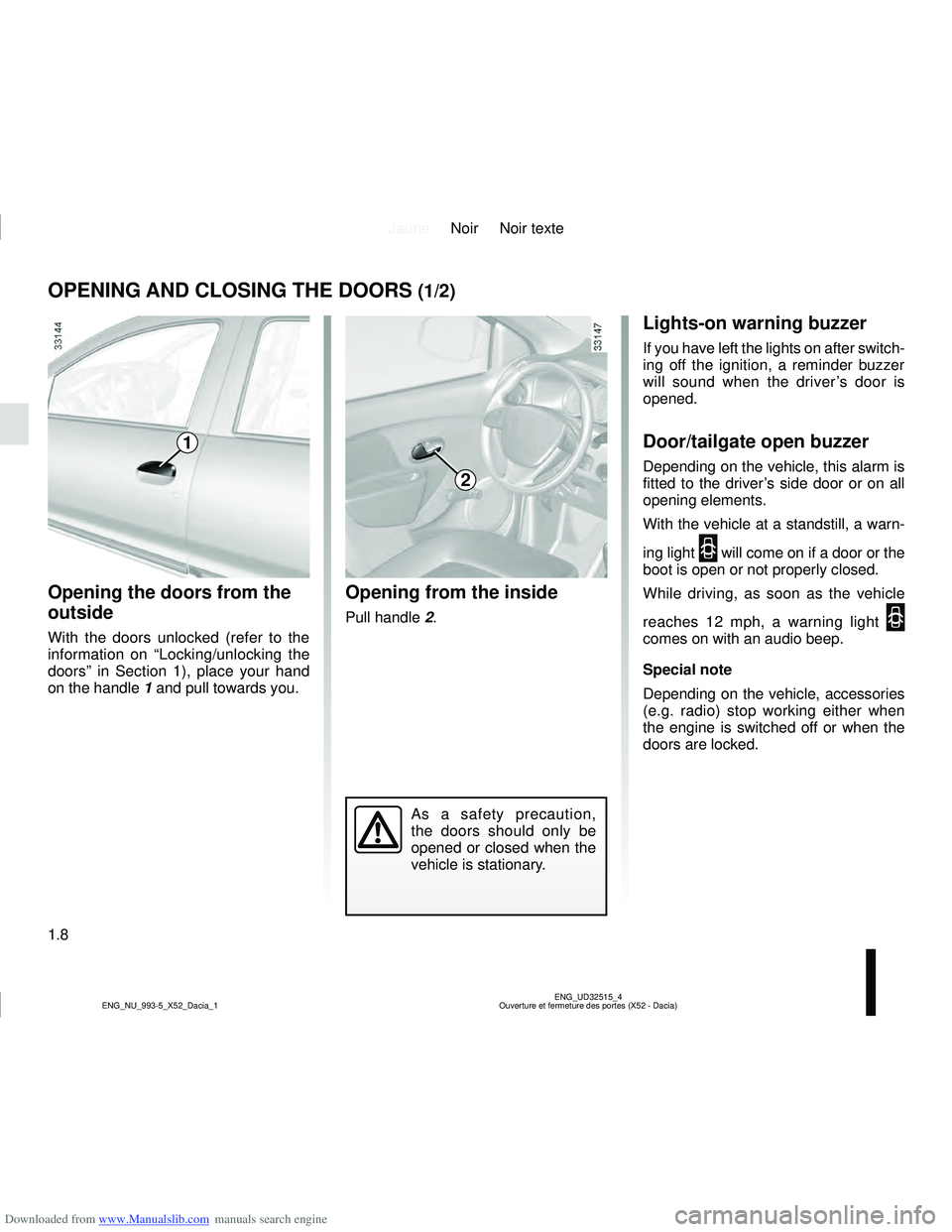

OPENING AND CLOSING THE DOORS (1/2)
Opening the doors from the
outside
With the doors unlocked (refer to the
information on “Locking/unlocking the
doors” in Section 1), place your hand
on the handle 1 and pull towards you.
Opening from the inside
Pull handle 2.
Lights-on warning buzzer
If you have left the lights on after switch-
ing off the ignition, a reminder buzzer
will sound when the driver’s door is
opened.
Door/tailgate open buzzer
Depending on the vehicle, this alarm is
fitted to the driver’s side door or on all
opening elements.
With the vehicle at a standstill, a warn-
ing light
2 will come on if a door or the
boot is open or not properly closed.
While driving, as soon as the vehicle
reaches 12 mph, a warning light
2
comes on with an audio beep.
Special note
Depending on the vehicle, accessories
(e.g. radio) stop working either when
the engine is switched off or when the
doors are locked.
1
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.36
ENG_UD33184_5
Sécurité enfants : installation du siège enfant (X52 - Dacia)\
ENG_NU_993-5_X52_Dacia_1
Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
 The rear side seats are equipped
with an anchorage point allowing a
forward-facing ISOFIX child seat with
“Universal” approval to be attached.
The anchorage points
 are located
in the boot and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to 18 kg);
– D and E: shell seat or rear-facing seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than 10 kg).
CHILD SAFETY: fitting a child seat (5/7)
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Only if the seat is equipped with an
inertia-reel belt.
RISK OF DEATH OR SERIOUS INJURY: Before fitting a child seat on
the front passenger seat, check that the airbag has been deactivated
(please refer to “Child safety: front passenger airbag deactivation,\
activa-
tion” in Section 1).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Visual installation of the five-door version
1
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.37
ENG_UD33184_5
Sécurité enfants : installation du siège enfant (X52 - Dacia)\
ENG_NU_993-5_X52_Dacia_1
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats. Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Only if the seat is equipped with an
inertia-reel belt.
RISK OF DEATH OR SERIOUS INJURY: Before fitting a child seat on
the front passenger seat, check that the airbag has been deactivated
(please refer to “Child safety: front passenger airbag deactivation,\
activa-
tion” in Section 1).
Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
 The rear side seats are equipped
with an anchorage point allowing a
forward-facing ISOFIX child seat with
“Universal” approval to be attached.
The anchorage points
 are located
in the boot and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to 18 kg);
– D and E: shell seat or rear-facing seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than 10 kg).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Estate version diagram CHILD SAFETY: fitting a child seat
(6/7)
1
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.1
ENG_UD34969_6
Sommaire 3 (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Section 3: Your comfort
Air vents, air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating, Ventilation, Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 3.4
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 3.7
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 3.11
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
Sun visor, Grab handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . 3.17
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3.18
Ashtrays, Cigarette lighter, Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3.22
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
Rear bench seat: functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 3.25
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.26
Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 3.27
Transporting objects in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . 3.28
Transporting objects: towing, attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 3.29
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Boot cover: estate models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 3.31
Transporting objects: Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 3.32
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.34
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 3.35

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.26
ENG_UD32520_3
Coffre à bagages (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
BOOT
1
To open
Electric central locking
With the opening elements unlocked,
press button 1 and lift the tailgate.
Manual locking
From the outside
Insert the key in the boot lock, turn
it (depending on the vehicle, press
button 1) and lift the boot lid.
2
From the inside
Pull the lever 2, then lift the boot lid.
3
To close
Lower the boot lid using, at first, the
handle 3 inside the boot, if fitted to
the vehicle.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.28
ENG_UD31054_3
Transport d\’objet dans le coffre/Remorquage (attelage) (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
TRANSPORTING OBJECTS IN THE BOOT
Always position the objects trans-
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads (eg: A);
– the front seats when the rear seats
are folded down. Refer to the infor-
mation on the “Rear bench seat:
functions” in this section (eg: B).
Always position the heaviest items di-
rectly on the floor.
Always place objects being trans-
ported so that the heaviest items are
resting against the back of the rear
bench seat.
A
B
Always position the heavi-
est items directly on the
floor. Use the lashing
points 1 on the boot floor, if
these are fitted to the vehicle. The
luggage should be loaded in such a
way that no items will be thrown for-
ward and strike the occupants if the
driver has to brake suddenly. Fasten
the rear seat belts, even if the seats
are not occupied.
1
1
1
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.31
ENG_UD30605_2
Cache-bagages version break (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_3
Do not place any objects, especially heavy or solid objects on the lug-
gage compartment cover. These may pose a risk to the vehicle occu-
pants if the driver has to brake suddenly or if the vehicle is involved in
an accident.
LUGGAGE COMPARTMENT COVER: estate version
This consists of a rigid section (parcel
shelf A) and a soft section B.
To remove the flexible section B
Pull the boot cover gently by its handle 1
to release it from the contact points.
Guide the luggage cover onto the roller.Removing the boot cover
When the soft section B has been rolled
up, gently lift the parcel shelf A and pull
it towards you.
To refit, carry out the above operations
in reverse order.
A
B
A
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.2
ENG_UD30790_2
Crevaison (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
– lift the luggage compartment carpet

vertically against the rear seatback
or the folded boot cover, if your vehi-
cle has one;
– unscrew the central mounting 1;
– remove emergency spare wheel 2.
In the event of a puncture,
depending on the vehicle,
you will have:
An emergency spare wheel or tyre in-
flation kit (refer to the information on the
following pages).
Emergency spare wheel
This is located in the luggage compart-
ment.
To access it:
– Open the boot;
– depending on the vehicle, remove
the boot cover or fold it fully;
PUNCTURE, EMERGENCY SPARE WHEEL
NB: ensure that the emergency
spare wheel or punctured wheel and
the wheel tray are correctly posi-
tioned so that the luggage compart-
ment carpet can be properly fitted.
After lowering, check that the boot
carpet is correctly positioned in its
bump stops to prevent it from being
damaged (if present on your vehi-
cle).
1
2
If the emergency spare wheel has been stored for several years, have it \
checked by your Dealer to ensure that it is safe to use.
Vehicle fitted with an emergency spare wheel that differs from the
other wheels:
– Never fit more than one emergency spare wheel to the same vehicle.
– As the punctured wheel is wider than the emergency spare wheel, the vehicle’s ground clearance is reduced.
– Replace the emergency spare wheel as soon as possible with a wheel ident\
i- cal to the original one.
– When this is fitted to the vehicle, which must only be a temporary measu\
re, the driving speed must not exceed the speed indicated on the label on the wh\
eel.
– Fitting an emergency spare wheel may alter the way the vehicle usually runs. Avoid sudden acceleration or deceleration and reduce your speed when cor-\
nering.
– If you need to use snow chains, fit the emergency spare wheel to the rear axle and check the tyre pressure.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.4
ENG_UD28665_3
Kit de gonflage des pneumatiques (X77 - X85 - B85 - C85 - S85 - X77 ph2\
- K85 - X95 - E95 - X67 - X92 - X10 - X98 - X52 - Renault)
ENG_NU_993-5_X52_Dacia_5
TYRE PRESSURE KIT (2/3)
Depending on the vehicle, in the event
of a puncture, use the kit located in the
boot or underneath the luggage com-
partment carpet.
With the engine running and the
parking brake applied,
– unroll the hose from the container;
– connect the compressor hose 3 to
the container’s inlet 8;
– depending on the vehicle, connect the container 8 to the compressor
from the container recess 7;
– unscrew the valve cap on the rel- evant wheel and screw on the con-
tainer’s inflation adapter 1;
– adapter 2 must be connected to the
vehicle accessories socket;
– press switch 4 to inflate the tyre to
the recommended pressure (please
refer to the information in the section
on “Tyre pressure”);
45
1
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
8
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
– after a maximum of 15 minutes, stop inflating and read the pressure (on
pressure gauge 5).
Note: while the container is empty-
ing (approximately 30 seconds), the
pressure gauge 5 will briefly indicate
a pressure of up to 6 bar. The pres-
sure will then drop.
– adjust the pressure: to increase it, continue inflation with the kit; to
reduce it, press button 6.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.
2
3
7
6
