Ceintures de sécurité (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
SEAT BELTS (2/6)
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull-
ing on buckle 3).
If the belt jams, allow it to return slightly
before attempting to unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
Adjusting the front seat belt
height
Move button 6 to select the position you
require so that the chest strap 1 is worn
as described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
™Seat belt reminder warning
light
Depending on the vehicle, it comes on
when the engine is started and if the
driver’s and/or passenger’s seat belt is
not fastened. When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Unlocking
Press the button 4 on catch 5 and the
seat belt will be rewound by the iner-
tia reel. Hold by the buckle to make this
easier.
1
34
5
5
6

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.16
ENG_UD33182_3
Ceintures de sécurité (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
Five-door version
Rear side seat belts
Slowly unwind belt 7 and click buckle 9
into red catch 8..
SEAT BELTS (3/6)
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Rear centre seat belt 10
(depending on vehicle)
Remove the buckle 13 from its hous-
ing 12.
Slowly unwind belt 10 and click
buckle 13 into the black catch 14.
Fasten sliding buckle 11 into the red
catch 15.
When the belt is not in use, place the
buckle 13 in its housing 12.
139
8
7
10
12
12
14
15
10
11

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.17
ENG_UD33182_3
Ceintures de sécurité (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
Estate version
Rear side seat belts
Slowly unwind belt 16 and click
buckle 18 into the red catch 17.
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Rear centre seat belt
(depending on vehicle)
Unwind belt 19 slowly from its hous-
ing A.
Fasten buckle 21 into the correspond-
ing black catch 20 if fitted to the ve-
hicle.
Fasten sliding buckle 22 into the red
catch 23.
SEAT BELTS (4/6)
16
17
18
19
20
2122
23
22
21
19
A
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.18
ENG_UD33182_3
Ceintures de sécurité (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
Four-door version
Rear side seat belts
Slowly unwind belt 24 and click
buckle 26 into the red catch 25.
SEAT BELTS (5/6)
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Rear centre seat belt
(depending on vehicle)
Unwind belt 27 slowly from its hous-
ing B.
Fasten buckle 29 into the correspond-
ing black catch 28 if fitted to the ve-
hicle.
Fasten sliding buckle 30 into the red
catch 31.
25
26
27
2931
28
30
2430
27
29
B
B

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.19
ENG_UD33182_3
Ceintures de sécurité (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
SEAT BELTS (6/6)
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the originally fit\
ted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), co\
ntact an authorised dealer.
– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby o\
r child on your lap with your seat belt around them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if neces\
sary. Always replace your seat belts as soon as they show any signs of wear.
– When putting back the rear bench seat, take care that the seat belts are correctly positioned so that they can be used prop- erly.
– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch\
as they could prevent it from being properly se- cured.
– Make sure the seat belt catch is properly positioned (it should not be \
hidden away, crushed or flattened by people or ob- jects).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.20
ENG_UD26915_1
Dispositifs complémentaires à la ceinture avant (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (1/4)
Depending on the vehicle, they are
composed of:
– chest force limiters;
– front airbags for driver and front
passenger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.
Depending on the severity of the
impact, the system can trigger:
– seat belt locking;
– airbag and force limiter.
– Have the entire restraint
system checked following
an accident.
– No operation whatsoever
is permitted on any part of the
system (air bags, electronic con-
trol units, wiring) and the system
components must not be reused
on any other vehicle, even if iden-
tical.
– To avoid premature triggering of the system which may cause
injury, only qualified Network per-
sonnel are authorisedto work on
the methods of restraint in addi-
tion to the front seat belt.
– The electric trigger system may only be tested by a specially
trained technician using special
equipment.
– When the vehicle is scrapped, contact an approved dealer for
disposal of the pretensioner and
airbag gas generators.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.21
ENG_UD26915_1
Dispositifs complémentaires à la ceinture avant (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1

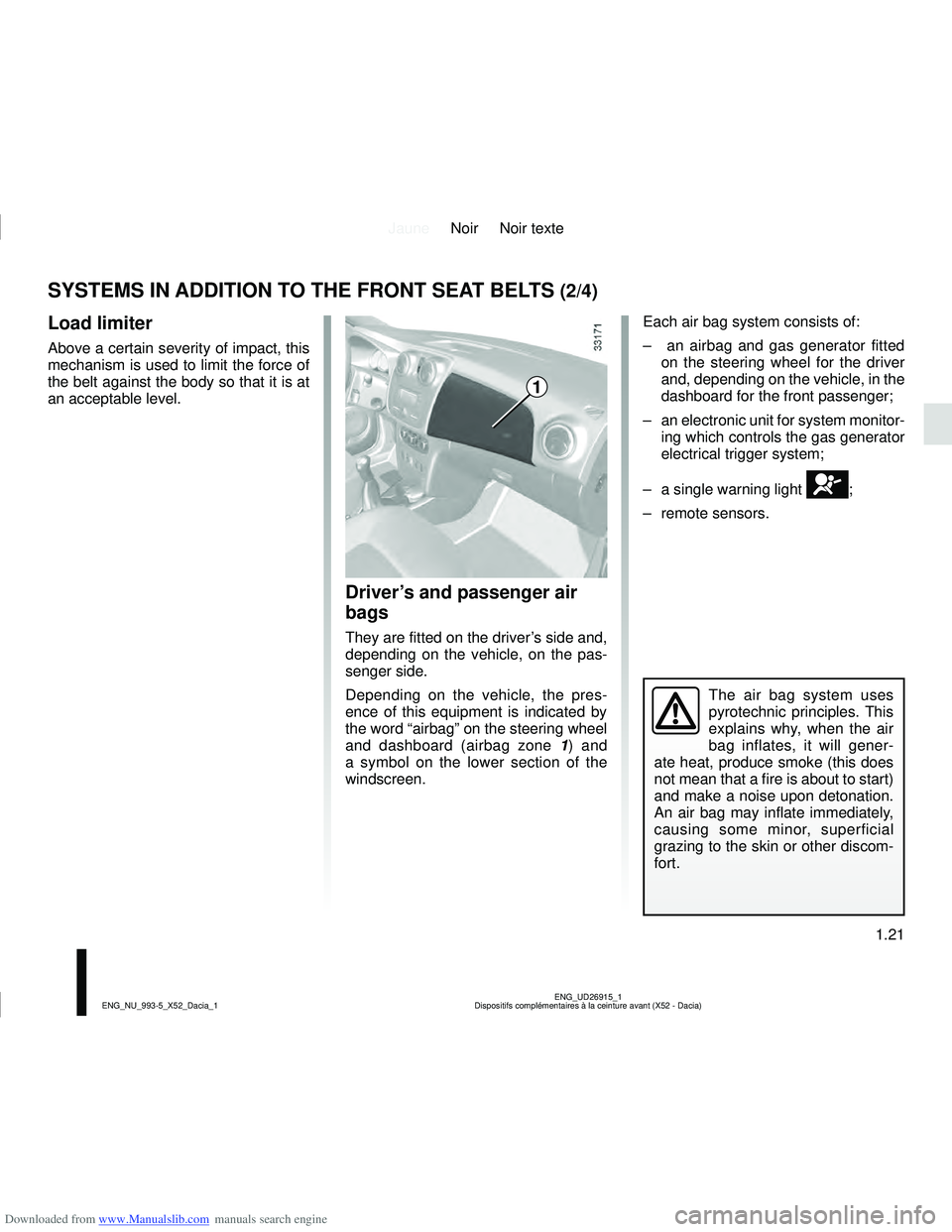

SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Each air bag system consists of:
– an airbag and gas generator fitted
on the steering wheel for the driver
and, depending on the vehicle, in the
dashboard for the front passenger;
– an electronic unit for system monitor- ing which controls the gas generator
electrical trigger system;
– a single warning light
å;
– remote sensors.
Load limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
1
Driver’s and passenger air
bags
They are fitted on the driver’s side and,
depending on the vehicle, on the pas-
senger side.
Depending on the vehicle, the pres-
ence of this equipment is indicated by
the word “airbag” on the steering wheel
and dashboard (airbag zone 1) and
a symbol on the lower section of the
windscreen.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.22
ENG_UD26915_1
Dispositifs complémentaires à la ceinture avant (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion-
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (3/4)

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.23
ENG_UD26915_1
Dispositifs complémentaires à la ceinture avant (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (4/4)
All of the warnings below are given so that the air bag is not obstructed in any way when it\
is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when\
the air bag inflates.
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
– You must not remove the steering wheel (such work must only be performed\
by trained personnel from our Network).
– When driving, do not sit too close to the steering wheel. Sit with your \
arms slightly bent (see the information on “Adjusting
your driving position” in Section 1). This will allow sufficient space for the air bag to inflate properly and be fully effective.
Warnings concerning the passenger air bag
– Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard in the proximity of the air b ag
housing.
– Do not place anything between the dashboard and the passenger (pet, umb\
rella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as t\
here is a risk that serious injuries may occur. In general, all parts of the body should be kept away from the dashboard (\
knees, hands, head etc.).
– The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure the protection of the passenger in the event of an impact.
IT IS PROHIBITED TO FIT A REAR-FACING CHILD SEAT TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEAT BELT HAVE BEEN DEACTIVATED.
(Refer to the information on “Child safety: front passenger airbag d\
eactivation/activation” Section 1).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.24
ENG_UD26916_1
Dispositifs de protection latérale (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
SIDE PROTECTION DEVICES
Side air bags
These air bags may be fitted to the front
seats and are deployed at the sides of
the seats (door side) to protect the oc-
cupants in the event of a severe side
impact.
Warnings concerning the side air bag
– Fitting seat covers: seats equipped with an airbag require covers spe-
cifically designed for your vehicle. Contact an authorised dealer to fin\
d
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle\
) may
affect the operation of the airbags and reduce your protection.
– Do not place any accessories, objects or even pets between the seatback,\
the door and the internal fittings. Do not cover the seatback with any items\
such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the air bag is deployed.
– No work or modification whatsoever may be carried out on the seat or internal fittings, except by qualified personnel from an approved dealer.
