engine DACIA LOGAN 2022 Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.7
ENG_UD31301_3
Outils (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Tow eye 3Please see “Towing: breakdown recov-
ery” in Section 5.Wheelbrace 4Allows the wheel bolts to be locked/un-
locked.
TOOLS (2/2)
Hubcap tool 2
Removes the wheel hubcaps.
Never leave tools unsecured in the vehicle: there is a risk that they ma\
y
be thrown about during braking. After use, make sure the tools are cor-
rectly positioned in their housings: there is a risk of injury.
If wheel bolts are supplied in the tool kit, only use these bolts for th\
e
emergency spare wheel: refer to the label affixed to the emergency spare wheel.
The jack is designed for wheel changing purposes only. Under no circumstances
should it be used for carrying out repairs underneath the vehicle or to \
gain access
to the underside of the vehicle.
5
13
4
2
3
42
5
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.8
ENG_UD26980_1
Enjoliveurs - Jantes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
WHEEL TRIM - WHEELS
Wheel trim with concealed
wheel bolts
(example: wheel trim 6)
Remove the wheel trim using the
hubcap tool 2, by inserting the tool into
valve recess 5.
To refit it, align it with valve 5. Push the
retaining hooks in fully, starting with
side A near the valve, followed by B
and C, finishing at D opposite the valve.
2
A
B
CD
5
2
3
Central wheel trim with
visible wheel bolts
(example: wheel trim 1)
The bolts are directly accessible.
Central wheel trim with
concealed wheel bolts
(example: wheel trim 4)
Remove it using the hubcap tool 2 by
inserting the tool into the recess 3 pro-
vided.
To refit it, turn it so that it is aligned with
the rim and clip it in place.
1
4
6
Never leave tools unsecured in the vehicle: there is a risk that they may be thrown about during braking. After use,
make sure the tools are correctly positioned in their housings: there is\
a risk of injury.
If wheel bolts are supplied in the tool kit, only use these bolts for th\
e emergency spare wheel: refer to the label affixed
to the emergency spare wheel.
The jack is designed for wheel changing purposes only. Under no circumstances should it be used for carrying out repairs un-
derneath the vehicle or to gain access to the underside of the vehicle.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

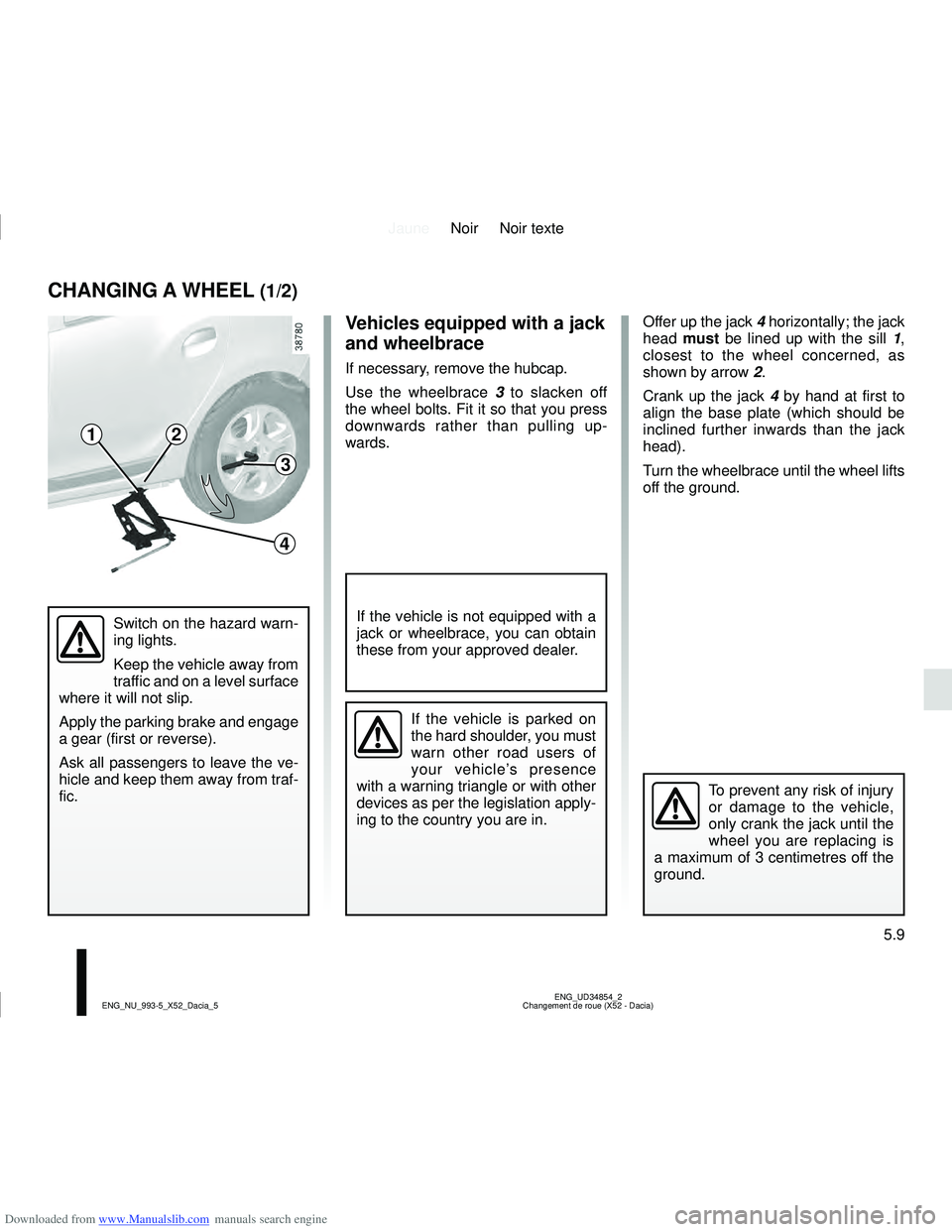

5.9
ENG_UD34854_2
Changement de roue (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Offer up the jack 4 horizontally; the jack
head must be lined up with the sill 1 ,
closest to the wheel concerned, as
shown by arrow 2.
Crank up the jack 4 by hand at first to
align the base plate (which should be
inclined further inwards than the jack
head).
Turn the wheelbrace until the wheel lifts
off the ground.
CHANGING A WHEEL (1/2)
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the hubcap.
Use the wheelbrace 3 to slacken off
the wheel bolts. Fit it so that you press
downwards rather than pulling up-
wards.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level surface
where it will not slip.
Apply the parking brake and engage
a gear (first or reverse).
Ask all passengers to leave the ve-
hicle and keep them away from traf-
fic.
21
4
3

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.10
ENG_UD34854_2
Changement de roue (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the
central hub and turn it to locate the
mounting holes in the wheel and the
hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel.
Tighten the bolts, checking that the
wheel is correctly positioned on its hub
and lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
105 N.m) and the emergency spare tyre
pressure checked as soon as possible.
CHANGING A WHEEL (2/2)
If you have a puncture, re-
place the wheel as soon
as possible. A tyre which
has been punctured should
always be inspected (and repaired,
where possible) by a specialist.
Anti-theft bolts
If you use anti-theft bolts, please
refer to the instructions given on
the interior of the wheel trim to posi-
tion the bolts (wheel trim may not be
able to fit).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.11
ENG_UD26982_1
Pneumatiques (X52 - Dacia)ENG_NU_993-5_X52_Dacia_5
TYRES (1/3)
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations.
When they need to be re-
placed, only tyres of the
same make, size, type and
profile should be used.
Tyres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
Dealer.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
which are indicators moulded into
the tread at several points. When the tyre tread has been worn
to the level of the warning strips, they
become visible
2: it is then neces-
sary to replace your tyres because the
tread rubber is now only 1.6 mm deep
at most, resulting in poor road hold-
ing on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry.
In this case, have the condition of
these checked by an approved
dealer.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.12
ENG_UD26982_1
Pneumatiques (X52 - Dacia)ENG_NU_993-5_X52_Dacia_5
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on “Puncture”
and “Changing a wheel” in Section 5.
Fitting new tyres
TYRES (2/3)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door).
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar.
Never deflate a hot tyre.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no longer conforms to current regu-
lations;
– It may change the way it handles when cornering;
– It may cause the steering to be heavy;
– it may affect the use of snow chains.
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa- tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi-
tions of use (refer to the label affixed
to the edge of the driver’s door).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

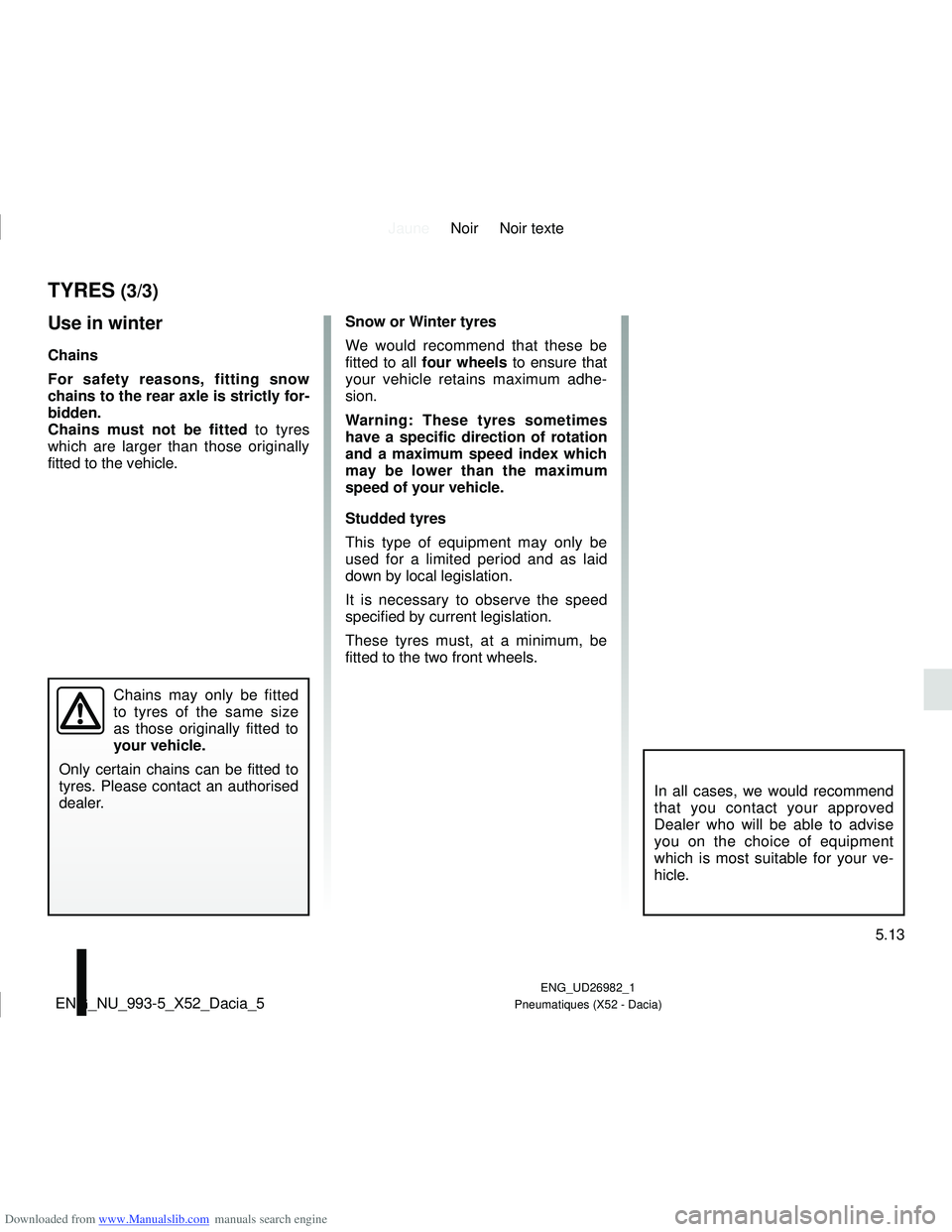

5.13
ENG_UD26982_1
Pneumatiques (X52 - Dacia)ENG_NU_993-5_X52_Dacia_5
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains must not be fitted to tyres
which are larger than those originally
fitted to the vehicle.
TYRES (3/3)
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
Dealer who will be able to advise
you on the choice of equipment
which is most suitable for your ve-
hicle.
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Only certain chains can be fitted to
tyres. Please contact an authorised
dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.14
ENG_UD32716_2
Feux avant : remplacement des lampes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Daytime running light, front
side light
Remove cover B..
Turn the bulb holder 2 a quarter of a
turn and take out the bulb.
Bulb type: W21/5W.
Direction indicator lights
Turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
Dipped beams
Remove cover A.
Tilt bulb holder 1 to release it and then
replace the bulb.
Bulb type: H7.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Main beam headlight
Remove cover C.
Remove the connector from the bulb 5.
Unclip the spring 4 and take out the
bulb.
Bulb type: H1.
Do not touch the bulb glass. Hold it
by its base.
Mark the bulb’s position before removal
to ensure correct positioning when re-
placing.
When the bulb has been changed,
make sure you refit the cover correctly.
FRONT LIGHTS: changing bulbs (1/2)
4C
AB
1
5
23
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.15
ENG_UD32716_2
Feux avant : remplacement des lampes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Main beam headlights,
dipped beam headlights
Remove cover D.
Remove the connector from the bulb 7.
Unclip the spring 8 and take out the
bulb.
Bulb type: H4 anti UV (see box).
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Do not touch the bulb glass. Hold it
by its base.
Mark the bulb’s position before removal
to ensure correct positioning when re-
placing.
When the bulb has been changed,
make sure you refit the cover correctly.
FRONT LIGHTS: changing bulbs (2/2)
Daytime running light, front
side light
Remove cover E and remove the
bulb 9.
Bulb type: W21/5W LL .
Direction indicator lights
Turn the bulb holder 6 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
8
6
9
E
D
7

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.16
ENG_UD26984_1
Feux de brouillard : remplacement des lampes (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16LL.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
1
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
