Rétroviseurs (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Rear view mirrors

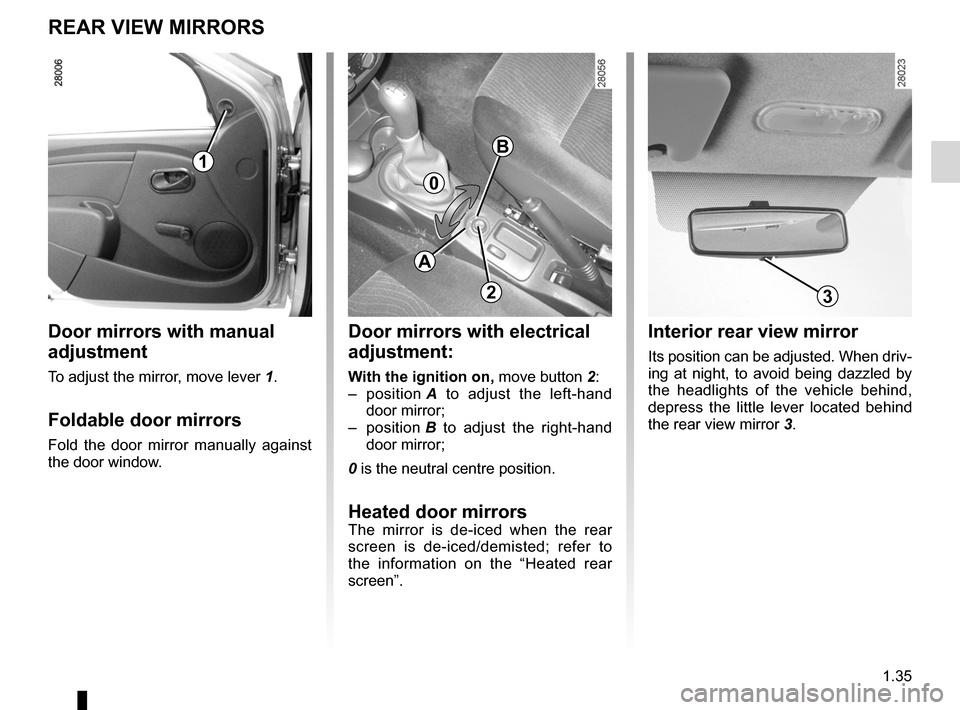

REAR VIEW MIRRORS
Interior rear view mirror
Its position can be adjusted. When driv-
ing at night, to avoid being dazzled by
the headlights of the vehicle behind,
depress the little lever located behind
the rear view mirror 3.
1
2
B
A
0
3
Door mirrors with manual
adjustment
To adjust the mirror, move lever 1.
Foldable door mirrors
Fold the door mirror manually against
the door window.
Door mirrors with electrical
adjustment:
With the ignition on, move button 2:
– position A to adjust the left-hand
door mirror;
– position B to adjust the right-hand
door mirror;
0 is the neutral centre position.
Heated door mirrorsThe mirror is de-iced when the rear
screen is de-iced/demisted; refer to
the information on the “Heated rear
screen”.

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.36
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
Driving position

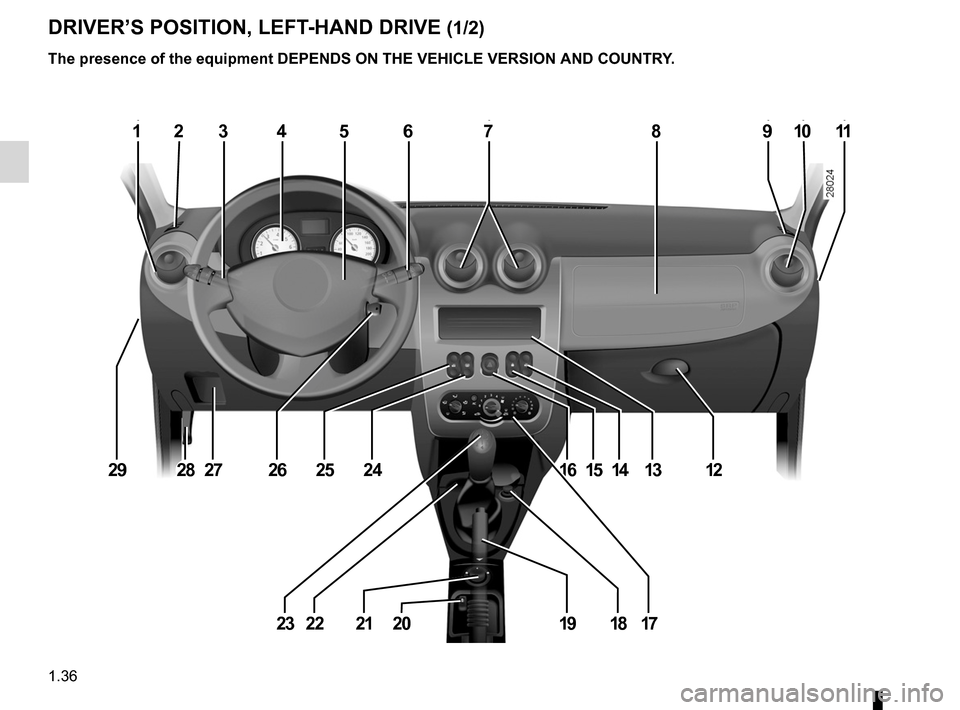

DRIVER’S POSITION, LEFT-HAND DRIVE (1/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
2651783410119
1213141516
17181921202223
242526272928

rear screendemisting ......................................................... (current page)
JauneNoirNoir texte
1.37
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

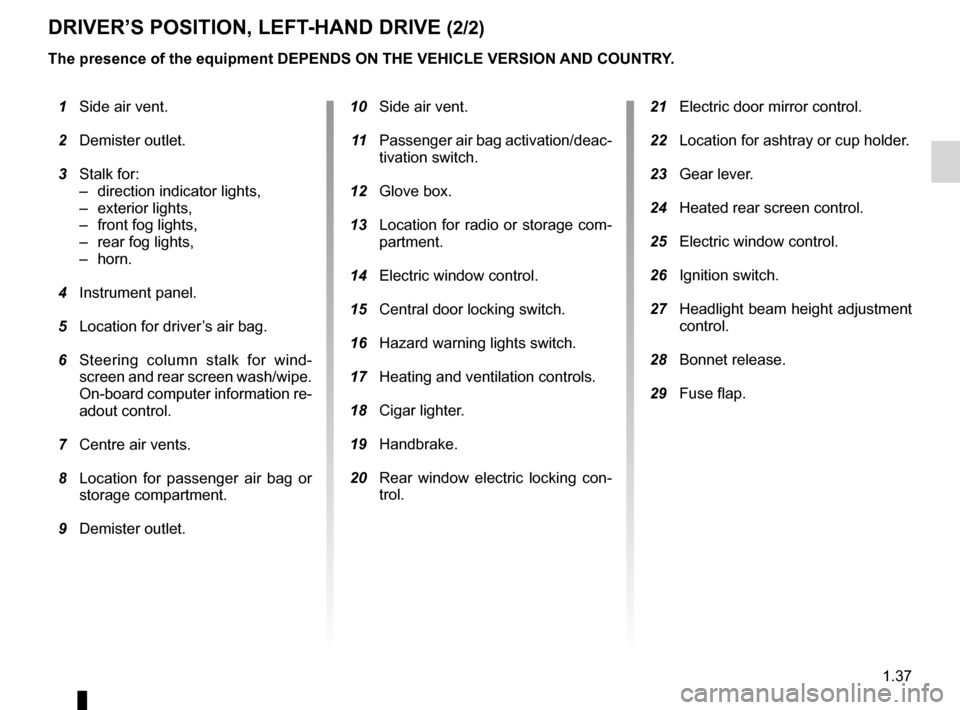

DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s air bag.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
On-board computer information re-
adout control.
7 Centre air vents.
8 Location for passenger air bag or
storage compartment.
9 Demister outlet. 10 Side air vent.
11 Passenger air bag activation/deac-
tivation switch.
12 Glove box.
13 Location for radio or storage com-
partment.
14 Electric window control.
15 Central door locking switch.
16 Hazard warning lights switch.
17 Heating and ventilation controls.
18 Cigar lighter.
19 Handbrake.
20 Rear window electric locking con -
trol.
21 Electric door mirror control.
22 Location for ashtray or cup holder.
23 Gear lever.
24 Heated rear screen control.
25 Electric window control.
26 Ignition switch.
27 Headlight beam height adjustment
control.
28 Bonnet release.
29 Fuse flap.

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.38
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

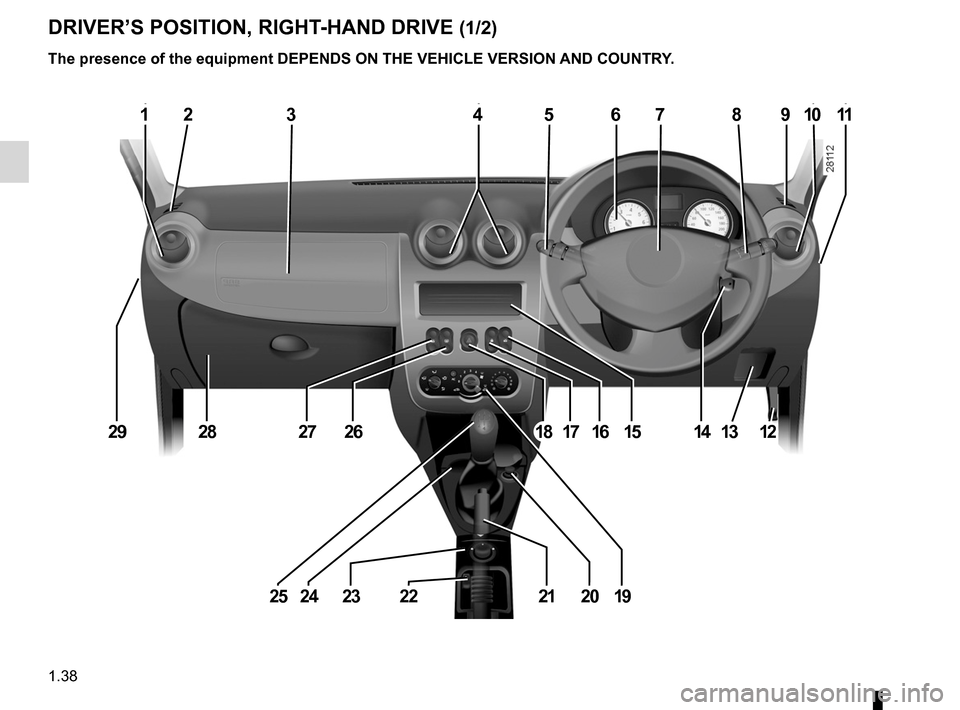

DRIVER’S POSITION, RIGHT -HAND DRIVE (1/2)
1423567891011
1412131516171826272829
19202122232425

JauneNoirNoir texte
1.39
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
1 Side air vent.
2 Demister outlet.
3 Storage compartment or location
for passenger air bag.
4 Centre air vents.
5 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights.
6 Instrument panel.
7 Location for driver’s air bag (de -
pending on vehicle).
8 Windscreen wiper/washer stalk.
On-board computer information re-
adout control.
9 Demister outlet.
22 Rear window electric locking con -
trol
23 Electric door mirror control.
24 Location for ashtray or cup holder.
25 Gear lever.
26 Heated rear screen control.
27 Electric window control.
28 Glove box.
29 Passenger air bag activation/deac -
tivation switch.

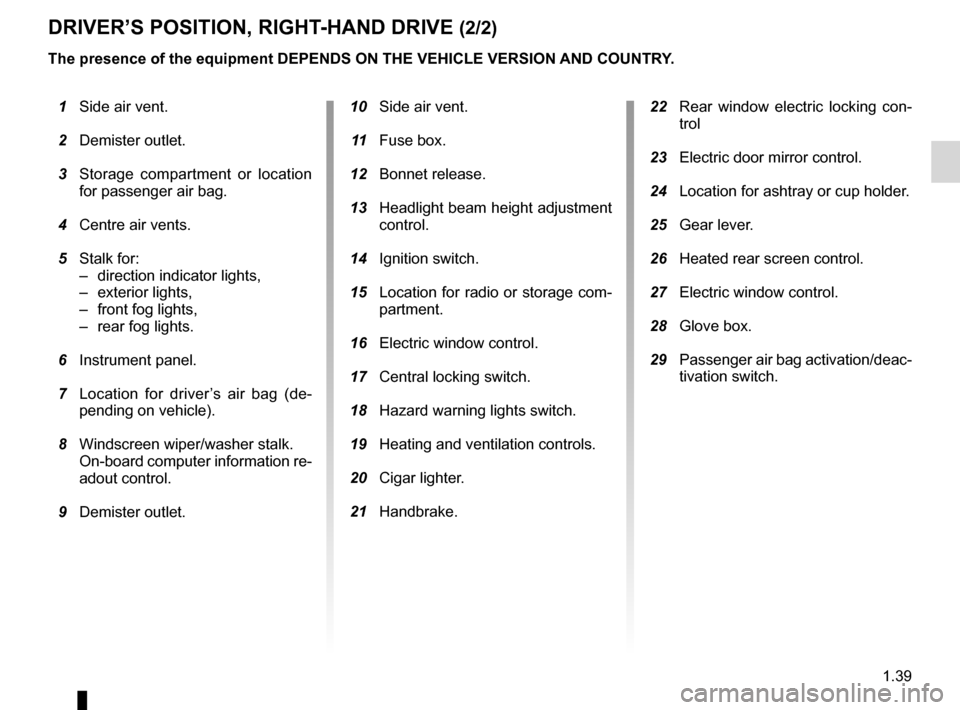

DRIVER’S POSITION, RIGHT -HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
10 Side air vent.
11 Fuse box.
12 Bonnet release.
13 Headlight beam height adjustment
control.
14 Ignition switch.
15 Location for radio or storage com-
partment.
16 Electric window control.
17 Central locking switch.
18 Hazard warning lights switch.
19 Heating and ventilation controls.
20 Cigar lighter.
21 Handbrake.

control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.40
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
xAnti-lock braking warning
light
This light comes on when the ignition is
switched on and goes out within three
seconds. If it lights up when you are
driving, it indicates a fault in the anti -
lock braking system. Braking will then
be as normal, without the ABS system:
contact an approved dealer urgently.
]Front passenger air bag de-
activation warning light.
Refer to the information on “Child
Safety” in Section 1.
çSeat belt reminder light
This warning light goes out to
let you know that the seat belt has been
correctly fastened.
Warning lights
mDipped beam headlight tell -
tale light
oMain beam headlight tell-tale
light
#Engine oil change warning
light
This lights up on the instrument panel
when an oil change is required.
Change the oil or have it changed as
soon as possible.
Only the distance travelled between two
oil changes is taken into account; the
time interval between two oil changes
is not.
The oil should always be changed
when the first threshold is reached, i.e.
either the distance travelled or the inter-
val specified in your vehicle’s mainte -
nance document. This means you may
have to change the oil before the warn-
ing light comes on.
Refer to the information on the “Oil
change” in Section 4.

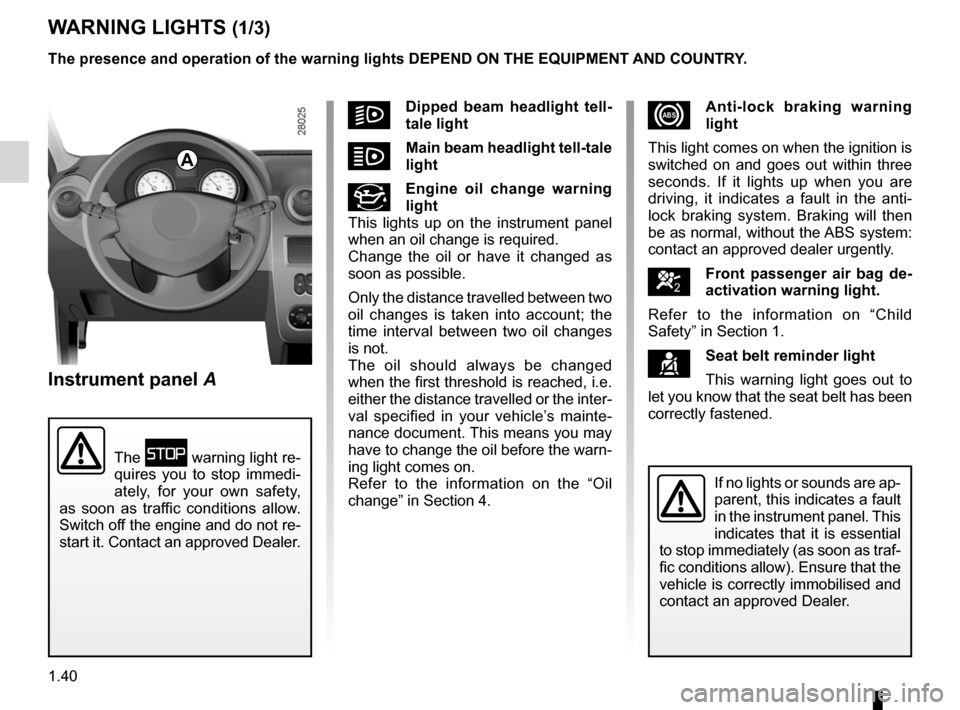

W ARNING LIGHTS (1/3)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Instrument panel A
The û warning light re-
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.

JauneNoirNoir texte
1.41
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_1

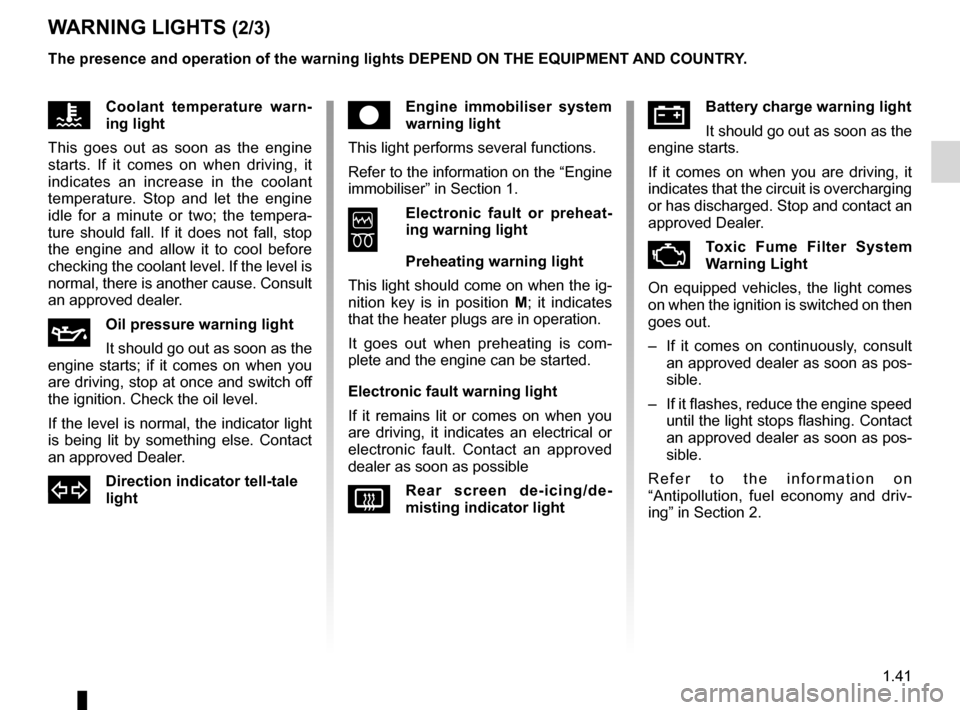

W ARNING LIGHTS (2/3)
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or preheat -
ing warning light
Preheating warning light
This light should come on when the ig-
nition key is in position M; it indicates
that the heater plugs are in operation.
It goes out when preheating is com -
plete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible
VRear screen de-icing/de -
misting indicator light
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ÄToxic Fume Filter System
Warning Light
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
– If it comes on continuously, consult
an approved dealer as soon as pos-
sible.
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv -
ing” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn
-
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it
indicates an increase in the coolant
temperature. Stop and let the engine
idle for a minute or two; the tempera -
ture should fall. If it does not fall, stop
the engine and allow it to cool before
checking the coolant level. If the level is
normal, there is another cause. Consult
an approved dealer.
ÀOil pressure warning light
It should go out as soon as the
engine starts; if it comes on when you
are driving, stop at once and switch off
the ignition. Check the oil level.
If the level is normal, the indicator light
is being lit by something else. Contact
an approved Dealer.
dDirection indicator tell-tale
light

rear screendemisting ......................................................... (current page)
1.42
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_1

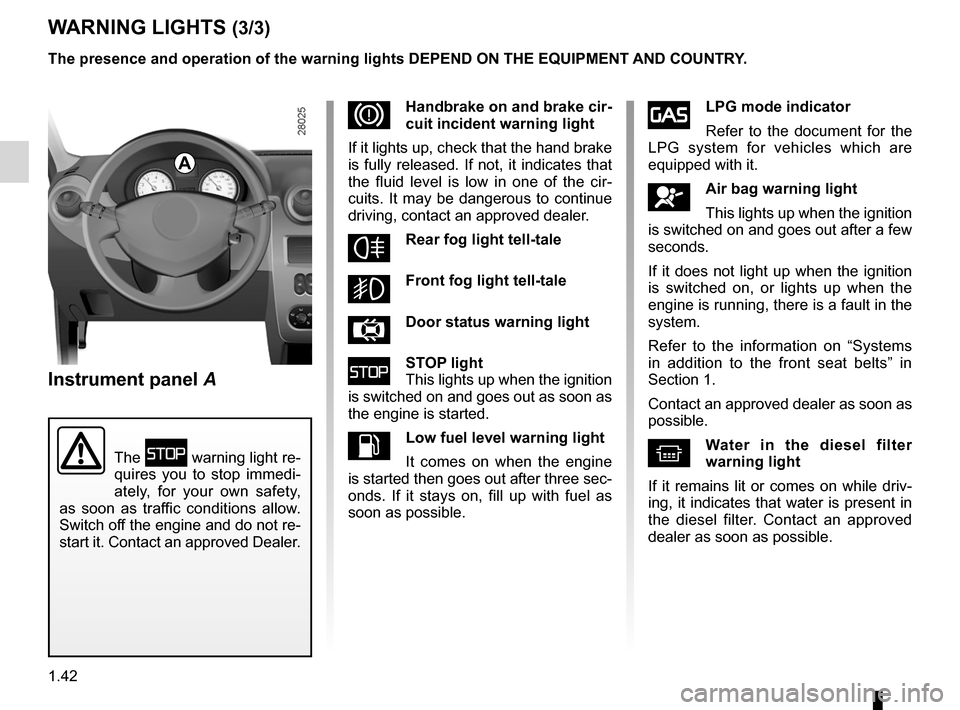

W ARNING LIGHTS (3/3)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
DHandbrake on and brake cir-
cuit incident warning light
If it lights up, check that the hand brake
is fully released. If not, it indicates that
the fluid level is low in one of the cir -
cuits. It may be dangerous to continue
driving, contact an approved dealer.
fRear fog light tell-tale
gFront fog light tell-tale
ÅDoor status warning light
ûSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started.
LLow fuel level warning light
It comes on when the engine
is started then goes out after three sec-
onds. If it stays on, fill up with fuel as
soon as possible.
îLPG mode indicator
Refer to the document for the
LPG system for vehicles which are
equipped with it.
åAir bag warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it does not light up when the ignition
is switched on, or lights up when the
engine is running, there is a fault in the
system.
Refer to the information on “Systems
in addition to the front seat belts” in
Section 1.
Contact an approved dealer as soon as
possible.
^Water in the diesel filter
warning light
If it remains lit or comes on while driv-
ing, it indicates that water is present in
the diesel filter. Contact an approved
dealer as soon as possible.
A
Instrument panel A
The û warning light re-
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.

overspeed buzzer .................................................. (current page)
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.43
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

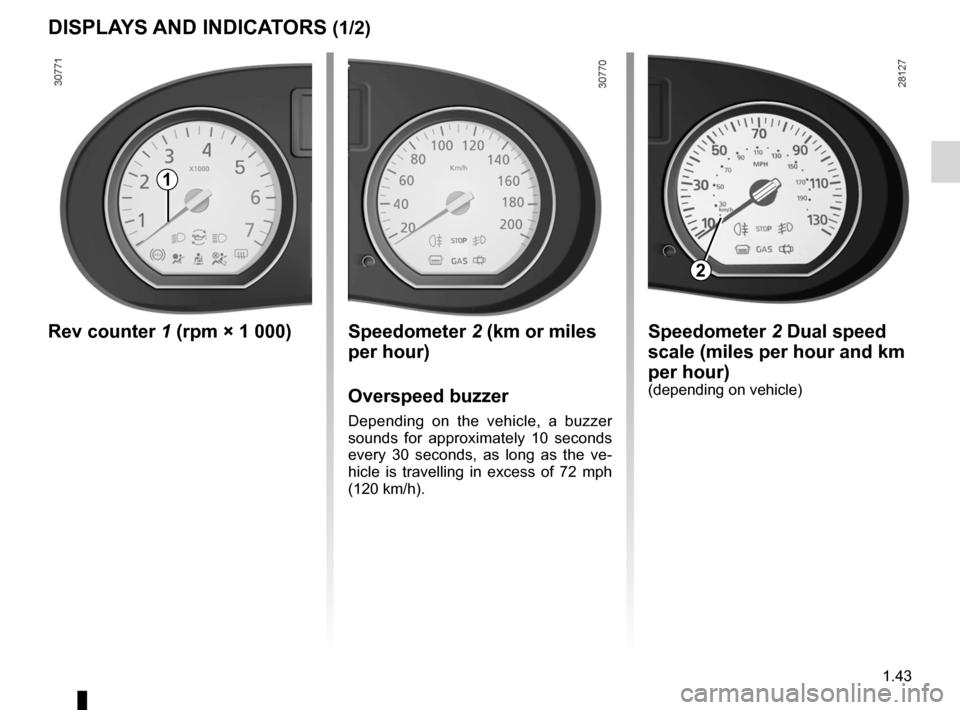

Displays and indicators
Rev counter 1 (rpm × 1 000) Speedometer 2 (km or miles
per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the ve -
hicle is travelling in excess of 72 mph
(120 km/h).
Speedometer 2 Dual speed
scale (miles per hour and km
per hour)
(depending on vehicle)
2
DISPLAYS AND INDICATORS (1/2)
1

fuel level ................................................................ (current page)
1.44
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

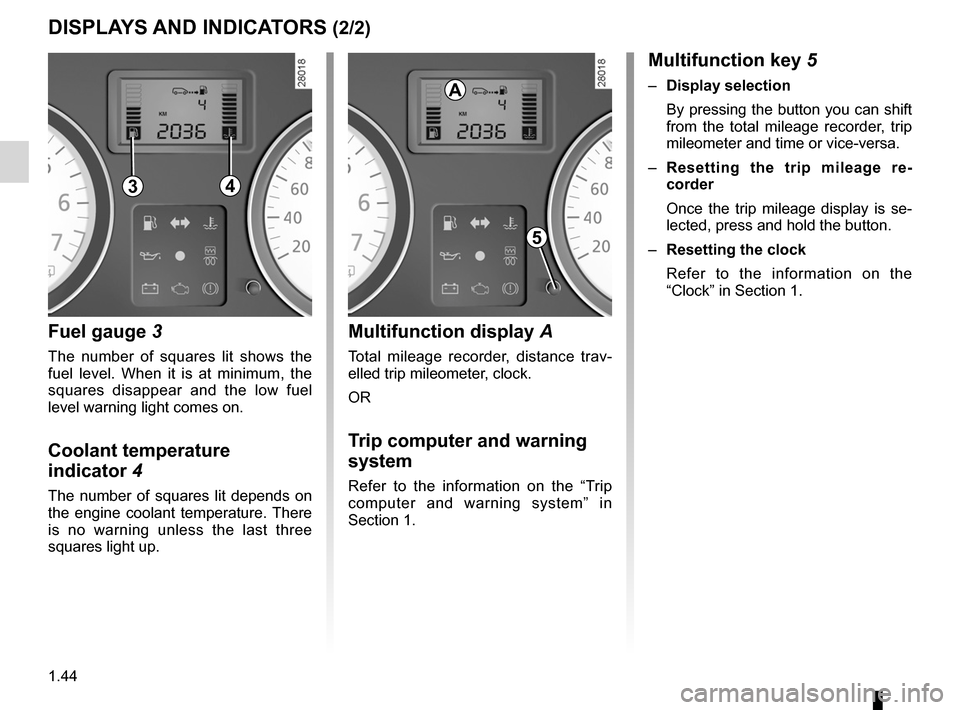

DISPLAYS AND INDICATORS (2/2)
Fuel gauge 3
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on.
Coolant temperature
indicator 4
The number of squares lit depends on
the engine coolant temperature. There
is no warning unless the last three
squares light up.
Multifunction display A
Total mileage recorder, distance trav -
elled trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Multifunction key 5
– Display selection
By pressing the button you can shift
from the total mileage recorder, trip
mileometer and time or vice-versa.
– Resetting the trip mileage re -
corder
Once the trip mileage display is se -
lected, press and hold the button.
– Resetting the clock
Refer to the information on the
“Clock” in Section 1.
43
A
5
