lock DACIA SANDERO 2012 1.G Owners Manual

1.1
ENG_UD25171_11
Sommaire 1 (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

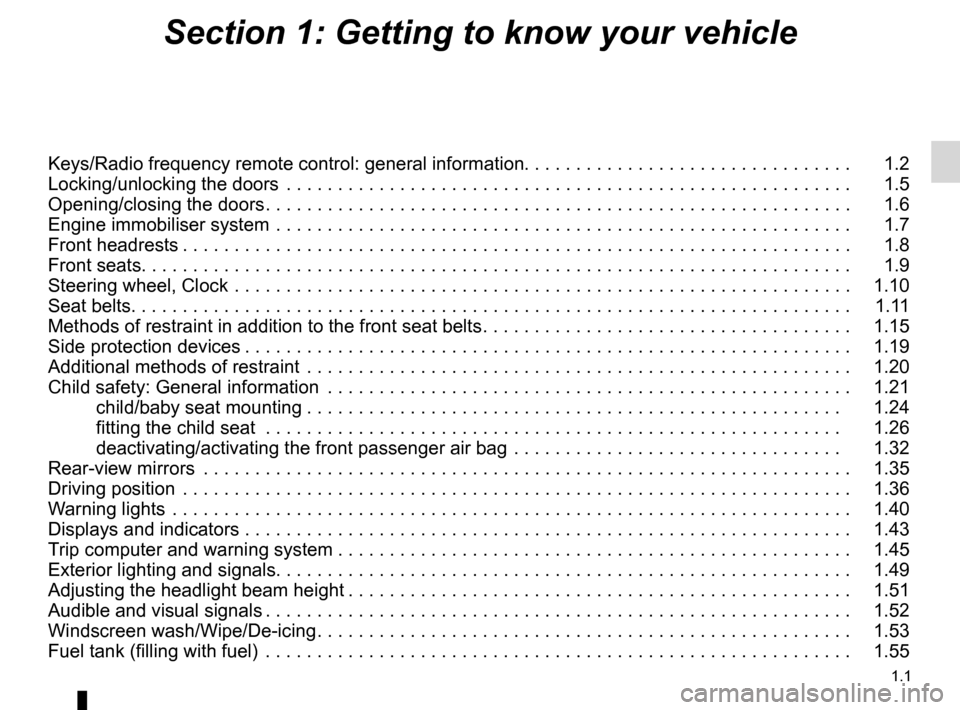

Section 1: Getting to know your vehicle
Keys/Radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking/unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
Opening/closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6
Engine immobiliser system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7
Front headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9

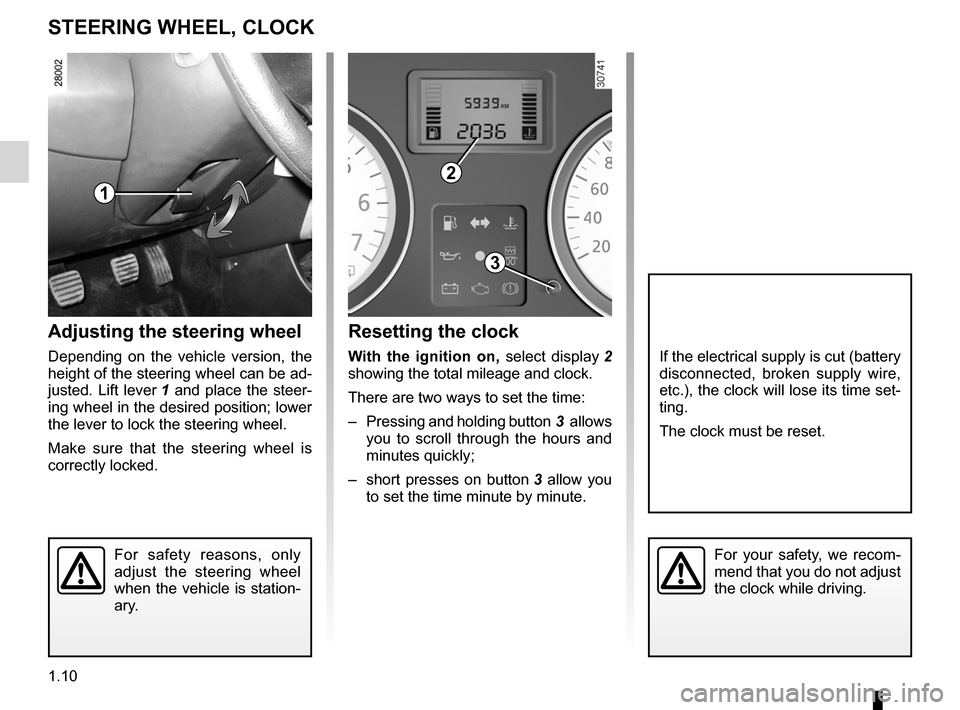

Steering wheel, Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10

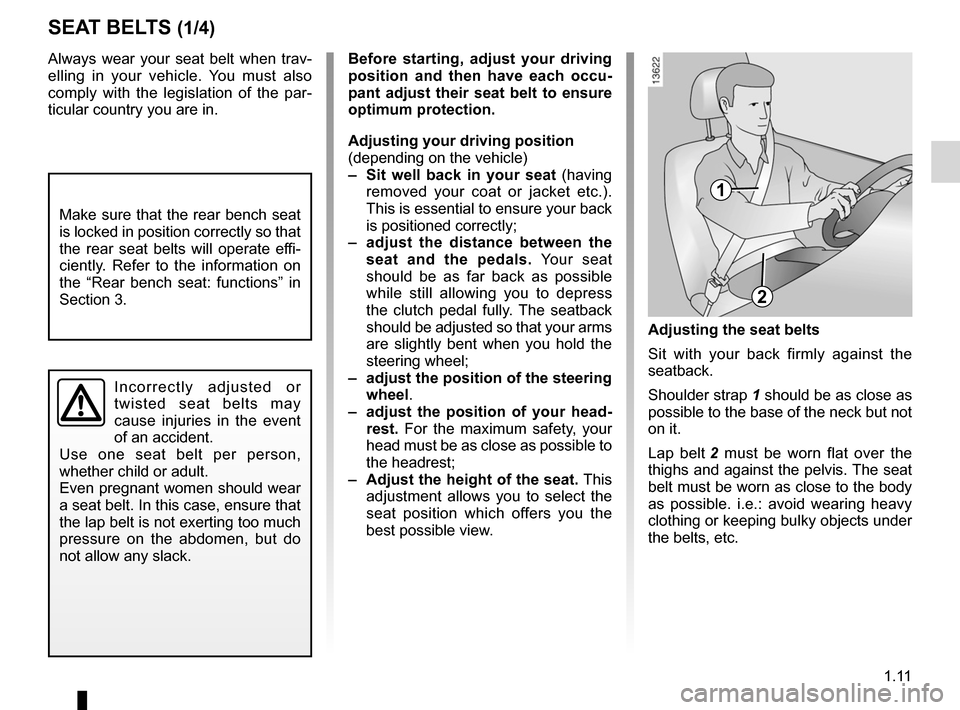

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.19
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Child safety: General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
child/baby seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.24
fitting the child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
deactivating/activating the front passenger air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.32
Rear-view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.35
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.36
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Displays and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.43
Trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.45
Exterior lighting and signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 1.49
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.52
Windscreen wash/Wipe/De-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.53
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.55

keys ...................................................... (up to the end of the DU)
remote control door locking unit ........... (up to the end of the DU)
radio frequency remote control/key use ................................................................... (current page)
child safety ............................................................. (current page)
1.2
ENG_UD18185_9
Clés / télécommande à radiofréquence: généralité\
s (B90 - L90 - F90 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte

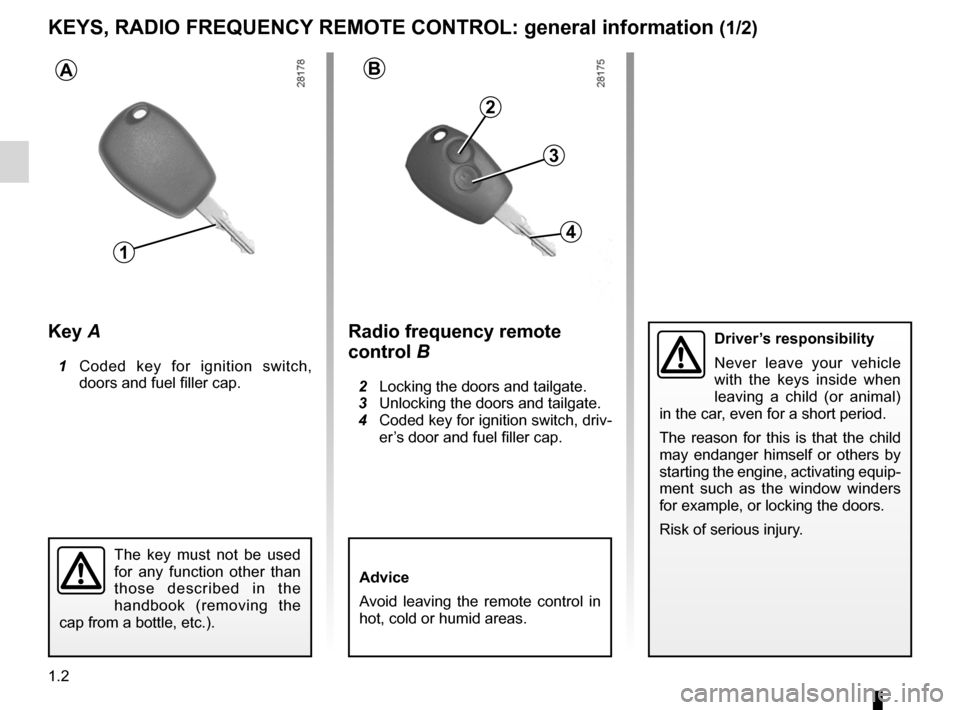

Keys/radio frequency remote control: general information
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
Radio frequency remote
control B
2 Locking the doors and tailgate.
3 Unlocking the doors and tailgate.
4 Coded key for ignition switch, driv-
er’s door and fuel filler cap.
Driver’s responsibility
Never leave your vehicle
with the keys inside when
leaving a child (or animal)
in the car, even for a short period.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip -
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.Key A
1 Coded key for ignition switch,
doors and fuel filler cap.
Advice
Avoid leaving the remote control in
hot, cold or humid areas.
BA
3
2
4
1
The key must not be used
for any function other than
those described in the
handbook (removing the
cap from a bottle, etc.).

JauneNoirNoir texte
1.3
ENG_UD18185_9
Clés / télécommande à radiofréquence: généralité\
s (B90 - L90 - F90 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

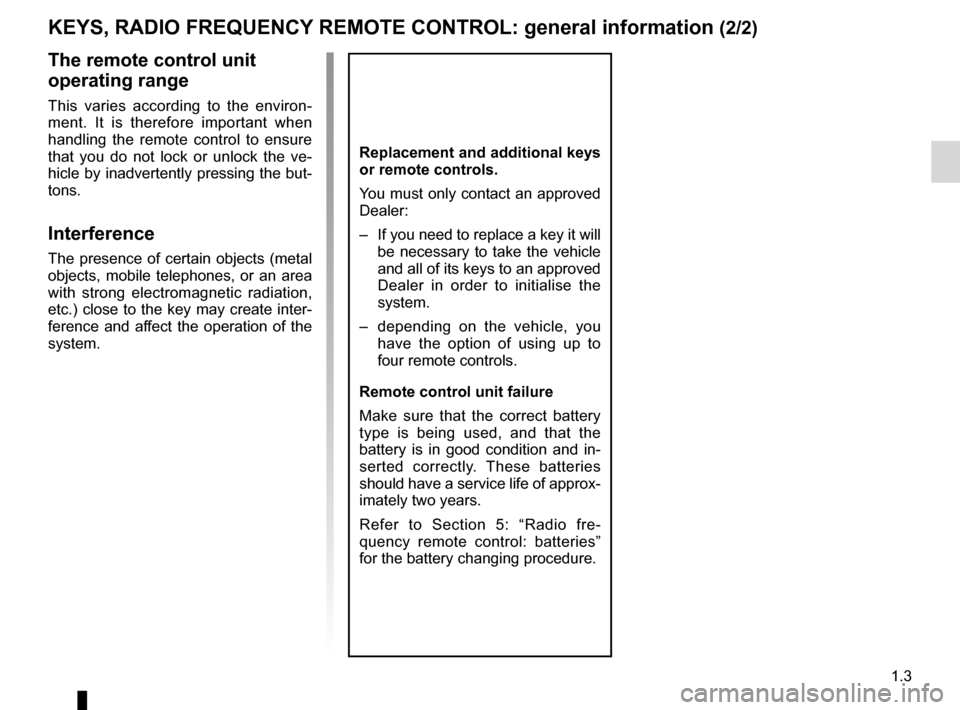

The remote control unit
operating range
This varies according to the environ -
ment. It is therefore important when
handling the remote control to ensure
that you do not lock or unlock the ve -
hicle by inadvertently pressing the but-
tons.
Interference
The presence of certain objects (metal
objects, mobile telephones, or an area
with strong electromagnetic radiation,
etc.) close to the key may create inter-
ference and affect the operation of the
system.
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
Replacement and additional keys
or remote controls.
You must only contact an approved
Dealer:
– If you need to replace a key it will
be necessary to take the vehicle
and all of its keys to an approved
Dealer in order to initialise the
system.
– depending on the vehicle, you
have the option of using up to
four remote controls.
Remote control unit failure
Make sure that the correct battery
type is being used, and that the
battery is in good condition and in -
serted correctly. These batteries
should have a service life of approx -
imately two years.
Refer to Section 5: “Radio fre -
quency remote control: batteries”
for the battery changing procedure.

1.4
ENG_UD18223_4
Télécommande à radiofréquence : utilisation (B90 - L90 - F9\
0 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-9_B90_Dacia_1

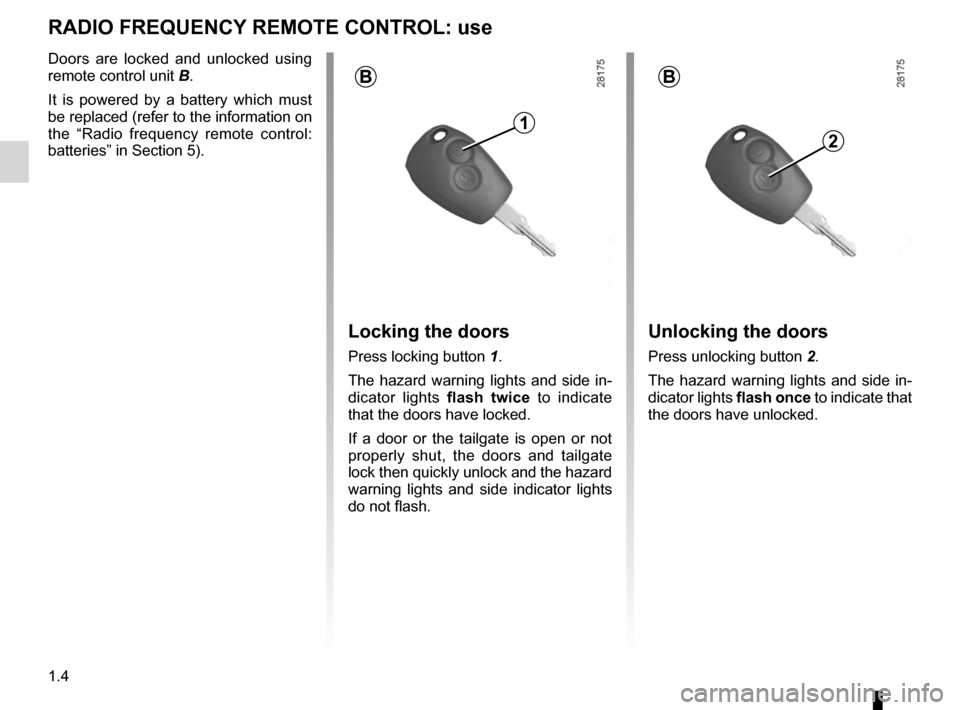

RADIO FREQUENCY REMOTE CONTROL: use
Doors are locked and unlocked using
remote control unit B.
It is powered by a battery which must
be replaced (refer to the information on
the “Radio frequency remote control:
batteries” in Section 5).
Locking the doors
Press locking button 1.
The hazard warning lights and side in-
dicator lights flash twice to indicate
that the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors and tailgate
lock then quickly unlock and the hazard
warning lights and side indicator lights
do not flash.
Unlocking the doors
Press unlocking button 2.
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have unlocked.
1
2
BB

children ................................................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
electric door locking .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.5
ENG_UD19789_9
Verrouillage et déverrouillage des portes (B90 - L90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

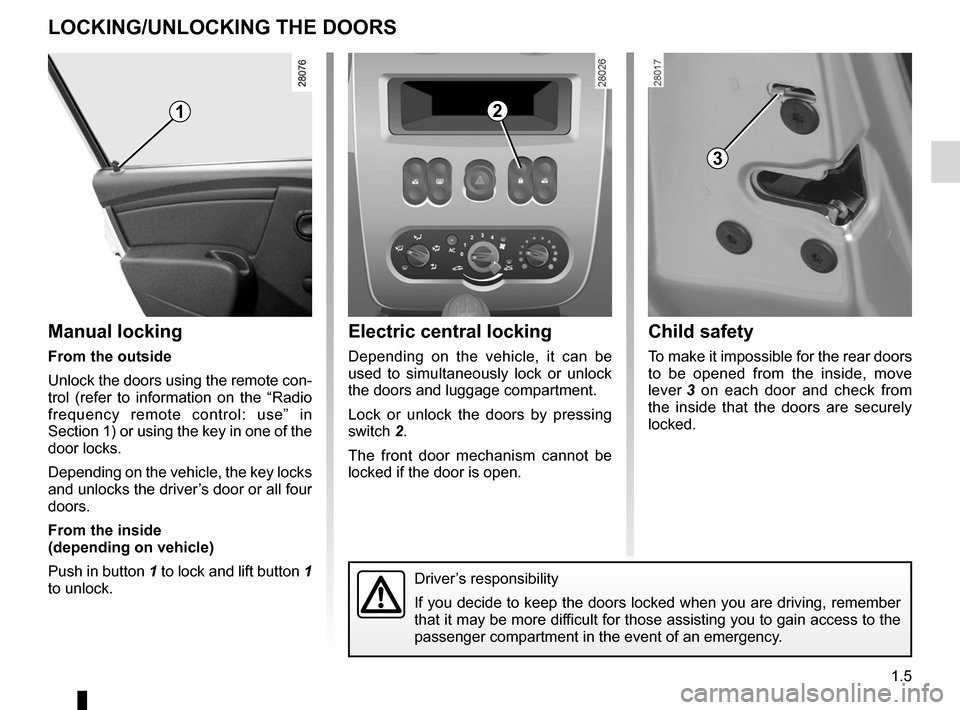

Locking/unlocking the doors
LOCKING/UNLOCKING THE DOORS
Manual locking
From the outside
Unlock the doors using the remote con-
trol (refer to information on the “Radio
frequency remote control: use” in
Section 1) or using the key in one of the
door locks.
Depending on the vehicle, the key locks
and unlocks the driver’s door or all four
doors.
From the inside
(depending on vehicle)
Push in button 1 to lock and lift button 1
to unlock.
Electric central locking
Depending on the vehicle, it can be
used to simultaneously lock or unlock
the doors and luggage compartment.
Lock or unlock the doors by pressing
switch 2.
The front door mechanism cannot be
locked if the door is open.
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 3 on each door and check from
the inside that the doors are securely
locked.
Driver’s responsibility
If you decide to keep the doors locked when you are driving, remember
that it may be more difficult for those assisting you to gain access to the
passenger compartment in the event of an emergency.
3
21

children ................................................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
1.6
ENG_UD20291_5
Ouverture et fermeture des portes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

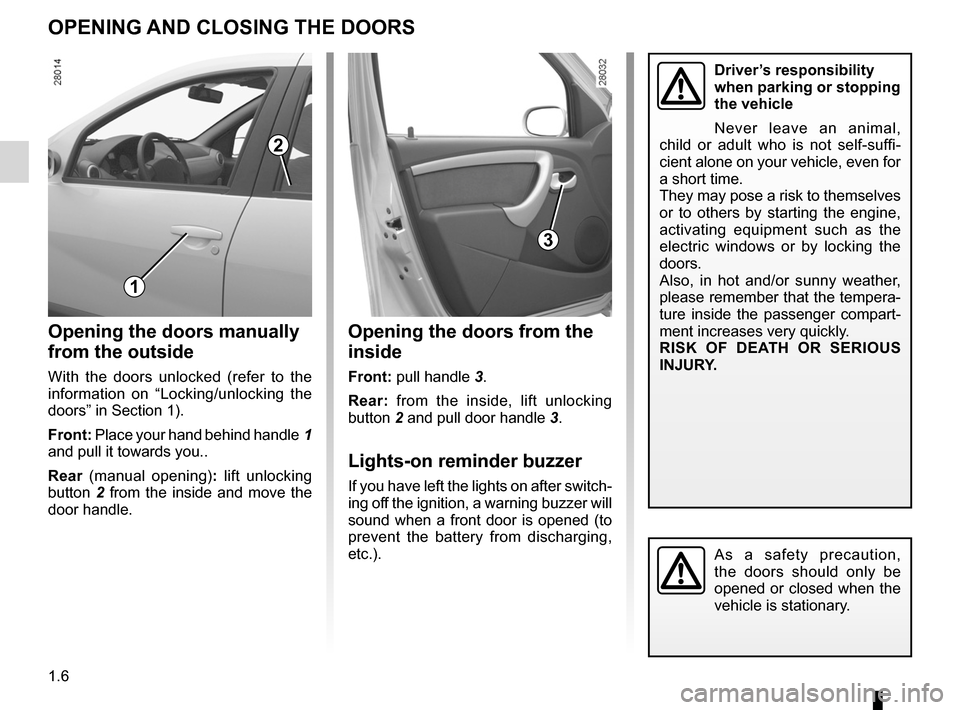

Opening and closing the doors
OPENING AND CLOSING THE DOORS
Opening the doors manually
from the outside
With the doors unlocked (refer to the
information on “Locking/unlocking the
doors” in Section 1).
Front: Place your hand behind handle 1
and pull it towards you..
Rear (manual opening) : lift unlocking
button 2 from the inside and move the
door handle.
Opening the doors from the
inside
Front: pull handle 3.
Rear: from the inside, lift unlocking
button 2 and pull door handle 3.
Lights-on reminder buzzer
If you have left the lights on after switch-
ing off the ignition, a warning buzzer will
sound when a front door is opened (to
prevent the battery from discharging,
etc.).
1
2
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
3
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi -
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

headrest................................................ (up to the end of the DU)
1.8
ENG_UD17760_7
Appuis-tête avant (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

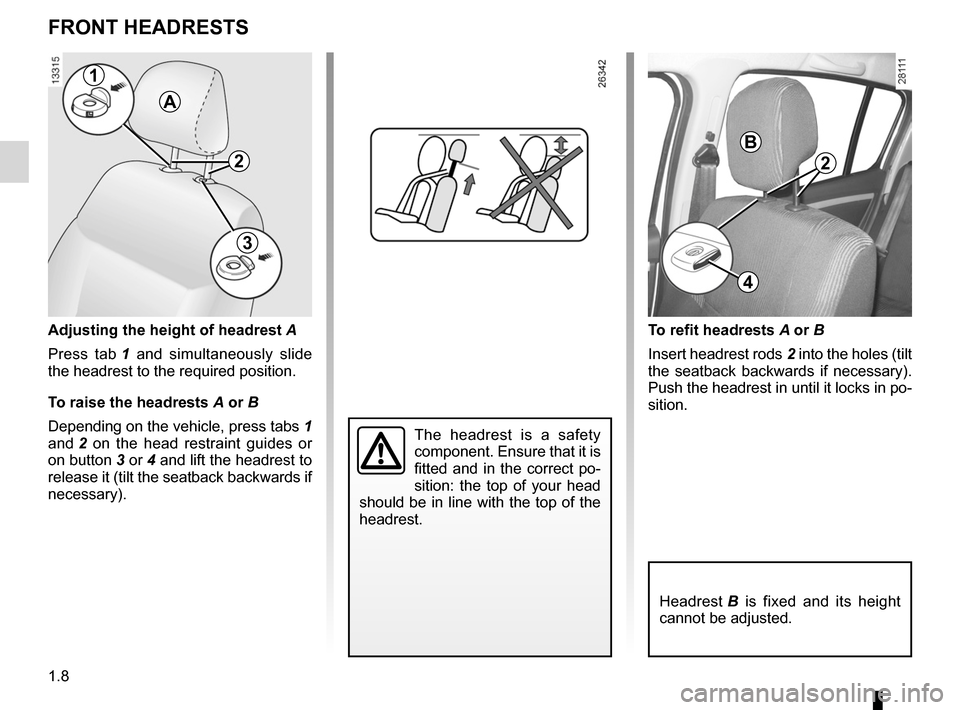

Front headrests
FRONT HEADRESTS
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
1
3
2
B
To refit headrests A or B
Insert headrest rods 2 into the holes (tilt
the seatback backwards if necessary).
Push the headrest in until it locks in po-
sition.
Headrest B is fixed and its height
cannot be adjusted.
Adjusting the height of headrest A
Press tab 1 and simultaneously slide
the headrest to the required position.
To raise the headrests A or B
Depending on the vehicle, press tabs 1
and 2 on the head restraint guides or
on button 3 or 4 and lift the headrest to
release it (tilt the seatback backwards if
necessary).
A
2
4

front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.9
ENG_UD17772_6
Sièges avant (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

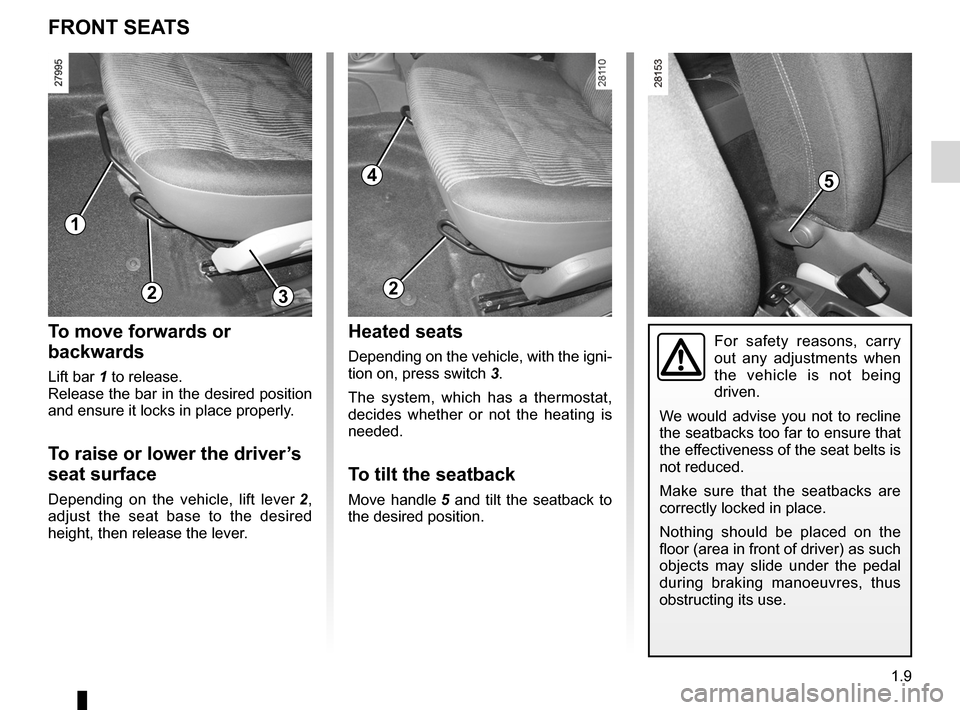

Front seats
FRONT SEATS
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
23
4
2
5
To move forwards or
backwards
Lift bar 1 to release.
Release the bar in the desired position
and ensure it locks in place properly.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Move handle 5 and tilt the seatback to
the desired position.

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
control instruments ................................................ (current page)
steering wheel adjustment ...................................... (up to the end of the DU)
1.10
ENG_UD20447_10
Volant de direction/Heure (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Steering wheel, Clock
STEERING WHEEL, CLOCK
Adjusting the steering wheel
Depending on the vehicle version, the
height of the steering wheel can be ad-
justed. Lift lever 1 and place the steer-
ing wheel in the desired position; lower
the lever to lock the steering wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting.
The clock must be reset.
Resetting the clock
With the ignition on, select display 2
showing the total mileage and clock.
There are two ways to set the time:
– Pressing and holding button 3 allows
you to scroll through the hours and
minutes quickly;
– short presses on button 3 allow you
to set the time minute by minute.
2
1
For your safety, we recom -
mend that you do not adjust
the clock while driving.
2
3

adjusting your driving position .............. (up to the end of the DU)
1.11
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Seat belts
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi -
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu -
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of the steering
wheel.
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– Adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view. Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
SEAT BELTS (1/4)
