DACIA SANDERO STEPWAY 2016 2.G User Guide

front seat adjustment ............................ (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.9
ENG_UD17772_6
Sièges avant (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Front seats
FRONT SEATS
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
23
4
2
5
To move forwards or
backwards
Lift bar 1 to release.
Release the bar in the desired position
and ensure it locks in place properly.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
a djust the seat base to the desired
height, then release the lever.
Heated seats
Depending on the vehicle, with the igni-
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Move handle 5 and tilt the seatback to
the desired position.

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
control instruments ................................................ (current page)
steering wheel adjustment ...................................... (up to the end of the DU)
1.10
ENG_UD20447_10
Volant de direction/Heure (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Steering wheel, Clock
STEERING WHEEL, CLOCK
Adjusting the steering wheel
Depending on the vehicle version, the
height of the steering wheel can be ad-
justed. Lift lever
1 and place the steer-
ing wheel in the desired position; lower
the lever to lock the steering wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting.
The clock must be reset.
Resetting the clock
With the ignition on, select display 2
showing the total mileage and clock.
There are two ways to set the time:
–

Pressing
and holding button 3 allows
you to scroll through the hours and
minutes quickly;
–

short
presses on button 3 allow you
to set the time minute by minute.
2
1
For your safety, we recom-
mend that you do not adjust
the clock while driving.
2
3

adjusting your driving position .............. (up to the end of the DU)
1.11
ENG_UD26577_9
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Seat belts
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi-
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu-
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
–

S
it well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
–

a
djust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
–

adjust
the position of the steering
wheel.
–

a
djust the position of your head-
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
–

Adjust
the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view. Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap
1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2

must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
SEAT BELTS (1/4)

1.12
ENG_UD26577_9
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte

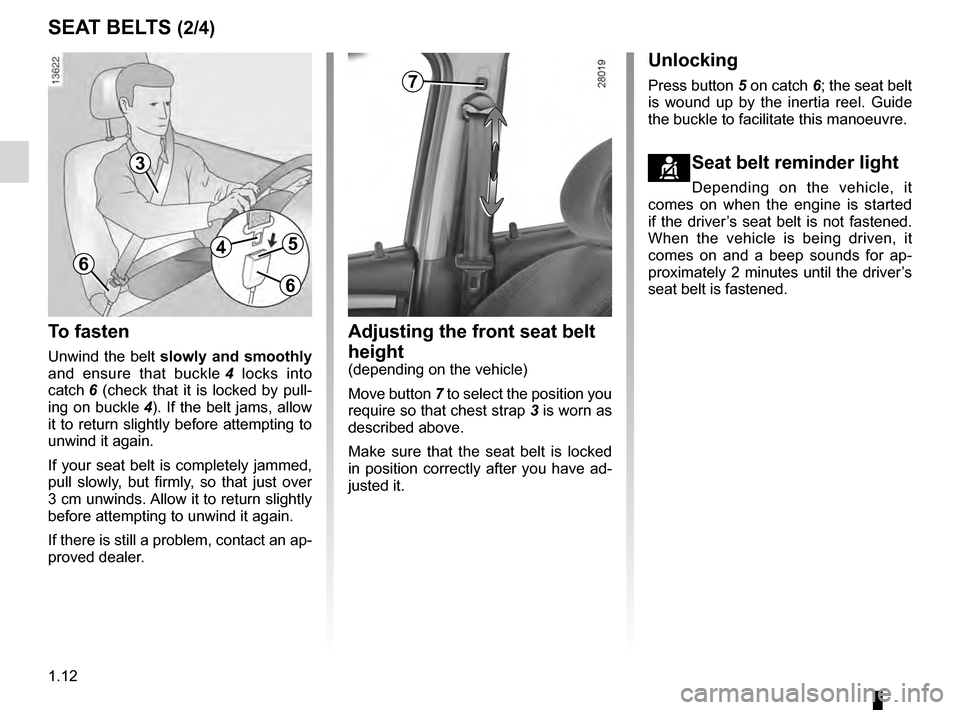

Adjusting the front seat belt
height
(depending on the vehicle)
Move button

7
to select the position you
require so that chest strap

3
is worn as
described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 4
locks into
catch
6 (check that it is locked by pull-
ing on buckle
4). If the belt jams, allow
it to return slightly before attempting to
unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
6
3
45
6
7
SEAT BELTS (2/4)
Unlocking
Press button 5 on catch 6; the seat belt
i s wound up by the inertia reel. Guide
the buckle to facilitate this manoeuvre.
çSeat belt reminder light
Depending on the vehicle, it
comes on when the engine is started
if the driver’s seat belt is not fastened.
When the vehicle is being driven, it
comes on and a beep sounds for ap-
proximately 2 minutes until the driver’s
seat belt is fastened.

JauneNoirNoir texte
1.13
ENG_UD26577_9
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1

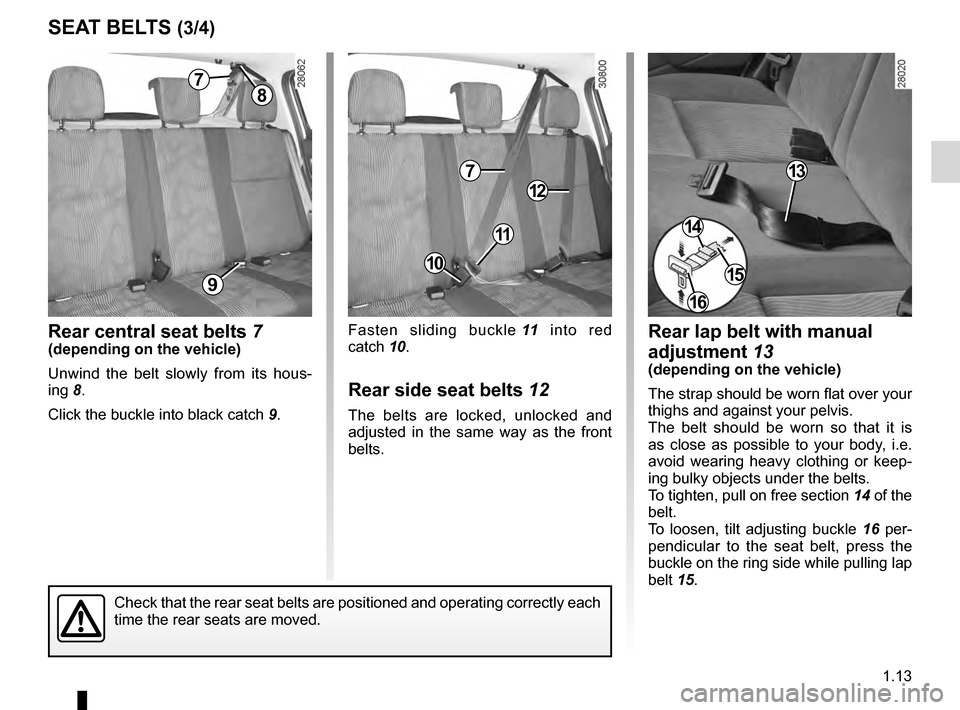

SEAT BELTS (3/4)
Rear central seat belts 7(depending on the vehicle)
Unwind the belt slowly from its hous-
ing
8.
Click the buckle into black catch

9
.Fasten sliding buckle
1

1
into red
catch 10.
Rear side seat belts 12
The belts are locked, unlocked and
adjusted in the same way as the front
belts.
Rear lap belt with manual
adjustment
13
(depending on the vehicle)
The strap should be worn flat over your
thighs and against your pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.
avoid wearing heavy clothing or keep-
ing bulky objects under the belts.
To tighten, pull on free section

14
of the
belt.
To loosen, tilt adjusting buckle
1

6 per-
pendicular to the seat belt, press the
buckle on the ring side while pulling lap
belt
15.
Check that the rear seat belts are positioned and operating correctly each
time the rear seats are moved.
78
9
10
14
15
11
16
137
12

seat belts .............................................. (up to the end of the DU)
children ................................................. (up to the end of the DU)
1.14
ENG_UD26577_9
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1

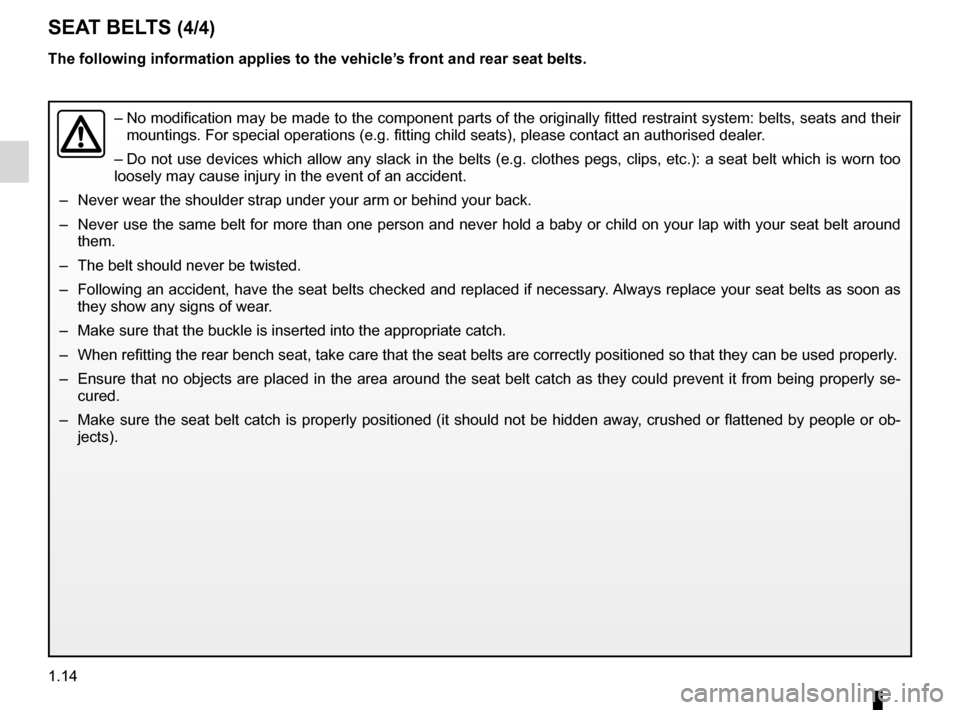

The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the originally fitted restraint system: belts, seats and their
mountings. For special operations (e.g. fitting child seats), please c\
ontact an authorised dealer.
–

Do
not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
–

Never wear the shoulder strap under your arm or behind your
back.
–

Never
use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
–

The belt should never be twisted.
–


Follow
ing an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
–

Make sure that the buckle is inserted into the appropriate catc
h.
–

When refitting the rear bench seat, take care that the seat belts are co\
rrectly positioned so that they can be used properly
.
–

Ensure
that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
–

Make
sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
SEAT BELTS (4/4)

air bag................................................... (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
methods of restraint in addition to the front seat belts (up to the end of the DU)
1.15
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Methods of restraint in addition to the front seat belts
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (1/4)
Depending on the vehicle, they are
composed of:
–

seat belt pretensioners;
–


chest-level load limiters;
–


air
bags for the driver and front pas-
senger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.– Have the entire restraint system checked following
an accident.
–

N
o operation whatsoever
is permitted on any part of the
system (air bags, electronic con-
trol units, wiring) and the system
components must not be reused
on any other vehicle, even if iden-
tical.
–

T

o avoid premature triggering
of the system which may cause
injury, only qualified Network per-
sonnel are authorisedto work on
the methods of restraint in addi-
tion to the front seat belt.
–

T

he electric trigger system may
only be tested by a specially
trained technician using special
equipment.
–

W

hen the vehicle is scrapped,
contact an approved dealer for
disposal of the pretensioner and
airbag gas generators.
Pretensioner
With the ignition switched on, if the
vehicle is subject to a significant fron-
tal impact the system may, depending
on the severity of the impact, trigger a
piston which instantly retracts the seat
belt.
The pretensioner holds the seat belt
against the body, holding the occupant
more securely against the seat, thus in-
creasing the seat belt’s efficiency.
Depending on the severity
of the impact, the system
can trigger:
–

seat belt locking;
–


the

seat belt pretensioner to hold
the occupant in the seat, and the
force limiter;
–

the front air bag.

1.16
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Driver’s and passenger air
bags
These may be provided for the driver
and the front passenger seats.
The presence of this equipment is in-
dicated by the words “Air bag” on the
steering wheel and the dashboard, and
a label on the base of the windscreen or
on the sun visor.
Each air bag system consists of:
–

a
n air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
–

an
electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
–

a special tell-tale light å;
–

remote sensors.
Load limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.

JauneNoirNoir texte
1.17
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (3/4)
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion-
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
Operating faults
Warning light 1 will light up on the in-
strument panel when the ignition is
turned on and then go out after a few
seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system. In this case, a child seat MUST NOT be
fitted to the front passenger seat.
Allowing any other passenger to sit in
that seat is not recommended.
In these two cases, contact an ap-
proved dealer as soon as possible.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.
1

1.18
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (4/4)
All of the warnings below are given
so that the air bag is not obstructed
in any way when it is inflated and
also to prevent the risk of serious in-
juries caused by items which may be
dislodged when the air bag inflates.
Warnings concerning the driver’s air bag
–
Do not modify the steering wheel or the steering wheel boss.
–

Do not cover the steering wheel boss under any circumstances
.
–

Do
not attach any objects (badge, logo, clock, telephone holder, etc.) to
the steering wheel boss.
–

Y

ou must not remove the steering wheel (such work must only be performed
by trained personnel from our Network).
–

W

hen driving, do not sit too close to the steering wheel. Sit with your arms
slightly bent (see the information on “Adjusting your driving position” in
Section
1). This will allow sufficient space for the air bag to inflate properly and
be fully effective.
Warnings concerning the passenger airbag: location

2
–


Do

not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to
the dashboard in the proximity of the air bag housing.
–

D

o not place anything between the dashboard and the passenger (pet, um-
brella, walking stick, parcels, etc.).
–

The

passenger must not put his or her feet on the dashboard or seat as there
is a risk that serious injuries may occur. In general, all parts of the body should
be kept away from the dashboard (knees, hands, head etc.).
–

Y

ou should reactivate the passenger air bag as soon as you remove the child
seat to ensure the protection of the front passenger in the event of an \
impact.
IT IS PROHIBITED TO FIT A REAR-FACING CHILD
SEAT TO THE FRONT PASSENGER SEAT UNLESS THE RESTRAINT SYSTEMS IN ADDITION TO THE FRONT
PASSENGER SEAT BELT HAVE BEEN DEACTIVATED.
(Refer to the information on “Deactivating the frontpassenger air bag” in Section 1).2
