Chauffage - Ventilation - Air conditionné (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (2/2)
In very hot weather or when the vehicle
has been parked in the sun, open the
doors for a few moments to let the hot
air escape before starting the engine.
Use the passenger compartment isola-
tion function to lower the temperature
as quickly as possible to the required
comfort level. Switch off the air recircu-
lation function once a comfortable level
has been reached. When the air conditioning system is op-
erating, all windows must be closed for
maximum efficiency.
If there is an operating fault, contact an
approved dealer.
If no cold air is produced
Check that the controls are set correctly
and that the fuses are sound. If they are
not, switch off the heating and air condi-
tioning system (warning light integrated
into button
B
)

and contact an author-
ised dealer.
Adjusting the air temperature.
Move control F to obtain the desired
temperature. The further the control is
in the red, the more the temperature will
be increased.
Do not open the refrigerant
fluid circuit. The fluid may
damage eyes or skin.
BF

heating system ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
3.6
ENG_UD25103_1
air conditionné manuel (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Jaune NoirNoir texte

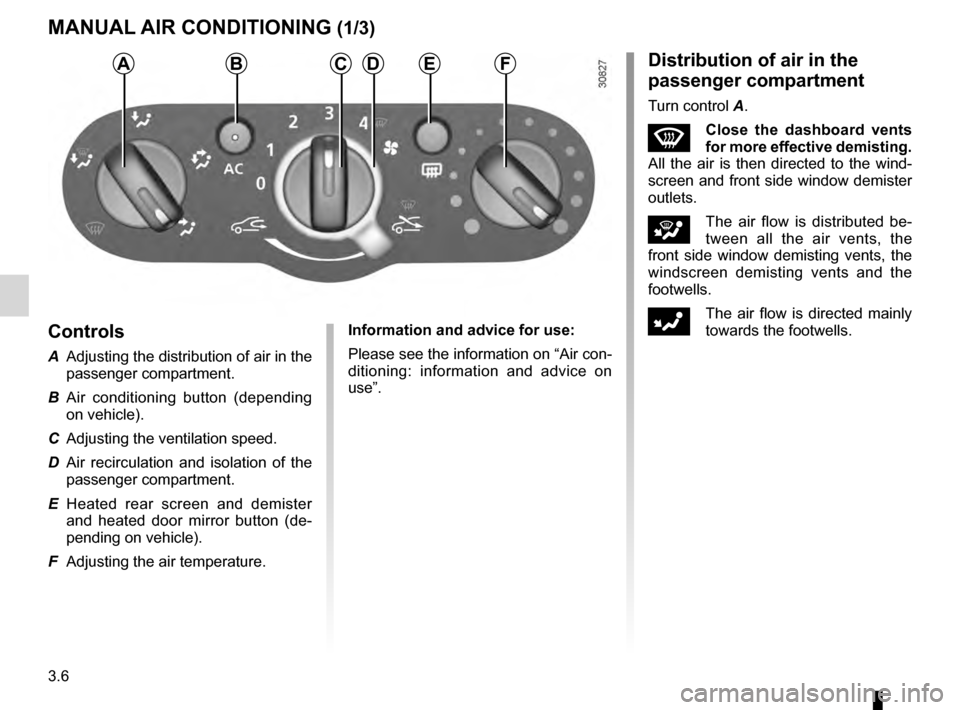

Manual air conditioning
MANuAL AIR CONDITIONING (1/3)
Distribution of air in the
passenger compartment
Turn control A.
WClose the dashboard vents
for more effective demisting.
All the air is then directed to the wind-
screen and front side window demister
outlets.
iThe air flow is distributed be-
tween all the air vents, the
front side window demisting vents, the
windscreen demisting vents and the
footwells.
FThe air flow is directed mainly
towards the footwells.
Controls
A Adjusting the distribution of air in the
passenger compartment.
B

A
ir conditioning button (depending
on vehicle).
C

Adjusting the ventilation speed.
D


A
ir recirculation and isolation of the
passenger compartment.
E

H
eated rear screen and demister
and heated door mirror button (de-
pending on vehicle).
F

Adjusting the air temperature. Information and advice for use:
Please

see the information on “Air con-
ditioning: information and advice on
use”.
FABCDE

demistingrear screen ....................................................... (current page)
rear screen demisting ......................................................... (current page)
Jaune NoirNoir texte
3.7
ENG_UD25103_1
air conditionné manuel (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3

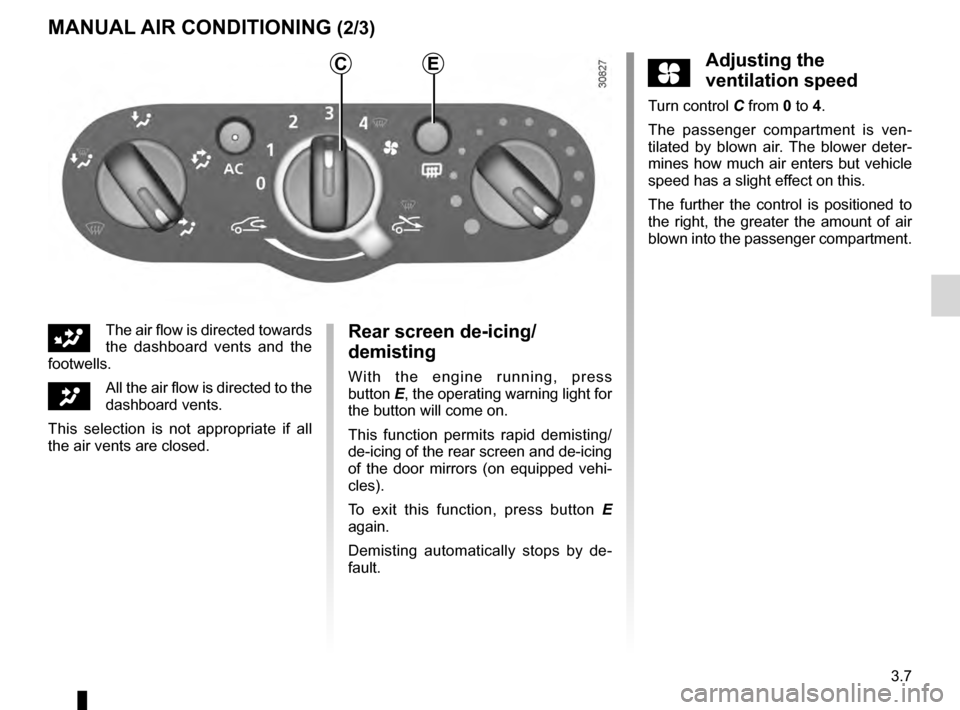

MANuAL AIR CONDITIONING (2/3)
GThe air flow is directed towards
the dashboard vents and the
footwells.
JAll the air flow is directed to the
dashboard vents.
This selection is not appropriate if all
the air vents are closed.
Rear screen de-icing/
demisting
W i t h t h e e n g i n e r u n n i n g , p r e s s
button E , the operating warning light for
the button will come on.
This function permits rapid demisting/
de-icing of the rear screen and de-icing
of the door mirrors (on equipped vehi-
cles).
To exit this function, press button
E


again.
Demisting automatically stops by de-
fault.
yAdjusting the
ventilation speed
Turn control C from 0 to 4.
T he passenger compartment is ven-
tilated by blown air. The blower deter-
mines how much air enters but vehicle
speed has a slight effect on this.
The further the control is positioned to
the right, the greater the amount of air
blown into the passenger compartment.
EC

3.8
ENG_UD25103_1
air conditionné manuel (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3

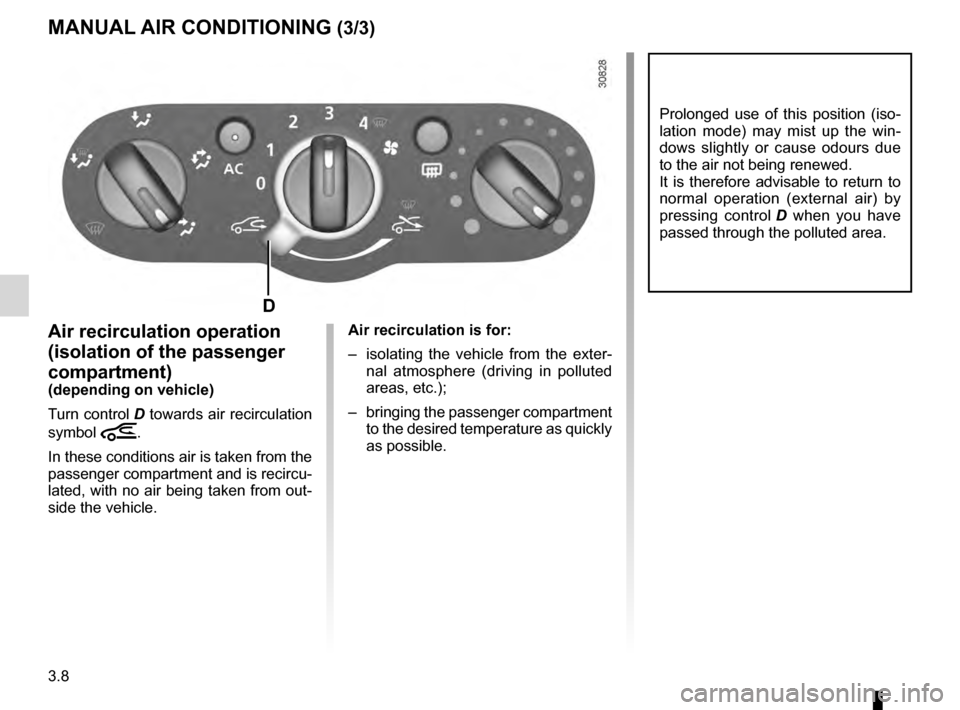

MANuAL AIR CONDITIONING (3/3)
Air recirculation operation
(isolation of the passenger
compartment)
(depending on vehicle)
Turn control
D towards air recirculation
symbol
â.
In these conditions air is taken from the
passenger compartment and is recircu-
lated, with no air being taken from out-
side the vehicle. Air recirculation is for:
–

i
solating the vehicle from the exter-
nal atmosphere (driving in polluted
areas, etc.);
–
bringi
ng the passenger compartment
to the desired temperature as quickly
as possible.
Prolonged use of this position (iso-
lation mode) may mist up the win-
dows slightly or cause odours due
to the air not being renewed.
It is therefore advisable to return to
normal operation (external air) by
pressing control
D

when you have
passed through the polluted area.
D

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
ventilation heating and air conditioning system (up to the end of the DU)
air conditioning ...................................................... (current page)
3.9
ENG_UD18246_14
Air conditionné : informations et conseils utilisation (B90 - U90 - \
L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Air conditioning: information and advice on use
AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with air condition-
ing with no automatic mode, switch
off the system when it is not re-
quired.
Advice for reducing consumption
and helping to preserve the envi-
ronment
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine. Operating faults
As a general rule, contact your ap-
proved dealer in the event of an op-
erating fault.
–

R
eduction in de-icing, demist-
ing or air conditioning per-
formance.
This may be caused by the pas-
senger compartment filter car-
tridge becoming clogged.
–

No cold air is being produced .
C

heck that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.Maintenance
Refer to the Maintenance Service
Booklet for your vehicle for the in-
spection frequency.

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
3.10
ENG_UD18207_5
Eclairage intérieur (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Interior lighting
INTERIOR LIGHTING
Courtesy light
Pressing switch 1 provides:
–
continuous lighting;
–


or
temporary lighting by opening one
of the front doors, or by opening one
of the four doors, depending on the
vehicle. The light only goes out when
the doors are correctly closed;
–

no lighting.
Automatic operation of interior
lighting (depending on the vehi-
cle)
–
i
f the doors are unlocked using
the remote control, the lighting
is switched on for approximately
30
seconds.
–

if
a door is open (or not properly
closed), the lighting is switched
on for approximately 30 minutes.
–

i
f all the doors are closed, the
lighting start to dim when the ig-
nition is switched on.
Map reading light(depending on the vehicle)
Pressing switch

2
provides:
–

continuous lighting;
–


no lighting.
12

electric windows ................................... (up to the end of the DU)
3.11
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Electric windows
ELECTRIC WINDOWS (1/2)
Front electric windows
(depending on vehicle)
With the ignition on, press the bottom
of switch 1 or 2 to open the window or
press the top of switch
1 or 2 to close it.Rear electric windows(depending on vehicle)
With the ignition on, press switch
3


or
4

to open the window or raise
switch
3 or 4 to close it.Locking and unlocking the
rear window controls
Press the top of switch 5 to lock the op-
e ration of the rear electric windows or
on the bottom of switch
5 to unlock it.
1234
5
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.

3.12
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3
ELECTRIC WINDOWS (2/2)
Manual window winder
controls
Turn handle 6 to lower or raise the
window to the desired height.
Safety of rear occupants
The driver can inhibit opera-
tion of the rear electric win-
dows by pressing switch

5
.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un-
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be-
comes trapped, reverse the direc-
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
6

mirrors .................................................. (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
grab handle............................................................ (current page)
3.13
ENG_UD18247_3
Pare-soleil - Poignée de maintien (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_3

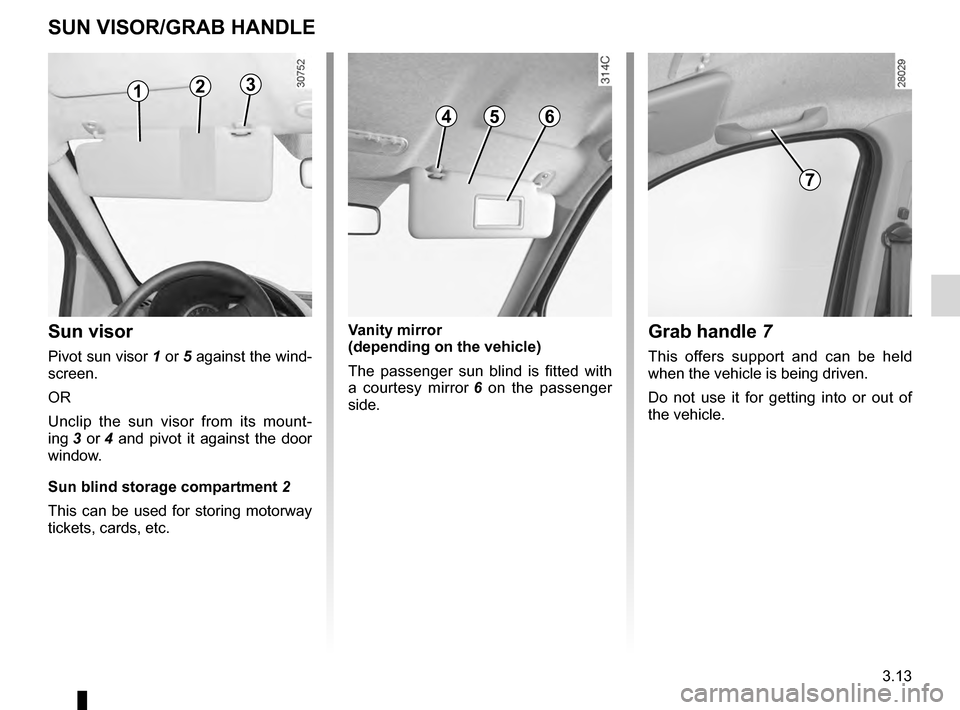

Sun visor/grab handle
SuN VISOR/GRAB HANDLE
Vanity mirror
(depending on the vehicle)
The passenger sun blind is fitted with
a courtesy mirror
6

on the passenger
side.Grab handle 7
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
7
Sun visor
Pivot sun visor 1 or 5 against the wind-
screen.
OR
U
nclip the sun visor from its mount-
ing
3 or
4 and pivot it against the door
window.
Sun blind storage compartment

2
This

can be used for storing motorway
tickets, cards, etc.
456
231

cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.14
ENG_UD17918_3
Cendriers - Allume-cigares (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Ashtrays, Cigar lighter, Accessories socket
ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCKET
Ashtray
It can be housed in either position 2
or 4.
Lift cover
3 to open.
Remove the ashtray to empty it.
13
4
2
Cigar lighter 1
With the ignition on, push in the cigar
lighter 1.
It will spring back with a click when it is
ready. Pull it out to use. After use, re-
place it without pushing it all the way in.
OR
Accessories socket 1
It is provided for connecting acces-
sories approved by our Technical
Department with a maximum power of
120 Watts (12 V).
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120
Watts only.
Fire hazard.
