door lock DACIA SANDERO STEPWAY 2016 2.G Owners Manual

1.1
ENG_UD26894_12
Sommaire 1 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5
Opening and closing the doors
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.6
Engine immobiliser system
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.7
Front headrests

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.9
Steering wheel, Clock
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.10
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1

1
Methods of restraint in addition to the front seat belts


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.15
Side protection devices


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.19
Additional methods of restraint
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.20
Child safety: general information


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.21
mounting a child seat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.24
fitting a child seat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.26
deactivating, activating the front passenger airbag
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.32
Rear-view mirrors
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.35
Driving position
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.36
W

arning lights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.40
Displays and indicators
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.43
On-board computer


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.45
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .
1.49
Adjusting the headlight beam height


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.51
Audible and visual signals


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.52
Windscreen washer/wiper

, De-icing
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.53
Fuel tank (filling with fuel)
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.56

keys ...................................................... (up to the end of the DU)
remote control door locking unit ........... (up to the end of the DU)
radio frequency remote control/key use ................................................................... (current page)
child safety............................................................. (current page)
1.2
ENG_UD18185_9
Clés / télécommande à radiofréquence: généralité\
s (B90 - L90 - F90 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
Keys/radio frequency remote control: general information
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
Radio frequency remote
control

B
2 Locking the doors and tailgate. 3
Unlocking th e doors and tailgate.
4


Coded
key for ignition switch, driv-
er’s door and fuel filler cap.
Driver’s responsibility
Never leave your vehicle
with the keys inside when
leaving a child (or animal)
in the car, even for a short period.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.Key A
1 Coded key for ignition switch,
doors and fuel filler cap.
Advice
Avoid leaving the remote control in
hot, cold or humid areas.
BA
3
2
4
1
The key must not be used
for any function other than
those described in the
handbook (removing the
cap from a bottle, etc.).

1.4
ENG_UD18223_4
Télécommande à radiofréquence : utilisation (B90 - L90 - F9\
0 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-10_B90_Dacia_1

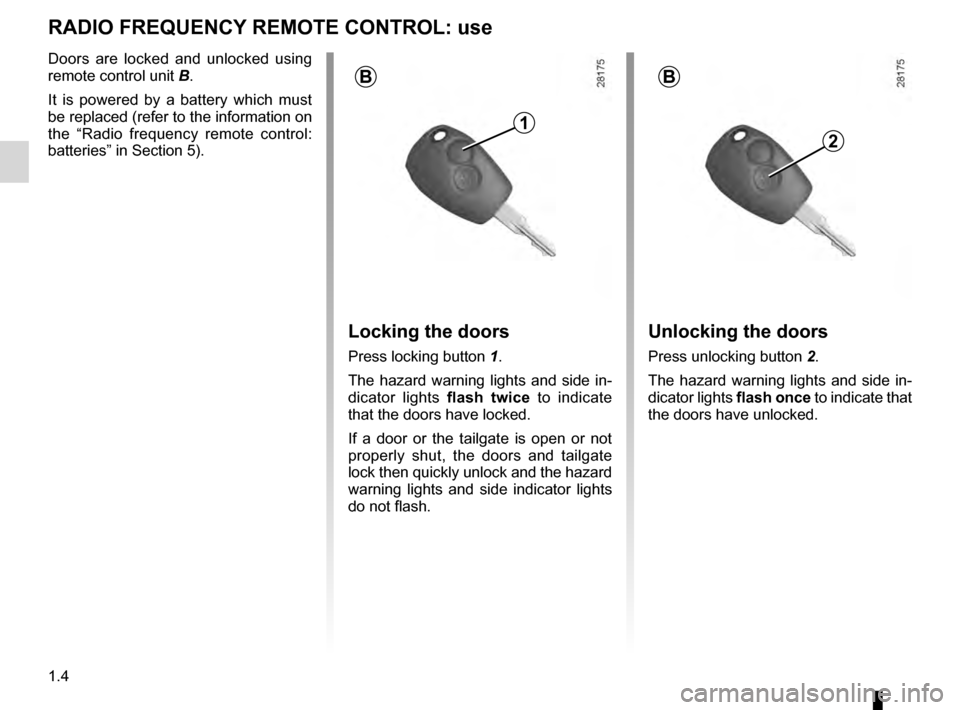

RADIO FREQUENCY REMOTE CONTROL: use
Doors are locked and unlocked using
remote control unit
B .
It is powered by a battery which must
be replaced (refer to the information on
the “Radio frequency remote control:
batteries” in Section 5).
Locking the doors
Press locking button 1 .
The hazard warning lights and side in-
dicator lights flash twice to indicate
that the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors and tailgate
lock then quickly unlock and the hazard
warning lights and side indicator lights
do not flash.
Unlocking the doors
Press unlocking button 2 .
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have unlocked.
1
2
BB

children ................................................. (up to the end of the DU)
doors..................................................... (up to the end of the DU)
electric door locking .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.5
ENG_UD19789_9
Verrouillage et déverrouillage des portes (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Locking/unlocking the doors
LOCKING/UNLOCKING THE DOORS
Manual locking
From the outside
Unlock the doors using the remote con-
trol (refer to information on the “Radio
frequency remote control: use” in
Section 1) or using the key in one of the
door locks.
Depending on the vehicle, the key locks
and unlocks the driver’s door or all four
doors.
From the inside
(depending on vehicle)
Push in button

1
to lock and lift button
1

to unlock.
Electric central locking
Depending on the vehicle, it can be
used to simultaneously lock or unlock
the doors and luggage compartment.
Lock or unlock the doors by pressing
switch
2.
The front door mechanism cannot be
locked if the door is open.
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever
3

on each door and check from
the inside that the doors are securely
locked.
Driver’s responsibility
If you decide to keep the doors locked when you are driving, remember
that it may be more difficult for those assisting you to gain access to the
passenger compartment in the event of an emergency.
3
21

children ................................................. (up to the end of the DU)
doors..................................................... (up to the end of the DU)
child safety............................................ (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
1.6
ENG_UD20291_5
Ouverture et fermeture des portes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Opening and closing the doors
OPENING AND CLOSING THE DOORS
Opening the doors manually
from the outside
With the doors unlocked (refer to the
information on “Locking/unlocking the
doors” in Section 1).
Front: Place your hand behind handle
1
and pull it towards you..
Rear (manual opening) : lift unlocking
button

2
from the inside and move the
door handle.
Opening the doors from the
inside
Front: pull handle 3 .
Rear: from the inside, lift unlocking
button
2 and pull door handle
3
.
Lights-on reminder buzzer
If you have left the lights on after switch-
ing off the ignition, a warning buzzer will
sound when a front door is opened (to
prevent the battery from discharging,
etc.).
1
2
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
3
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child seats............................................. (up to the end of the DU)
child booster seat ................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
child safety............................................ (up to the end of the DU)
1.21
ENG_UD24012_11
Sécurite enfants : généralités (B90 - F90 - U90 - R90 - F90\
Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Child safety: general information
CHILD SAFETY: General information (1/2)
Carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin-
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10
metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX fittings checked.
Never leave a child unat-
tended in the vehicle.
Check that your child is
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
To prevent the doors being
opened, use the childproof
locks (refer to the informa-
tion on “Locking/unlocking
the doors” in Section 1).

JauneNoirNoir texte
1.27
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Before installing a child seat in the
ISOFIX anchoring points on a rear side
seat, check that the seat belt buckles
are not placed between the two ISOFIX
anchorage points in this seat. If neces-
sary, move the buckle for the seat con-
cerned towards the centre of the vehi-
cle.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use. Rear centre seat
A child seat may only be fitted in this
seat if it is equipped with an inertia-reel
seat belt. For any additional informa-
tion, contact an approved dealer.
CHILD SAFETY:
Fitting a child seat (2/6)
Check that neither the child
seat nor the child’s feet
prevent the front seat from
locking into place. Refer to
the information on the “Front seat”
in Section 1.

driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD18206_6
Démarrage, Arrêt du moteur (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_2
Vehicle equipped with an automatic
gearbox
Before starting, move the lever to posi-
tion N or P.
Refer to the information on the
“Automatic gearbox” in Section 2.
Petrol injection
Engine warm or cold
–

A
ctivate the starter without de-
pressing the accelerator.
–

R
elease the key as soon as the
engine starts.ÉDiesel injection
T

urn the ignition key to ignition “On” po-
sition M, and hold this position until the
preheating warning light goes out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Make sure the engine immobiliser is not
activated. Refer to the information on
the “Engine immobiliser” in Section 1.
Starting/stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
3.10
ENG_UD18207_5
Eclairage intérieur (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Interior lighting
INTERIOR LIGHTING
Courtesy light
Pressing switch 1 provides:
–
continuous lighting;
–


or
temporary lighting by opening one
of the front doors, or by opening one
of the four doors, depending on the
vehicle. The light only goes out when
the doors are correctly closed;
–

no lighting.
Automatic operation of interior
lighting (depending on the vehi-
cle)
–
i
f the doors are unlocked using
the remote control, the lighting
is switched on for approximately
30
seconds.
–

if
a door is open (or not properly
closed), the lighting is switched
on for approximately 30 minutes.
–

i
f all the doors are closed, the
lighting start to dim when the ig-
nition is switched on.
Map reading light(depending on the vehicle)
Pressing switch

2
provides:
–

continuous lighting;
–


no lighting.
12

3.12
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3
ELECTRIC WINDOWS (2/2)
Manual window winder
controls
Turn handle 6 to lower or raise the
window to the desired height.
Safety of rear occupants
The driver can inhibit opera-
tion of the rear electric win-
dows by pressing switch

5
.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un-
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be-
comes trapped, reverse the direc-
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
6
