engine coolant DACIA SANDERO STEPWAY 2016 2.G Owners Manual

JauneNoirNoir texte
1.41
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_1
WARNING LIGHTS (2/3)
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or preheat-
ing warning light
Preheating warning light
This light should come on when the ig-
nition key is in position M; it indicates
that the heater plugs are in operation.
It goes out when preheating is com-
plete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible
VRear screen de-icing/de-
misting indicator light
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ÄToxic Fume Filter System
Warning Light
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
–

I

f it comes on continuously, consult
an approved dealer as soon as pos-
sible.
–

If

it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv-
ing” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn-
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it
indicates an increase in the coolant
temperature. Stop and let the engine
idle for a minute or two; the tempera-
ture should fall. If it does not fall, stop
the engine and allow it to cool before
checking the coolant level. If the level is
normal, there is another cause. Consult
an approved dealer.
ÀOil pressure warning light
It should go out as soon as the
engine starts; if it comes on when you
are driving, stop at once and switch off
the ignition. Check the oil level.
If the level is normal, the indicator light
is being lit by something else. Contact
an approved Dealer.
dDirection indicator tell-tale light

fuel level ................................................................ (current page)
1.44
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
DISPLAYS AND INDICATORS (2/2)
Fuel gauge

3
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on.
Coolant temperature
indicator
4
The number of squares lit depends on
the engine coolant temperature. There
is no warning unless the last three
squares light up.
Multifunction display A
Total mileage recorder, distance trav-
elled trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Multifunction key 5
– Display selection
By pressing the button you can shift
from the total mileage recorder, trip
mileometer and time or vice-versa.
–

R
esetting the trip mileage re-
corder
Once the trip mileage display is se-
lected, press and hold the button.
–

Resetting the clock
R

efer to the information on the
“Clock” in Section 1.
43
A
5

4.1
ENG_UD26896_12
Sommaire 4 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4
Engine oil level: topping up, filling


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5
Engine oil change
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6
Levels:
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7
Brake fluid
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7
Engine coolant


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.8
Windscreen washer reservoir


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.8
Power-assisted steering fluid reservoir
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9
Filters

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.10
T

yre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1
1
Battery
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.12
Bodywork maintenance


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.13
Interior trim maintenance


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.15

engine coolant ....................................................... (current page)
tanks and reservoirs coolant ............................................................. (current page)
tanks and reservoirs: windscreen washer .......................................... (current page)
4.8
ENG_UD19766_9
Niveaux / Filtres (B90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_4
Jaune NoirNoir texte
Engine coolant
Windscreen washer reservoir
Coolant
With the engine switched off and on
level ground, the level when cold must
be between the “ MINI" and “ MAXI"
marks on reservoir

2
.
Top this level up when cold before it
reaches the “MINI" mark.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Checking intervals
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
–

protection against freezing;
–


anti-corrosion
protection of the cool-
ing system.
Replacement intervals
Refer to the Maintenance Service
Booklet for your vehicle.
Consult an approved dealer at once
if you notice an abnormal or re-
peated drop in any of the fluid levels.
LEVELS (2/3)
2
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of burns.
Windscreen washer reservoir
Filling: Remove cap 3, fill until you can
see the fluid, then refit the cap.
This reservoir supplies the front and
rear screen washers.
Liquid: Special windscreen washer
fluid (anti-freeze product in winter).
Jets: to adjust the angle of the jets
pivot the little ball using a pin.
Use products approved by the Technical
Department.
3

JauneNoirNoir texte
5.35
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-10_B90_Dacia_5
OPERATING FAULTS (2/5)
On the road POSSIBLE CAUSES WHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or
damaged. Check the tyre pressures; if this is not the cause, have
their condition checked by an approved dealer.
Coolant boiling in the coolant
reservoir. Mechanical fault: cylinder head
gasket damaged, faulty coolant
pump. Stop the engine.
Contact an approved dealer.
Engine cooling fan not working. Contact an approved dealer.
Smoke under the bonnet. Short circuit or cooling system leak. Stop, switch off the ignition, stand away from the vehi-
cle and contact an approved Dealer.
The oil pressure warning light
comes on: on a bend or under braking The engine oil level is too low. Top up the engine oil (refer to the information on “Engine oil level, topping up/refilling” in Section 4).
at idle speed Low oil pressure. Go to your nearest approved dealer.
The oil pressure warning
light takes a long time to
go out or remains lit during
acceleration. Loss of oil pressure.
Stop the vehicle: contact an approved dealer.

5.36
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-10_B90_Dacia_5
Jaune NoirNoir texte

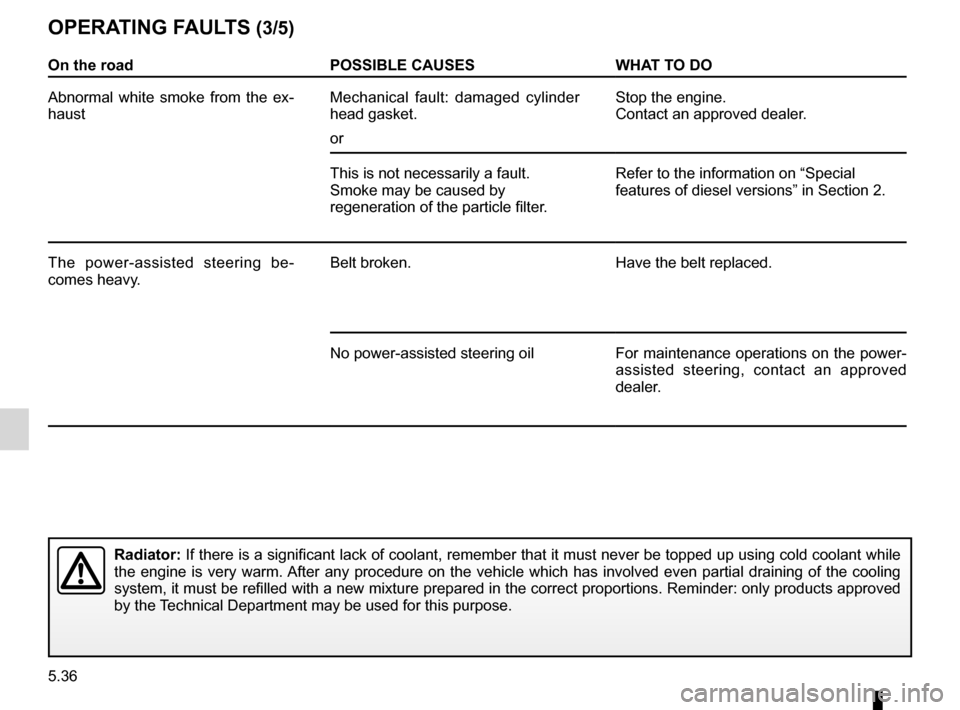

OPERATING FAULTS (3/5)
On the road POSSIBLE CAUSES WHAT TO DO
Abnormal white smoke from the ex-
haust Mechanical fault: damaged cylinder
head gasket.
or Stop the engine.
Contact an approved dealer.
This is not necessarily a fault.
Smoke may be caused by
regeneration of the particle filter. Refer to the information on “Special
features of diesel versions” in Section 2.
The power-assisted steering be-
comes heavy. Belt broken.
Have the belt replaced.
No power-assisted steering oil For maintenance operations on the power-
assisted steering, contact an approved
dealer.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.

JauneNoirNoir texte
5.37
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-10_B90_Dacia_5
OPERATING FAULTS (4/5)
On the road POSSIBLE CAUSES WHAT TO DO
Whistling Roof aerial poorly positioned. Position the aerial.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and
check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change. Reset the warning after changing the oil;
refer to the information on “Resetting the
warning after an oil change” in Section 4.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.

7.1
FRA_UD26899_12
Index (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_7
AlphAbeticAl index (1/4)
A
ABS
........................................................................\
2.12 – 2.13
accessories.............................................................\
........... 5.33
accessories - installation
................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.1

1 → 1.14,   3.17
advice on antipollution
........................................... 5.22 → 5.24
air bag.................................................................... 1.15 → 1.20
activating the front passenger air bags
.......

................. 1.34
deactivating the front passenger air bags
.......

............. 1.32
air conditioning
.................................................... 3.4 – 3.5,

  3.9
air vents

...................................................................... 3.2
– 3.3
anti-corrosion check
.............................................. 6.14 → 6.18
anti-corrosion protection .................................................... 4.13
anti-lock braking system:

ABS
................................ 2.12
– 2.13
antipollution advice
......

............................................................ 2.6 → 2.8
ashtrays

........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever...........................

2.14 → 2.16
bbattery........................................................................\
........ 4.12troubleshooting ......

........................................... 5.25 – 5.26
battery (remote control)
..................................................... 5.27
bonnet........................................................................\
. 4.2

– 4.3
brake fluid
........................................................................\
.... 4.7
bulbs changing
......

.................................................... 5.14 → 5.21
ccapacity of mechanical components........................... 4.4,

  4.12
catalytic converter................................................................ 2.4
central door locking
............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel...................................................... 5.9

– 5.10changing gear ........................................................
2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety............................................... 1.2,

  1.6,   1.21 → 1.31
child seats.............................................................. 1.21 → 1.31
children
.............................................................. 1.5 – 1.6,

  1.14
cigar lighter
........................................................................\
3.14
clock


........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10,

  1.40 → 1.50
controls

..................................................................1.36 → 1.39
courtesy light ..................................................................... 3.10
ddashboard.............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen .......

............................................................ 1.55
demisting rear screen
.......

.............................................................. 3.7
dimensions
........................................................................\
.. 6.5
dipstick

........................................................................\
......... 4.4
doors........................................................................\
... 1.5
– 1.6
driver’s position
..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.8,

  2.11 → 2.16
eelectric door locking ............................................................. 1.5
electric windows ..................................................... 3.1

1 – 3.12
emergency brake assist..................................................... 2.13 emergency spare wheel
................................. 5.3,

  5.11 → 5.13
engine technical specifications
......

............................................ 6.4
engine coolant
..................................................................... 4.8
engine immobiliser

............................................................... 1.7
engine immobiliser (switch)
................................................. 2.2
engine oil ........................................................................\
..... 4.4

7.4
FRA_UD26899_12
Index (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_7
AlphAbeticAl index (4/4)
starting ........................................................................\
2.2 – 2.3
starting the engine ............................................................... 2.3
steering wheel adjustment
......

............................................................. 1.10
storage compartment.............................................. 3.15
– 3.16
storage compartments
............................................ 3.15

– 3.16
sun visor

........................................................................\
.... 3.13
ttailgate ...................................................................... 3.19,

  3.21
tanks and reservoirs brake fluid
......

................................................................ 4.7
coolant
......

..................................................................... 4.8
tanks and reservoirs: windscreen washer
......

.................................................. 4.8
technical specifications
.............................................. 6.2 → 6.7
telephone ........................................................................\
... 3.22
temperature regulation ............................................... 3.4

– 3.5
towing
........................................................................\
.......... 6.6
breakdown ......

.................................................. 5.29 – 5.30
towing equipment
.......

.................................................. 5.31
towing a caravan
................................................................. 6.6
towing hitch...................................................... 5.2,

  5.29 – 5.30
towing weights
..................................................................... 6.6
transporting children .............................................. 1.21 → 1.31
transporting objects in the luggage compartment
......

.................................. 3.19
trims

........................................................................\
.... 5.7
– 5.8
trip computer and warning system.........................1.45 → 1.48
tyre inflation kit........................................................... 5.4 → 5.6
tyre pressure............................................................. 4.11,
  5.12
tyre pressures

.................................................................... 4.1
1
tyres

.............................................................. 4.1

1,   5.11 → 5.13
V
vehicle identification
................................................... 6.2

– 6.3vehicle identification plates ......................................... 6.2
– 6.3
ventilation .................................................................. 3.4 → 3.8
heating and air conditioning system ......

........................ 3.9
W
warning buzzer
.................................................................. 1.50
warning lights......................................................... 1.40 → 1.48
washing
.................................................................. 4.13

– 4.14
weight
........................................................................\
.......... 6.6
weights ........................................................................\
........ 6.6
wheelbrace ........................................................................\
.. 5.2
windscreen washer ..................................................... 1.53,

  4.9
wiper blades
...................................................................... 5.28
wipers ........................................................................\
........ 1.53
blades ......

.................................................................... 5.28
