Page 3 of 174
1.1
ENG_UD26894_12
Sommaire 1 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5
Opening and closing the doors
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.6
Engine immobiliser system
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.7
Front headrests
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.9
Steering wheel, Clock
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.10
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
1
Methods of restraint in addition to the front seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.15
Side protection devices
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.19
Additional methods of restraint
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.20
Child safety: general information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.21
mounting a child seat
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.24
fitting a child seat
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.26
deactivating, activating the front passenger airbag
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.32
Rear-view mirrors
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.35
Driving position
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.36
W
arning lights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.40
Displays and indicators
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.43
On-board computer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.45
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .
1.49
Adjusting the headlight beam height
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.51
Audible and visual signals
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.52
Windscreen washer/wiper
, De-icing
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.53
Fuel tank (filling with fuel)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.56
Page 10 of 174
headrest................................................ (up to the end of the DU)
1.8
ENG_UD17760_7
Appuis-tête avant (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Front headrests
FRONT HEADRESTS
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
1
3
2
B
To refit headrests A or B
Insert headrest rods 2 into the holes (tilt
the seatback backwards if necessary).
Push the headrest in until it locks in po-
sition.
Headrest B is fixed and its height
cannot be adjusted.
Adjusting the height of headrest A
Press tab
1
and simultaneously slide
the headrest to the required position.
To raise the headrests
A or B
Depending on the vehicle, press tabs
1
and
2
on the head restraint guides or
on button
3 or 4 and lift the headrest to
release it (tilt the seatback backwards if
necessary).
A
2
4
Page 13 of 174
adjusting your driving position .............. (up to the end of the DU)
1.11
ENG_UD26577_9
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Seat belts
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi-
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu-
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
–
S
it well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
–
a
djust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
–
adjust
the position of the steering
wheel.
–
a
djust the position of your head-
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
–
Adjust
the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view. Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap
1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2
must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
SEAT BELTS (1/4)
Page 28 of 174
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety............................................ (up to the end of the DU)
child seats............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.26
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte

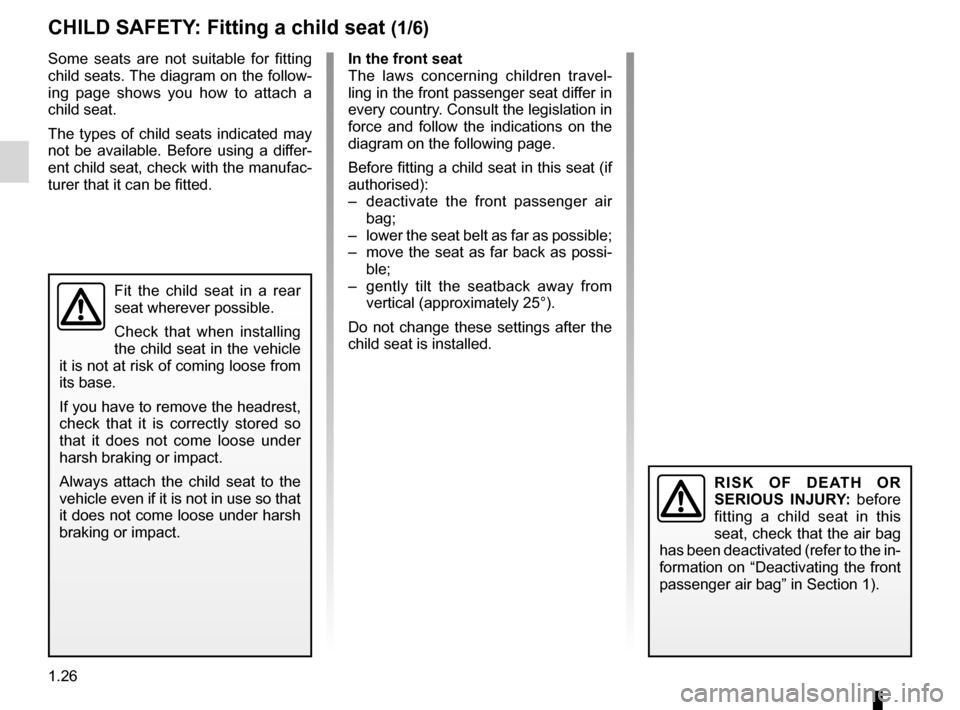

fitting a child seat
CHILD SAFETY: Fitting a child seat (1/6)
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
–
d
eactivate the front passenger air
bag;
–
lower
the seat belt as far as possible;
–
move
the seat as far back as possi-
ble;
–
g
ently tilt the seatback away from
vertical (approximately 25°).
Do not change these settings after the
child seat is installed.
R I S K O F D E AT H O R
SERIOUS INJURY: before
fitting a child seat in this
seat, check that the air bag
has been deactivated (refer to the in-
formation on “Deactivating the front
passenger air bag” in Section
1).
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
Page 29 of 174
JauneNoirNoir texte
1.27
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Before installing a child seat in the
ISOFIX anchoring points on a rear side
seat, check that the seat belt buckles
are not placed between the two ISOFIX
anchorage points in this seat. If neces-
sary, move the buckle for the seat con-
cerned towards the centre of the vehi-
cle.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use. Rear centre seat
A child seat may only be fitted in this
seat if it is equipped with an inertia-reel
seat belt. For any additional informa-
tion, contact an approved dealer.
CHILD SAFETY:
Fitting a child seat (2/6)
Check that neither the child
seat nor the child’s feet
prevent the front seat from
locking into place. Refer to
the information on the “Front seat”
in Section 1.
Page 33 of 174
JauneNoirNoir texte
1.31
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1

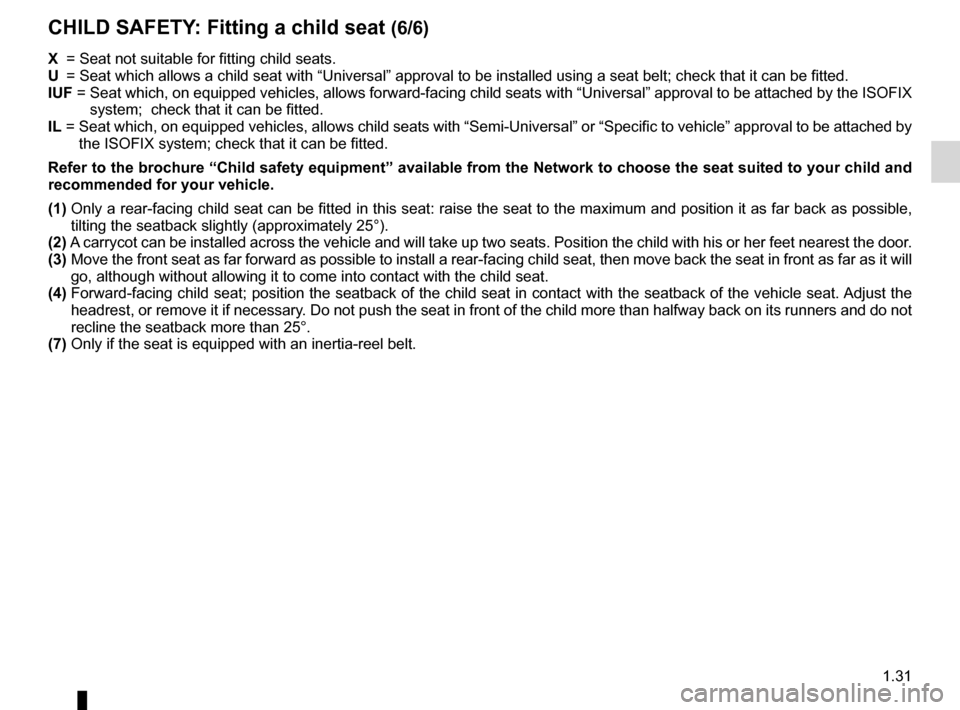

CHILD SAFETY: Fitting a child seat (6/6)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to b e installed using a seat belt; check that it can be fitted.
IUF =
Seat
which, on equipped vehicles, allows forward-facing child seats with “Universal” approval to be attached by the ISOFIX
system; check that it can be fitted.
IL =
Seat
which, on equipped vehicles, allows child seats with “Semi-Universal” or “Specific to vehicle” approval to be attached by
the ISOFIX system; check that it can be fitted.
Refer to the brochure “Child safety equipment” available from the Network to choose the seat suited to your child and
recommended for your vehicle.
(1)
Only
a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2)
A
carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(3)
Move
the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4)
Forward-facing
child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not
recline the seatback more than 25°.
(7)
Only if the seat is equipped with an inertia-reel belt.
Page 77 of 174
3.1
ENG_UD26624_12
Sommaire 3 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3
Section 3: Your comfort
Air vents, air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating, V entilation, Air conditioning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4
Manual air conditioning
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6
Air conditioning: information and advice on use
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.9
Interior lighting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.10
Electric windows
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
1
Sun visor, Grab handle
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.13
Ashtrays, Cigarette lighter
, Accessories socket
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.14
Passenger compartment storage space and fittings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.15
Rear headrests
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.17
Rear bench seat: functions
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.18
Luggage compartment,
Transporting objects in the boot
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.19
Roof bars
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.20
Rear parcel shelf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.21
Multimedia equipment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.22
Page 93 of 174
headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
3.17
ENG_UD20454_5
Appuis-tête arrière (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3

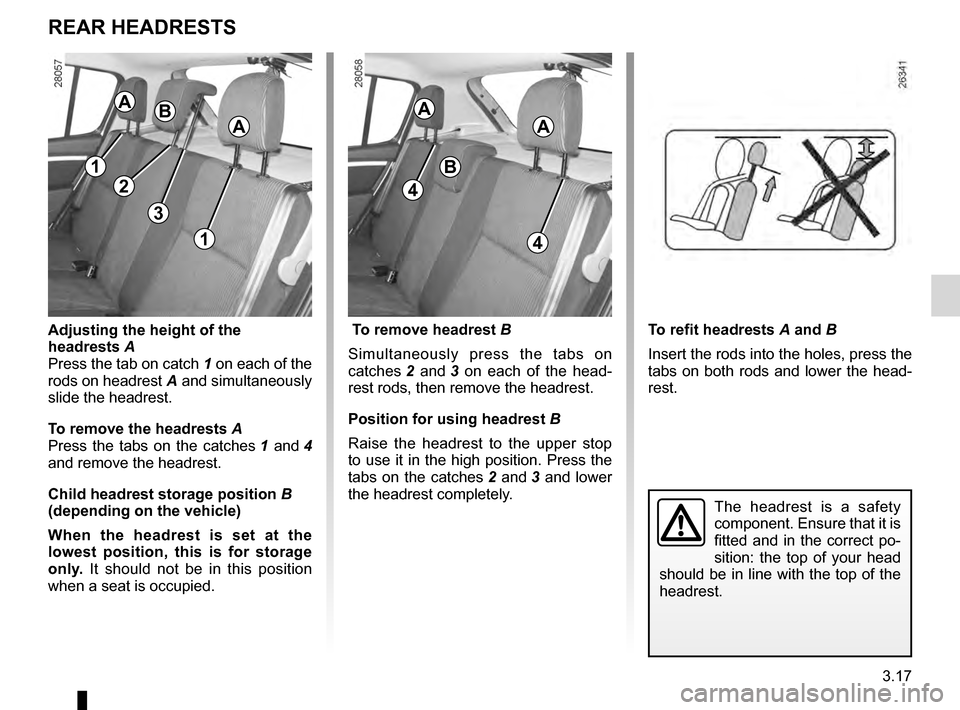

Rear headrests
REAR HEADRESTS
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
Adjusting the height of the
headrests A
Press the tab on catch
1 on each of the
rods on headrest
A and simultaneously
slide the headrest.
To remove the headrests
A
Press the tabs on the catches
1 and 4
and remove the headrest.
Child headrest storage position
B
(depending on the vehicle)
W
hen the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied. To remove headrest
B
Simultaneously press the tabs on
catches
2
and
3
on each of the head-
rest rods, then remove the headrest.
Position for using headrest
B
R
aise the headrest to the upper stop
to use it in the high position. Press the
tabs on the catches
2 and 3 and lower
the headrest completely. To refit headrests
A and B
Insert the rods into the holes, press the
tabs on both rods and lower the head-
rest.
1
2
3
1
ABA
A
B
A
4
4
Page 94 of 174
3.18
ENG_UD17907_4
Banquette arrière (fonctionnalité) (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_3

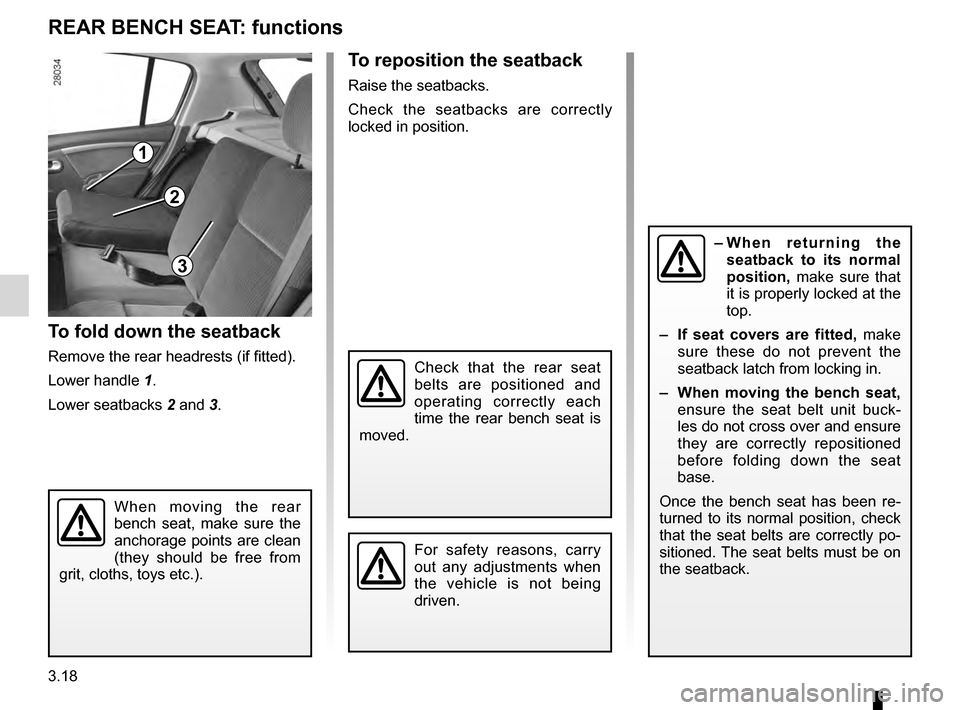

Rear bench seat: functions
REAR BENCH SEAT: functions
When moving the rear
bench seat, make sure the
anchorage points are clean
(they should be free from
grit, cloths, toys etc.).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
– Wh e n r e t u r n i n g t h e seatback to its normal
position, make sure that
it is properly locked at the
top.
–
I
f seat covers are fitted, make
sure these do not prevent the
seatback latch from locking in.
–
W
hen moving the bench seat,
ensure the seat belt unit buck-
les do not cross over and ensure
they are correctly repositioned
before folding down the seat
base.
Once the bench seat has been re-
turned to its normal position, check
that the seat belts are correctly po-
sitioned. The seat belts must be on
the seatback.
To reposition the seatback
Raise the seatbacks.
Check the seatbacks are correctly
locked in position.
To fold down the seatback
Remove the rear headrests (if fitted).
Lower handle
1
.
Lower seatbacks
2
and 3.
1
2
3
Page 172 of 174
7.2
FRA_UD26899_12
Index (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine oil grade .......................................................... 4.5 – 4.6
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
F
faults operating faults
......
.......................................... 5.34 → 5.38
filter
........................................................................\
............ 4.10
air filter
......
................................................................... 4.10
diesel filter
.......
.................................................... 1.58,
4.10
oil filter
......
..................................................................... 4.6
particle filter
......
............................................................. 2.5
passenger compartment filter
......
................................ 4.10
fitting a radio
...................................................................... 5.32
fittings
..................................................................... 3.15
– 3.16
fog lights
........................................................................\
.... 1.50
front passenger air bag deactivation ................................. 1.32
front seat adjustment
........................................................... 1.9
front seats adjustment
......
............................................................... 1.9
fuel advice on fuel economy
......
.................................2.6 → 2.8
grade
.......
.............................................................. 1.56,
6.4
fuel economy
............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.56
fuel grade........................................................................\
... 1.56
fuel level
........................................................................\
.... 1.44
fuel priming bulb ................................................................ 1.58
fuel tank
................................................................. 1.56 → 1.58
fuel tank capacity ............................................................... 1.56
fuses
...................................................................... 5.22 → 5.24
G
gear lever........................................................................\
... 2.10
glove box
........................................................................\
... 3.15
grab handle........................................................................\
3.13
hhandbrake........................................................................\
.. 2.1 1
hands-free telephone integrated control
............................ 3.22
hazard warning lights signal .............................................. 1.52
headlight beam adjustment ............................................... 1.51
headlight flashers .............................................................. 1.52
headrest...................................................................... 1.8,
3.17
heating and air conditioning system
................... 3.2 → 3.5,
3.9
heating system
.......................................................... 3.2 → 3.9
horn
........................................................................\
........... 1.52
iignition switch ...................................................................... 2.2
indicator lights.................................................................... 5.18
indicators
.................................................................. 1.52,
5.14
indicators: direction indicators
.......
................................................ 1.52
instrument panel
.................................................... 1.40 → 1.44
interior trim maintenance
......
............................................... 4.15 – 4.16
J
jack
....................................................................5.2,
5.9 – 5.10
K
keys
........................................................................\
.... 1.2
– 1.3
replacing the battery
......
.............................................. 5.27
llevels ..................................................................4.4,
4.7 → 4.9
levels: engine oil
......
................................................................. 4.5
lifting the vehicle changing a wheel
.......
........................5.2 – 5.3,
5.7 → 5.10
lighting: exterior
.......
..................................1.49 – 1.50,
5.14 → 5.18
