Page 68 of 473

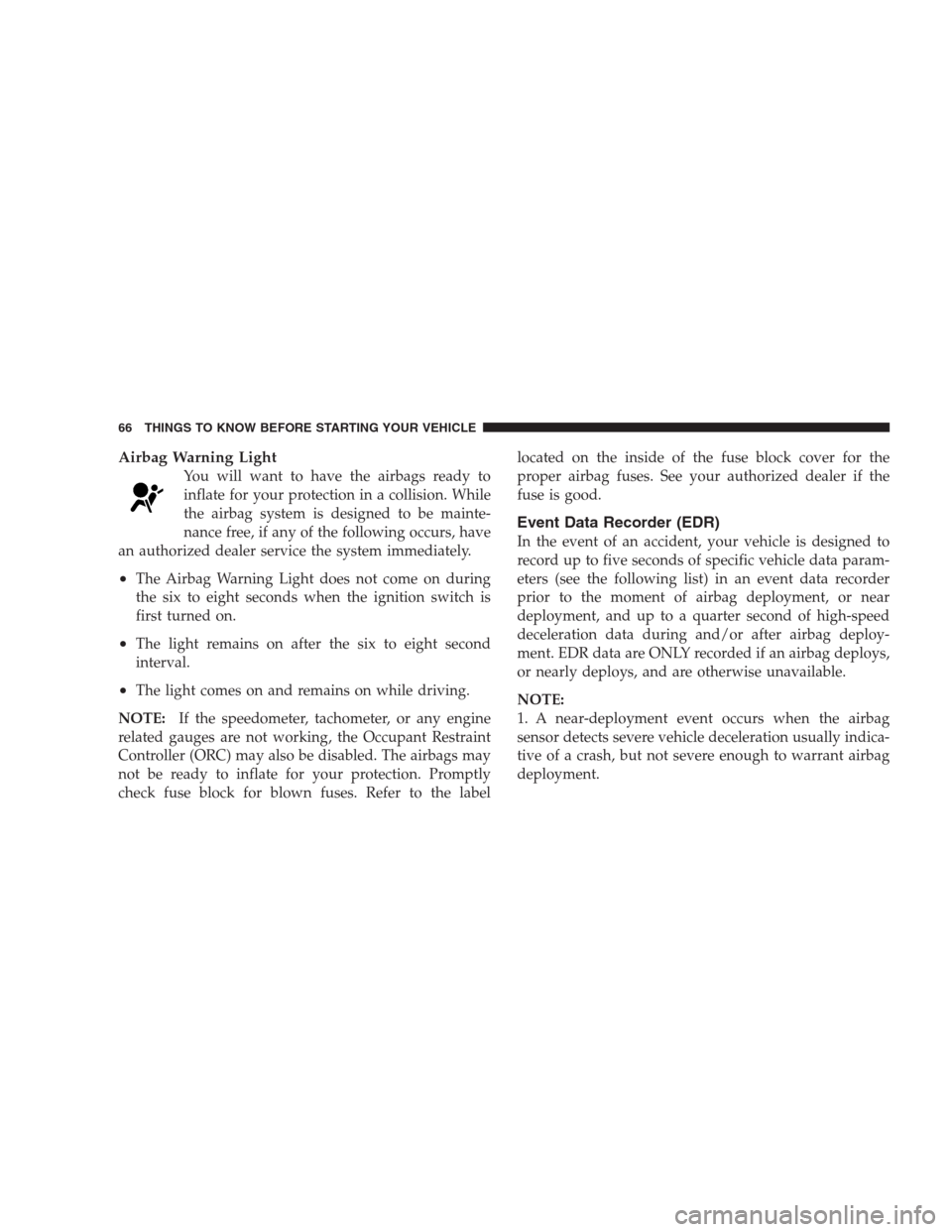

DODGE AVENGER 2009 2.G Owners Manual Airbag Warning Light
You will want to have the airbags ready to
inflate for your protection in a collision. While
the airbag system is designed to be mainte-
nance free, if any of the following occurs

Page 141 of 473

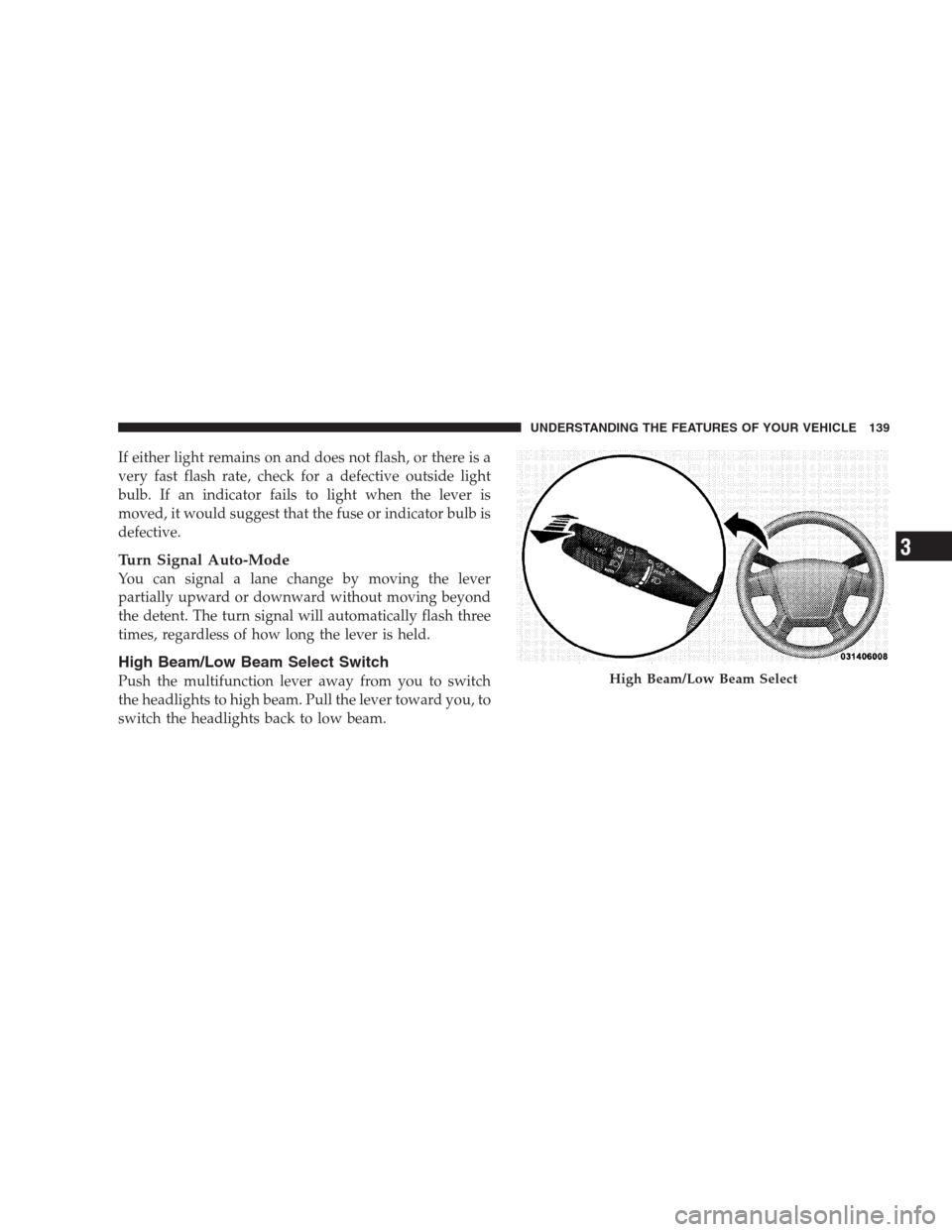

DODGE AVENGER 2009 2.G Owners Manual If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest th

Page 158 of 473

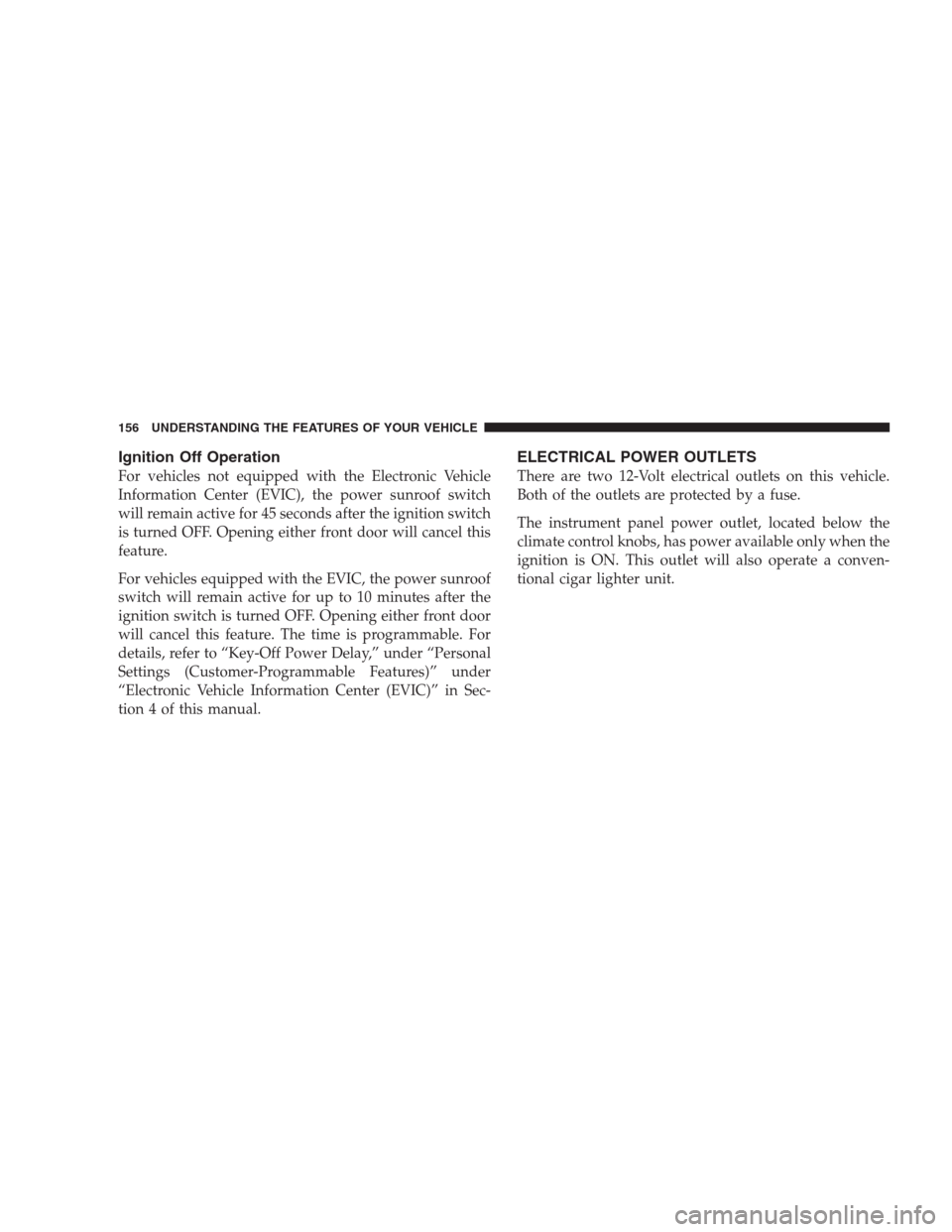

DODGE AVENGER 2009 2.G Owners Manual Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned O

Page 368 of 473

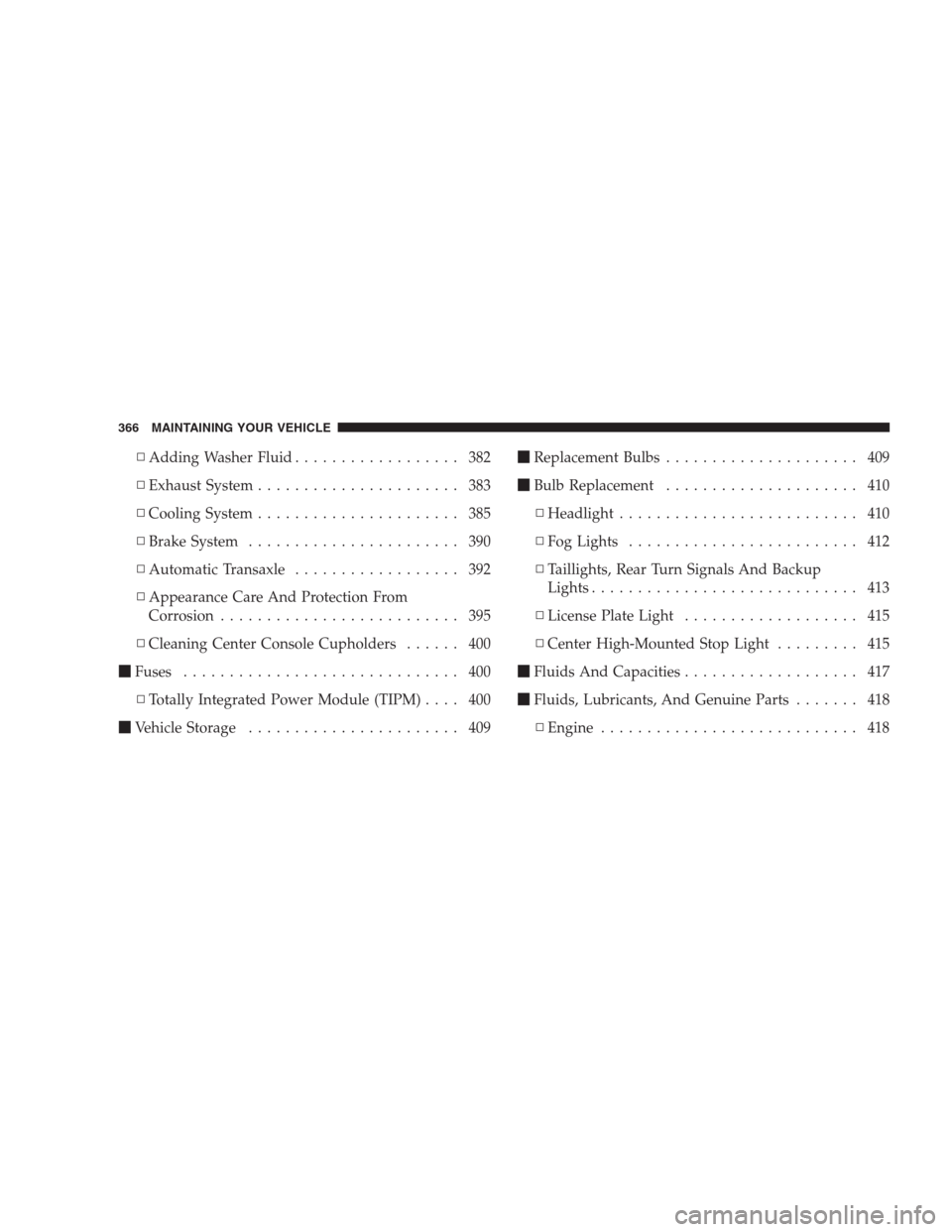

DODGE AVENGER 2009 2.G Owners Manual ▫Adding Washer Fluid.................. 382
▫Exhaust System...................... 383
▫Cooling System...................... 385
▫Brake System....................... 390
▫Automatic Transaxle..

Page 402 of 473

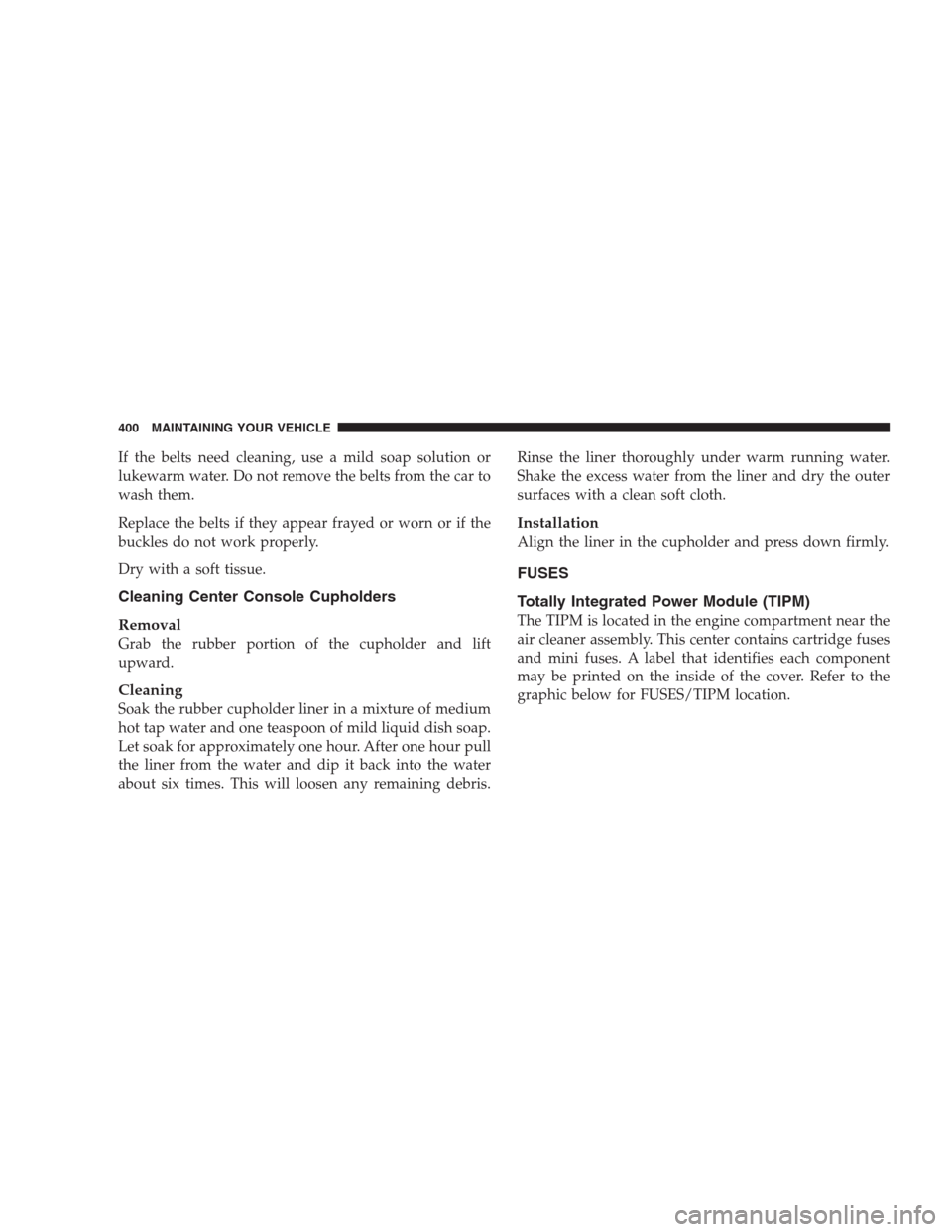

DODGE AVENGER 2009 2.G Owners Manual If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work

Page 403 of 473

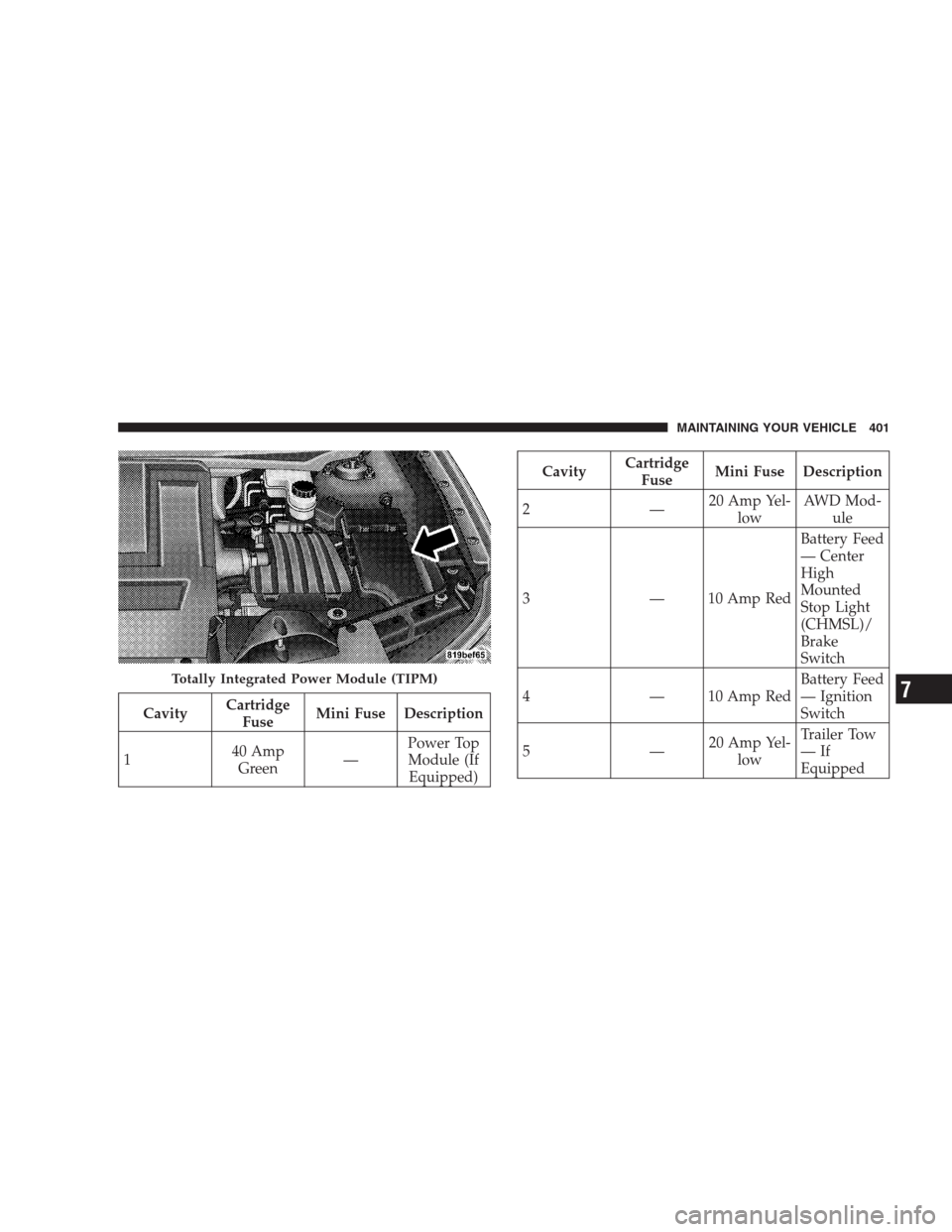

DODGE AVENGER 2009 2.G Owners Manual CavityCartridge
FuseMini Fuse Description
140 Amp
Green—Power Top
Module (If
Equipped)
CavityCartridge
FuseMini Fuse Description
2—20 Amp Yel-
lowAWD Mod-
ule
3 — 10 Amp RedBattery Feed
— Cent

Page 404 of 473

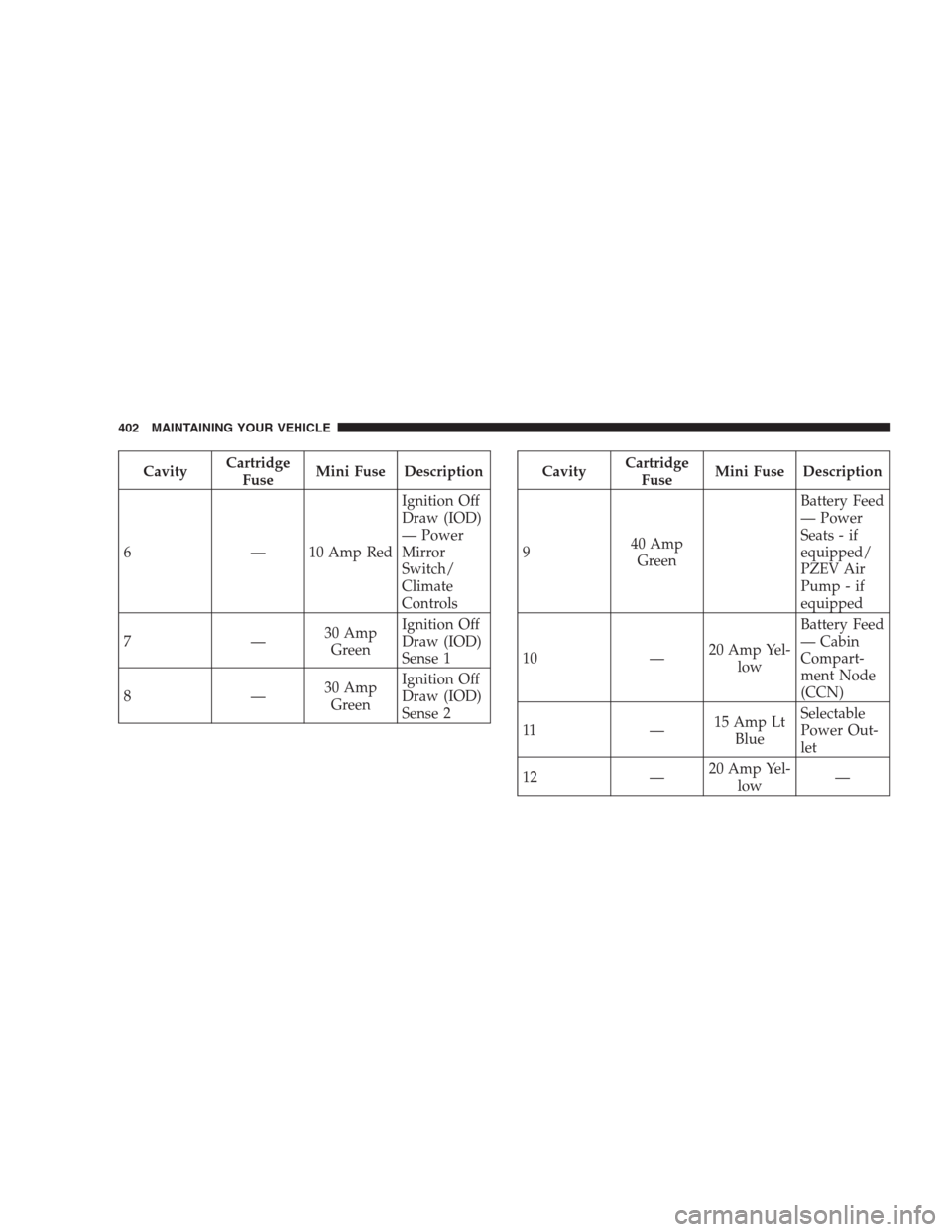

DODGE AVENGER 2009 2.G Owners Manual CavityCartridge
FuseMini Fuse Description
6 — 10 Amp RedIgnition Off
Draw (IOD)
— Power
Mirror
Switch/
Climate
Controls
7—30 Amp
GreenIgnition Off
Draw (IOD)
Sense 1
8—30 Amp
GreenIgnition Off

Page 405 of 473

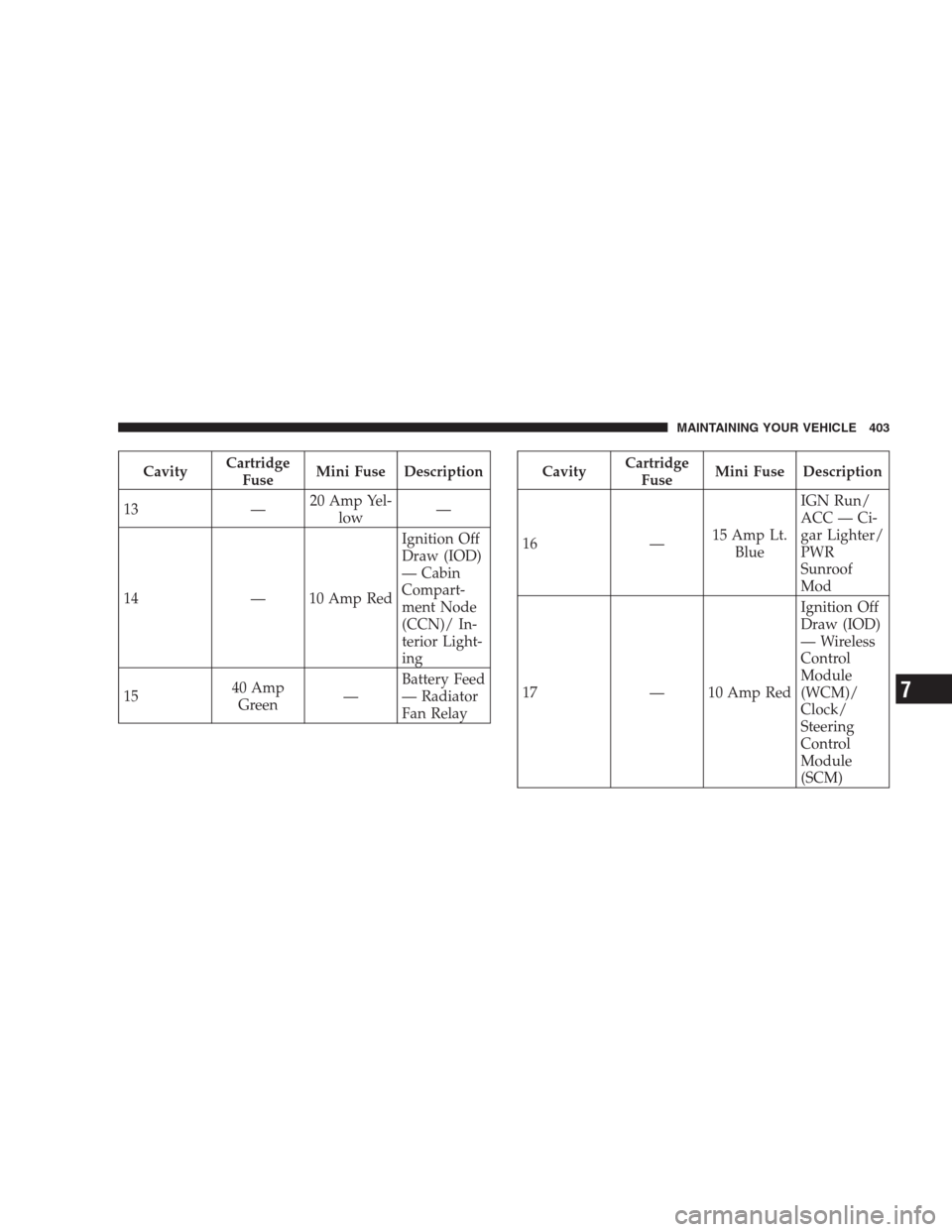

DODGE AVENGER 2009 2.G Owners Manual CavityCartridge
FuseMini Fuse Description
13 —20 Amp Yel-
low—
14 — 10 Amp RedIgnition Off
Draw (IOD)
— Cabin
Compart-
ment Node
(CCN)/ In-
terior Light-
ing
1540 Amp
Green—Battery Feed
—

Page 406 of 473

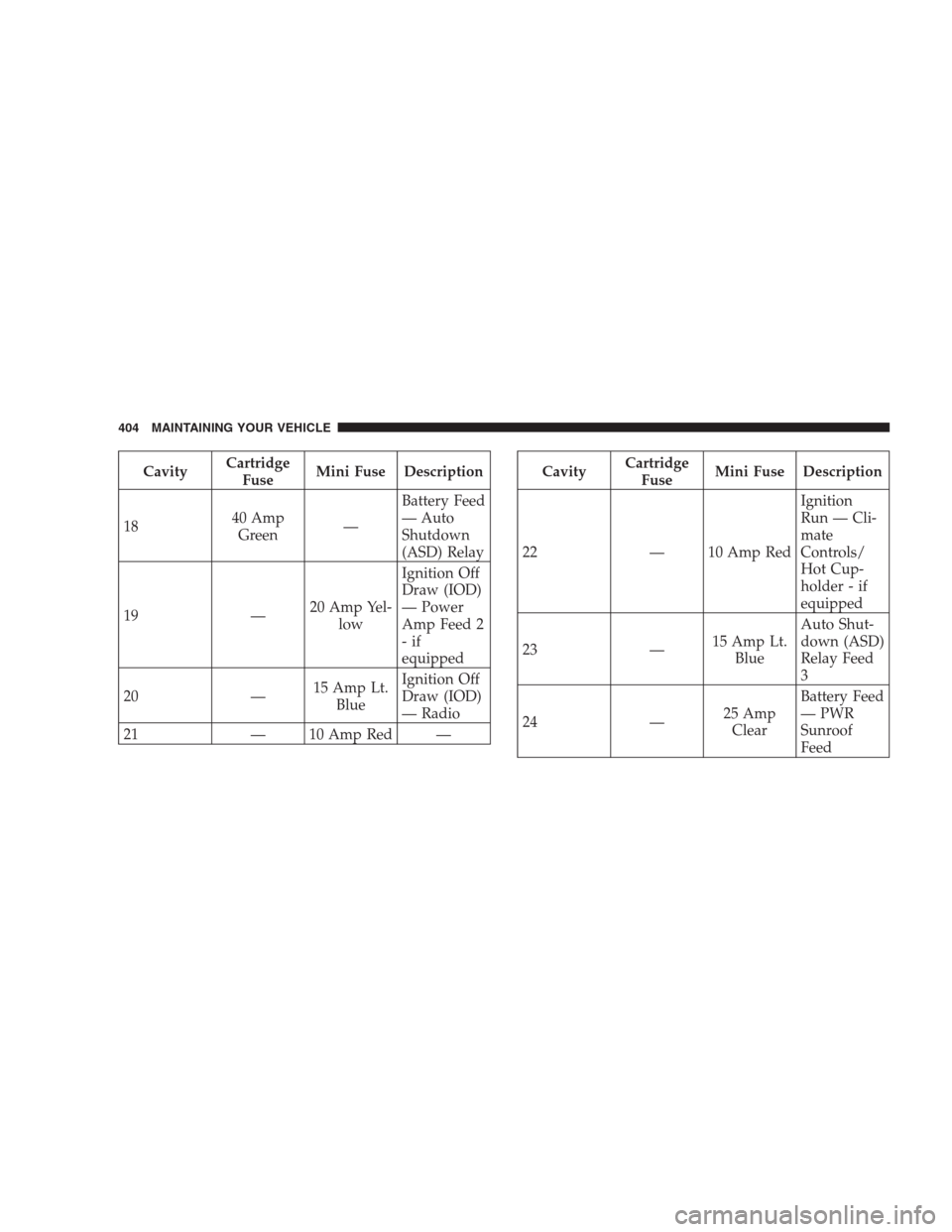

DODGE AVENGER 2009 2.G Owners Manual CavityCartridge
FuseMini Fuse Description
1840 Amp
Green—Battery Feed
— Auto
Shutdown
(ASD) Relay
19 —20 Amp Yel-
lowIgnition Off
Draw (IOD)
— Power
Amp Feed 2
-if
equipped
20 —15 Amp Lt.
Bl

Page 407 of 473

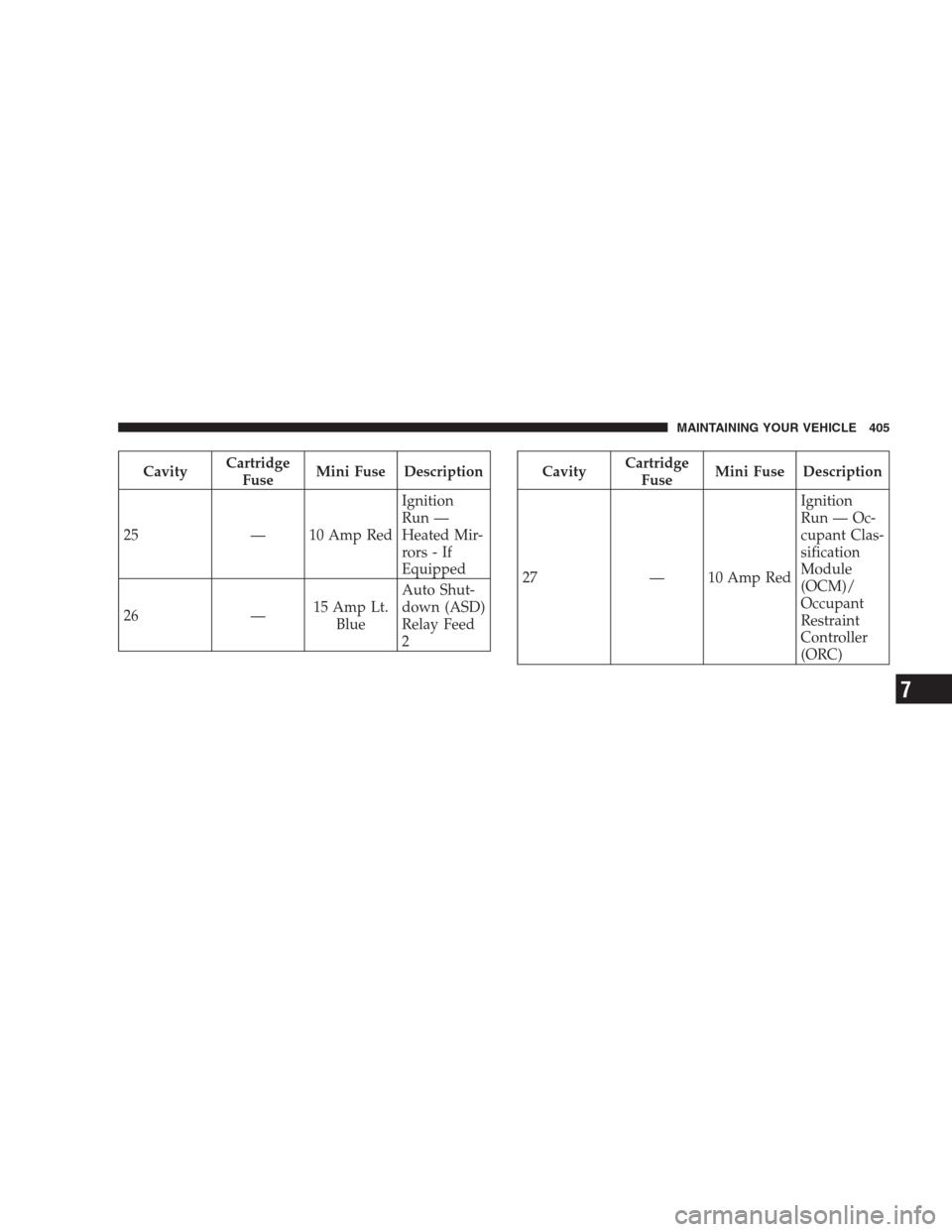

DODGE AVENGER 2009 2.G Owners Manual CavityCartridge
FuseMini Fuse Description
25 — 10 Amp RedIgnition
Run —
Heated Mir-
rors - If
Equipped
26 —15 Amp Lt.
BlueAuto Shut-
down (ASD)
Relay Feed
2CavityCartridge
FuseMini Fuse Descript
