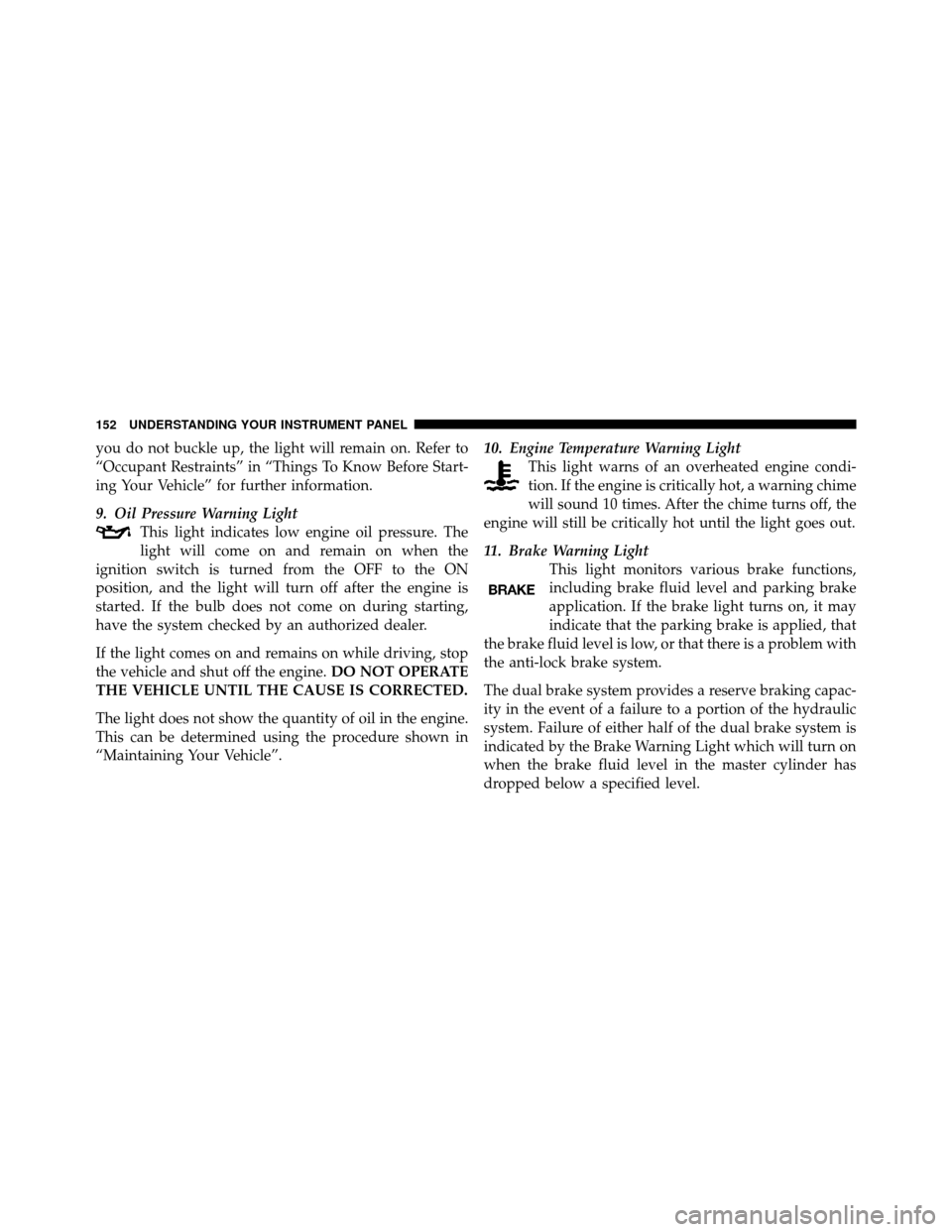

Page 153 of 448
you do not buckle up, the light will remain on. Refer to
“Occupant Restraints” in “Things To Know Before Start-
ing Your Vehicle” for further information.
9. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light will come on and remain on when the
ignition switch is turned from the OFF to the ON
position, and the light will turn off after the engine is
started. If the bulb does not come on during starting,
have the system checked by an authorized dealer.
If the light comes on and remains on while driving, stop
the vehicle and shut off the engine. DO NOT OPERATE
THE VEHICLE UNTIL THE CAUSE IS CORRECTED.
The light does not show the quantity of oil in the engine.
This can be determined using the procedure shown in
“Maintaining Your Vehicle”. 10. Engine Temperature Warning Light
This light warns of an overheated engine condi-
tion. If the engine is critically hot, a warning chime
will sound 10 times. After the chime turns off, the
engine will still be critically hot until the light goes out.
11. Brake Warning Light This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on, it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system.
The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. Failure of either half of the dual brake system is
indicated by the Brake Warning Light which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
152 UNDERSTANDING YOUR INSTRUMENT PANEL

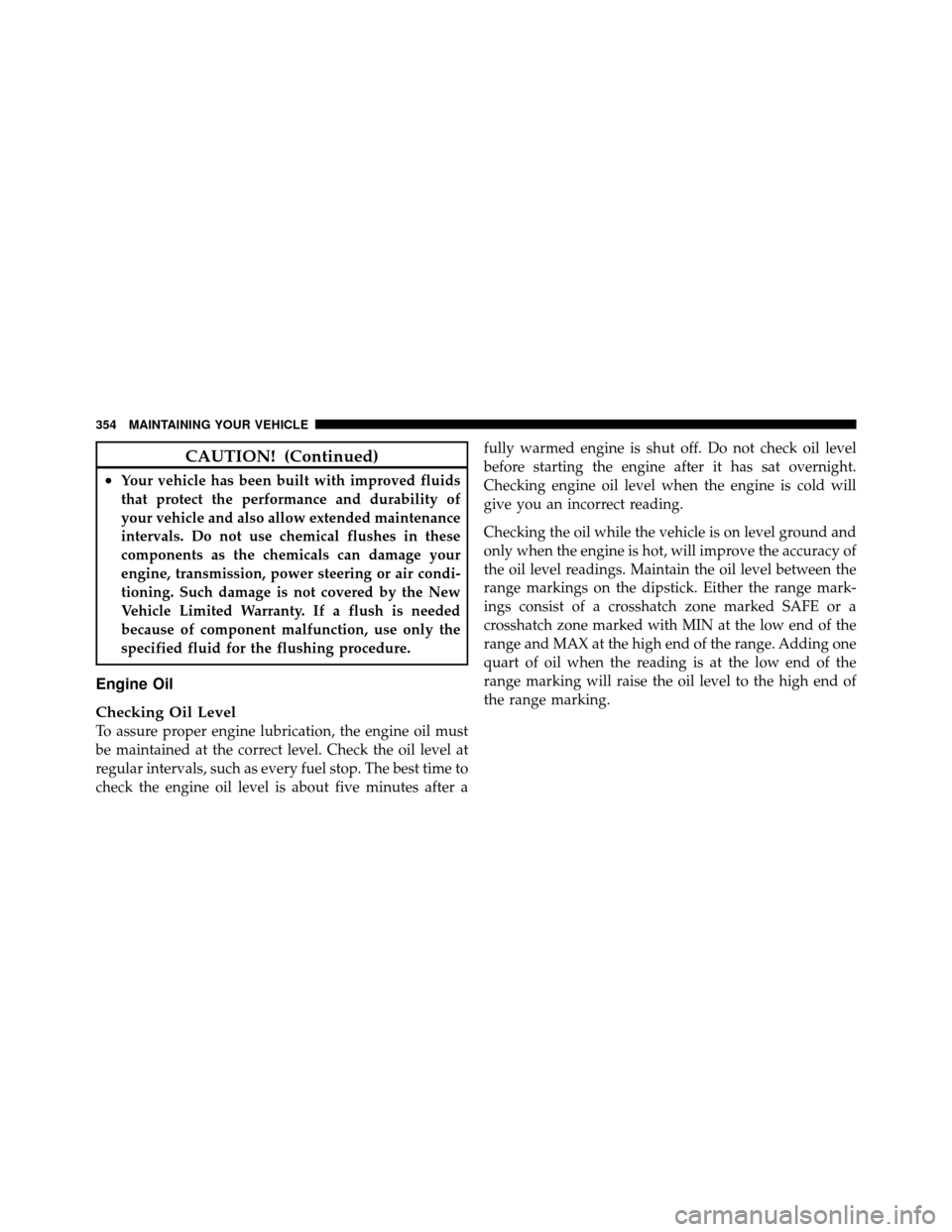

Page 355 of 448
CAUTION! (Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of
your vehicle and also allow extended maintenance
intervals. Do not use chemical flushes in these
components as the chemicals can damage your
engine, transmission, power steering or air condi-
tioning. Such damage is not covered by the New
Vehicle Limited Warranty. If a flush is needed
because of component malfunction, use only the
specified fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after afully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.
Checking the oil while the vehicle is on level ground and
only when the engine is hot, will improve the accuracy of
the oil level readings. Maintain the oil level between the
range markings on the dipstick. Either the range mark-
ings consist of a crosshatch zone marked SAFE or a
crosshatch zone marked with MIN at the low end of the
range and MAX at the high end of the range. Adding one
quart of oil when the reading is at the low end of the
range marking will raise the oil level to the high end of
the range marking.
354 MAINTAINING YOUR VEHICLE

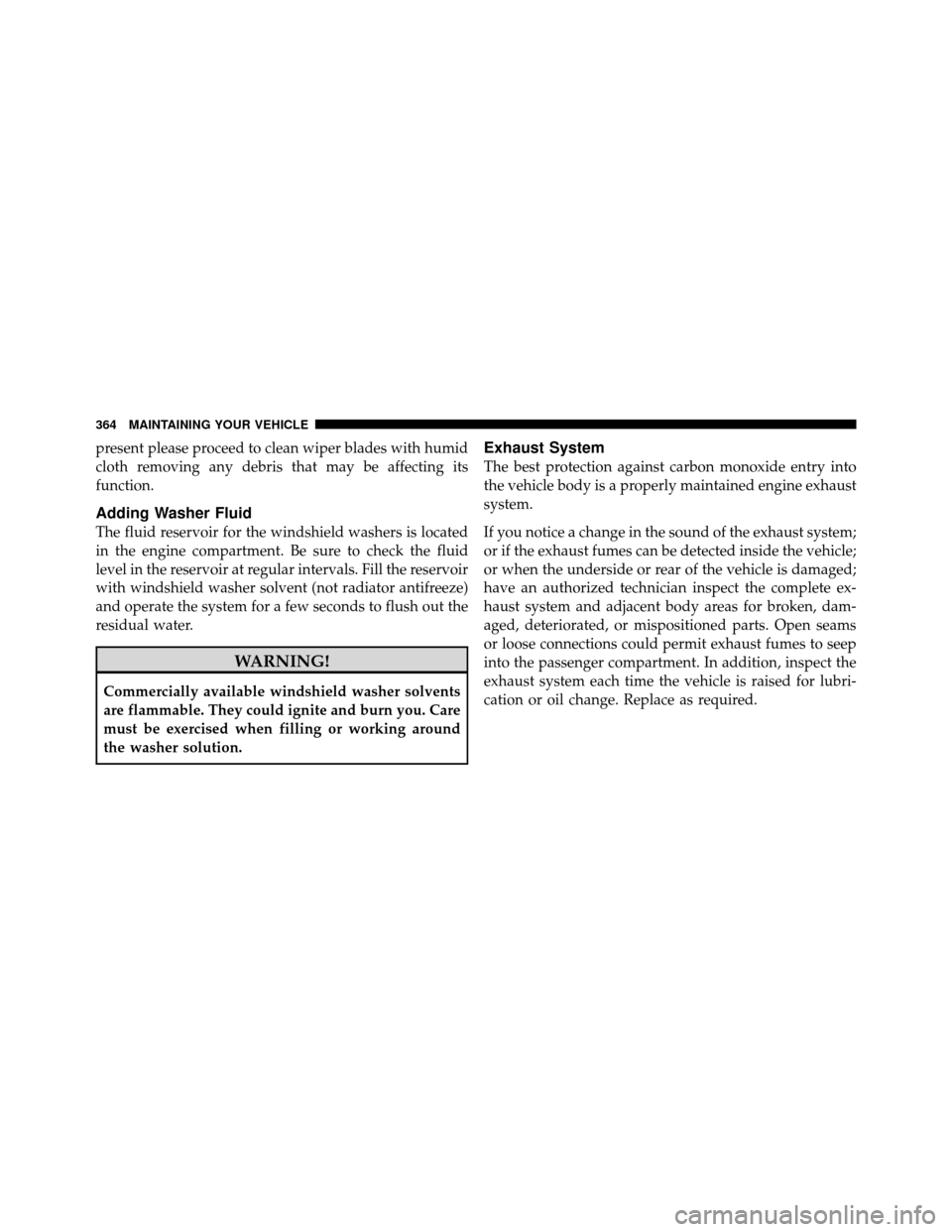

Page 365 of 448
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
The fluid reservoir for the windshield washers is located
in the engine compartment. Be sure to check the fluid
level in the reservoir at regular intervals. Fill the reservoir
with windshield washer solvent (not radiator antifreeze)
and operate the system for a few seconds to flush out the
residual water.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes to seep
into the passenger compartment. In addition, inspect the
exhaust system each time the vehicle is raised for lubri-
cation or oil change. Replace as required.
364 MAINTAINING YOUR VEHICLE

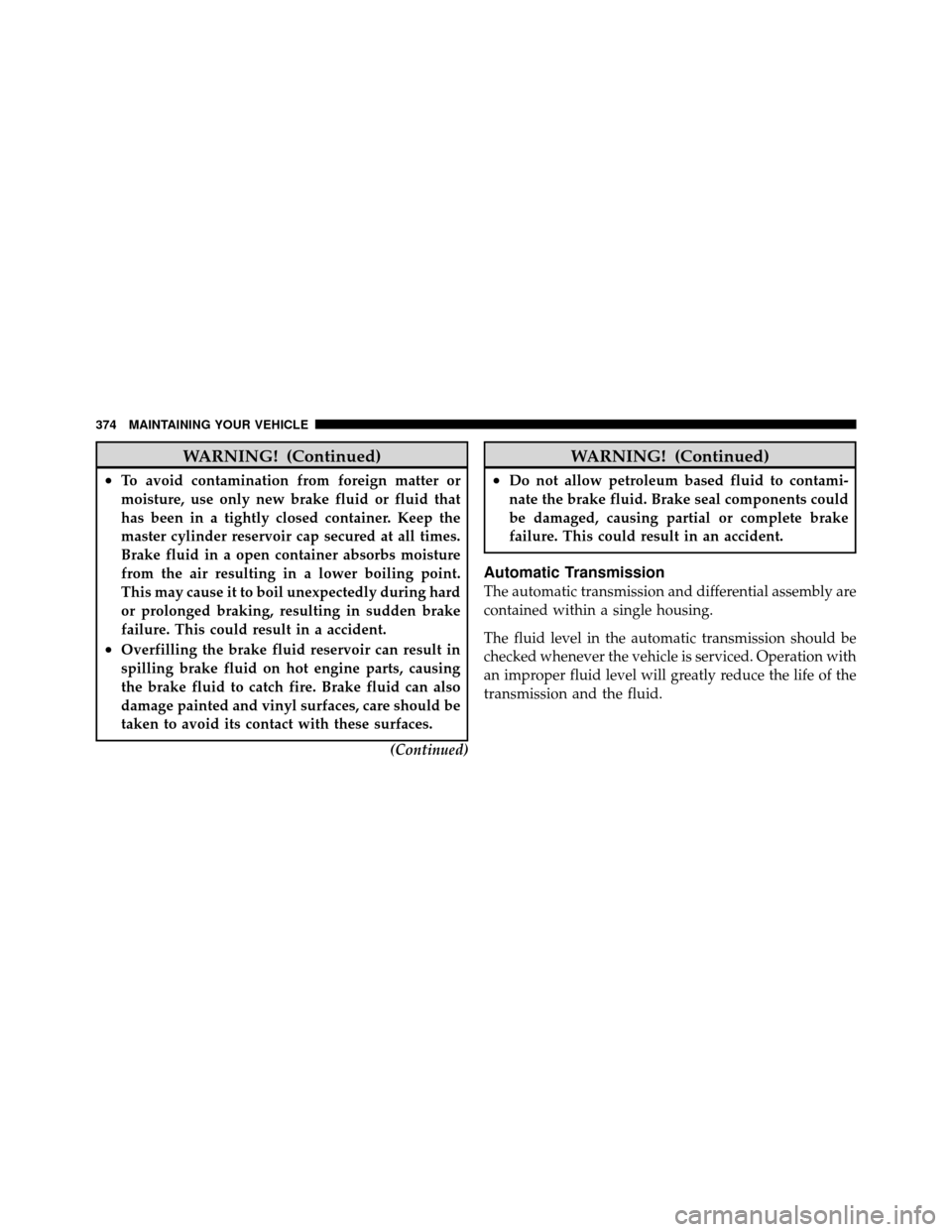

Page 375 of 448
WARNING! (Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that
has been in a tightly closed container. Keep the
master cylinder reservoir cap secured at all times.
Brake fluid in a open container absorbs moisture
from the air resulting in a lower boiling point.
This may cause it to boil unexpectedly during hard
or prolonged braking, resulting in sudden brake
failure. This could result in a accident.
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.(Continued)
WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in an accident.
Automatic Transmission
The automatic transmission and differential assembly are
contained within a single housing.
The fluid level in the automatic transmission should be
checked whenever the vehicle is serviced. Operation with
an improper fluid level will greatly reduce the life of the
transmission and the fluid.
374 MAINTAINING YOUR VEHICLE

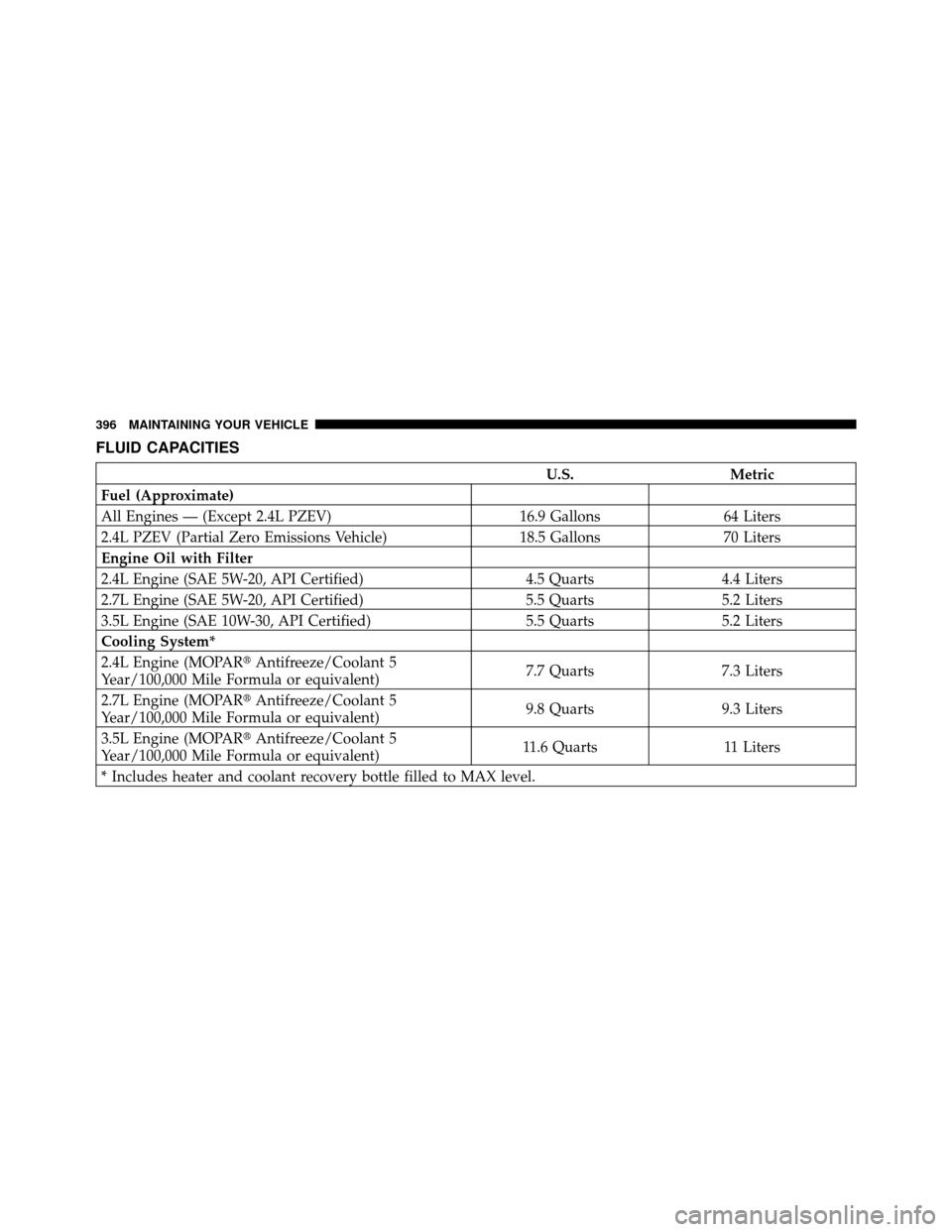

Page 397 of 448
FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.4 Liters
2.7L Engine (SAE 5W-20, API Certified) 5.5 Quarts5.2 Liters
3.5L Engine (SAE 10W-30, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
2.4L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
2.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 9.8 Quarts
9.3 Liters
3.5L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
396 MAINTAINING YOUR VEHICLE

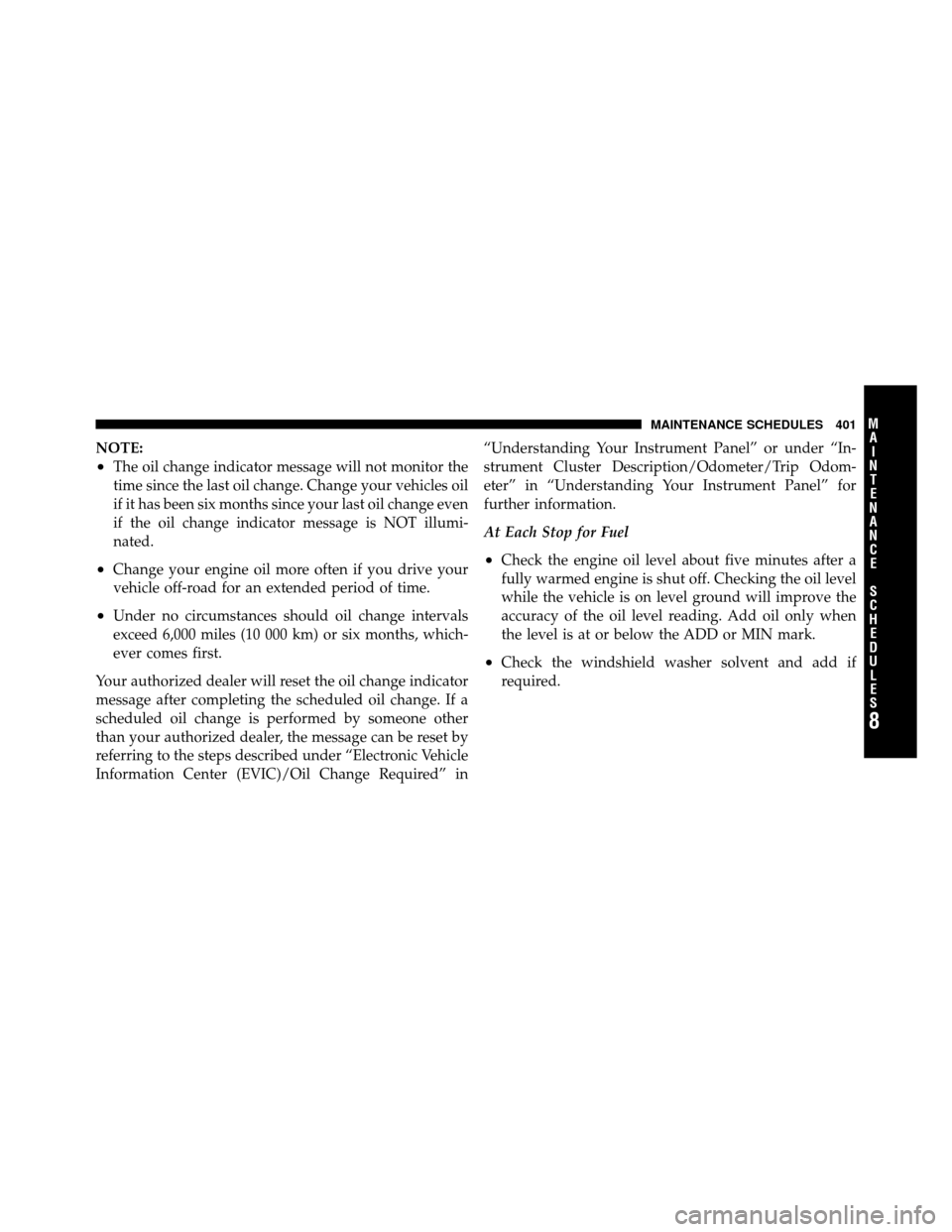

Page 402 of 448
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been six months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 miles (10 000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in “Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
At Each Stop for Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 401

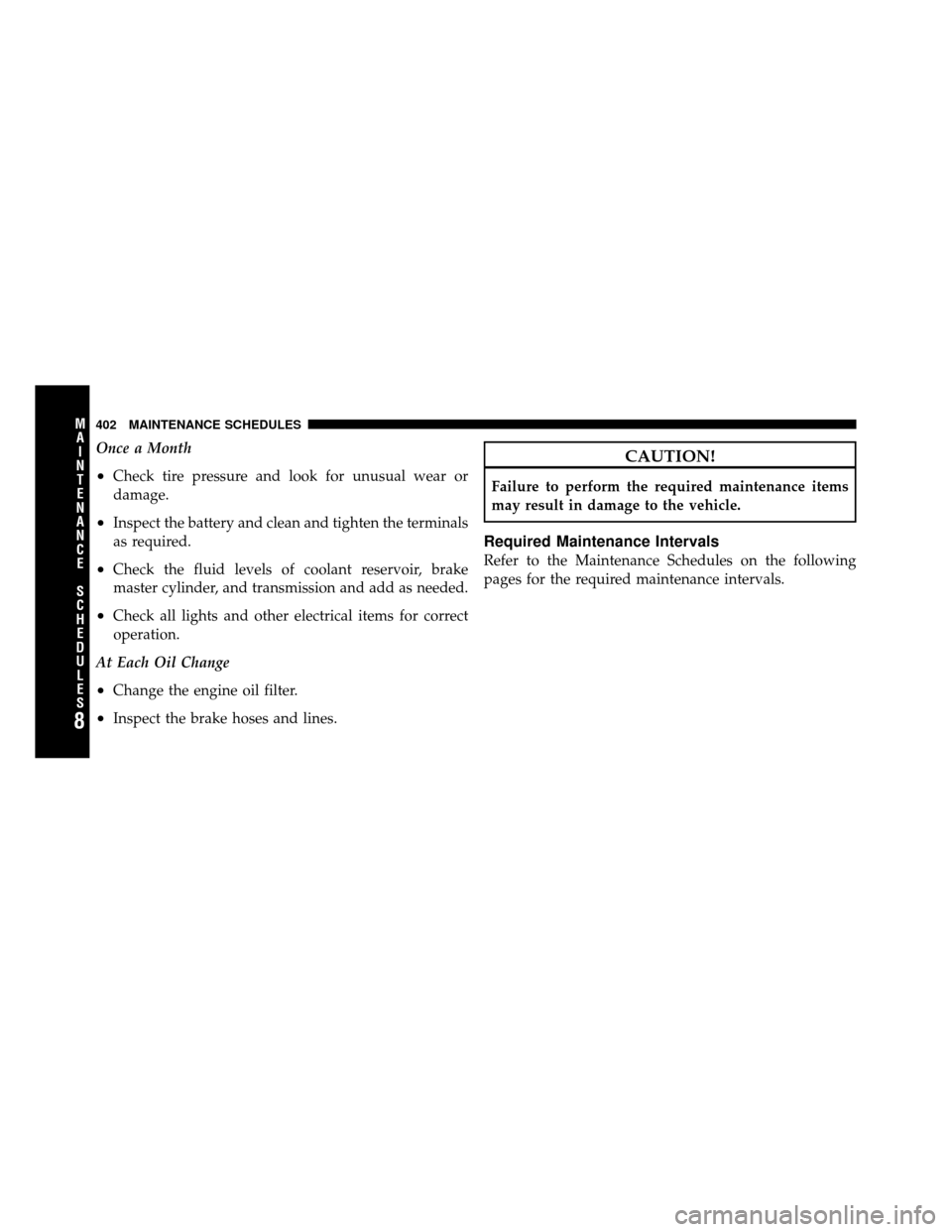

Page 403 of 448
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transmission and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S402 MAINTENANCE SCHEDULES
Page 432 of 448
Contract, Service........................ 421
Coolant Pressure Cap (Radiator Cap) .......... 369
Cooler, Beverage ........................ 140
Cooling System ......................... 367
Adding Coolant (Antifreeze) .............. 368
Coolant Capacity ...................... 396
Coolant Level ...................... 367,370
Disposal of Used Coolant ................ 370
Drain, Flush, and Refill .................. 367
Inspection ........................... 370
Points to Remember .................... 371
Pressure Cap ......................... 369
Radiator Cap ......................... 369
Selection of Coolant (Antifreeze) ......368,396,397
Corrosion Protection ..................... 377
Crankcase Ventilation Module ............... 19
Cruise Control (Speed Control) .............. 118
Cruise Light ........................... 157
Cupholders ...................... 104,133,382Customer Assistance
..................... 419
Customer Programmable Features ............ 171
Daytime Running Lights ................... 110
Dealer Service .......................... 353
Defroster, Rear Window ................... 139
Defroster, Windshield ................82,227,233
Delay (Intermittent) Wipers ................. 114
Diagnostic System, Onboard ................ 350
Dimmer Switch, Headlight ................. 109
Dipsticks Automatic Transaxle ................. 375,376
Oil (Engine) .......................... 354
Power Steering ........................ 259
Disabled Vehicle Towing ................... 341
Disposal Antifreeze (Engine Coolant) ............... 370
Engine Oil ........................... 357
Door Locks ............................. 29
10
INDEX 431
Page 433 of 448
Door Locks, Automatic.................... 30
Door Opener, Garage ..................... 121
Driving On Slippery Surfaces ................... 255
Through Flowing, Rising,
or Shallow Standing Water ............... 256
DVD Player (Video Entertainment System™) .... 220
E-85 Fuel ............................. 305
Electric Rear Window Defrost ............... 139
Electric Remote Mirrors .................... 90
Electrical Power Outlets ................... 130
Electronic Speed Control (Cruise Control) ....... 118
Electronic Stability Program (ESP) ............ 269
Electronic Vehicle Information Center (EVIC) .... 164
Emergency, In Case of Jacking ............................. 329
Jump Starting ......................... 335
Towing ............................. 341 Emergency Trunk Release
.................37,38
Emission Control System Maintenance ......351,400
Engine .......................... 347,348,349
Air Cleaner .......................... 358
Block Heater ......................... 246
Break-In Recommendations ................ 79
Checking Oil Level ..................... 354
Coolant (Antifreeze) ................. 367,397
Cooling ............................. 367
Exhaust Gas Caution .................. 81,304
Fails to Start .......................... 244
Flooded, Starting ...................... 244
Fuel Requirements .................. 300,396
Jump Starting ......................... 335
Oil ........................... 354,396,397
Oil Change Interval ............156,166,355,400
Oil Filler Cap ................ 347,348,349,356
Oil Filter ............................ 357
Oil Filter Disposal ..................... 357
432 INDEX
Page 435 of 448

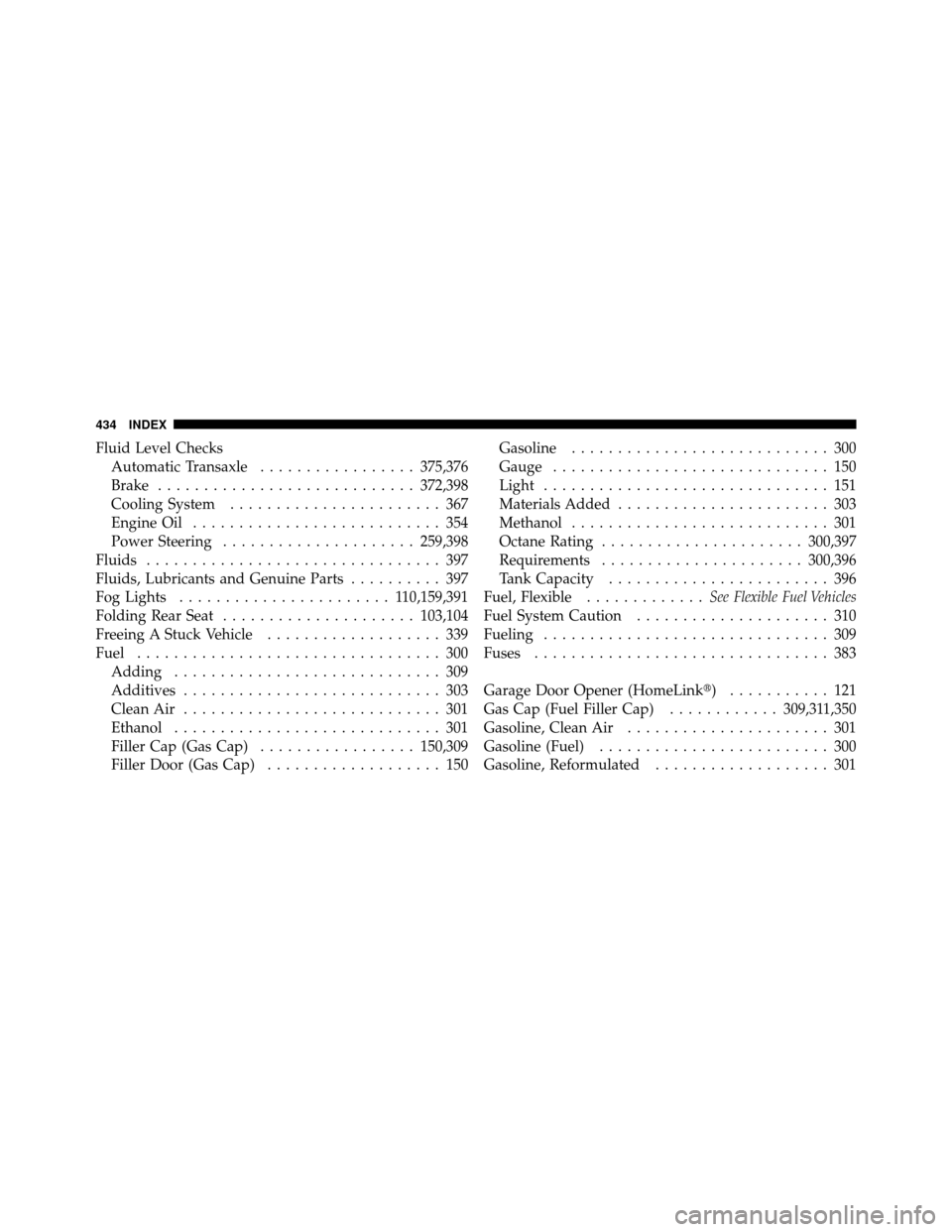

Fluid Level ChecksAutomatic Transaxle ................. 375,376
Brake ............................ 372,398
Cooling System ....................... 367
Engine Oil ........................... 354
Power Steering ..................... 259,398
Fluids ................................ 397
Fluids, Lubricants and Genuine Parts .......... 397
Fog Lights ....................... 1 10,159,391
Folding Rear Seat ..................... 103,104
Freeing A Stuck Vehicle ................... 339
Fuel ................................. 300
Adding ............................. 309
Additives ............................ 303
Clean Air ............................ 301
Ethanol ............................. 301
Filler Cap (Gas Cap) ................. 150,309
Filler Door (Gas Cap) ................... 150 Gasoline
............................ 300
Gauge .............................. 150
Light ............................... 151
Materials Added ....................... 303
Methanol ............................ 301
Octane Rating ...................... 300,397
Requirements ...................... 300,396
Tank Capacity ........................ 396
Fuel, Flexible ............. See Flexible Fuel Vehicles
Fuel System Caution ..................... 310
Fueling ............................... 309
Fuses ................................ 383
Garage Door Opener (HomeLink) ........... 121
Gas Cap (Fuel Filler Cap) ............309,311,350
Gasoline, Clean Air ...................... 301
Gasoline (Fuel) ......................... 300
Gasoline, Reformulated ................... 301
434 INDEX
