DODGE AVENGER 2011 2.G Owners Manual

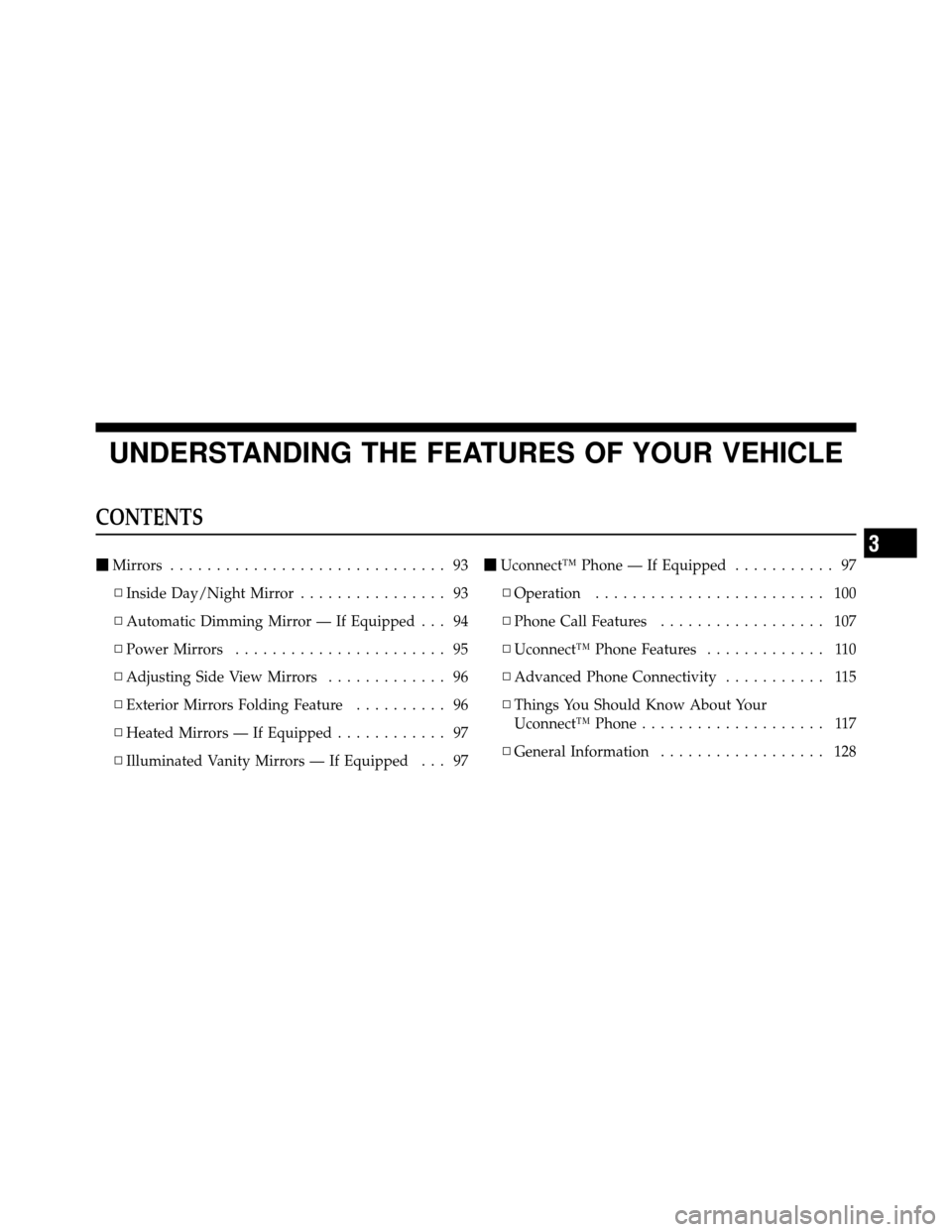

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 93
▫ Inside Day/Night Mirror ................ 93
▫ Automatic Dimming Mirror — If Equipped . . . 94
▫ Power Mirrors ....................... 95
▫ Adjusting Side View Mirrors ............. 96
▫ Exterior Mirrors Folding Feature .......... 96
▫ Heated Mirrors — If Equipped ............ 97
▫ Illuminated Vanity Mirrors — If Equipped . . . 97
Uconnect™ Phone — If Equipped ........... 97
▫ Operation ......................... 100
▫ Phone Call Features .................. 107
▫ Uconnect™ Phone Features ............. 110
▫ Advanced Phone Connectivity ........... 115
▫ Things You Should Know About Your
Uconnect™ Phone .................... 117
▫ General Information .................. 128
3

Voice Command — If Equipped ........... 128
▫ Voice Command System Operation ........ 128
▫ Commands ........................ 129
▫ Voice Training ...................... 133
 Seats .............................. 133
▫ Power Seats — If Equipped ............. 133
▫ Heated Seats — If Equipped ............ 136
▫ Manual Front Seat Adjustments .......... 137
▫ Driver Seat Manual Height Adjuster — If
Equipped .......................... 138
▫ Reclining Seats ...................... 139
▫ Lumbar Support — If Equipped .......... 140
▫ Fold-Flat Front Passenger Seat ........... 140▫
Head Restraints ..................... 141
▫ Folding Rear Seat .................... 145
▫ Folding Rear Seat Center Armrest ........ 146
 To Open And Close The Hood ............ 146
 Lights ............................. 148
▫ Multifunction Lever .................. 148
▫ Headlights And Parking Lights .......... 149
▫ Automatic Headlights — If Equipped ...... 149
▫ Headlight Time Delay ................. 150
▫ Turn Signals ........................ 150
▫ Lane Change Assist ................... 151
▫ High/Low Beam Switch ............... 151
▫ Flash-To-Pass ....................... 151
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

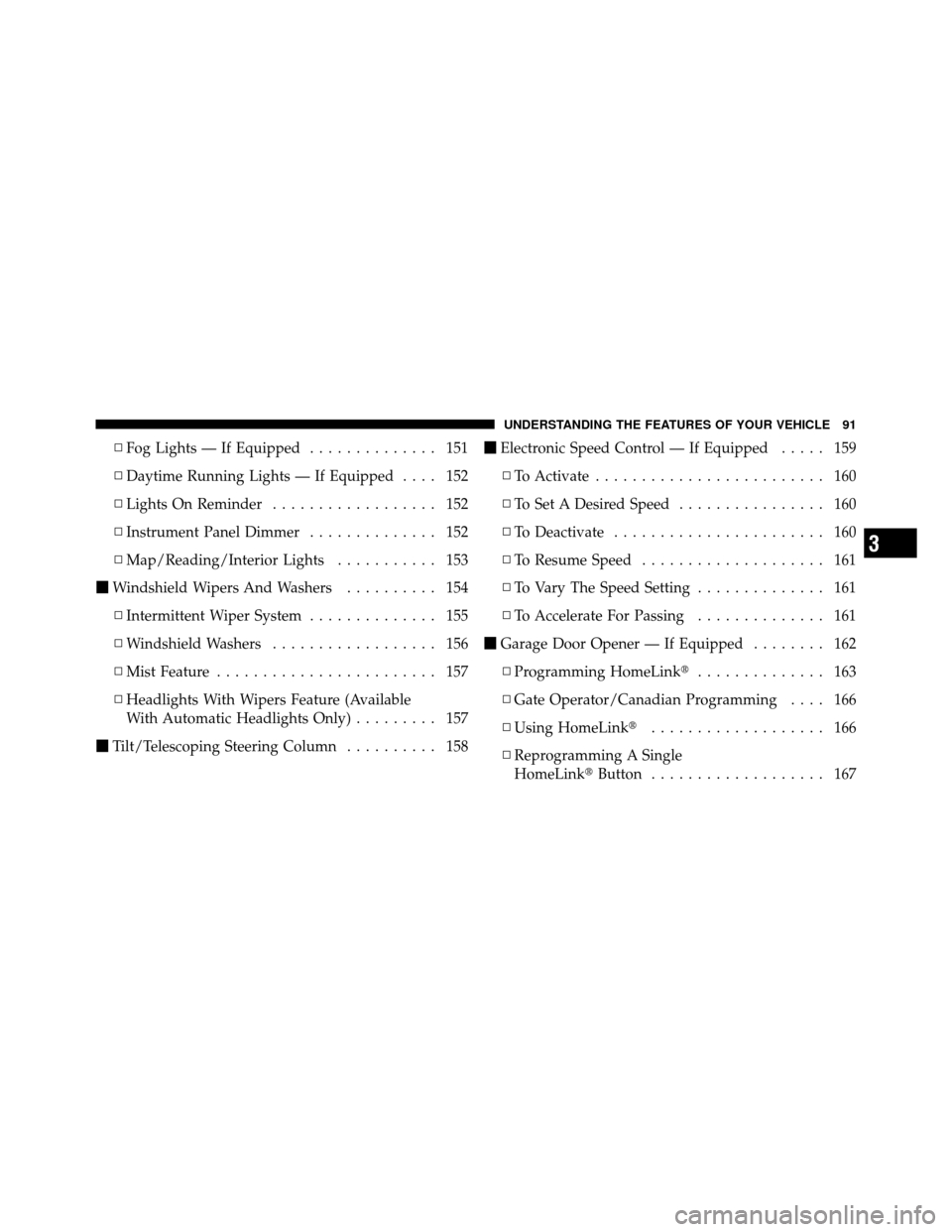

▫Fog Lights — If Equipped .............. 151
▫ Daytime Running Lights — If Equipped .... 152
▫ Lights On Reminder .................. 152
▫ Instrument Panel Dimmer .............. 152
▫ Map/Reading/Interior Lights ........... 153
 Windshield Wipers And Washers .......... 154
▫ Intermittent Wiper System .............. 155
▫ Windshield Washers .................. 156
▫ Mist Feature ........................ 157
▫ Headlights With Wipers Feature (Available
With Automatic Headlights Only) ......... 157
 Tilt/Telescoping Steering Column .......... 158
Electronic Speed Control — If Equipped ..... 159
▫ To Activate ......................... 160
▫ To Set A Desired Speed ................ 160
▫ To Deactivate ....................... 160
▫ To Resume Speed .................... 161
▫ To Vary The Speed Setting .............. 161
▫ To Accelerate For Passing .............. 161
 Garage Door Opener — If Equipped ........ 162
▫ Programming HomeLink .............. 163
▫ Gate Operator/Canadian Programming .... 166
▫ Using HomeLink ................... 166
▫ Reprogramming A Single
HomeLink Button................... 167
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

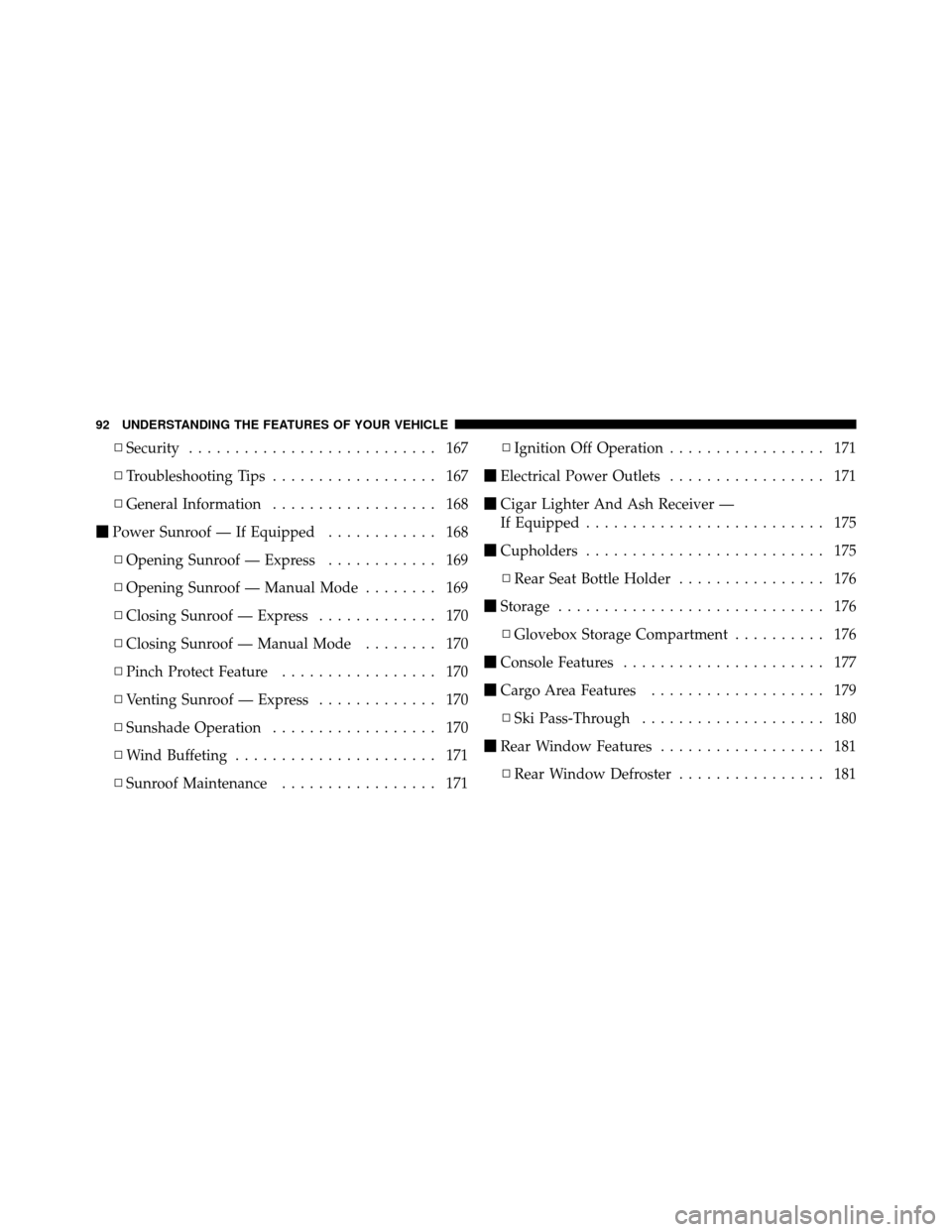

▫Security ........................... 167
▫ Troubleshooting Tips .................. 167
▫ General Information .................. 168
 Power Sunroof — If Equipped ............ 168
▫ Opening Sunroof — Express ............ 169
▫ Opening Sunroof — Manual Mode ........ 169
▫ Closing Sunroof — Express ............. 170
▫ Closing Sunroof — Manual Mode ........ 170
▫ Pinch Protect Feature ................. 170
▫ Venting Sunroof — Express ............. 170
▫ Sunshade Operation .................. 170
▫ Wind Buffeting ...................... 171
▫ Sunroof Maintenance ................. 171 ▫
Ignition Off Operation ................. 171
 Electrical Power Outlets ................. 171
 Cigar Lighter And Ash Receiver —
If Equipped .......................... 175
 Cupholders .......................... 175
▫ Rear Seat Bottle Holder ................ 176
 Storage ............................. 176
▫ Glovebox Storage Compartment .......... 176
 Console Features ...................... 177
 Cargo Area Features ................... 179
▫ Ski Pass-Through .................... 180
 Rear Window Features .................. 181
▫ Rear Window Defroster ................ 181
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

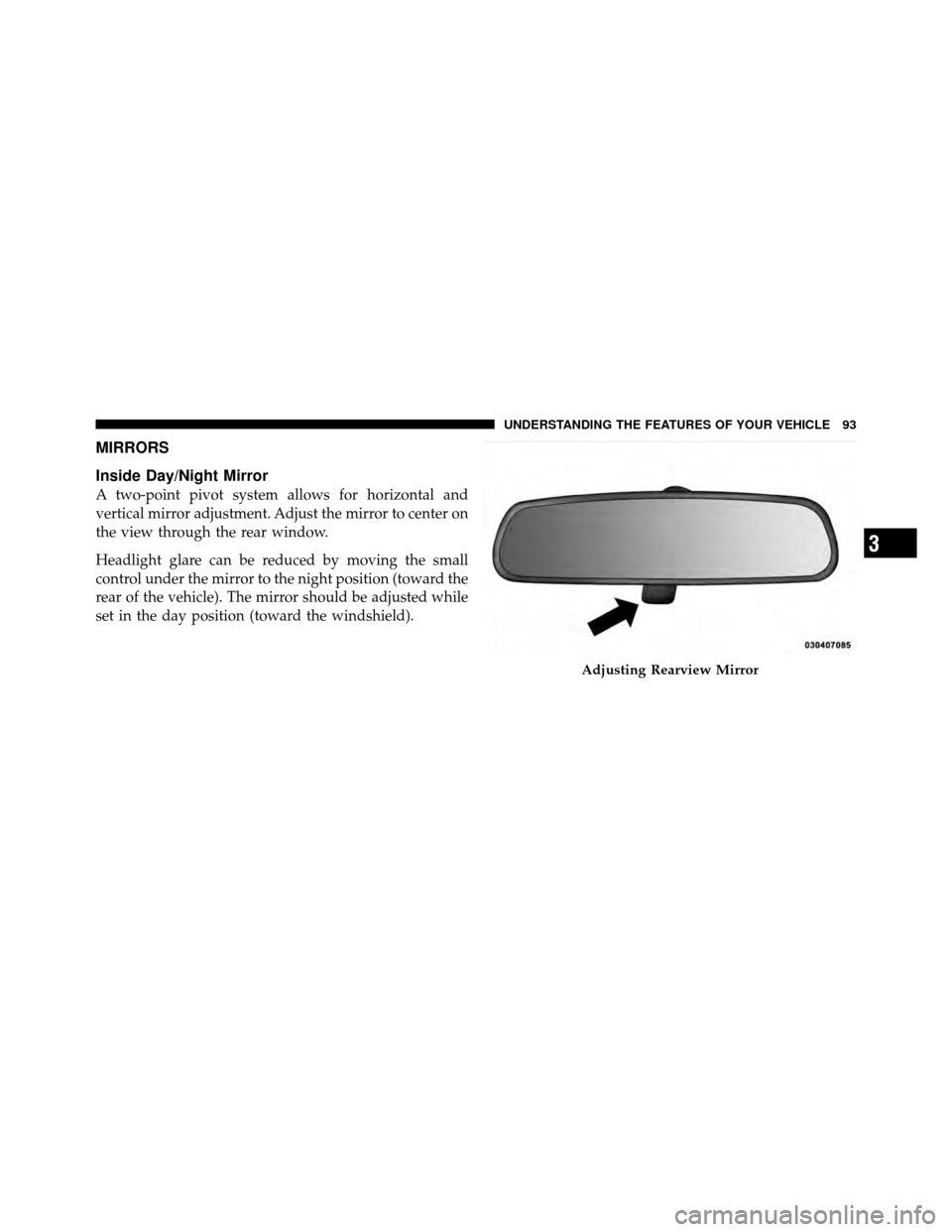

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

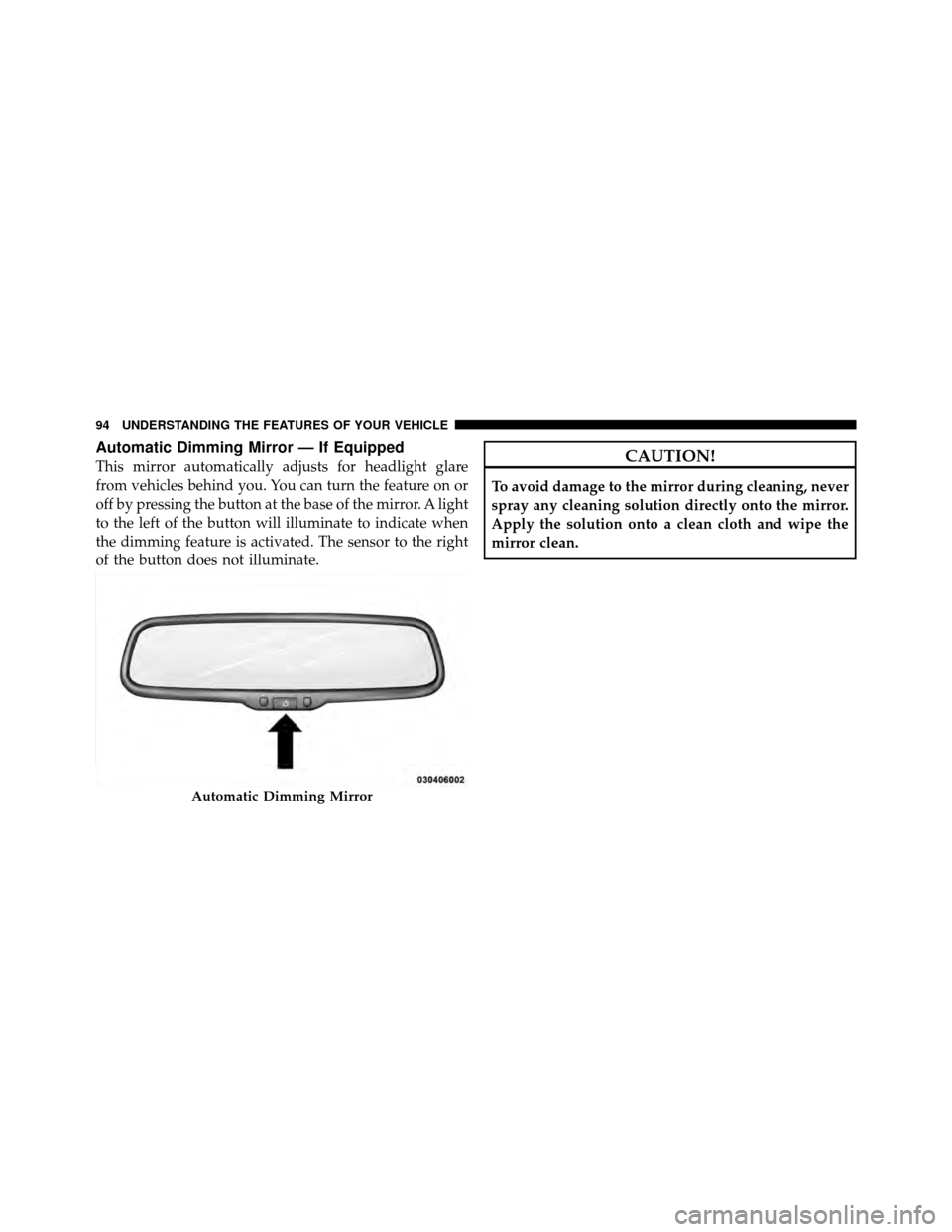

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

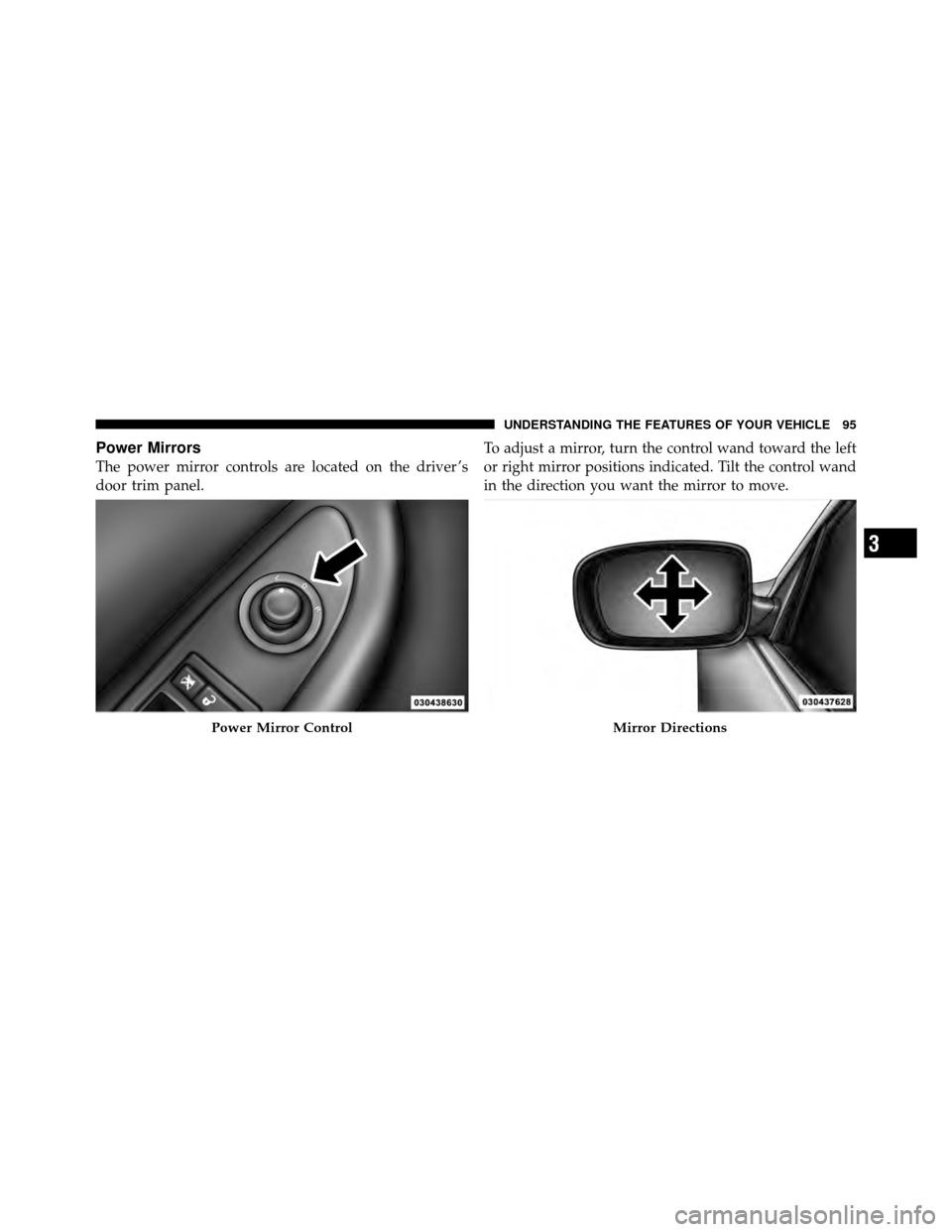

Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel.To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move.
Power Mirror ControlMirror Directions
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

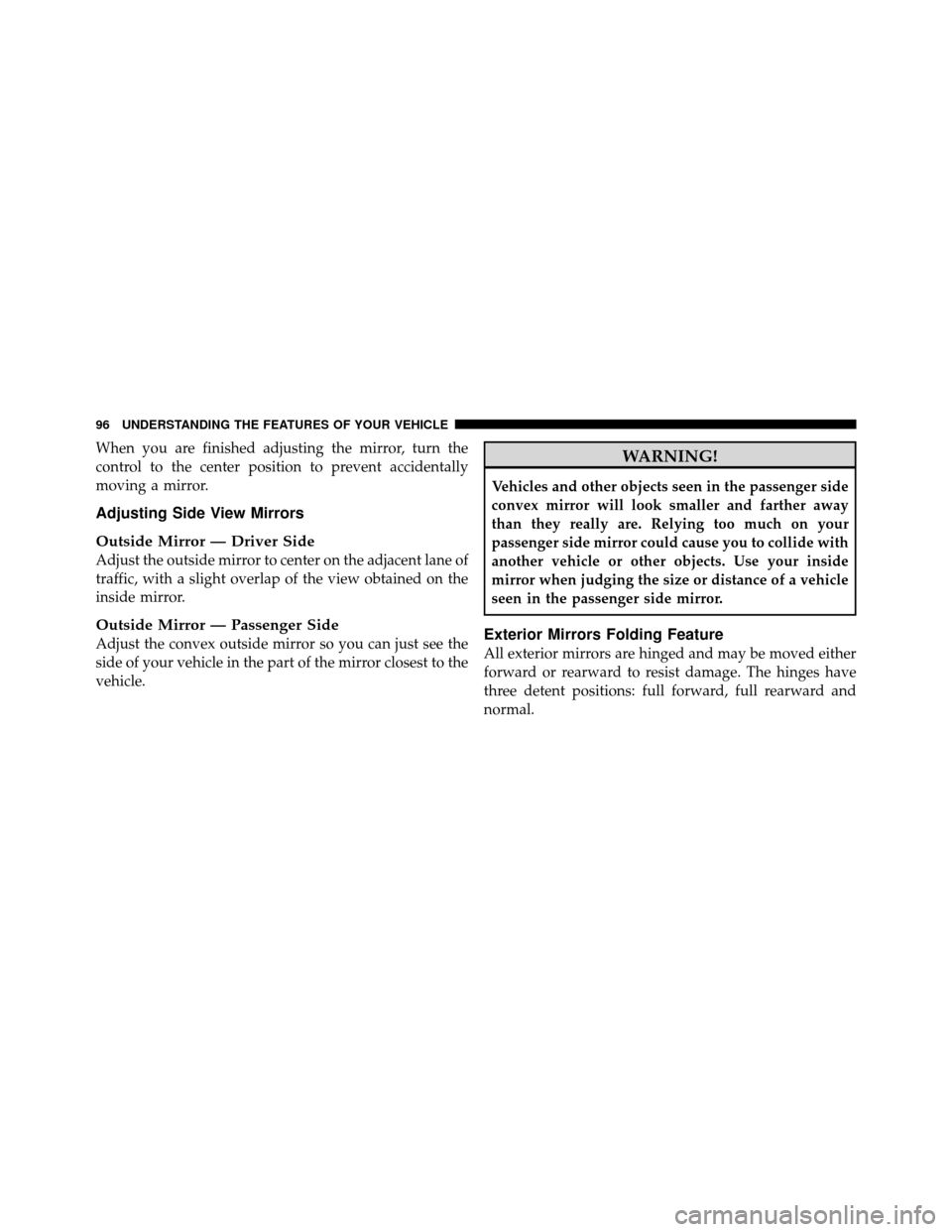

When you are finished adjusting the mirror, turn the
control to the center position to prevent accidentally
moving a mirror.
Adjusting Side View Mirrors
Outside Mirror — Driver Side
Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other objects. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions: full forward, full rearward and
normal.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

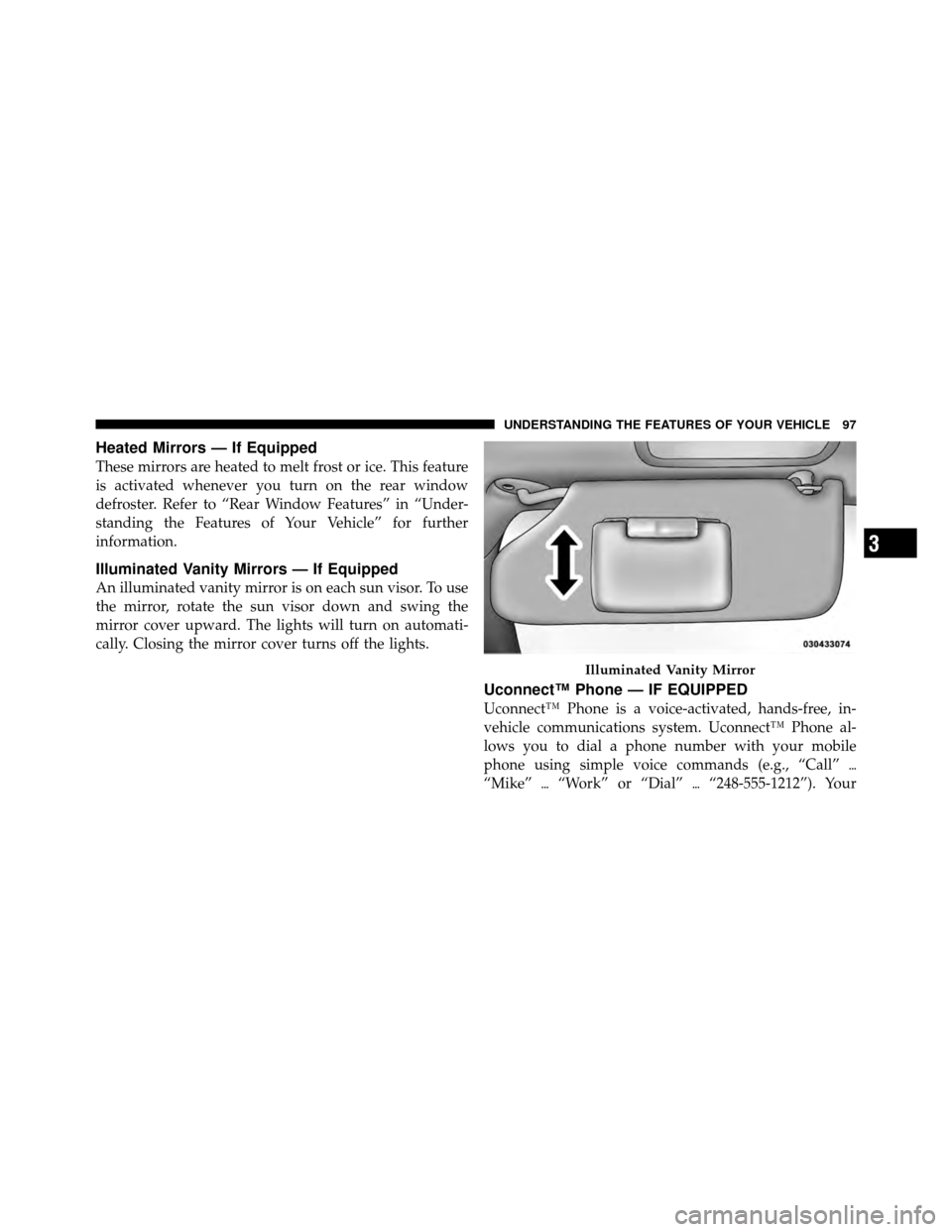

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Under-
standing the Features of Your Vehicle” for further
information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the lights.
Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”\b
“Mike” \b“Work” or “Dial” \b“248-555-1212”). Your
Illuminated Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

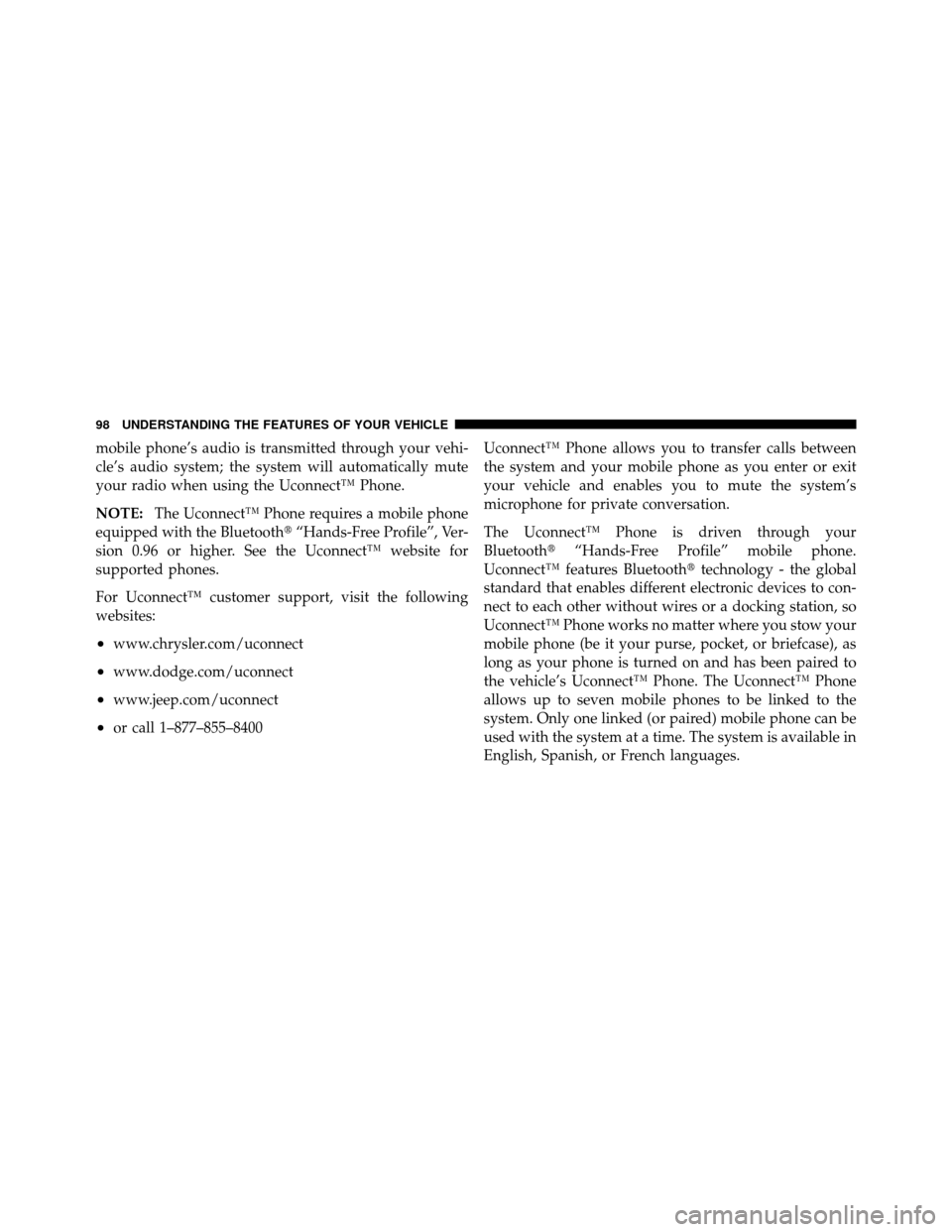

mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
NOTE:The Uconnect™ Phone requires a mobile phone
equipped with the Bluetooth “Hands-Free Profile”, Ver-
sion 0.96 or higher. See the Uconnect™ website for
supported phones.
For Uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400 Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth
“Hands-Free Profile” mobile phone.
Uconnect™ features Bluetooth technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
