DODGE AVENGER 2011 2.G Owners Manual

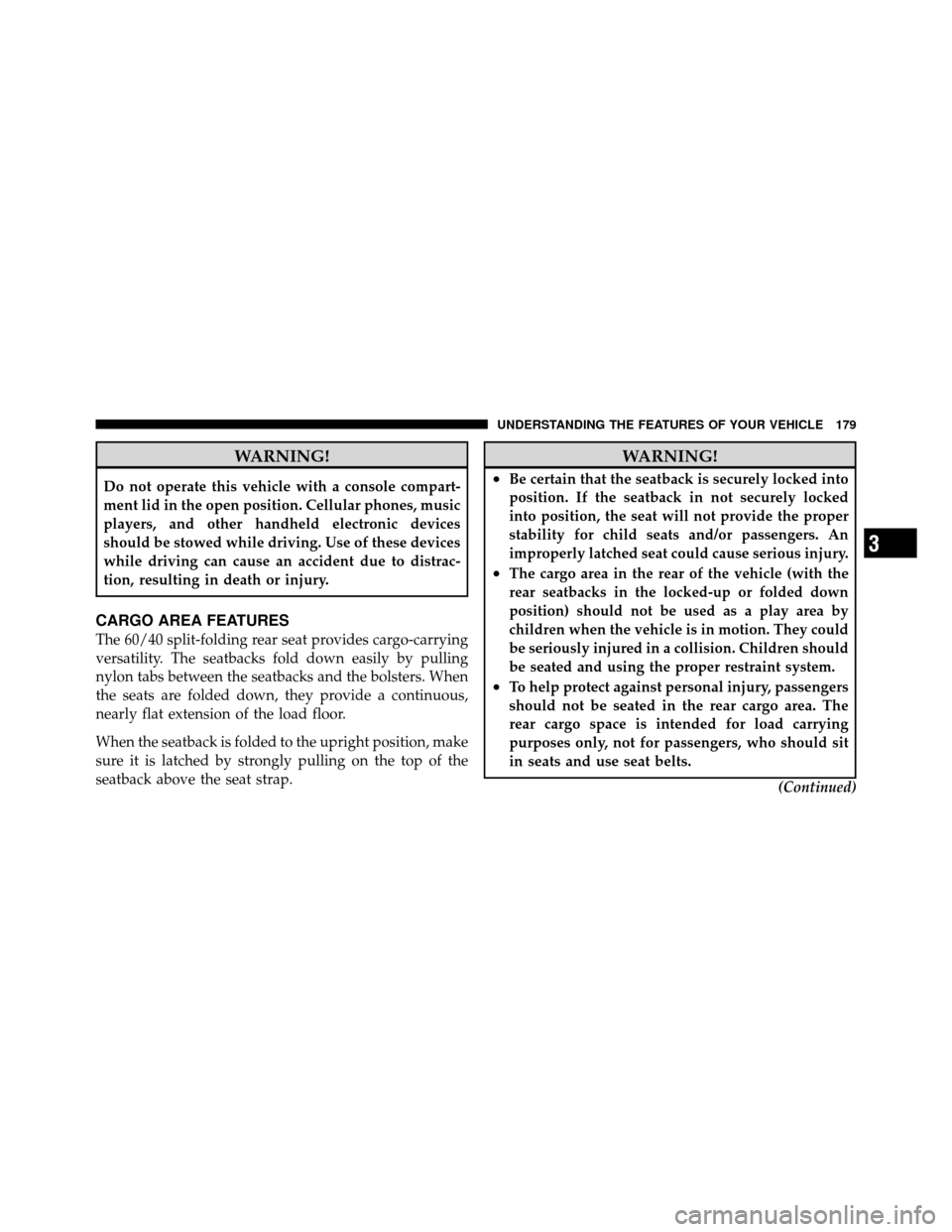

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
CARGO AREA FEATURES
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children should
be seated and using the proper restraint system.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

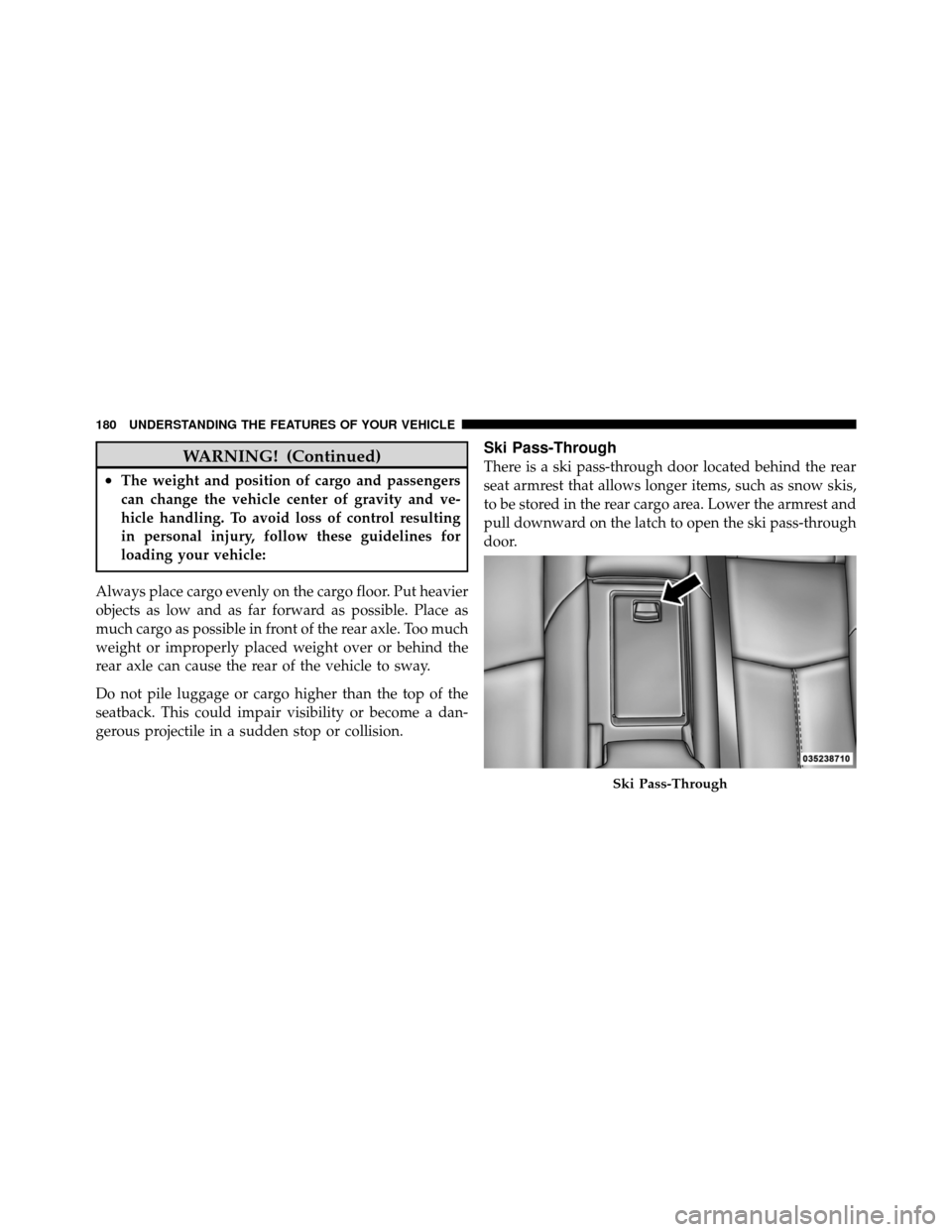

WARNING! (Continued)
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
Always place cargo evenly on the cargo floor. Put heavier
objects as low and as far forward as possible. Place as
much cargo as possible in front of the rear axle. Too much
weight or improperly placed weight over or behind the
rear axle can cause the rear of the vehicle to sway.
Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a dan-
gerous projectile in a sudden stop or collision.
Ski Pass-Through
There is a ski pass-through door located behind the rear
seat armrest that allows longer items, such as snow skis,
to be stored in the rear cargo area. Lower the armrest and
pull downward on the latch to open the ski pass-through
door.
Ski Pass-Through
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

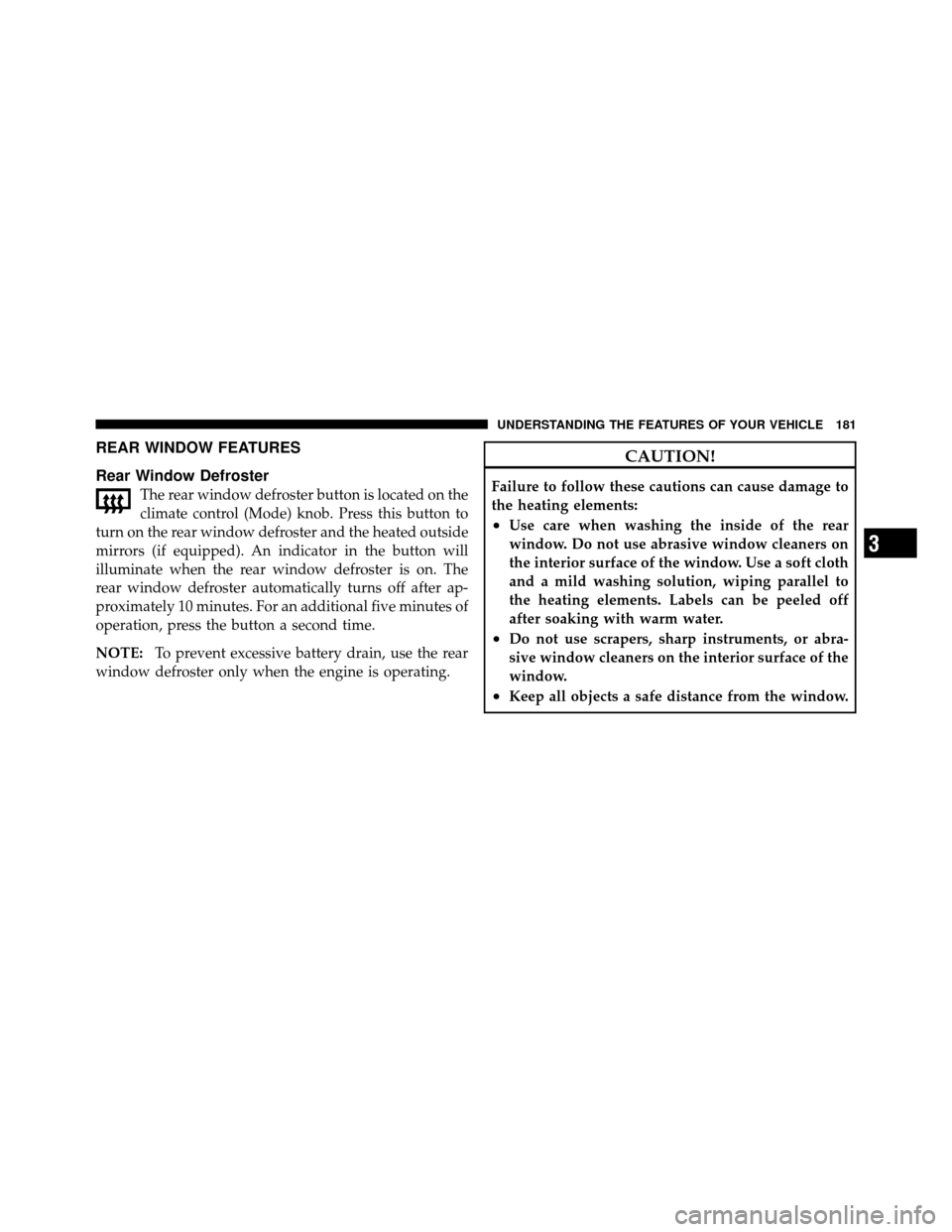

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

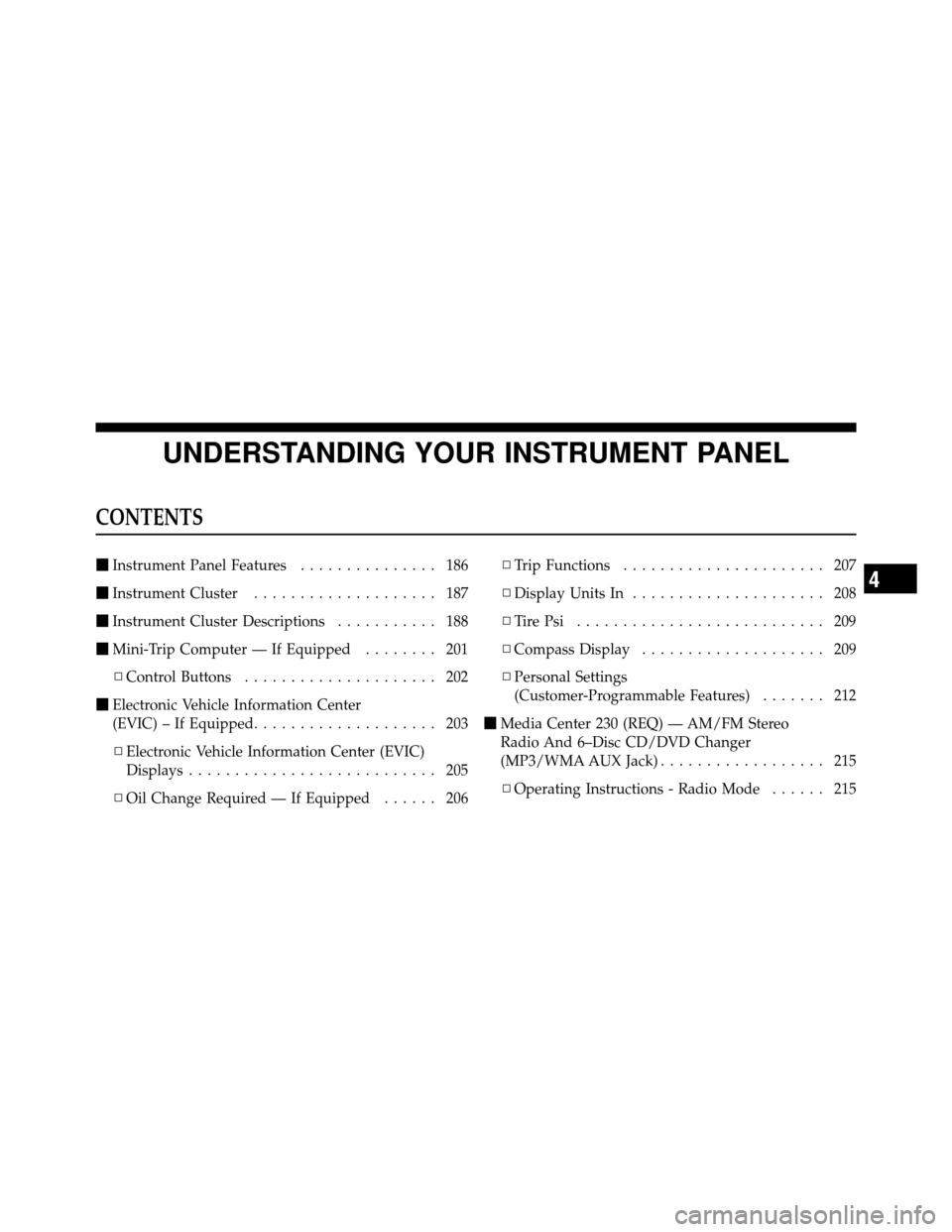

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 186
 Instrument Cluster .................... 187
 Instrument Cluster Descriptions ........... 188
 Mini-Trip Computer — If Equipped ........ 201
▫ Control Buttons ..................... 202
 Electronic Vehicle Information Center
(EVIC) – If Equipped .................... 203
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 205
▫ Oil Change Required — If Equipped ...... 206▫
Trip Functions ...................... 207
▫ Display Units In ..................... 208
▫ TirePsi ........................... 209
▫ Compass Display .................... 209
▫ Personal Settings
(Customer-Programmable Features) ....... 212
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 215
▫ Operating Instructions - Radio Mode ...... 215
4

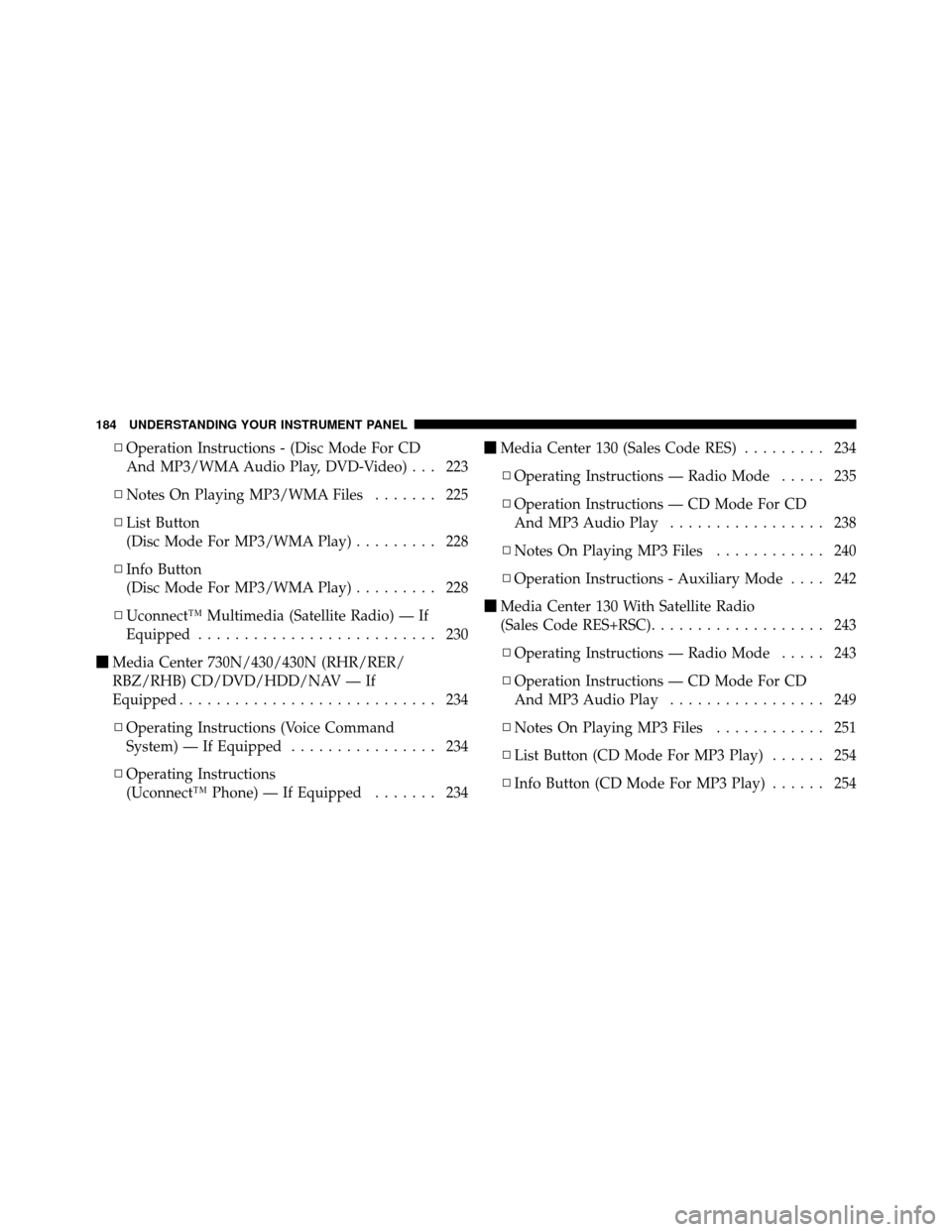

▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 223
▫ Notes On Playing MP3/WMA Files ....... 225
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 228
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 228
▫ Uconnect™ Multimedia (Satellite Radio) — If
Equipped .......................... 230
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV — If
Equipped ............................ 234
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 234
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 234
Media Center 130 (Sales Code RES) ......... 234
▫ Operating Instructions — Radio Mode ..... 235
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 238
▫ Notes On Playing MP3 Files ............ 240
▫ Operation Instructions - Auxiliary Mode .... 242
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 243
▫ Operating Instructions — Radio Mode ..... 243
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 249
▫ Notes On Playing MP3 Files ............ 251
▫ List Button (CD Mode For MP3 Play) ...... 254
▫ Info Button (CD Mode For MP3 Play) ...... 254
184 UNDERSTANDING YOUR INSTRUMENT PANEL

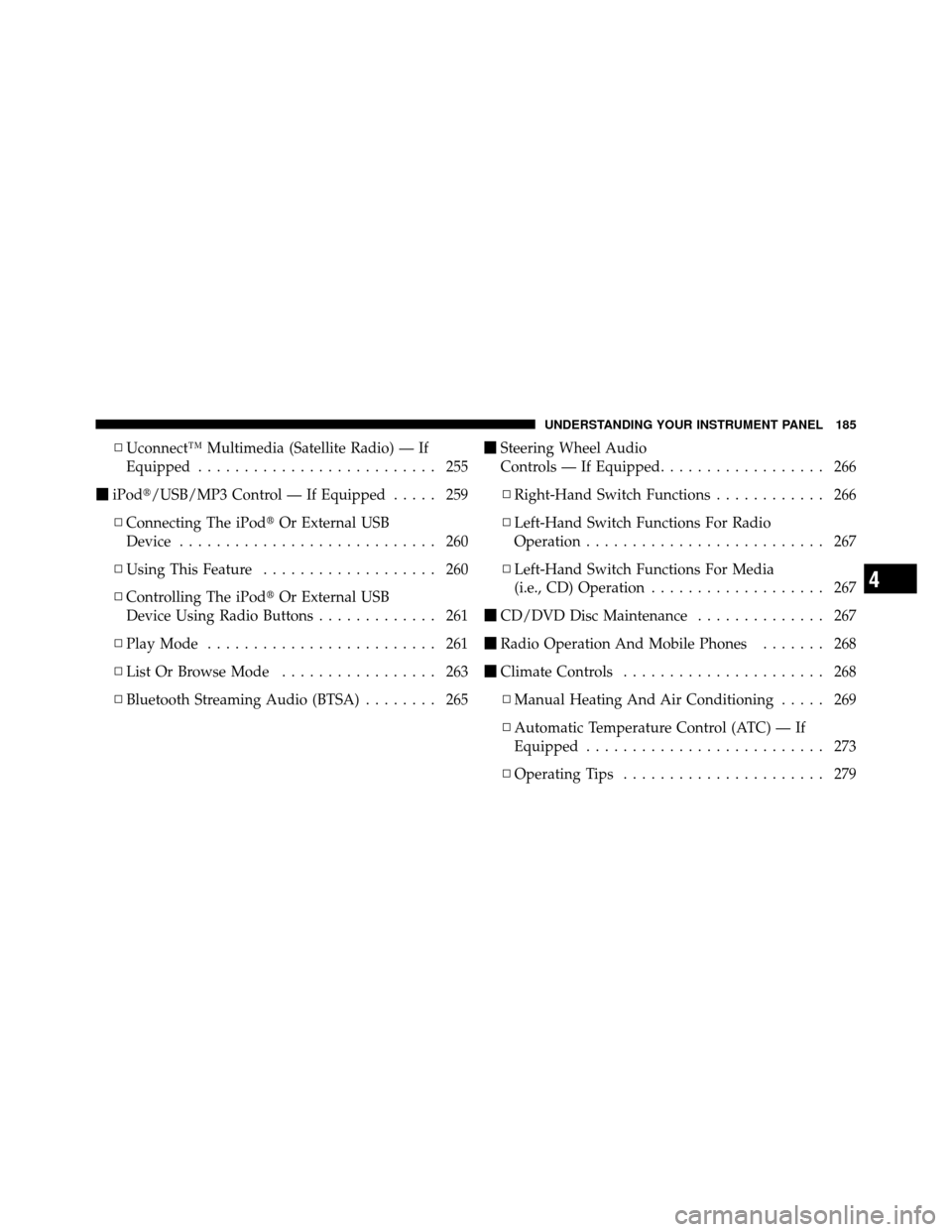

▫Uconnect™ Multimedia (Satellite Radio) — If
Equipped .......................... 255
 iPod/USB/MP3 Control — If Equipped ..... 259
▫ Connecting The iPod Or External USB
Device ............................ 260
▫ Using This Feature ................... 260
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 261
▫ Play Mode ......................... 261
▫ List Or Browse Mode ................. 263
▫ Bluetooth Streaming Audio (BTSA) ........ 265
Steering Wheel Audio
Controls — If Equipped .................. 266
▫ Right-Hand Switch Functions ............ 266
▫ Left-Hand Switch Functions For Radio
Operation .......................... 267
▫ Left-Hand Switch Functions For Media
(i.e., CD) Operation ................... 267
 CD/DVD Disc Maintenance .............. 267
 Radio Operation And Mobile Phones ....... 268
 Climate Controls ...................... 268
▫ Manual Heating And Air Conditioning ..... 269
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 273
▫ Operating Tips ...................... 279
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

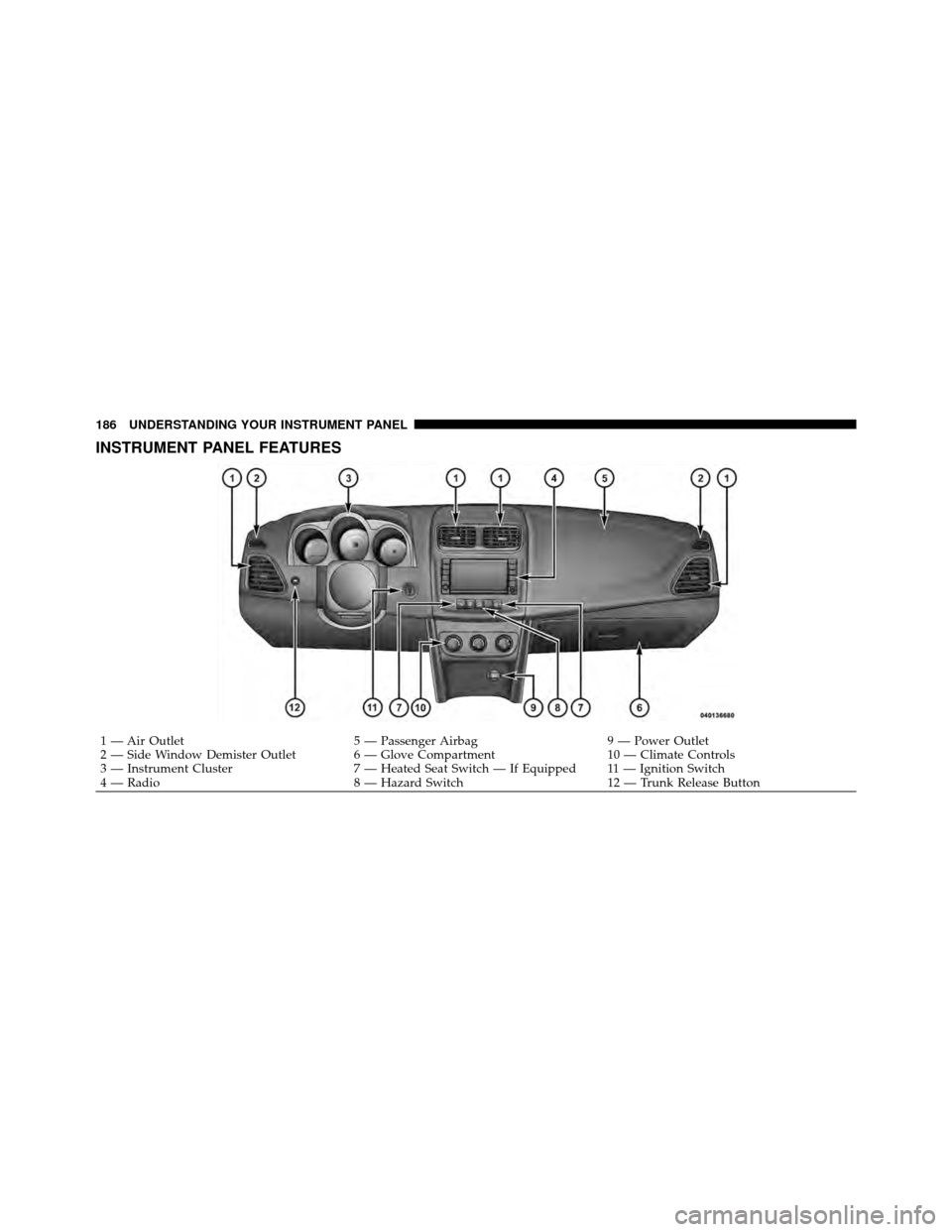

INSTRUMENT PANEL FEATURES
1 — Air Outlet5 — Passenger Airbag9 — Power Outlet
2 — Side Window Demister Outlet 6 — Glove Compartment 10 — Climate Controls
3 — Instrument Cluster 7 — Heated Seat Switch — If Equipped 11 — Ignition Switch
4 — Radio 8 — Hazard Switch12 — Trunk Release Button
186 UNDERSTANDING YOUR INSTRUMENT PANEL

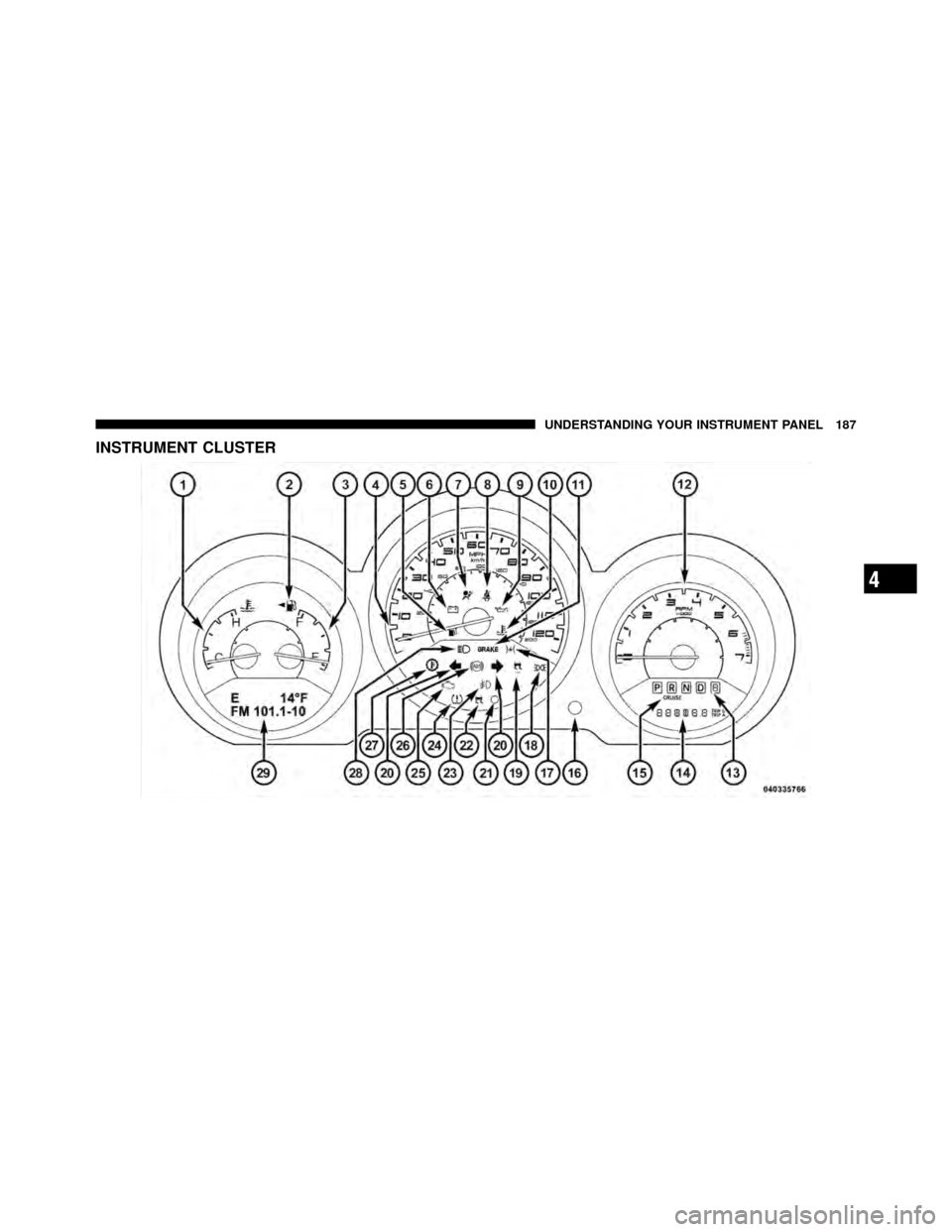

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

INSTRUMENT CLUSTER DESCRIPTIONS
1. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading below the red area of the gauge shows
that the engine cooling system is operating properly. The
gauge pointer may show a higher than normal tempera-
ture when driving in hot weather, up mountain grades, in
heavy stop and go traffic, or when towing a trailer.
If the pointer rises to theH(red) mark, the instrument
cluster will sound a chime. Pull over and stop the vehicle.
Idle the vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If the
pointer remains on the H(red) mark, turn the engine off
immediately and call for service.
There are steps that you can take to slow down an
impending overheat condition. If your air conditioning is
on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to Floor and
the Fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
2. Fuel Door Reminder
This is a reminder that the Fuel Filler Door is
located on the left side of the vehicle.
3. Fuel Gauge
When the ignition switch is in the ON/RUN position, the
pointer will show the level of fuel remaining in the fuel
tank.
4. Speedometer
Indicates the vehicle speed in miles per hour (MPH) and
kilometers per hour (km/h).
188 UNDERSTANDING YOUR INSTRUMENT PANEL
