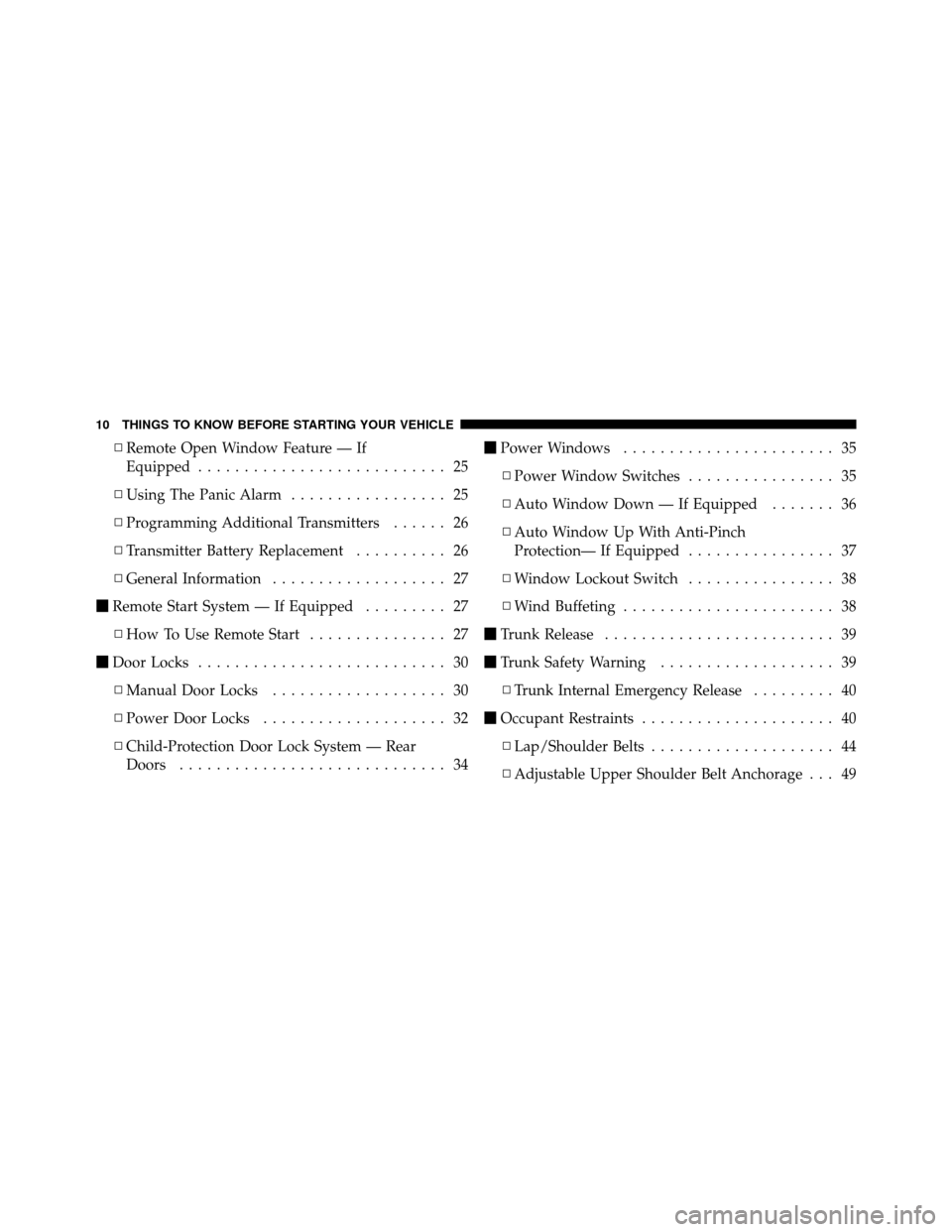

Page 12 of 494
▫Remote Open Window Feature — If
Equipped ........................... 25
▫ Using The Panic Alarm ................. 25
▫ Programming Additional Transmitters ...... 26
▫ Transmitter Battery Replacement .......... 26
▫ General Information ................... 27
Remote Start System — If Equipped ......... 27
▫ How To Use Remote Start ............... 27
Door Locks ........................... 30
▫ Manual Door Locks ................... 30
▫ Power Door Locks .................... 32
▫ Child-Protection Door Lock System — Rear
Doors ............................. 34
Power Windows ....................... 35
▫ Power Window Switches ................ 35
▫ Auto Window Down — If Equipped ....... 36
▫ Auto Window Up With Anti-Pinch
Protection— If Equipped ................ 37
▫ Window Lockout Switch ................ 38
▫ Wind Buffeting ....................... 38
Trunk Release ......................... 39
Trunk Safety Warning ................... 39
▫ Trunk Internal Emergency Release ......... 40
Occupant Restraints ..................... 40
▫ Lap/Shoulder Belts .................... 44
▫ Adjustable Upper Shoulder Belt Anchorage . . . 49
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

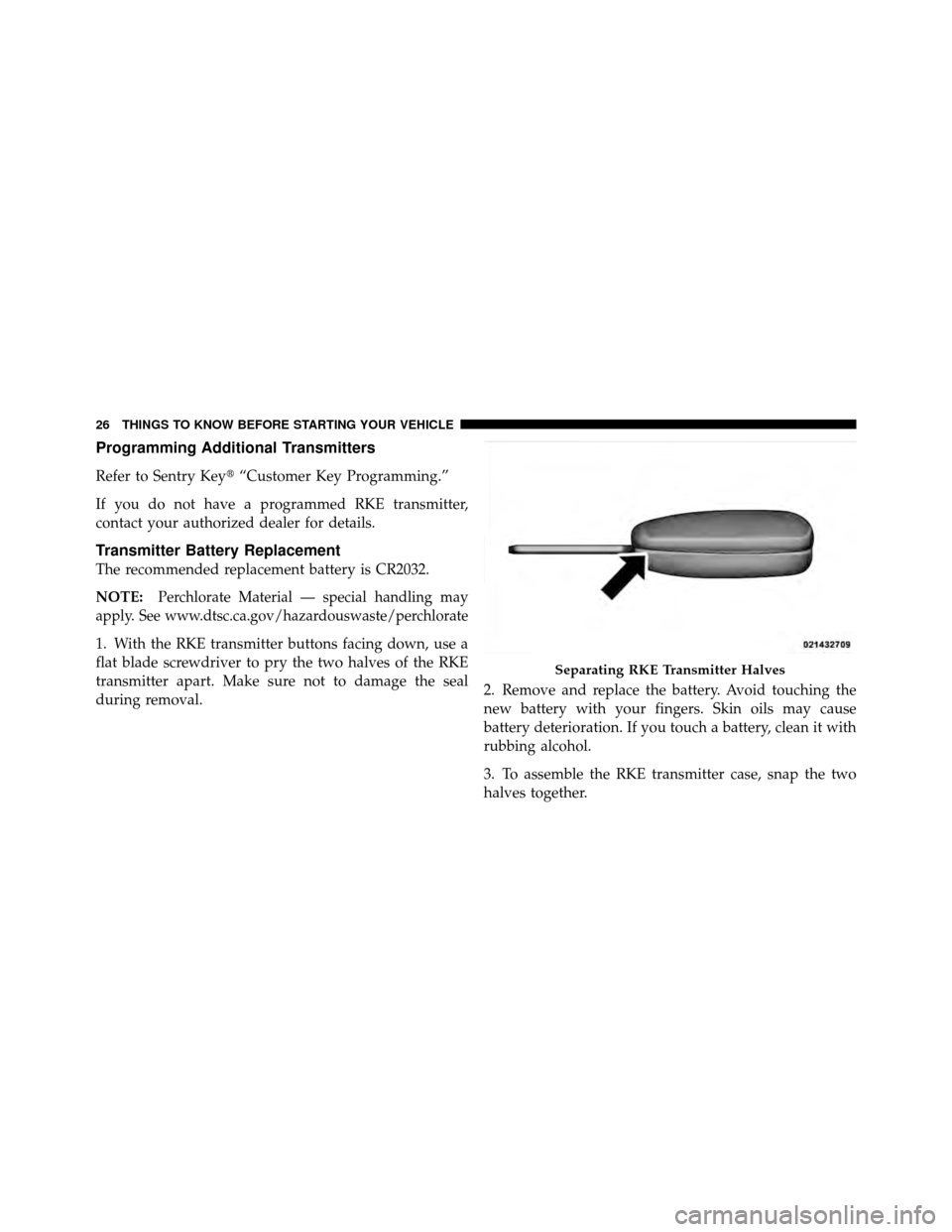

Page 28 of 494
Programming Additional Transmitters
Refer to Sentry Key“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material — special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. With the RKE transmitter buttons facing down, use a
flat blade screwdriver to pry the two halves of the RKE
transmitter apart. Make sure not to damage the seal
during removal. 2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the RKE transmitter case, snap the two
halves together.
Separating RKE Transmitter Halves
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

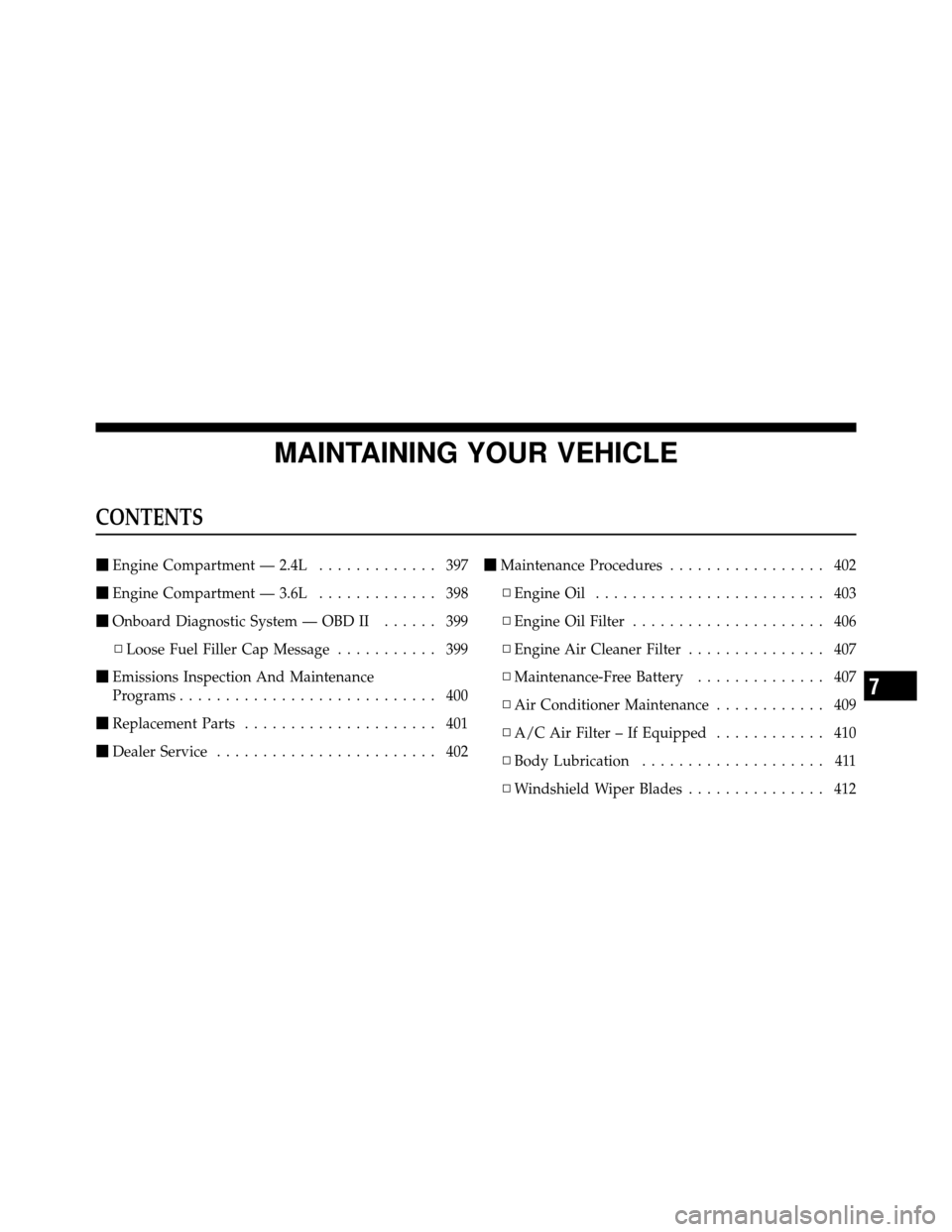

Page 397 of 494
MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 397
Engine Compartment — 3.6L ............. 398
Onboard Diagnostic System — OBD II ...... 399
▫ Loose Fuel Filler Cap Message ........... 399
Emissions Inspection And Maintenance
Programs ............................ 400
Replacement Parts ..................... 401
Dealer Service ........................ 402
Maintenance Procedures ................. 402
▫ Engine Oil ......................... 403
▫ Engine Oil Filter ..................... 406
▫ Engine Air Cleaner Filter ............... 407
▫ Maintenance-Free Battery .............. 407
▫ Air Conditioner Maintenance ............ 409
▫ A/C Air Filter – If Equipped ............ 410
▫ Body Lubrication .................... 411
▫ Windshield Wiper Blades ............... 412
7

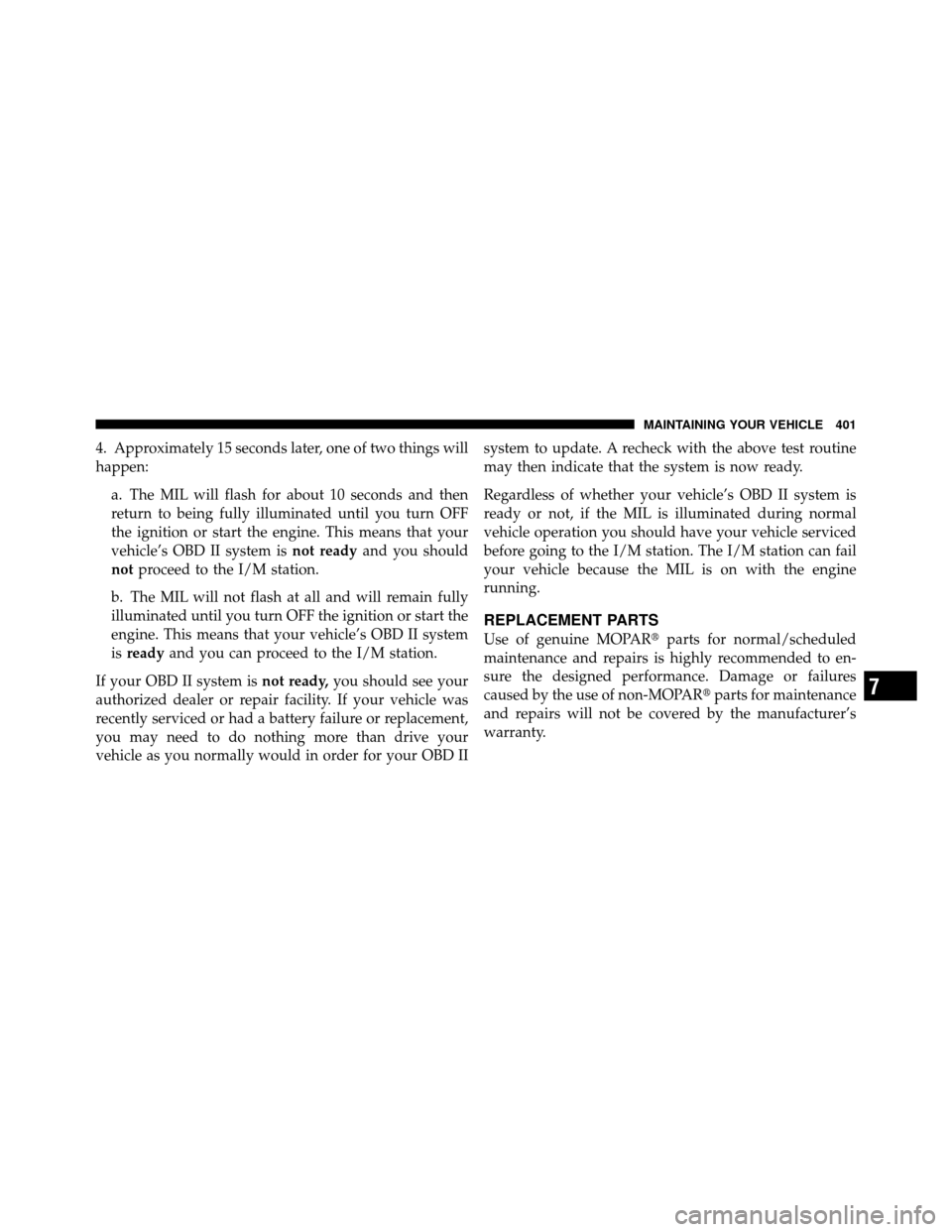

Page 403 of 494
4. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
7
MAINTAINING YOUR VEHICLE 401

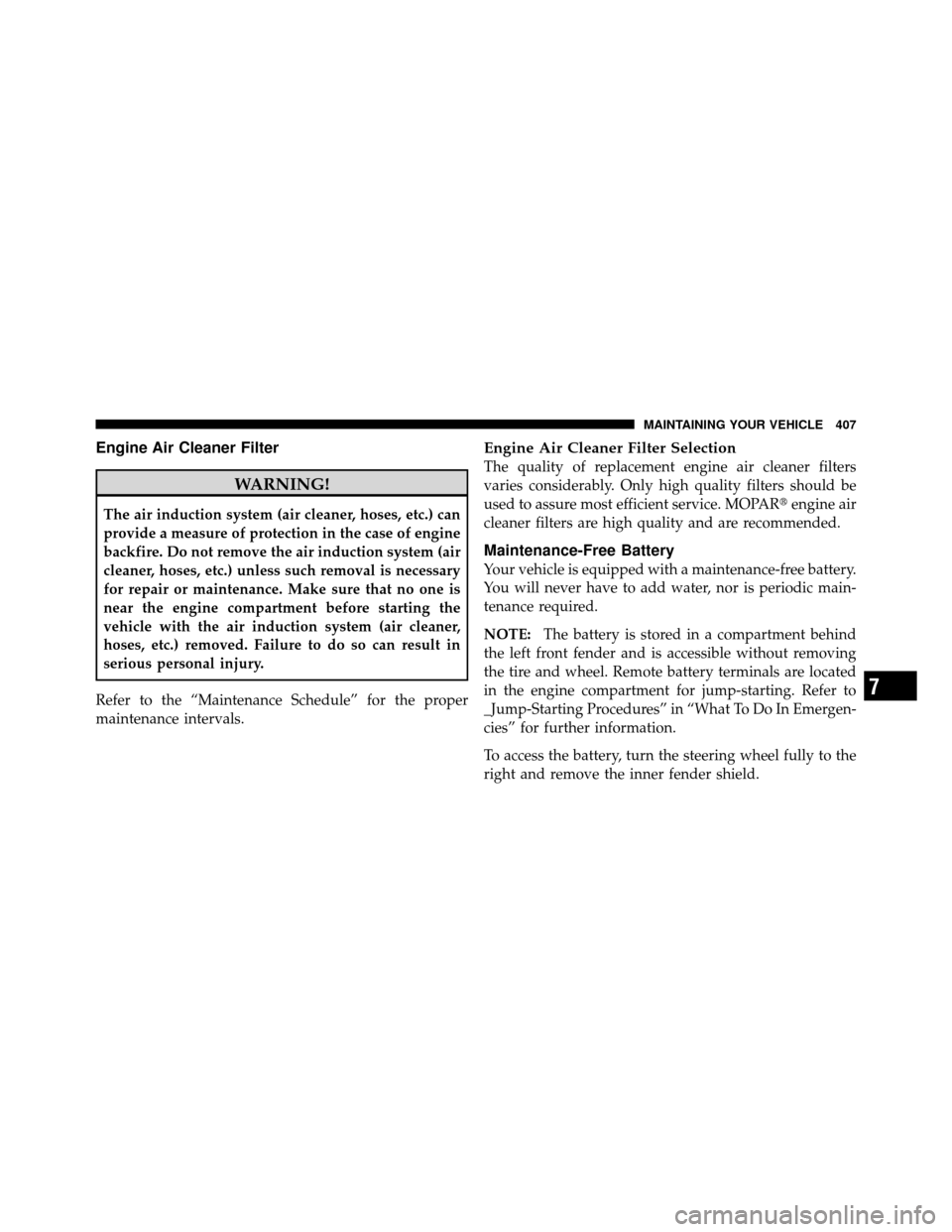

Page 409 of 494
Engine Air Cleaner Filter
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR engine air
cleaner filters are high quality and are recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE: The battery is stored in a compartment behind
the left front fender and is accessible without removing
the tire and wheel. Remote battery terminals are located
in the engine compartment for jump-starting. Refer to
_Jump-Starting Procedures” in “What To Do In Emergen-
cies” for further information.
To access the battery, turn the steering wheel fully to the
right and remove the inner fender shield.
7
MAINTAINING YOUR VEHICLE 407

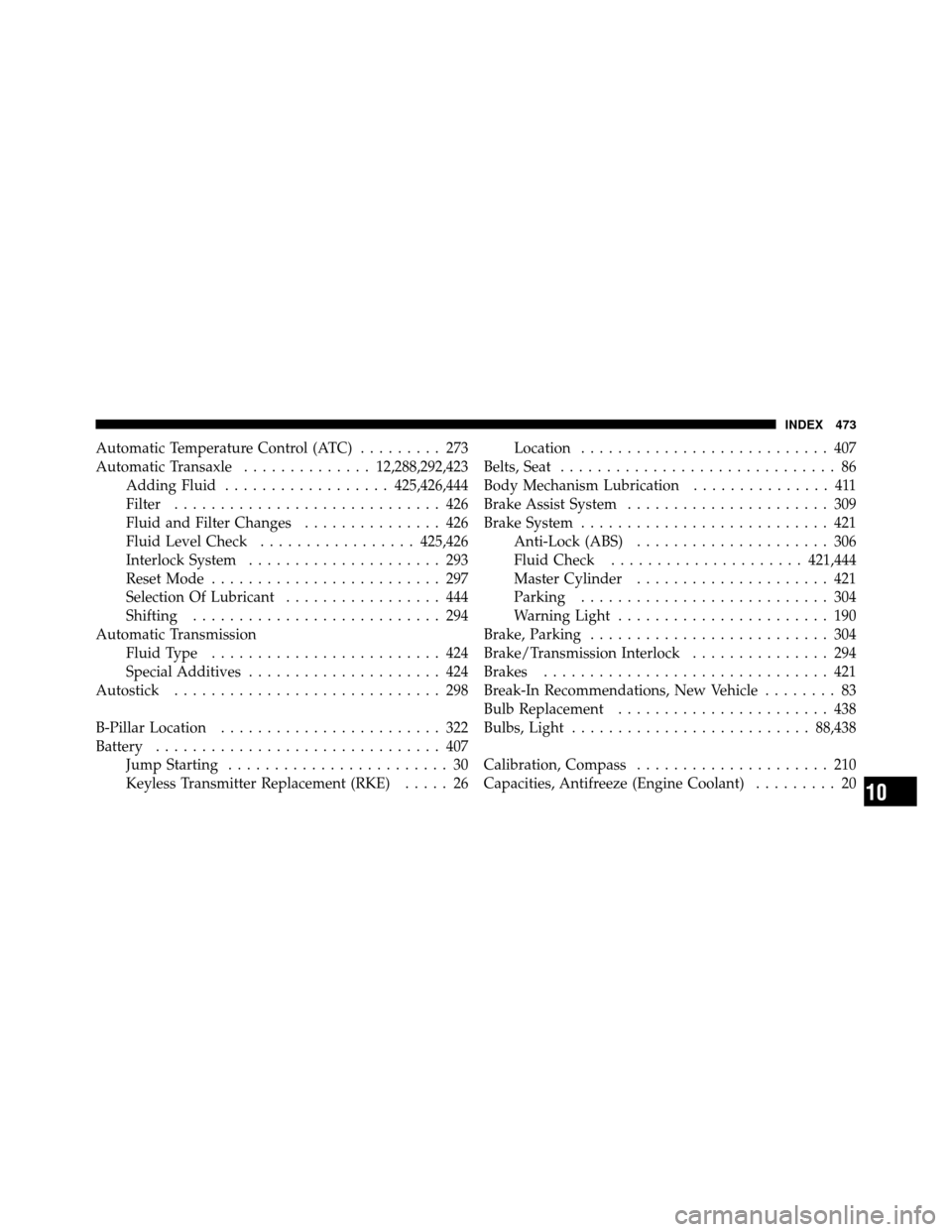

Page 475 of 494
Automatic Temperature Control (ATC)......... 273
Automatic Transaxle ..............12,288,292,423
Adding Fluid .................. 425,426,444
Filter ............................. 426
Fluid and Filter Changes ............... 426
Fluid Level Check ................. 425,426
Interlock System ..................... 293
Reset Mode ......................... 297
Selection Of Lubricant ................. 444
Shifting ........................... 294
Automatic Transmission Fluid Type ......................... 424
Special Additives ..................... 424
Autostick ............................. 298
B-Pillar Location ........................ 322
Battery ............................... 407
Jump Starting ........................ 30
Keyless Transmitter Replacement (RKE) ..... 26Location
........................... 407
Belts, Seat .............................. 86
Body Mechanism Lubrication ............... 411
Brake Assist System ...................... 309
Brake System ........................... 421
Anti-Lock (ABS) ..................... 306
Fluid Check ..................... 421,444
Master Cylinder ..................... 421
Parking ........................... 304
Warning Light ....................... 190
Brake, Parking .......................... 304
Brake/Transmission Interlock ............... 294
Brakes ............................... 421
Break-In Recommendations, New Vehicle ........ 83
Bulb Replacement ....................... 438
Bulbs, Light .......................... 88,438
Calibration, Compass ..................... 210
Capacities, Antifreeze (Engine Coolant) ......... 20
10
INDEX 473

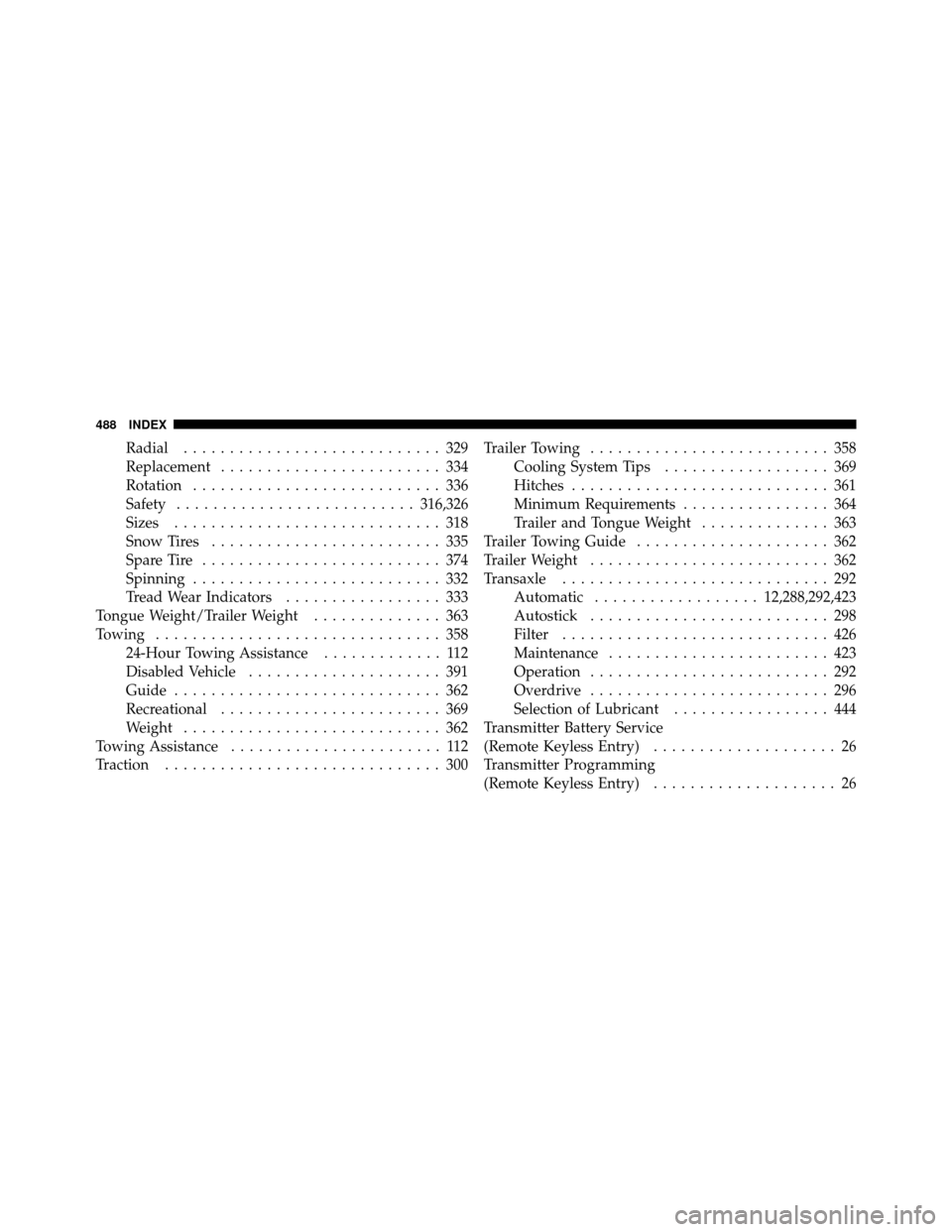

Page 490 of 494
Radial............................ 329
Replacement ........................ 334
Rotation ........................... 336
Safety .......................... 316,326
Sizes ............................. 318
Snow Tires ......................... 335
Spare Tire .......................... 374
Spinning ........................... 332
Tread Wear Indicators ................. 333
Tongue Weight/Trailer Weight .............. 363
Towing ............................... 358
24-Hour Towing Assistance ............. 112
Disabled Vehicle ..................... 391
Guide ............................. 362
Recreational ........................ 369
Weight ............................ 362
Towing Assistance ....................... 112
Traction .............................. 300 Trailer Towing
.......................... 358
Cooling System Tips .................. 369
Hitches ............................ 361
Minimum Requirements ................ 364
Trailer and Tongue Weight .............. 363
Trailer Towing Guide ..................... 362
Trailer Weight .......................... 362
Transaxle ............................. 292
Automatic .................. 12,288,292,423
Autostick .......................... 298
Filter ............................. 426
Maintenance ........................ 423
Operation .......................... 292
Overdrive .......................... 296
Selection of Lubricant ................. 444
Transmitter Battery Service
(Remote Keyless Entry) .................... 26
Transmitter Programming
(Remote Keyless Entry) .................... 26
488 INDEX
