Page 71 of 84
Cavity Cartridge Fuse Mini FuseDescription
17 10 Amp RedIgnition Off Draw (IOD) — Wireless
Control Module (WCM)/Clock/
Steering Control Module (SCM)
18 40 Amp Green Battery Feed — Auto Shutdown
(ASD) Relay
19 20 Amp YellowIgnition Off Draw (IOD) — Power
Amp Feed 2 - if equipped
20 15 Amp Lt. Blue Ignition Off Draw (IOD) — Radio
21 10 Amp RedSiren — If Equipped
22 10 Amp RedIgnition Run — Climate
Controls/Hot Cupholder - if
equipped
23 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 3
24 25 Amp Natural Battery Feed — PWR Sunroof Feed
25 10 Amp RedIgnition Run — Heated Mirrors - If
Equipped
26 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 2
27 10 Amp RedIgnition Run — Occupant
Classification Module
(OCM)/Occupant Restraint
Controller (ORC)
28 10 Amp RedIgnition Run — Occupant
Classification Module
(OCM)/Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse Required)
30 20 Amp YellowIgnition Run — Heated Seats - If
Equipped
31 10 Amp Red Headlamp Washer — If Equipped
32 30 Amp Pink Auto Shutdown (ASD) Relay Feed 1
33 10 Amp RedBattery Feed — Switch
Bank/Diagnostic Link
Connector/Powertrain Control
Module (PCM)
34 30 Amp Pink Battery Feed — Anti-Lock Brakes
(ABS) Module - if equipped/
Electronic Control Program (ESC)
Module - If Equipped
35 40 Amp Green Battery Feed — Anti-Lock Brakes
(ABS) Module - If Equipped/
Electronic Stability Control (ESC)
Module - If Equipped
36 30 Amp Pink Battery Feed — Passenger Door
Module (PDM)/Driver Door Module
(DDM)
37 25 Amp Natural Power Top Module (If Equipped)
MAINTAINING YOUR VEHICLE
69
Page 72 of 84
TIRE PRESSURES
• Check the inflation pressure of each tire, including the spare tire, at least monthlyand inflate to the recommended pressure for your vehicle.
• The tire pressures recommended for your vehicle are found on the “Tire and Loading Information” label located on the driver’s side door opening.
NOTE:Refer to the Owner's Manual on the
DVD for more information regarding tire
warnings and instructions.
WARNING!
• Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never overload them.
• Improperly inflated tires are dangerous and can cause collisions. Under-inflation is the leading cause of tire failure and may result in severe
cracking, component separation, or “blow out”. Over-inflation reduces a tire’s
ability to cushion shock. Objects on the road and chuck holes can cause
damage that results in tire failure. Unequal tire pressures can cause steering
problems. You could lose control of your vehicle. Over-inflated or
under-inflated tires can affect vehicle handling and can fail suddenly,
resulting in loss of vehicle control.
WHEEL AND WHEEL TRIM CARE
• All wheels and wheel trim, especially aluminum and chrome plated wheels, shouldbe cleaned regularly with a mild soap and water to prevent corrosion.
• To remove heavy soil and/or excessive brake dust, use MOPAR
®Wheel Cleaner or
equivalent or select a non-abrasive, non-acidic cleaner.
CAUTION!
Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not
use oven cleaner. These products may damage the wheel's protective finish.
Avoid automatic car washes that use acidic solutions or harsh brushes that may
damage the wheel's protective finish. Only MOPAR
®Wheel Cleaner or
equivalent is recommended.
MAINTAINING YOUR VEHICLE
70
Page 73 of 84
EXTERIOR BULBS
LIGHT BULBS – ExteriorBulb Number
Backup Lamp 921
Rear Tail, Stop, Turn Lamp LED (Serviced at Authorized Dealer)
Center High-Mounted Stop Lamp
(CHMSL) LED (Serviced at Authorized Dealer)
Fog Lamp – If Equipped H11
Front Park Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp 3457 AK
Bi-Halogen Headlamp HIR2
License Lamp W5W
MAINTAINING YOUR VEHICLE
71
Page 74 of 84
CHRYSLER GROUP
LLC CUSTOMER
CENTER
P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: 1–800–423–6343
CHRYSLER CANADA
INC. CUSTOMER
CENTER
P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone: 1–800–465–2001 (English)
Phone: 1–800–387–9983 (French)
ASSISTANCE FOR THE
HEARING IMPAIRED
• To assist customers who have hearingdifficulties, the manufacturer has
installed special TDD
(Telecommunication Devices for the
Deaf) equipment at its customer
center. Any hearing or speech
impaired customer, who has access
to a TDD or a conventional
teletypewriter (TTY) in the United
States, can communicate with the
manufacturer by dialing
1–800–380–CHRY. Canadian
residents with hearing difficulties
that require assistance can use the
special needs relay service offered by
Bell Canada. For TTY teletypewriter
users, dial 711 and for Voice callers,
dial 1–800–855–0511 to connect
with a Bell Relay Service operator.
WARNING!
Engine exhaust, some of its
constituents, and certain vehicle
components contain, or emit,
chemicals known to the State of
California to cause cancer and birth
defects, or other reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
component wear contain, or emit,
chemicals known to the State of
California to cause cancer and birth
defects, or other reproductive harm.
PUBLICATIONS
ORDERING
•If you are the first registered retail
owner of your vehicle, you may obtain
one free printed copy of the Owner's
Manual, Warranty Booklet or Radio
Manuals on your DVD by calling
1–800–423–6343 (U.S.) or
1–800–387–1143 (Canada) or by
contacting your dealer.
• Replacement User Guide kits or DVDs or, if you prefer, additional
printed copies of the Owner's
Manual, Warranty Booklet or Radio
Manuals may be purchased by
visiting www.techauthority.com or by
calling 1–800–890–4038 (U.S.) or
1–800–387–1143 (Canada). Visa,
Master Card, American Express and
Discover orders are accepted. If you
prefer mailing your order, please call
the above numbers for an order form.
NOTE: A street address is required when
ordering manuals (no P.O. Boxes).
NOTE:
• The Owner's Manual and User Guide electronic files are also available on the
Chrysler, Jeep, Ram Truck and Dodge
websites.
• Click on the "For Owners" tab, select "Owner/Service Manuals", then select
your desired model year and vehicle
from the drop down lists.
CONSUMER ASSISTANCE
72
Page 75 of 84
REPORTING SAFETY
DEFECTS IN THE 50
UNITED STATES AND
WASHINGTON, D.C.
• If you believe that your vehicle has adefect that could cause a collision or
cause injury or death, you should
immediately inform the National
Highway Traffic Safety
Administration (NHTSA) in addition
to notifying the manufacturer.
• If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your
authorized dealer, and the
manufacturer.
• To contact NHTSA, you may either call the Auto Safety Hotline toll free
at 1–888–327–4236 (TTY:
1–800–424– 9153), or go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New
Jersey Avenue, SE., West Building,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from
http://www.safercar.gov.
In Canada
• If you believe that your vehicle has a
safety defect, you should contact the
Customer Service Department
immediately. Canadian customers
who wish to report a safety defect to
the Canadian government should
contact Transport Canada, Motor
Vehicle Defect Investigations and
Recalls at 1-800-333-0510 or go to
http://www.tc.gc.ca/roadsafety/
• French Canadian customers who wish to report a safety defect to the
Canadian government should contact
Transport Canada, Motor Vehicle
Defect Investigations and Recalls at
1-800-333-0510 or go to
http://www.tc.gc.ca/securiteroutiere/
CONSUMER ASSISTANCE
73
Page 76 of 84
AUTHENTIC ACCESSORIES BY MOPAR®
• The following highlights just some of the many Authentic Dodge Accessories byMopar featuring a fit, finish, and functionality specifically for your Dodge Avenger.
• In choosing Authentic Accessories you gain far more than expressive style, premium protection, or extreme entertainment, you also benefit from enhancing
your vehicle with accessories that have been thoroughly tested and factory-
approved.
• For the full line of Authentic Dodge Accessories by Mopar, visit your local Dodge dealership or online at mopar.com.
CHROME:
• 17–Inch Chrome Aluminum Wheels • Exhaust Tips
EXTERIOR:
• Front End Cover • Sunroof Air Deflector • Front Air Deflector
• Hitch Receiver • Rear Spoiler • Molded Splash Guards
• Trailer Accessories • Locking Fuel Cap • Vehicle Cover
• Wheel Locks
INTERIOR:
• Premium Carpet Floor Mats • Door Sill Guards • Molded Cargo Tray
• Slush Mats • Ambient Light Kit • Katzkin Leather Interiors
• Collapsible Tote • Roadside Safety Kit
ELECTRONICS:
• Portable Navigation Systems • Uconnect™ Web (WiFi) • Remote Start
• iPod
®Adapter • Radio Upgades • Electronic Vehicle
Tracking System
• Kicker
®Sound System • Uconnect™ Phone • Ecometer
• Park Distance Sensors • Rearview Mirror with Back-up Camera and
Bluetooth
®Hands Free
Phone
CARRIERS:
• Hitch-mount Bike Carrier • Roof-mount Bike Carrier • Roof Box Cargo Carrier
• Roof-mount Ski and Snowboard Carrier • Roof-mount Water Sports
Carrier • Roof-mount Canoe Carrier
• Roof-mount Cargo Bag •iPod
®is a registered trademark of Apple, Inc.
• Kicker®is a registered trademark of Stillwater Designs and Audio, Inc.
MOPAR ACCESSORIES
74
Page 77 of 84
Airbag .................. 10
Alarm,Panic ............... 8
Arming Theft System
(Security Alarm)............. 9
Audio Jack ............... 30
Audio Settings ........... 27,28
Automatic Headlights ......... 18
Automatic Temperature Control
(ATC) ................... 21 Rear Temperature Control ...... 21
Automatic Transmission FluidType .............. 64
AxleFluid ................ 64
Belts, Seat ................ 9
Brake Fluid ............... 64
Brake System Master Cylinder ........... 65
BulbReplacement ........... 71
Calibration,Compass ......... 40
ChangeOilIndicator .......... 50
Child Restraint ............. 11
Child Restraint Tether Anchors .... 11
Climate Control ............. 21
Clock Setting ............ 28,30
Compass Calibration .......... 40
Cooling System Coolant Capacity ........... 64
Cruise Control (Speed Control) .... 20
CruiseLight ............... 20
Customer Assistance .......... 72
Defects, Reporting ........... 73
Dimmer Control ............. 18
Dimmer Switch, Headlight ...... 18
Disarming, Theft System ........ 9
Driver Cockpit .............. 4
Electronic Speed Control
(Cruise Control) ............. 20
Electronic Stability Control (ESC) . . 47
Electronic Vehicle Information Center
(EVIC) ................ 40,41
Electronics Your Vehicle's Sound System .... 24Emergency, In Case of
Jump Starting ............ 55
Engine Compartment ............. 62
Coolant (Antifreeze) ......... 64
Jump Starting ............ 55
Oil ................... 64
Oil Filter ............... 64
Oil Selection ............. 64
Overheating ............. 51
Event Data Recorder .......... 60
Exterior Lights ............. 71
Flash-To-Pass .............. 18
Fluid Capacities ............ 64
Fluid, Brake ............... 65
Fluids .................. 64
FogLights ................ 18
Folding Front Passenger Seat ..... 14
FoldingRearSeat ........... 15
Freeing A Stuck Vehicle ........ 59
Front Heated Seats ........... 16
Fuel Filler Cap (Gas Cap) ......... 50
Gasoline ............... 64
Specifications ............ 64
Garage
Door Opener (HomeLink
®)..42
Gas Cap (Fuel Filler Cap) ....... 50
Hard Disk Drive ............. 31
Headlights Automatic .............. 18
Dimmer Switch ........... 18
HighBeam .............. 18
Heated Seats .............. 16
High Beam/Low Beam Select (Dimmer)
Switch .................. 18
HomeLink
®(Garage Door Opener)
Transmitter ............... 42
Hood Release .............. 61
Instrument Cluster ............ 6
Indicators ............... 7
Instrument Cluster Warning
Lights ................. 6,47
Intermittent Wipers (Delay Wipers) . . 19
INDEX
75
Page 78 of 84
Introduction............... 2
iPod
®/USB/MP3 Control ........ 38
Bluetooth Streaming Audio ..... 39
Jack Location .............. 52
Jump Starting .............. 55
KeyFob .................. 8
Key Fob Programmable Features . . . 41
Lane Change Assist .......... 19
LATCH (Lower Anchors and Tether for
CHildren) ................ 11
Lights Airbag ................. 50
Anti-Lock ............... 49
BrakeWarning ............ 49
Charging System ........... 49
Electronic Throttle Control
Warning ................ 49
EngineTemperatureWarning .... 48
Malfunction Indicator
(Check Engine) ............ 49
Oil Pressure ............. 49
Transmission Warning ........ 50
TurnSignal .............. 19
Warning (Instrument Cluster
Description) .............. 6
Maintenance Record .......... 67
MaintenanceSchedule ........ 66
Media Center Radio ...... 26,27,29
MOPAR
®Accessories ......... 74
Navigation .............. 32,33
Non-Touch-Screen Radio ....... 26
Oil Change Indicator .......... 50
Oil, Engine Capacity ............... 64
Outlet Power ................. 44
Overheating, Engine .......... 51
Panic Alarm ............... 8 Phone (Pairing)
............. 36
Phone (Uconnect) ........... 35
Placard, Tire and Loading
Information ............... 70
Power Glass Sunroof ............ 22
Outlet (Auxiliary Electrical
Outlet) ................ 44
Seats ................. 13
Steering .............. 64,65
Preparation for Jacking ........ 52
Programmable Electronic Features . . 41
Radio Non-Touch-Screen .......... 26
Touch-Screen ............ 29
Radio Operation .......... 26,29
Rain Sensitive Wiper System ..... 19
Rear Seat, Folding ........... 15
Recreational Towing .......... 46
Remote Starting System ........ 8
Replacement Bulbs .......... 71
Reporting Safety Defects ....... 73
Restraints, Child ............ 11
Seat Belts ................. 9
Seats ................... 13
Adjustment .............. 13
Folding Front Passenger ...... 14
Heated ................ 16
Power ................. 13
RearFolding ............. 15
Seek Button ............. 27,30
Setting the Clock .......... 28,30
Shift Lever Override .......... 57
Signals, Turn .............. 19
SIRIUS Travel Link ........... 34
SpareTire ................ 52
Spark Plugs ............... 64
Speed Control Accel/Decel .............. 20
Cancel ................ 20
Resume ................ 20
Speed Control (Cruise Control) .... 20
Starting Remote ................. 8
Steering Tilt Column .............. 17
INDEX
76
Page 79 of 84
Steering Wheel Audio Controls.... 35
Store Radio Presets ........ 28,30
SunRoof ................ 22
Supplemental Restraint System -
Airbag .................. 10
Theft Alarm (Security Alarm) ...... 9
Theft System Arming .......... 9
Theft System Disarming ......... 9
Tilt Steering Column .......... 17
Tires Air Pressure ............. 70
Changing ............... 53
FlatChanging ............ 53
Jacking ................ 53
Pressure Warning Light ....... 47
Touch-Screen Radio .......... 29
Towing .................. 45 24-Hour Towing Assistance ..... 47
Disabled Vehicle ........... 58
Recreational ............. 46 Towing Vehicle Behind a
Motorhome
............... 46
Trailer Towing Trailer and Tongue Weight ..... 45
Trailer Weight .............. 45
Transmission Fluid ................. 64
TurnSignals ............... 19
Uconnect™ Phone ........... 35
Uconnect™ Voice Command ..... 37
Universal Garage Door Opener
(HomeLink
®) .............. 42
USBPort .............. 32,39
Voice Command ............ 37
Washers, Windshield .......... 19
WheelandWheelTrimCare ...... 70
Wind Buffeting ............. 23
Windshield Washers .......... 19
Windshield Wipers ........... 19
INDEX
77
Page 80 of 84

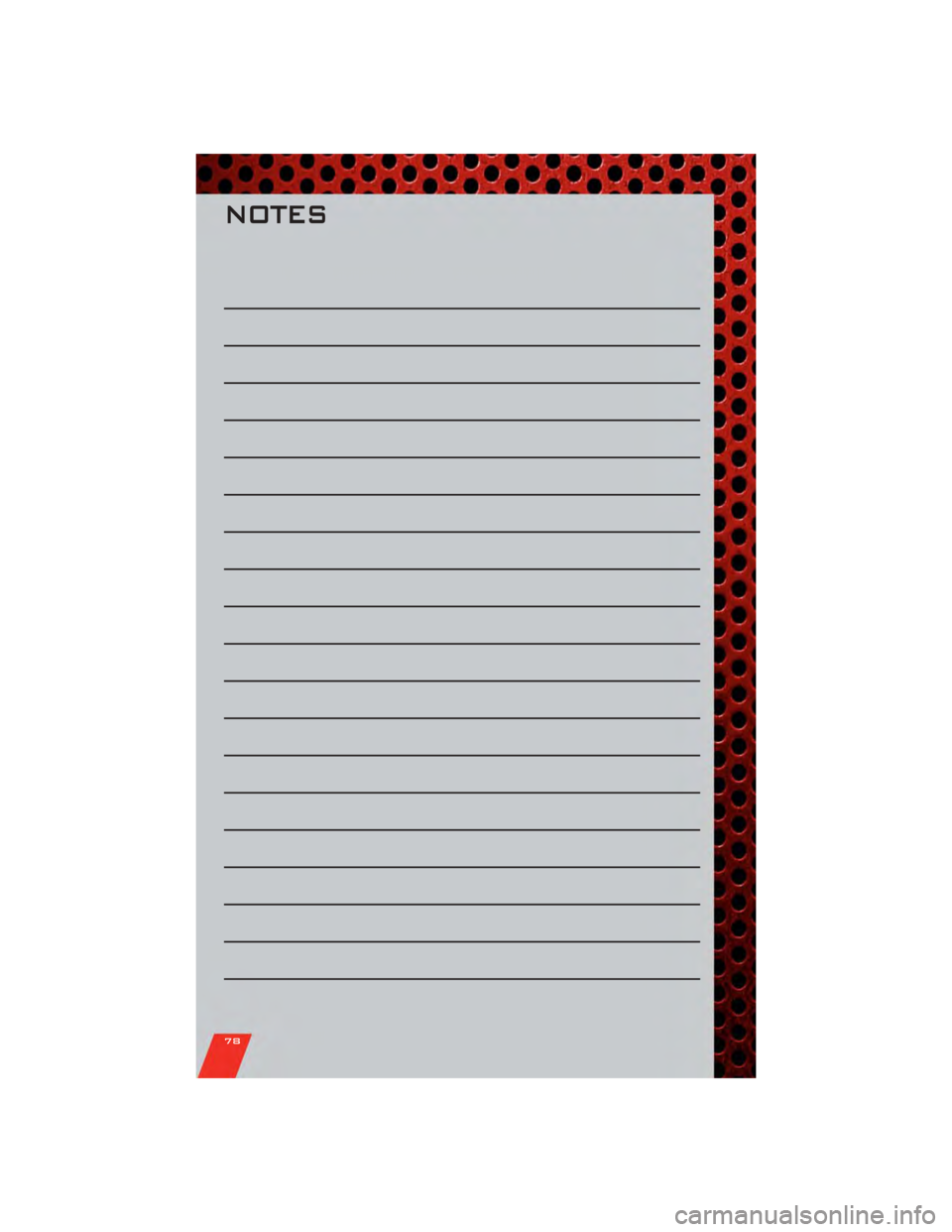

NOTES
78
