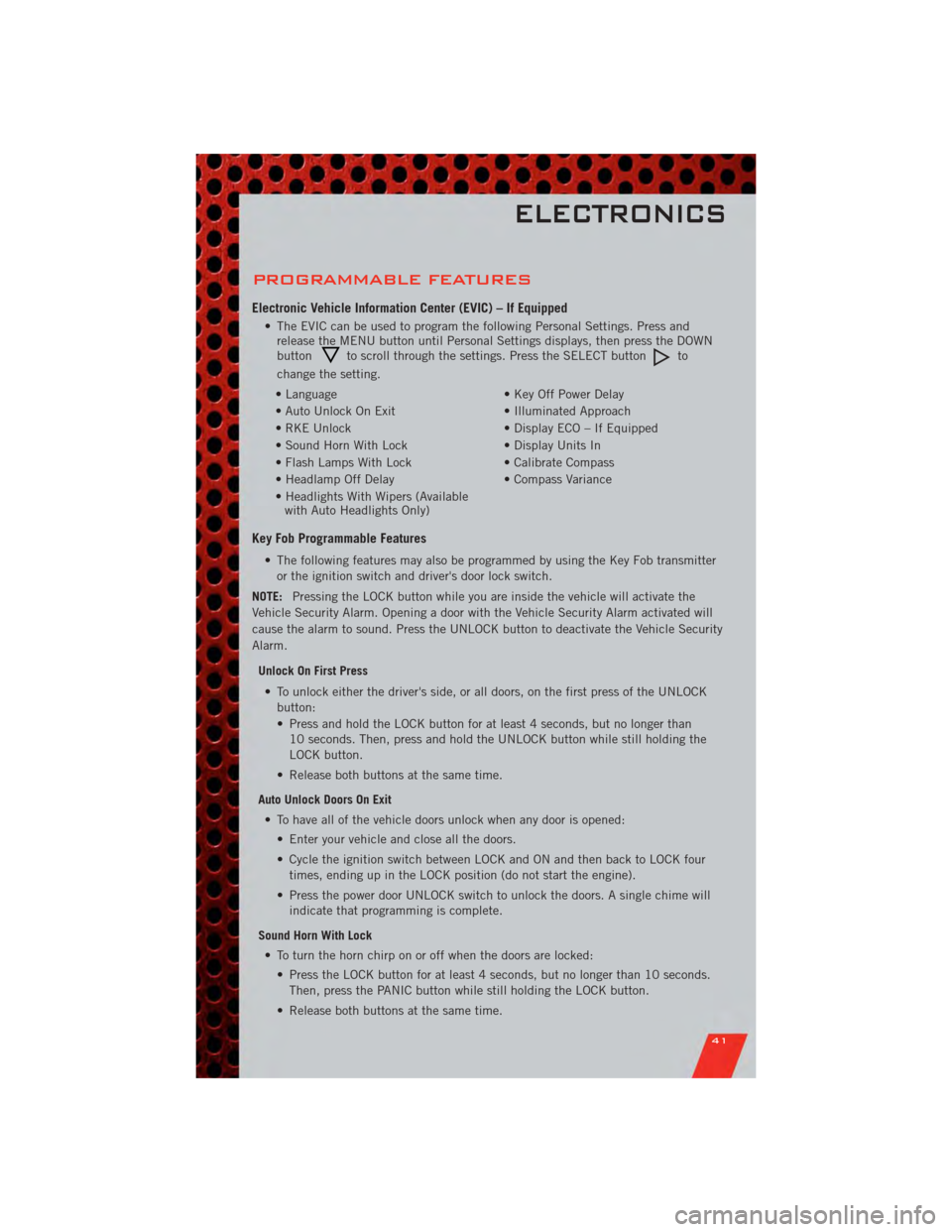

PROGRAMMABLE FEATURES
Electronic Vehicle Information Center (EVIC) – If Equipped
• The EVIC can be used to program the following Personal Settings. Press andrelease the MENU button until Personal Settings displays, then press the DOWN
button
to scroll through the settings. Press the SELECT buttonto
change the setting.
• Language • Key Off Power Delay
• Auto Unlock On Exit • Illuminated Approach
• RKE Unlock • Display ECO – If Equipped
• Sound Horn With Lock • Display Units In
• Flash Lamps With Lock • Calibrate Compass
• Headlamp Off Delay • Compass Variance
• Headlights With Wipers (Available with Auto Headlights Only)
Key Fob Programmable Features
• The following features may also be programmed by using the Key Fob transmitter
or the ignition switch and driver's door lock switch.
NOTE: Pressing the LOCK button while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security
Alarm.
Unlock On First Press• To unlock either the driver's side, or all doors, on the first press of the UNLOCK button:
• Press and hold the LOCK button for at least 4 seconds, but no longer than10 seconds. Then, press and hold the UNLOCK button while still holding the
LOCK button.
• Release both buttons at the same time.
Auto Unlock Doors On Exit • To have all of the vehicle doors unlock when any door is opened: • Enter your vehicle and close all the doors.
• Cycle the ignition switch between LOCK and ON and then back to LOCK fourtimes, ending up in the LOCK position (do not start the engine).
• Press the power door UNLOCK switch to unlock the doors. A single chime will indicate that programming is complete.
Sound Horn With Lock • To turn the horn chirp on or off when the doors are locked: • Press the LOCK button for at least 4 seconds, but no longer than 10 seconds.Then, press the PANIC button while still holding the LOCK button.
• Release both buttons at the same time.
ELECTRONICS
41

Cavity Cartridge Fuse Mini FuseDescription
17 10 Amp RedIgnition Off Draw (IOD) — Wireless
Control Module (WCM)/Clock/
Steering Control Module (SCM)
18 40 Amp Green Battery Feed — Auto Shutdown
(ASD) Relay
19 20 Amp YellowIgnition Off Draw (IOD) — Power
Amp Feed 2 - if equipped
20 15 Amp Lt. Blue Ignition Off Draw (IOD) — Radio
21 10 Amp RedSiren — If Equipped
22 10 Amp RedIgnition Run — Climate
Controls/Hot Cupholder - if
equipped
23 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 3
24 25 Amp Natural Battery Feed — PWR Sunroof Feed
25 10 Amp RedIgnition Run — Heated Mirrors - If
Equipped
26 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 2
27 10 Amp RedIgnition Run — Occupant
Classification Module
(OCM)/Occupant Restraint
Controller (ORC)
28 10 Amp RedIgnition Run — Occupant
Classification Module
(OCM)/Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse Required)
30 20 Amp YellowIgnition Run — Heated Seats - If
Equipped
31 10 Amp Red Headlamp Washer — If Equipped
32 30 Amp Pink Auto Shutdown (ASD) Relay Feed 1
33 10 Amp RedBattery Feed — Switch
Bank/Diagnostic Link
Connector/Powertrain Control
Module (PCM)
34 30 Amp Pink Battery Feed — Anti-Lock Brakes
(ABS) Module - if equipped/
Electronic Control Program (ESC)
Module - If Equipped
35 40 Amp Green Battery Feed — Anti-Lock Brakes
(ABS) Module - If Equipped/
Electronic Stability Control (ESC)
Module - If Equipped
36 30 Amp Pink Battery Feed — Passenger Door
Module (PDM)/Driver Door Module
(DDM)
37 25 Amp Natural Power Top Module (If Equipped)
MAINTAINING YOUR VEHICLE
69

EXTERIOR BULBS
LIGHT BULBS – ExteriorBulb Number
Backup Lamp 921
Rear Tail, Stop, Turn Lamp LED (Serviced at Authorized Dealer)
Center High-Mounted Stop Lamp
(CHMSL) LED (Serviced at Authorized Dealer)
Fog Lamp – If Equipped H11
Front Park Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp 3457 AK
Bi-Halogen Headlamp HIR2
License Lamp W5W
MAINTAINING YOUR VEHICLE
71
