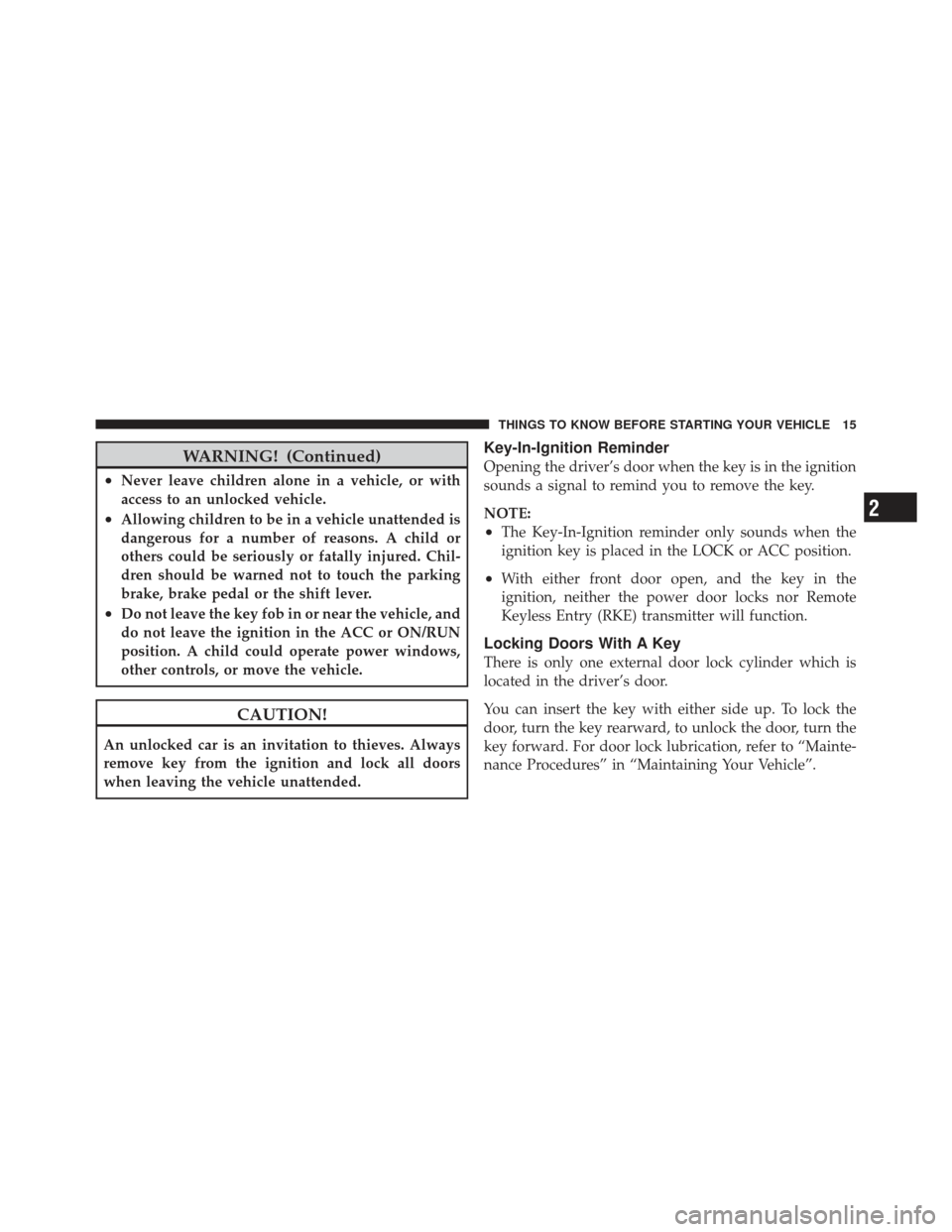

WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:
•The Key-In-Ignition reminder only sounds when the
ignition key is placed in the LOCK or ACC position.
•With either front door open, and the key in the
ignition, neither the power door locks nor Remote
Keyless Entry (RKE) transmitter will function.
Locking Doors With A Key
There is only one external door lock cylinder which is
located in the driver’s door.
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. For door lock lubrication, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times, and
the horn will chirp three times, when unlocking the
vehicle with a valid RKE transmitter to alert the driver.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you press the
unlock button on the Remote Keyless Entry (RKE) trans-
mitter or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position..NOTE:
•The front courtesy overhead console and door cour-
tesy lights will remain on if the dimmer control is in
the
Dome ON position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors, open
the trunk, or activate the Panic Alarm from distances
approximately 66 ft (20 m) using a Remote Keyless Entry
(RKE) transmitter. The RKE transmitter does not need to
be pointed at the vehicle to activate the system.
NOTE:
•The line of transmission must not be blocked with
metal objects.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

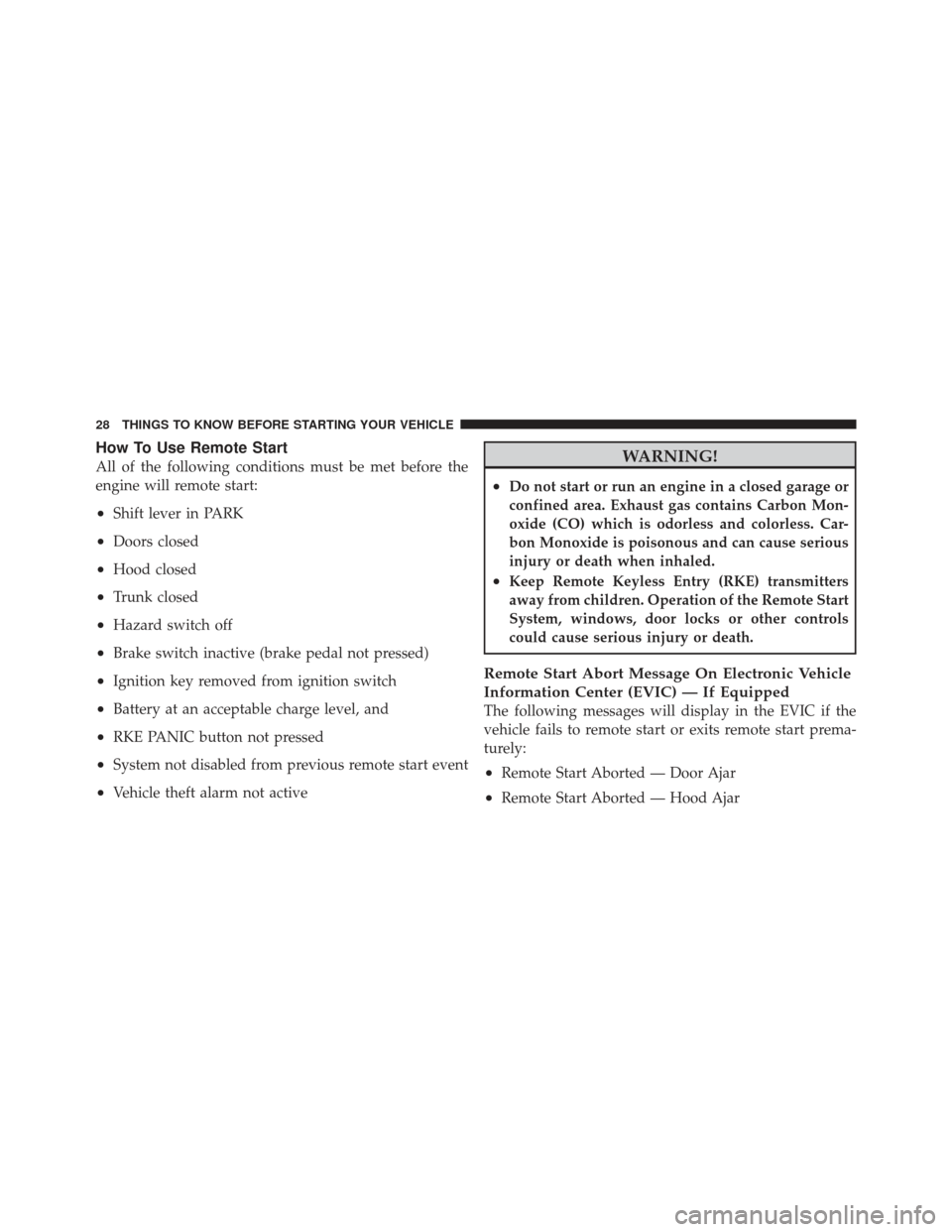

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Trunk closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level, and
•RKE PANIC button not pressed
•System not disabled from previous remote start event
•Vehicle theft alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted — Door Ajar
•Remote Start Aborted — Hood Ajar
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

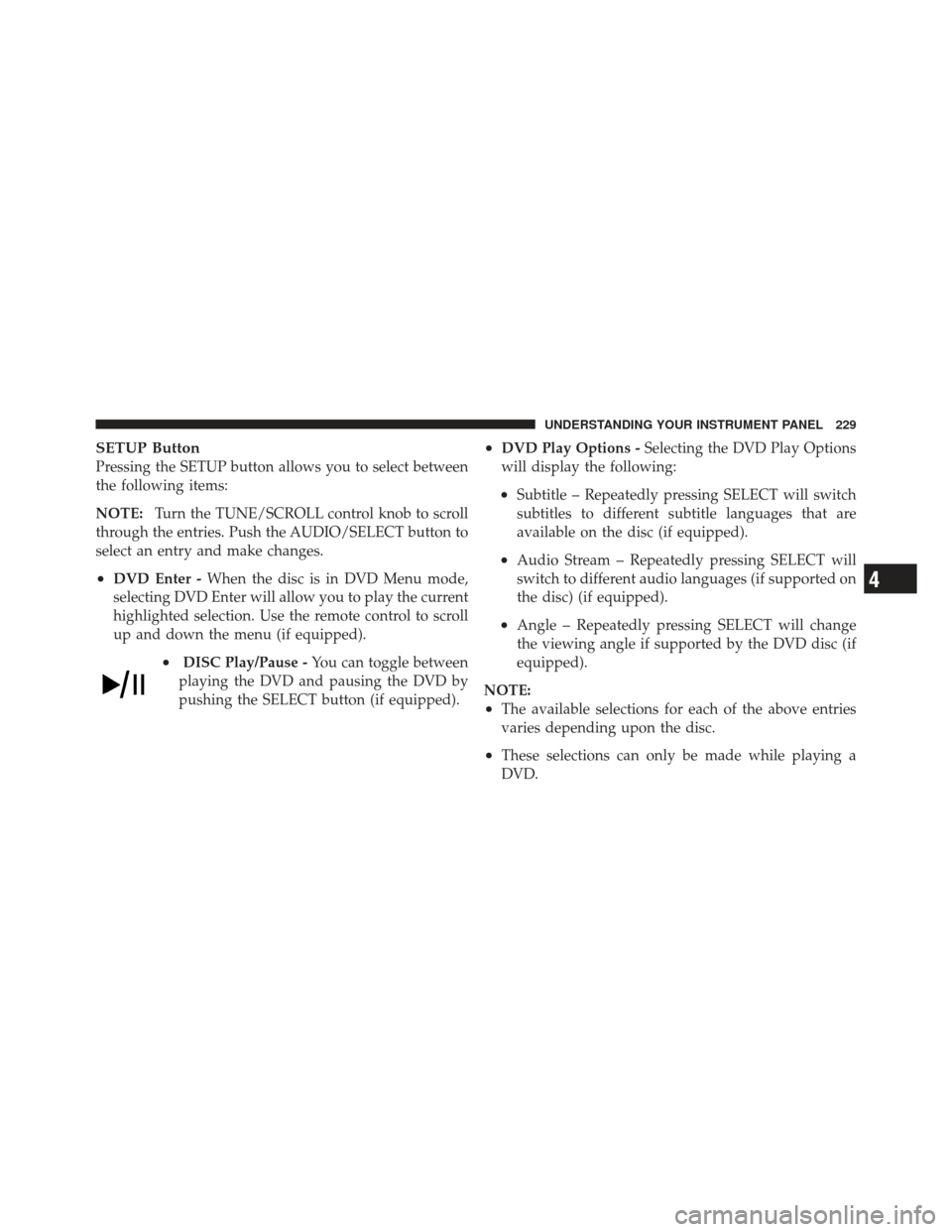

SETUP Button
Pressing the SETUP button allows you to select between
the following items:
NOTE:Turn the TUNE/SCROLL control knob to scroll
through the entries. Push the AUDIO/SELECT button to
select an entry and make changes.
•DVD Enter - When the disc is in DVD Menu mode,
selecting DVD Enter will allow you to play the current
highlighted selection. Use the remote control to scroll
up and down the menu (if equipped).
•DISC Play/Pause - You can toggle between
playing the DVD and pausing the DVD by
pushing the SELECT button (if equipped).
•DVD Play Options - Selecting the DVD Play Options
will display the following:
•Subtitle – Repeatedly pressing SELECT will switch
subtitles to different subtitle languages that are
available on the disc (if equipped).
•Audio Stream – Repeatedly pressing SELECT will
switch to different audio languages (if supported on
the disc) (if equipped).
•Angle – Repeatedly pressing SELECT will change
the viewing angle if supported by the DVD disc (if
equipped).
NOTE:
•The available selections for each of the above entries
varies depending upon the disc.
•These selections can only be made while playing a
DVD.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 229

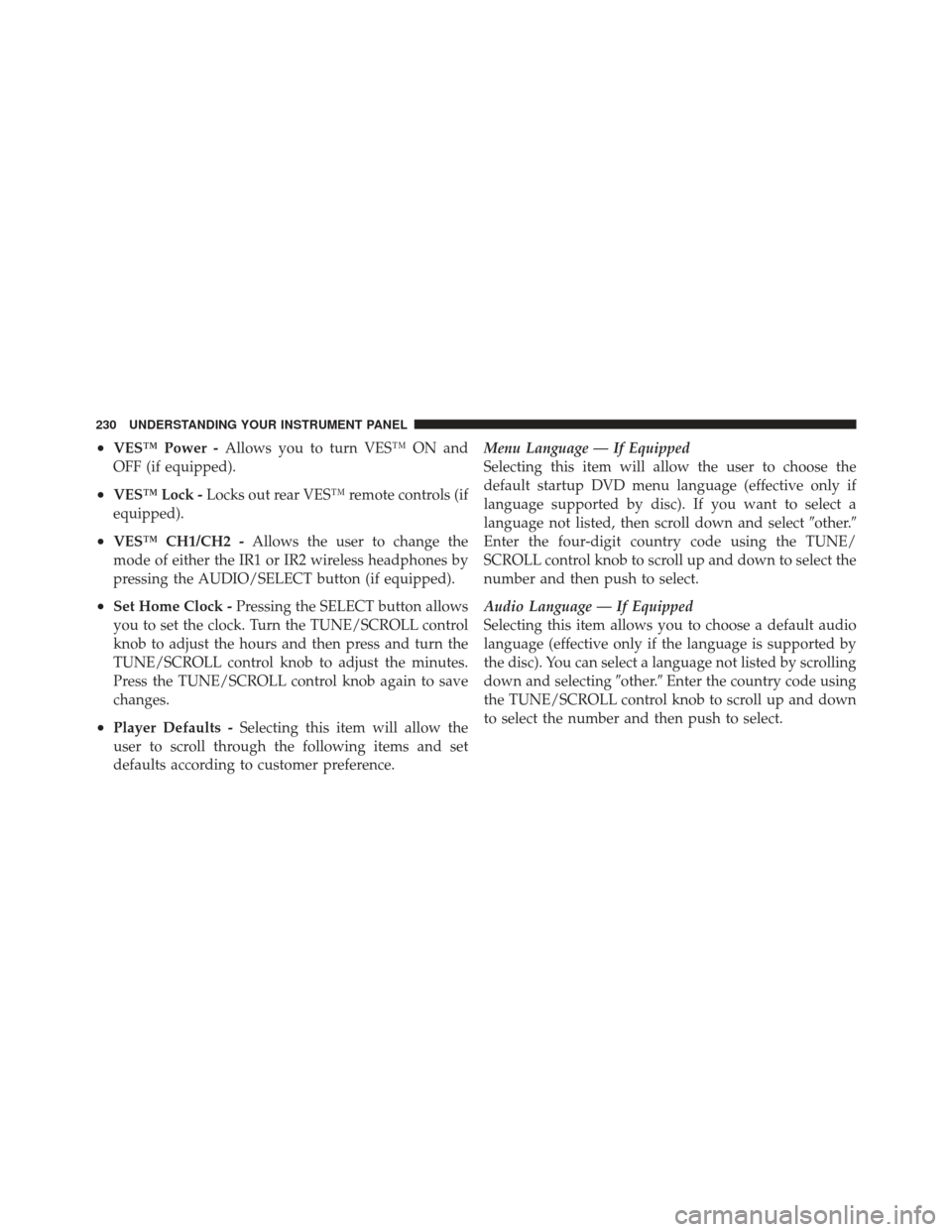

•VES™ Power -Allows you to turn VES™ ON and
OFF (if equipped).
•VES™ Lock - Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 - Allows the user to change the
mode of either the IR1 or IR2 wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults - Selecting this item will allow the
user to scroll through the following items and set
defaults according to customer preference. Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select
other.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.
Audio Language — If Equipped
Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting other.Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
230 UNDERSTANDING YOUR INSTRUMENT PANEL

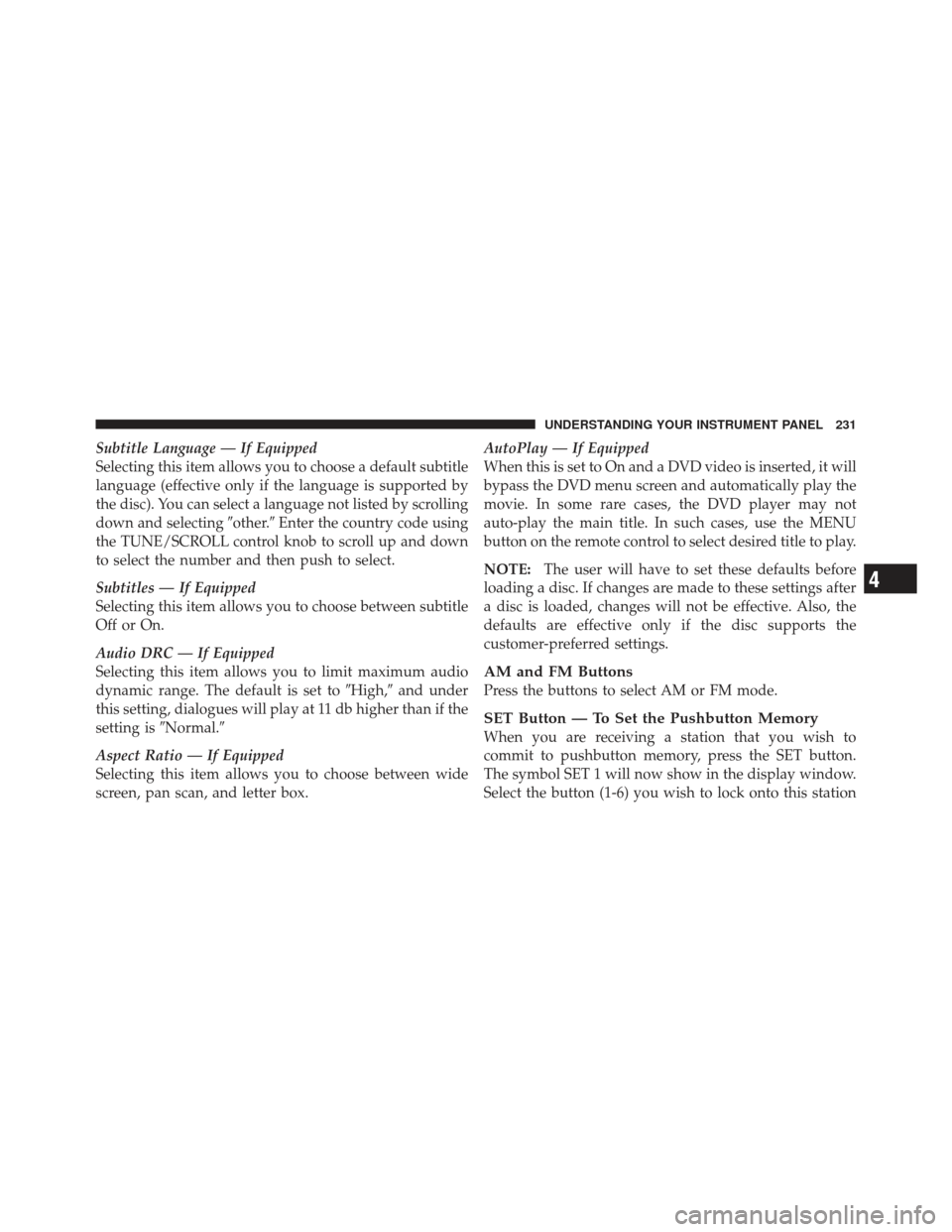

Subtitle Language — If Equipped
Selecting this item allows you to choose a default subtitle
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selectingother.Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
Subtitles — If Equipped
Selecting this item allows you to choose between subtitle
Off or On.
Audio DRC — If Equipped
Selecting this item allows you to limit maximum audio
dynamic range. The default is set to High,and under
this setting, dialogues will play at 11 db higher than if the
setting is Normal.
Aspect Ratio — If Equipped
Selecting this item allows you to choose between wide
screen, pan scan, and letter box. AutoPlay — If Equipped
When this is set to On and a DVD video is inserted, it will
bypass the DVD menu screen and automatically play the
movie. In some rare cases, the DVD player may not
auto-play the main title. In such cases, use the MENU
button on the remote control to select desired title to play.
NOTE:
The user will have to set these defaults before
loading a disc. If changes are made to these settings after
a disc is loaded, changes will not be effective. Also, the
defaults are effective only if the disc supports the
customer-preferred settings.
AM and FM Buttons
Press the buttons to select AM or FM mode.
SET Button — To Set the Pushbutton Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the button (1-6) you wish to lock onto this station
4
UNDERSTANDING YOUR INSTRUMENT PANEL 231

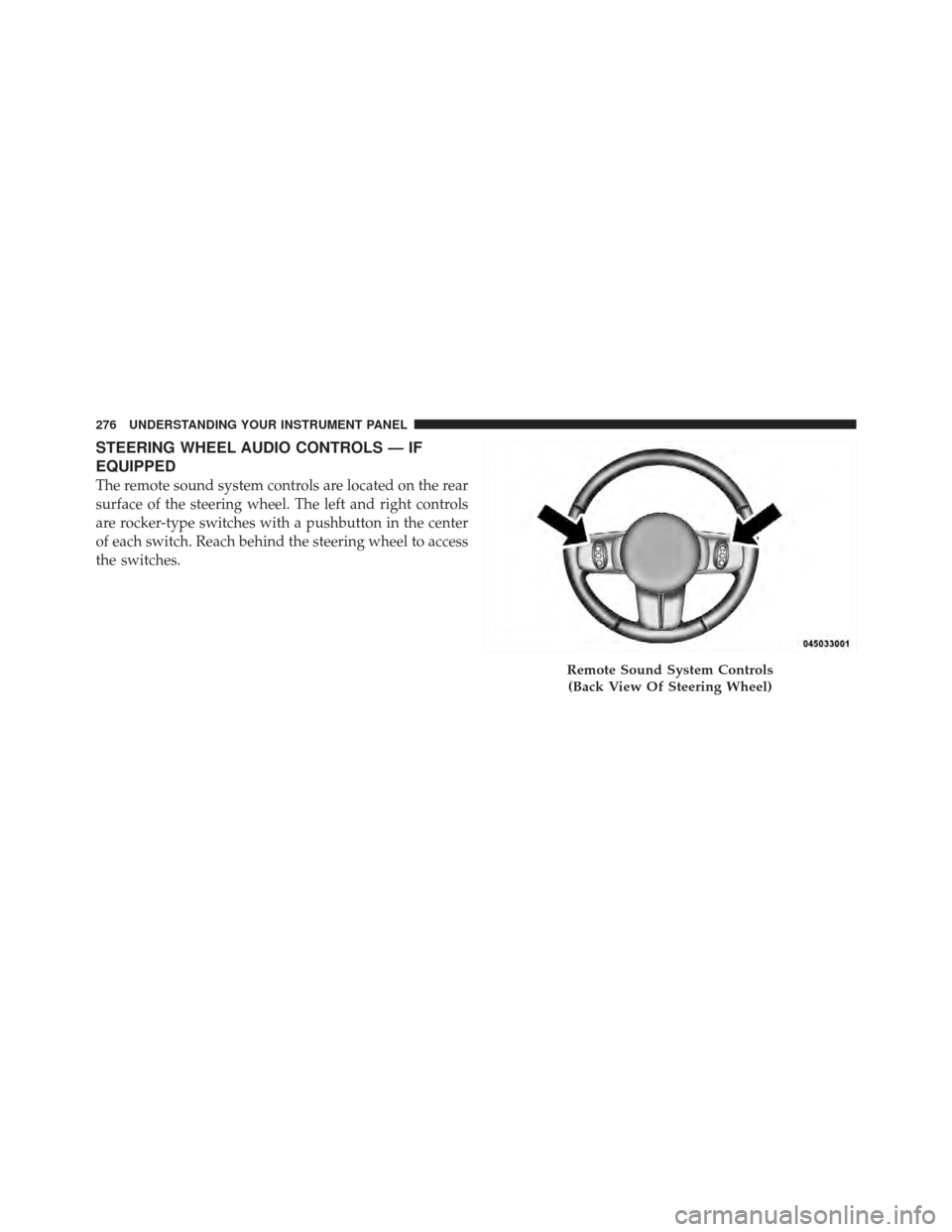

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. The left and right controls
are rocker-type switches with a pushbutton in the center
of each switch. Reach behind the steering wheel to access
the switches.
Remote Sound System Controls(Back View Of Steering Wheel)
276 UNDERSTANDING YOUR INSTRUMENT PANEL

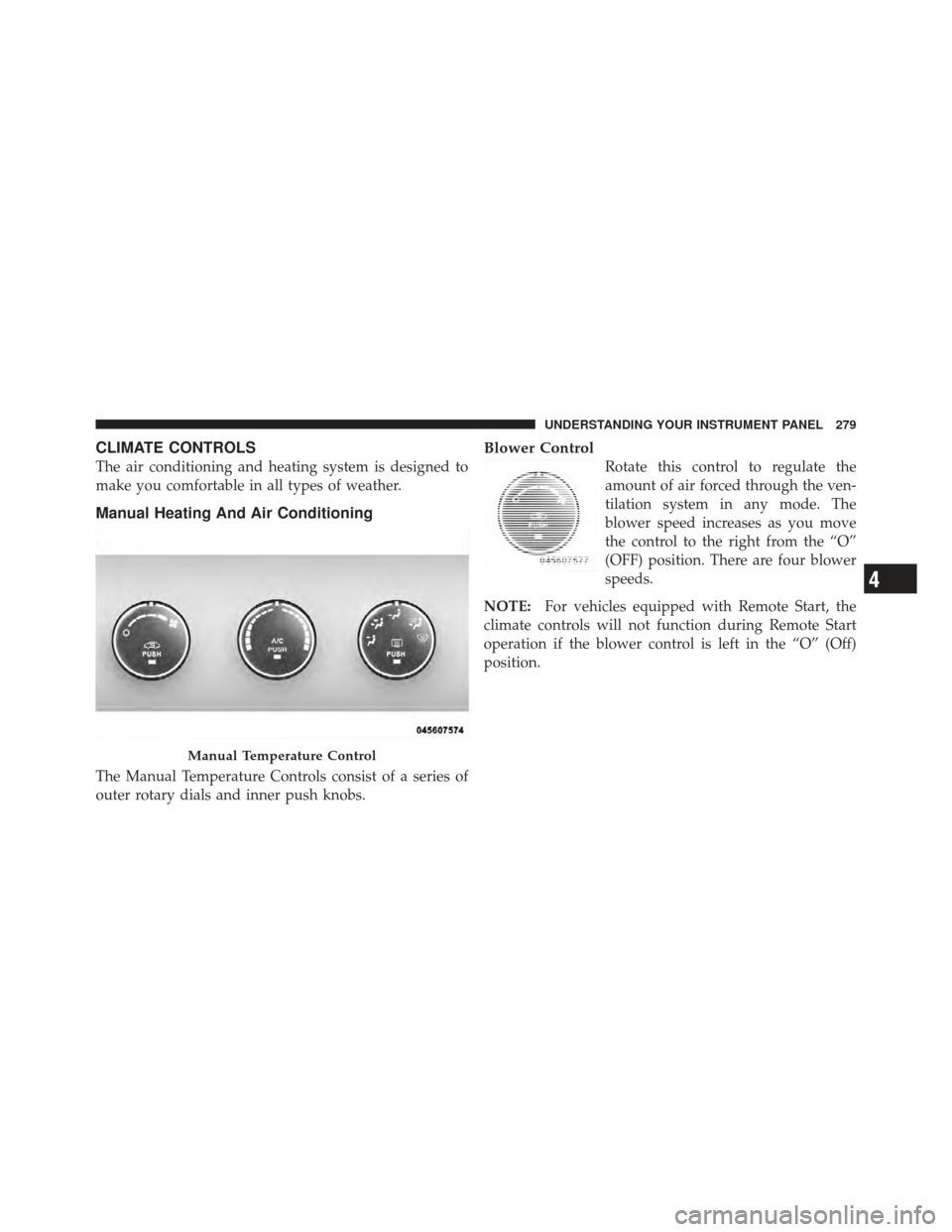

CLIMATE CONTROLS
The air conditioning and heating system is designed to
make you comfortable in all types of weather.
Manual Heating And Air Conditioning
The Manual Temperature Controls consist of a series of
outer rotary dials and inner push knobs.
Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Manual Temperature Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 279

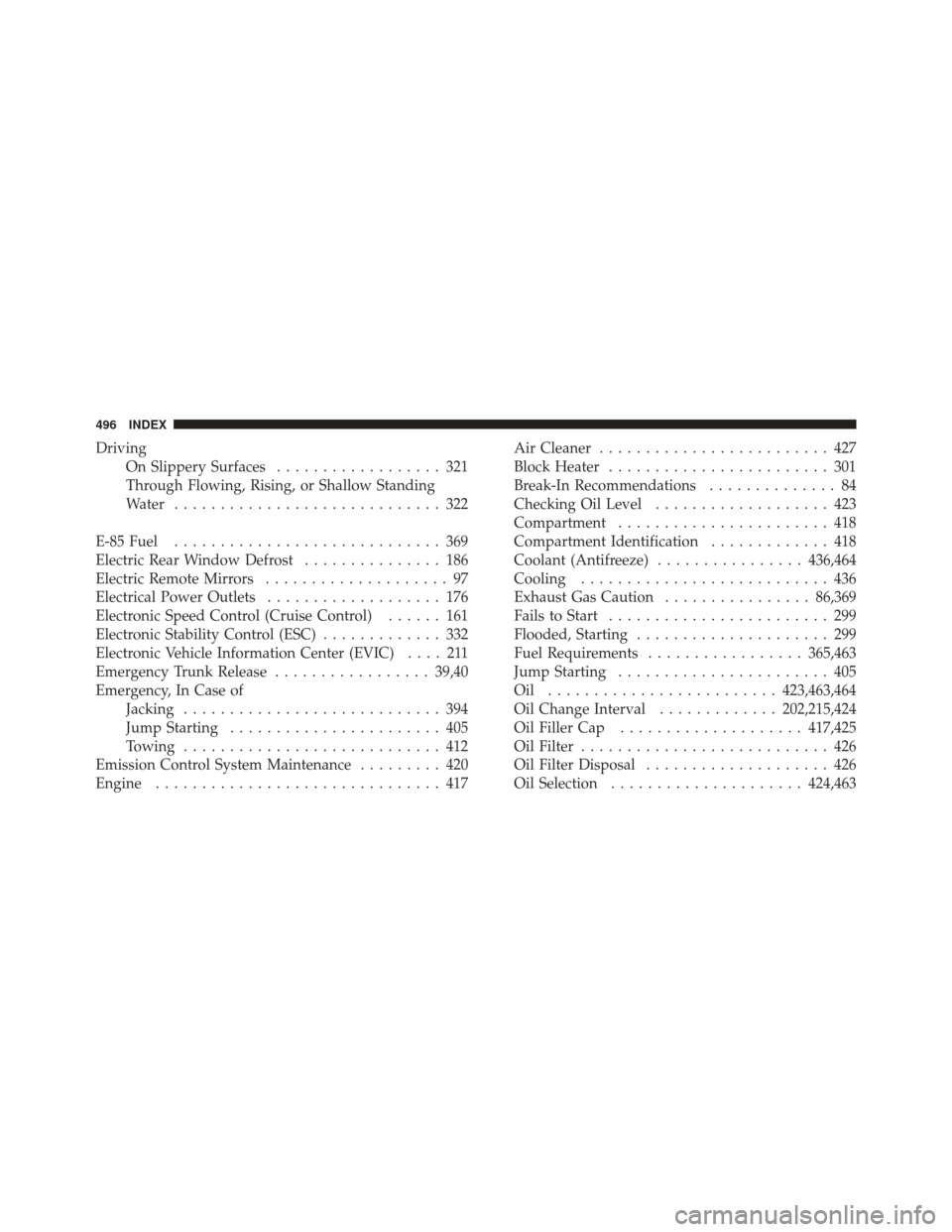

DrivingOn Slippery Surfaces .................. 321
Through Flowing, Rising, or Shallow Standing
Water ............................. 322
E-85 Fuel ............................. 369
Electric Rear Window Defrost ............... 186
Electric Remote Mirrors .................... 97
Electrical Power Outlets ................... 176
Electronic Speed Control (Cruise Control) ...... 161
Electronic Stability Control (ESC) ............. 332
Electronic Vehicle Information Center (EVIC) .... 211
Emergency Trunk Release .................39,40
Emergency, In Case of Jacking ............................ 394
Jump Starting ....................... 405
Towing ............................ 412
Emission Control System Maintenance ......... 420
Engine ............................... 417 Air Cleaner
......................... 427
Block Heater ........................ 301
Break-In Recommendations .............. 84
Checking Oil Level ................... 423
Compartment ....................... 418
Compartment Identification ............. 418
Coolant (Antifreeze) ................ 436,464
Cooling ........................... 436
Exhaust Gas Caution ................86,369
Fails to Start ........................ 299
Flooded, Starting ..................... 299
Fuel Requirements ................. 365,463
Jump Starting ....................... 405
Oil ......................... 423,463,464
Oil Change Interval .............202,215,424
Oil Filler Cap .................... 417,425
Oil Filter ........................... 426
Oil Filter Disposal .................... 426
Oil Selection ..................... 424,463
496 INDEX

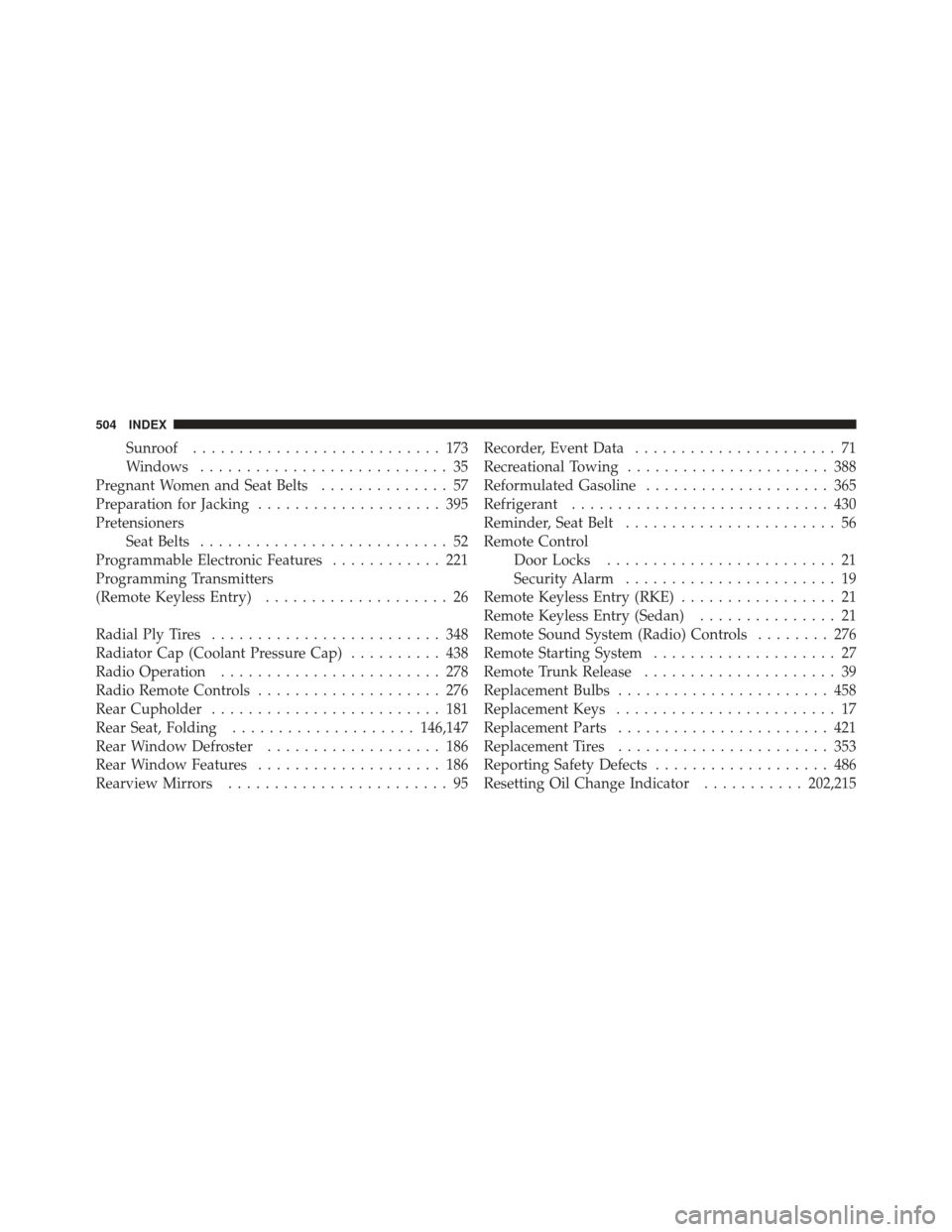

Sunroof........................... 173
Windows ........................... 35
Pregnant Women and Seat Belts .............. 57
Preparation for Jacking .................... 395
Pretensioners Seat Belts ........................... 52
Programmable Electronic Features ............ 221
Programming Transmitters
(Remote Keyless Entry) .................... 26
Radial Ply Tires ......................... 348
Radiator Cap (Coolant Pressure Cap) .......... 438
Radio Operation ........................ 278
Radio Remote Controls .................... 276
Rear Cupholder ......................... 181
Rear Seat, Folding .................... 146,147
Rear Window Defroster ................... 186
Rear Window Features .................... 186
Rearview Mirrors ........................ 95 Recorder, Event Data
...................... 71
Recreational Towing ...................... 388
Reformulated Gasoline .................... 365
Refrigerant ............................ 430
Reminder, Seat Belt ....................... 56
Remote Control Door Locks ......................... 21
Security Alarm ....................... 19
Remote Keyless Entry (RKE) ................. 21
Remote Keyless Entry (Sedan) ............... 21
Remote Sound System (Radio) Controls ........ 276
Remote Starting System .................... 27
Remote Trunk Release ..................... 39
Replacement Bulbs ....................... 458
Replacement Keys ........................ 17
Replacement Parts ....................... 421
Replacement Tires ....................... 353
Reporting Safety Defects ................... 486
Resetting Oil Change Indicator ...........202,215
504 INDEX
