DODGE AVENGER 2013 2.G User Guide

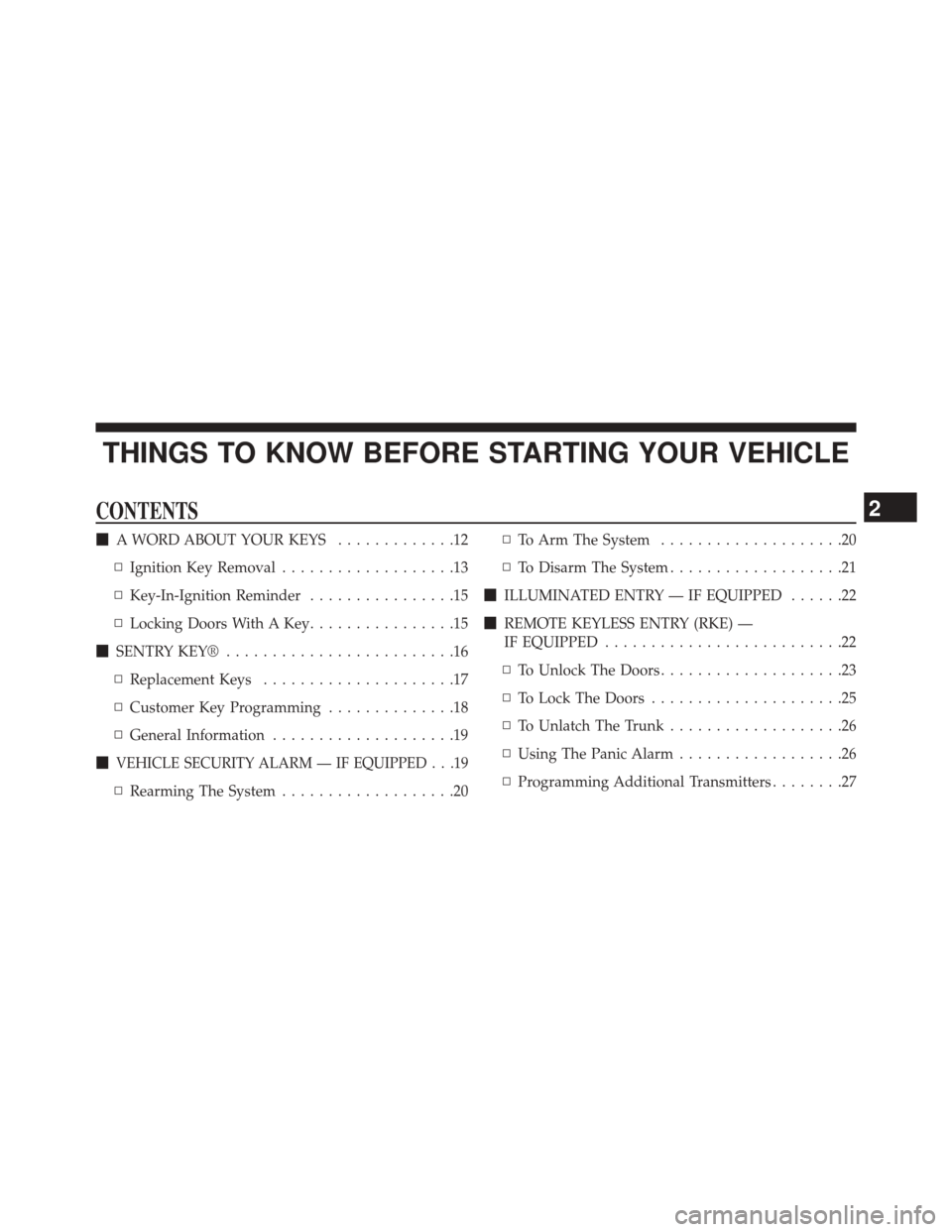

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Key Removal ...................13
▫ Key-In-Ignition Reminder ................15
▫ Locking Doors With A Key ................15
 SENTRY KEY® .........................16
▫ Replacement Keys .....................17
▫ Customer Key Programming ..............18
▫ General Information ....................19

VEHICLE SECURITY ALARM — IF EQUIPPED . . .19
▫ Rearming The System ...................20 ▫
To Arm The System ....................20
▫ To Disarm The System ...................21
 ILLUMINATED ENTRY — IF EQUIPPED ......22
 REMOTE KEYLESS ENTRY (RKE) —
IF EQUIPPED ..........................22
▫ To Unlock The Doors ....................23
▫ To Lock The Doors .....................25
▫ To Unlatch The Trunk ...................26
▫ Using The Panic Alarm ..................26
▫ Programming Additional Transmitters ........27
2

▫Transmitter Battery Replacement ...........27
▫ General Information ....................28
 REMOTE START SYSTEM — IF EQUIPPED ....28
▫ How To Use Remote Start ................29
 DOOR LOCKS .........................32
▫ Manual Door Locks .....................32
▫ Power Door Locks .....................33
▫ Child-Protection Door Lock System —
Rear Doors ..........................35
 POWER WINDOWS .....................37
▫ Power Window Switches .................37
▫ Auto Window Down — If Equipped ........38
▫
Auto Window Up With Anti-Pinch Protection—
If Equipped ..........................38
▫Window Lockout Switch .................40
▫ Wind Buffeting .......................40
 TRUNK RELEASE .......................41
 TRUNK SAFETY WARNING ................41
▫ Trunk Internal Emergency Release ..........42
 OCCUPANT RESTRAINTS ................42
▫ Lap/Shoulder Belts ....................46
▫ Adjustable Upper Shoulder Belt Anchorage . . .52
▫ Rear Seat Belts ........................52
▫ Seat Belts In Passenger Seating Positions ......52
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ..........................53
▫ Energy Management Feature ..............54

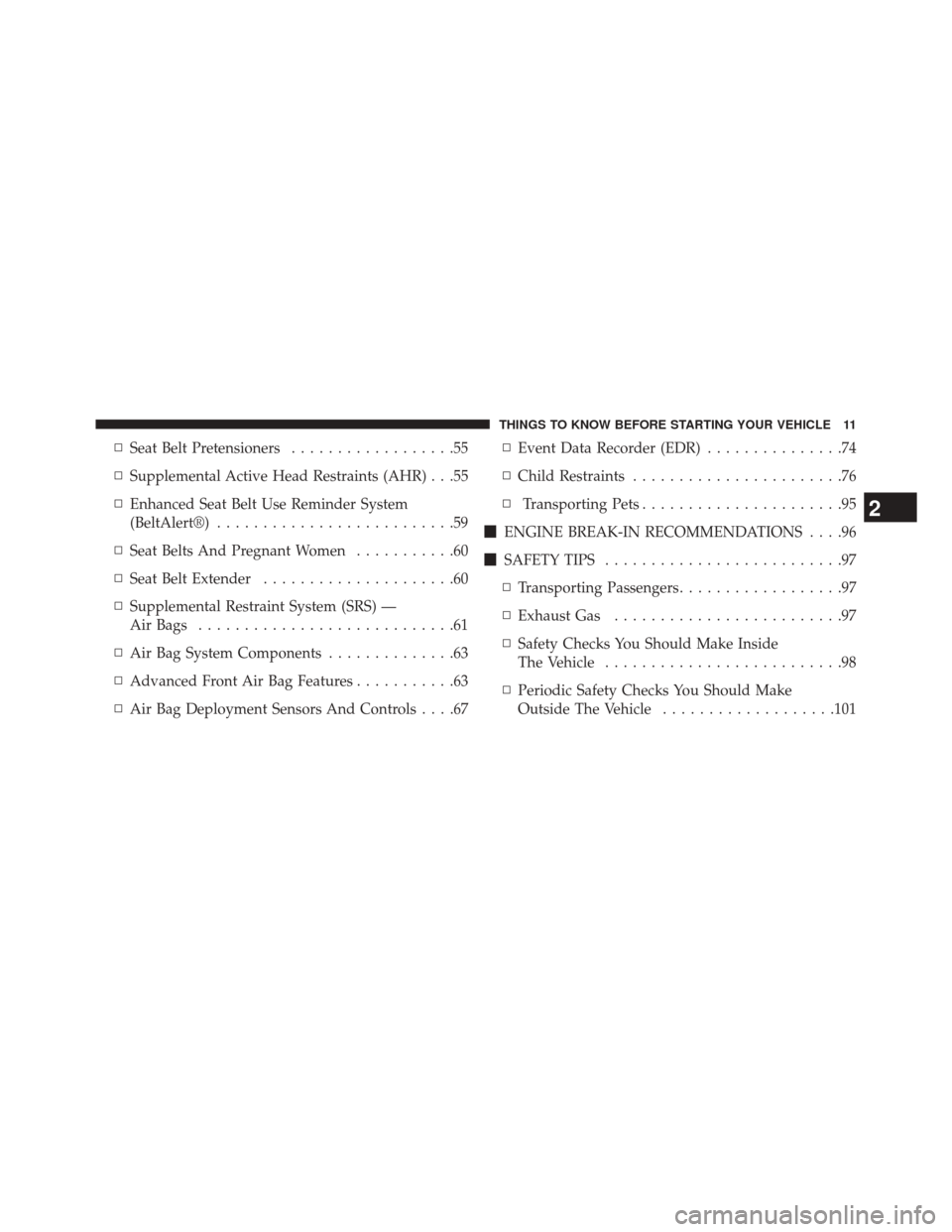

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Seat Belt Pretensioners ..................55
▫ Supplemental Active Head Restraints (AHR) . . .55
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................59
▫ Seat Belts And Pregnant Women ...........60
▫ Seat Belt Extender .....................60
▫ Supplemental Restraint System (SRS) —
Air Bags ............................61
▫ Air Bag System Components ..............63
▫ Advanced Front Air Bag Features ...........63
▫ Air Bag Deployment Sensors And Controls ....67▫
Event Data Recorder (EDR) ...............74
▫ Child Restraints .......................76
▫ Transporting Pets ......................95
 ENGINE BREAK-IN RECOMMENDATIONS ....96
 SAFETY TIPS ..........................97
▫ Transporting Passengers ..................97
▫ Exhaust Gas .........................97
▫ Safety Checks You Should Make Inside
The Vehicle ..........................98
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................101
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
You can insert the double-sided keys into the locks with
either side up.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
Ignition Switch Positions
1 — LOCK3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

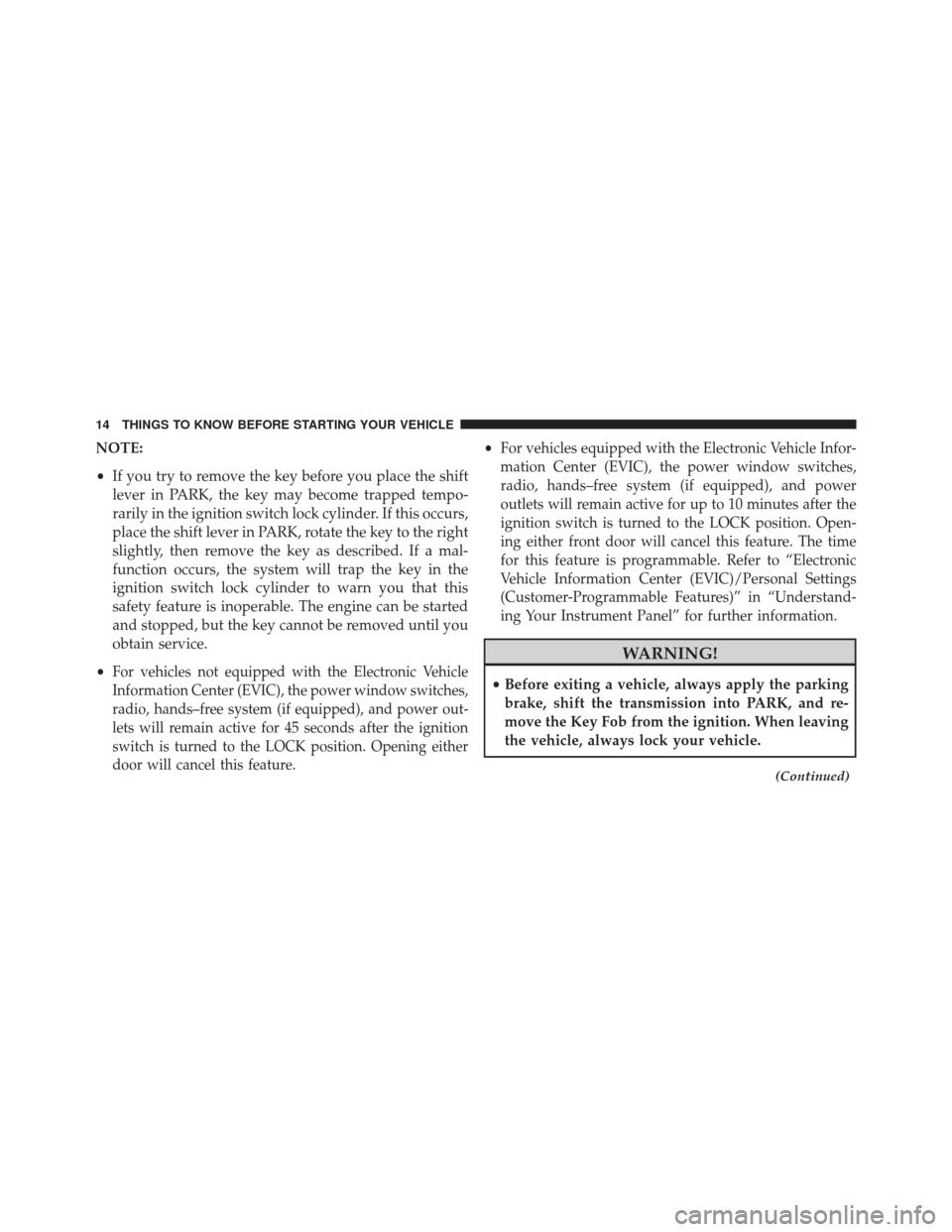

NOTE:
•If you try to remove the key before you place the shift
lever in PARK, the key may become trapped tempo-
rarily in the ignition switch lock cylinder. If this occurs,
place the shift lever in PARK, rotate the key to the right
slightly, then remove the key as described. If a mal-
function occurs, the system will trap the key in the
ignition switch lock cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped, but the key cannot be removed until you
obtain service.
•
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power out-
lets will remain active for 45 seconds after the ignition
switch is turned to the LOCK position. Opening either
door will cancel this feature.
•For vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition switch is turned to the LOCK position. Open-
ing either front door will cancel this feature. The time
for this feature is programmable. Refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
WARNING!
• Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the Key Fob from the ignition. When leaving
the vehicle, always lock your vehicle.
(Continued)
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

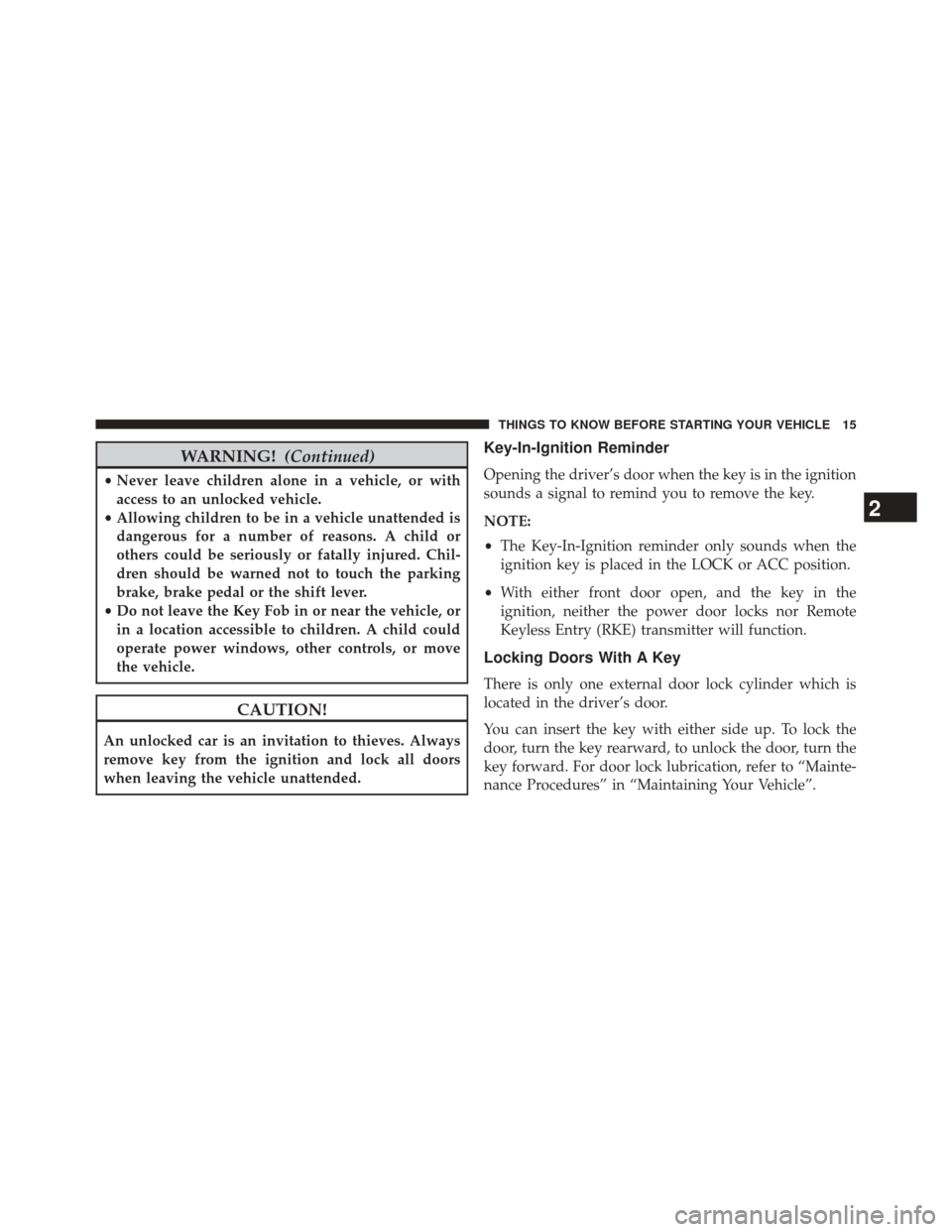

WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:
• The Key-In-Ignition reminder only sounds when the
ignition key is placed in the LOCK or ACC position.
• With either front door open, and the key in the
ignition, neither the power door locks nor Remote
Keyless Entry (RKE) transmitter will function.
Locking Doors With A Key
There is only one external door lock cylinder which is
located in the driver’s door.
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. For door lock lubrication, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

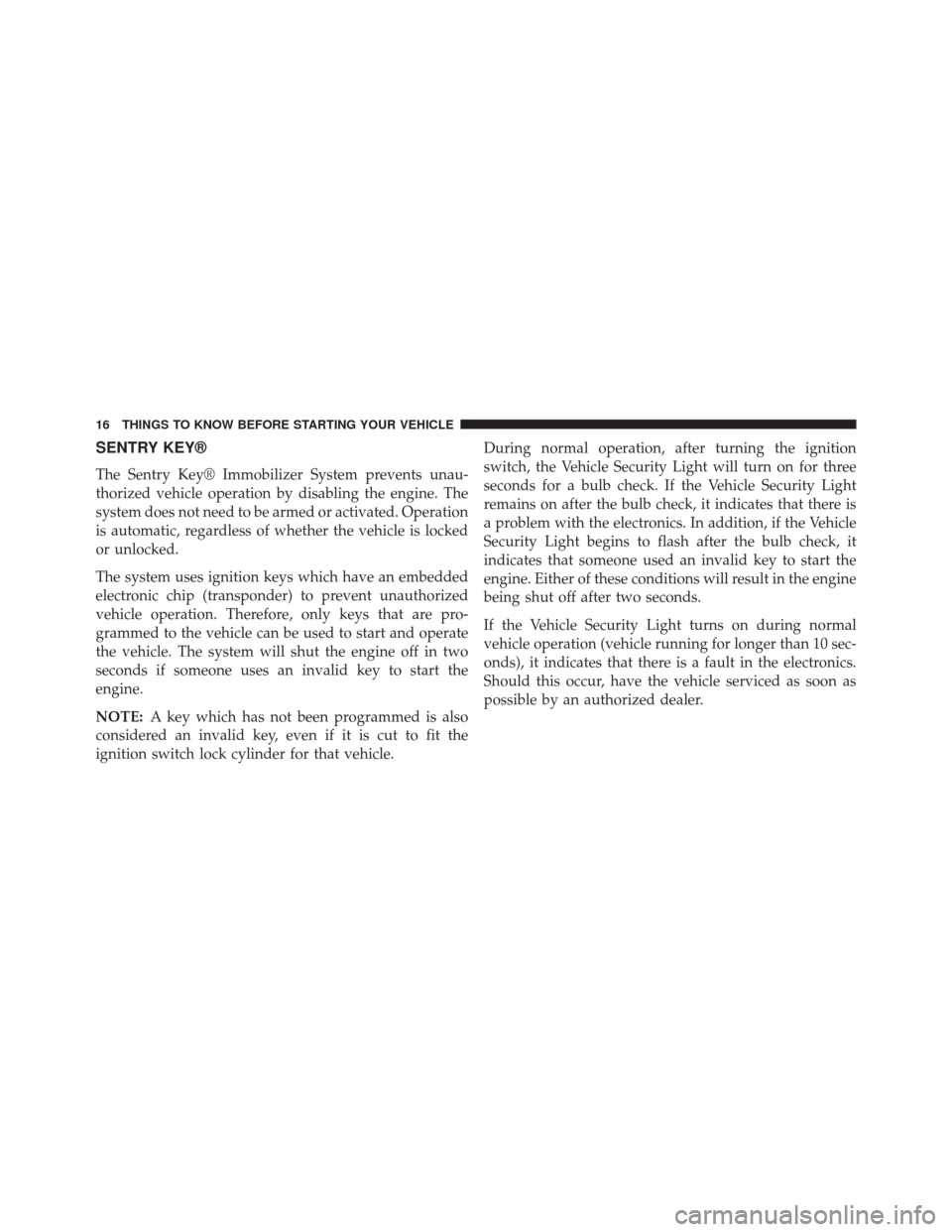

SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle. During normal operation, after turning the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the Vehicle Security Light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the Vehicle
Security Light begins to flash after the bulb check, it
indicates that someone used an invalid key to start the
engine. Either of these conditions will result in the engine
being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

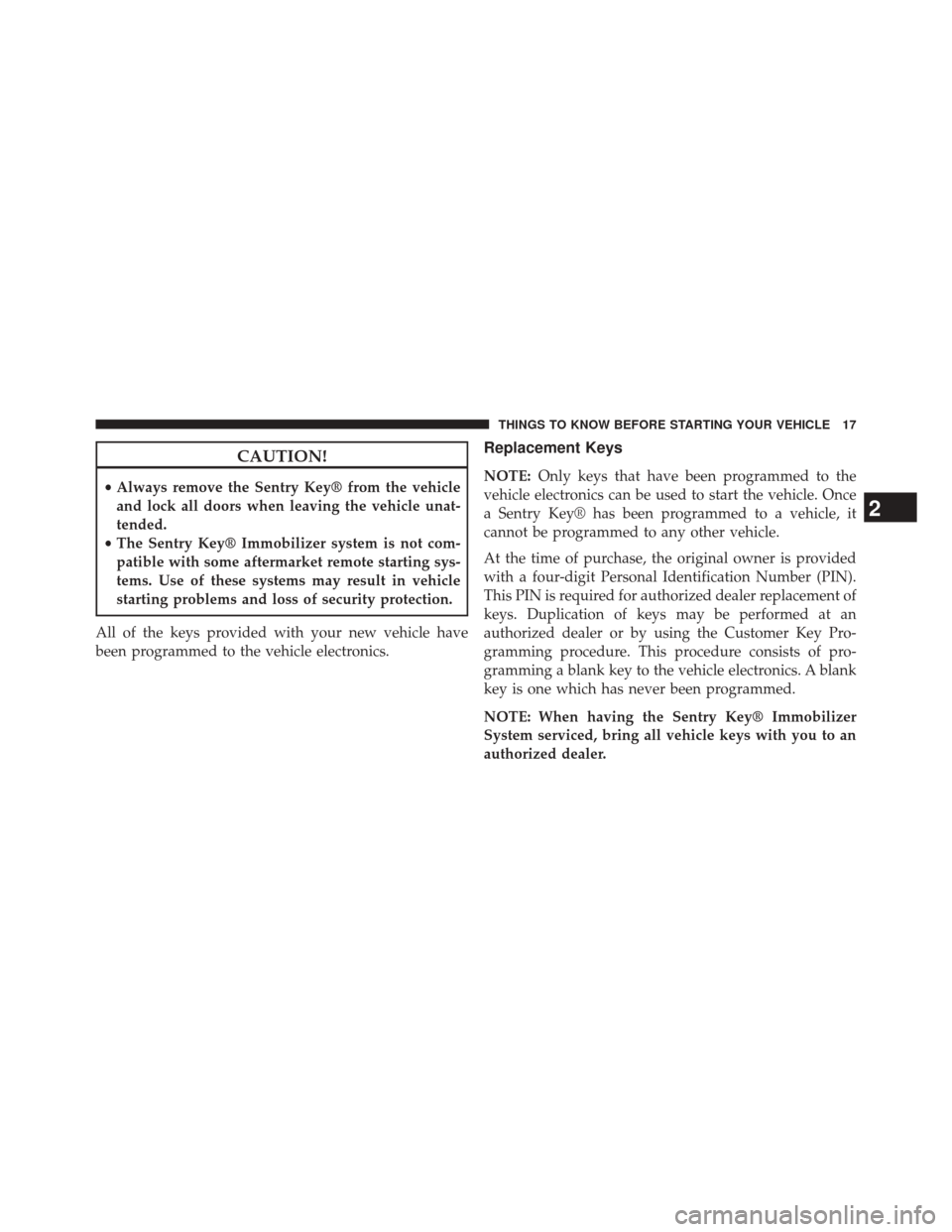

CAUTION!
•Always remove the Sentry Key® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key® Immobilizer system is not com-
patible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key® has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
NOTE: When having the Sentry Key® Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Customer Key Programming
You can program new keys to the system if you have two
valid Sentry Keys® by performing the following proce-
dure:
1. Cut the additional Sentry Key® Transponder blank(s)to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn the ignition switch to the ON/RUN position for at
least 3 seconds, but no longer than 15 seconds. Then,
turn the ignition switch to the LOCK position and
remove the first key.
3. Insert the second valid key into the ignition switch. Turn the ignition switch to the ON/RUN position
within 15 seconds. After 10 seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key. 4. Insert a blank Sentry Key® into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 60 seconds. After 10 seconds, a single chime
will sound. In addition, the Vehicle Security Light will
stop flashing. To indicate that programming is com-
plete, the Vehicle Security Light will turn on again for
three seconds and then turn off.
The new Sentry Key® is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key®, contact your
authorized dealer for details.
