TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled vehicle using a commercial wrecker service.
Towing ConditionWheels OFF the Ground All Models
Flat Tow NONEIf transmission is operable:
• Transmission in NEUTRAL
• 25 mph (40 km/h) maxspeed
• 15 mi (24 km) maxdistance
Wheel Lift Or Dolly Tow
Rear
Front OK
Flatbed ALLBEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If your vehicle’s battery is discharged, refer to
Shift
Lever Override in this section for instructions on shifting
the transmission out of PARK for towing.
6
WHAT TO DO IN EMERGENCIES 419

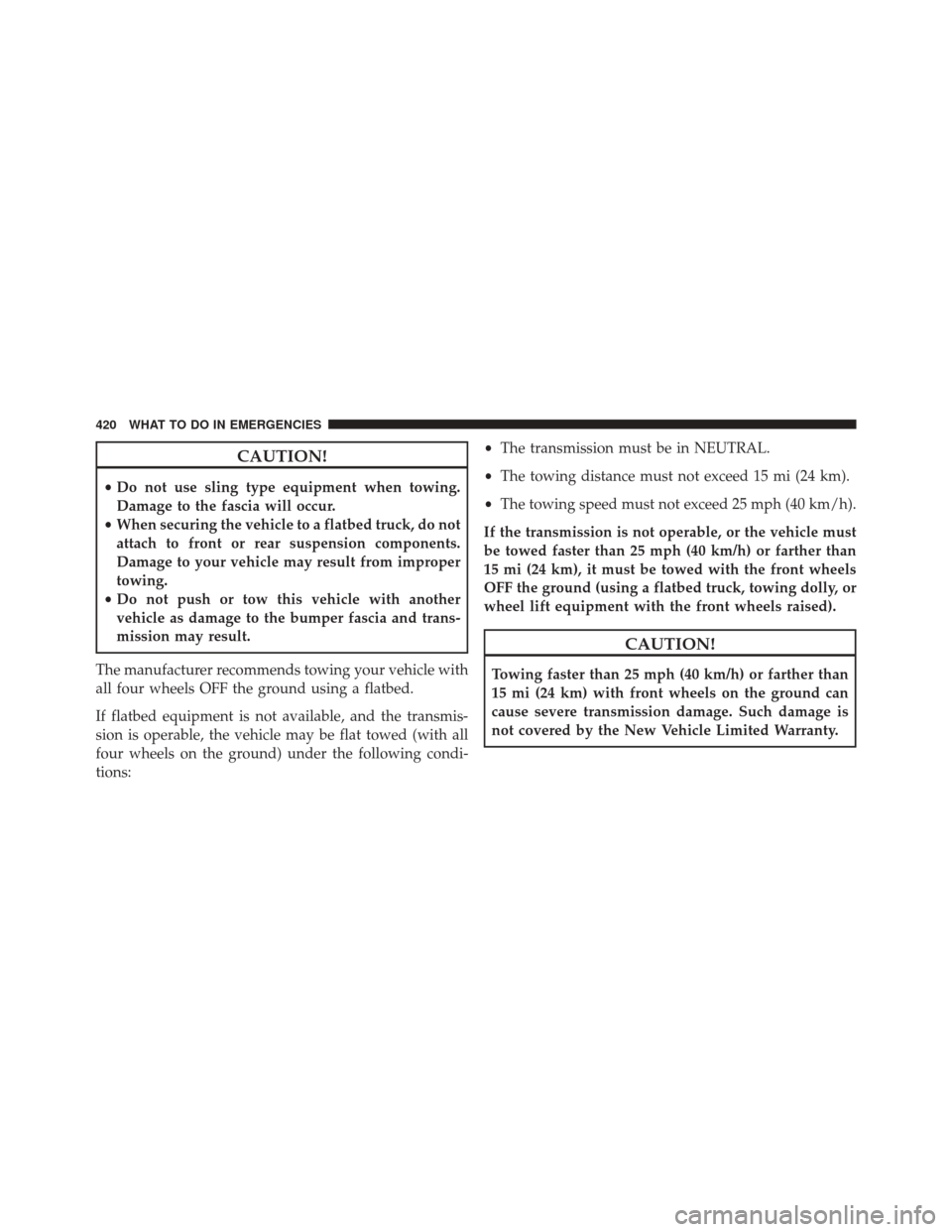

CAUTION!
•Do not use sling type equipment when towing.
Damage to the fascia will occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
• Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions: •
The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 mi (24 km).
• The towing speed must not exceed 25 mph (40 km/h).
If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than
15 mi (24 km), it must be towed with the front wheels
OFF the ground (using a flatbed truck, towing dolly, or
wheel lift equipment with the front wheels raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe transmission damage. Such damage is
not covered by the New Vehicle Limited Warranty.
420 WHAT TO DO IN EMERGENCIES

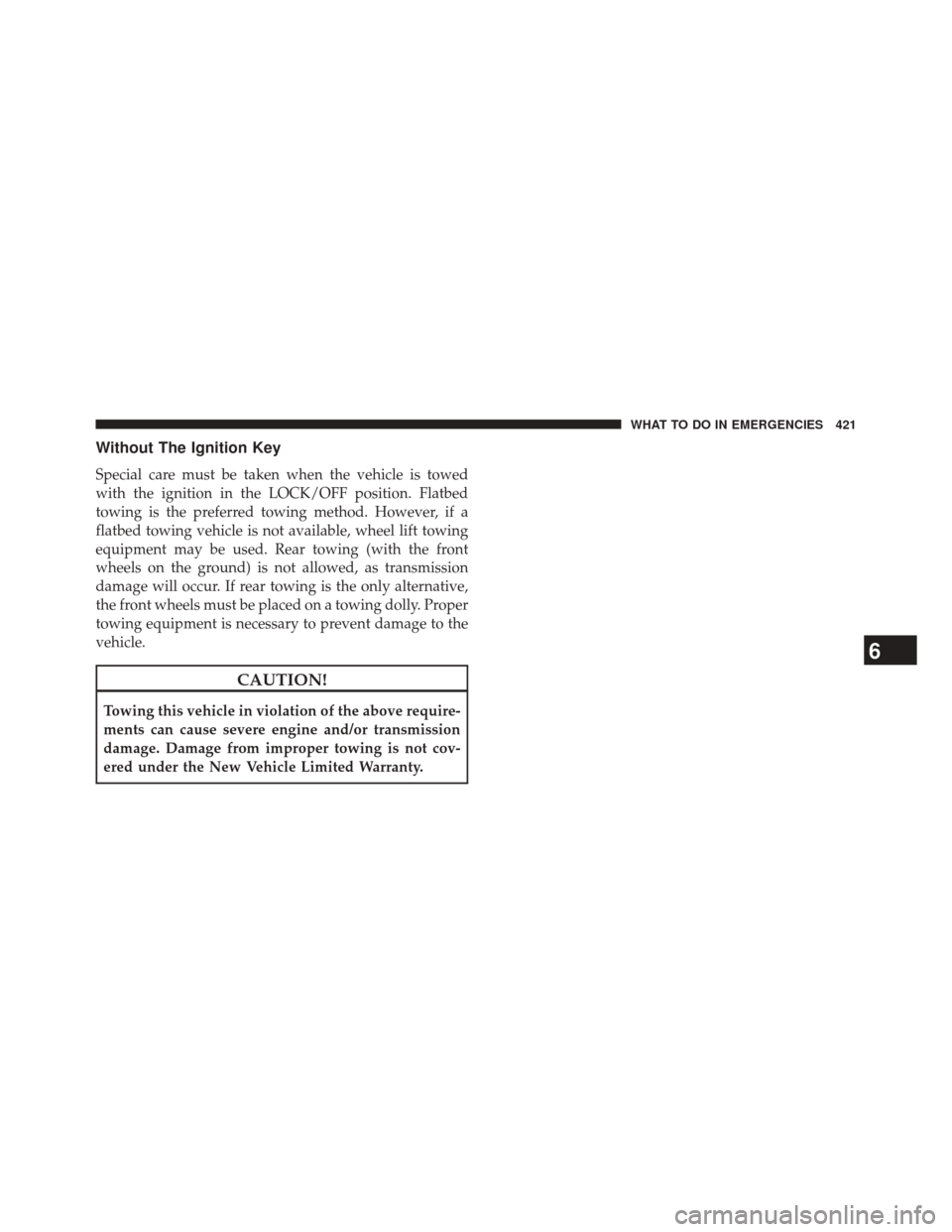

Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK/OFF position. Flatbed
towing is the preferred towing method. However, if a
flatbed towing vehicle is not available, wheel lift towing
equipment may be used. Rear towing (with the front
wheels on the ground) is not allowed, as transmission
damage will occur. If rear towing is the only alternative,
the front wheels must be placed on a towing dolly. Proper
towing equipment is necessary to prevent damage to the
vehicle.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 421

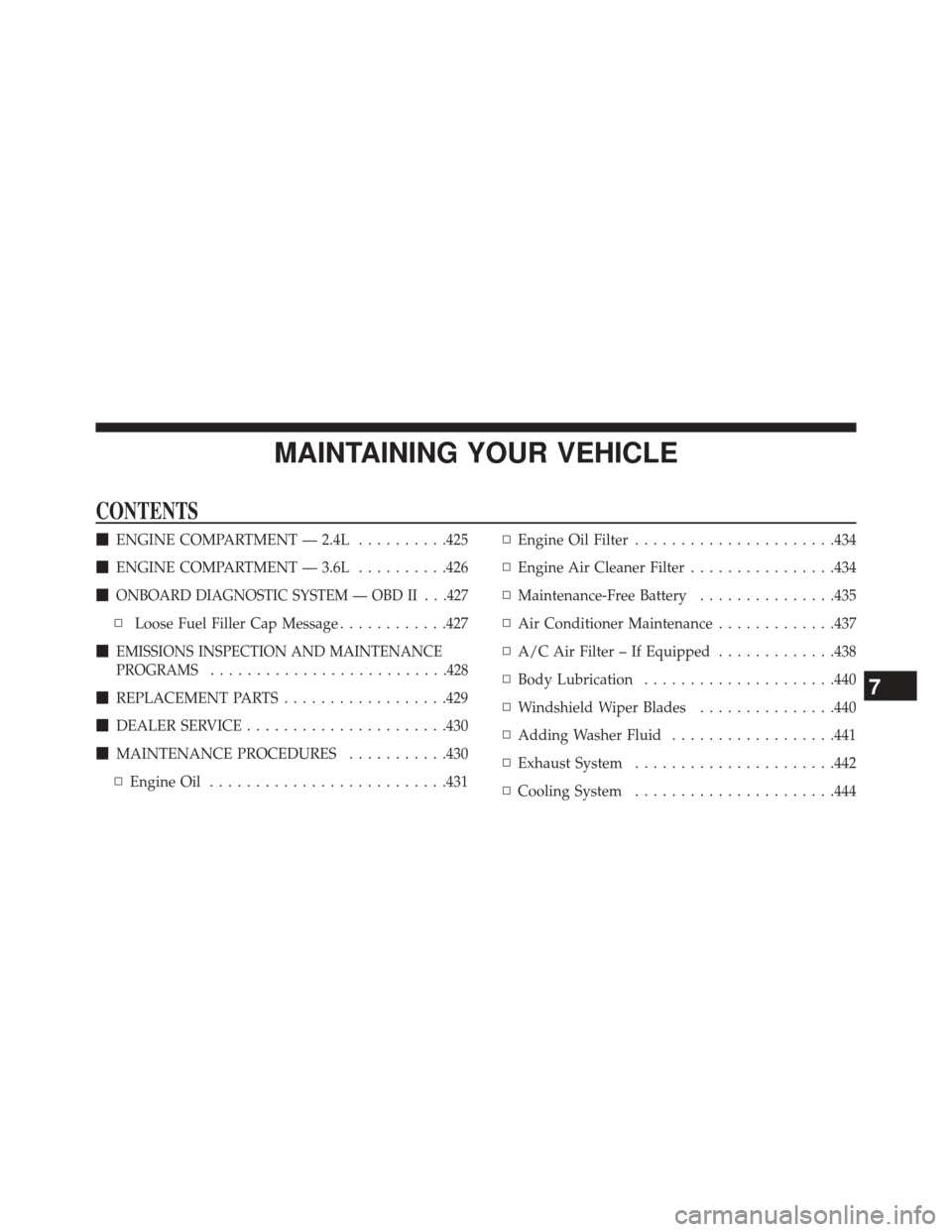

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ..........425
 ENGINE COMPARTMENT — 3.6L ..........426

ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .427
▫ Loose Fuel Filler Cap Message ............427

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .428
REPLACEMENT PARTS ..................429
 DEALER SERVICE ..................... .430
 MAINTENANCE PROCEDURES ...........430
▫ Engine Oil ......................... .431▫
Engine Oil Filter ..................... .434
▫ Engine Air Cleaner Filter ................434
▫ Maintenance-Free Battery ...............435
▫ Air Conditioner Maintenance .............437
▫ A/C Air Filter – If Equipped .............438
▫ Body Lubrication .....................440
▫ Windshield Wiper Blades ...............440
▫ Adding Washer Fluid ..................441
▫ Exhaust System ..................... .442
▫ Cooling System ..................... .4447

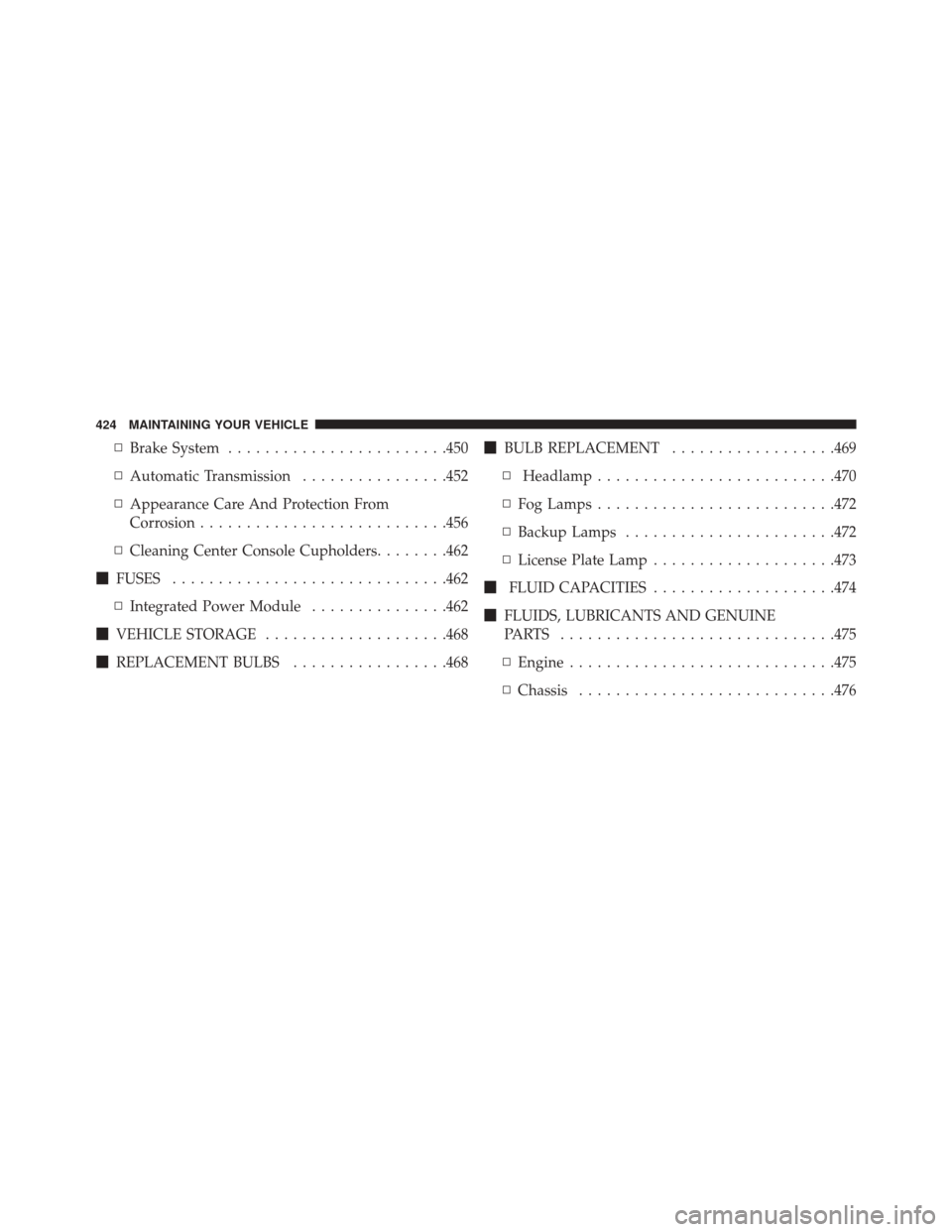

▫Brake System ....................... .450
▫ Automatic Transmission ................452
▫ Appearance Care And Protection From
Corrosion .......................... .456
▫ Cleaning Center Console Cupholders ........462
 FUSES ............................. .462
▫ Integrated Power Module ...............462
 VEHICLE STORAGE ....................468
 REPLACEMENT BULBS .................468
BULB REPLACEMENT ..................469
▫ Headlamp ......................... .470
▫ Fog Lamps ......................... .472
▫ Backup Lamps ...................... .472
▫ License Plate Lamp ....................473
 FLUID CAPACITIES ....................474
 FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .475
▫ Engine ............................ .475
▫ Chassis ........................... .476
424 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir6 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 7 — Engine Oil Fill
3 — Brake Fluid Reservoir 8 — Coolant Pressure Cap
4 — Power Distribution Center (Fuses) 9 — Engine Oil Dipstick
5 — Integrated Power Module (Fuses) 10 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 425

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Reservoir5 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 6 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 7 — Engine Oil Fill
4 — Integrated Power Module (Fuses) 8 — Washer Fluid Reservoir
426 MAINTAINING YOUR VEHICLE

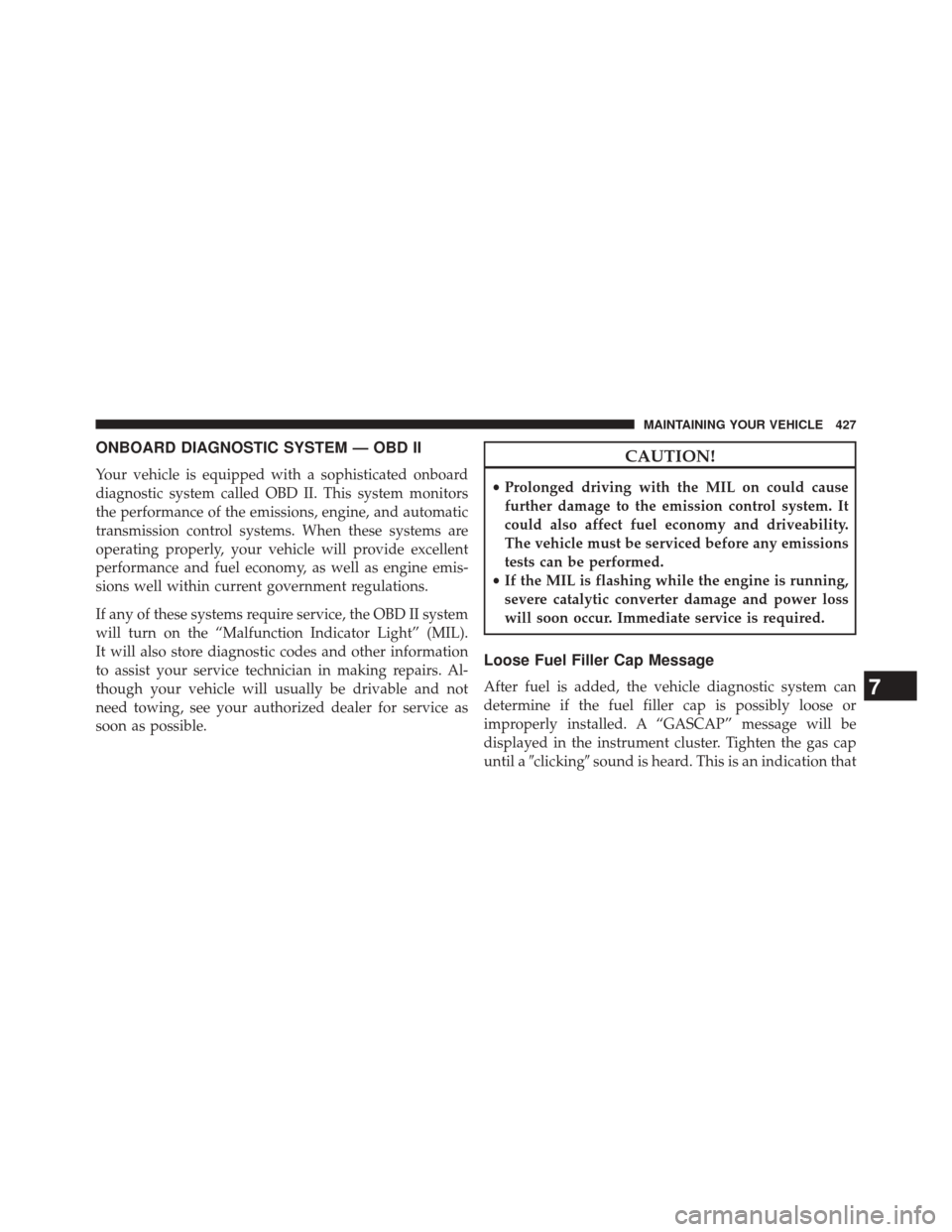

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL).
It will also store diagnostic codes and other information
to assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “GASCAP” message will be
displayed in the instrument cluster. Tighten the gas cap
until a clicking sound is heard. This is an indication that7
MAINTAINING YOUR VEHICLE 427

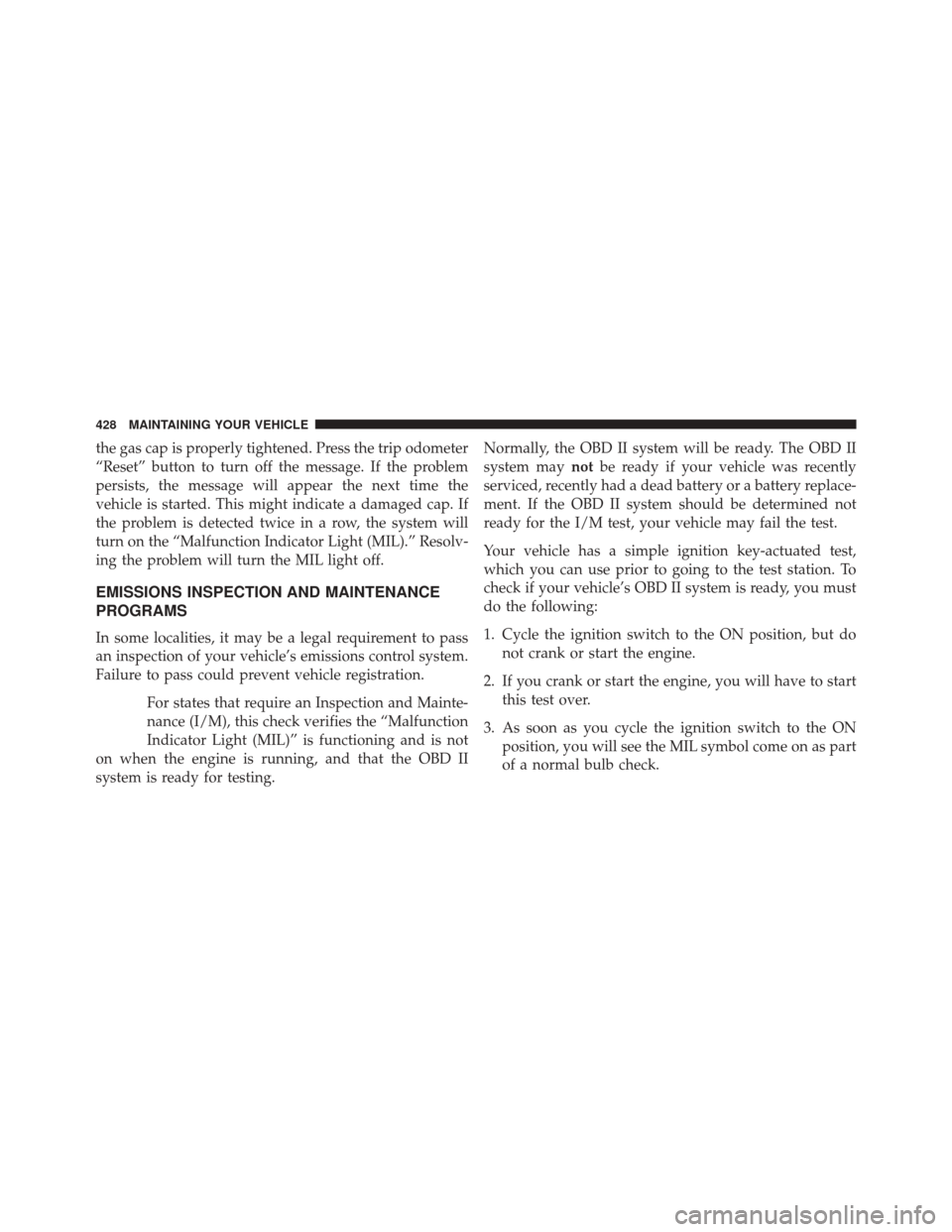

the gas cap is properly tightened. Press the trip odometer
“Reset” button to turn off the message. If the problem
persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the “Malfunction Indicator Light (MIL).” Resolv-
ing the problem will turn the MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Cycle the ignition switch to the ON position, but do not crank or start the engine.
2. If you crank or start the engine, you will have to start this test over.
3. As soon as you cycle the ignition switch to the ON position, you will see the MIL symbol come on as part
of a normal bulb check.
