•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.

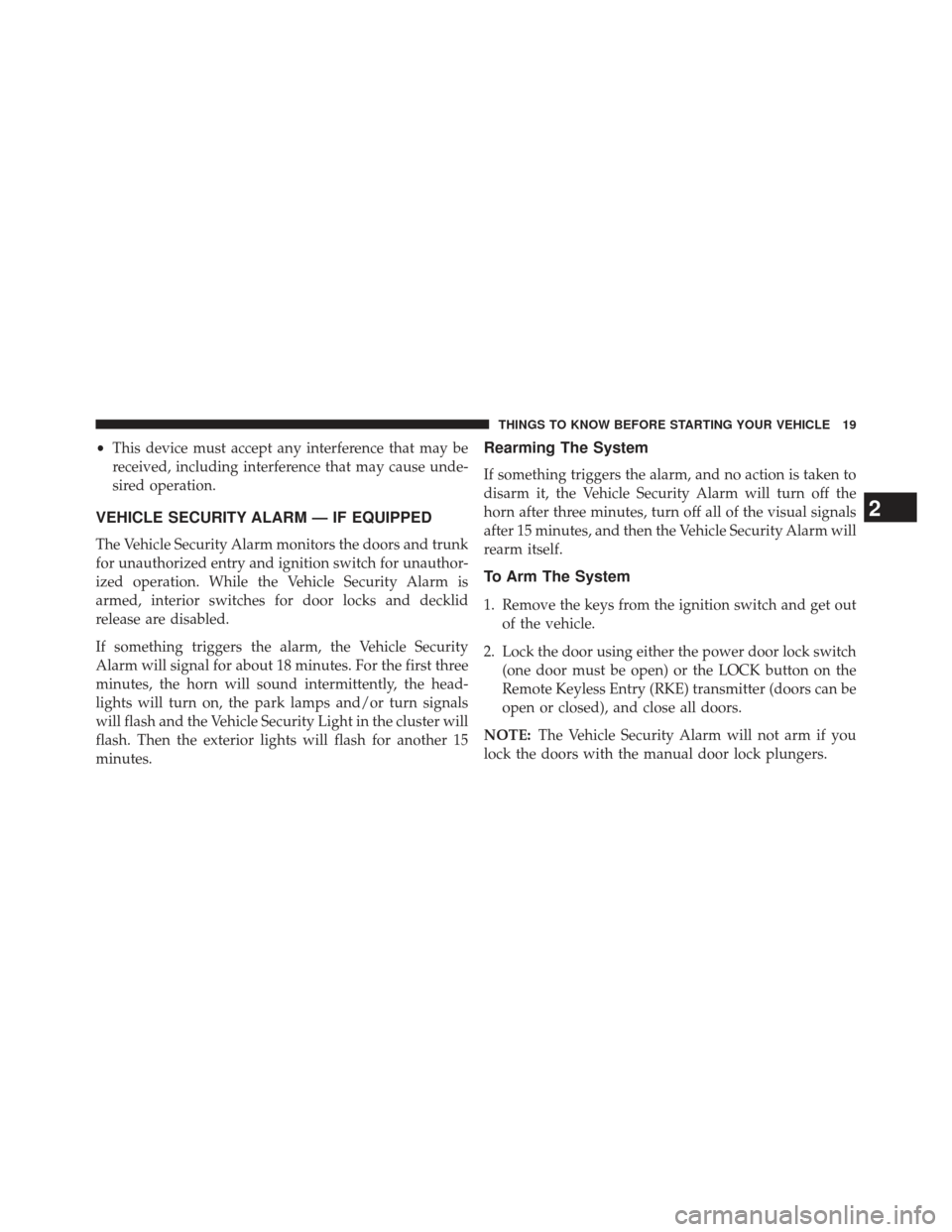

VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unauthor-
ized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently, the head-
lights will turn on, the park lamps and/or turn signals
will flash and the Vehicle Security Light in the cluster will
flash. Then the exterior lights will flash for another 15
minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
1. Remove the keys from the ignition switch and get out of the vehicle.
2. Lock the door using either the power door lock switch (one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE: The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

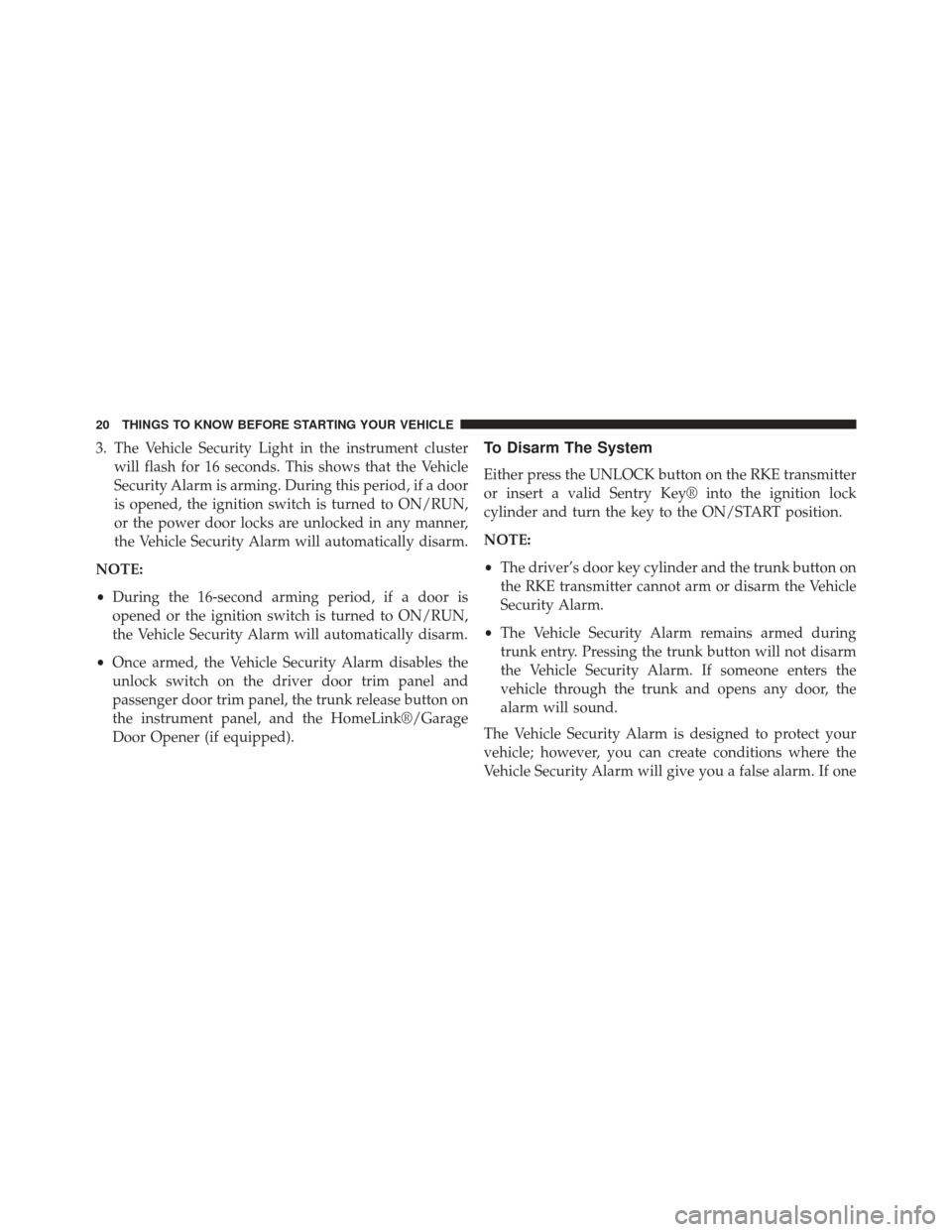

3. The Vehicle Security Light in the instrument clusterwill flash for 16 seconds. This shows that the Vehicle
Security Alarm is arming. During this period, if a door
is opened, the ignition switch is turned to ON/RUN,
or the power door locks are unlocked in any manner,
the Vehicle Security Alarm will automatically disarm.
NOTE:
• During the 16-second arming period, if a door is
opened or the ignition switch is turned to ON/RUN,
the Vehicle Security Alarm will automatically disarm.
• Once armed, the Vehicle Security Alarm disables the
unlock switch on the driver door trim panel and
passenger door trim panel, the trunk release button on
the instrument panel, and the HomeLink®/Garage
Door Opener (if equipped).To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Key® into the ignition lock
cylinder and turn the key to the ON/START position.
NOTE:
• The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
• The Vehicle Security Alarm remains armed during
trunk entry. Pressing the trunk button will not disarm
the Vehicle Security Alarm. If someone enters the
vehicle through the trunk and opens any door, the
alarm will sound.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

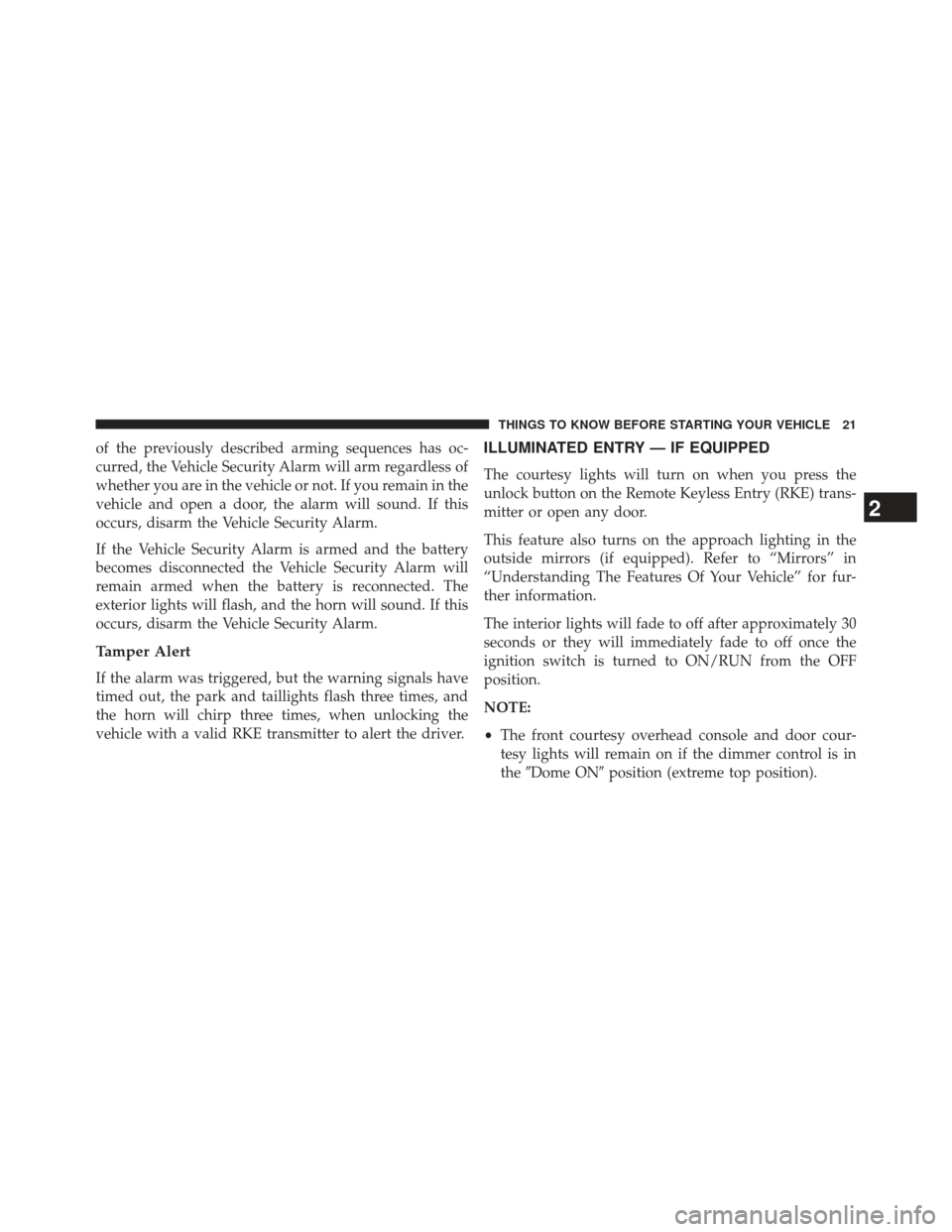

of the previously described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times, and
the horn will chirp three times, when unlocking the
vehicle with a valid RKE transmitter to alert the driver.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you press the
unlock button on the Remote Keyless Entry (RKE) trans-
mitter or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
The interior lights will fade to off after approximately 30
seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position.
NOTE:
•The front courtesy overhead console and door cour-
tesy lights will remain on if the dimmer control is in
the Dome ON position (extreme top position).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors, open
the trunk, or activate the Panic Alarm from distances
approximately 66 ft (20 m) using a Remote Keyless Entry
(RKE) transmitter. The RKE transmitter does not need to
be pointed at the vehicle to activate the system.
NOTE:
• The line of transmission must not be blocked with
metal objects.
• Inserting the key into the ignition switch disables all
buttons on the RKE transmitter.
To Unlock The Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice to
unlock all doors. The turn signal lights will flash to
acknowledge the unlock signal. The Illuminated Entry
system (if equipped) will also turn on.
Vehicle Key
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

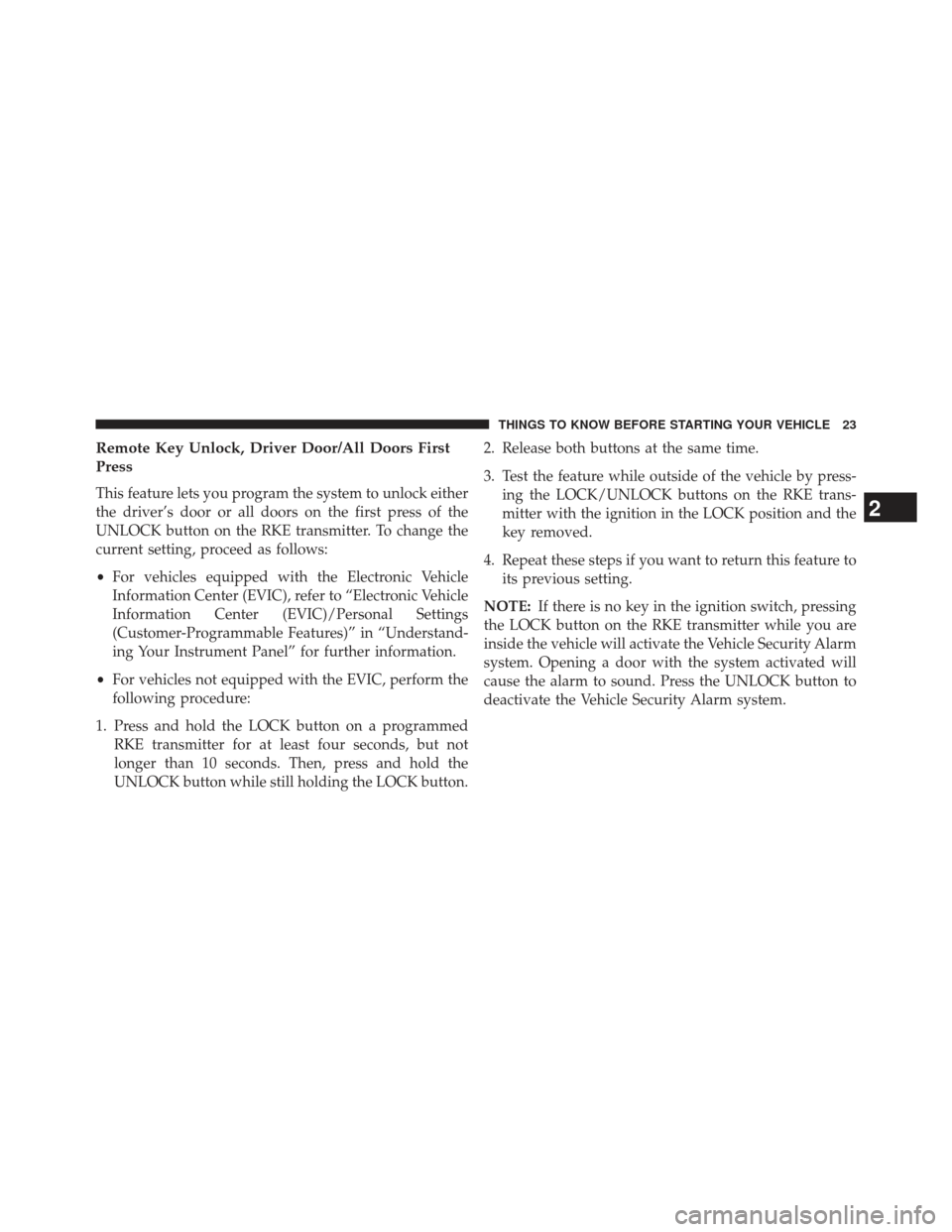

Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed RKE transmitter for at least four seconds, but not
longer than 10 seconds. Then, press and hold the
UNLOCK button while still holding the LOCK button. 2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the LOCK position and the
key removed.
4. Repeat these steps if you want to return this feature to its previous setting.
NOTE: If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are
inside the vehicle will activate the Vehicle Security Alarm
system. Opening a door with the system activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Vehicle Security Alarm system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

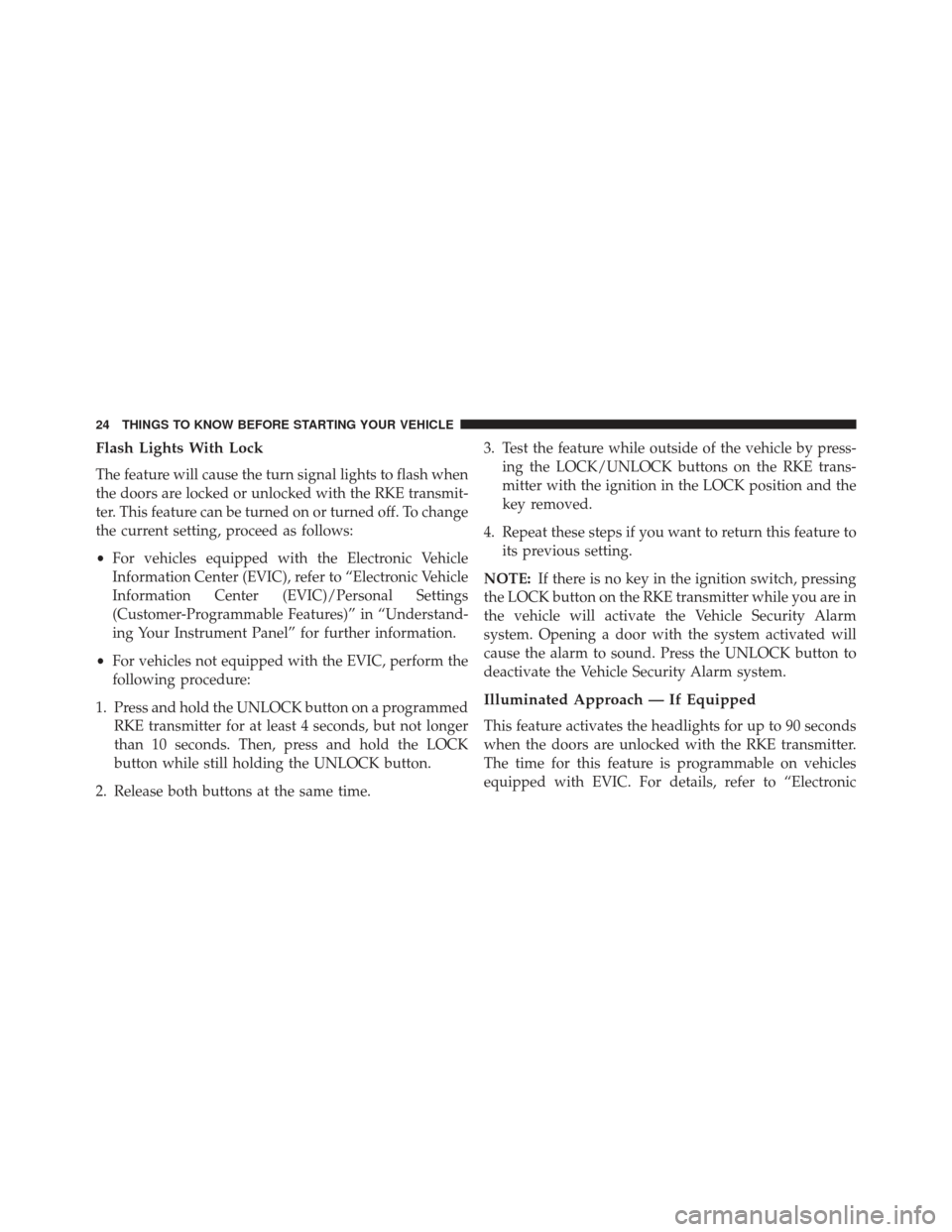

Flash Lights With Lock
The feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on a programmed RKE transmitter for at least 4 seconds, but not longer
than 10 seconds. Then, press and hold the LOCK
button while still holding the UNLOCK button.
2. Release both buttons at the same time. 3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the LOCK position and the
key removed.
4. Repeat these steps if you want to return this feature to its previous setting.
NOTE: If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are in
the vehicle will activate the Vehicle Security Alarm
system. Opening a door with the system activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Vehicle Security Alarm system.
Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with EVIC. For details, refer to “Electronic
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

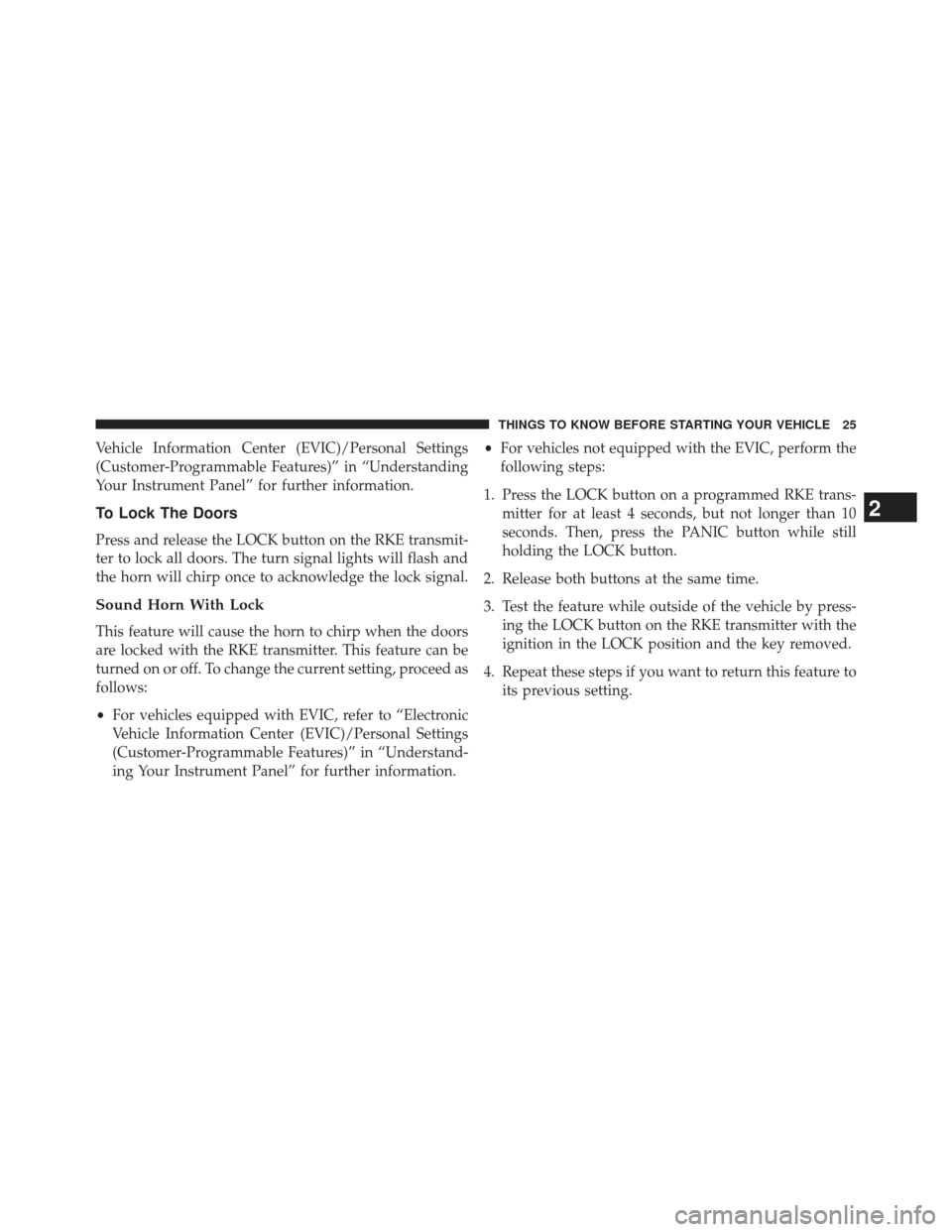

Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
To Lock The Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•For vehicles equipped with EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information. •
For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed RKE trans- mitter for at least 4 seconds, but not longer than 10
seconds. Then, press the PANIC button while still
holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press- ing the LOCK button on the RKE transmitter with the
ignition in the LOCK position and the key removed.
4. Repeat these steps if you want to return this feature to its previous setting.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

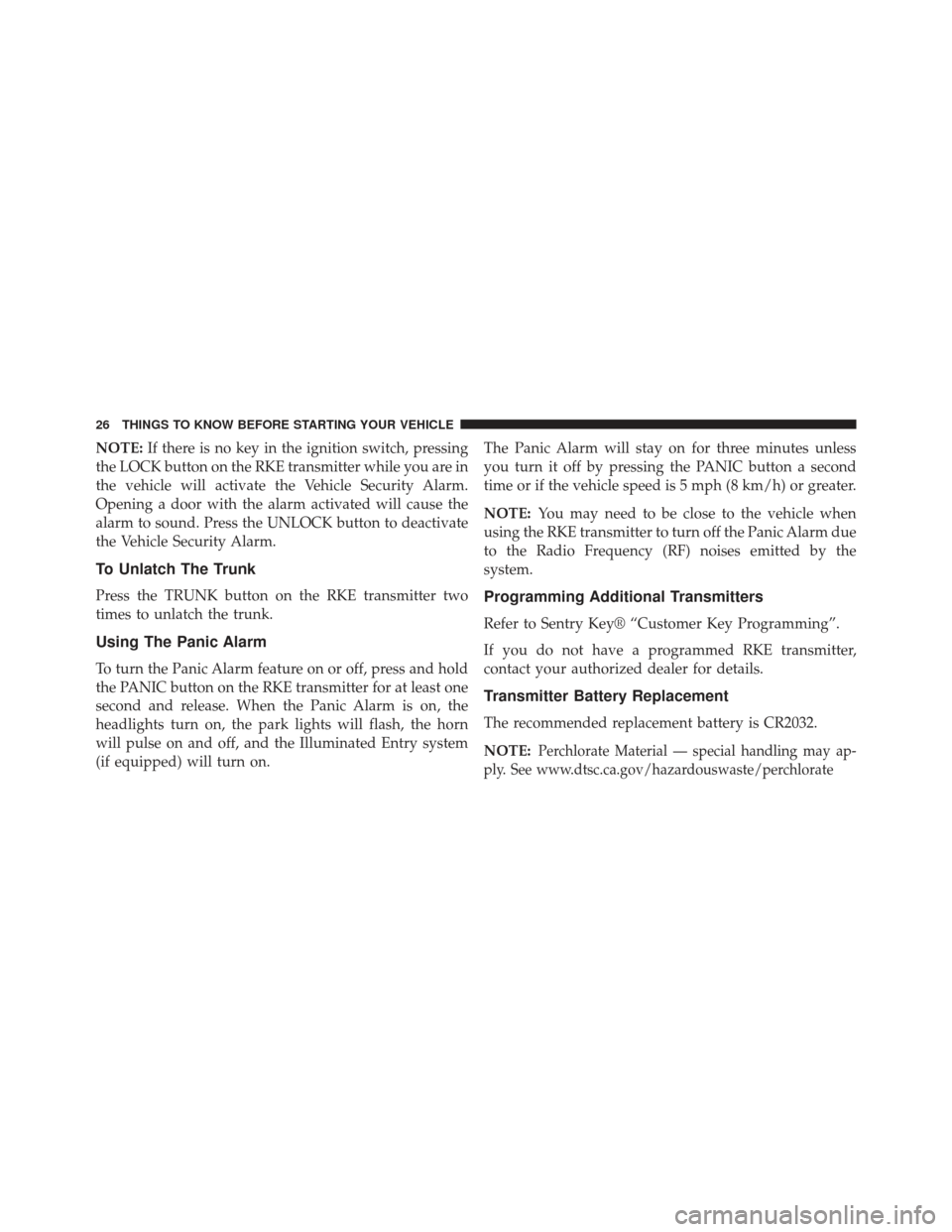

NOTE:If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are in
the vehicle will activate the Vehicle Security Alarm.
Opening a door with the alarm activated will cause the
alarm to sound. Press the UNLOCK button to deactivate
the Vehicle Security Alarm.
To Unlatch The Trunk
Press the TRUNK button on the RKE transmitter two
times to unlatch the trunk.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights turn on, the park lights will flash, the horn
will pulse on and off, and the Illuminated Entry system
(if equipped) will turn on. The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
You may need to be close to the vehicle when
using the RKE transmitter to turn off the Panic Alarm due
to the Radio Frequency (RF) noises emitted by the
system.
Programming Additional Transmitters
Refer to Sentry Key® “Customer Key Programming”.
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material — special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

1. With the RKE transmitter buttons facing down, use aflat blade screwdriver to pry the two halves of the RKE
transmitter apart. Make sure not to damage the seal
during removal. 2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
3. To assemble the RKE transmitter case, snap the two halves together.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may bereceived including interference that may cause unde-
sired operation.
Separating RKE Transmitter Halves
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in the RKE transmitter. The expected life of a battery is five years.
2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, military base, and some
mobile or CB radios.
REMOTE START SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m). NOTE:
The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
• Shift lever in PARK
• Doors closed
• Hood closed
• Trunk closed
• Hazard switch off
• Brake switch inactive (brake pedal not pressed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• RKE PANIC button not pressed
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
