DODGE CALIBER 2009 1.G Owners Manual

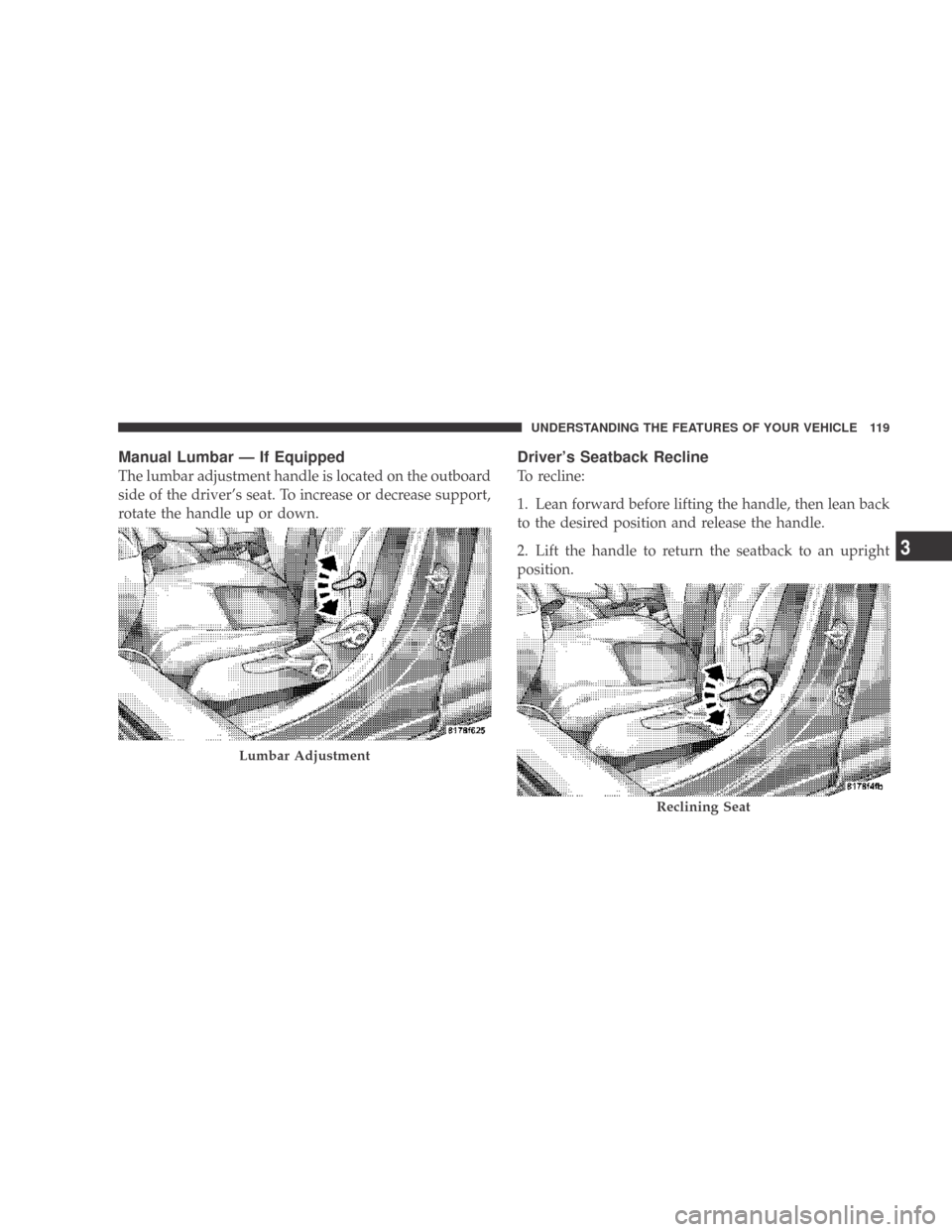

Manual Lumbar — If Equipped
The lumbar adjustment handle is located on the outboard
side of the driver’s seat. To increase or decrease support,
rotate the handle up or down.
Driver’s Seatback Recline
To recline:
1. Lean forward before lifting the handle, then lean back
to the desired position and release the handle.
2. Lift the handle to return the seatback to an upright
position.
Lumbar Adjustment
Reclining Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

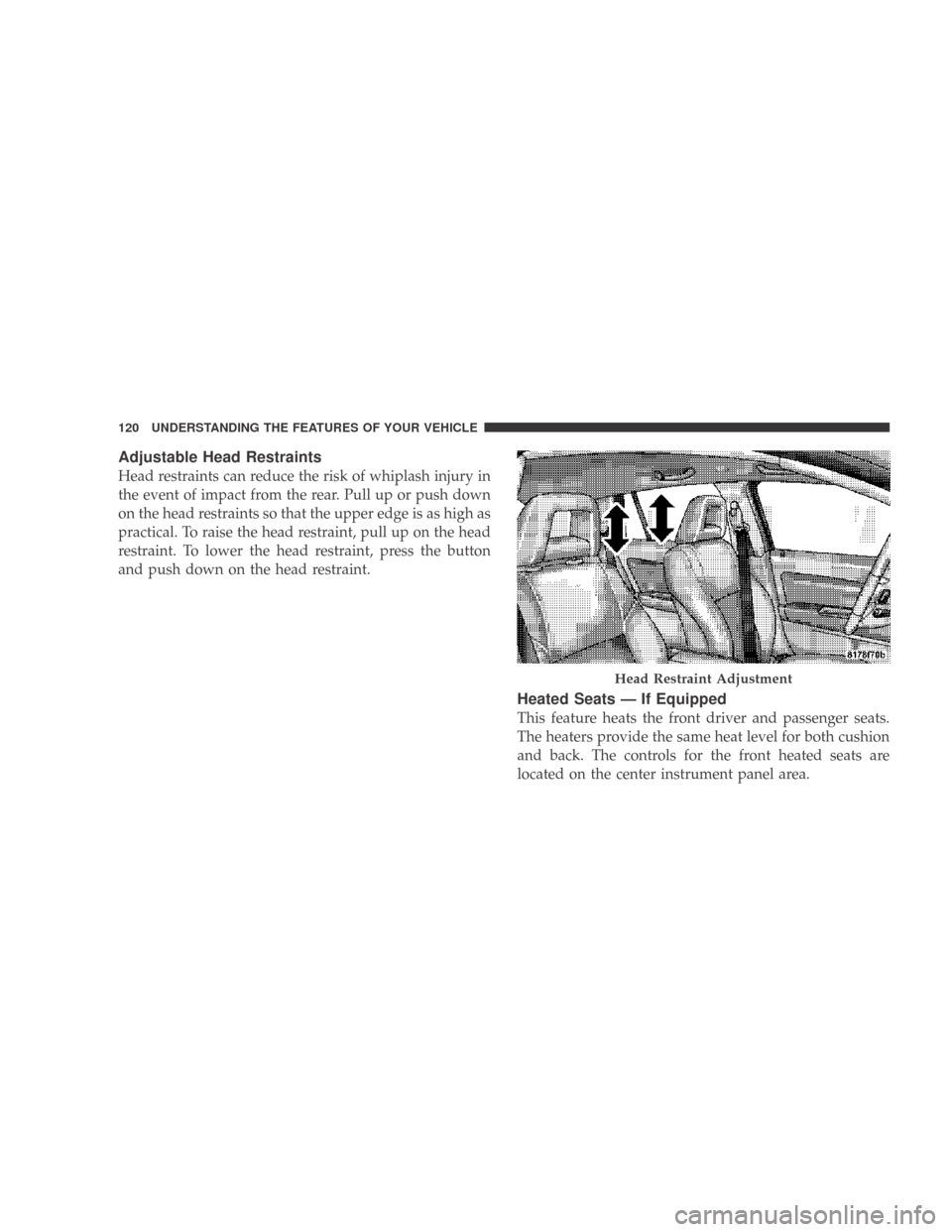

Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull up or push down
on the head restraints so that the upper edge is as high as
practical. To raise the head restraint, pull up on the head
restraint. To lower the head restraint, press the button
and push down on the head restraint.
Heated Seats — If Equipped
This feature heats the front driver and passenger seats.
The heaters provide the same heat level for both cushion
and back. The controls for the front heated seats are
located on the center instrument panel area.
Head Restraint Adjustment
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off.
If High-level heating is selected, the system automatically
switches to Low-level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after
an additional 30 minutes of continuous operation. If
Low-level heating is selected, the system automatically
turns the heater and the indicator light off after 30 min-
utes of continuous operation. NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

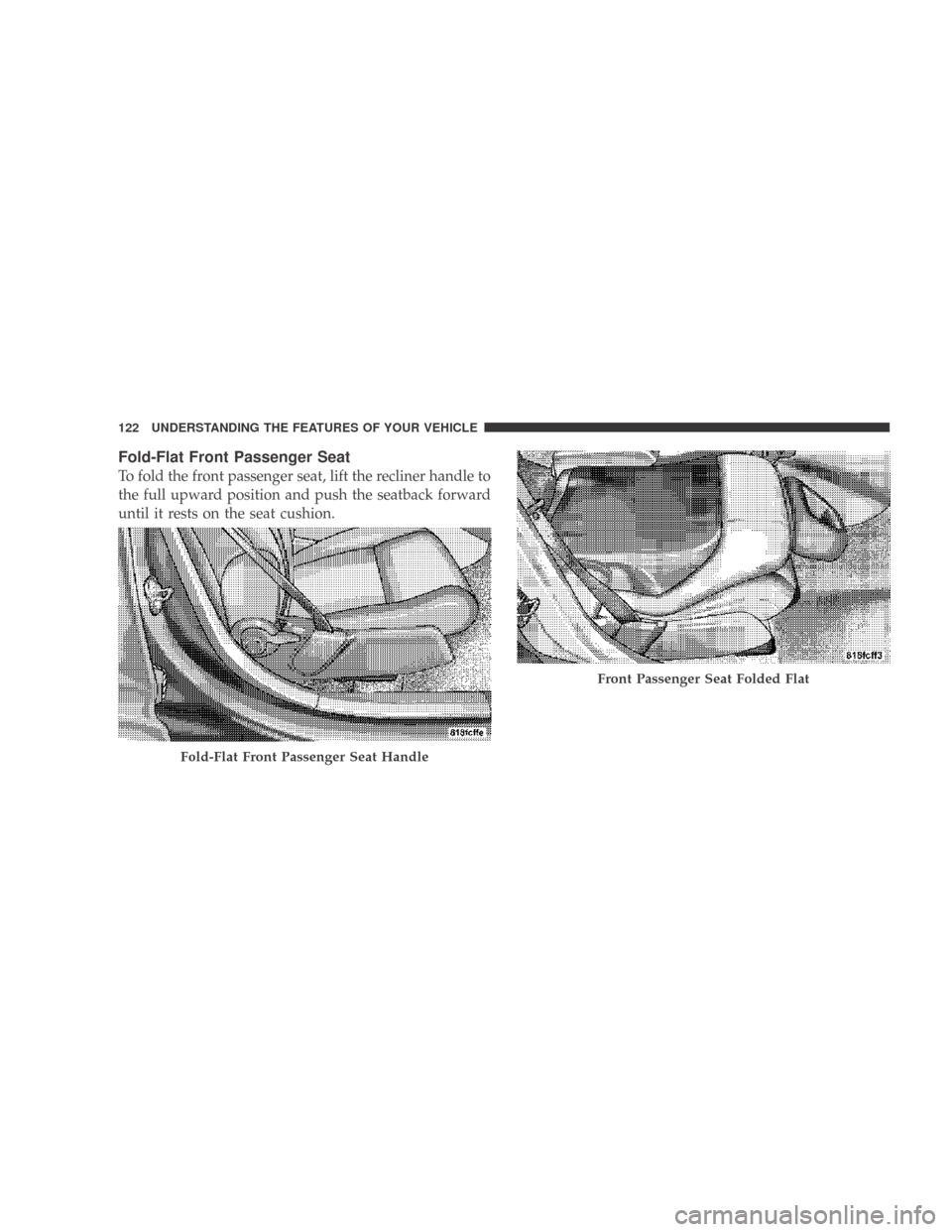

Fold-Flat Front Passenger Seat
To fold the front passenger seat, lift the recliner handle to
the full upward position and push the seatback forward
until it rests on the seat cushion.
Fold-Flat Front Passenger Seat Handle
Front Passenger Seat Folded Flat
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

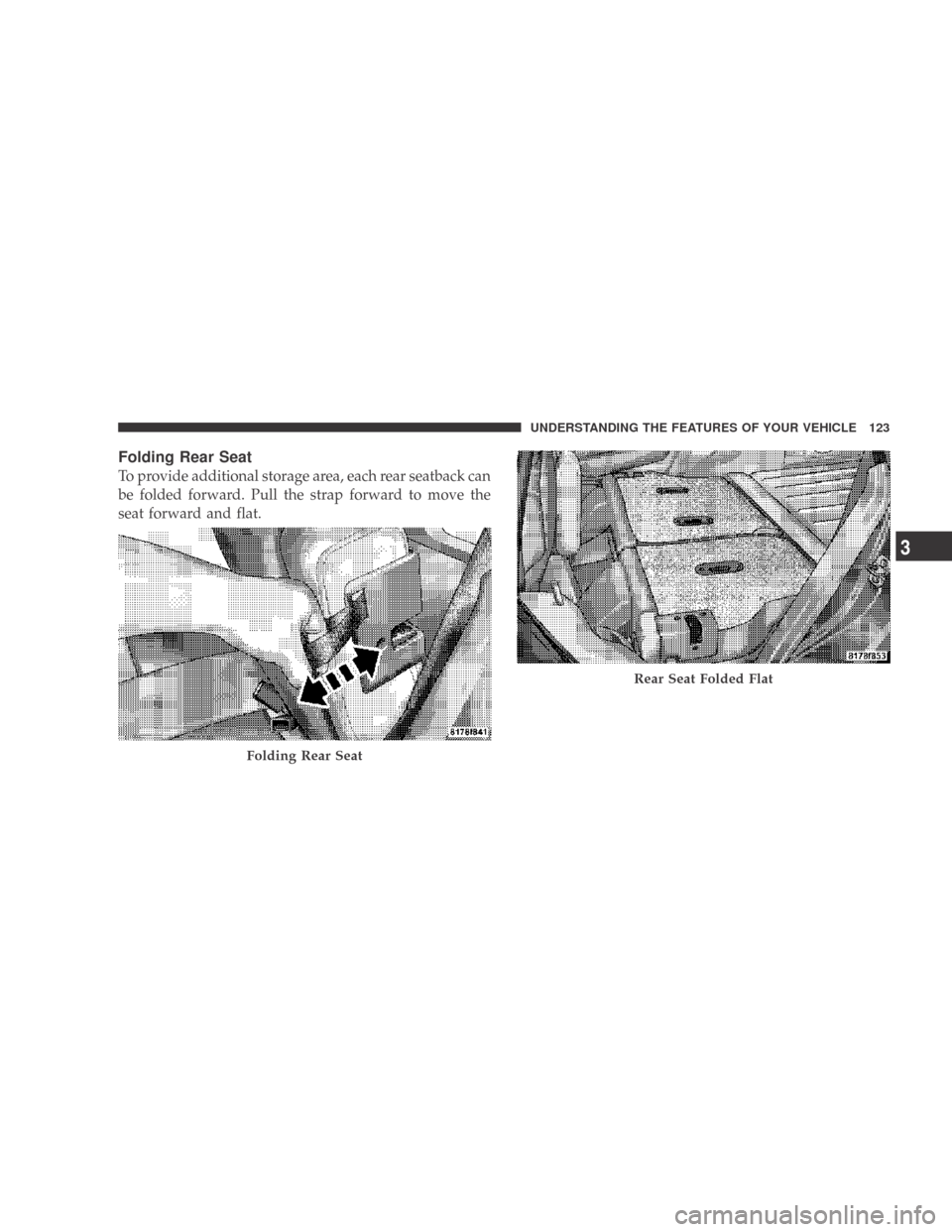

Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. Pull the strap forward to move the
seat forward and flat.
Folding Rear Seat
Rear Seat Folded Flat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

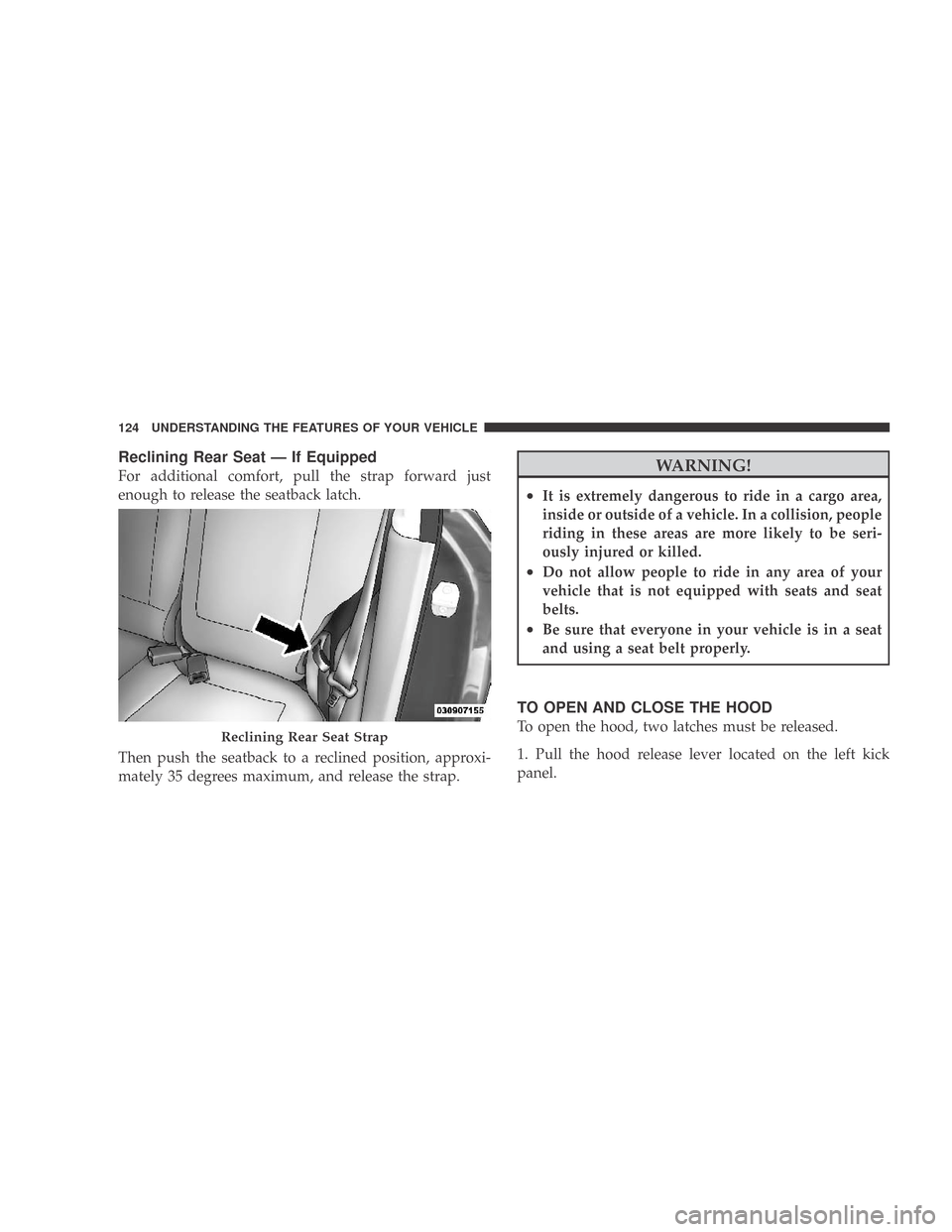

Reclining Rear Seat — If Equipped
For additional comfort, pull the strap forward just
enough to release the seatback latch.
Then push the seatback to a reclined position, approxi-
mately 35 degrees maximum, and release the strap.WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located on the left kick
panel.Reclining Rear Seat Strap
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

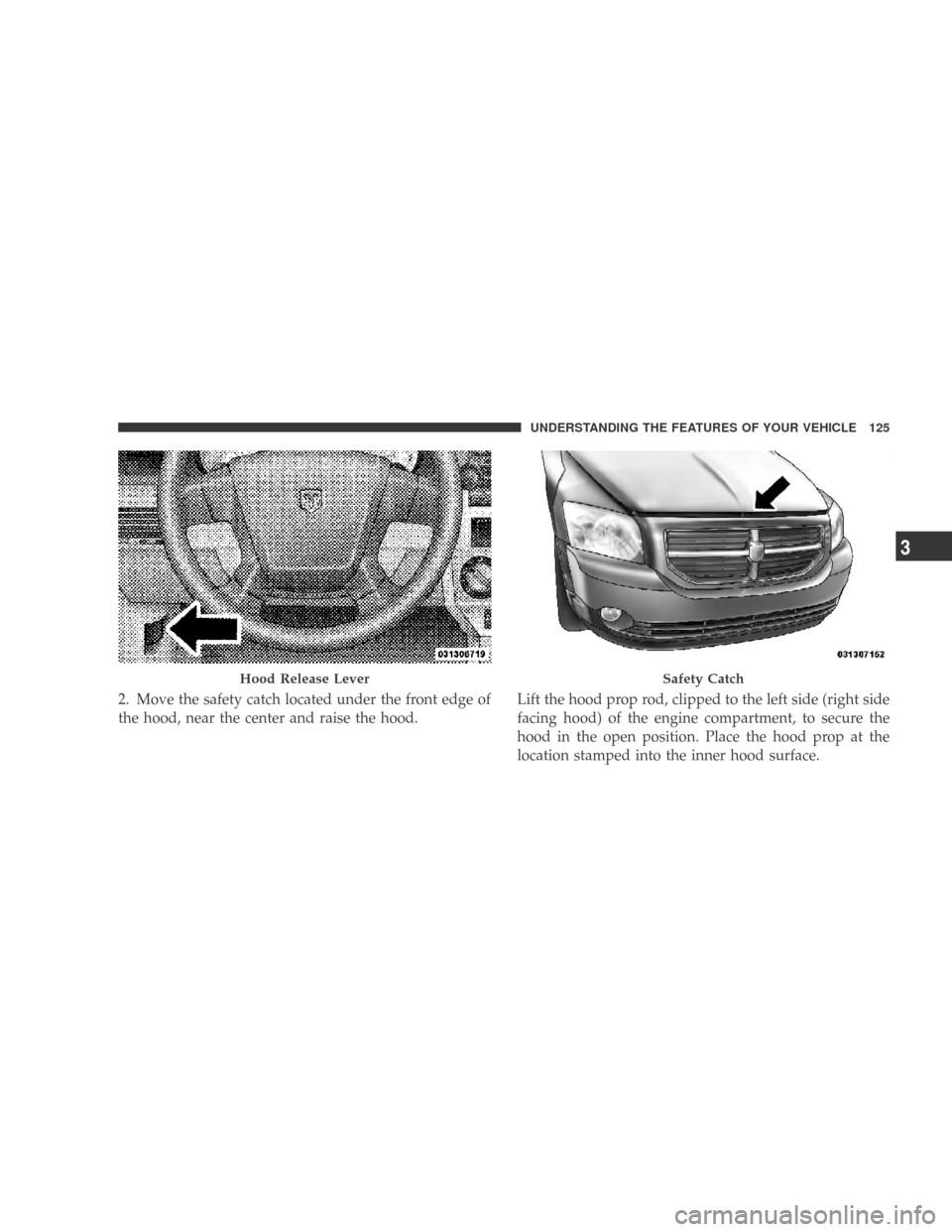

2. Move the safety catch located under the front edge of
the hood, near the center and raise the hood.Lift the hood prop rod, clipped to the left side (right side
facing hood) of the engine compartment, to secure the
hood in the open position. Place the hood prop at the
location stamped into the inner hood surface.
Hood Release LeverSafety Catch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approxi-
mately 8 in (20 cm) and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection, instrument panel light dimming, interior lights,
the passing lights, and fog lights. The multifunction lever
is located on the left side of the steering column.
Headlights, Parking Lights and Instrument Panel
Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn the multifunction lever
to the second detent for headlight operation.
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

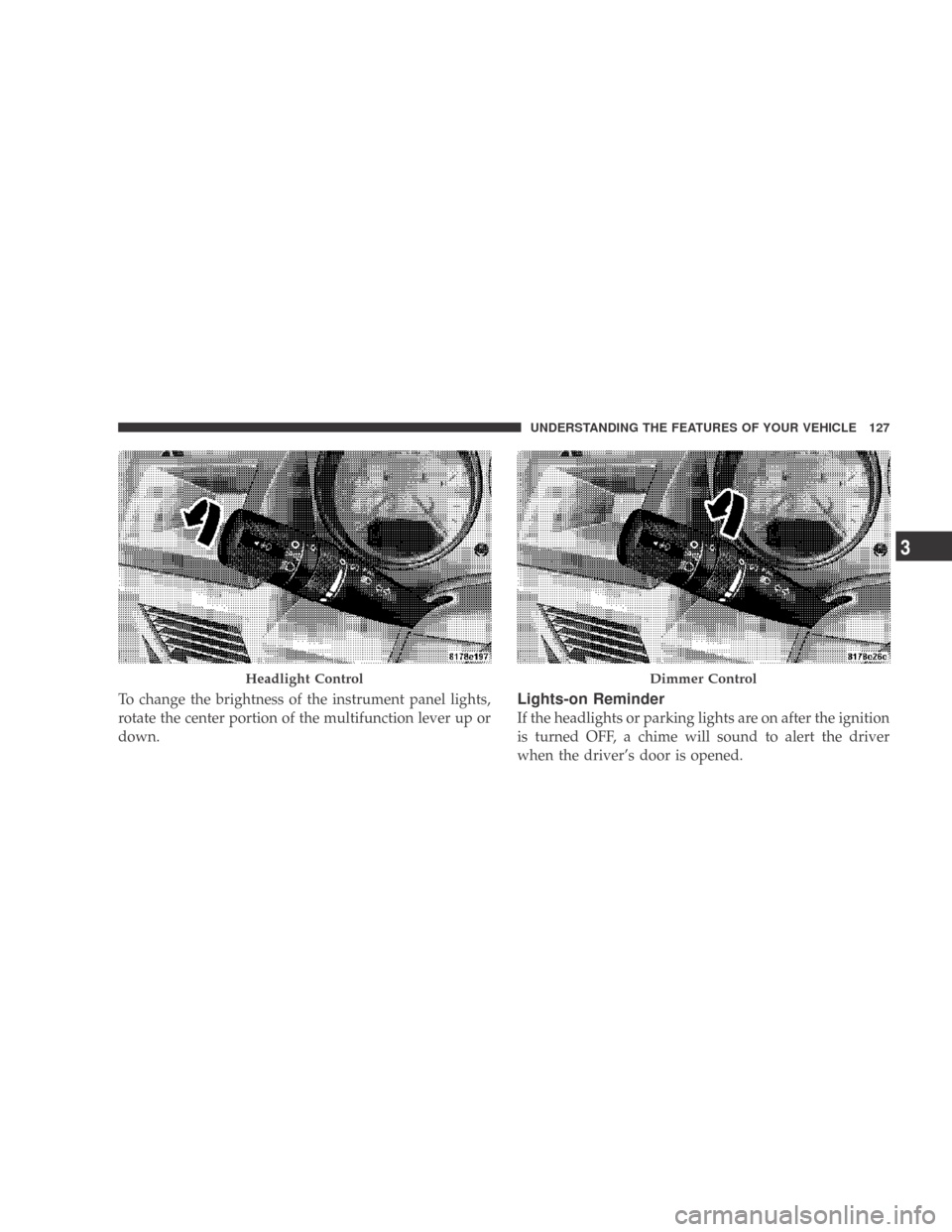

To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.Lights-on Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Headlight ControlDimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

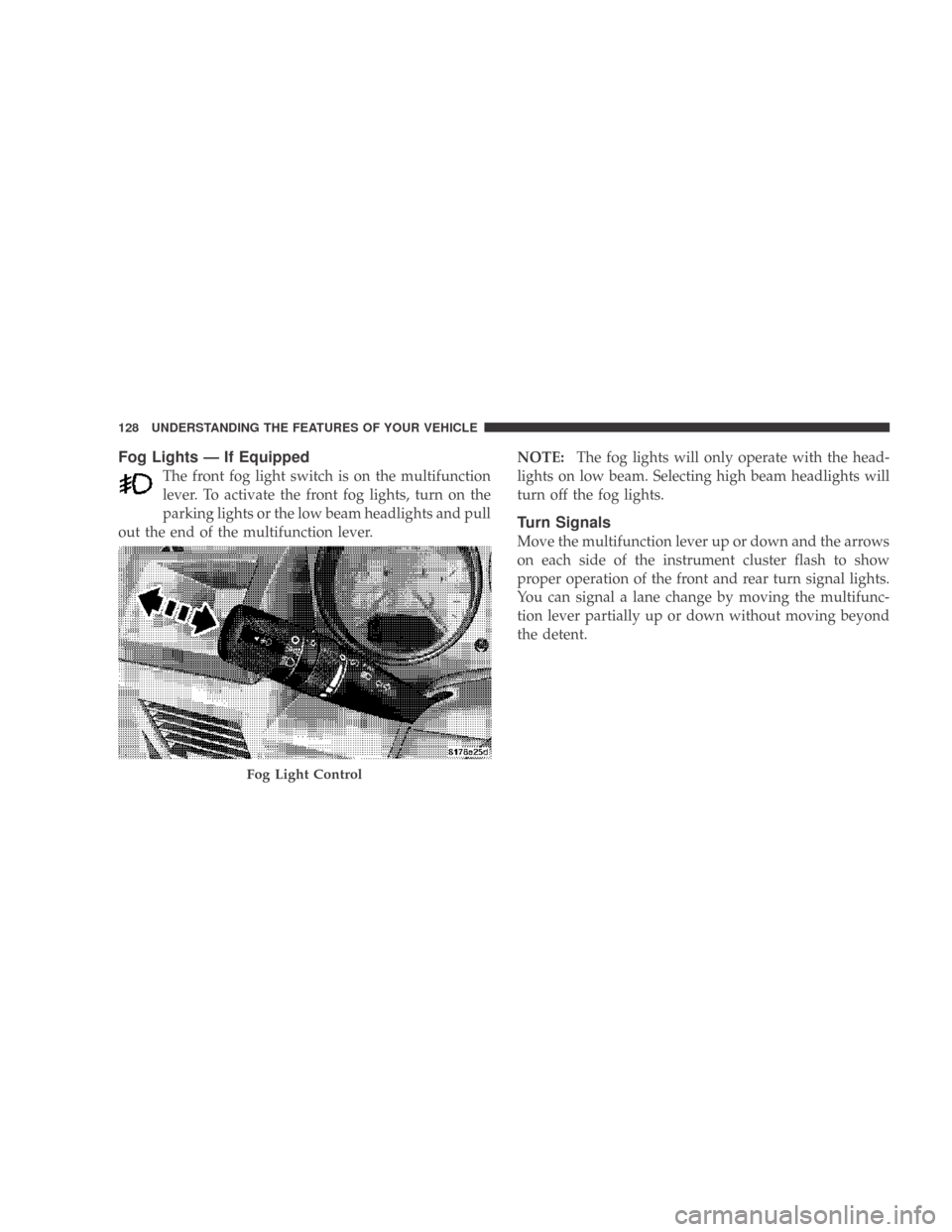

Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever. NOTE:
The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
You can signal a lane change by moving the multifunc-
tion lever partially up or down without moving beyond
the detent.
Fog Light Control
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
