DODGE CALIBER 2009 1.G Owners Manual

Cavity CartridgeFuseMini-
Fuse Description
8 30 Amp
Green IOD Sense2
9 40 Amp Green Power Seats
10 20 Amp
Yellow CCN Power Locks/
Interior Lighting
11 15 Amp
Lt Blue Power Outlet
12 20 Amp
Yellow Ign Run/Acc Inverter
13 20 Amp
Yellow Pwr Run/Acc Outlet
RR/Dome Lamp/
Cigar Lighter
14 10 Amp
Red IOD CCN
15 40 Amp Green RAD Fan Relay Bat-
tery FeedCavity Cartridge
FuseMini-
Fuse Description
16 15 Amp
Lt Blue IGN Run/Acc Dome
Lamp/Sunroof/Rear
Wiper Motor/ACC
Inverter
17 10 Amp
Red IOD Feed Mod-Wcm
18 40 Amp Green ASD Relay Contact
PWR Feed
19 20 Amp
Yellow PWR Amp 1 & Amp
2 Feed
20 15 Amp
Lt Blue IOD Feed Radio
21 10 Amp
Red IOD Feed Intrus
Mod/Siren (If
Equipped)
22 10 Amp
Red IGN RUN Heat/AC/
Compass Sensor
MAINTAINING YOUR VEHICLE 369
7

Cavity CartridgeFuseMini-
Fuse Description
23 15 Amp
Lt Blue ENG ASD Relay Feed
3
24 15 Amp
Lt Blue Power Sunroof Feed
25 10 Amp
Red Heated Mirror (If
Equipped)
26 15 Amp
Lt Blue ENG ASD Relay Feed
2
27 10 Amp
Red IGN RUN Only ORC
Feed
28 10 Amp
Red IGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
Yellow Heated Seat (If
Equipped)Cavity Cartridge
FuseMini-
Fuse Description
31 10 Amp
Red Headlamp Washer
Relay Control (If
Equipped)
32 30 Amp Pink ENG ASD Control
Feed 1
33 10 Amp
Red ABS MOD/J1962
Conn/PCM
34 30 Amp Pink ABS Valve Feed
35 40 Amp Green ABS Pump Feed
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass
(If Equipped)
37 25 Amp
Natural Diesel Fuel Heater —
If Equipped
370 MAINTAINING YOUR VEHICLE

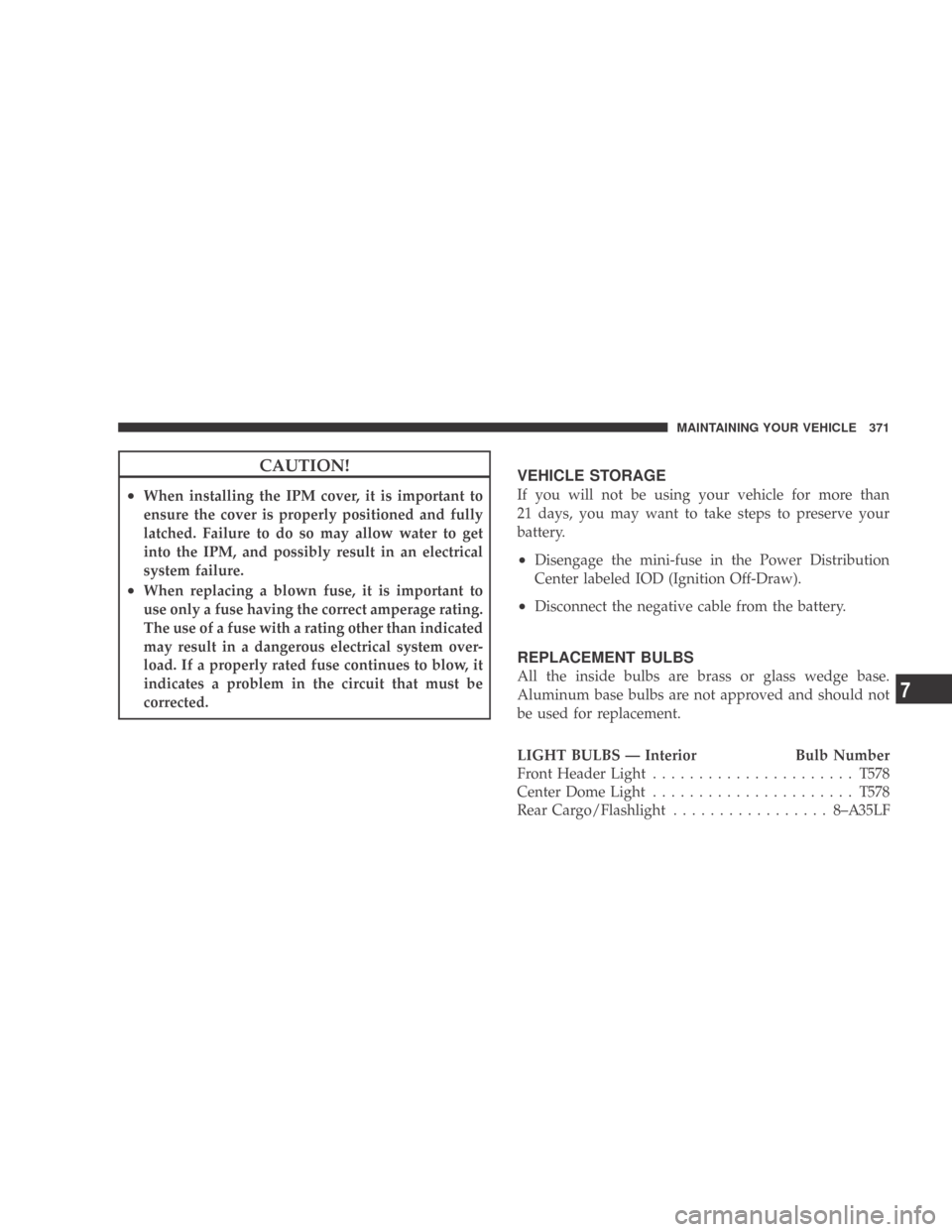

CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Header Light ...................... T578
Center Dome Light ...................... T578
Rear Cargo/Flashlight ................. 8–A35LF
MAINTAINING YOUR VEHICLE 371
7

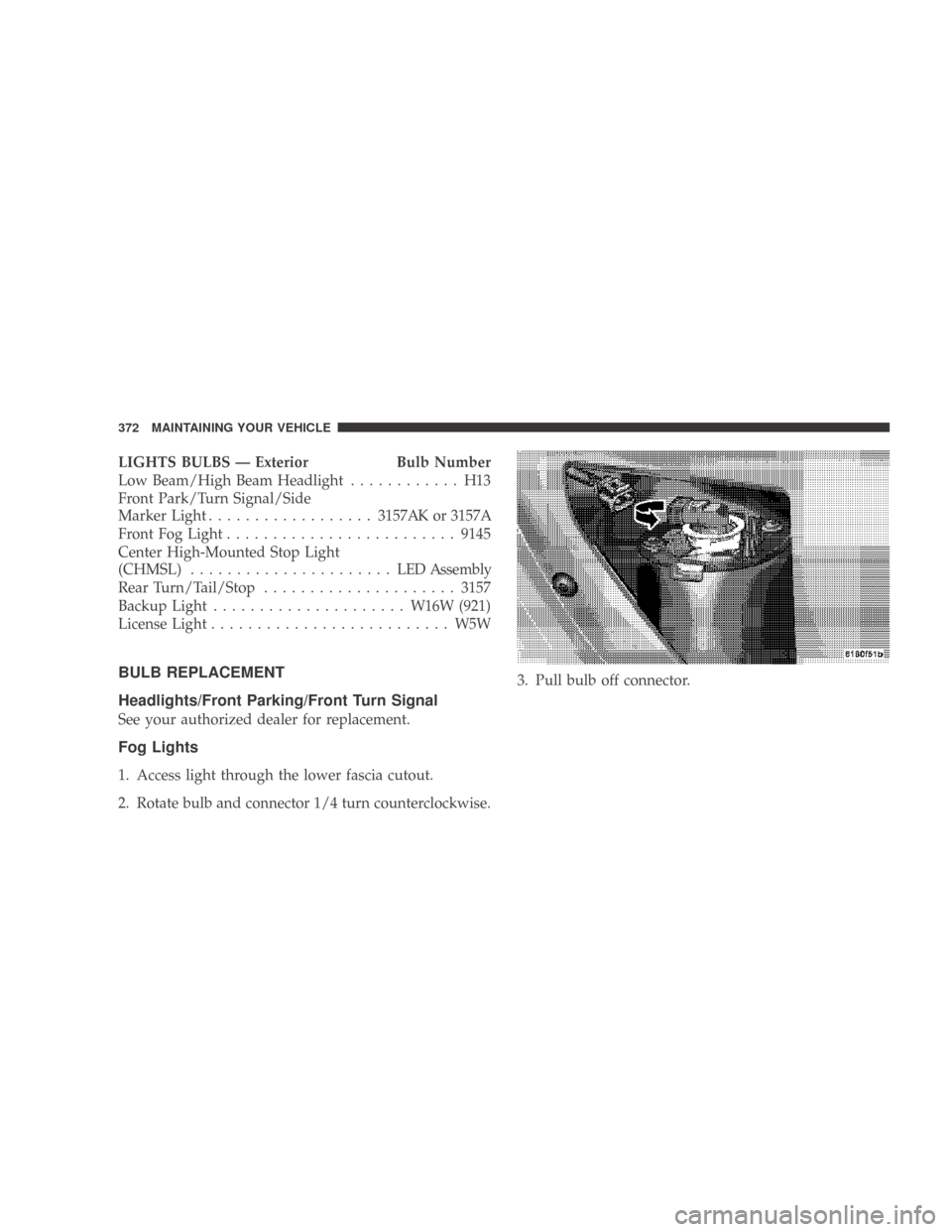

LIGHTS BULBS — ExteriorBulb Number
Low Beam/High Beam Headlight ............ H13
Front Park/Turn Signal/Side
Marker Light .................. 3157AK or 3157A
Front Fog Light ......................... 9145
Center High-Mounted Stop Light
(CHMSL) ...................... LED Assembly
Rear Turn/Tail/Stop ..................... 3157
Backup Light ..................... W16W (921)
License Light .......................... W5W
BULB REPLACEMENT
Headlights/Front Parking/Front Turn Signal
See your authorized dealer for replacement.
Fog Lights
1. Access light through the lower fascia cutout.
2. Rotate bulb and connector 1/4 turn counterclockwise. 3. Pull bulb off connector.
372 MAINTAINING YOUR VEHICLE

Tail Lights, Rear Turn Signals and Backup Lights
1. Remove the two push-pins from the tail light housing.2. Grasp the tail light and pull firmly to disengage the
light from the aperture panel.
MAINTAINING YOUR VEHICLE 373
7

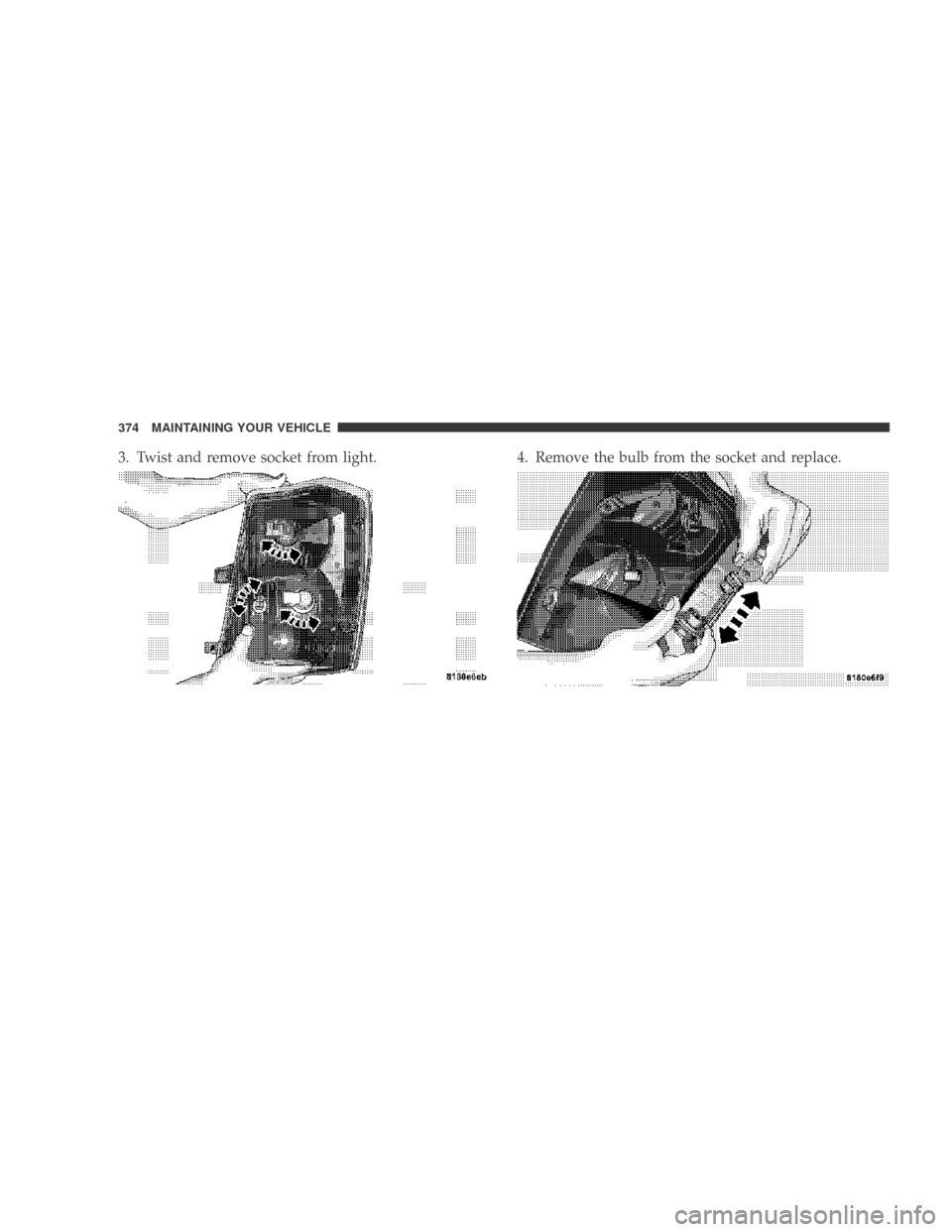

3. Twist and remove socket from light.4. Remove the bulb from the socket and replace.
374 MAINTAINING YOUR VEHICLE

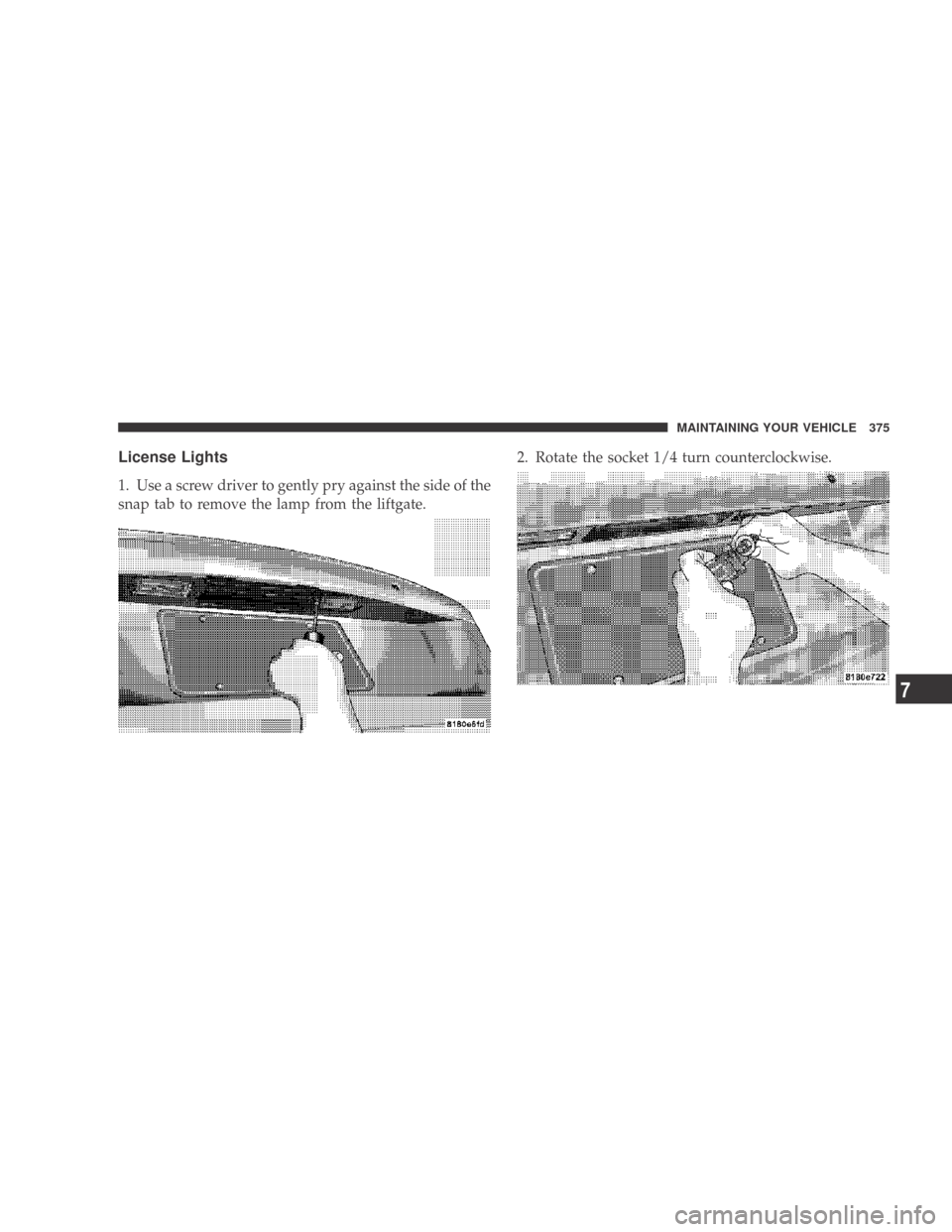

License Lights
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.2. Rotate the socket 1/4 turn counterclockwise.
MAINTAINING YOUR VEHICLE 375
7

3. Pull the bulb from the socket.Center High-Mounted Stoplight
The light is an LED assembly. See your authorized dealer
for replacement.
376 MAINTAINING YOUR VEHICLE

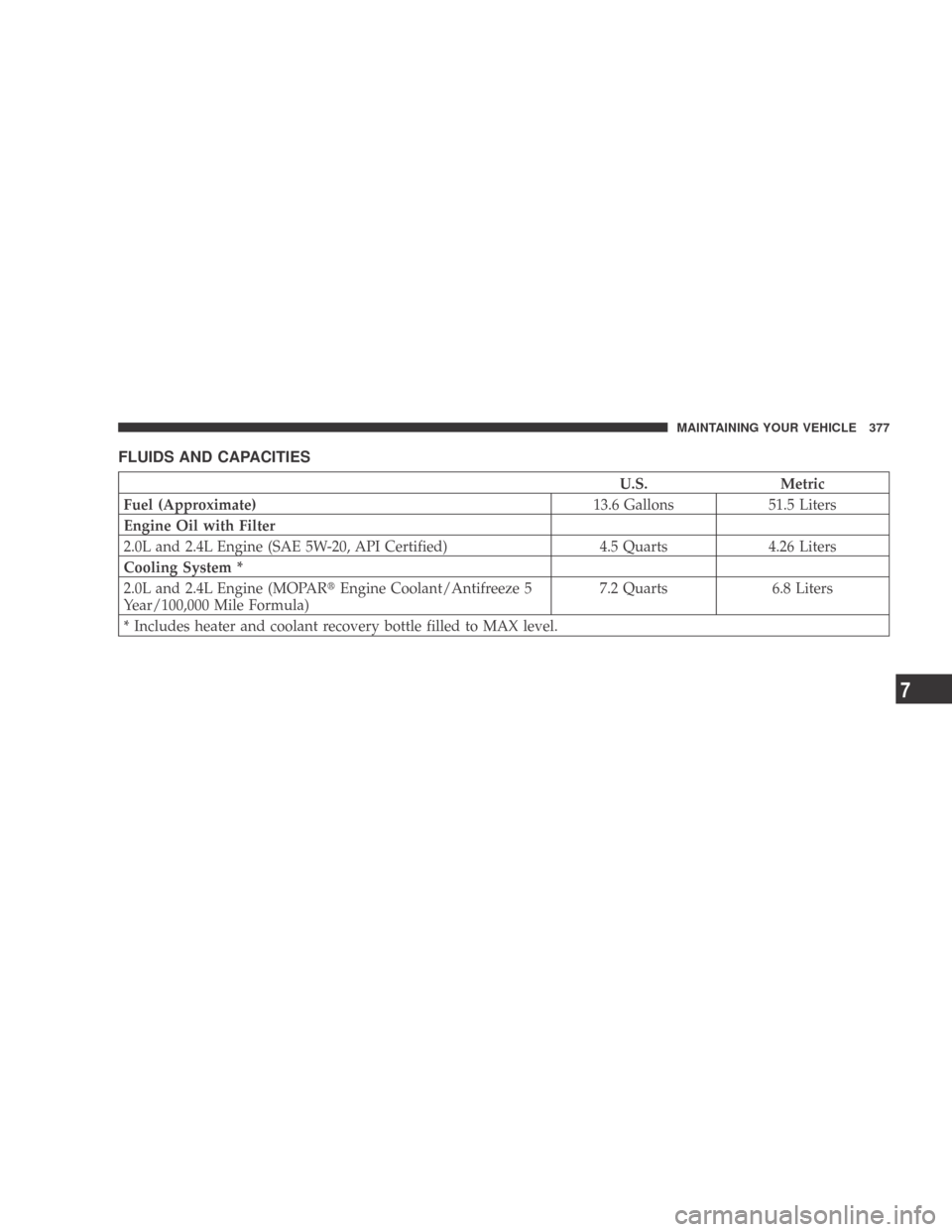

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate) 13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 377
7

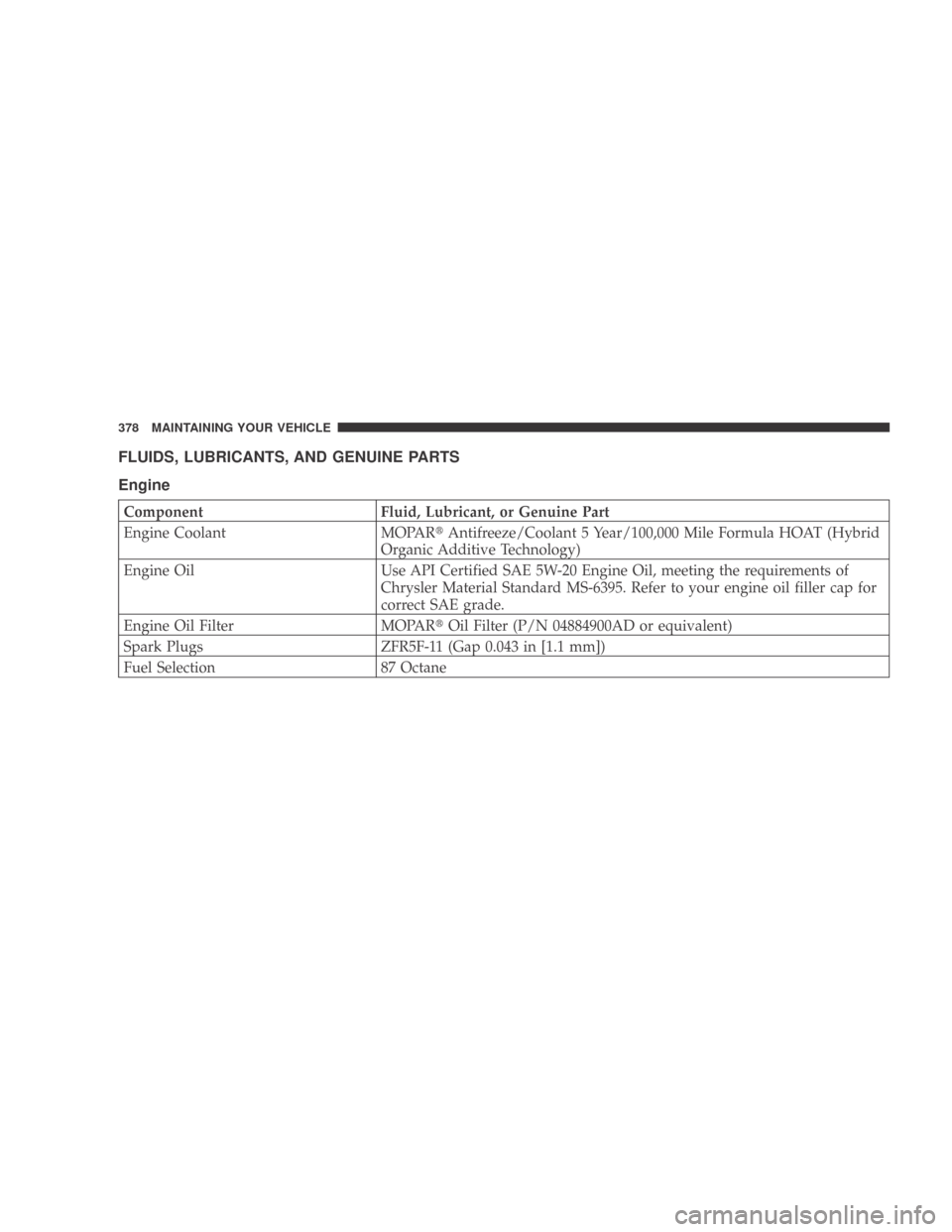

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAROil Filter (P/N 04884900AD or equivalent)
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
378 MAINTAINING YOUR VEHICLE
