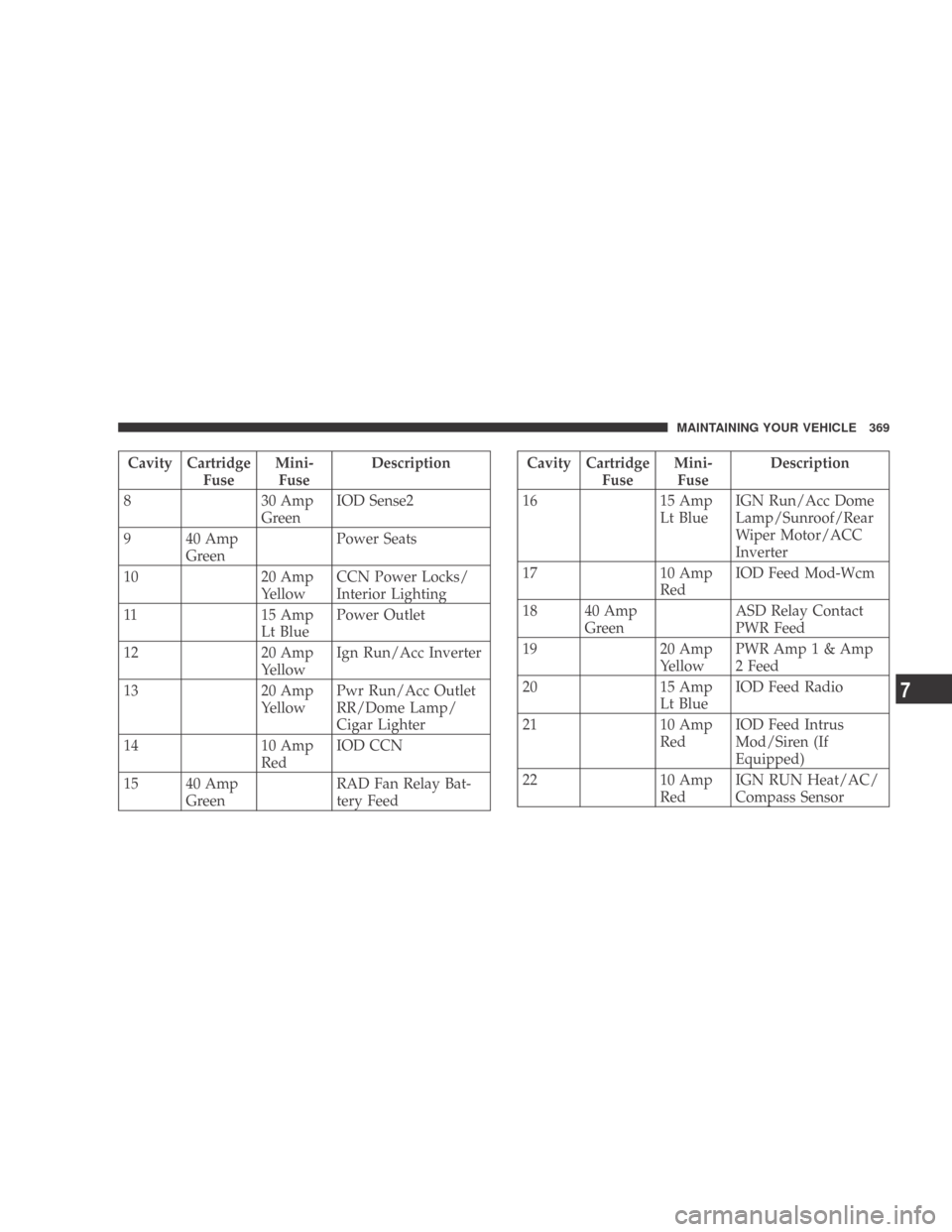

Cavity CartridgeFuseMini-
Fuse Description
8 30 Amp
Green IOD Sense2
9 40 Amp Green Power Seats
10 20 Amp
Yellow CCN Power Locks/
Interior Lighting
11 15 Amp
Lt Blue Power Outlet
12 20 Amp
Yellow Ign Run/Acc Inverter
13 20 Amp
Yellow Pwr Run/Acc Outlet
RR/Dome Lamp/
Cigar Lighter
14 10 Amp
Red IOD CCN
15 40 Amp Green RAD Fan Relay Bat-
tery FeedCavity Cartridge
FuseMini-
Fuse Description
16 15 Amp
Lt Blue IGN Run/Acc Dome
Lamp/Sunroof/Rear
Wiper Motor/ACC
Inverter
17 10 Amp
Red IOD Feed Mod-Wcm
18 40 Amp Green ASD Relay Contact
PWR Feed
19 20 Amp
Yellow PWR Amp 1 & Amp
2 Feed
20 15 Amp
Lt Blue IOD Feed Radio
21 10 Amp
Red IOD Feed Intrus
Mod/Siren (If
Equipped)
22 10 Amp
Red IGN RUN Heat/AC/
Compass Sensor
MAINTAINING YOUR VEHICLE 369
7

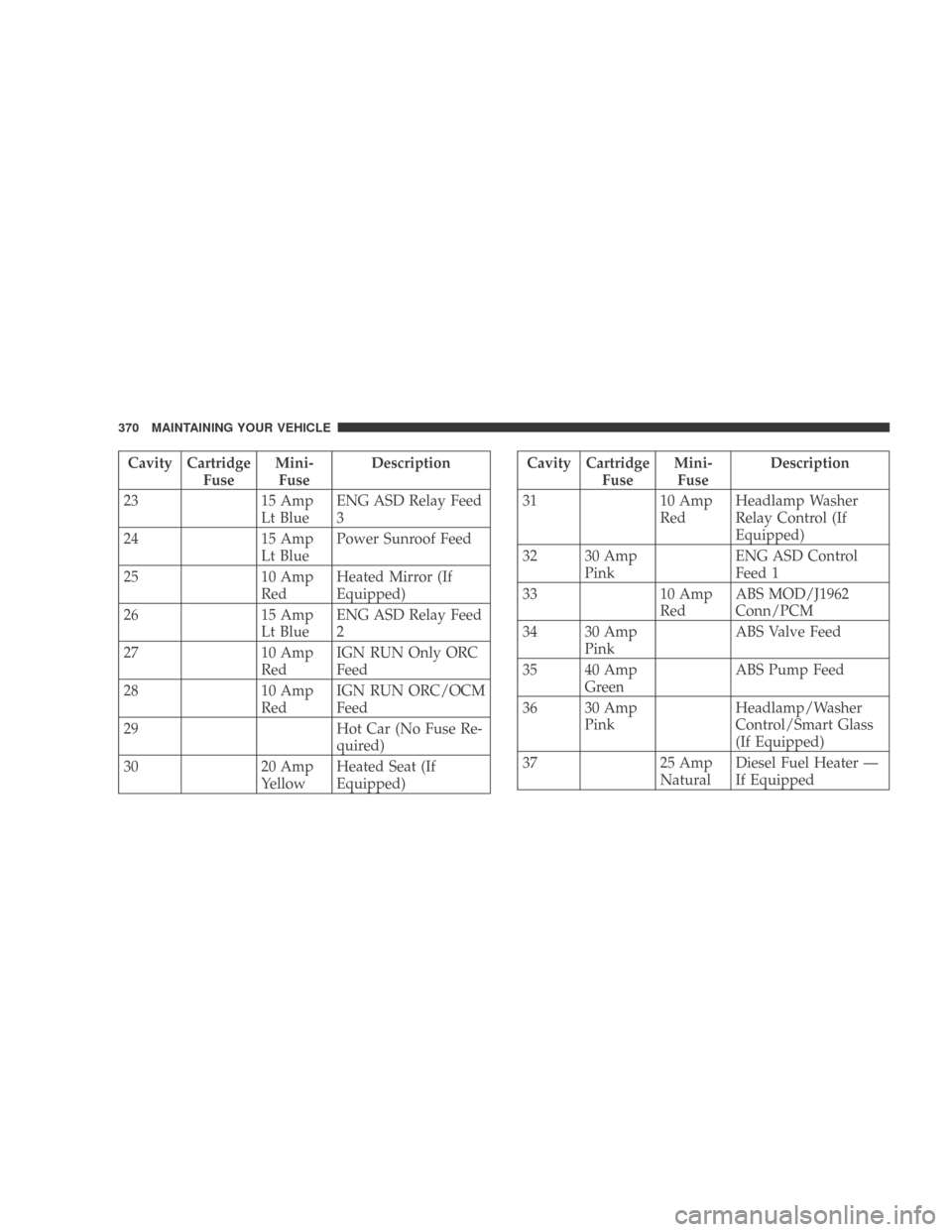

Cavity CartridgeFuseMini-
Fuse Description
23 15 Amp
Lt Blue ENG ASD Relay Feed
3
24 15 Amp
Lt Blue Power Sunroof Feed
25 10 Amp
Red Heated Mirror (If
Equipped)
26 15 Amp
Lt Blue ENG ASD Relay Feed
2
27 10 Amp
Red IGN RUN Only ORC
Feed
28 10 Amp
Red IGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
Yellow Heated Seat (If
Equipped)Cavity Cartridge
FuseMini-
Fuse Description
31 10 Amp
Red Headlamp Washer
Relay Control (If
Equipped)
32 30 Amp Pink ENG ASD Control
Feed 1
33 10 Amp
Red ABS MOD/J1962
Conn/PCM
34 30 Amp Pink ABS Valve Feed
35 40 Amp Green ABS Pump Feed
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass
(If Equipped)
37 25 Amp
Natural Diesel Fuel Heater —
If Equipped
