snow chains DODGE CALIBER 2010 1.G Owners Manual

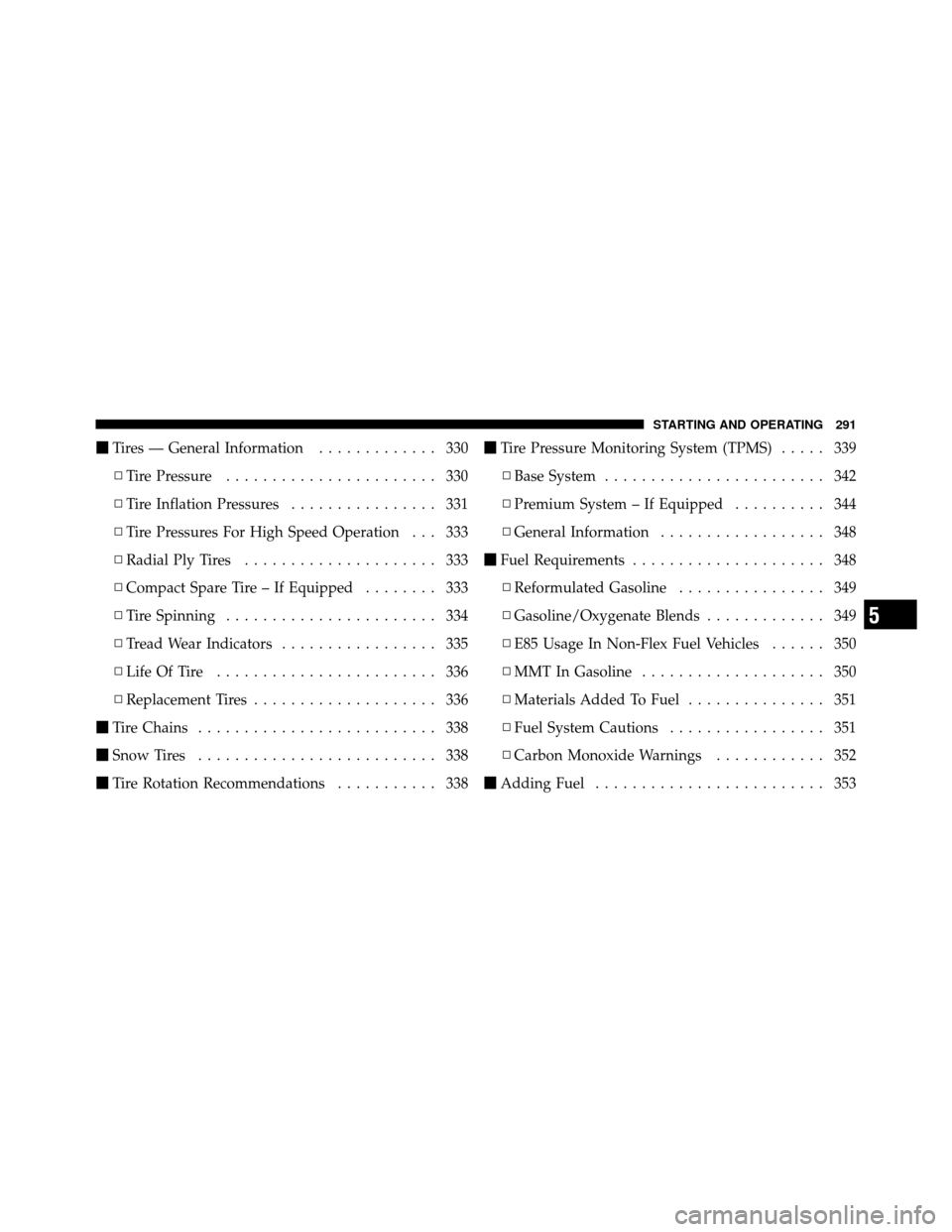

Tires — General Information ............. 330
▫ Tire Pressure ....................... 330
▫ Tire Inflation Pressures ................ 331
▫ Tire Pressures For High Speed Operation . . . 333
▫ Radial Ply Tires ..................... 333
▫ Compact Spare Tire – If Equipped ........ 333
▫ Tire Spinning ....................... 334
▫ Tread Wear Indicators ................. 335
▫ Life Of Tire ........................ 336
▫ Replacement Tires .................... 336
 Tire Chains .......................... 338
 Snow Tires .......................... 338
 Tire Rotation Recommendations ........... 338
Tire Pressure Monitoring System (TPMS) ..... 339
▫ Base System ........................ 342
▫ Premium System – If Equipped .......... 344
▫ General Information .................. 348
 Fuel Requirements ..................... 348
▫ Reformulated Gasoline ................ 349
▫ Gasoline/Oxygenate Blends ............. 349
▫ E85 Usage In Non-Flex Fuel Vehicles ...... 350
▫ MMT In Gasoline .................... 350
▫ Materials Added To Fuel ............... 351
▫ Fuel System Cautions ................. 351
▫ Carbon Monoxide Warnings ............ 352
 Adding Fuel ......................... 353
5
STARTING AND OPERATING 291

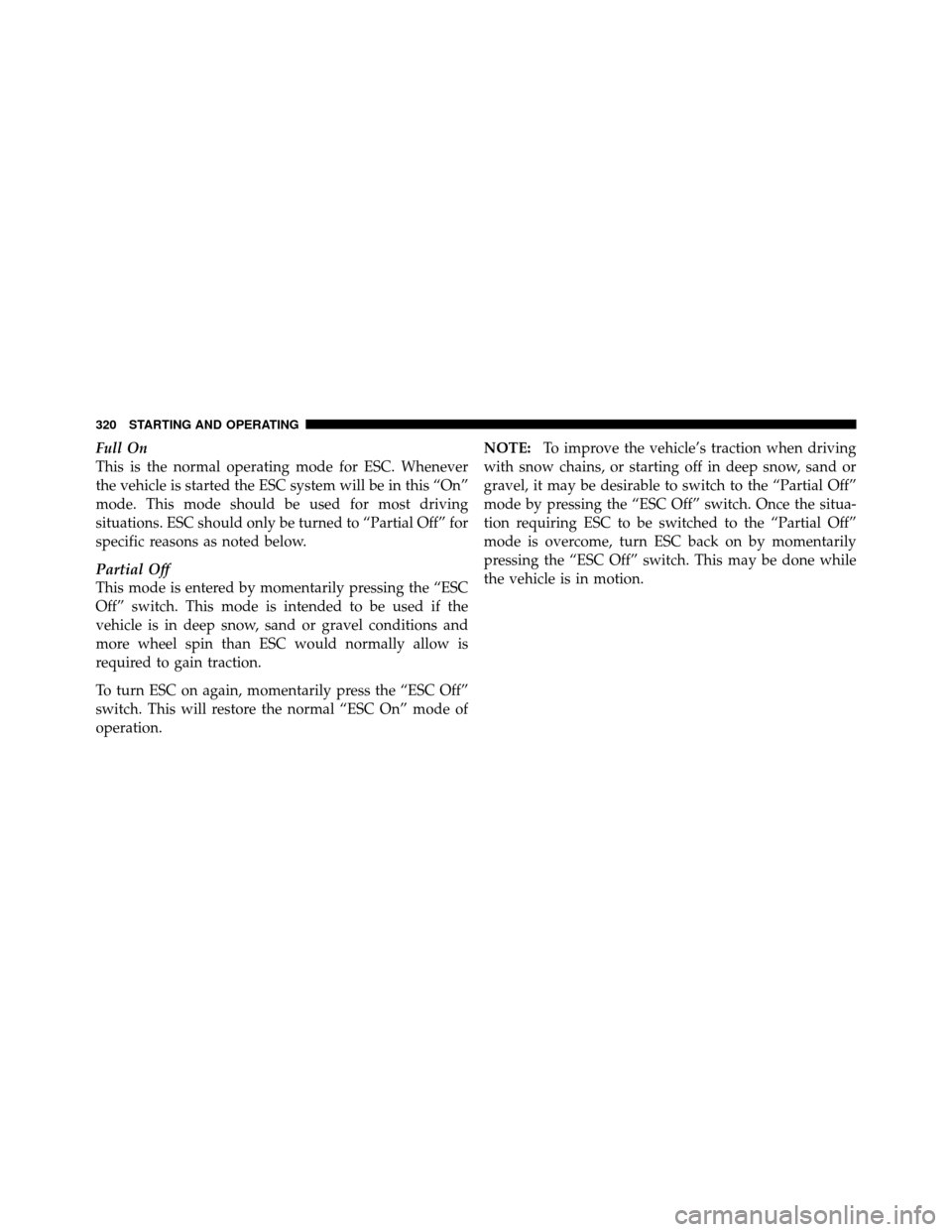

Full On
This is the normal operating mode for ESC. Whenever
the vehicle is started the ESC system will be in this “On”
mode. This mode should be used for most driving
situations. ESC should only be turned to “Partial Off” for
specific reasons as noted below.
Partial Off
This mode is entered by momentarily pressing the “ESC
Off” switch. This mode is intended to be used if the
vehicle is in deep snow, sand or gravel conditions and
more wheel spin than ESC would normally allow is
required to gain traction.
To turn ESC on again, momentarily press the “ESC Off”
switch. This will restore the normal “ESC On” mode of
operation.NOTE:
To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the “ESC Off” switch. Once the situa-
tion requiring ESC to be switched to the “Partial Off”
mode is overcome, turn ESC back on by momentarily
pressing the “ESC Off” switch. This may be done while
the vehicle is in motion.
320 STARTING AND OPERATING

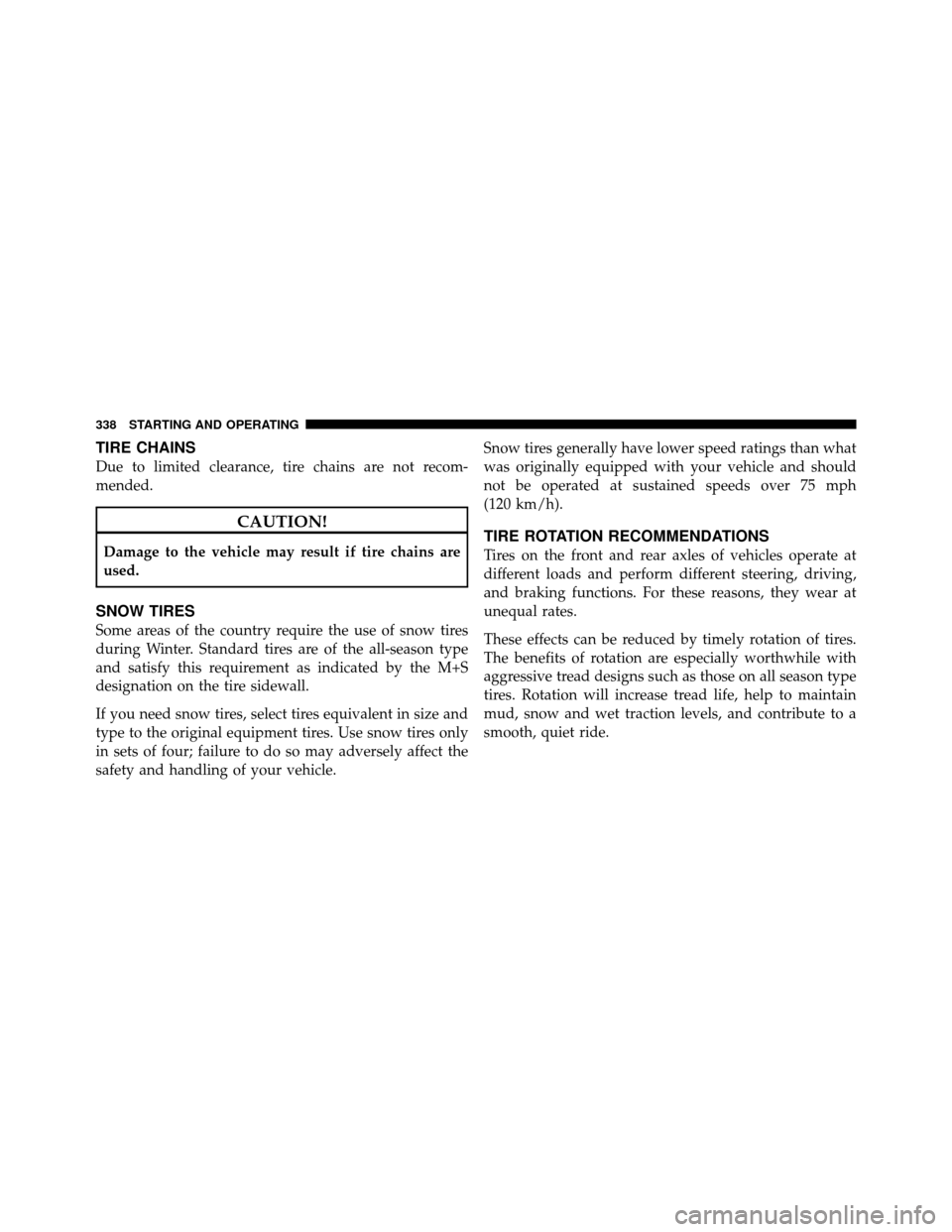

TIRE CHAINS
Due to limited clearance, tire chains are not recom-
mended.
CAUTION!
Damage to the vehicle may result if tire chains are
used.
SNOW TIRES
Some areas of the country require the use of snow tires
during Winter. Standard tires are of the all-season type
and satisfy this requirement as indicated by the M+S
designation on the tire sidewall.
If you need snow tires, select tires equivalent in size and
type to the original equipment tires. Use snow tires only
in sets of four; failure to do so may adversely affect the
safety and handling of your vehicle.Snow tires generally have lower speed ratings than what
was originally equipped with your vehicle and should
not be operated at sustained speeds over 75 mph
(120 km/h).
TIRE ROTATION RECOMMENDATIONS
Tires on the front and rear axles of vehicles operate at
different loads and perform different steering, driving,
and braking functions. For these reasons, they wear at
unequal rates.
These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on all season type
tires. Rotation will increase tread life, help to maintain
mud, snow and wet traction levels, and contribute to a
smooth, quiet ride.
338 STARTING AND OPERATING

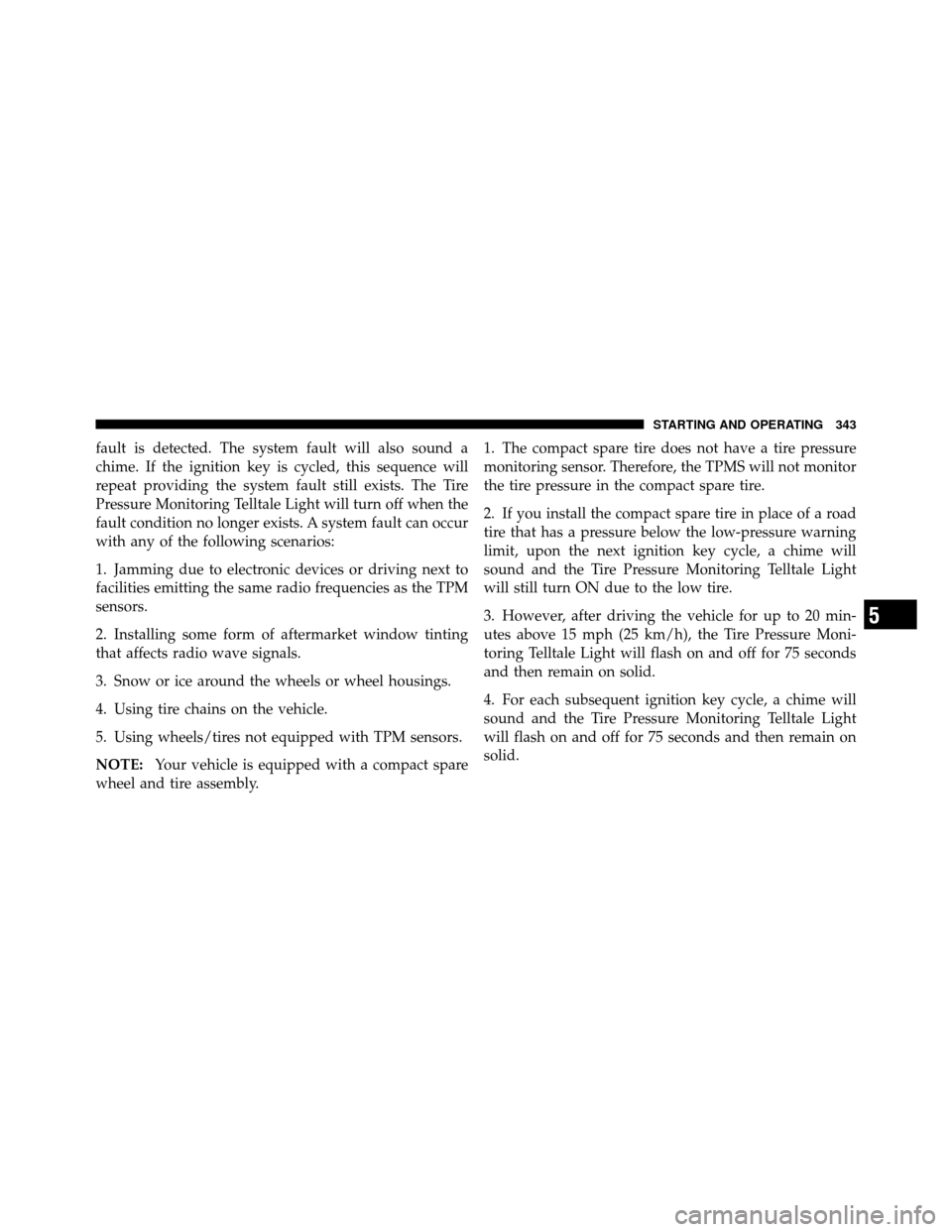

fault is detected. The system fault will also sound a
chime. If the ignition key is cycled, this sequence will
repeat providing the system fault still exists. The Tire
Pressure Monitoring Telltale Light will turn off when the
fault condition no longer exists. A system fault can occur
with any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE:Your vehicle is equipped with a compact spare
wheel and tire assembly. 1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the tire pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will still turn ON due to the low tire.
3. However, after driving the vehicle for up to 20 min-
utes above 15 mph (25 km/h), the Tire Pressure Moni-
toring Telltale Light will flash on and off for 75 seconds
and then remain on solid.
4. For each subsequent ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will flash on and off for 75 seconds and then remain on
solid.
5
STARTING AND OPERATING 343

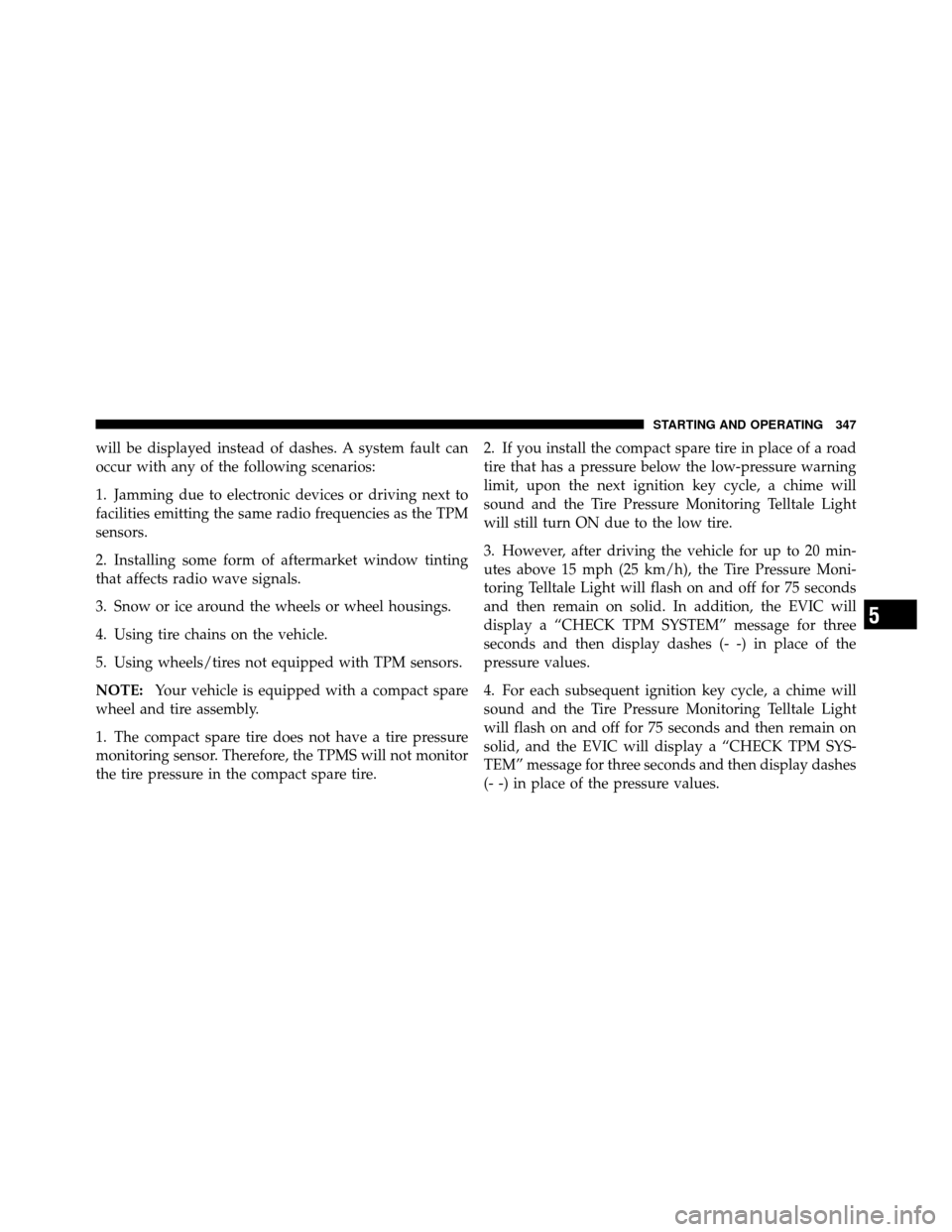

will be displayed instead of dashes. A system fault can
occur with any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE:Your vehicle is equipped with a compact spare
wheel and tire assembly.
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the tire pressure in the compact spare tire. 2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will still turn ON due to the low tire.
3. However, after driving the vehicle for up to 20 min-
utes above 15 mph (25 km/h), the Tire Pressure Moni-
toring Telltale Light will flash on and off for 75 seconds
and then remain on solid. In addition, the EVIC will
display a “CHECK TPM SYSTEM” message for three
seconds and then display dashes (- -) in place of the
pressure values.
4. For each subsequent ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will flash on and off for 75 seconds and then remain on
solid, and the EVIC will display a “CHECK TPM SYS-
TEM” message for three seconds and then display dashes
(- -) in place of the pressure values.
5
STARTING AND OPERATING 347

Seat Belt Reminder....................... 55
Seat Belts .............................. 87
Adjustable Shoulder Belt .................. 44
Adjustable Upper Shoulder Anchorage ........ 44
And Pregnant Women ................... 56
Child Restraint ........................ 74
Front Seat ............................ 39
Inspection ............................ 87
Pretensioners .......................... 50
Rear Seat ............................. 39
Seat Belts (Sedan) ........................ 37
Seats ................................. 132
Adjustment .......................... 133
Heated ............................. 137
Lumbar Support ....................... 134
Rear Folding ......................... 142
Rear Folding (Sedan) ................... 142
Seatback Release ....................... 135
Tilting .............................. 135 Security Alarm (Theft Alarm)
................ 17
Selection of Oil ......................... 398
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 457
Service Contract ......................... 459
Service Engine Soon Light
(Malfunction Indicator) .................... 203
Service Manuals ........................ 461
Setting the Clock .............218,233,235,238,247
Settings, Personal ........................ 211
Shift Speeds, Manual Transaxle .............. 297
Shoulder Belts ........................... 39
Side Airbag ............................. 67
Side Window Demisters (Defrosters) .......... 286
Signals, Turn ...................... 89,200,429
Slippery Surfaces, Driving On ............... 304
Snow Chains (Tire Chains) ................. 338
478 INDEX

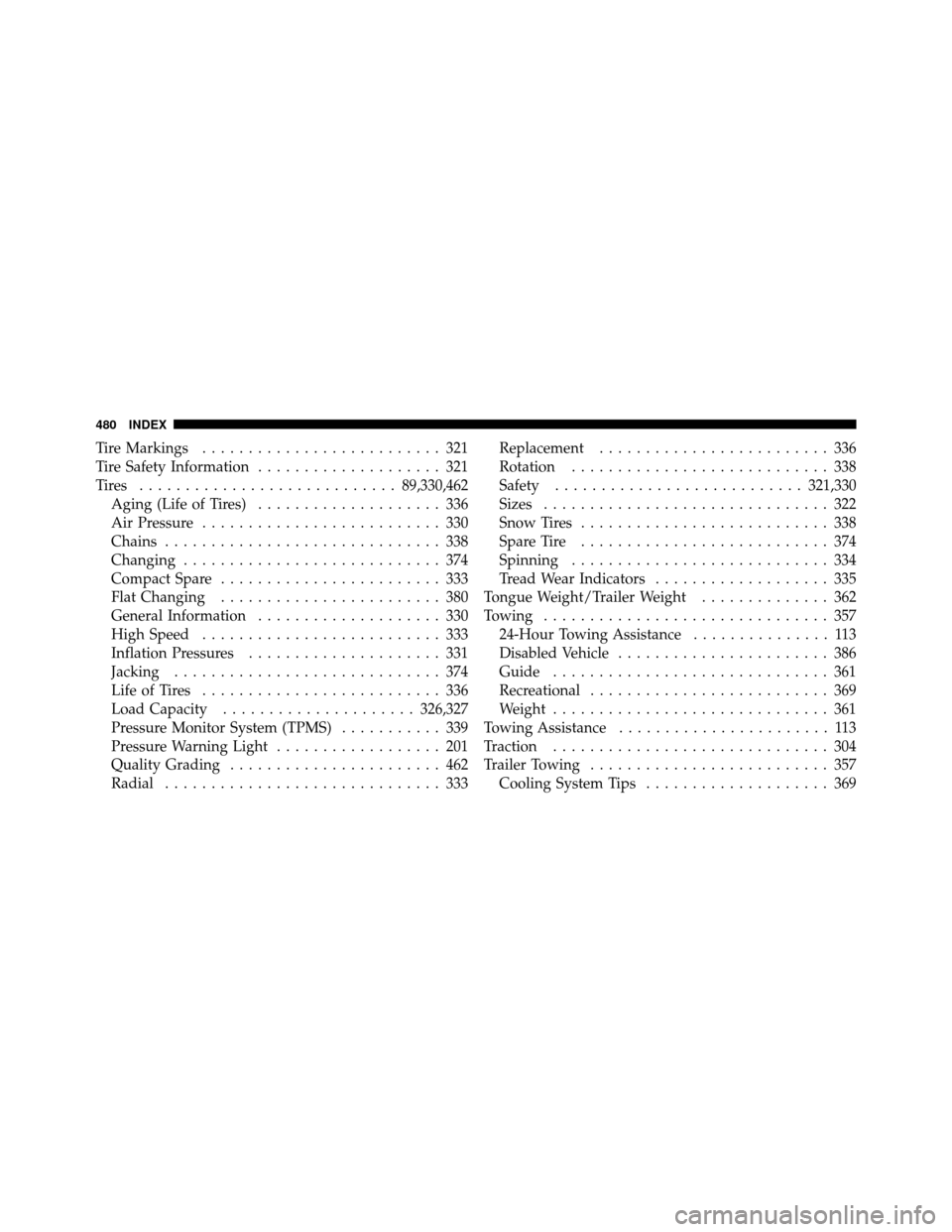

Tire Markings.......................... 321
Tire Safety Information .................... 321
Tires ............................ 89,330,462
Aging (Life of Tires) .................... 336
Air Pressure .......................... 330
Chains .............................. 338
Changing ............................ 374
Compact Spare ........................ 333
Flat Changing ........................ 380
General Information .................... 330
High Speed .......................... 333
Inflation Pressures ..................... 331
Jacking ............................. 374
Life of Tires .......................... 336
Load Capacity ..................... 326,327
Pressure Monitor System (TPMS) ........... 339
Pressure Warning Light .................. 201
Quality Grading ....................... 462
Radial .............................. 333 Replacement
......................... 336
Rotation ............................ 338
Safety ........................... 321,330
Sizes ............................... 322
Snow Tires ........................... 338
Spare Tire ........................... 374
Spinning ............................ 334
Tread Wear Indicators ................... 335
Tongue Weight/Trailer Weight .............. 362
Towing ............................... 357
24-Hour Towing Assistance ............... 113
Disabled Vehicle ....................... 386
Guide .............................. 361
Recreational .......................... 369
Weight .............................. 361
Towing Assistance ....................... 113
Traction .............................. 304
Trailer Towing .......................... 357
Cooling System Tips .................... 369
480 INDEX
